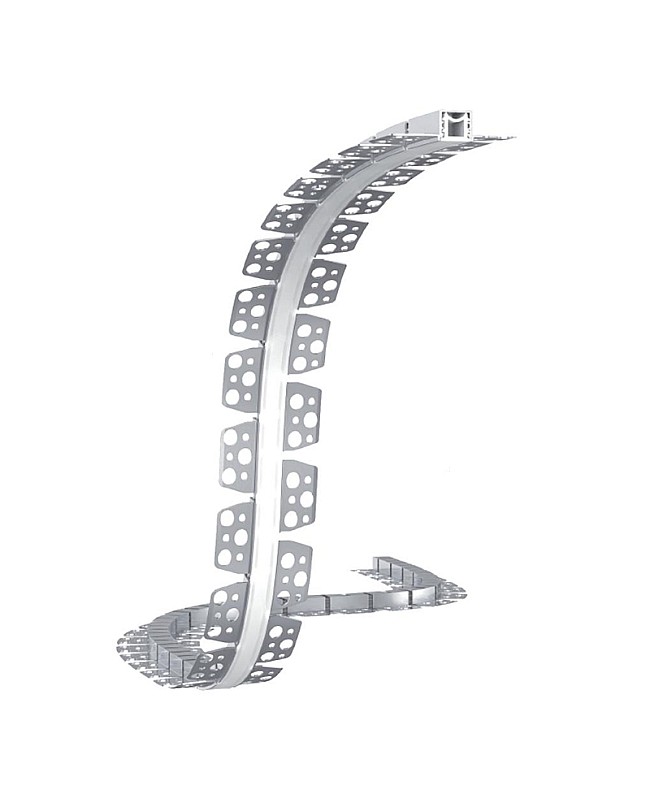

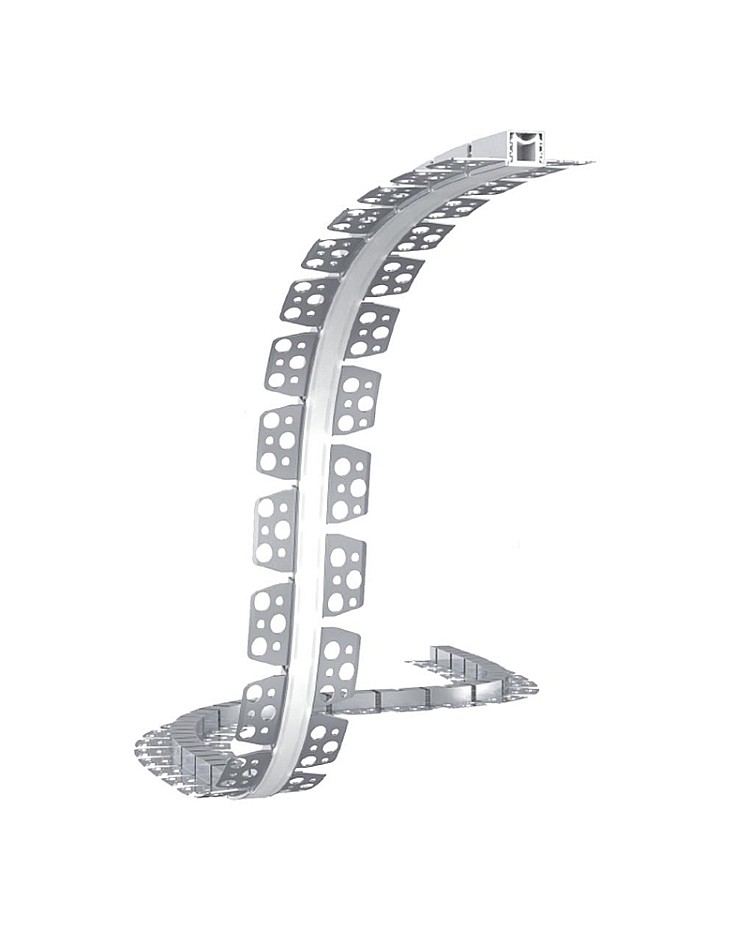

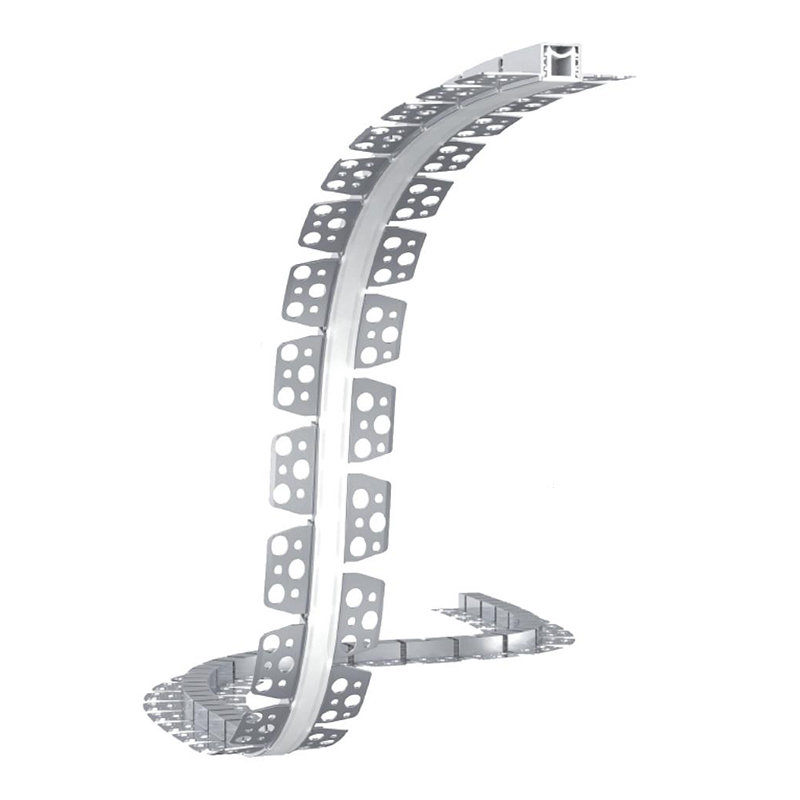

The flexible LED strip light housings are specifically designed for seamless integration into plasterboards and drywalls, enabling smooth, curved lighting. The bendable structure allows you to achieve elegant, curved, circular, and wave-shaped lighting designs while maintaining a clean, modern architectural appearance.
The bendable LED housing is ideal for recessed strip light installations in ceilings, walls, and other uneven areas that traditional rigid LED profiles cannot accommodate. After being installed and plastered in, the trimless design creates an invisible lighting effect, leaving only a smooth line of illumination visible. This results in a professional, minimalist finish for residential, commercial, and other settings.
They are crafted from durable aluminum for improved heat dissipation, extending the lifespan of your LED lights and ensuring stable performance. The flexible LED strips will be securely held inside to protect from dust, moisture, and physical damage. The standard lengths are 1m and 2m, and custom lengths are also supported. We have listed three product sizes to allow you to add high-density COB or Zig-Zag SMD LED strips of different widths as the light source to reduce LED dots.

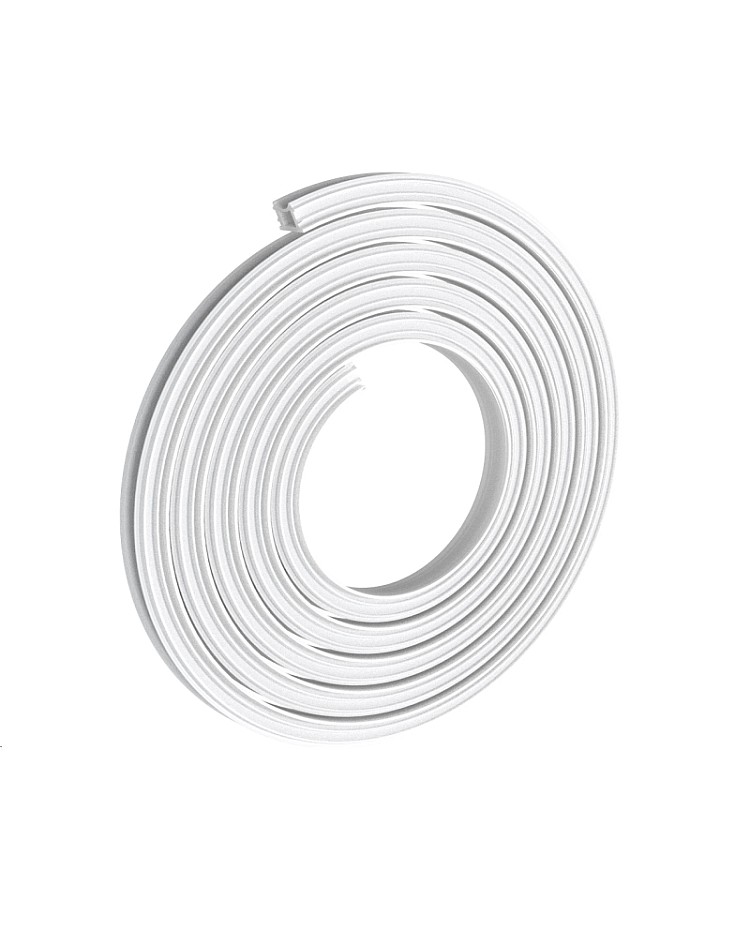

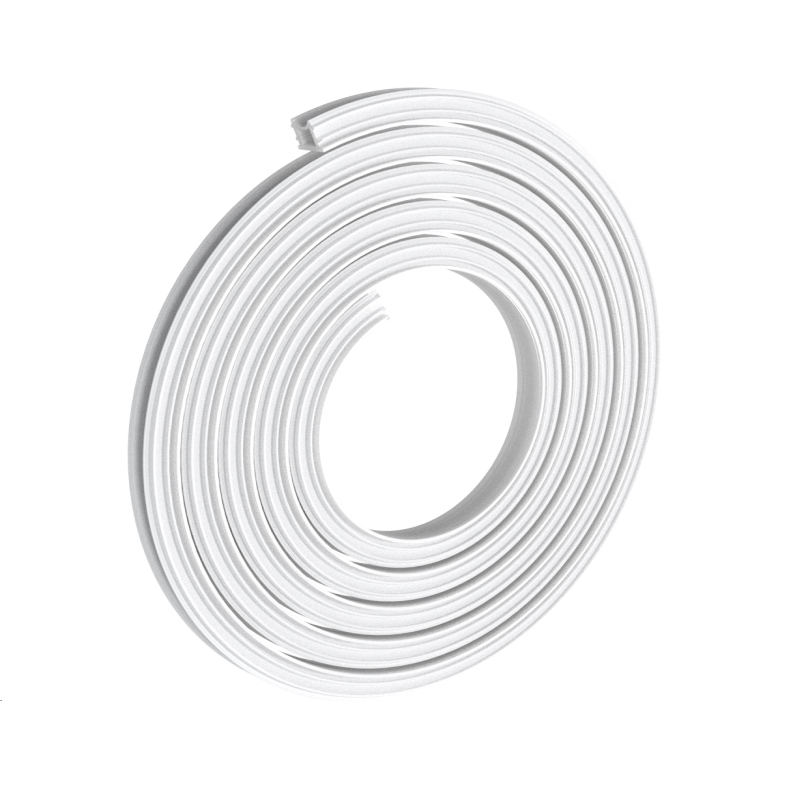

The maximum length of the silicone diffused covers is 20m per roll, which softens and evenly distributes the light output, reducing hotspots and glare for comfortable lighting. You can easily create continuous curved lighting without a gap.
Specifications:
- Type: Bendable plaster-in LED strip housing

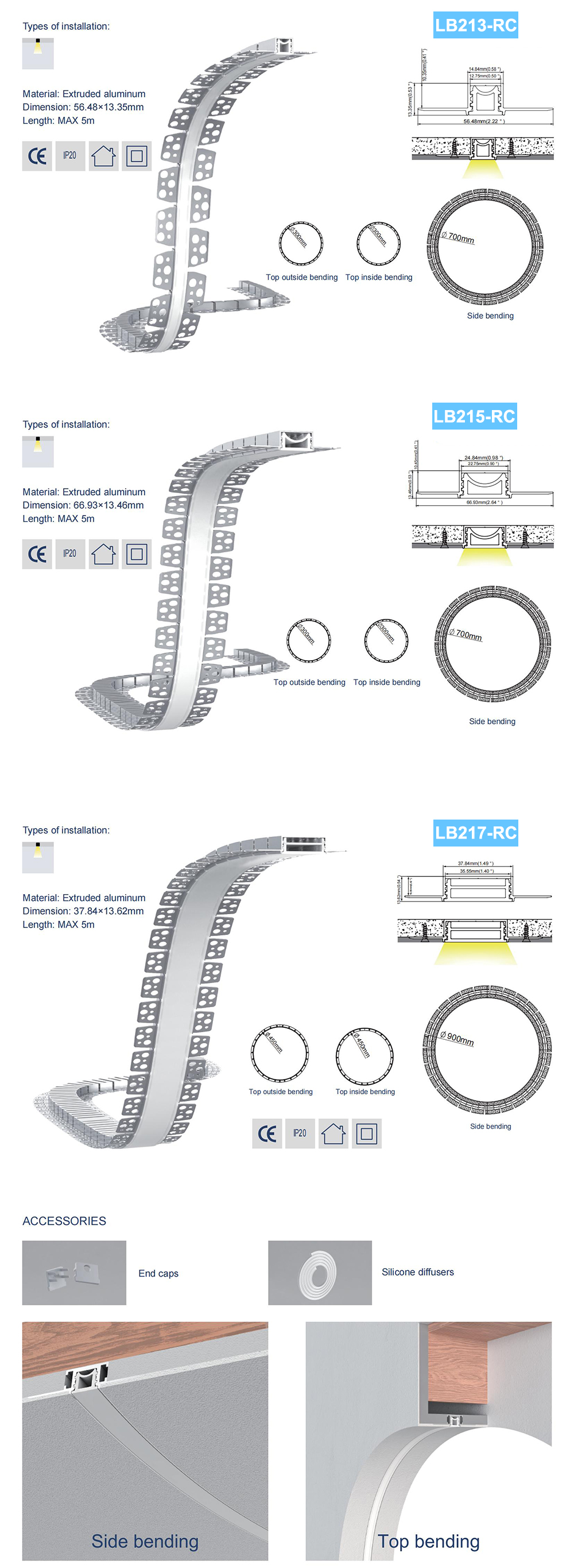

- Models: LB213-RC, LB215-RC, LB217-RC
- Material: Extruded aluminum
- Surface treatment: Anodized
- Color: Silver

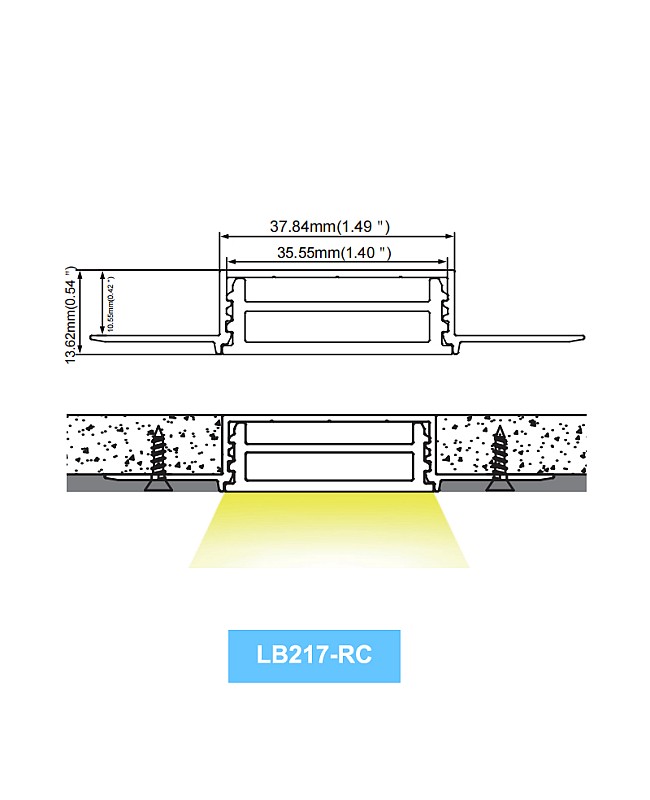

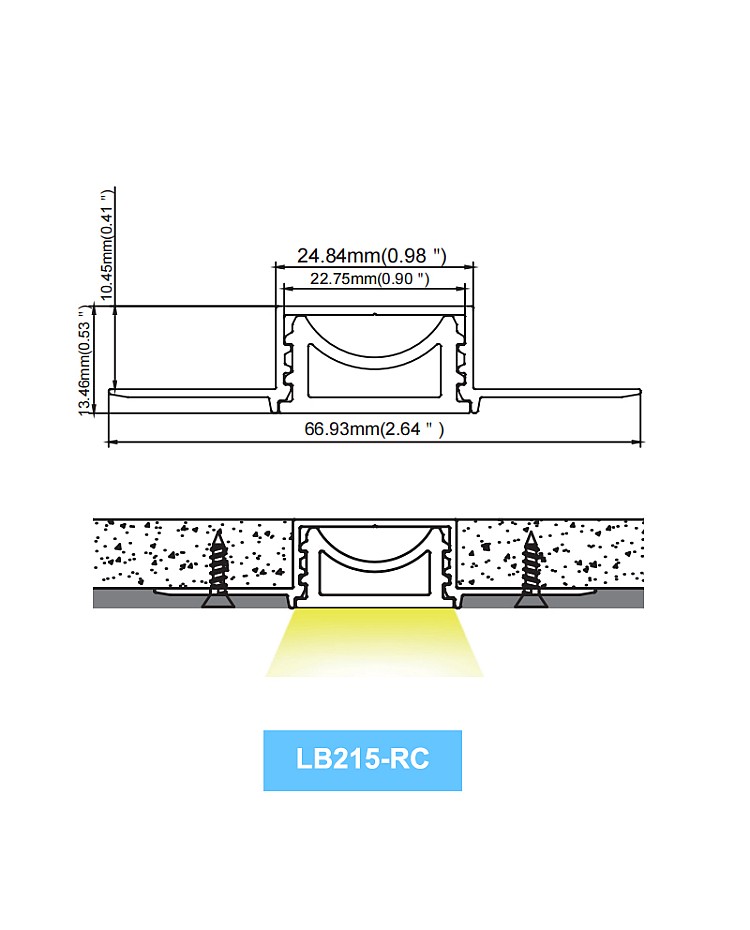

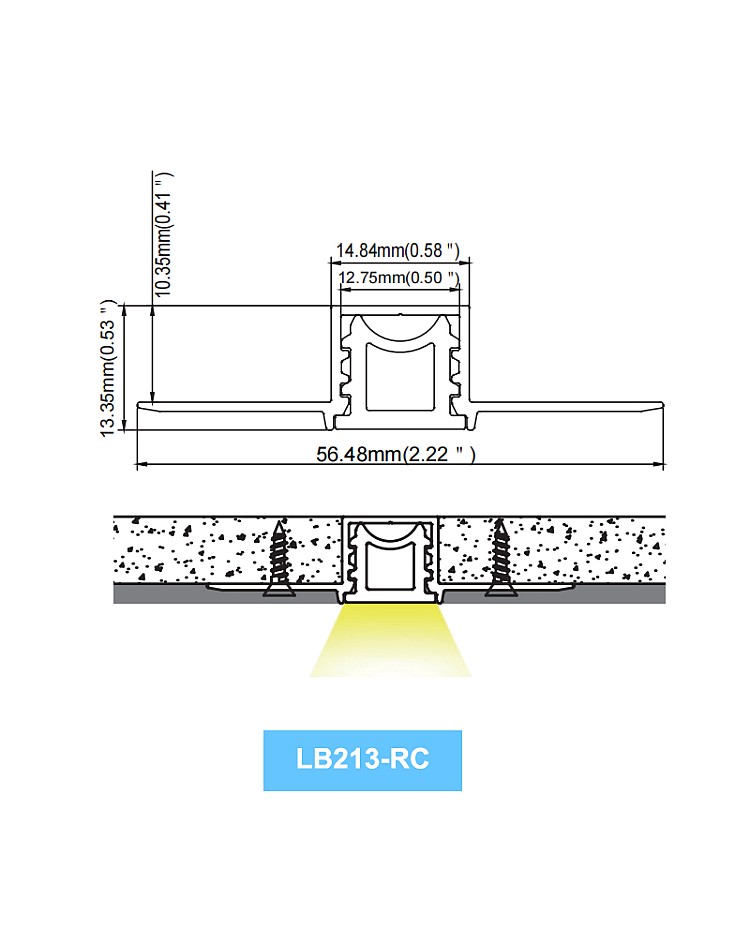

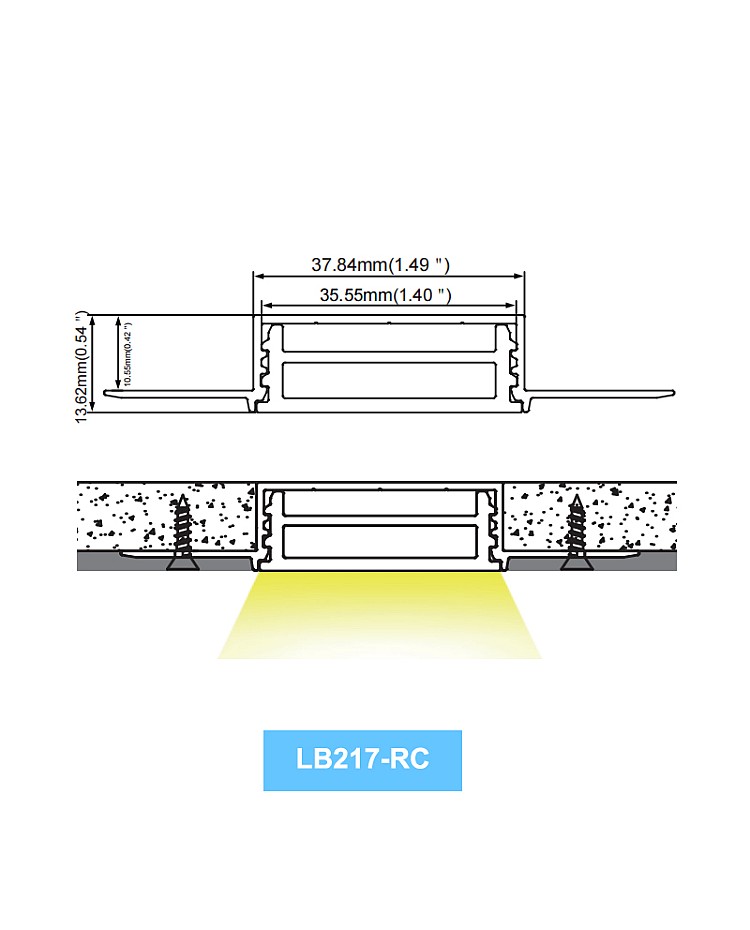

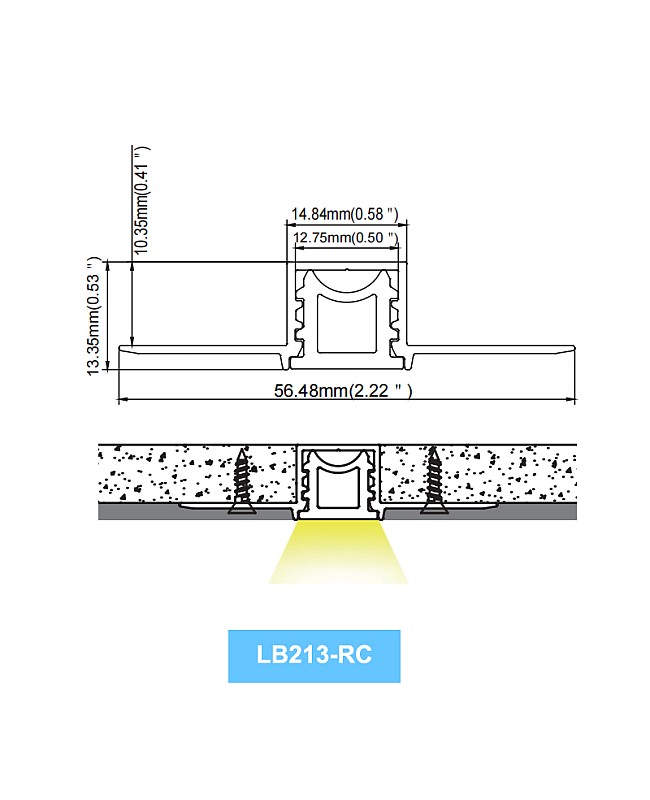

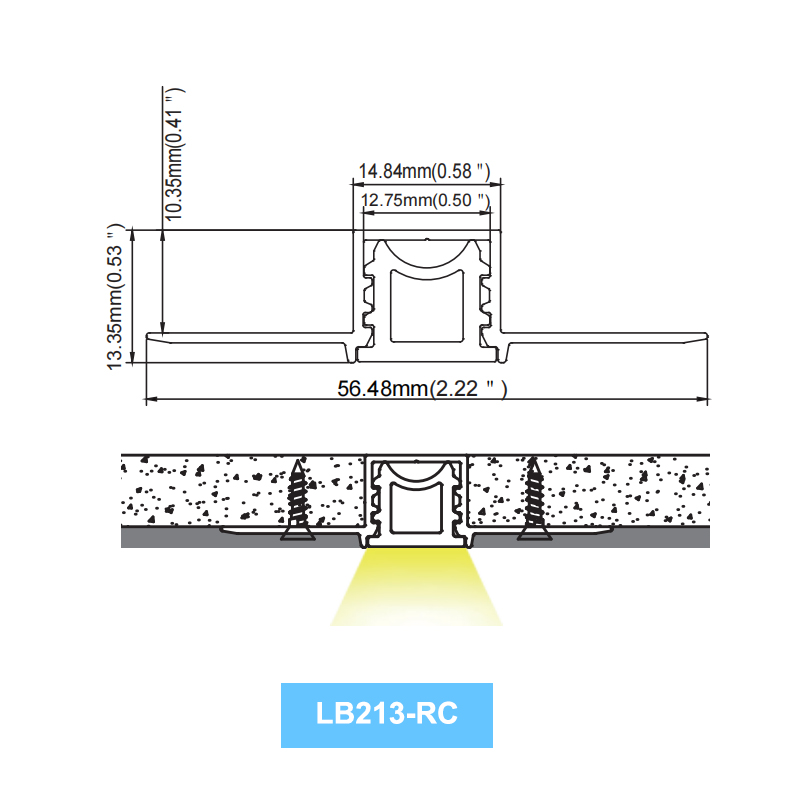

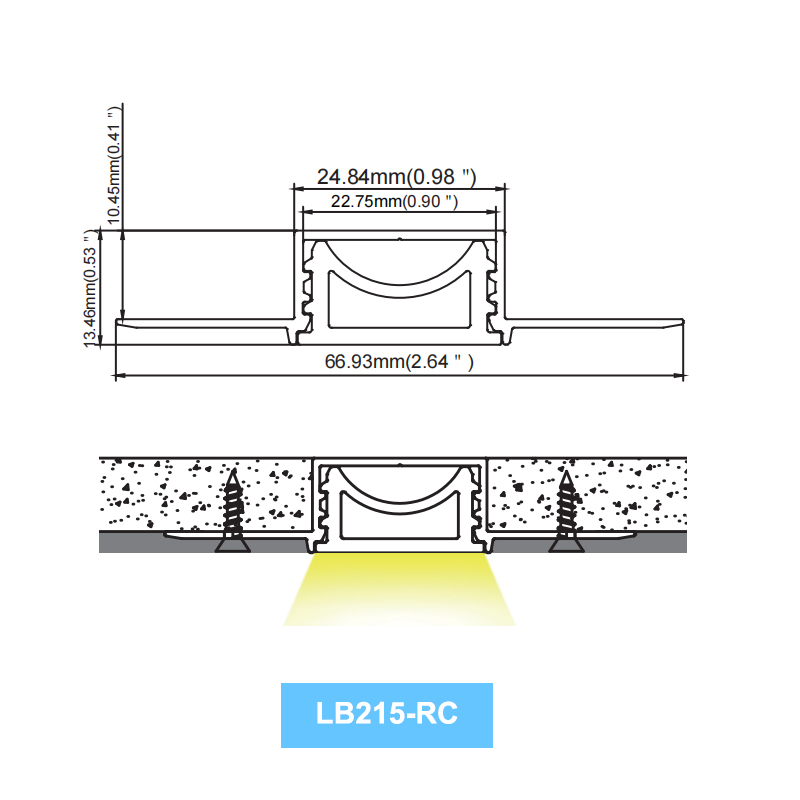

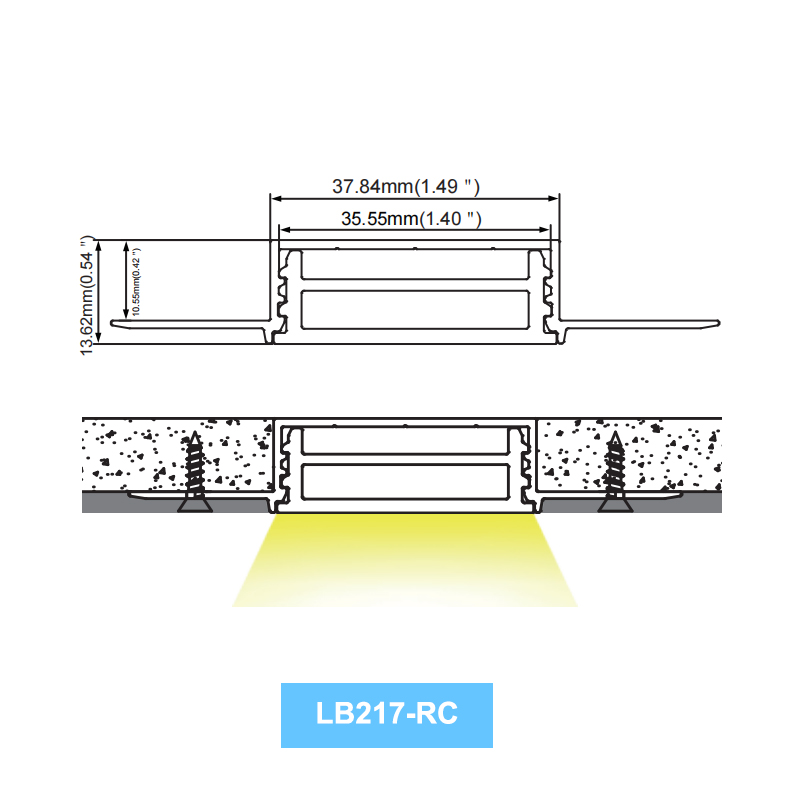

- Size ( Width x Height ): LB213-RC: 56.48mm x 13.35mm/2.22" x 0.53"; LB215-RC: 66.93mm x 13.46mm/2.64" x 0.53"; LB217-RC: 79.5mm x 13.62mm/3.13" x 0.54"
- Lengths: 1M ( 39.37" ), 2M ( 78.74" )
- Custom length available: YES
- Inner width: 12.75mm/0.5" ( LB213-RC ); 22.75mm/0.9" ( LB215-RC ); 35.55mm/1.4" ( LB217-RC )

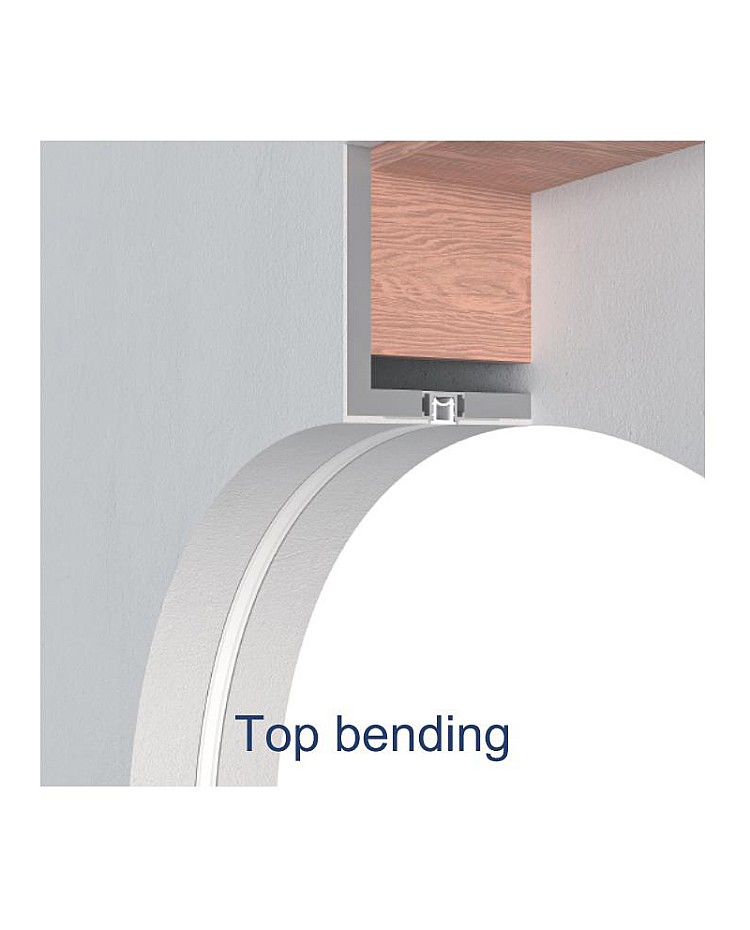

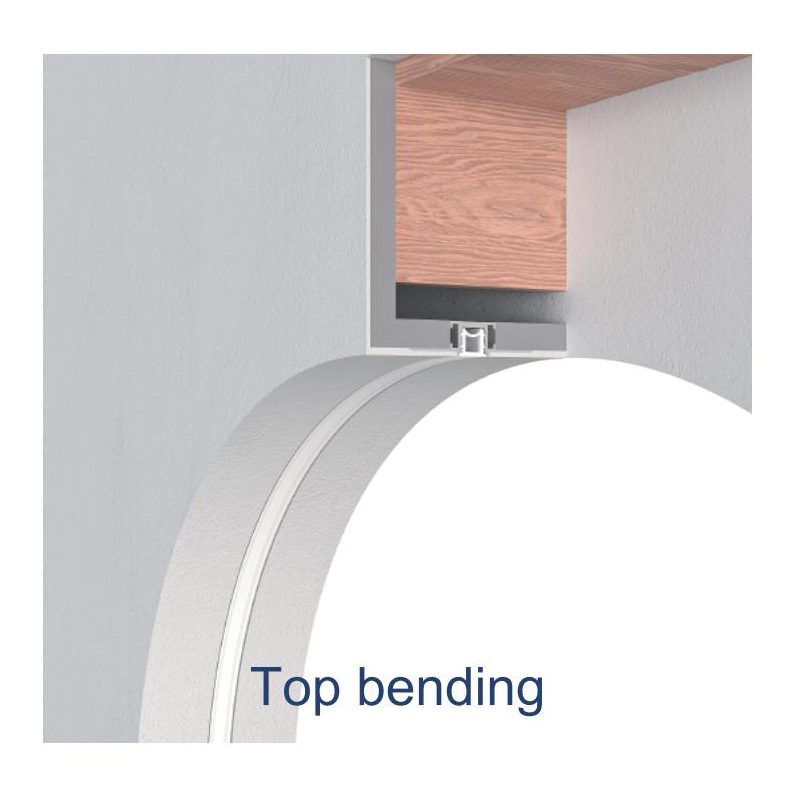

- Minimum top outside bending radius: 300mm/11.81" ( LB213-RC & LB215-RC), 450mm/17.72" ( LB217-RC )
- Minimum top inside bending radius: 300mm/11.81" ( LB213-RC & LB215-RC), 450mm/17.72" ( LB217-RC )

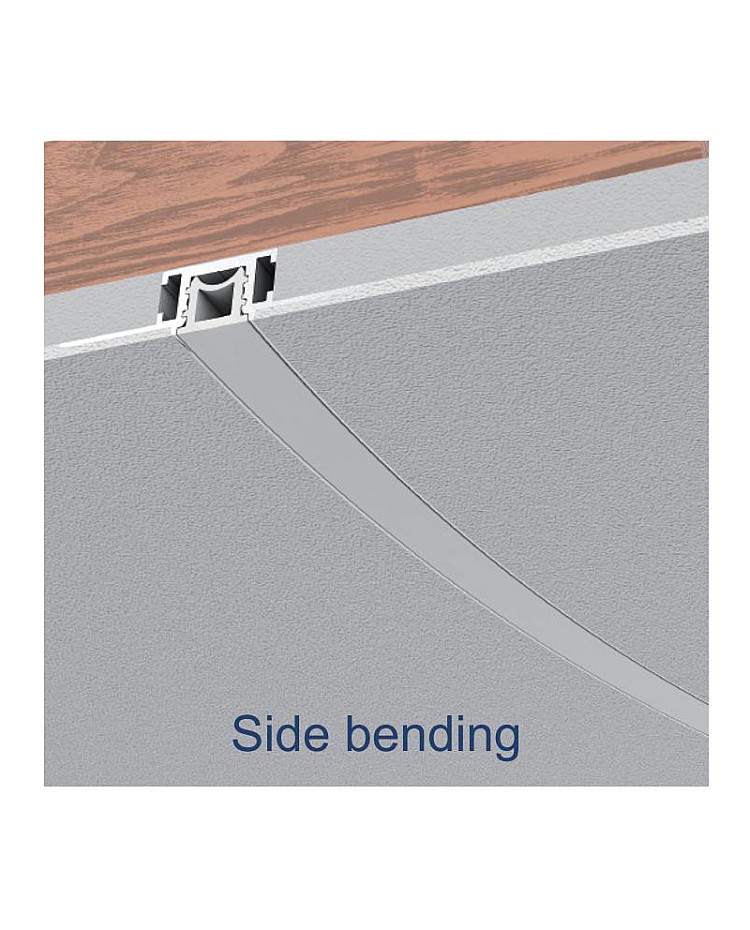

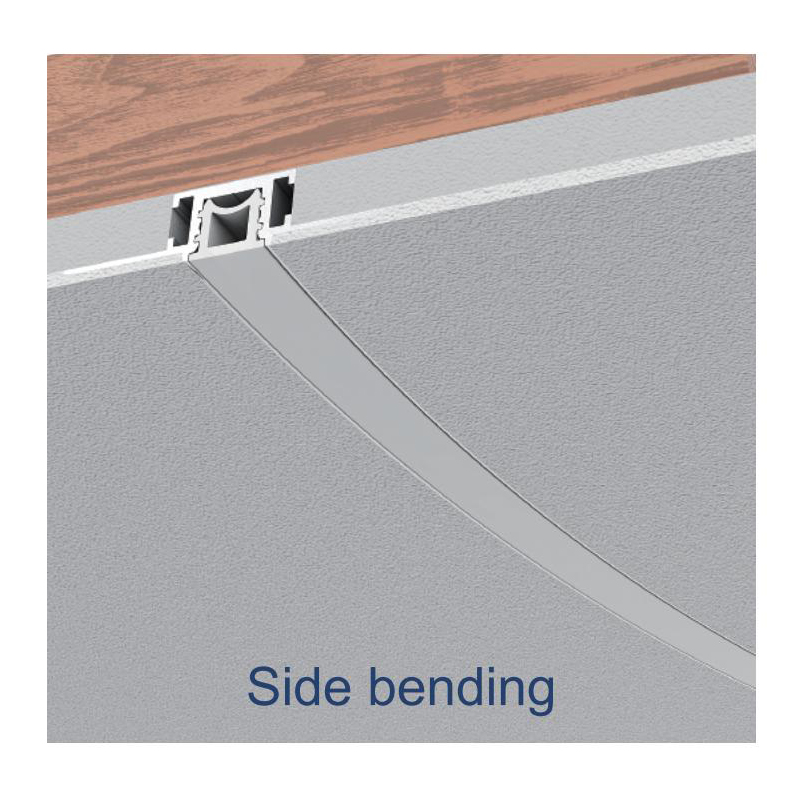

- Minimum side bending radius: 700mm/27.56" ( LB213-RC & LB215-RC), 900mm/35.43" ( LB217-RC )
- Diffuser option: Silicone diffuser

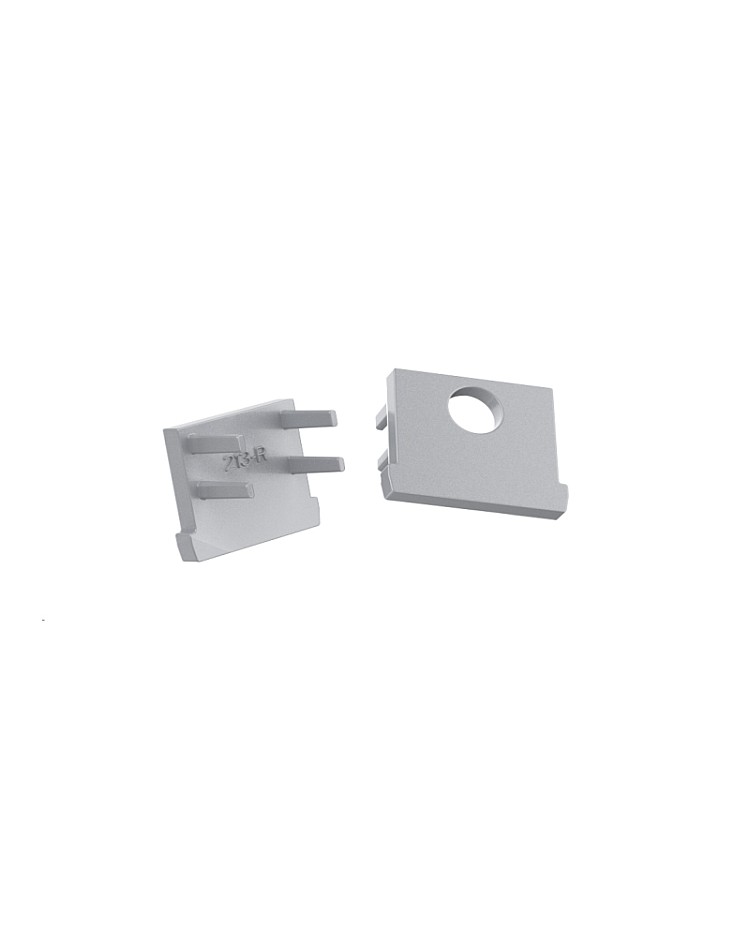

- End caps included
- Installation: Plaster-in
- Warranty: 5 years
Includes:
1 x Bendable LED housing
1 x Silicone diffuser
1 x End caps
