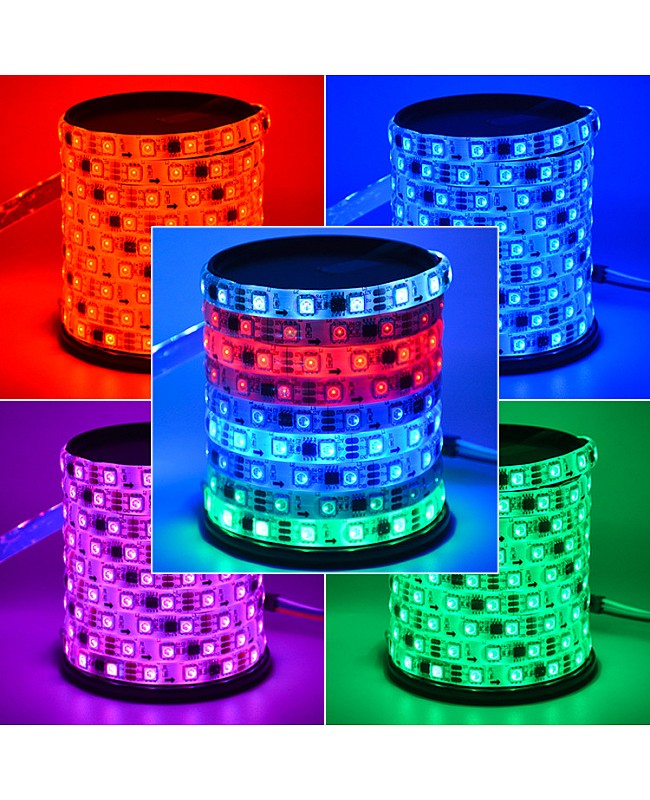

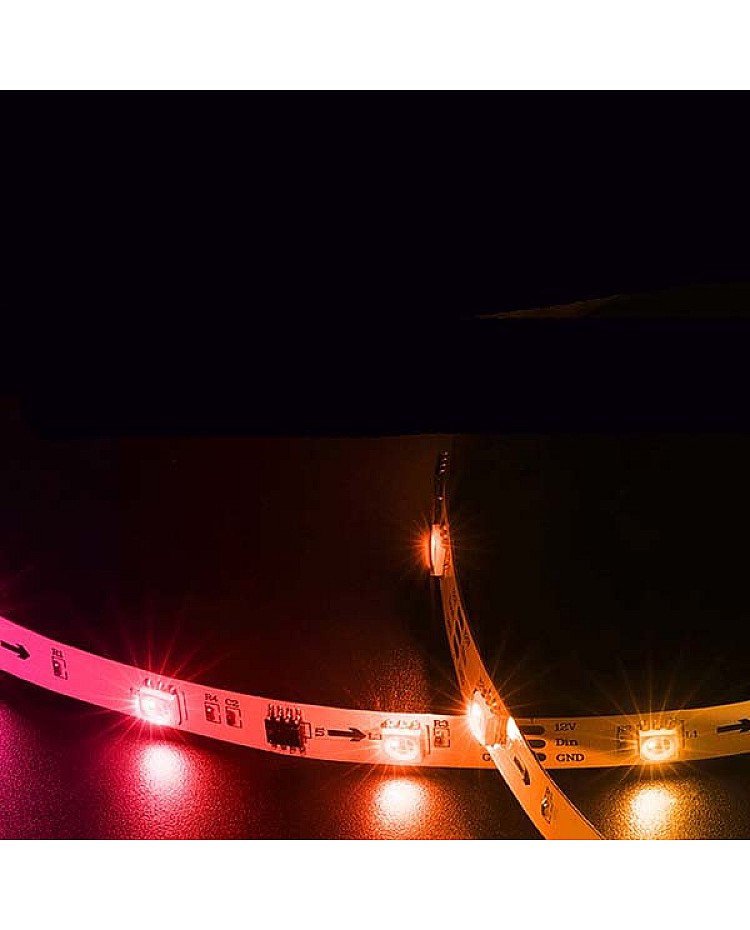

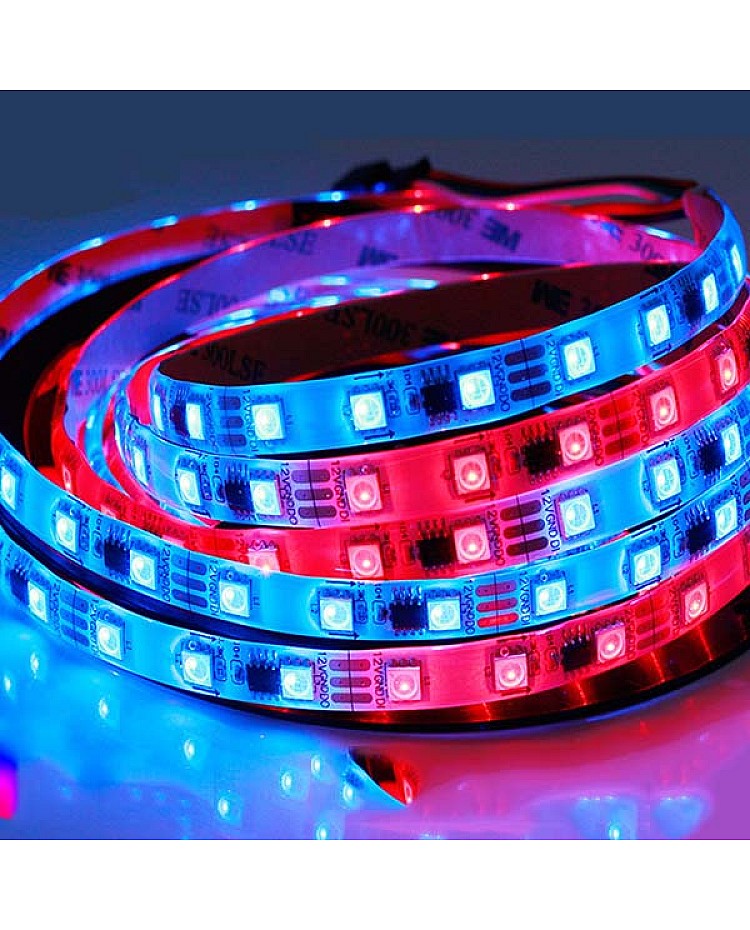

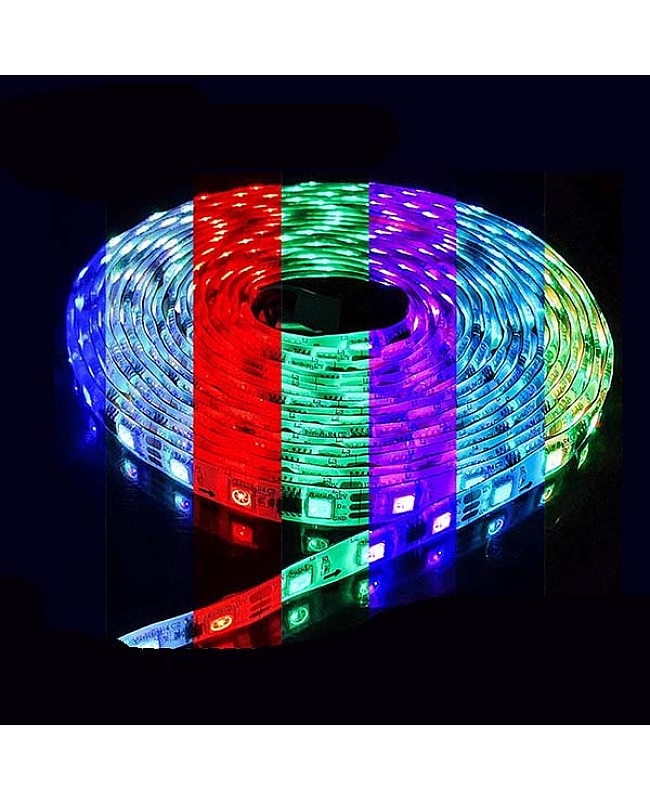

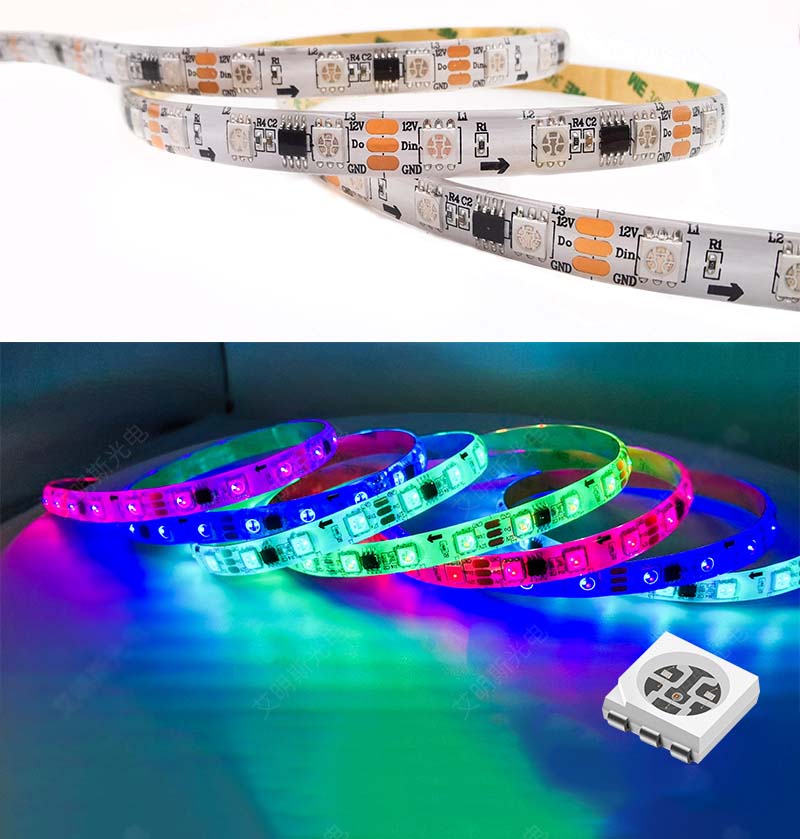

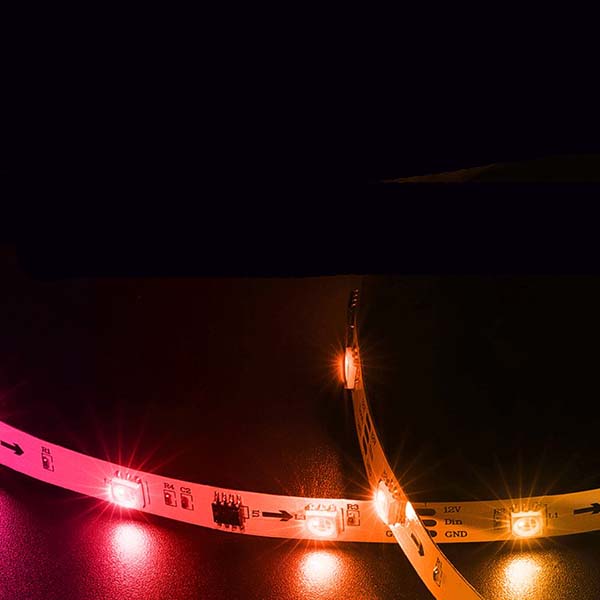

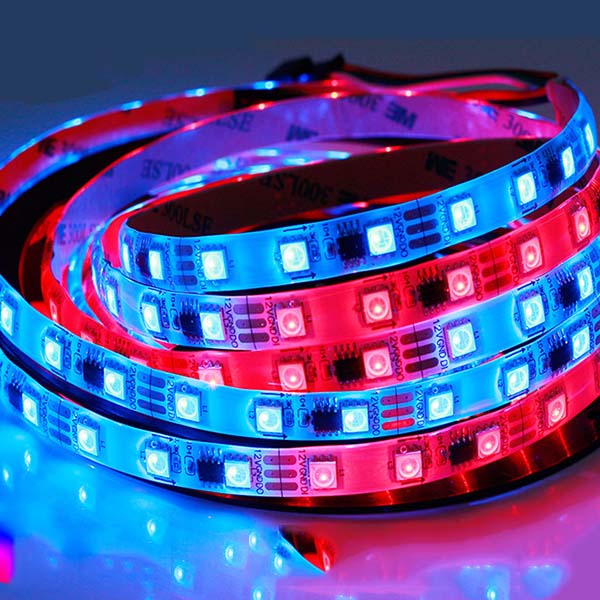

Check the Dreamcolor LED Strip Lights with 1903 IC, working in DC12V, need to work with the 12VDC output LED Power Supply, use the high-quality 5050 SMD LEDs as the light source, 60PCS LEDs per meter, the Dream Color LED Strips with 1903 IC, each piece of IC controls 3PCS SMD LEDs, with the Addressable LED Strip Controller, the LED Strip Lights can provide dynamic color-changing, color-chasing, static, white or other color-changing modes. The minimum cuttable length is 3 pieces of SMD LEDs and one piece of IC. You can cut them to the desired size and reconnect them with the 3-pin LED Connectors. there are 4 different IP Rating products available, the IP20 LED 12V Strips non-waterproof for indoor only, IP65, IP67 and IP68 for indoor or outdoor applications.
Specifications:
- Model: Dreamcolor LED Strips With 1903 IC
- Working Temperature: -20℃-+60℃
- Working Voltage: DC12V
- LED Type: 5050 SMD LEDs
- LED Quantity: 60 LEDs/Meter
- FPCB Board's Colors: White
- IC Type: 1903

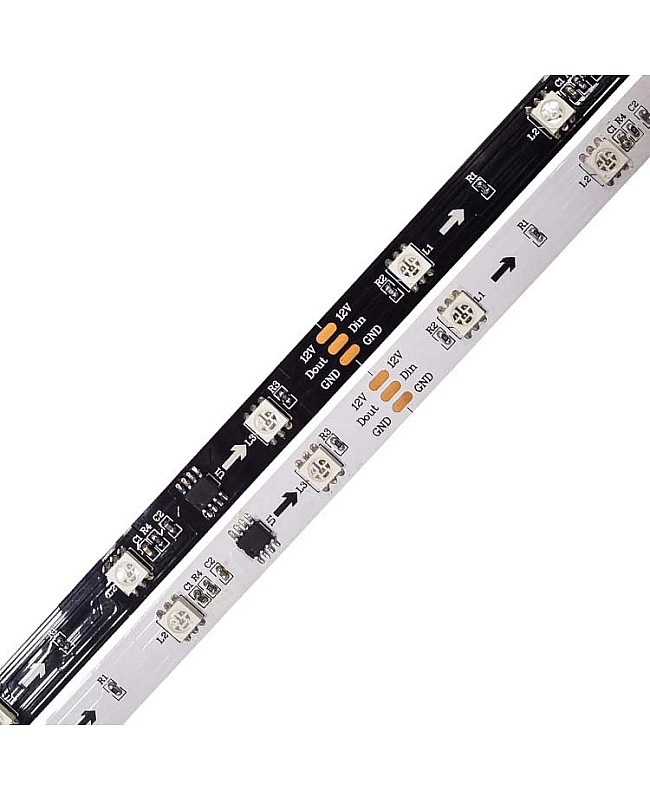

- Each 1903 IC Controls 3PCS 5050 SMD LEDs

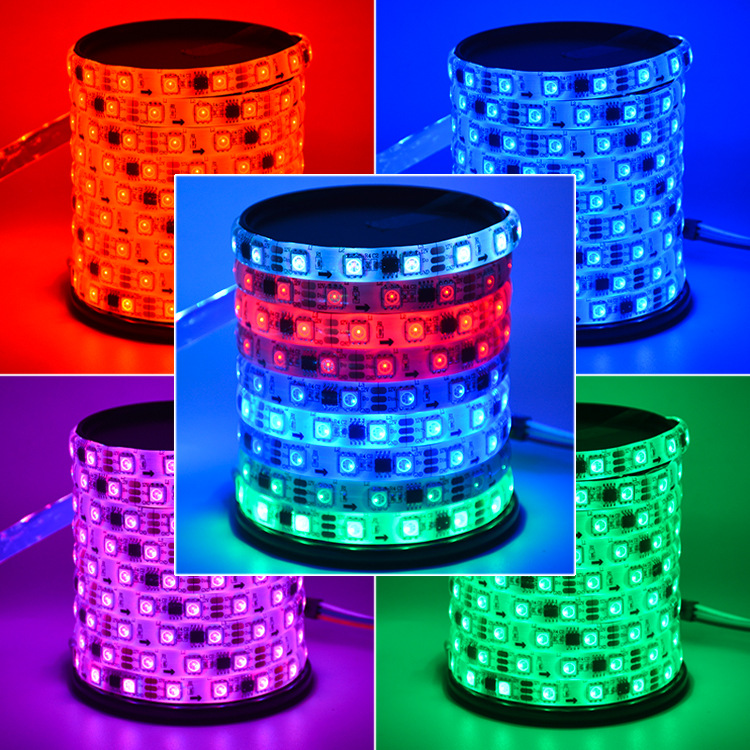

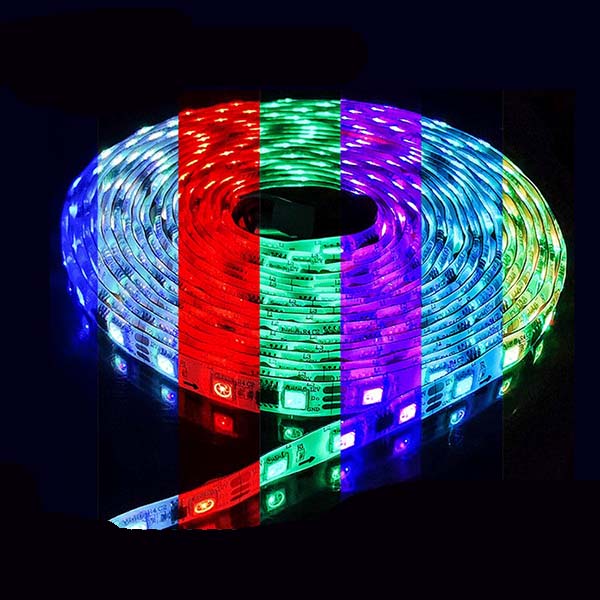

- Colors: Dreamcolor RGB, Dynamic Color-Changing, Color-Chasing, Static Colors, White Colors
- Power: 0.2W/LED
- Gray Levels: 256

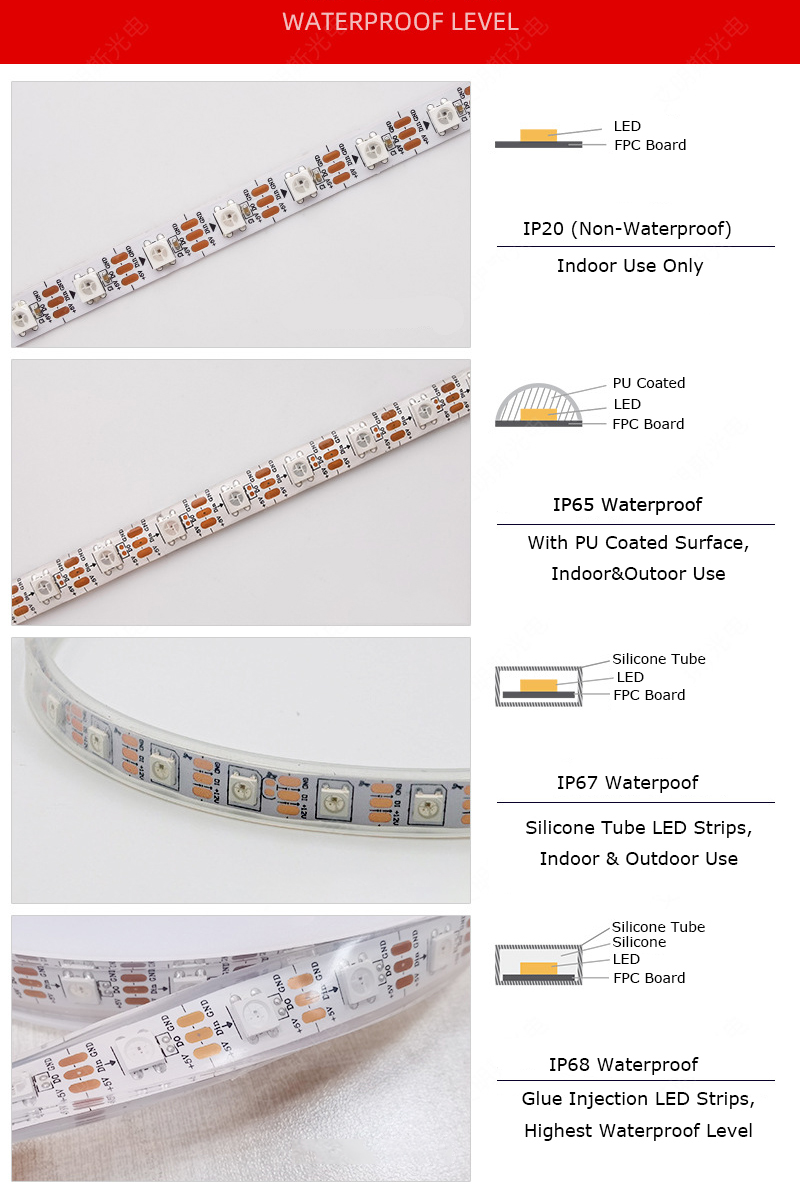

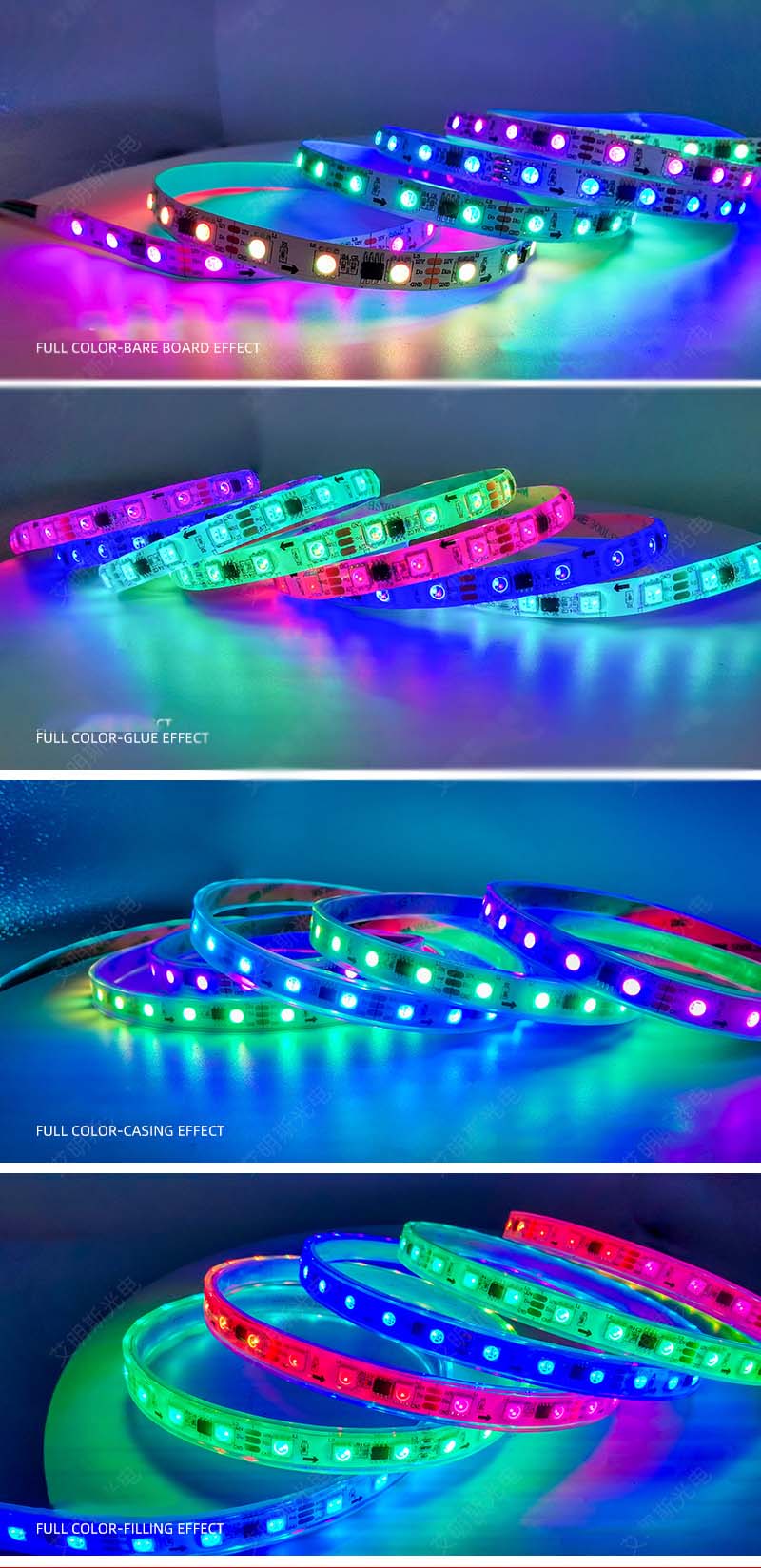

- IP Rating: IP20 Non-Waterproof / IP65 / IP67 /IP68
- Thickness: 2mm(IP20)/3mm(IP65)/mm(IP67)
- Width: 10mm(IP20/IP65)/12mm(IP67/IP68)
- View Angle: 120°

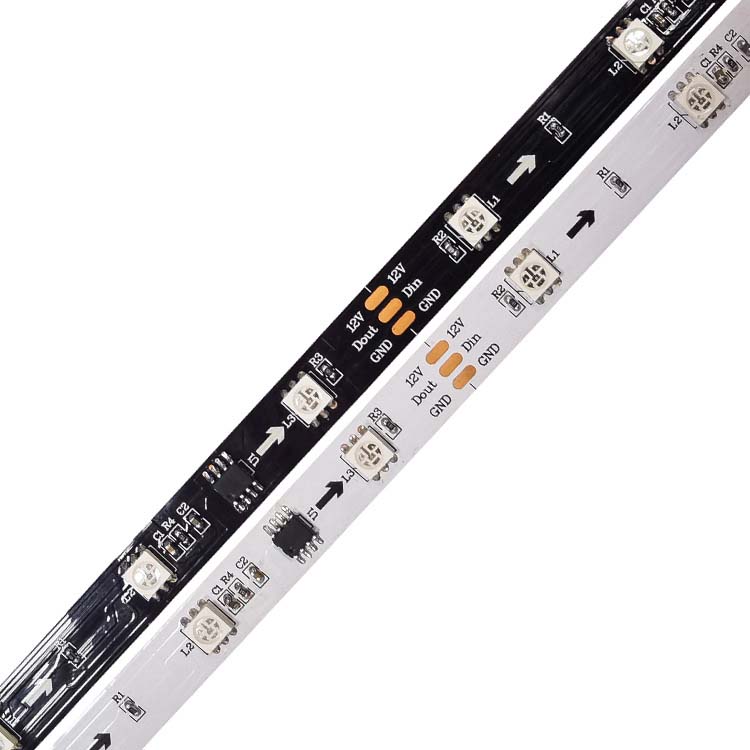

- Connector: SM 3PIN Male And Female Connectors + Extra Power Wire; Red(12V+), White(12V-), Green(Data)
- 5 Meters Per Reel
Includes:
1 * 5050 Dreamcolor LED Strip Lights(5Meters/Reel)
