The wireless addressable LED strip controllers are designed for DreamColor LED strips. The working voltage is between DC12V and DC24V, suitable IC types: USC1903, TM1803, TM1809, TM1804, TM1812, WS2811, etc. There are 133 models in total, the 132nd mode is the auto-cycle running from 1st to 131st, and the 133rd mode is the DIY mode. The addressable LED controller has two groups of SPI signal outputs; each group signal drives 2048 pixels max, and one group can drive 200 meters of USC1903 LED strips max. The LED strip controller with the RJ45 Ports allows multiple controllers to be connected and achieves the synchronization function of thousands of meters of LED strips. There are four physical buttons on the LED controllers and four keys on the RF LED remote control, which you can use to turn on/off the LED lights, mode, and speed adjustment.
Specifications:
- Size: 137*70*25mm(L*W*H)
- Working Temperature: -20℃-60℃
- Working Voltage: DC12-24V
- Working Current: <60mA
- Effects Model: 133
- Maximum Control Points: 1024(Low-Speed) Points, 2048(High-Speed) Points
- Controlled IC Model: TM1803, TM1804, TM1809, UCS1903, WS2811, etc

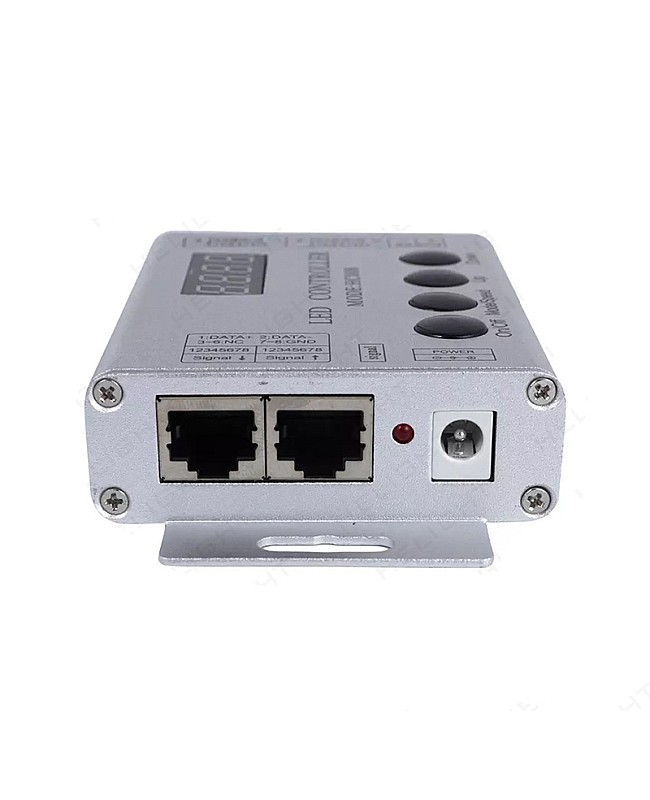

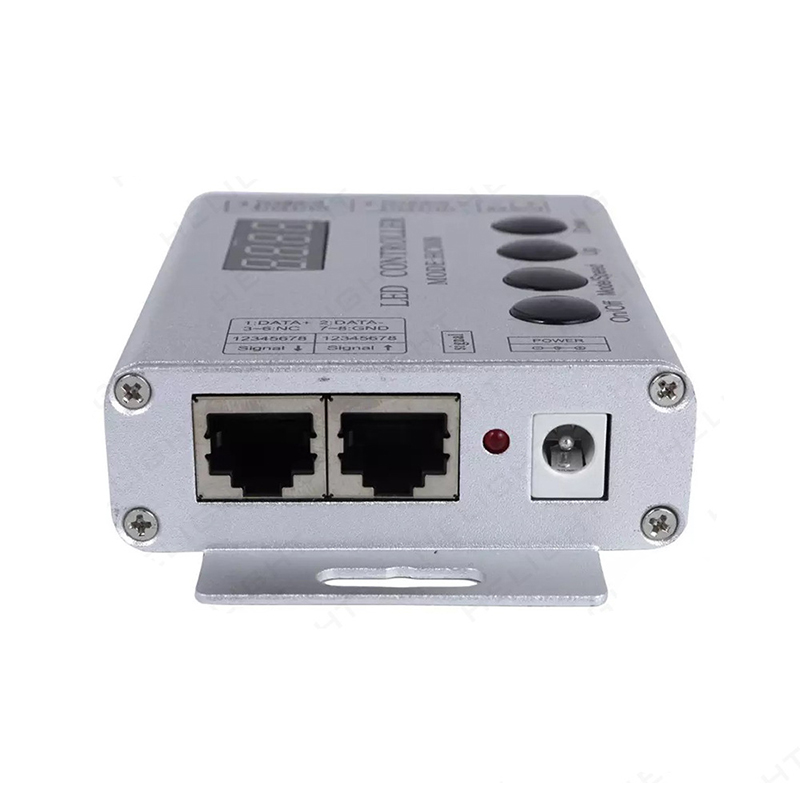

- With an RJ45 Connector To Achieve Synchronization Function
- 133 Modes In Total, 132nd Mode Is The Auto-Cycle Running From 1st To 131st, The 133rd Mode Is The DIY Mode

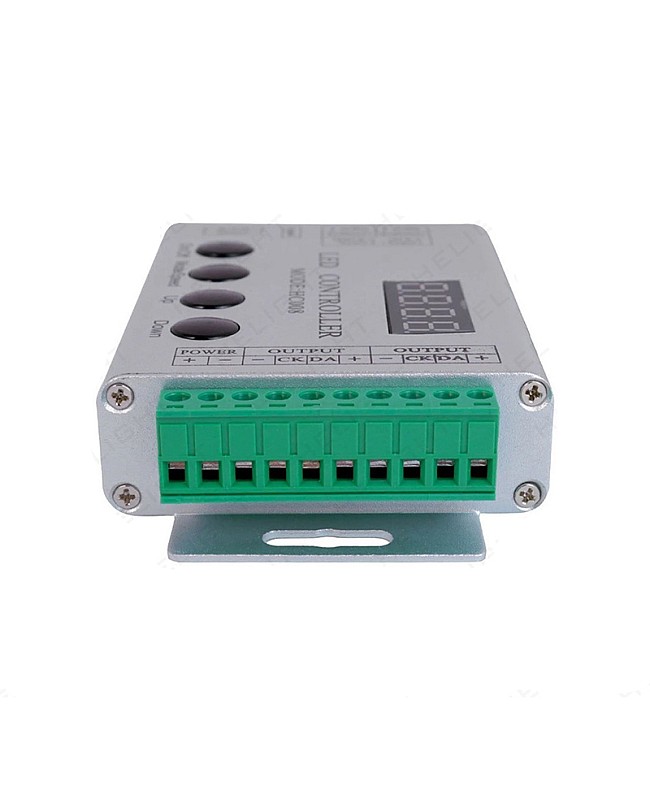

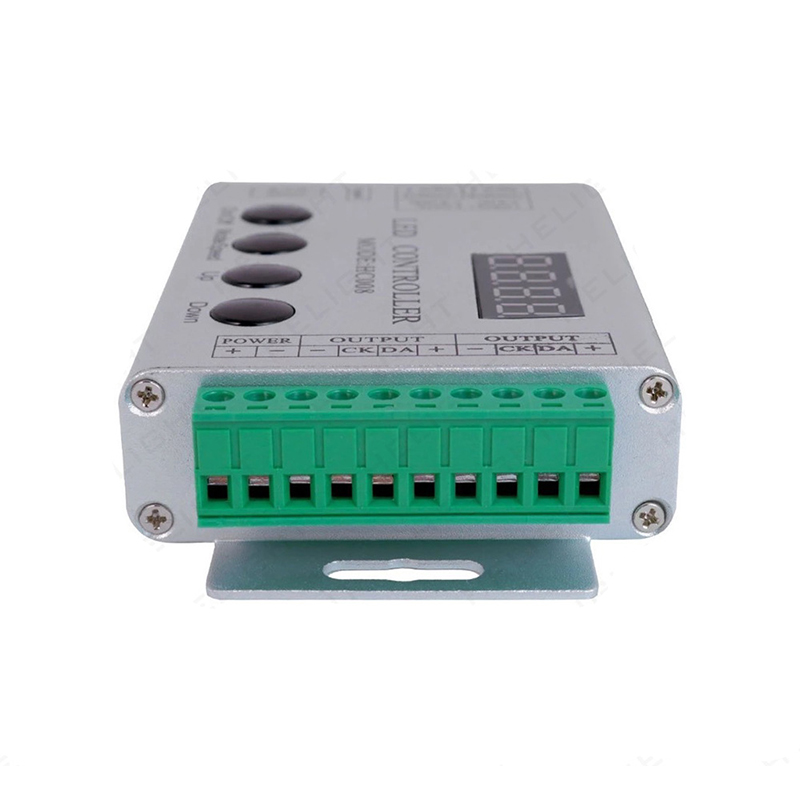

- 2 Groups SPI Signal Output, Each Group Signal Drive 2048 Pixels Max
- Weight: 300g
- 3 Years Warranty
Includes:

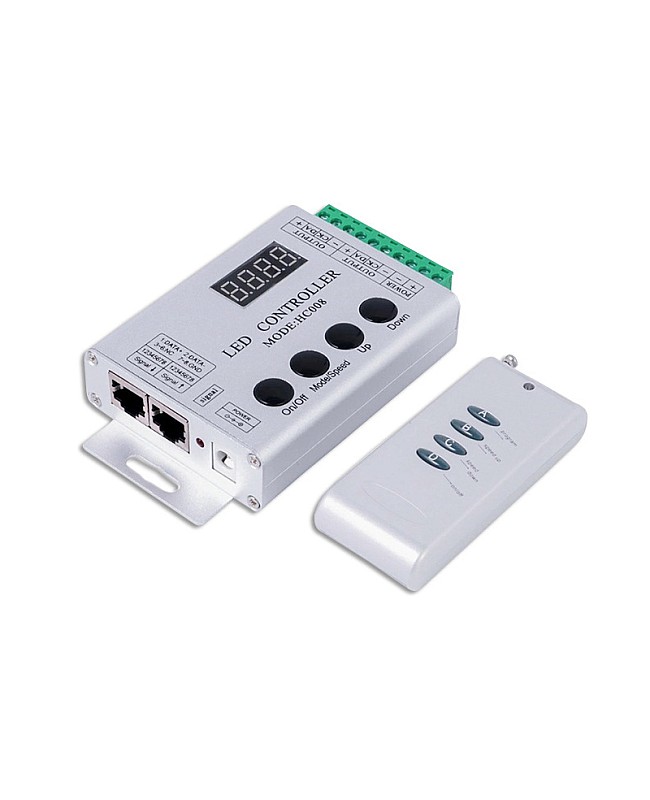

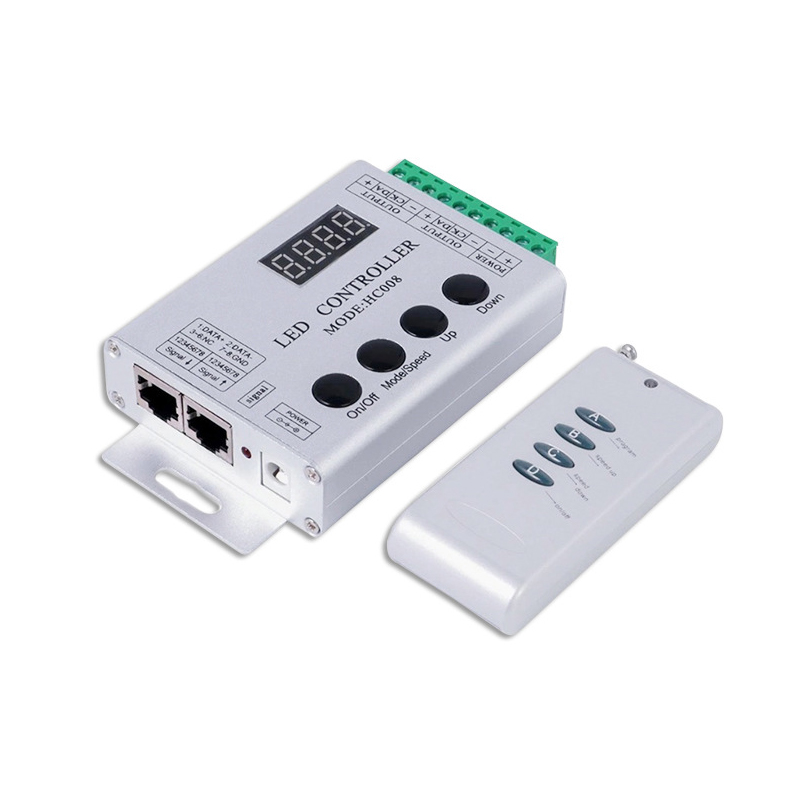

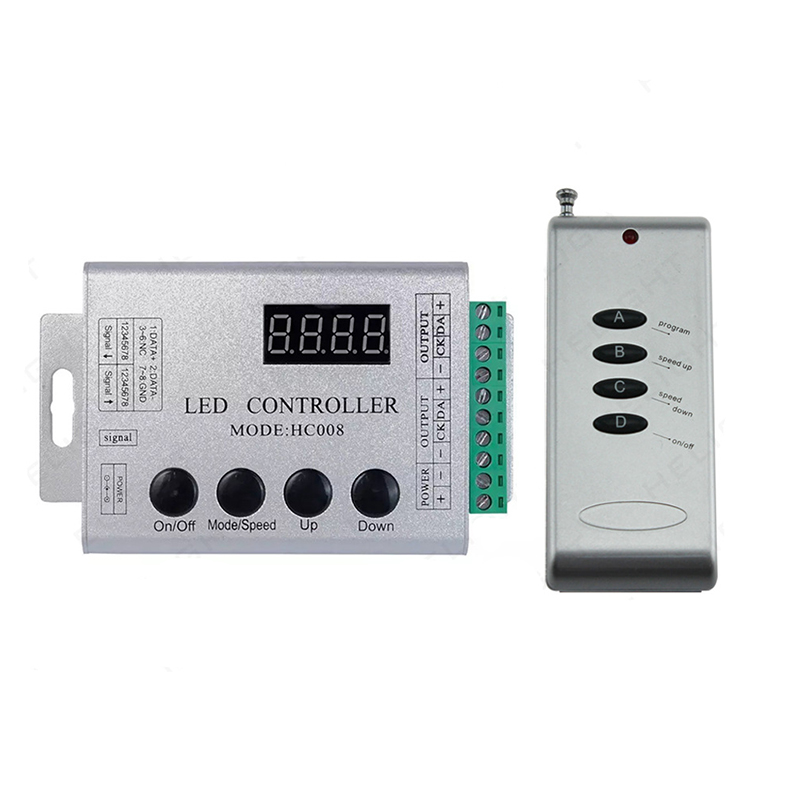

1 * Magic Dream LED Strip Controller
1 * 4 Keys RF Remote
