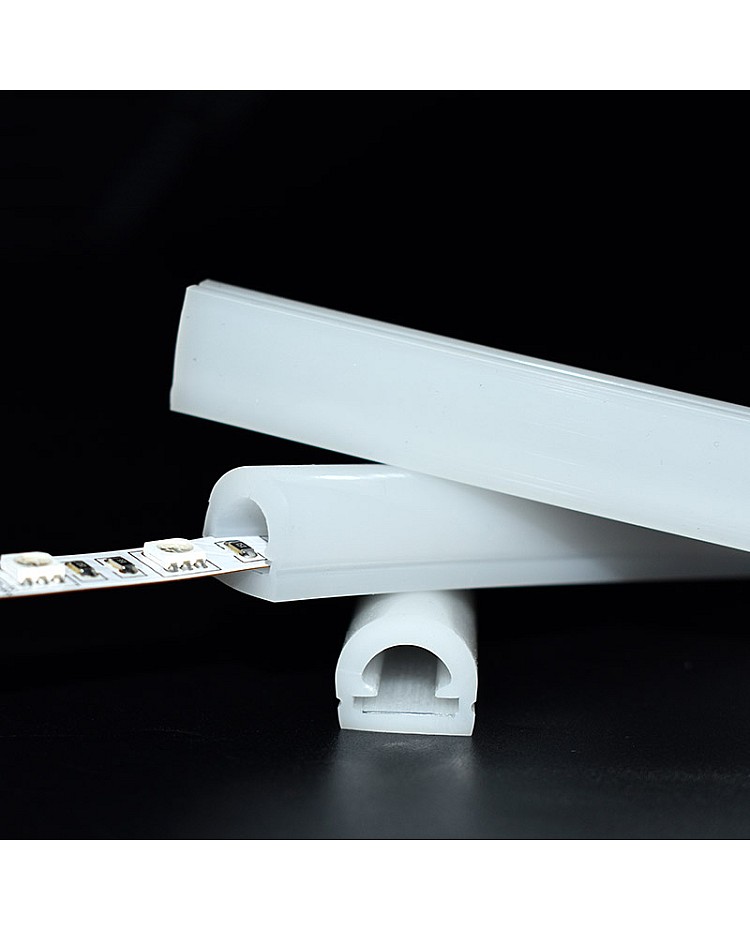

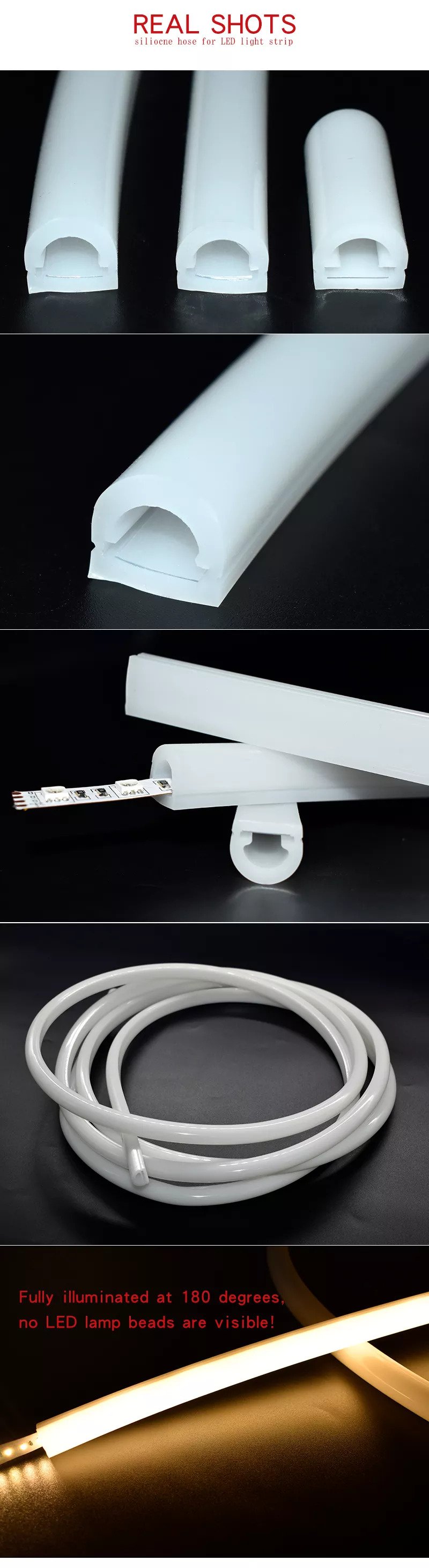

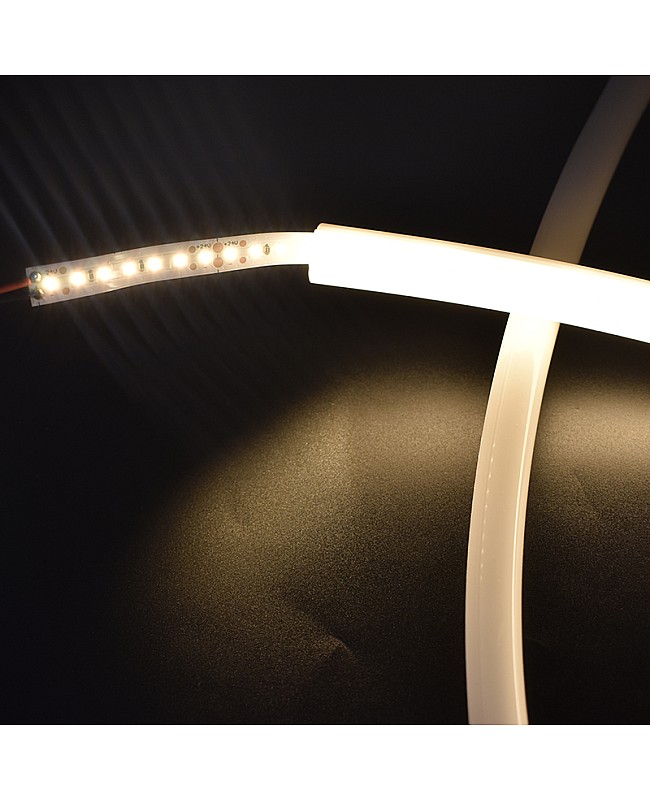

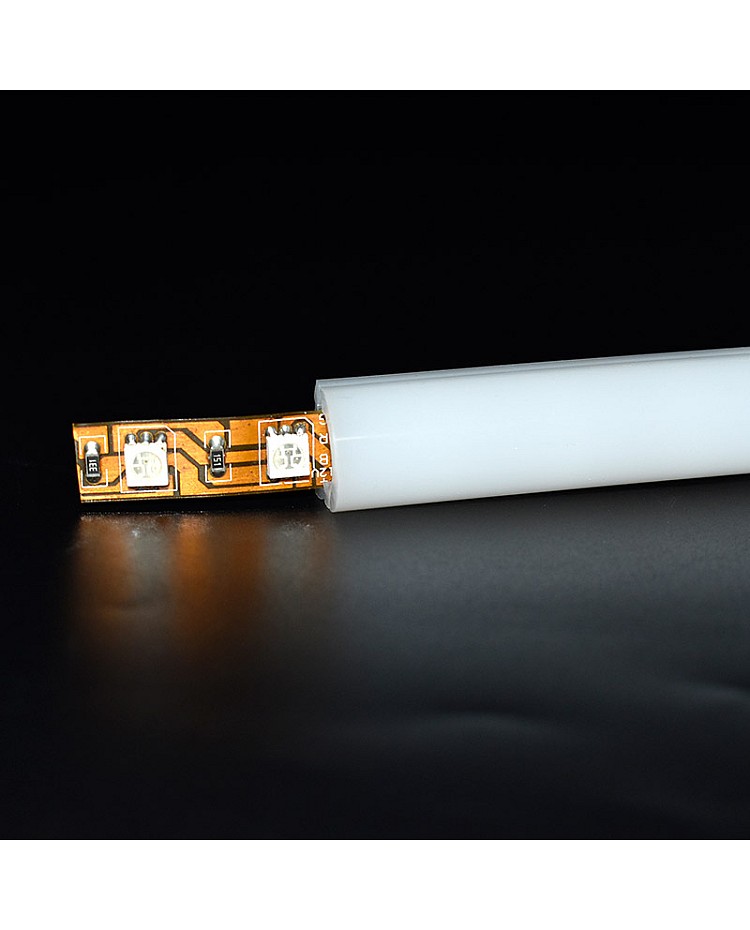

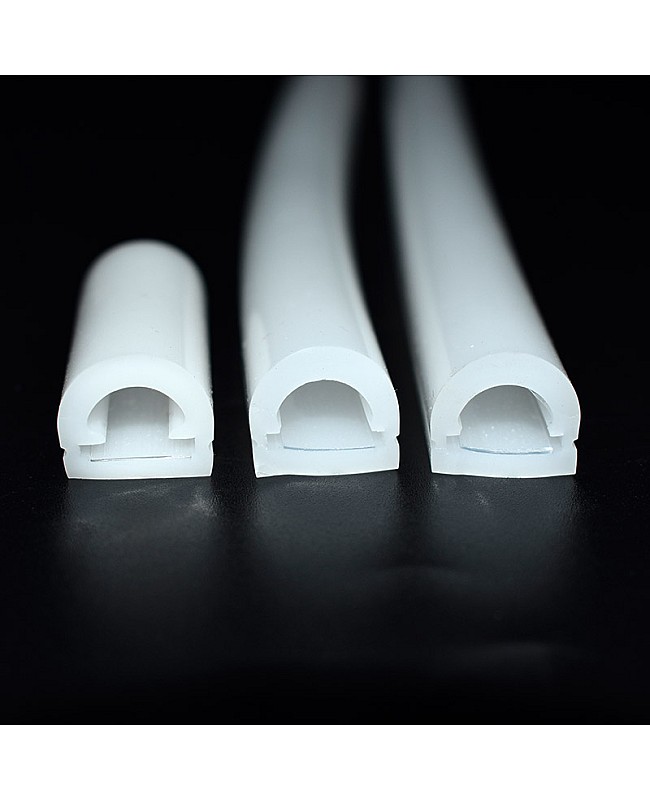

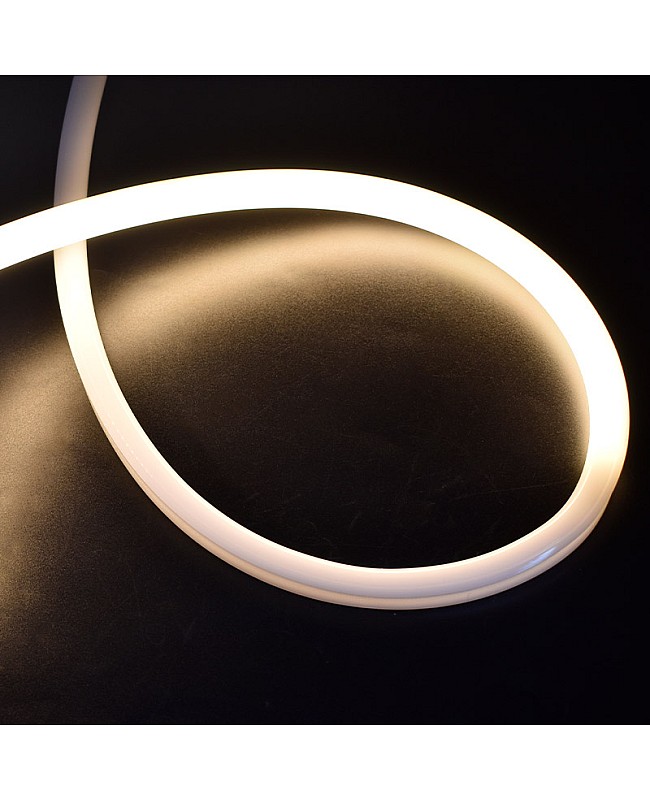

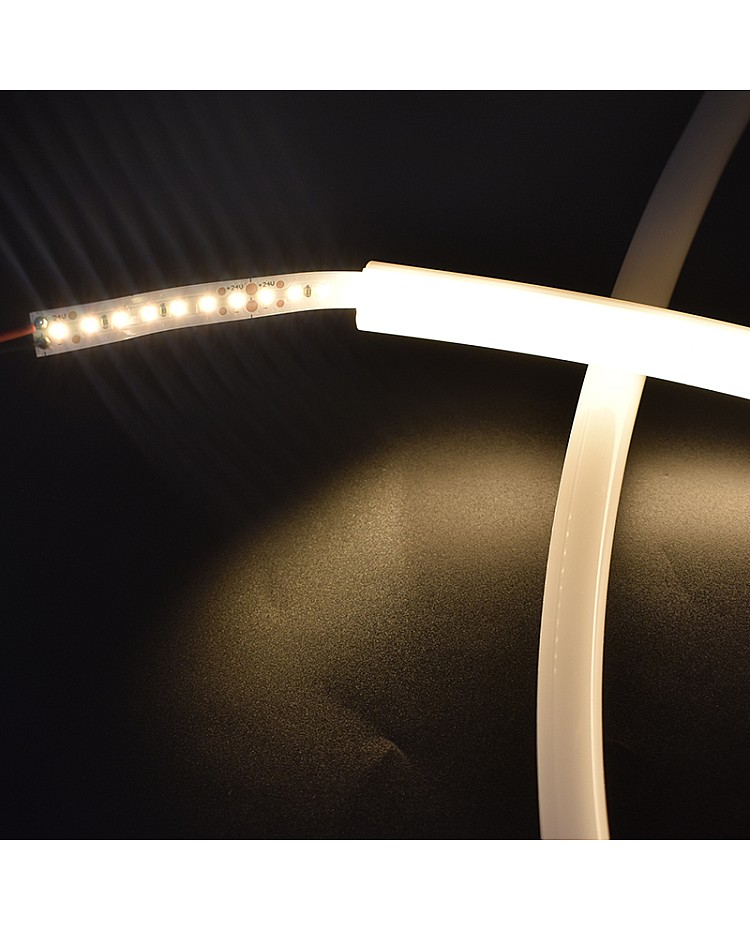

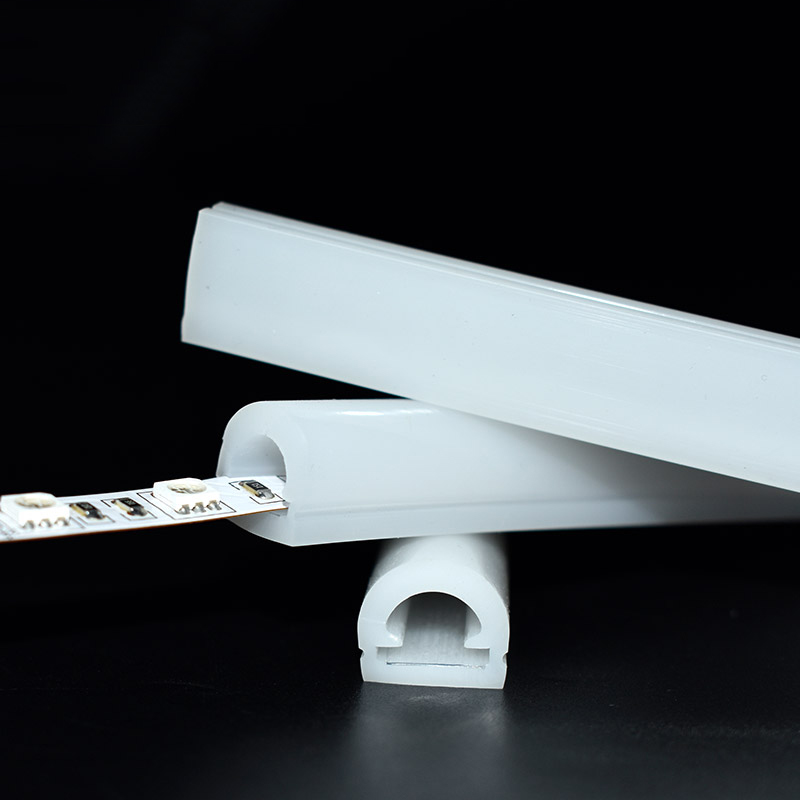

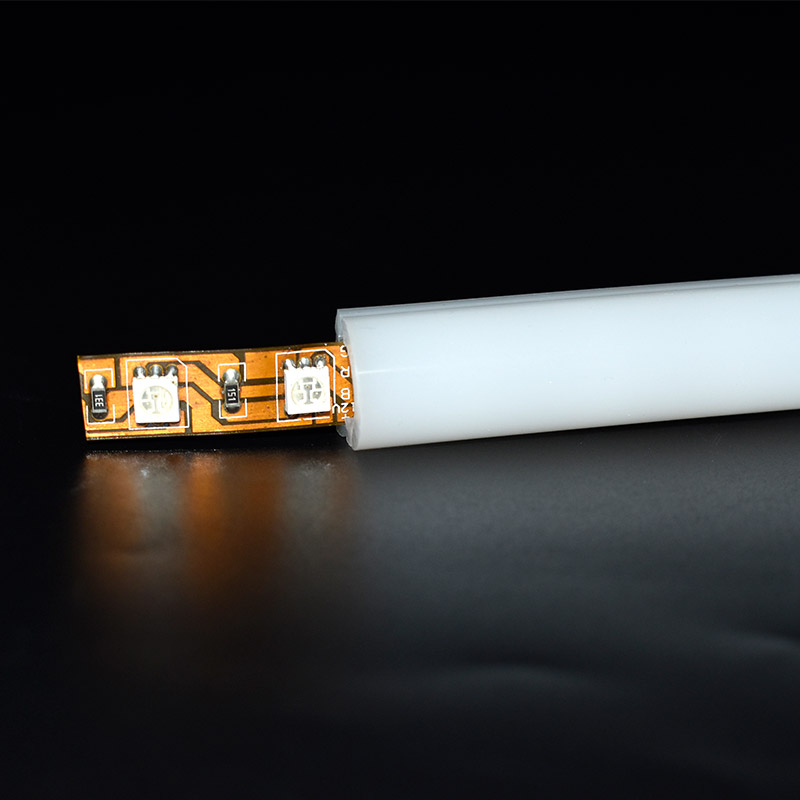

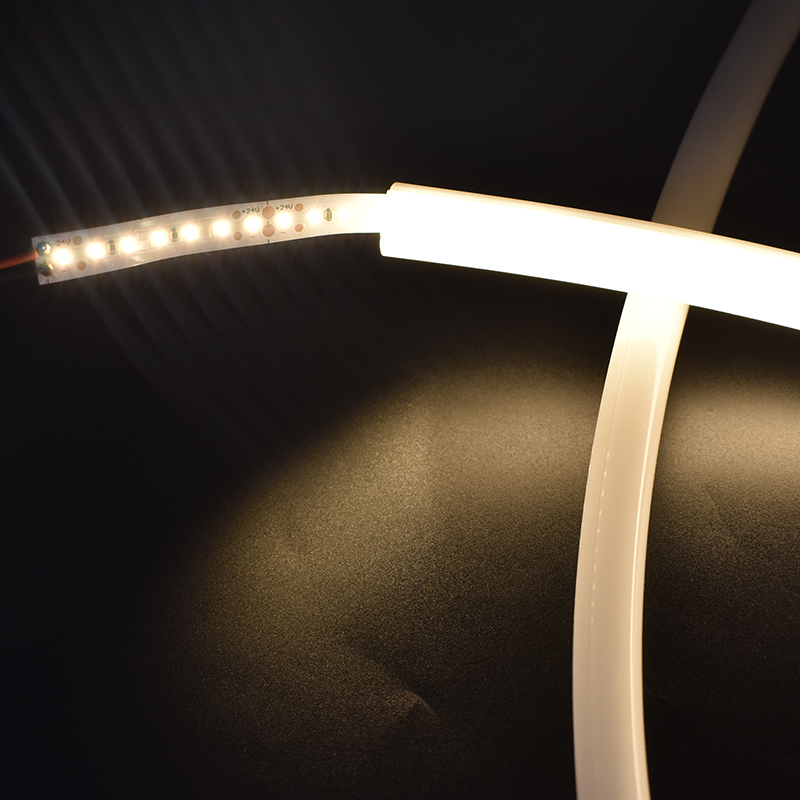

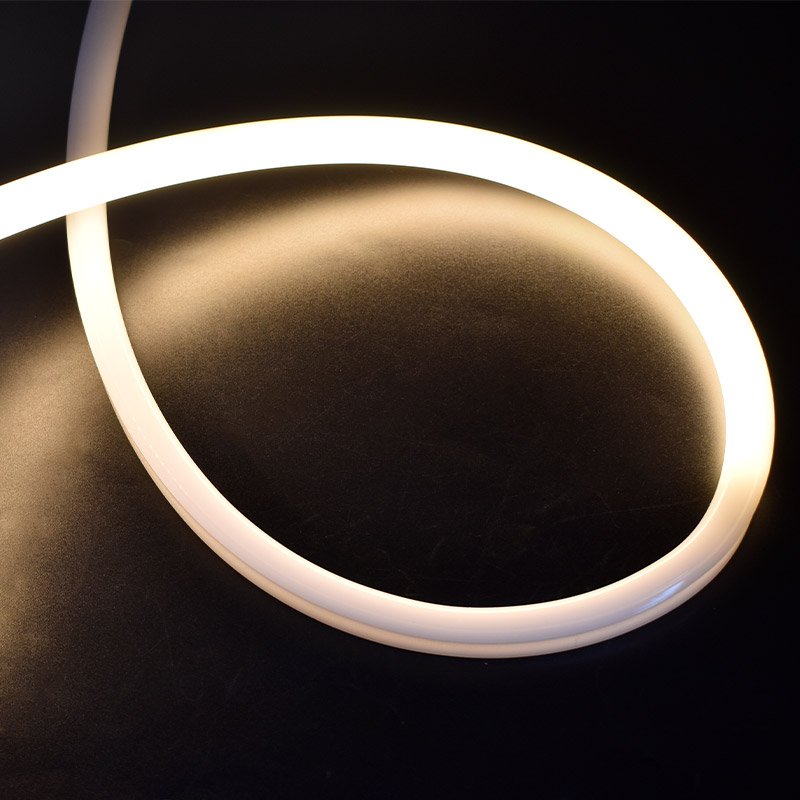

The 1513 u-shape bendable LED strip channels are designed to provide flexible, bendable, and easy-to-install lighting for a variety of applications, ideal for use in bathrooms, showers, swimming pools, gardens, pathways, and other areas. The dome-top structure offers a 180° view angle, and the silicone channel evenly diffuses the lighting, eliminating hotspots. The bendable feature will enable it to be bent and shaped for DIY lighting. They are made of 100% food-grade silica gel material, are non-toxic and have no unpleasant odor, are flexible and bendable, resistant to high and low temperatures, anti-yellowing, waterproof, and dustproof. The IP rating is IP67, allowing for use in outdoor linear lighting applications. The standard length is 5 meters per reel, and the maximum length is 50 meters per roll. It can be cut to any size for a custom fit. The inner width is 10mm, allowing for the insertion of 10mm LED strip lights as the light source. We recommend adding high-density SMD or COB LED strip Lights to create seamless lighting without visible light spots. There is a rope inside the milky LED channels, which you can use to tie around the LED tapes and cross the silicone channels to complete the installation. End caps with and without wire holes are included, making it easy to connect the LED strips to LED drivers or LED controllers. Mounting clips and screws are included, allowing for surface-mount installations.
Specifications:
- Model: ALP1513
- Material: Silicone
- Color: Milky

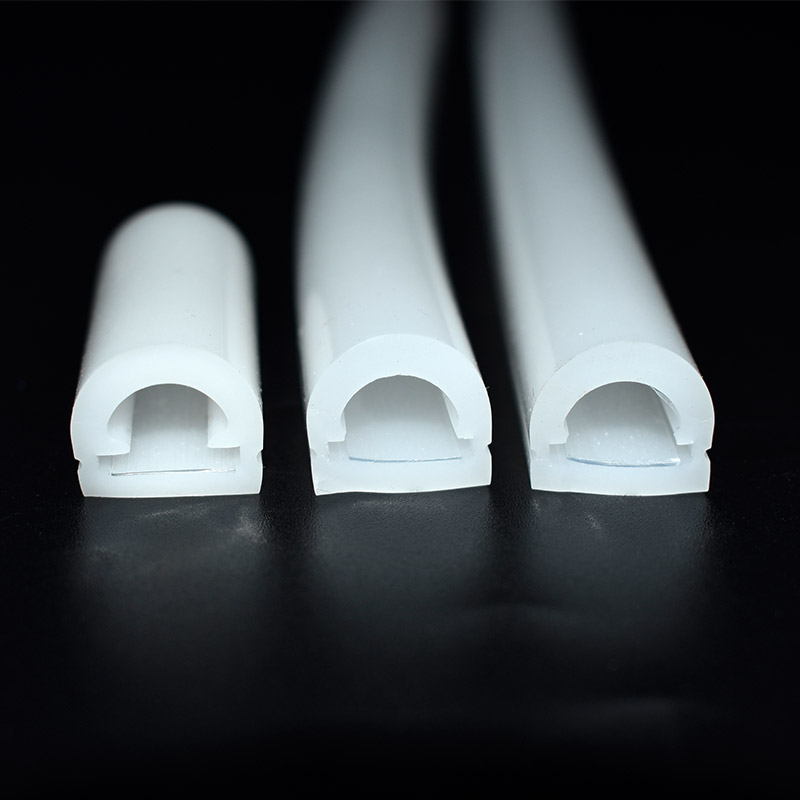

- Size(W*H): 15*13 mm/ 0.59"*0.51"
- Inner Width: 11 mm/0.43"
- Max Width Of LED Strips: 10mm/0.39"
- Light Direction: Fully illuminated at 180°
- High & low temperature resistance
- Waterproof and dustproof
- Flexible and bednable
- IP Rate: IP67 waterproof
- 16.4 ft/ 5 meters per reel

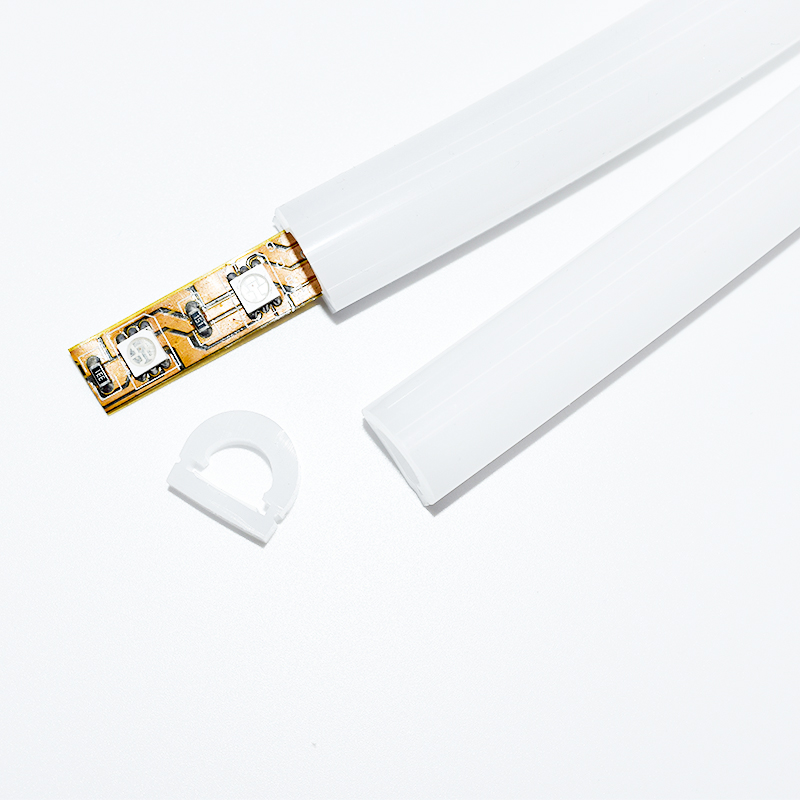

- End caps with/without wire holes included
- Mounting clips included
- Lifespan: 50,000 hours
- 3-year warranty
Includes:
1 * Bendable LED channel(5M/Reel)
End caps(With and without wire holes)
Mounting clips
