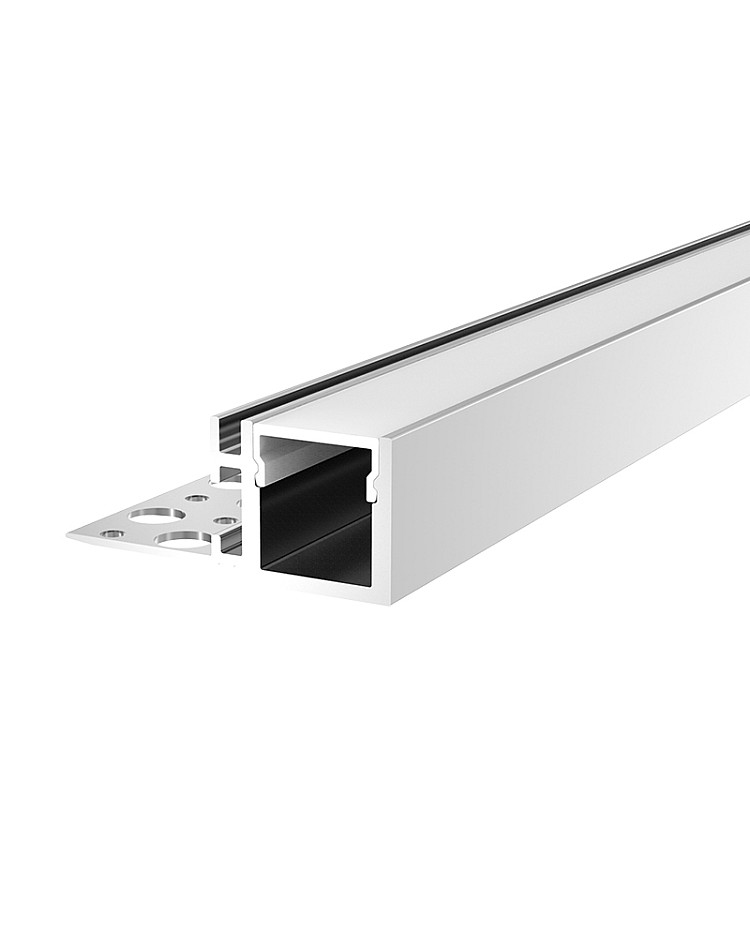

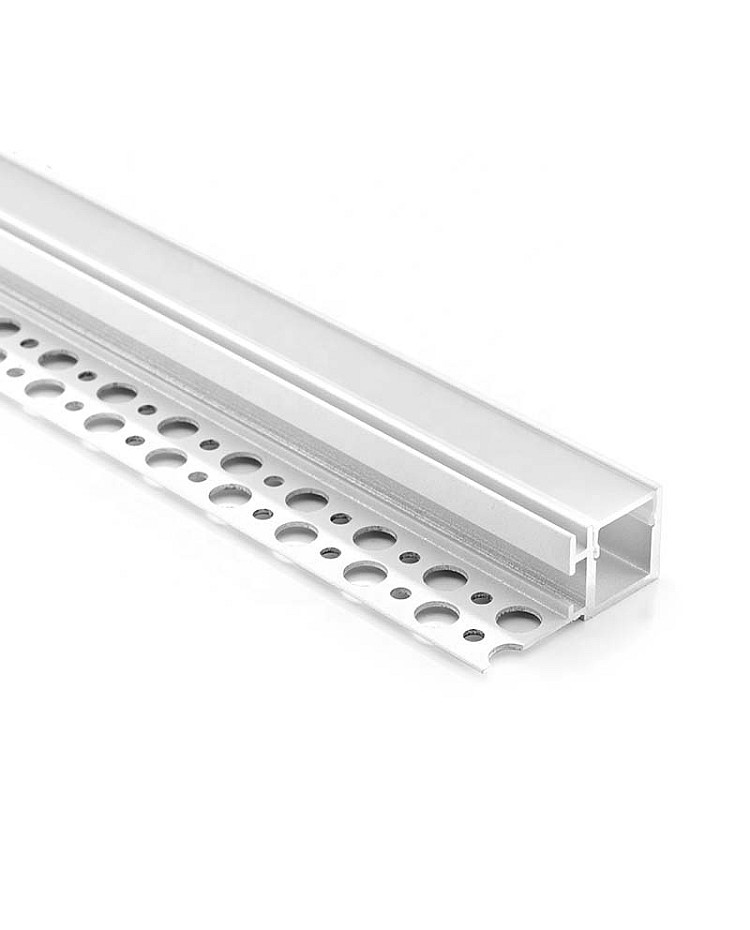

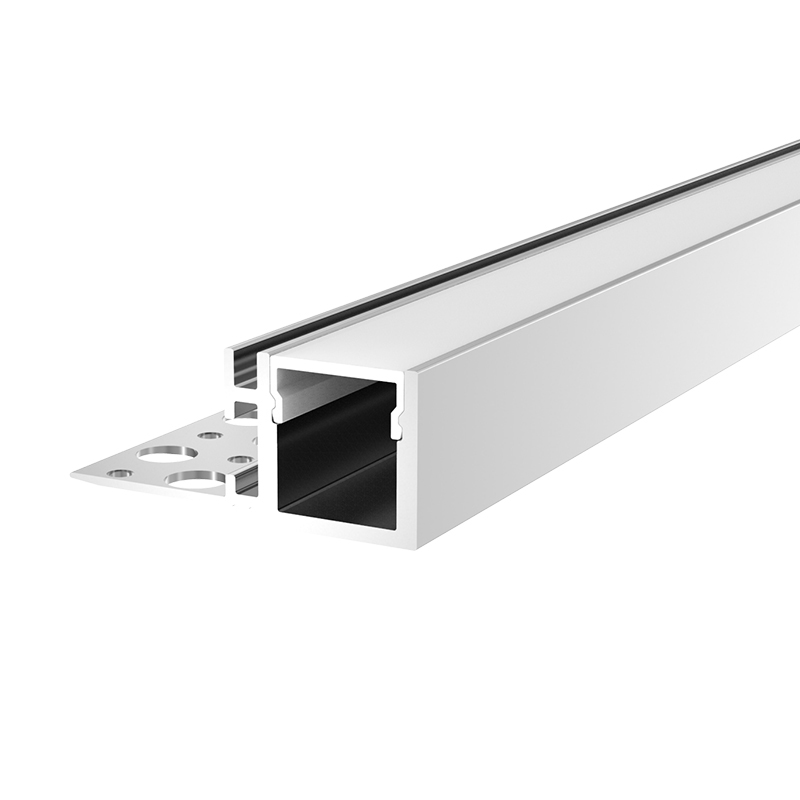

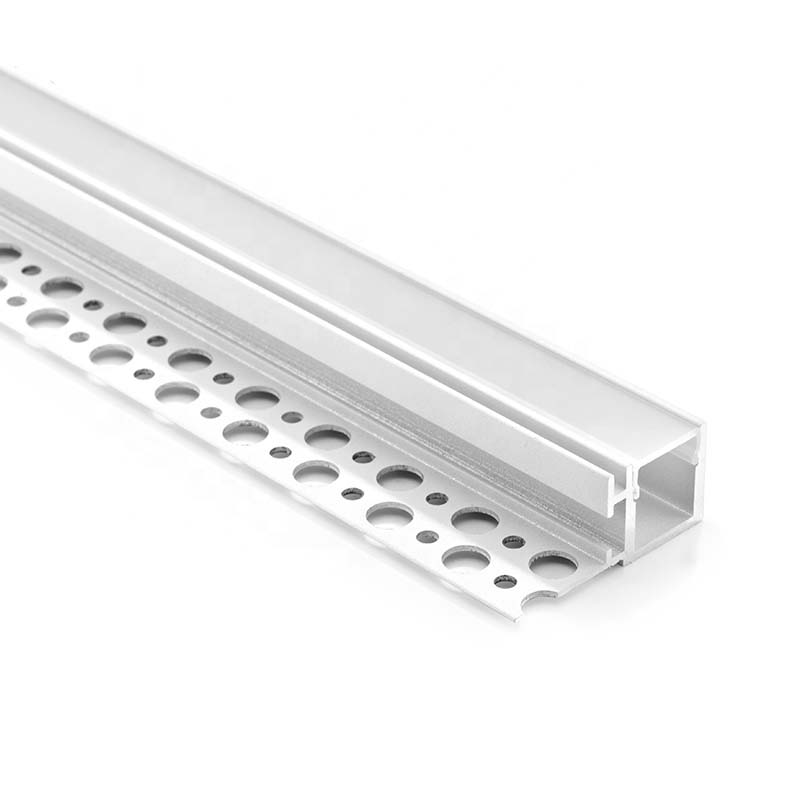

The drywall LED profile light with a single flange is designed for flush mounting with 16 mm (5/8") thickness of plasterboard. They can be installed directly into the edge of the floating ceiling drywall, forming a clean shadow gap or glowing perimeter light line that enhances the architectural depth of the ceiling. They are crafted from 6063-T5 extruded aluminum material with a white surface treatment, providing anti-oxidation properties and a longer lifespan. The standard lengths are 1 m and 2 m; you can cut to any length for your specific applications, and a custom length is also available. The inner width is 13.9 mm, allowing for LED strips with a width of up to 13 mm. The aluminum perimeter light channels serve as a heat sink for improved heat dissipation, thereby extending the lifespan of the LED lights. Only one type of diffuser is available: the PC diffused cover, made of imported-brand material, is anti-yellowing, features perfect light distribution, and diffuses the lighting evenly. End caps with and without wire holes are included. There are 3 types of joiners available: 90°, 90° vertical, and 180°. You can use them for both angled and straight connections in interior design.
Specifications:

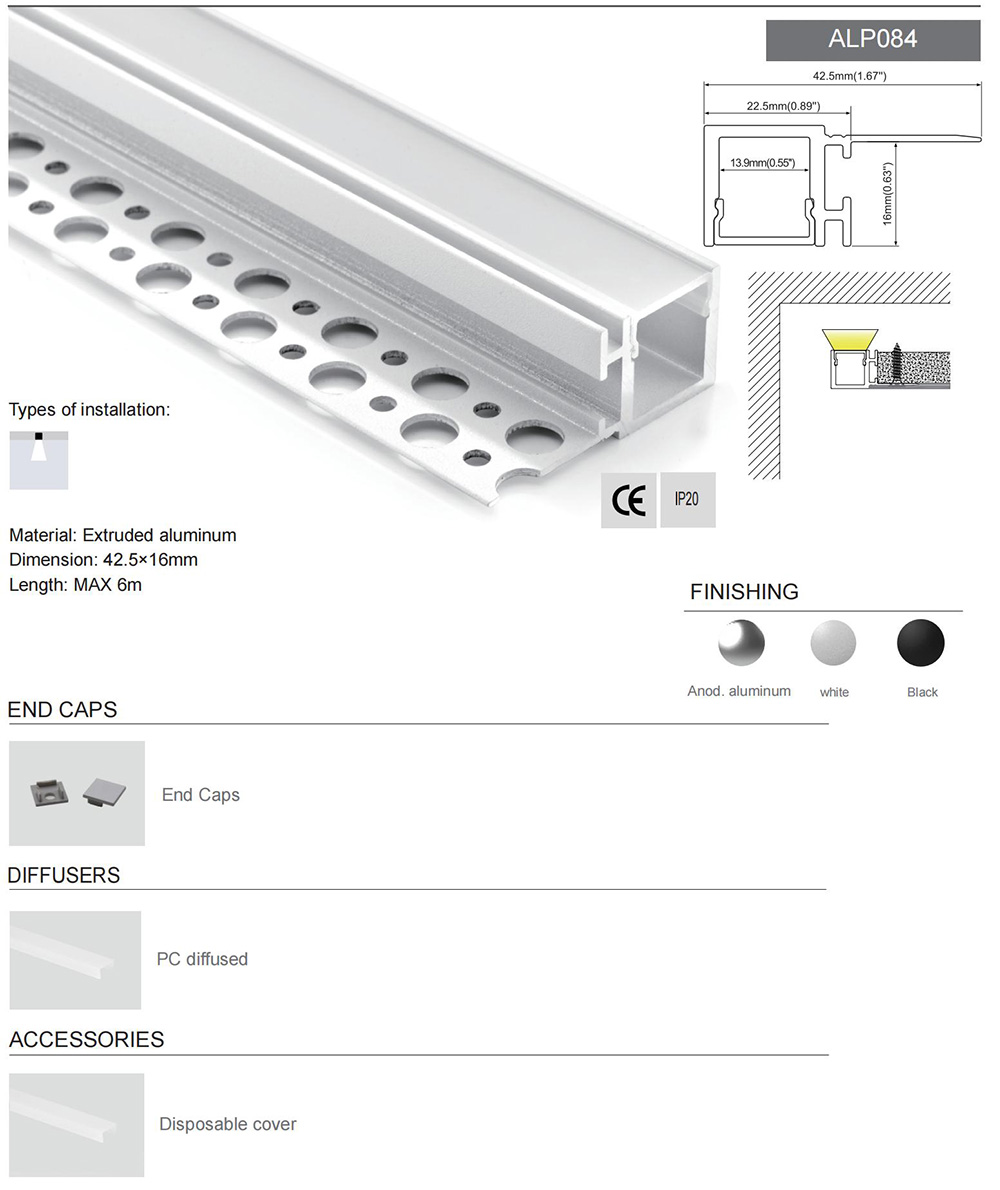

- Model: ALP084
- Material: 6063-T5 extruded aluminium
- Surface treatment: Powder-coated
- Color: White

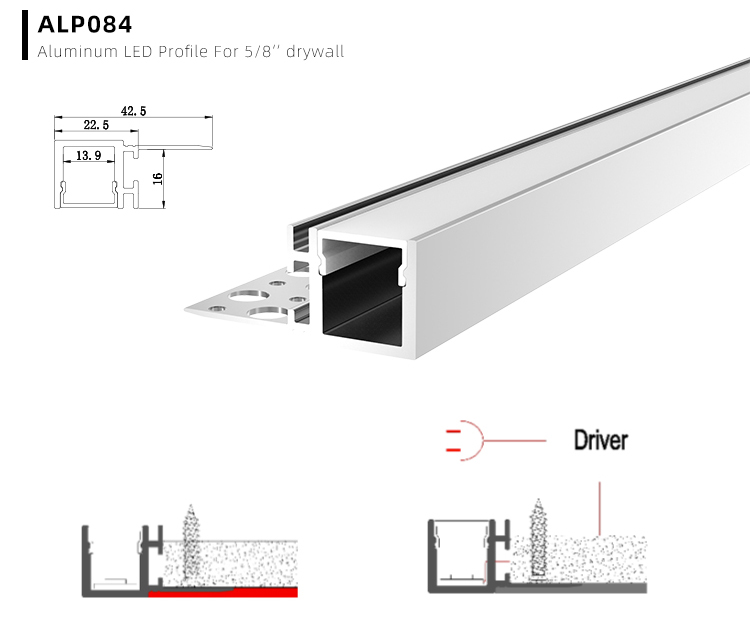

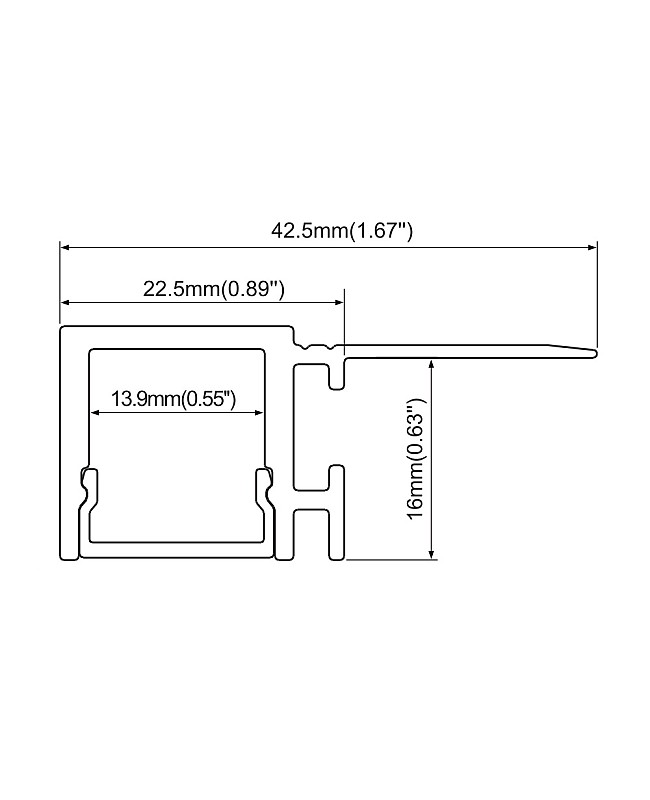

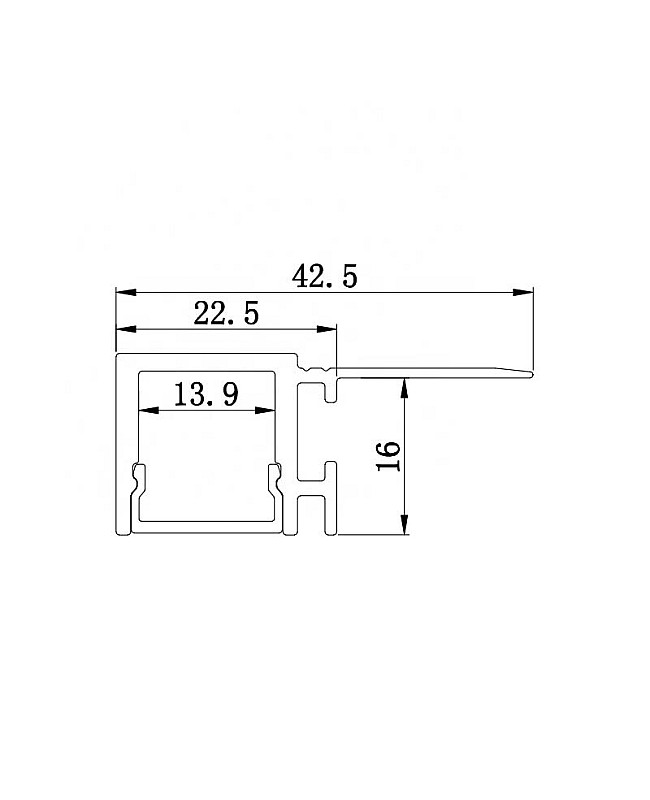

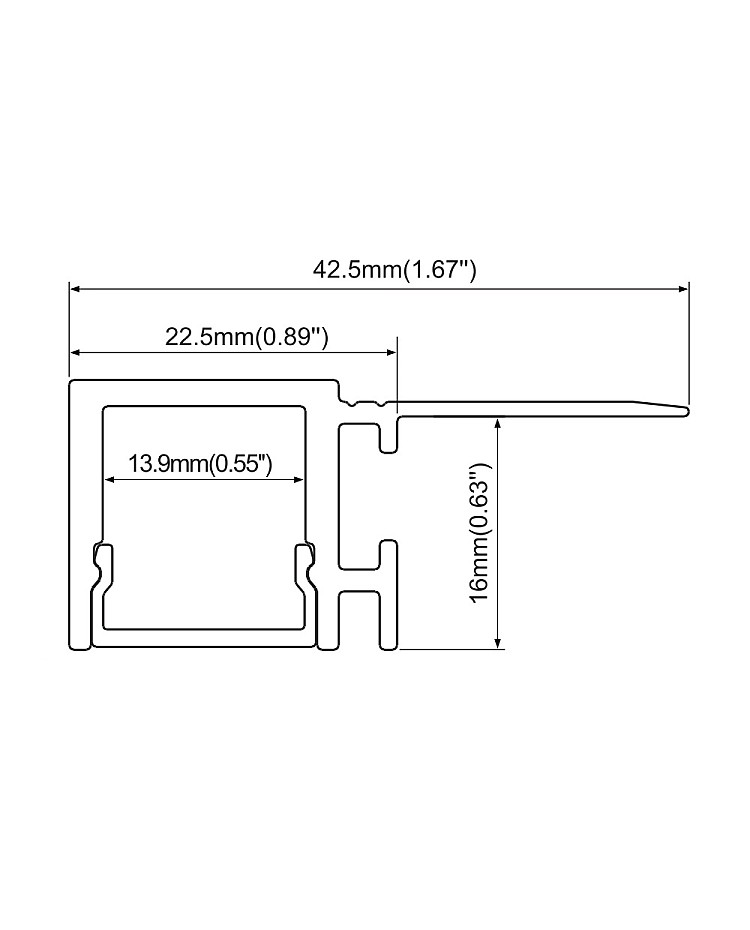

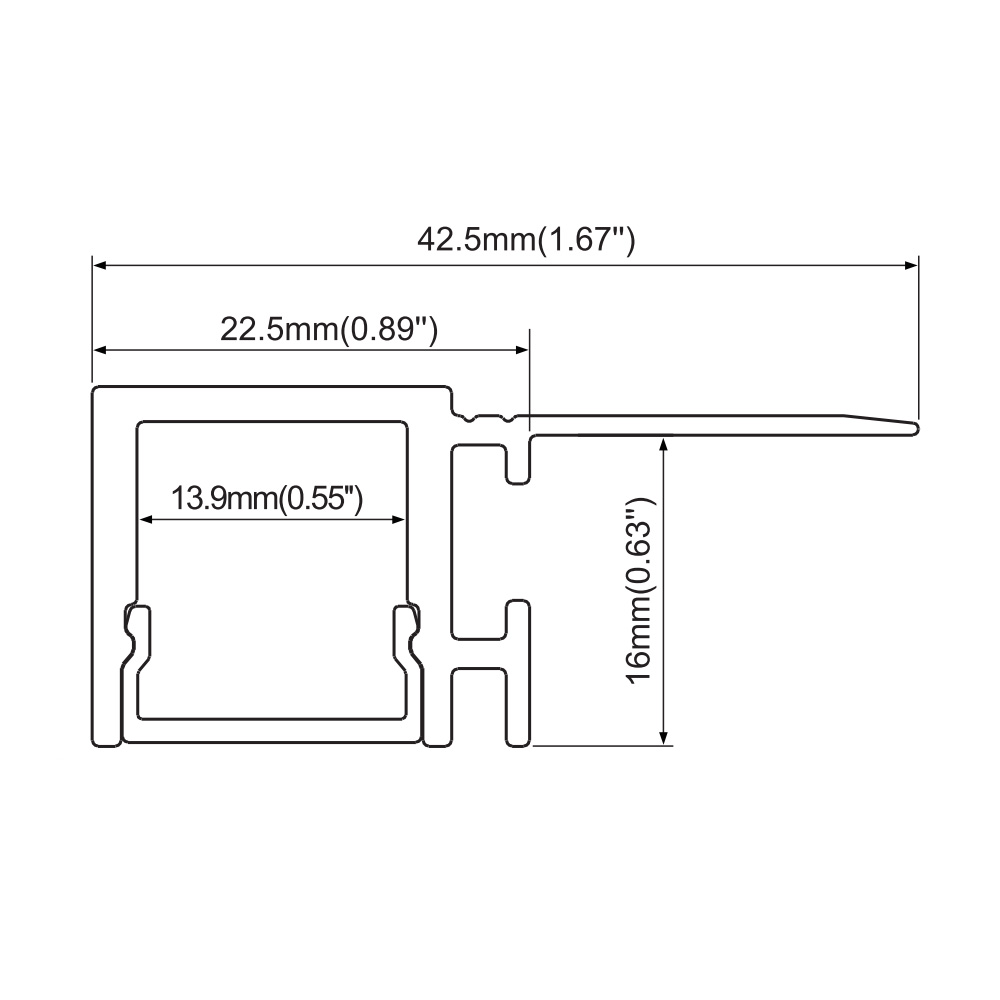

- Size ( W x H ): 42.5 mm x 16 mm ( 1.67" x 0.63" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 13.9 mm ( 0.55" )
- Maximum LED strip width: 13 mm ( 0.51" )
- Max power: 12W/m
- Diffusers: PC diffused cover
- Beam angle: 100°

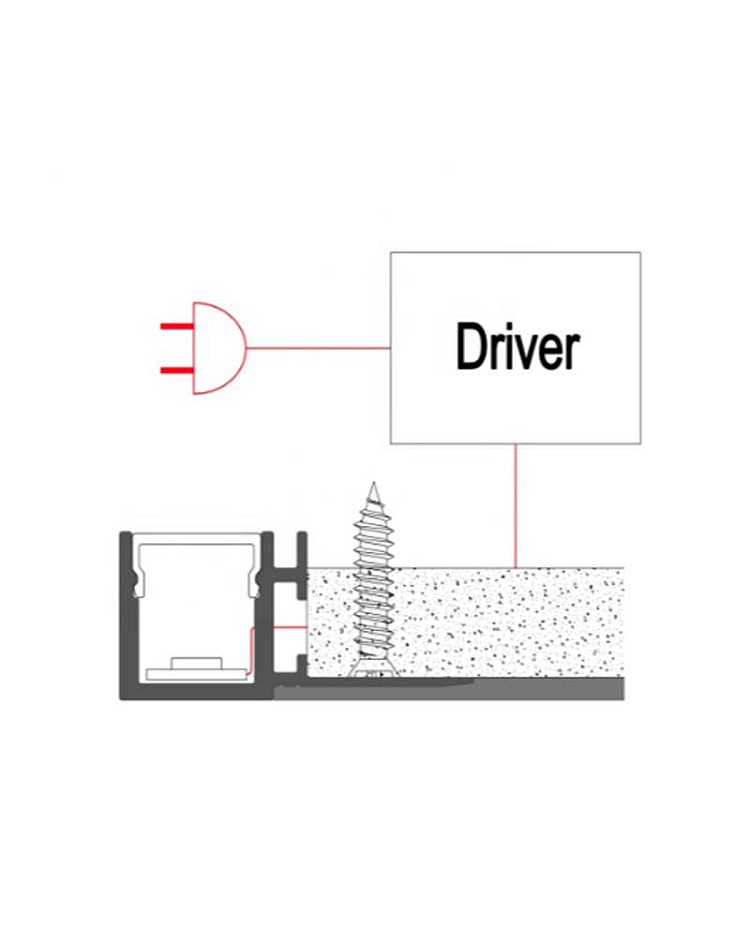

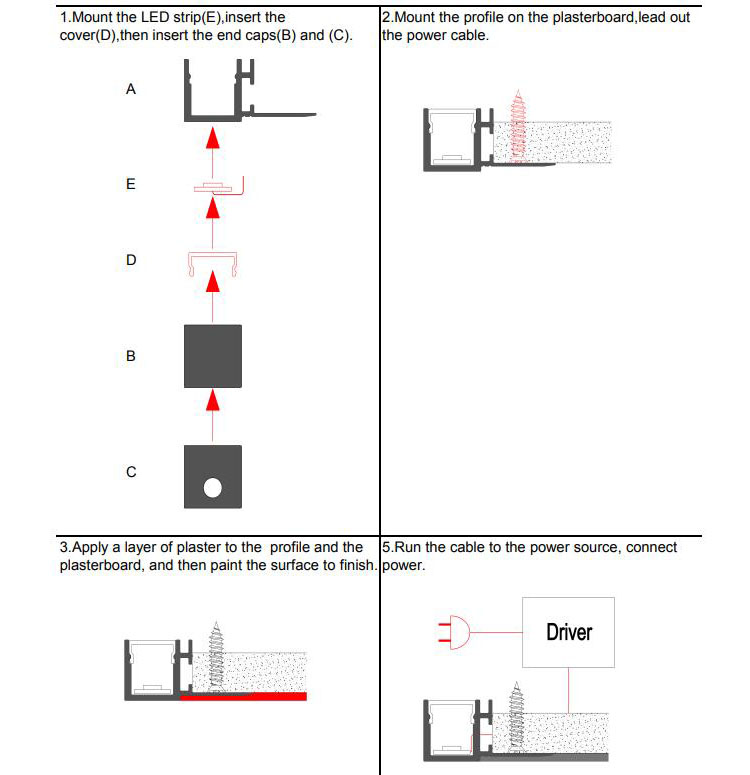

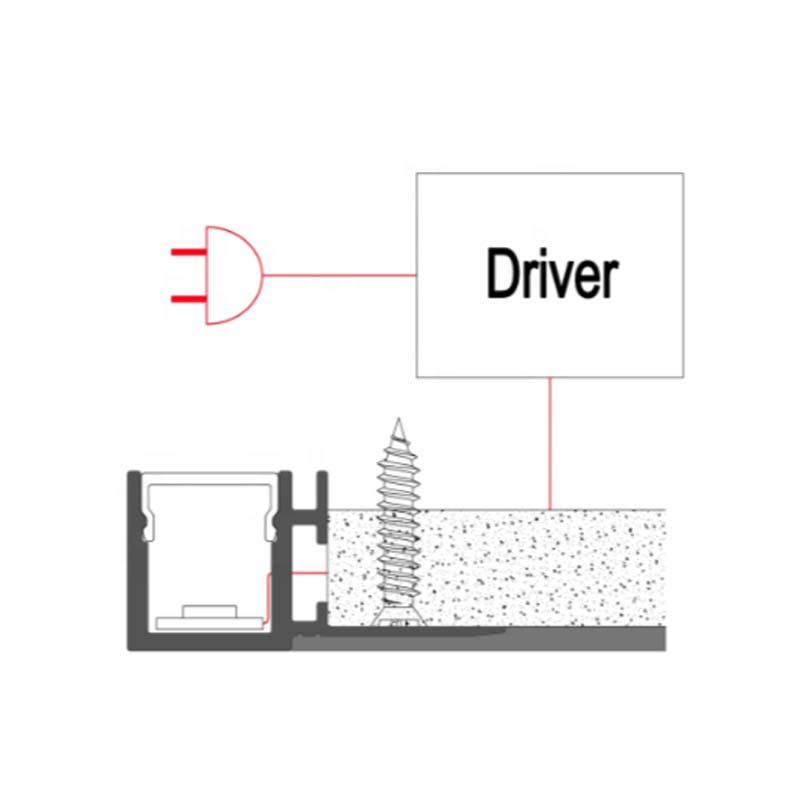

- Installation: Recessed Into 5/8"(16mm) plasterboards

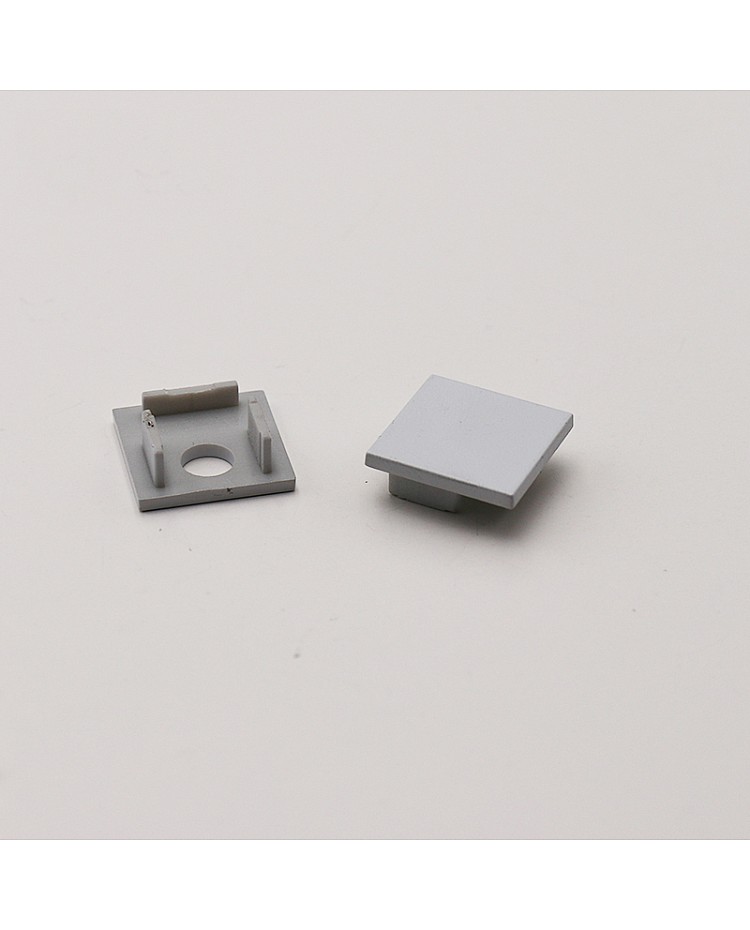

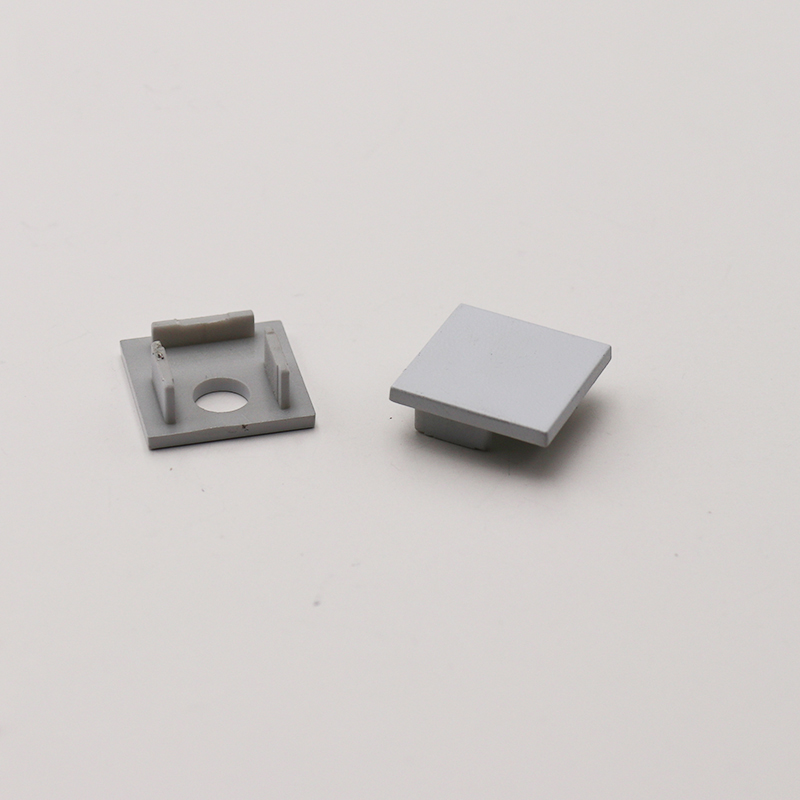

- End caps with and without wire holes are included
- LED strips, transformers, and controllers are sold separately
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

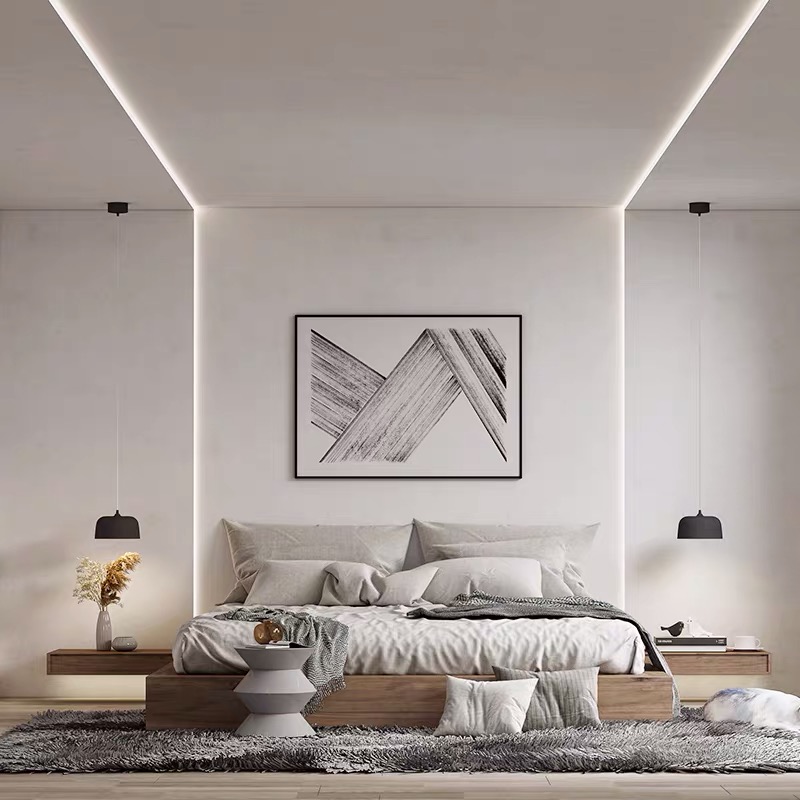

- Floating ceiling perimeters in residential and commercial spaces
- Architectural lighting accents in living rooms, offices, or lobbies
- Ambient or indirect lighting in hotels, restaurants, and showrooms
- Modern ceiling designs require hidden linear lighting solutions

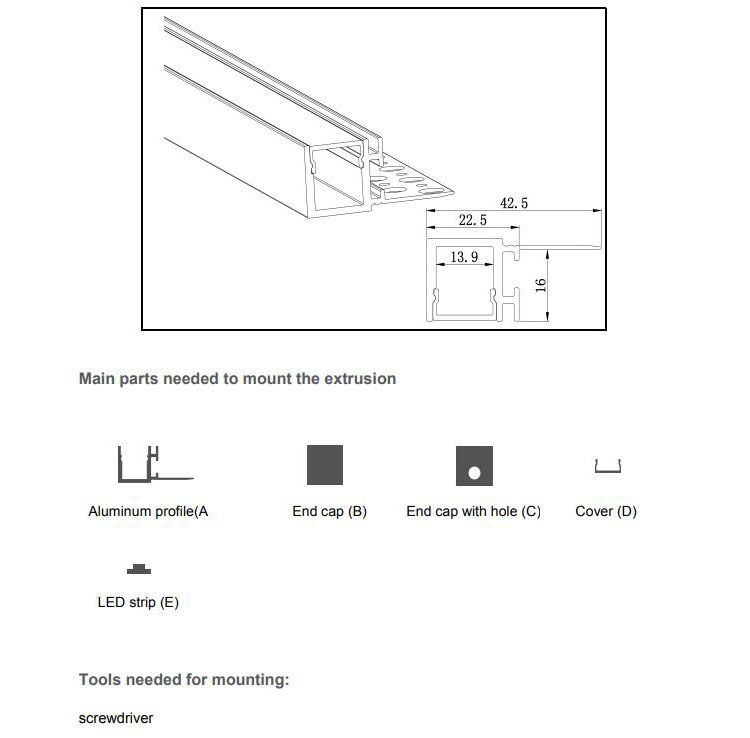

Includes:
1 * Floating ceiling edge LED profile with diffuser
End caps(With and without wire hole)
