  • Brand: Ledbe
  • Product Code: WS2811 Pixel RGB COB

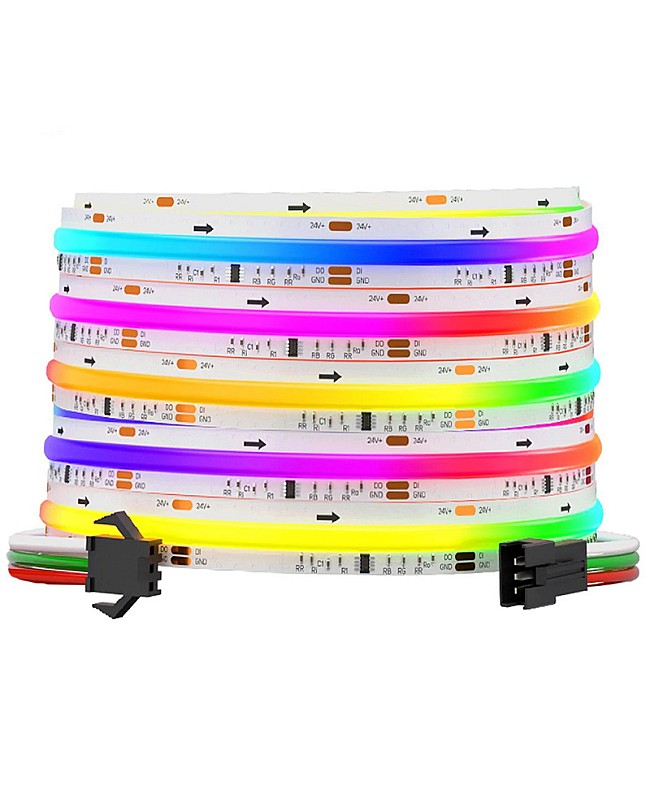

The WS2811 Pixel Addressable RGB LED Strip Lights are great for adding color to any lighting project and can work with Pixel LED Controllers to create colorful lighting effects. The WS2811 RGB Strips adopt the chip-on-board(COB) technology, 720PCS of chips, and 20PCS of ICs mounted on the double-layer PCB board, flexible and bendable, creating a brighter, softer, more uniform light. There are no visible light dots, dark areas, and consistent light output. These Pixel Strips follow WS2811 protocol to send data over a single data line, allowing for full control of LEDs in the Strip. They are perfect for creating custom lighting effects in home theaters, stage lighting, architectural lighting, and more. They come in various lengths and feature adjustable brightness and color.  Recommend working with K1000C, SP630E, SP611E, SP105, SP108E, and other controllers to achieve many dynamic modes like curtain-up, flow water, raindrop, jump flash, and other hundreds of lighting effects. The back with double-sided adhesive tape they are easy to install and use. The minimum cuttable length is 50mm, 3P JST-SM connectors(Male and Female) and voltage-adding wires are attached on both ends, making it easy to connect to the LED Controller and add voltage to avoid voltage drop issues. You can use them for DIY backlight, table lights, toy lights, DIY lighting, and many more.


  • Model: WS2811 Pixel RGB COB Strip Lights
  • Working Voltage: DC12V/DC24V
  • Width: 12mm
  • Length Available: 1M, 2M, 3M, 4M, 5M
  • IC Type: WS2811
  • IC Quantity: 20PCS/Meter
  • LED Quantity: 720PCS/Meter
  • Power: 12W/M(DC12V); 21W/M(DC24V)
  • Emitting color: Full Color
  • Minimum Cutting Length: 50mm

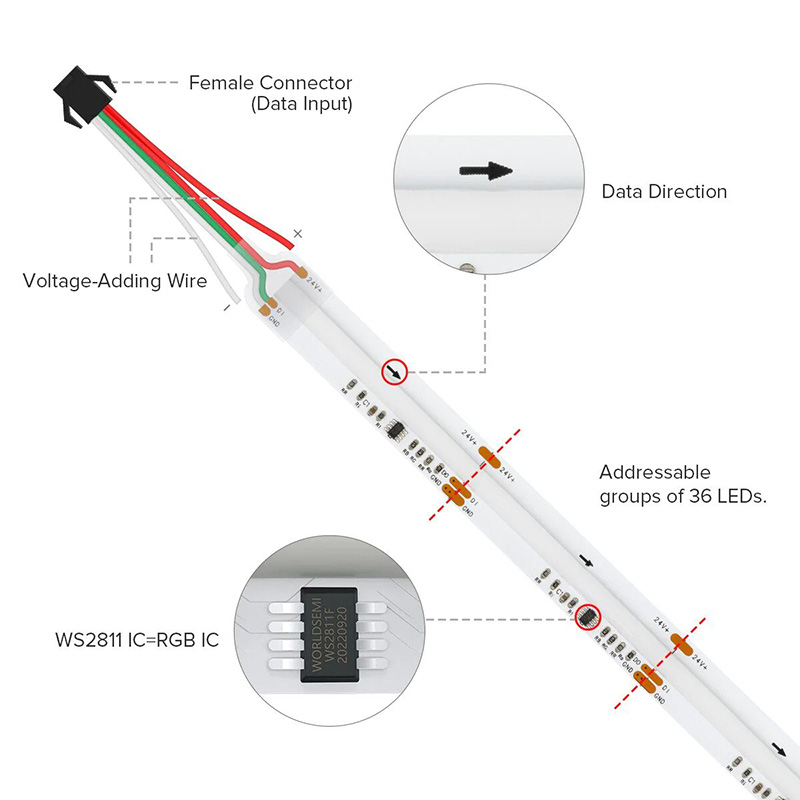

  • Individually Addressable Every 50mm

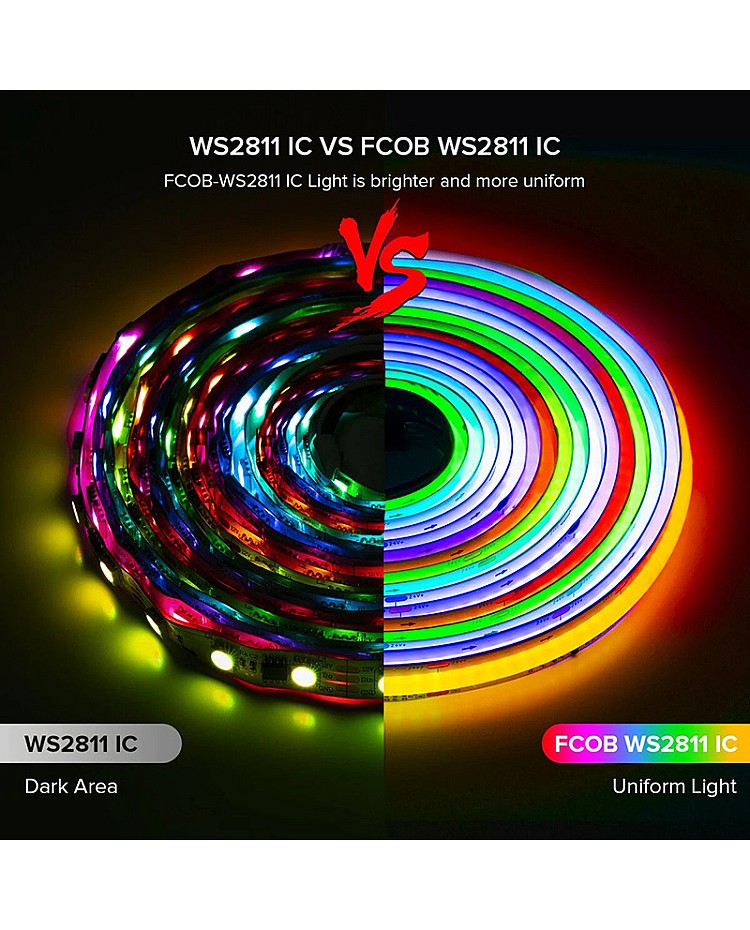

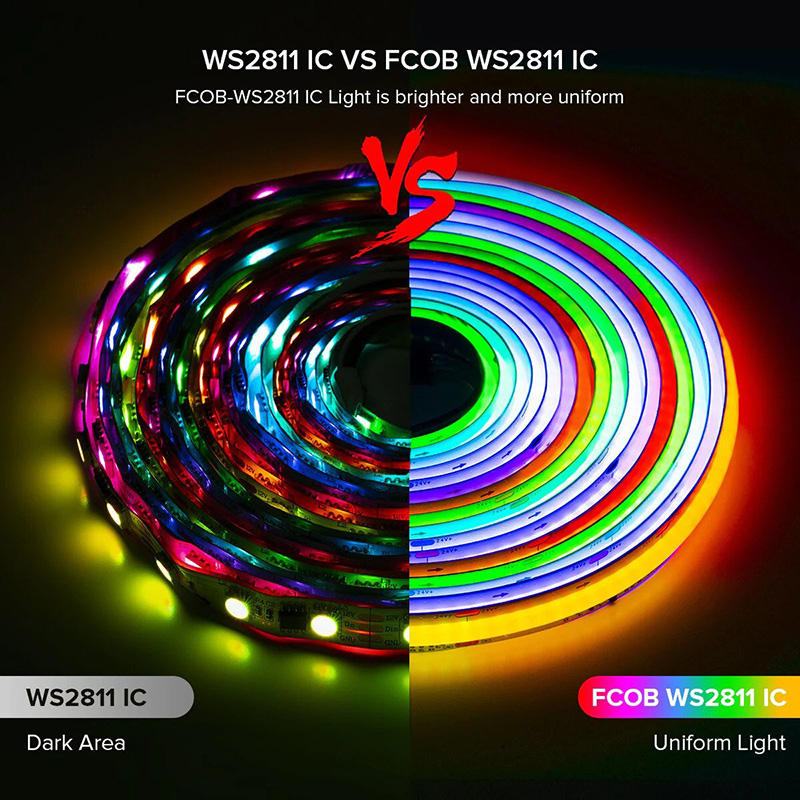

  • Consistent light, No Visible Light Dots, And Dark Areas

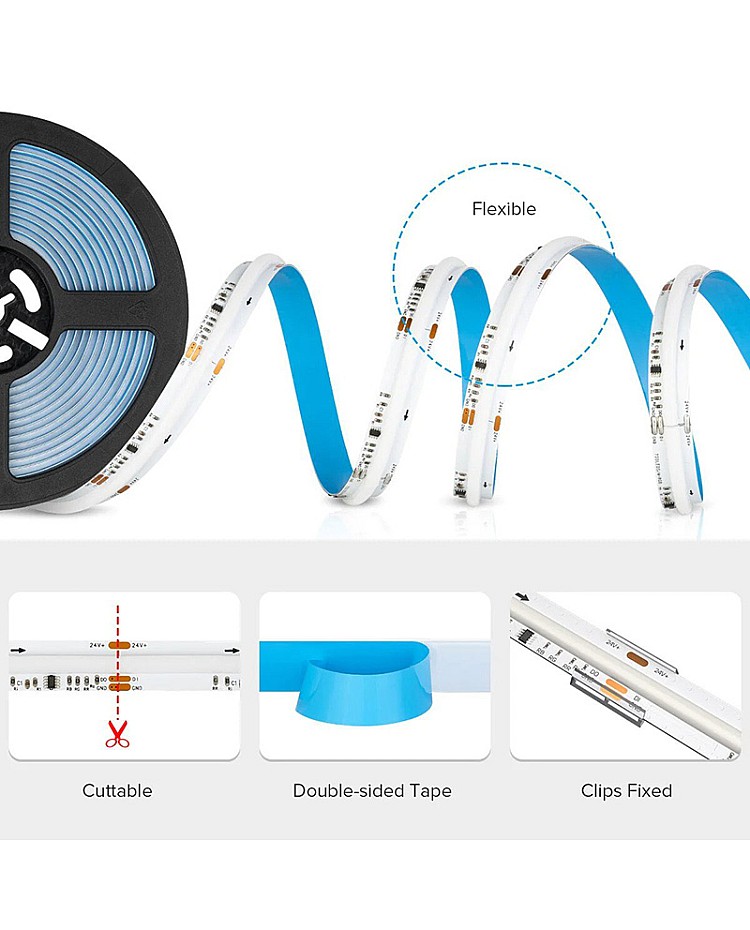

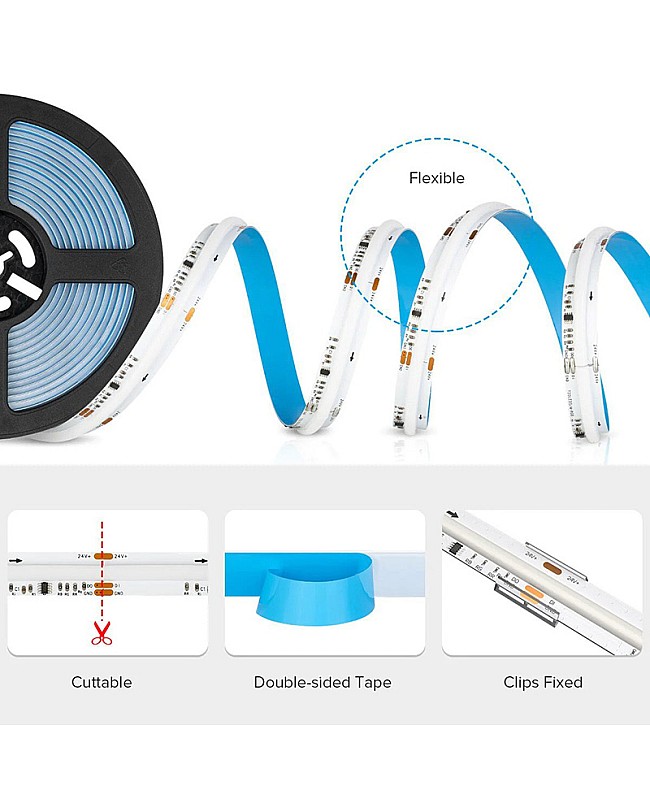

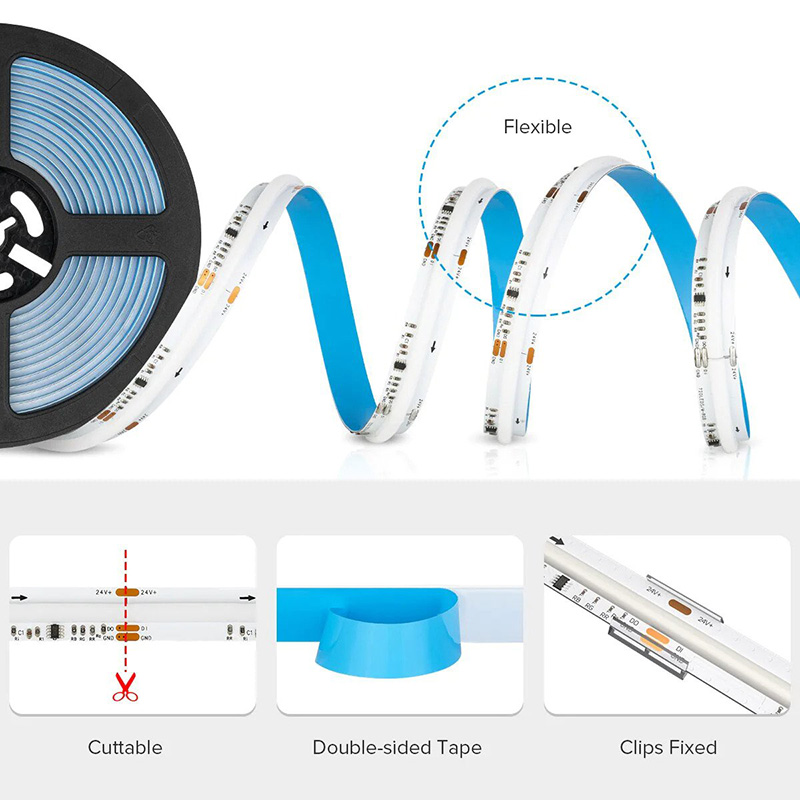

  • Cuttable, Flexible, And Bendable
  • Color Rendering Index: >90Ra
  • View Angle: 180°
  • Waterproof Level: IP20 Non-waterproof
  • Back With Double-sided Adhesive Tape

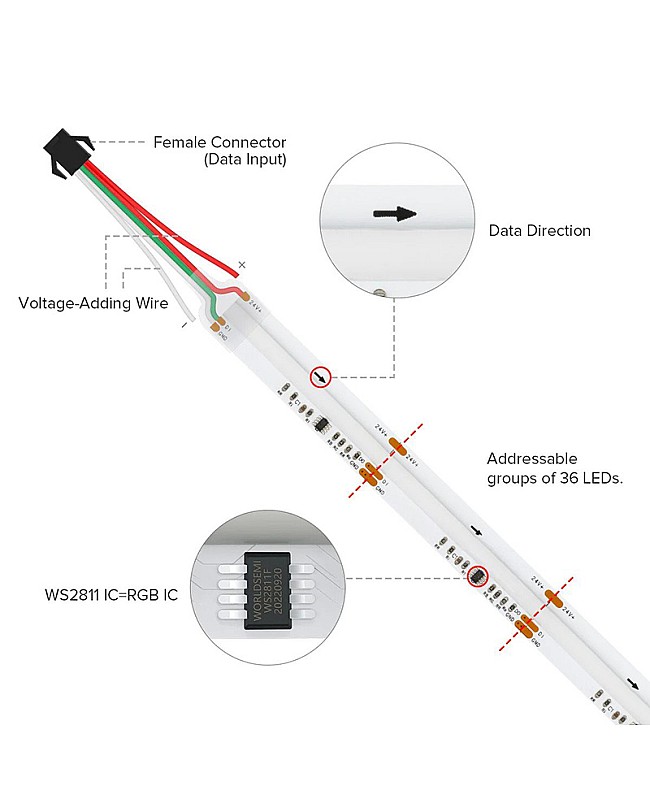

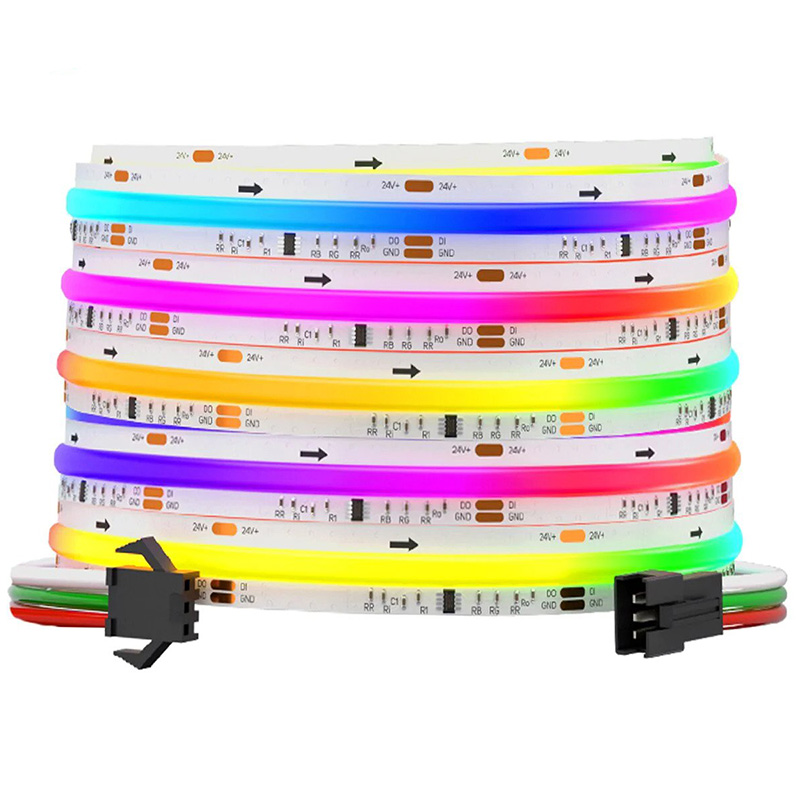

  • 3Pin JST-SM Connectors And Voltage Adding Wires Included

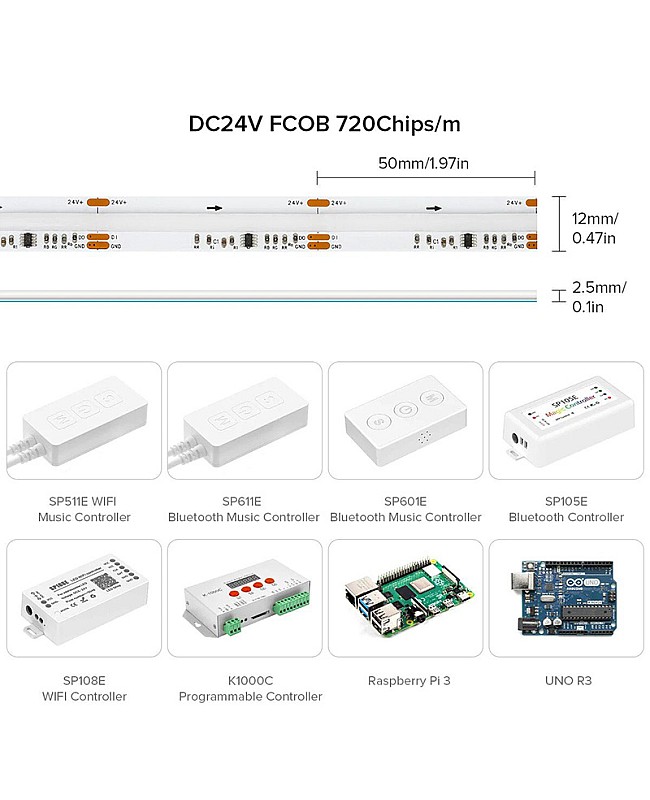

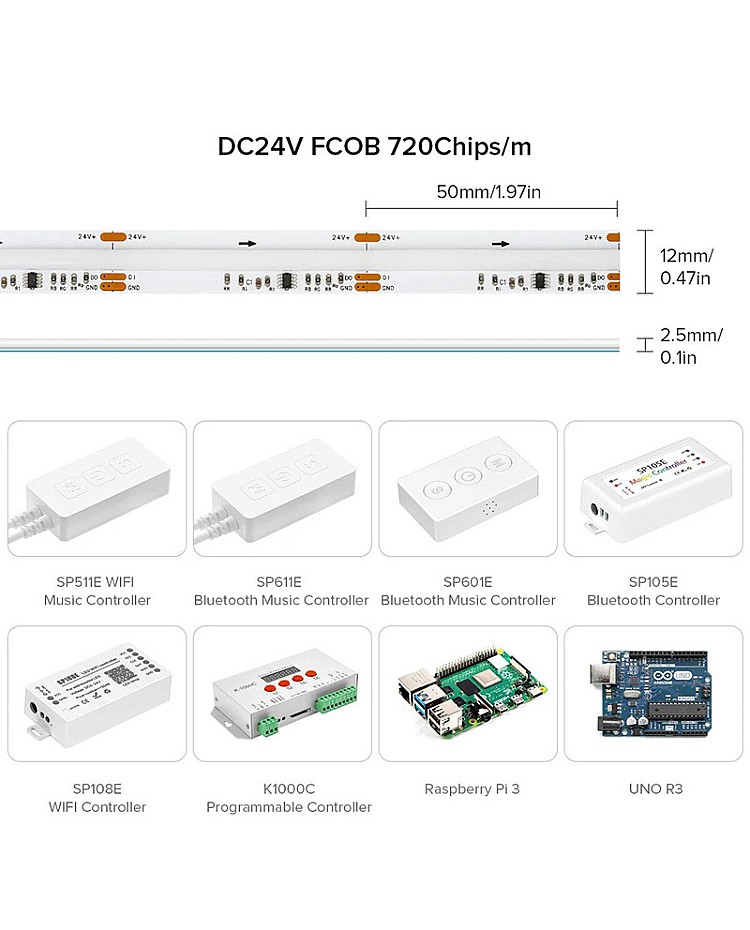

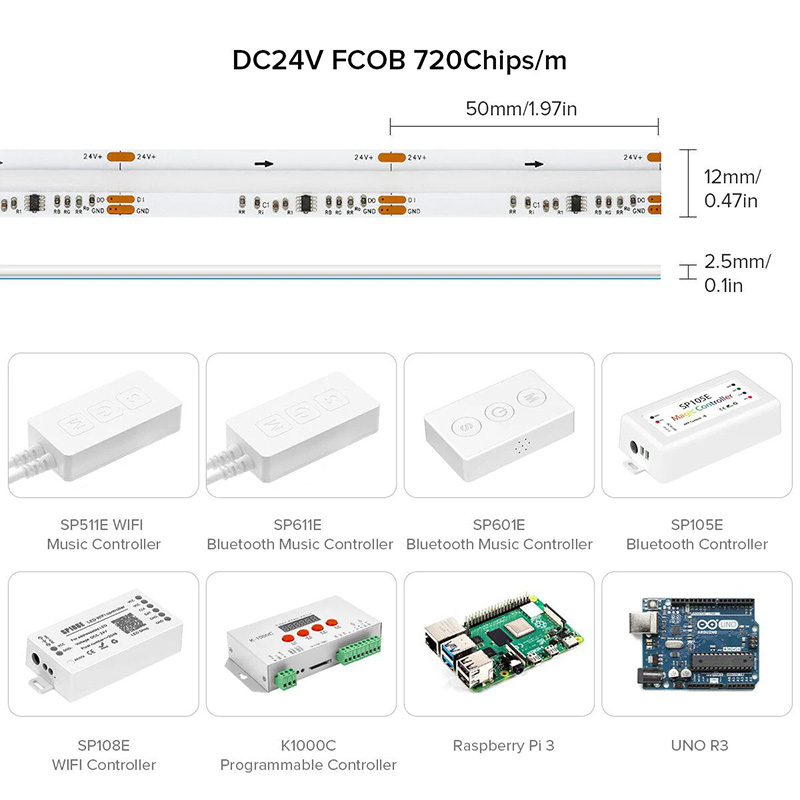

  • Recommend Pixel Controllers: SP511E, SP611E, SP601E, SP105E, SP108E, K1000C, Raspberry Pi 3, UNO R3, etc
  • Working Temperature: -20-45℃
  • Storage Temperature: -20-60℃
  • Lifespan: >50,000 Hours
  • 3 Years Warranty


1*WS2811 LED Strips

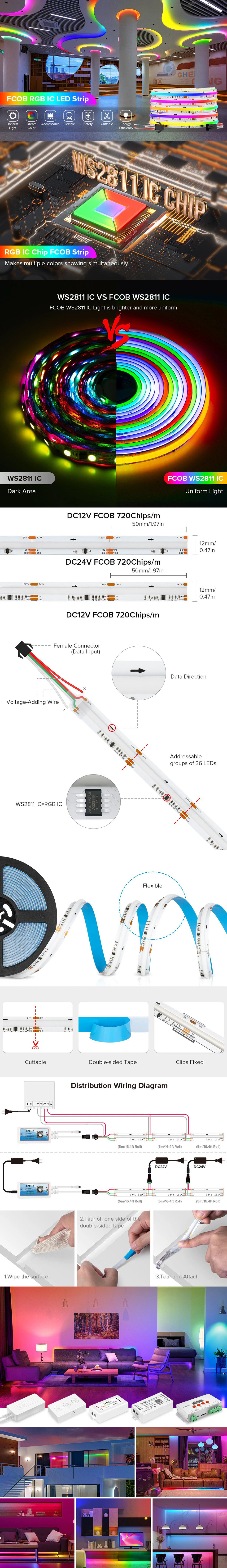

WS2811 12V Pixel LED Tapes
