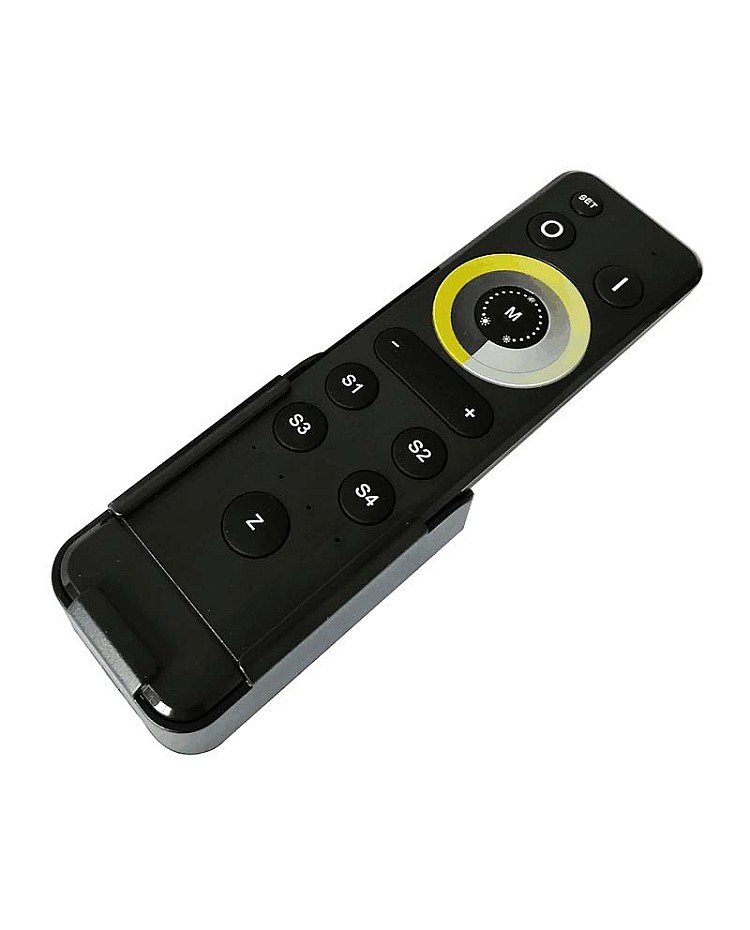

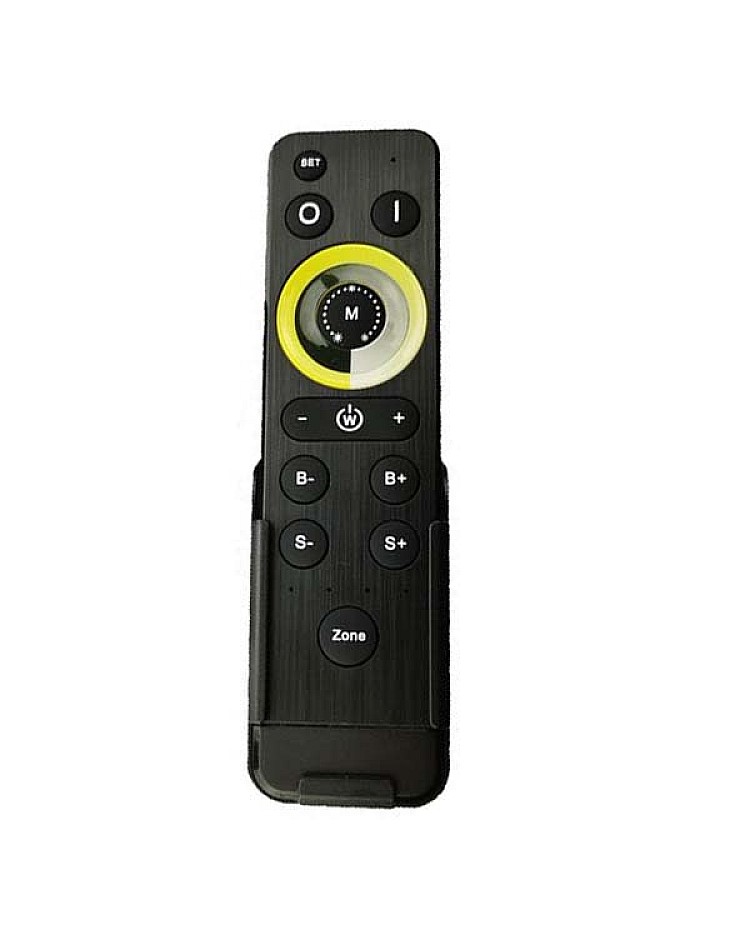

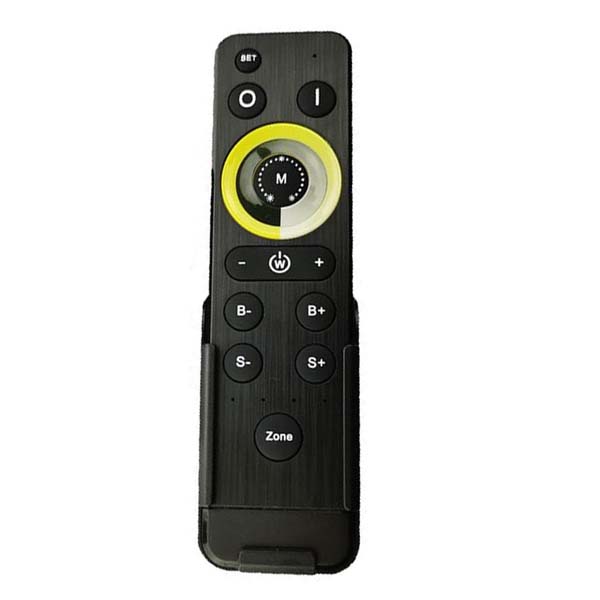

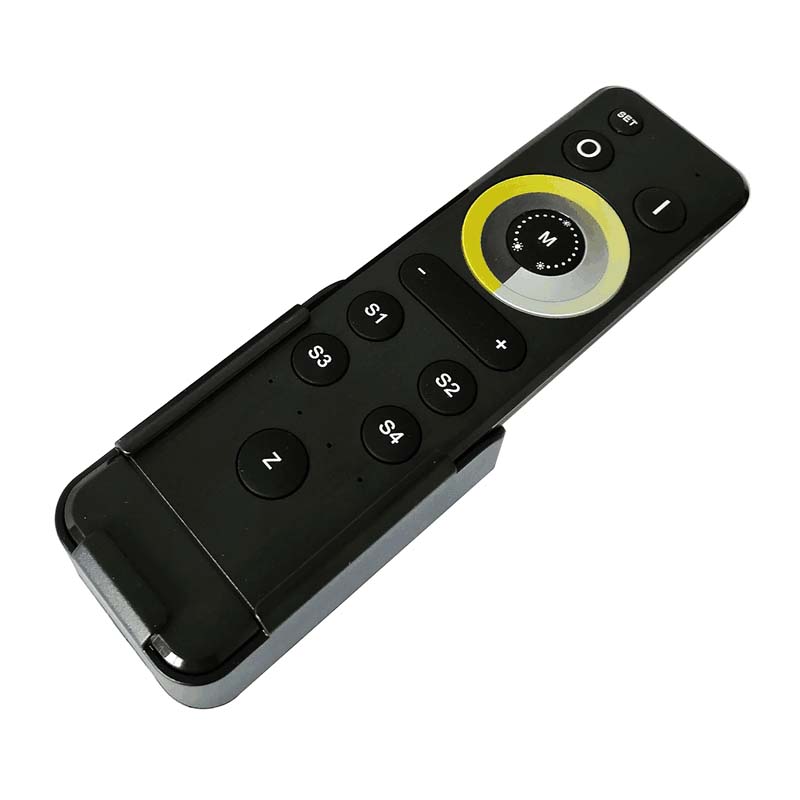

2.4G RF 4 Zones CCT DIM 2 IN 1 LED Remote Control

The 2.4G RF 4 zones CCT/Dim LED remote controls work on DC3V and are powered by 2PCS AAA batteries. Adopts the 2.4GHz RF wireless control technology and control distance up to 30 meters, compatible with HD/HC/QD/QC/DLC/DLS/DLK/T2 series LED dimming drivers and lighting dimmers. The LED remote control has a unique interface and is easy to use. The 2.4G remote with CCT/DIM 2 in 1 ring, you can use it to adjust the brightness or color temperature. With 4 4-zone control function, single-zone or overall control, the controlled area is shown with an indicator light. There are four sense buttons, a flexible scene control function, and easy-to-set-up different scenes with zones.

Quick Links:

RF Sync Single Color LED Dimmer

Specifications:

• Size: 150*40*20mm(L*W*H)
• Working Temperature: -20℃~60℃
• Working Voltage: DC3V
• DIM/CCT 2 In 1 RF Remote Control
• Powered By 2PCS AAA Batteries
• Sleep Current: <25uA
• Emission Current: <20mA
• Sleep Power Consumption: <75uW
• Emission Power Consumption: <60mW
• RF Distance: ≤30m
• 1024 Levels Brightness Adjustable
• Adopts RF 2.4GHz Wireless Control
• Unique Interface, Easy To Use
• 4 Zones Control Function: Single Zone Control Or Overall Control, Controlled Area Showed With Indicator Light
• Flexible Scene Control Function, Easy To Set Up Different Scenes With Zones
• Compatible With HD/HC/QD/QC/DLC/DLS/DLK/T2 Series Dimming Drivers
• RF Frequency: 2.4G
• Bracket, 2M Foam Sponge Glue, Screws And Expansion Tubes Included
• Weight: 90g

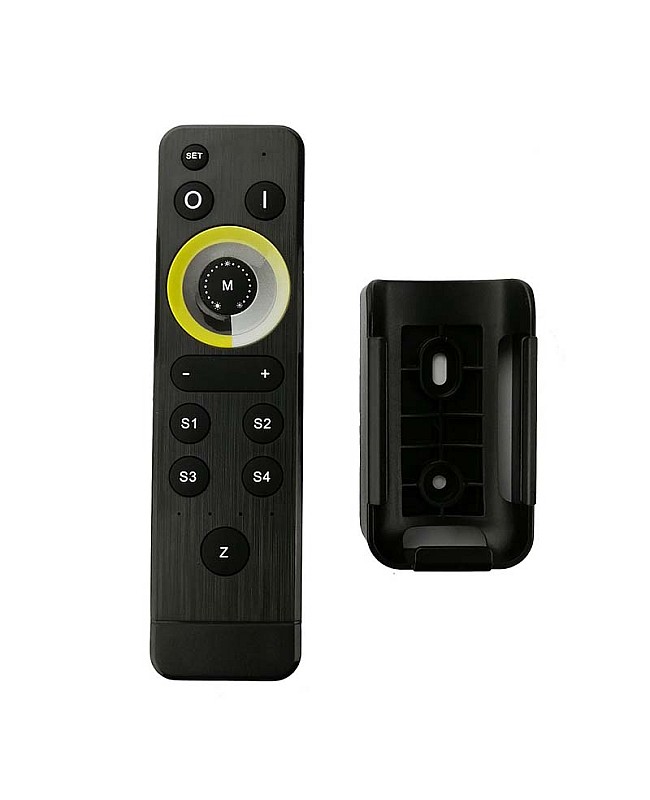

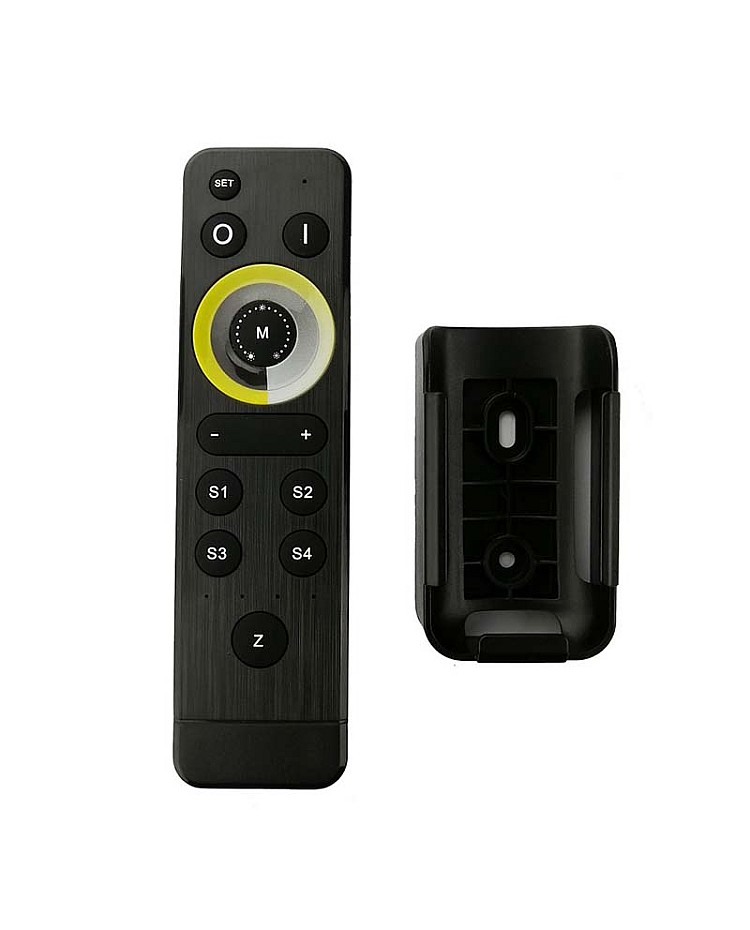

Includes:

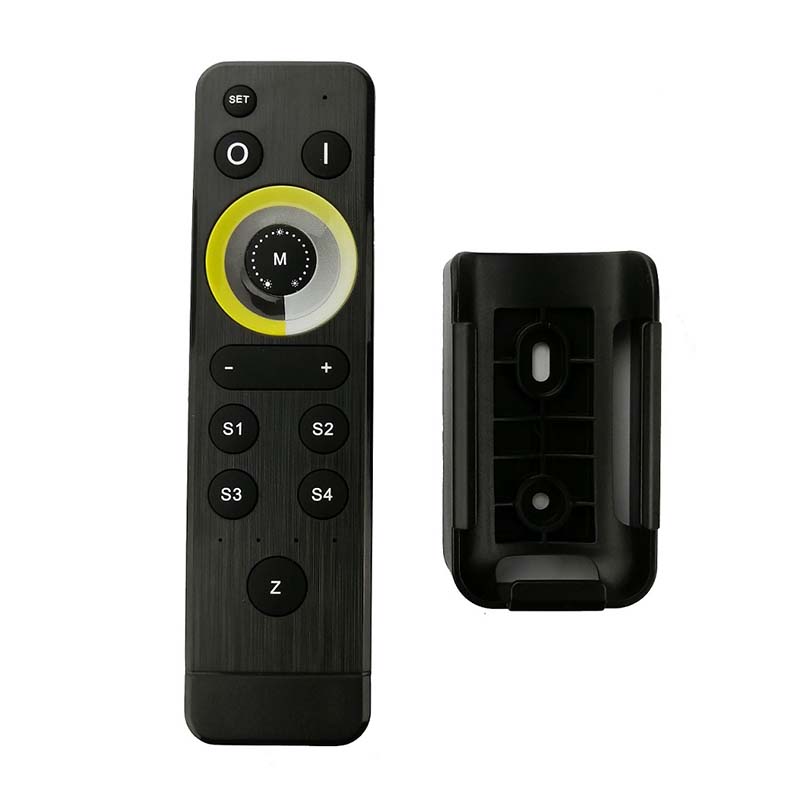

1 * 2.4G RF 4 Zones LED Remote Control

1 * Bracket

1 * 3M Foam Sponge Glue

2 * Screws

2 * Expansion Tubes
