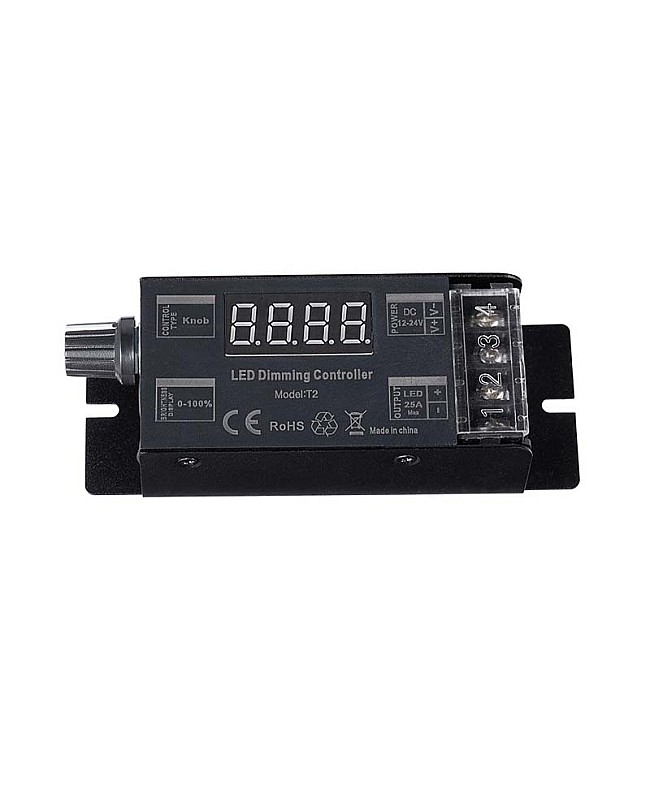

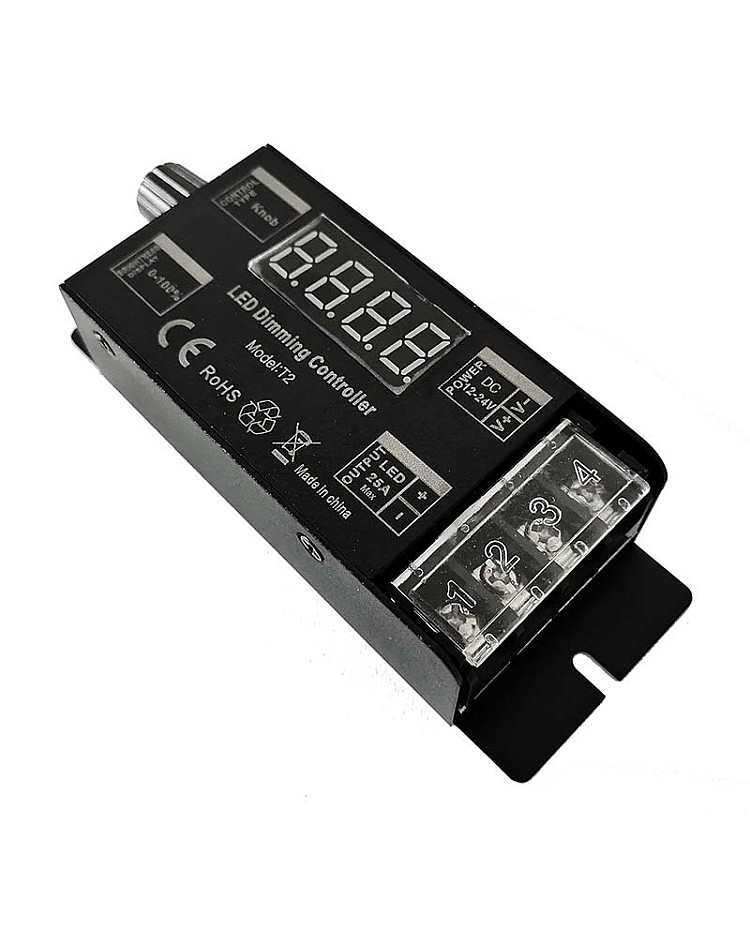

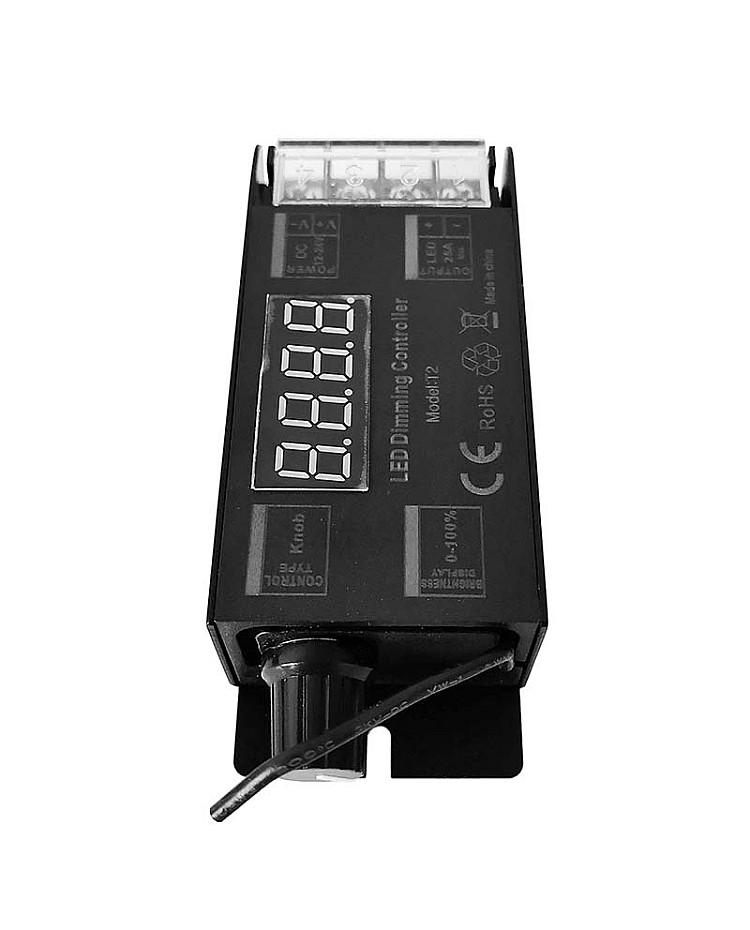

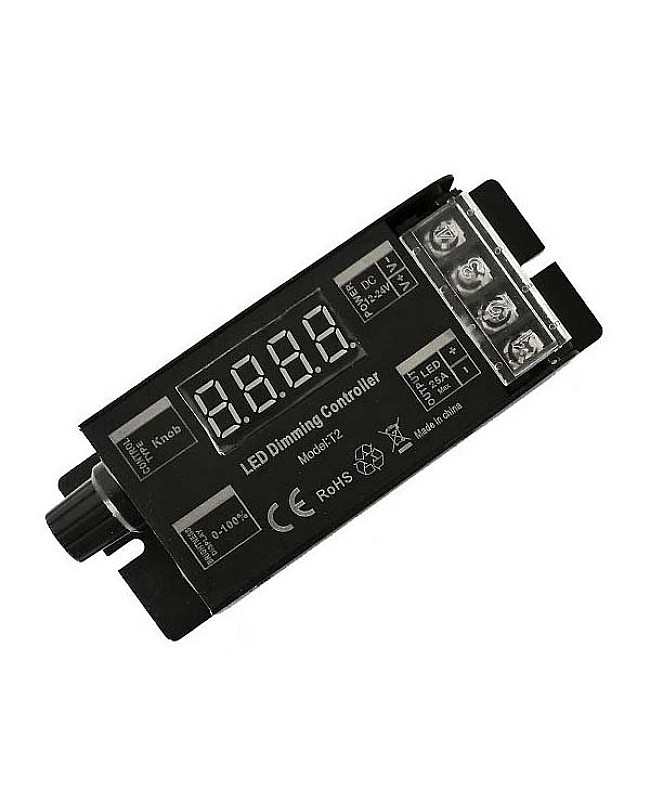

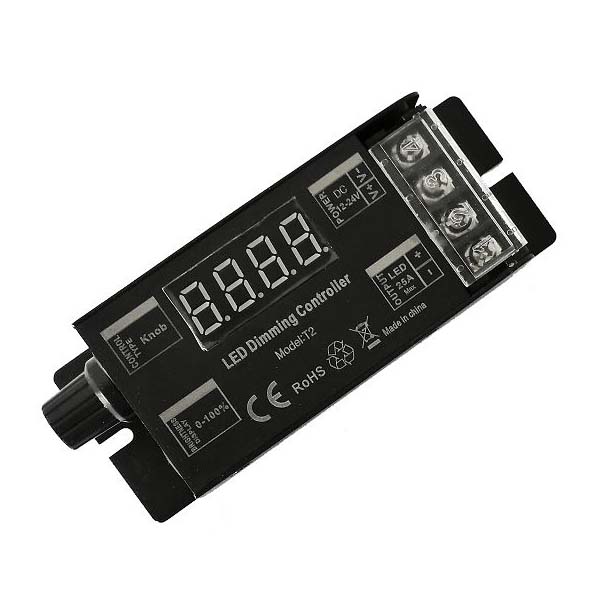

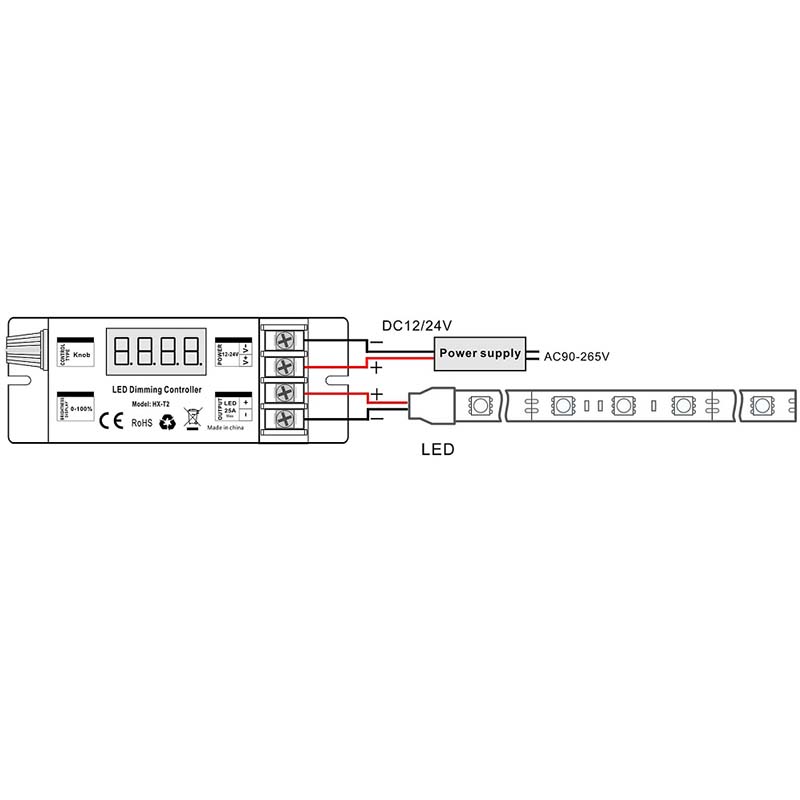

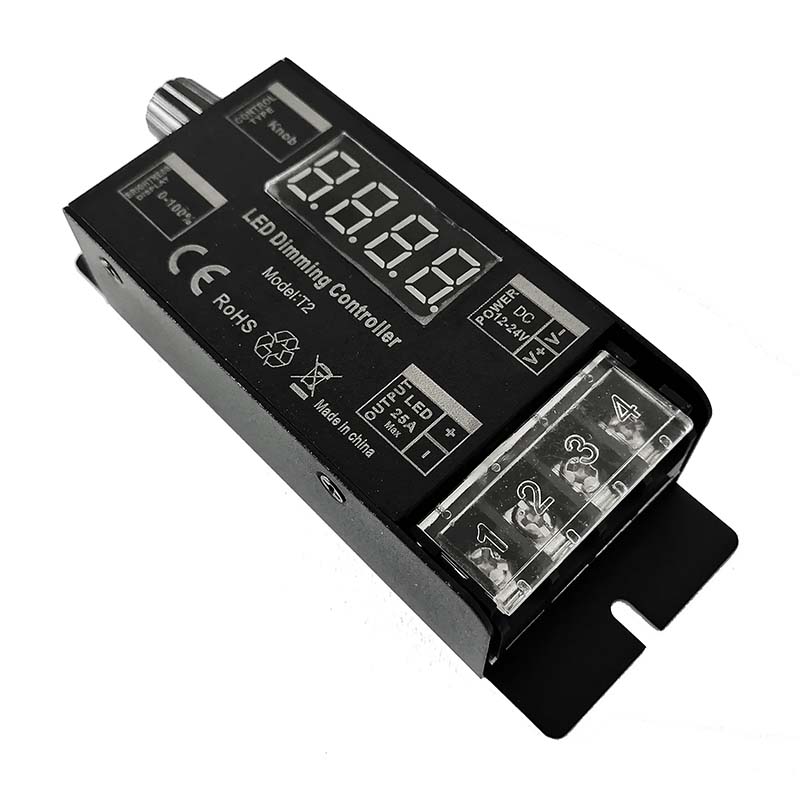

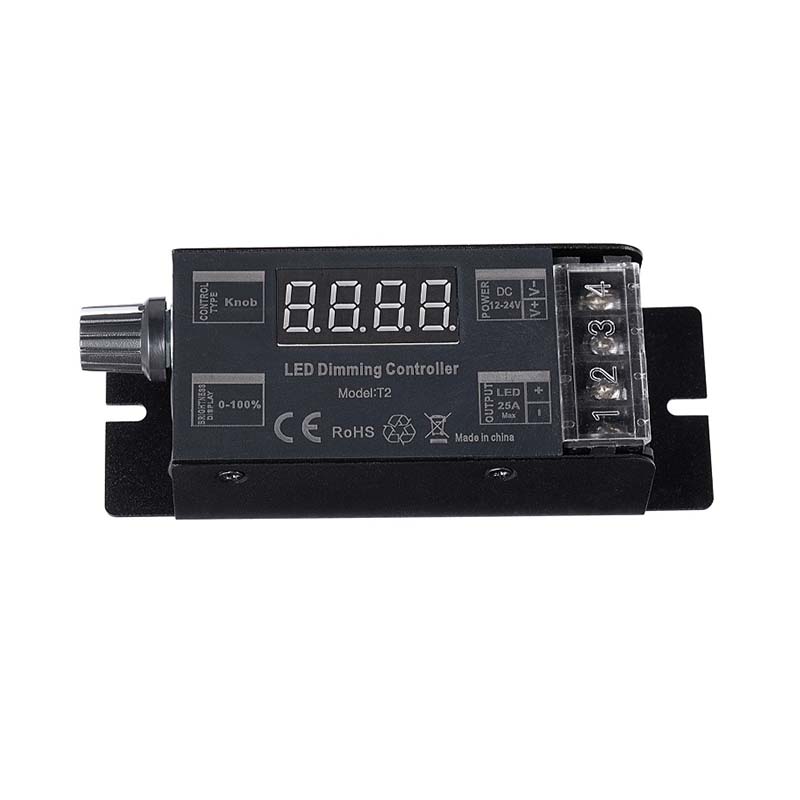

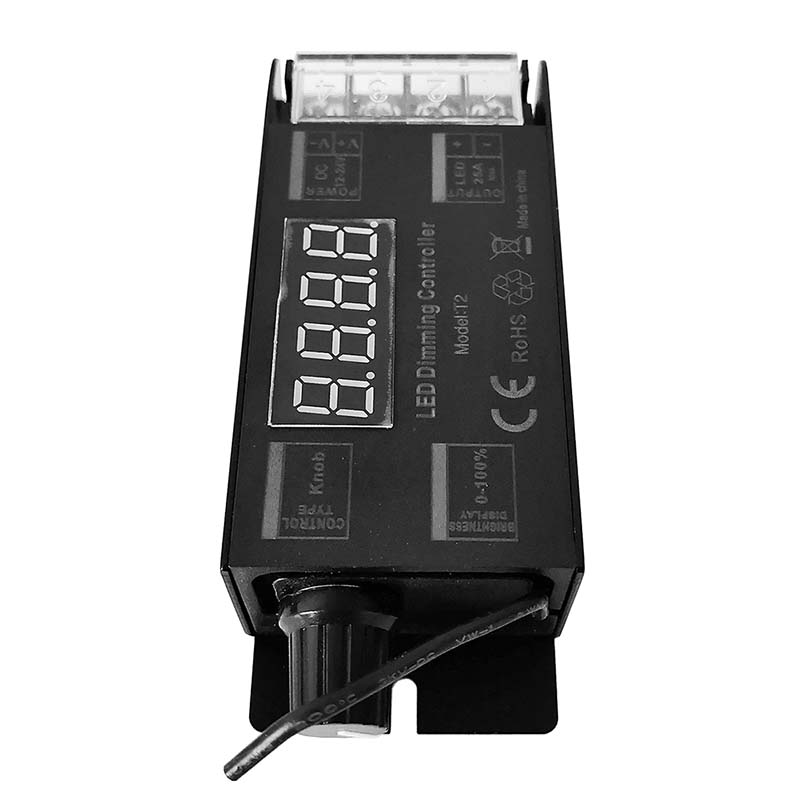

The RF Sync single color LED dimmer can achieve step-less and smooth dimming, adopts both knob control design and remote design, you can connect to the LED light to adjust the brightness. The PWM frequency is adjustable, with six levels available: 500KHz, 1KHz, 2KHz, 4KHz, 7.8KHz, and 15.6KHz. The LED dimmer with knob control manner, you can use it to soft dim function. Clockwise rotation to brighten the brightness to 100% as the maximum, counterclockwise rotation to dim down the brightness to 0% as the minimum, the dimmer can be controlled by the remote, a remote control delivered with a unique RF code as factory default. The LED dimmer does not come with the RF Remote, and you need to order the extra Remote.
Quick Link:
Specifications:
- Size: 103*40*24mm
- Colors: Black
- Working Voltage: DC12-24V
- Output: 1 Channel
- Static Power Consumption: <1W
- Max Output Current: 25A
- Max Output Power: 300W(12V)/600W(24V)
- Memory: YES
- RF Frequency: 2.4GHz
- RF Distance: <30M
- PWM Frequency: 2KHz(Default)/500KHz, 1KHz, 4KHz, 7.8KHz, 15.6KHz
- Max Output Current: PWM<=2KHz: 25A/PWM=7.8KHz: 15A/PWM=15.6KHz:10A
- Max Output Power: PWM<=2KHz:300W/12V;600W/24V / PWM=7.8KHz:180W/12V; 360W/24V / PWM=15.6KH:120W/12V; 240W/24V
- Weight: 100g
- Short Circuit Protection
- 3 Years Warranty
Includes:
1 * RF Sync Single Color LED Dimmer
