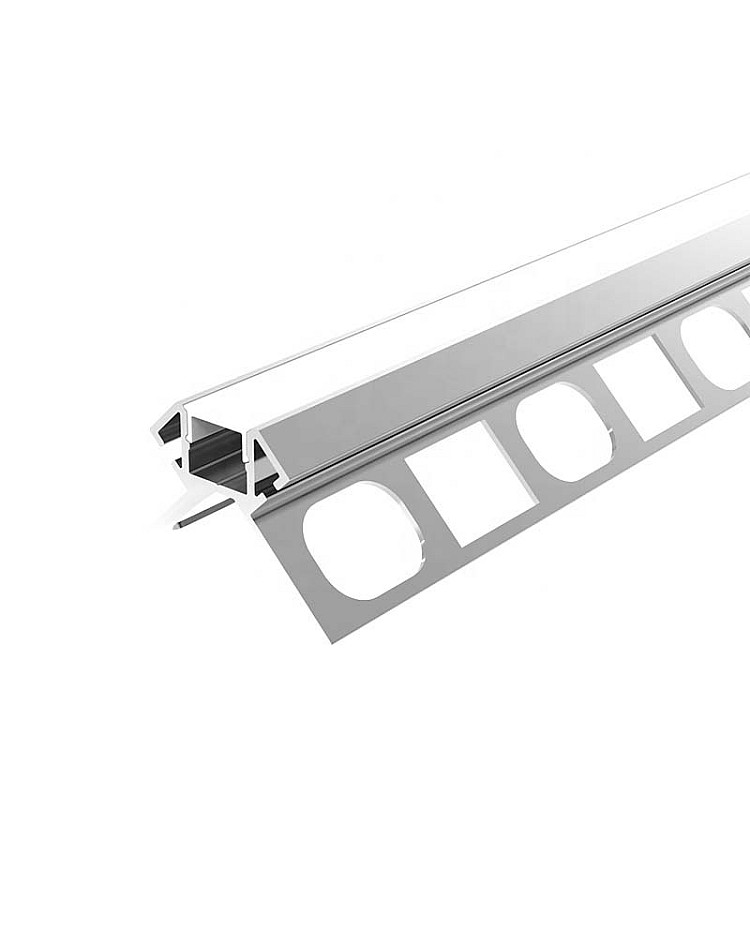

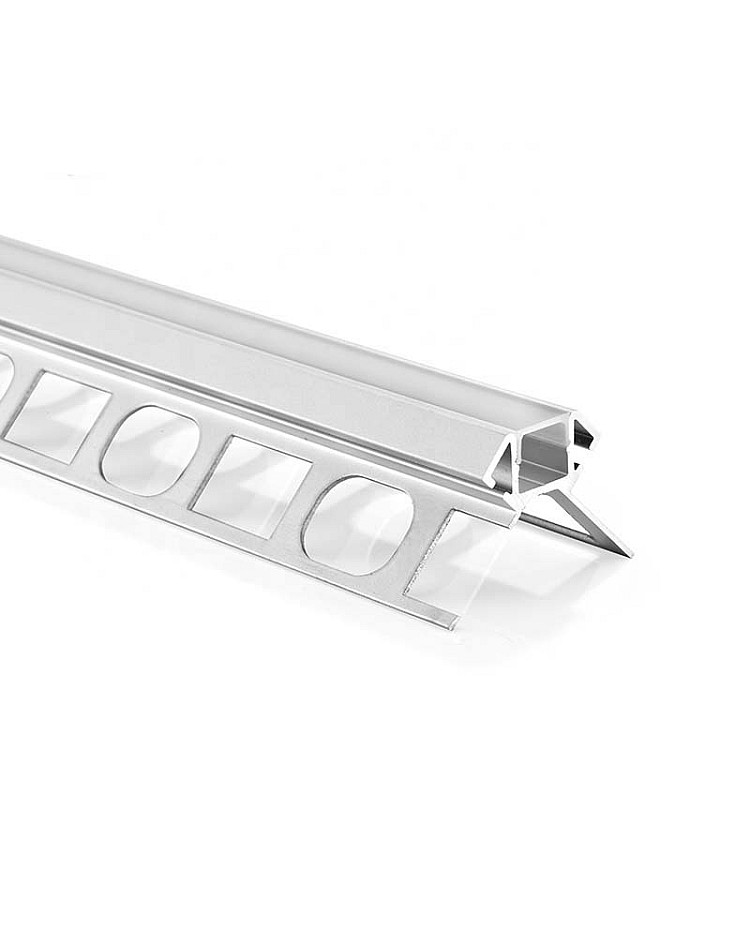

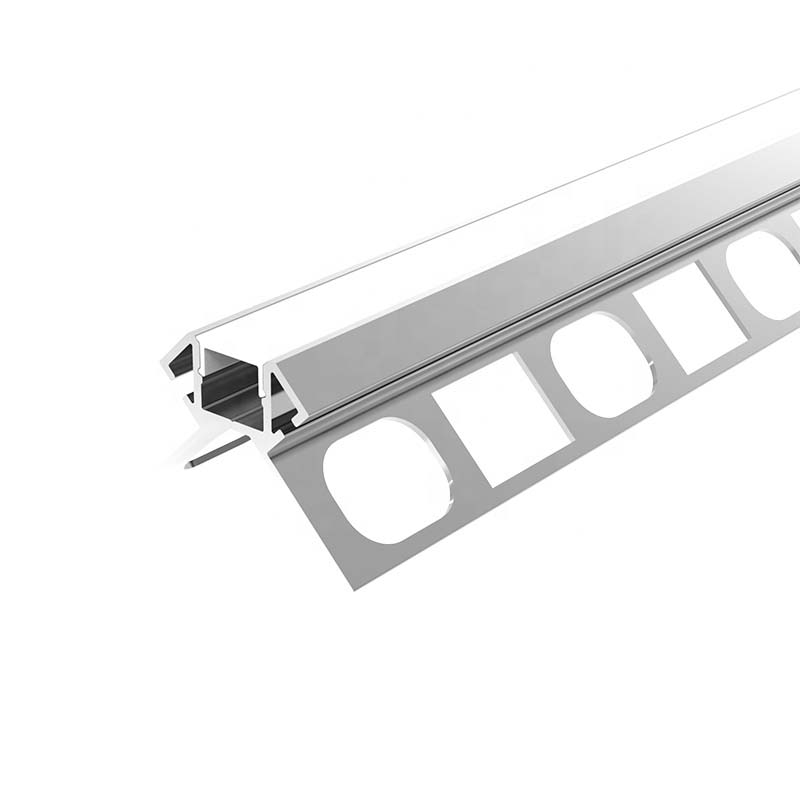

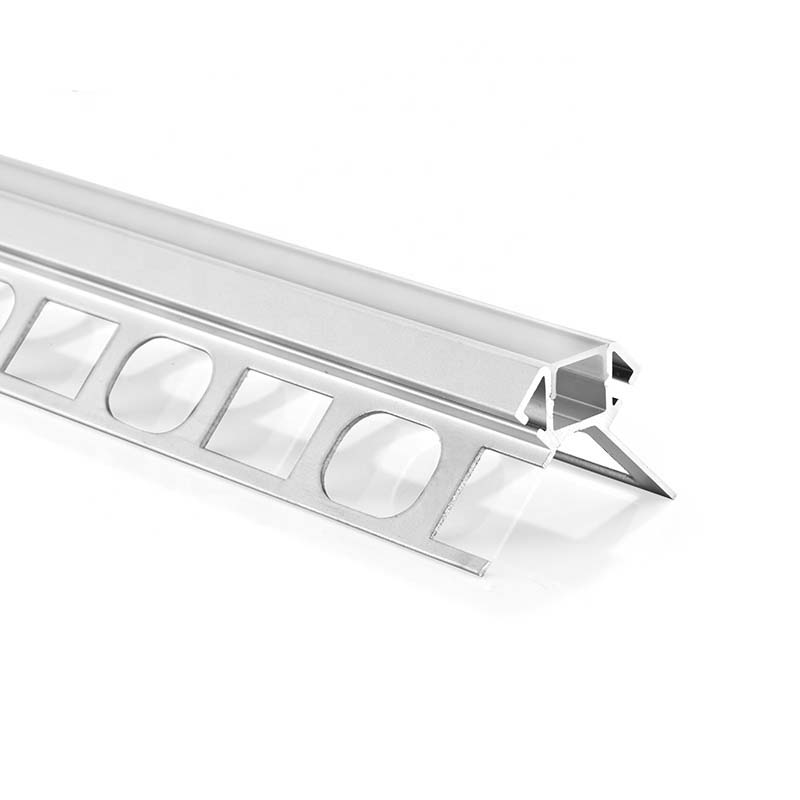

The LED profiles are designed for 90-degree external corners in marble, stone, or tile installations. They can be integrated seamlessly into marble tile joints to create a sleek and durable lighting accent at outside edges. The tile corner light channels are crafted from high-quality extruded aluminum material and feature anodized surface treatment for anti-oxidation resistance, and provide excellent heat dissipation for LED strips while offering structural edge protection for stone surfaces. Ideal for kitchens, bathrooms, and commercial interiors. The stock lengths are 1 m and 2 m, and custom lengths are supported. Only one type of diffuser is available: the PC diffused cover, which is made of brand material, is anti-yellowing, has perfect light distribution, and delivers smooth, glare-free illumination. The inner width is 10.5 mm, allowing the maximum width to be 10 mm. We recommend adding COB strip lights as the light source, with no visible light dots, to create a seamless light line. End caps with and without wire holes are included.

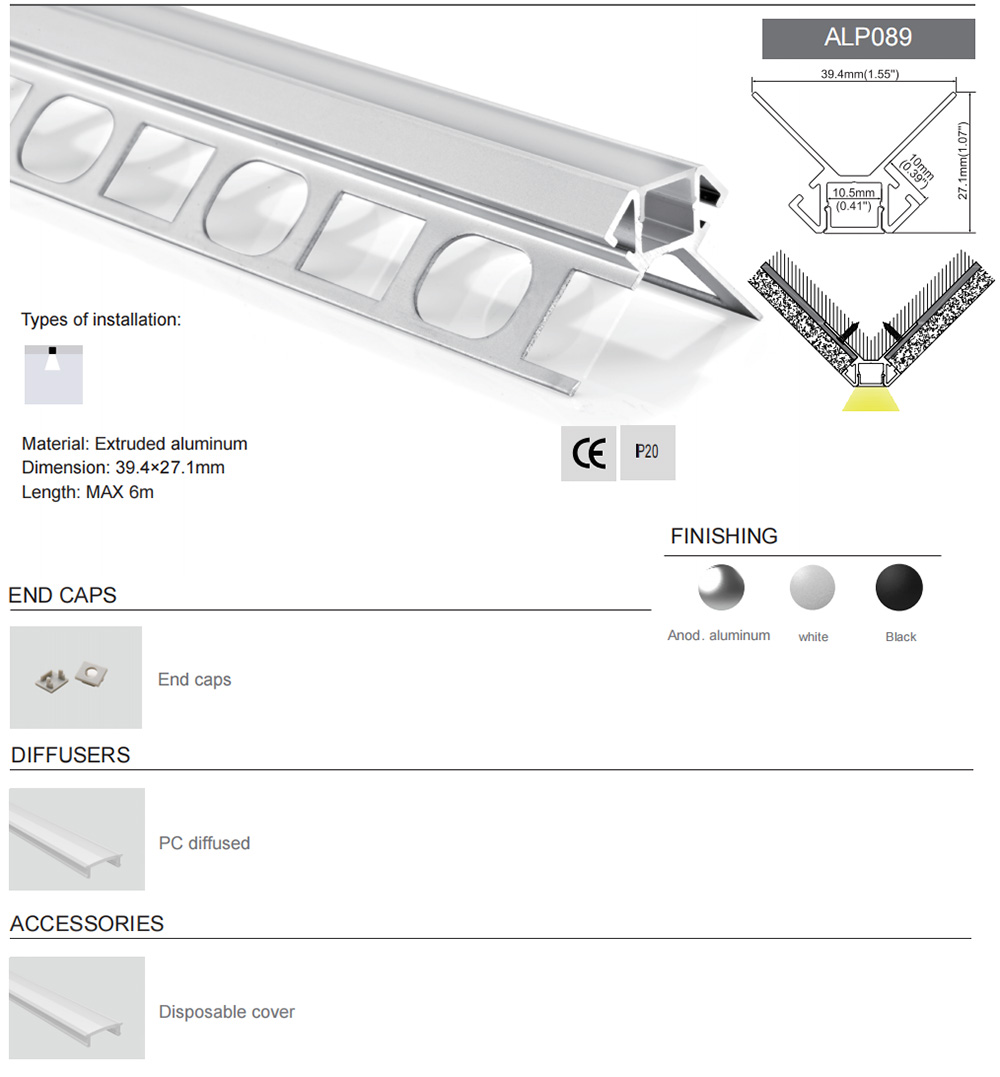

Specifications:
- Model: ALP089
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

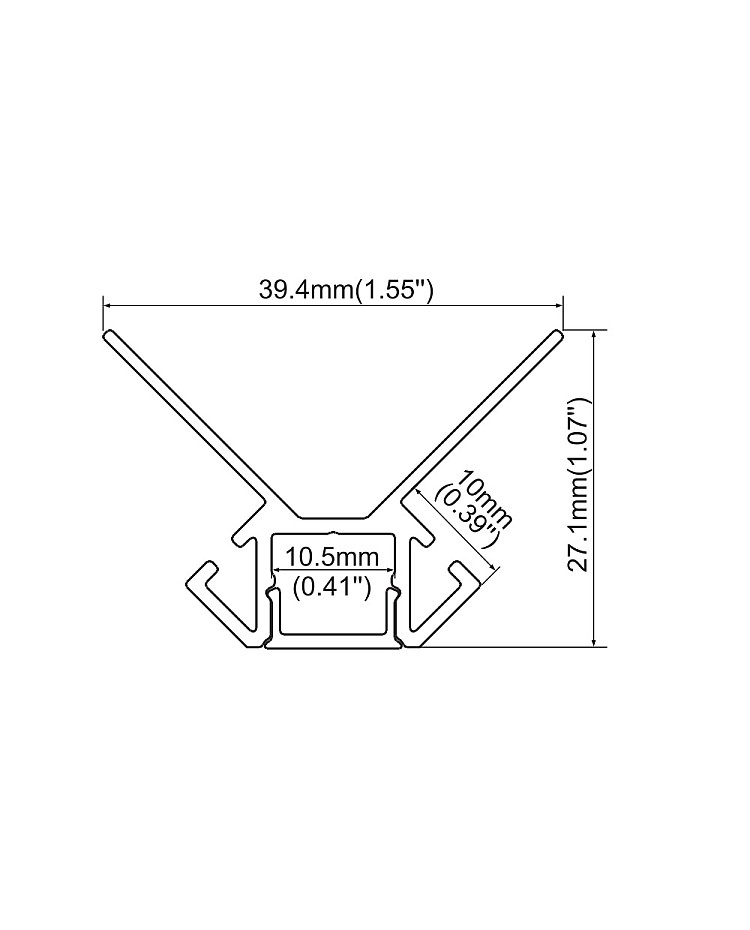

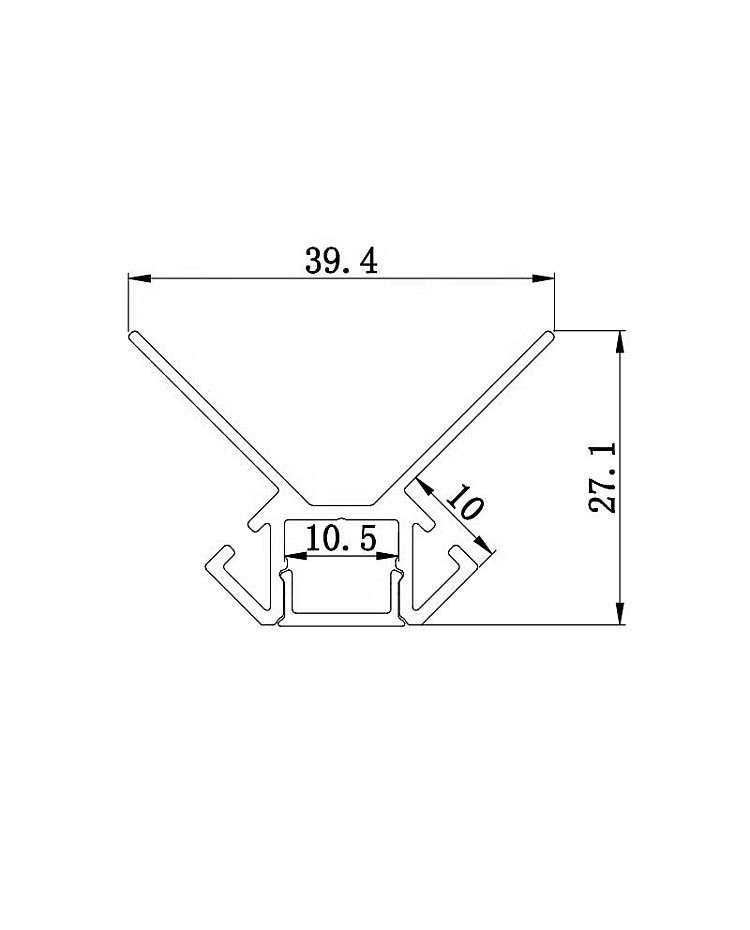

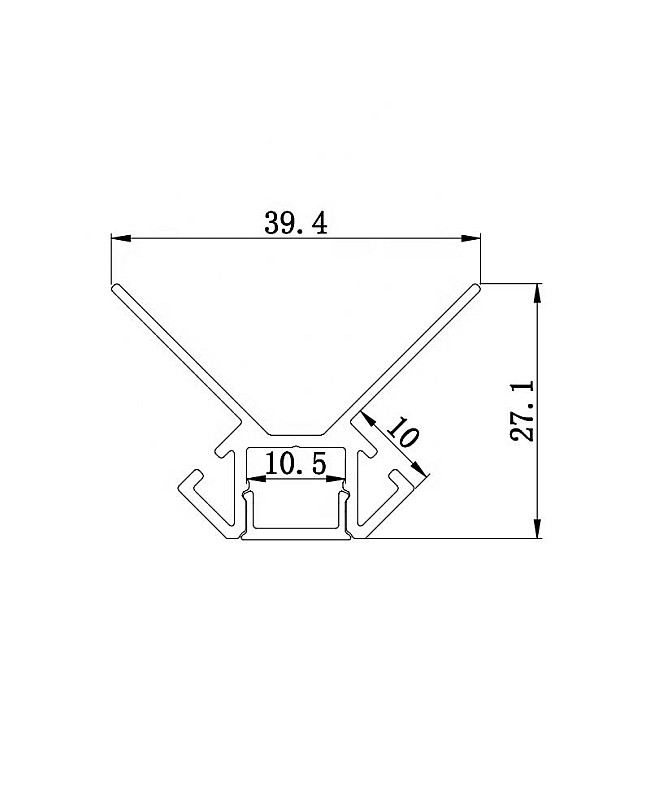

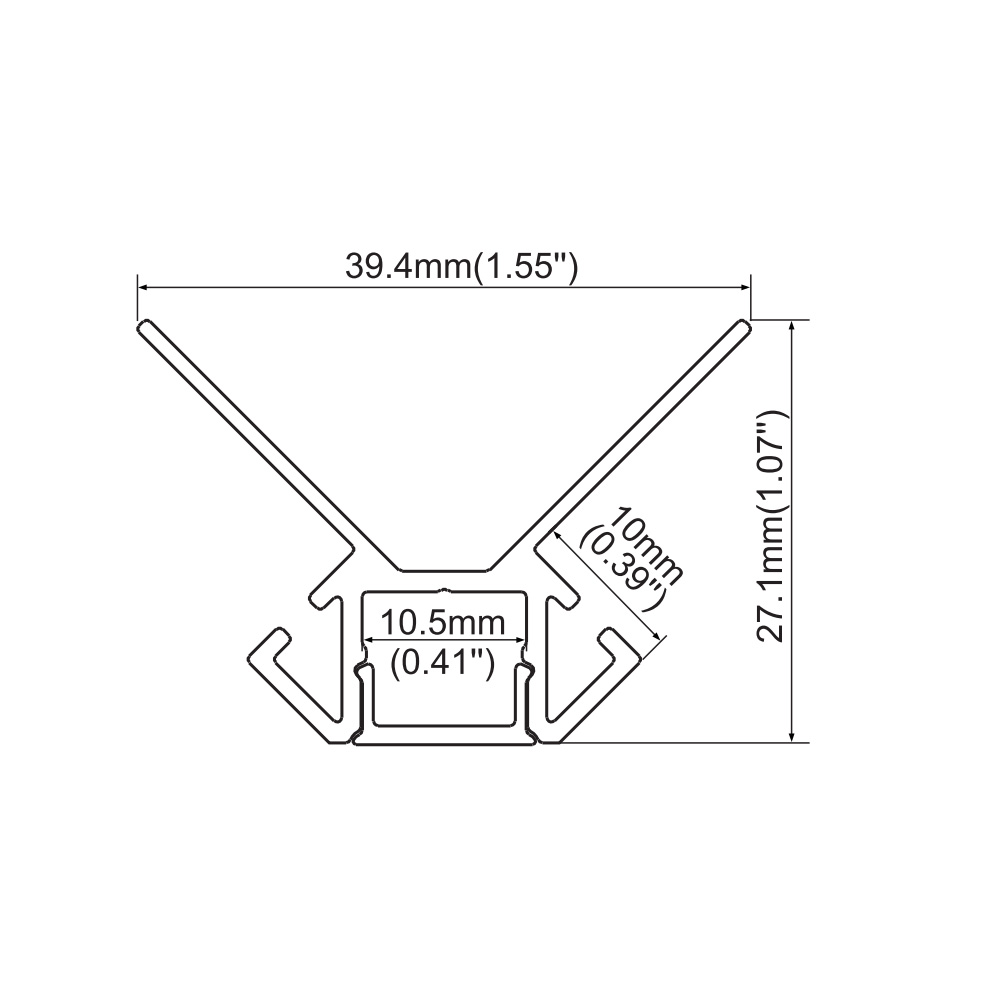

- Size ( W x H ) : 39.4 mm x 27.1 mm ( 1.55" x 1.07" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom Length Available: YES
- Inner width: 10.5 mm ( 0.41" )
- Max width of strip lights: 10 mm ( 0.39" )
- Max power: 12W/m
- Diffusers: PC diffused cover
- Beam angle: 100°

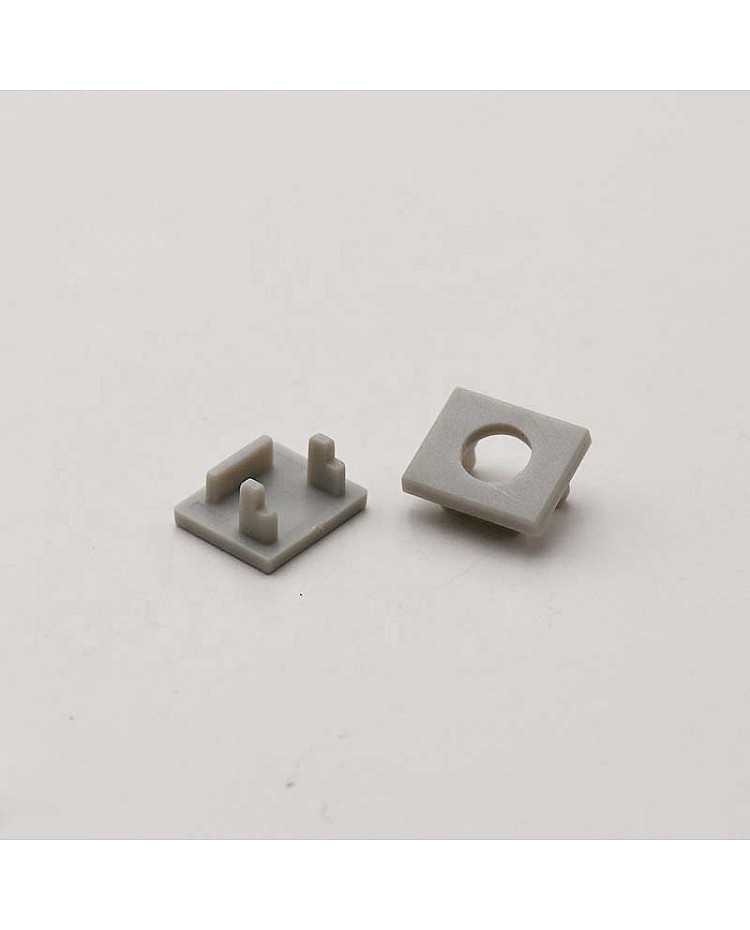

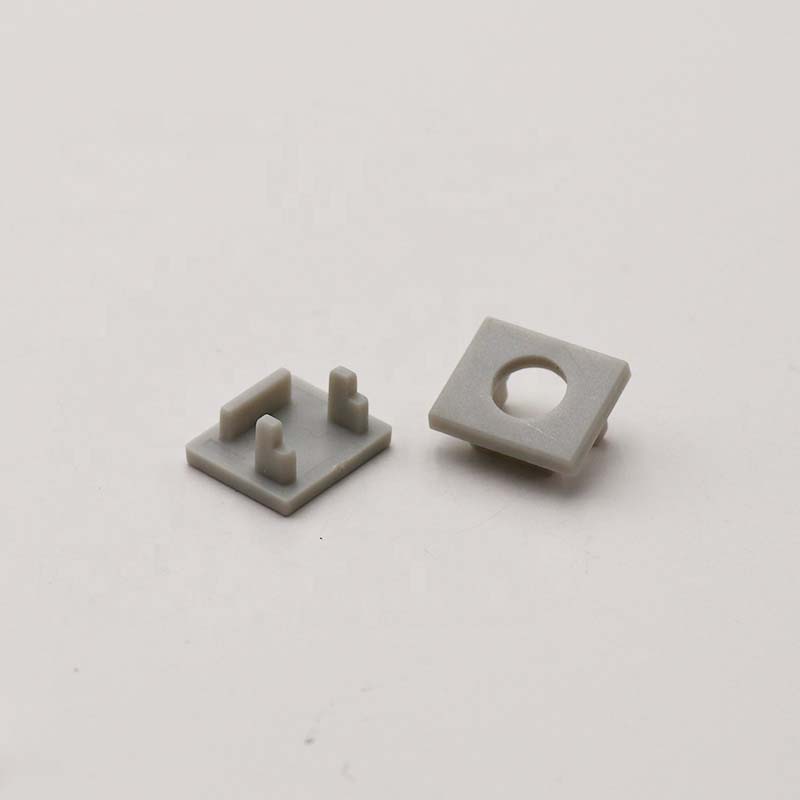

- End caps with and without wire holes are included

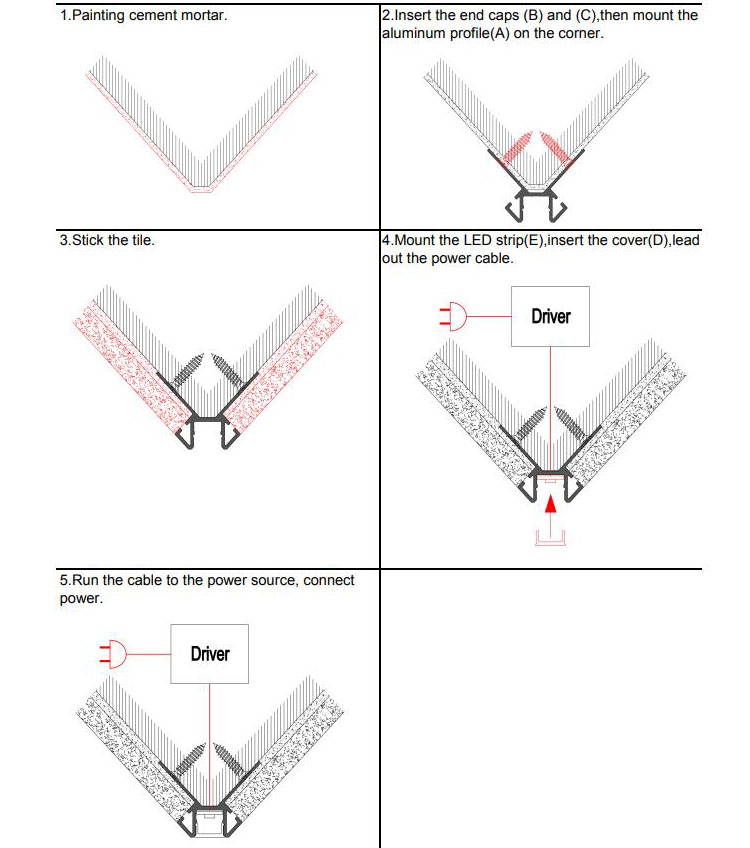

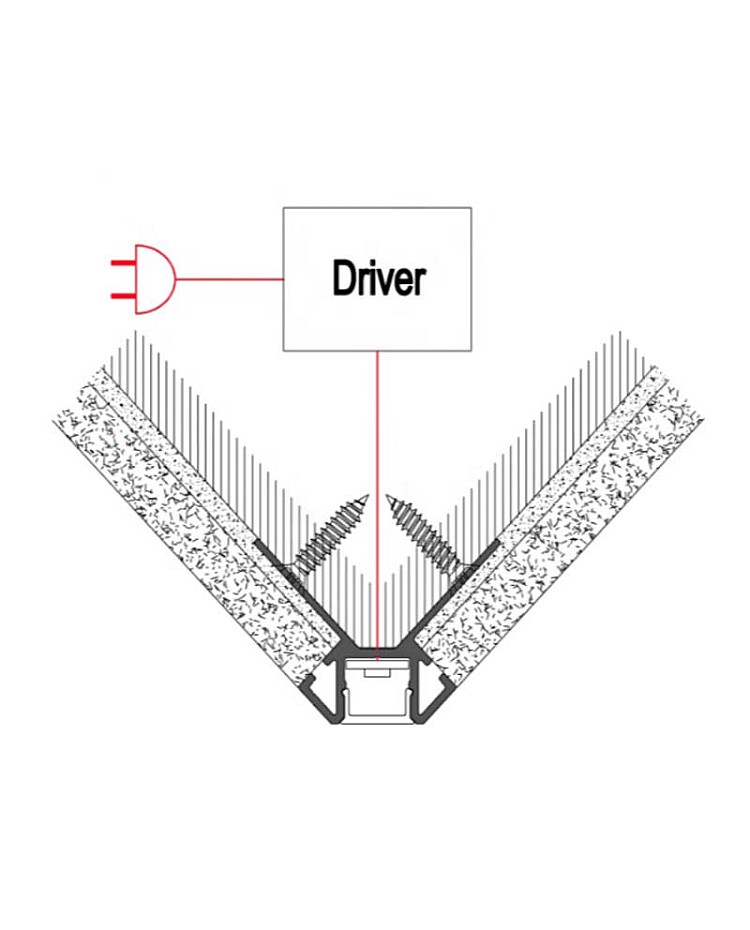

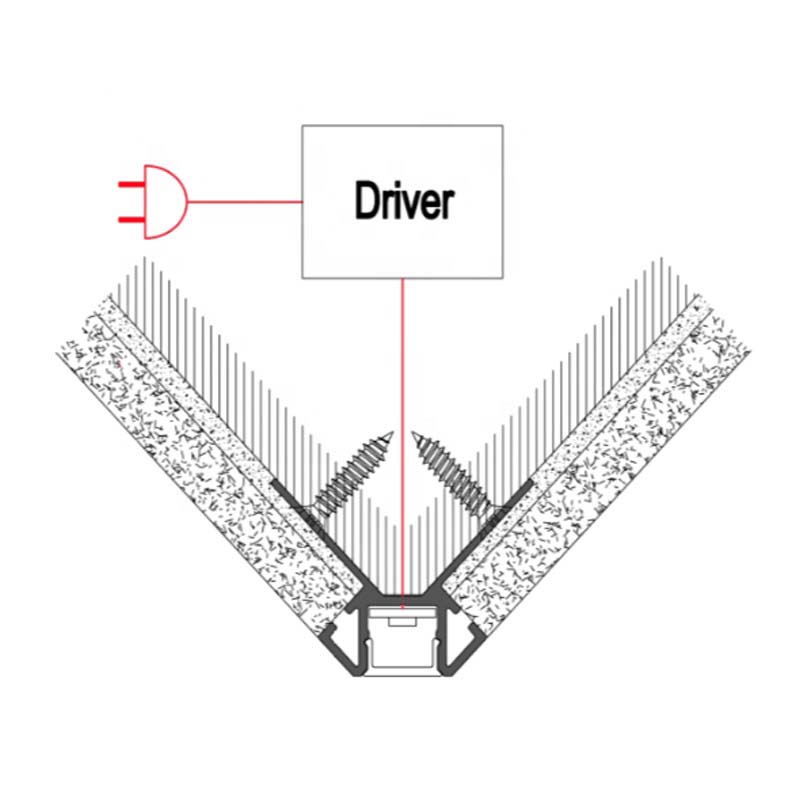

- Installation: Outside corner recessed
- Warranty: 5 years
Applications:
- Marble countertop or backsplash edges
- Wall-to-wall or wall-to-floor stone transitions
- Bathroom and kitchen outside tile corners

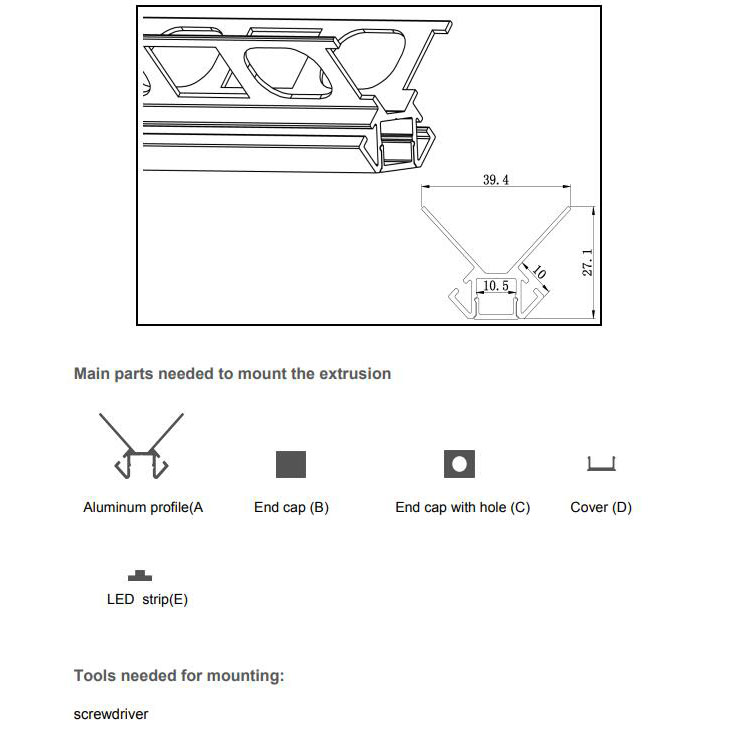

Includes:
1 * Outside corner LED profiles with diffusers
End caps(with / without wire hole)
