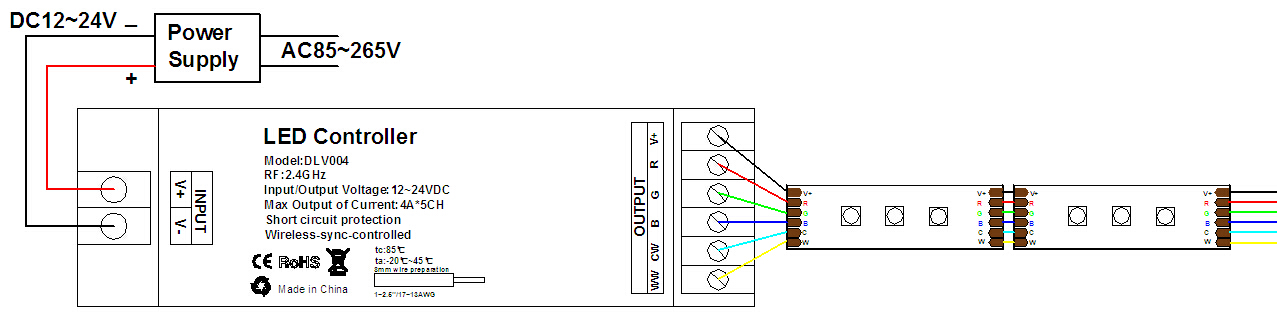

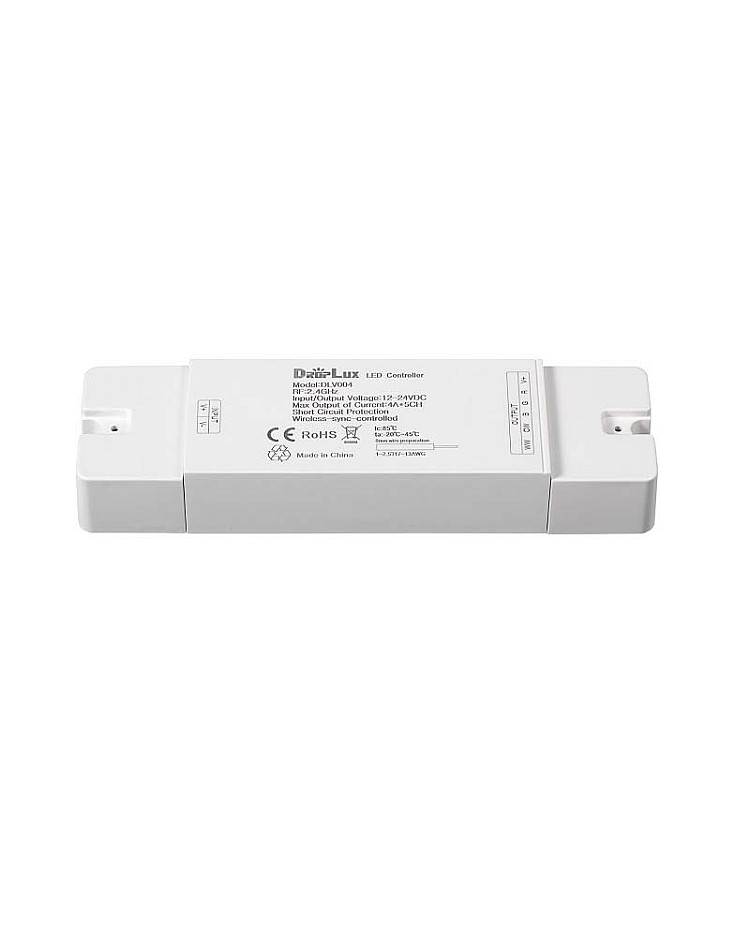

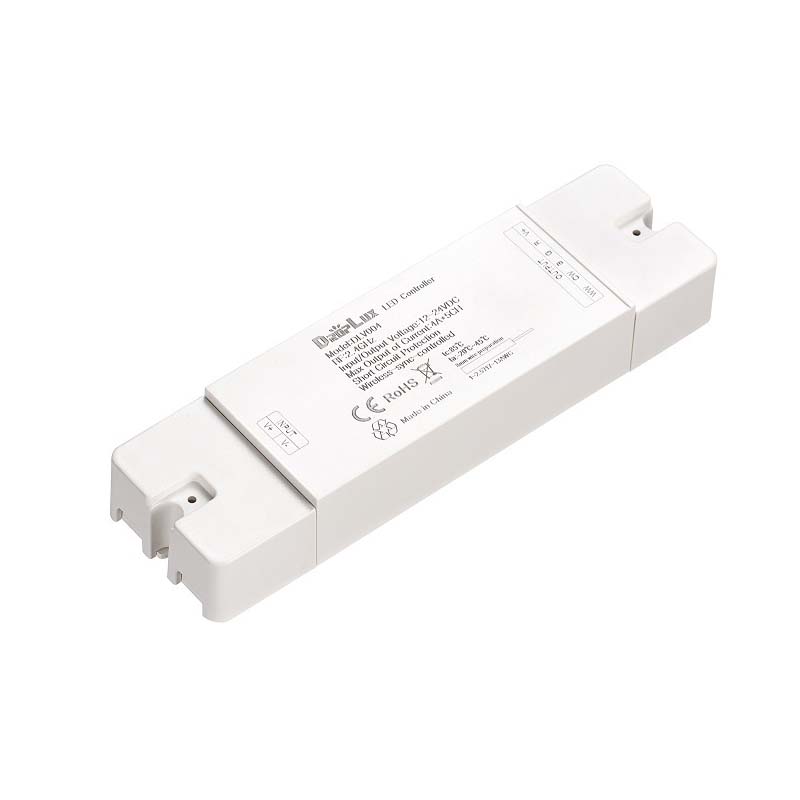

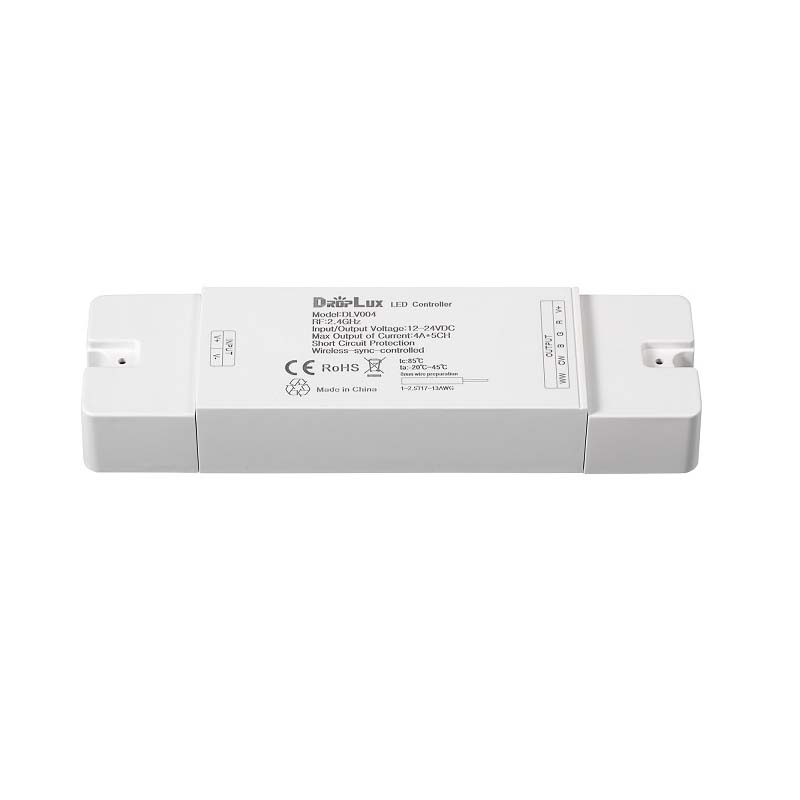

The 2.4GHz wireless sync RGBW controller enables uniform or individual control of multiple zones; it includes the RGBW LED controller and RF remote control, which realizes the integrative control of the lights in various areas within the effective distance range and meets the increasingly high requirements of the market for LED lighting control. The RGBCW controller adopts the most advanced PWM(Pulse Width Modulation) digital control technology, working in DC12V or DC24V, with five output channels designed; the max output current of each channel is 4A, and the max loading power is up to 480W when working in 24VDC. Used for controlling constant voltage LED lamps that can achieve the full-RGB color and dual-color changes, such as R/G/G/CW/WW LED light or strip light, includes the Low-voltage DC power interface and six output interfaces, the V+ is a standard anode interface, and the other five are R/G/B/CW/WW. Adopts the 2.4G multi-group remote control, with no need for line of sight, a control range of up to 20 meters, up to 4 areas that can be controlled separately, and is compatible with other multi-group controller modes to achieve the synchronization effect. With memory function design, each time it powers on, it resumes the mode that was stopped at the last power-off. Long-pressing the brightness and speed keys can allow fast adjustment, which is convenient for operation.
Quick Links:

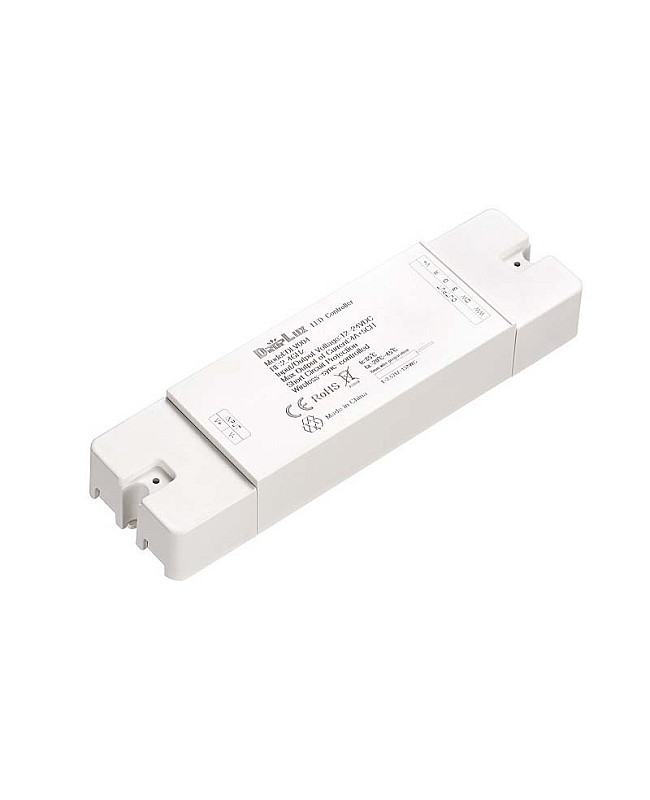

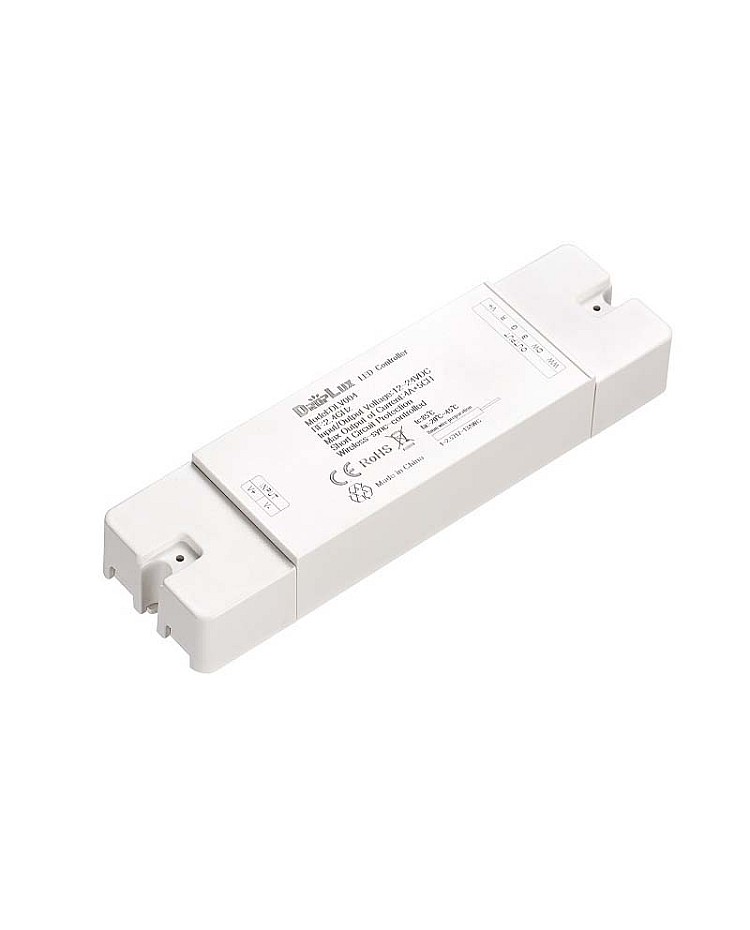

RGBW LED Controller Specifications:

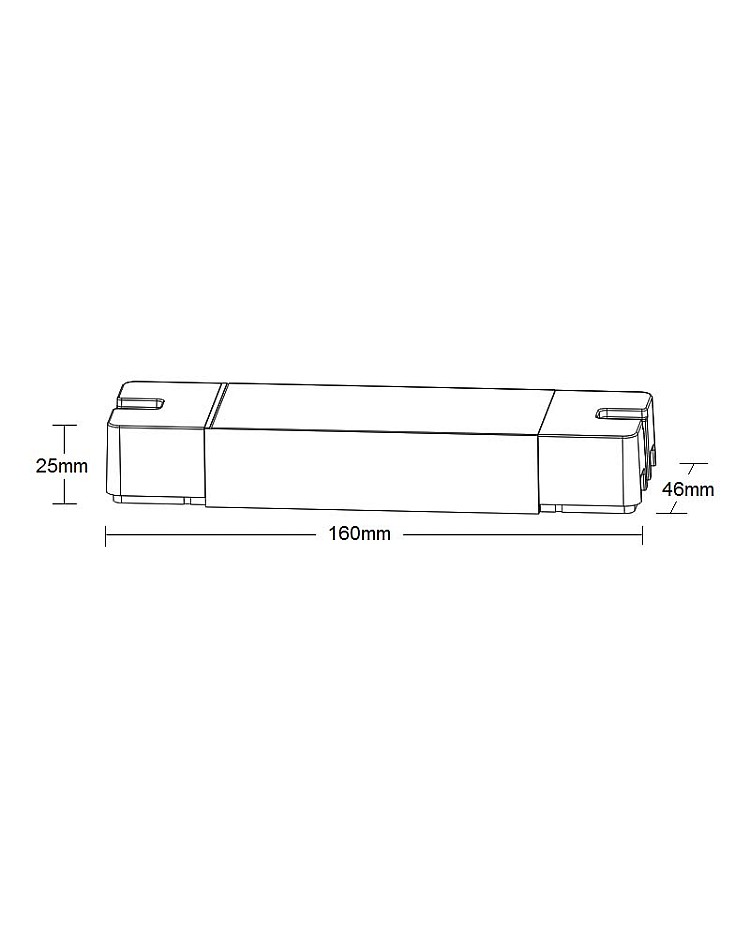

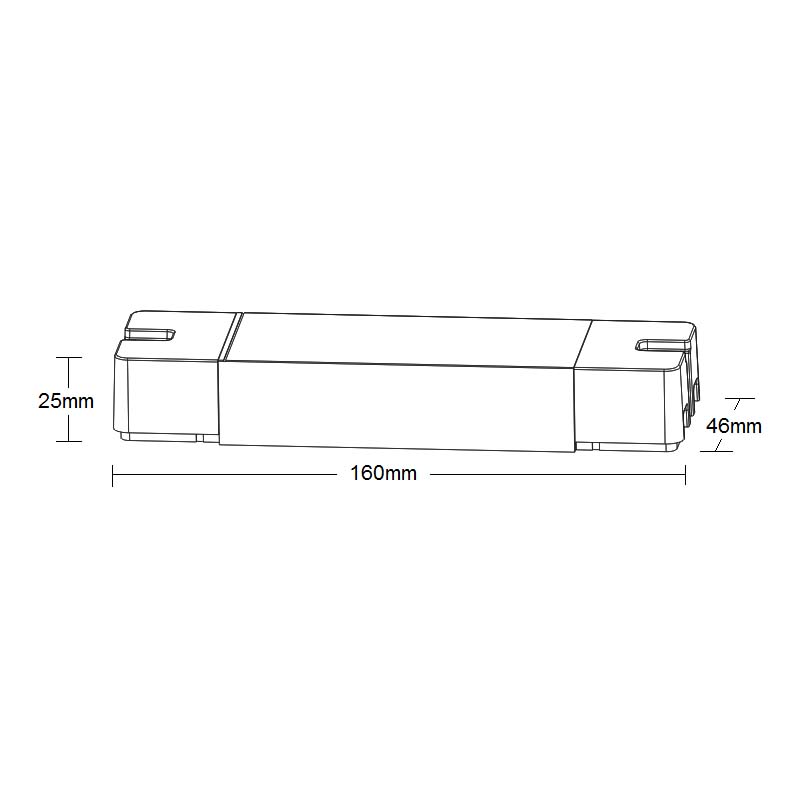

- Size: 160*46*25mm
- Working Voltage: DC12-24V
- Static Power Consumption: <1W
- Output Channels: 5
- Output Current: ≤4A(each channel)
- Max Output Power: 240W(DC12V)/480W(DC24V)
- Connecting Mode: Common Anode
- Grayscale: 1024 Levels
- Speed Stage: 1024 Grade
- RF Frequency: 2.4GHz
- RF Distance: ≤20m
- Short Circuit Protection
- Memory Function: YES
- PWM Frequency: 1.95 KHz
- Working Temperature: -20℃~60℃
- Weight: 100g
- 3 Years Warranty

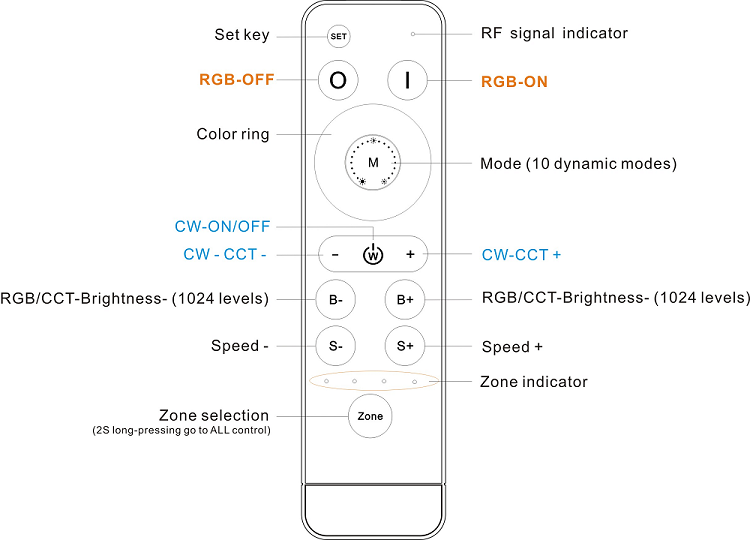

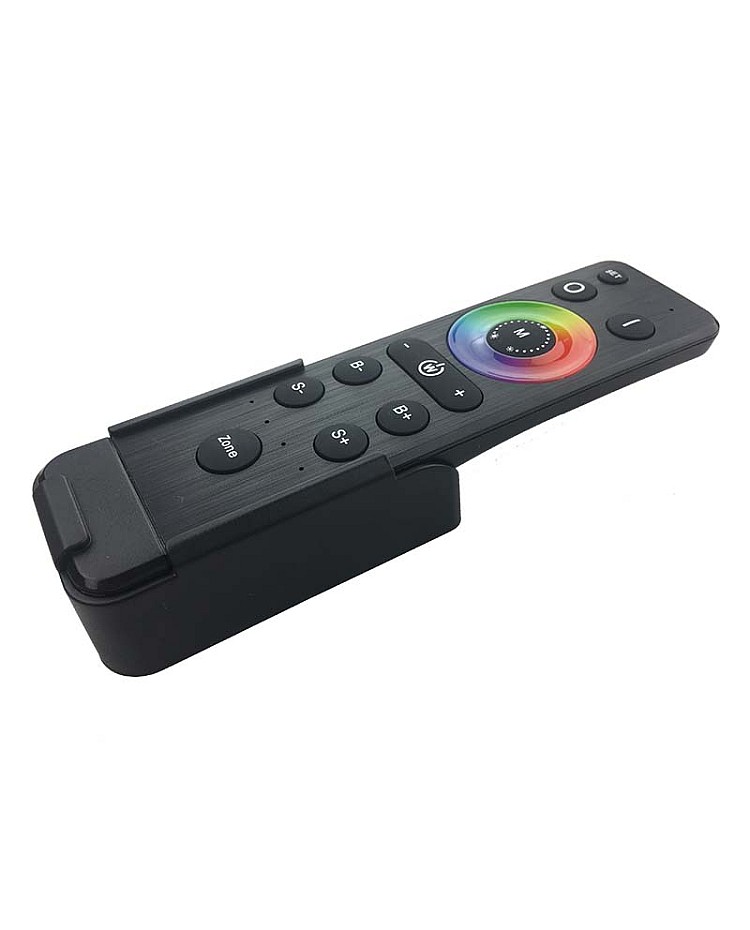

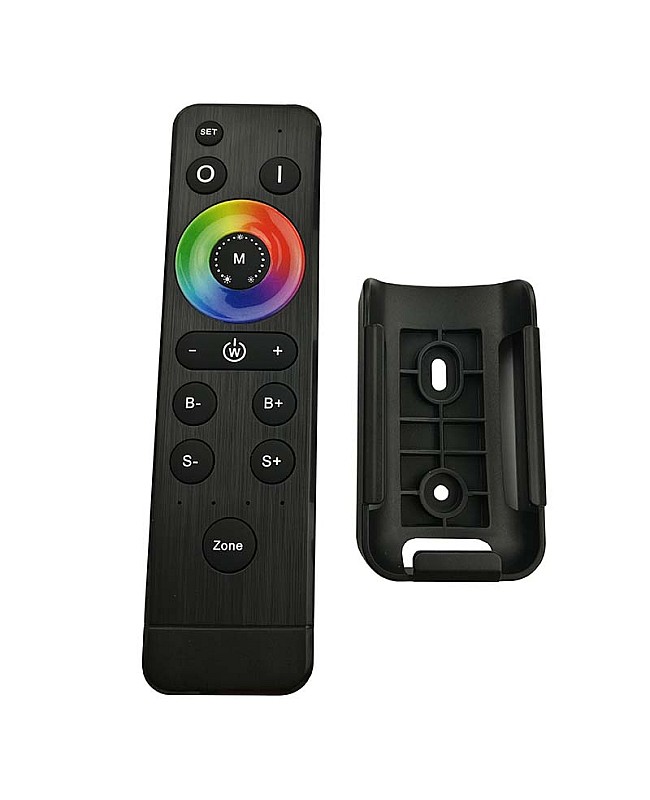

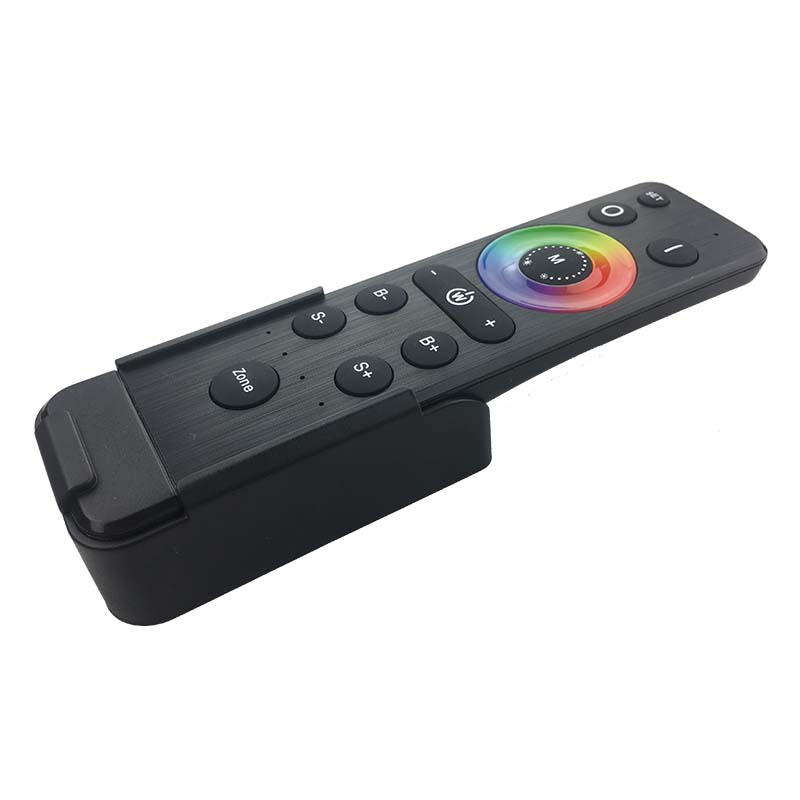

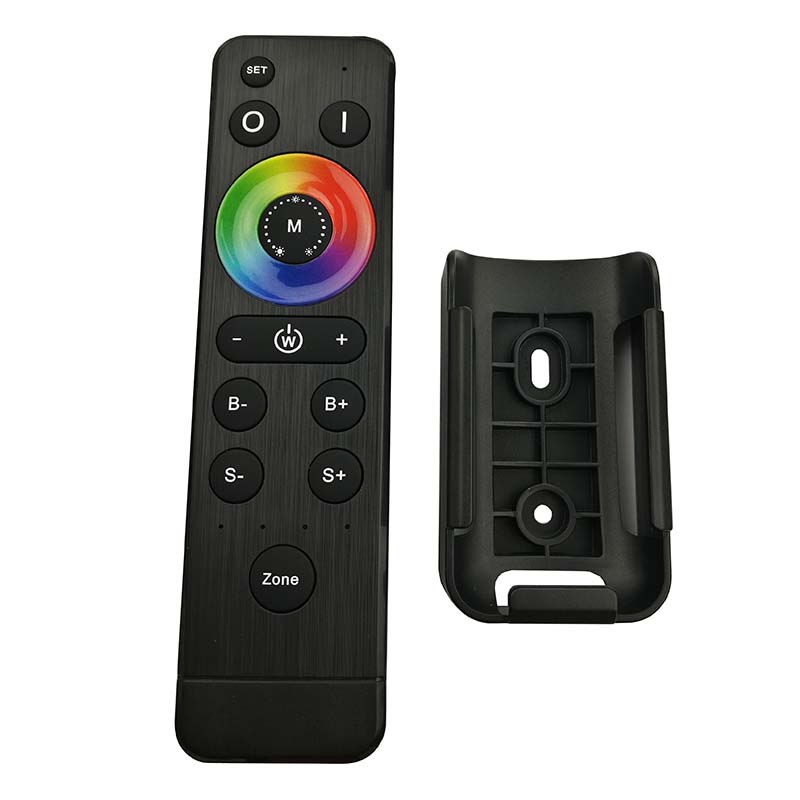

LED Remote Specifications:
- Size: 150*40*20mm
- Working Temperature: -20℃~60℃
- Supply Voltage: DC3V(AAA*2)
- Standby Current: <18uA
- Working Current: <25mA
- Standby Power: 54uW
- Working Power: 75mW
- RF Distance: ≤20m
- RF Frequency: 2.4GHz

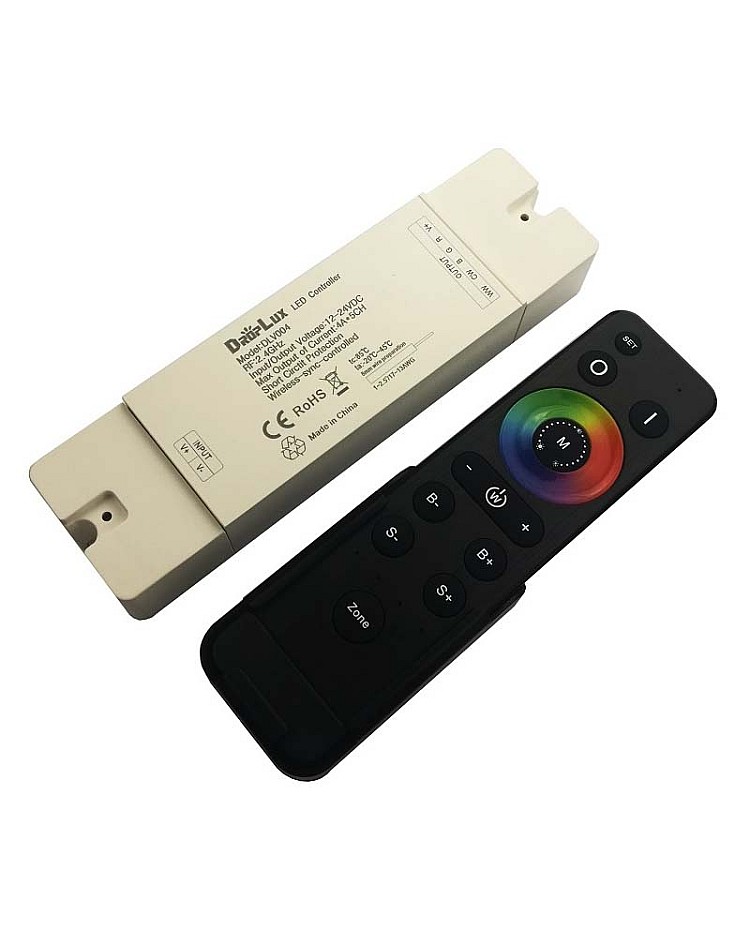

Includes:

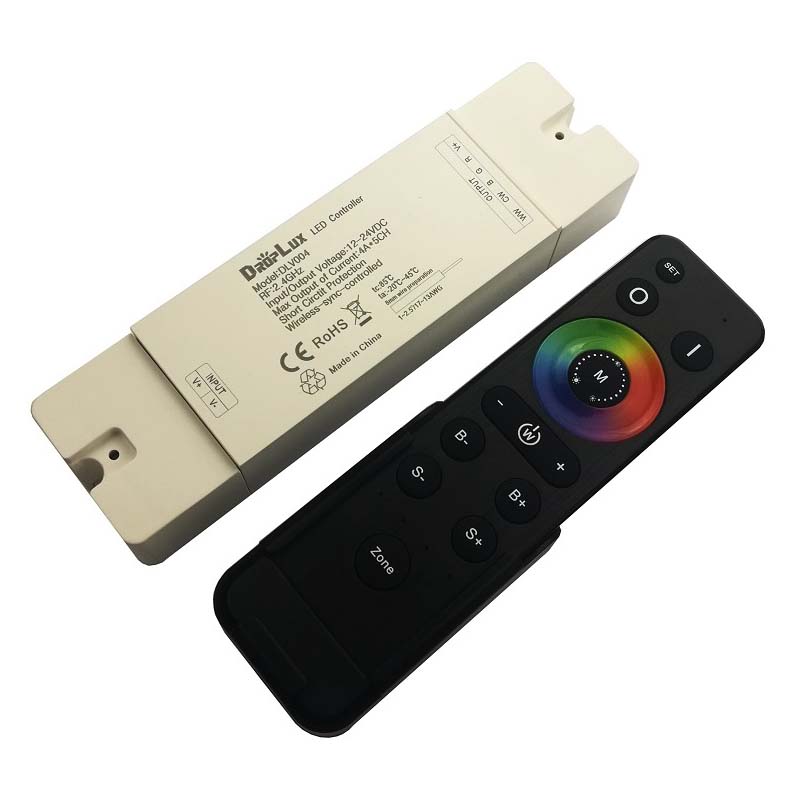

1 * Wireless RGBCW LED Controller
1 * 2.4G RF Multi-Zone Remote Control
