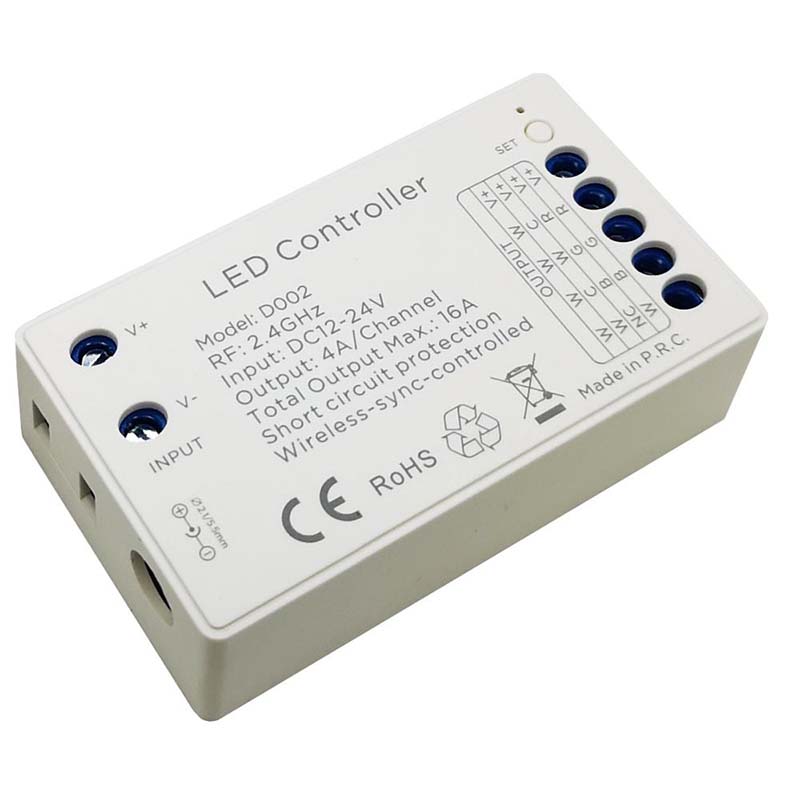

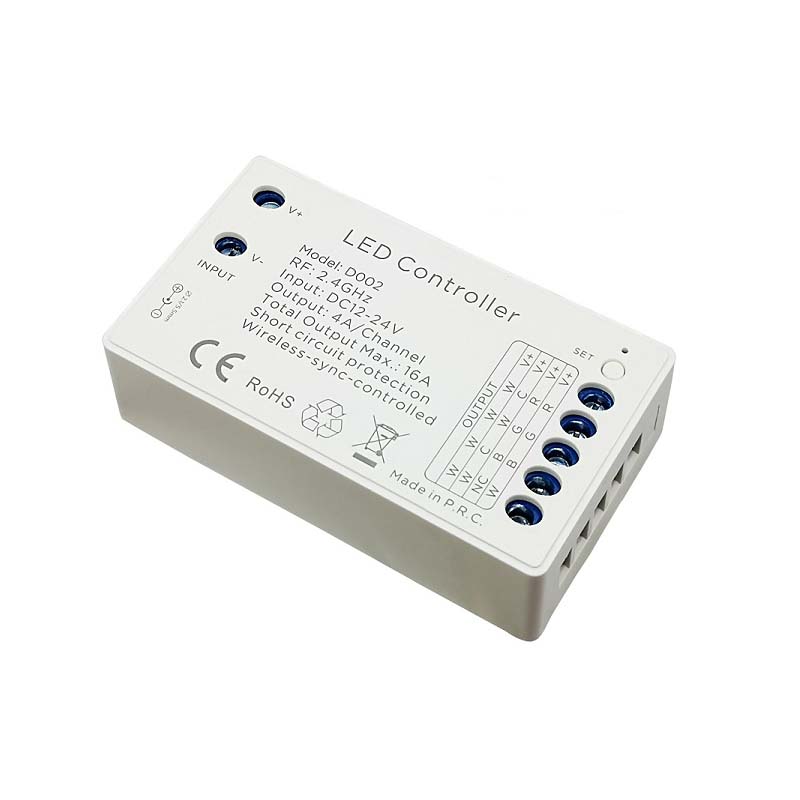

The wireless sync LED controller adopts the most advanced PWM digital control technology and is designed for DIM/CCT/RGB/RGBW constant voltage LED lights. It works on DC12V or DC24V, with a 4-channel design, and the max current of each channel is 4A, the max loading power is up to 384W when working in 24VDC. The sync LED controller integrated four optional programs for different color type of LED lights, single color/CW+WW/RGB/RGBW, the 2.4G 4 zones RF remote control included, four zones separately control or all-control, the wireless RGB LED controller in both static color and dynamic modes, 1024 static colors(RGB/RGBW) and soft dim function, the brightness of the static color are adjustable, 1024 levels in total, the speed of dynamic changes adjustable, 100 levels in total. You can long-press the brightness and speed keys to get the fast adjustment, which is convenient for operation. The RF remote control has four zones, separately controlled or all-control design, and batch operation is available for RF code matching or clearing between the remote control and receivers.

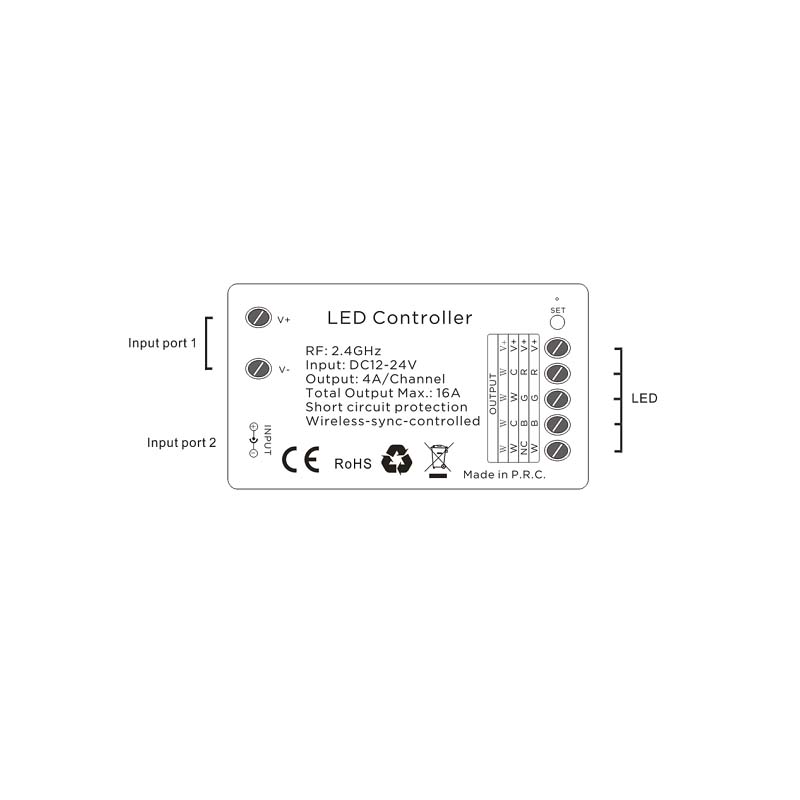

Wireless Sync LED Controller Specifications:

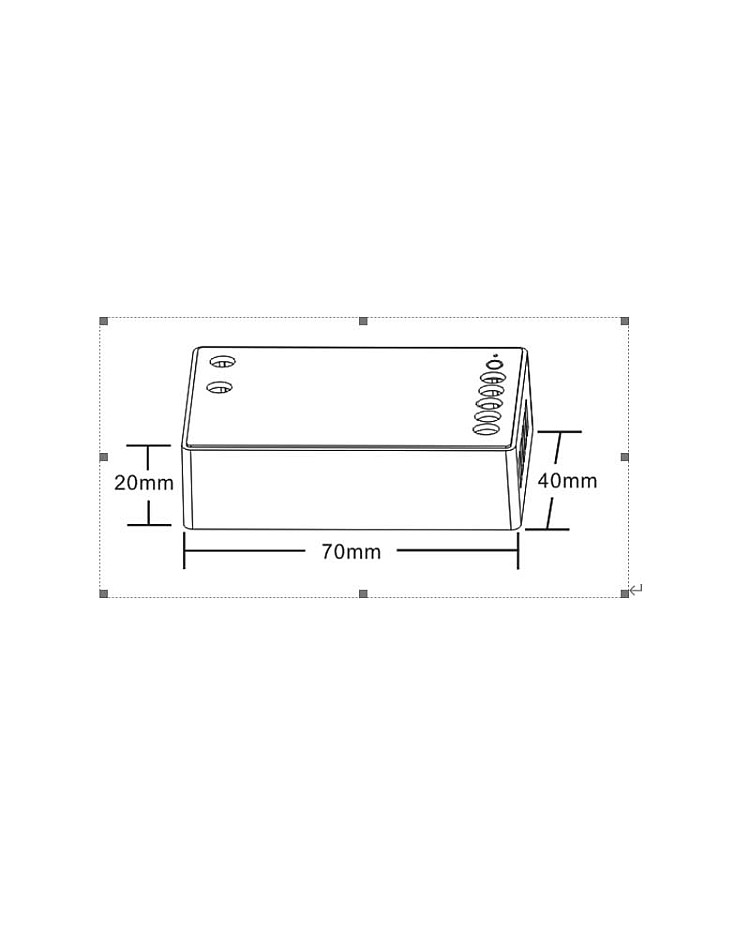

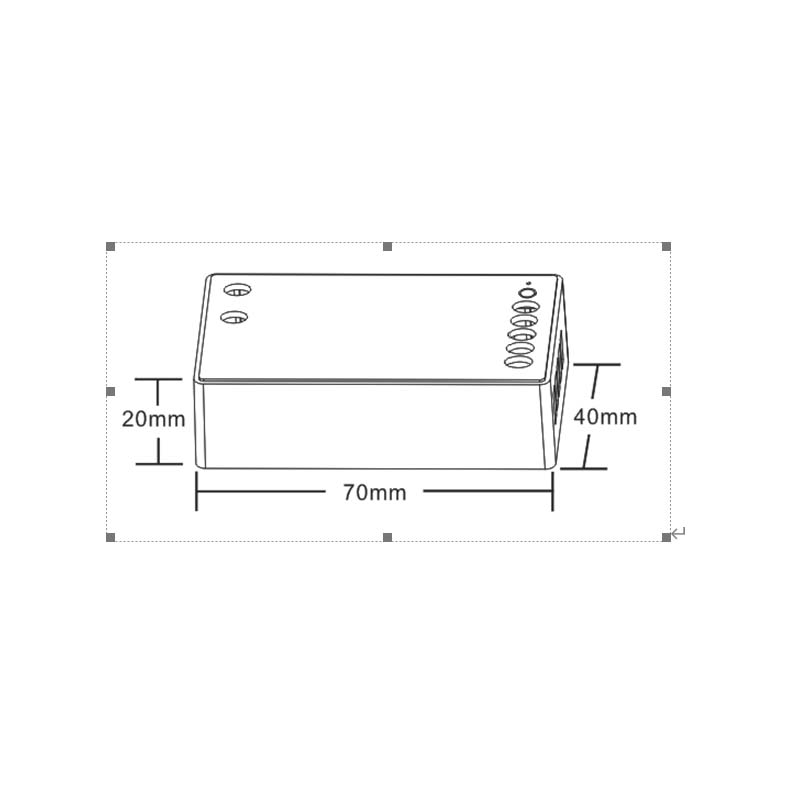

- Size: 70*40*20mm(L*W*H)

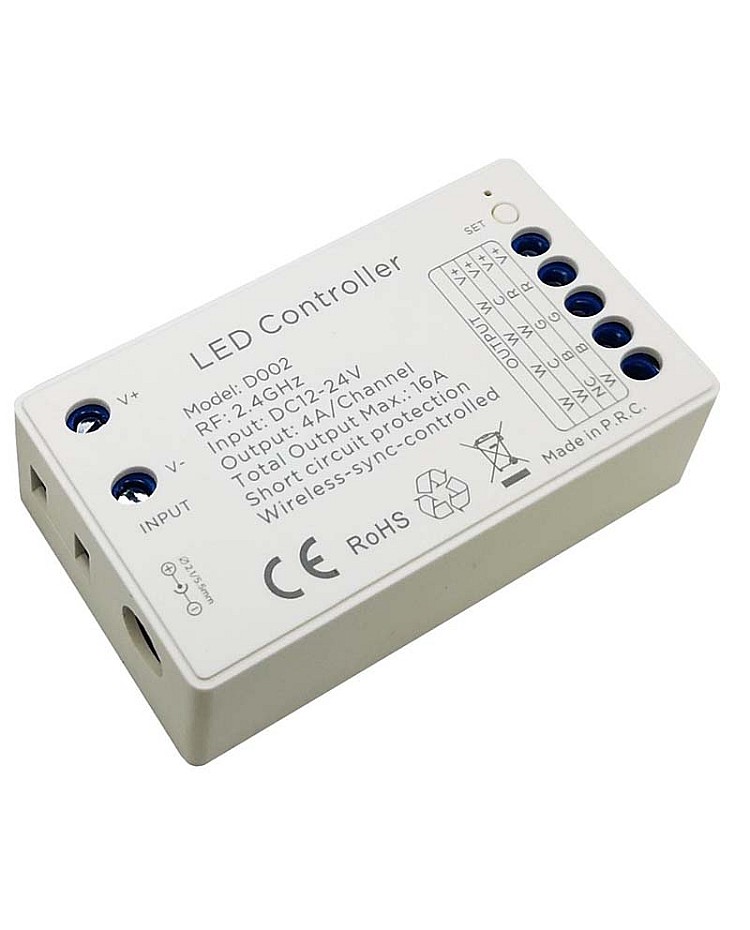

- Model: D002
- RF Frequency: 2.4GHz
- Input Voltage: DC12-24V
- Output Current: ≤4A/Channel
- Total Output Max Current: 16A
- Max load Power: 192W/12V; 384W/24V
- PWM Frequency: 1KHz
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Short Circuit Protection
- Designed For DIM/CCT/RGB/RGBW Constant Voltage LED Lights
- Indicate Light: Red(Single Color) / Yellow(CW+WW) / Blue(RGB) / Green(RGBW)
- RF Remote Control Included, 4 Zones Separately Controlled or All Controlled
- Control In Both Static Color Or Dynamic Modes, Unlimited By Remote Control Distance
- Batch-Operation Is Available For RF Code Matching/Clearing Between Remote Control And Receivers
- Memory Function
- 1024 Static Colors(RGB/RGBW) And Soft Dim Function
- 1024 Levels Brightness Of Static Color Adjustable
- 100 Levels Speed Of Dynamic Changes Adjustable
- Long-press The Brightness And Speed Key Can Get The Fast Adjustment
- 3 Years Warranty

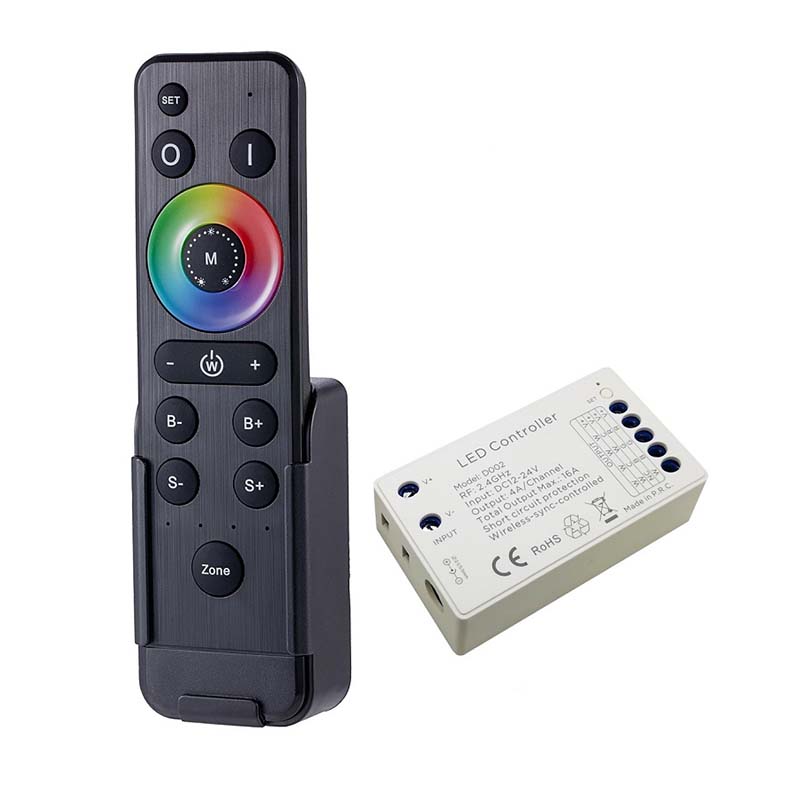

Remote Control Specifications:
- Size: 150*40*20mm(L*W*H)
- Supply Voltage: DC3V(AAA*2)
- Standby Current: <18uA
- Working Current: <25mA
- Standby Power: 54uW
- Working Power: 75mW
- RF Frequency: 2.4GHz
- RF Distance: ≤20m

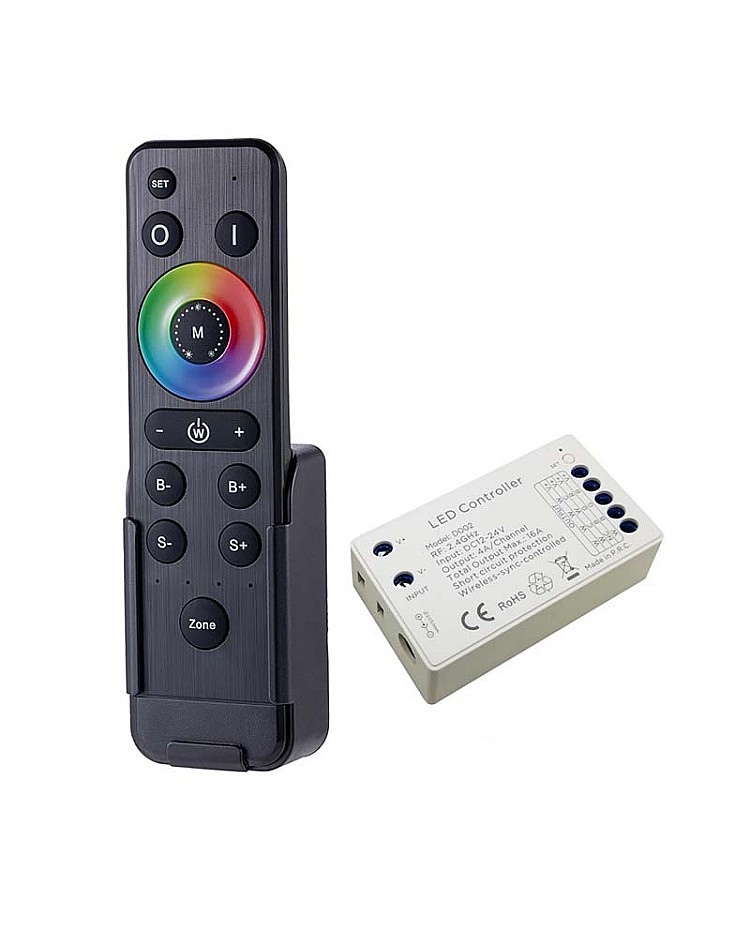

Includes:
1 * Wireless Sync LED Controller
1 * 2.4G Wireless RF 4 Zones Remote Control
