Check the Mini Wireless Sync LED Controller, which adopts the most advanced PWM(Pulse Width Modulation) digital control technology, can be used for controlling the constant voltage LED Light, point source Light, LED Strips, LED Modules, LED Strings. receiver items are separately for DIM, CCT, RGB or RGBW. Remote Control adopts RFBK remote you can use to adjust the brightness, color temperature of dynamic mode for your LED Light.  no need for line of sight, 4 zones separately control or all control. batch operation is available for RF code matching/clearing between remote control and receivers. the LED Controller with memory function, every time power-on reserves the mode with a stop in the last power off. there is 1024 static colors(RGB/RGBW) and soft dim function, the brightness of static color adjustable, 1024 level in total, speed of dynamic changes adjustable, 100 levels in total. you can long-press the brightness and speed button to get the fast adjustment, easy to use.


Wireless Sync LED Controller Features:

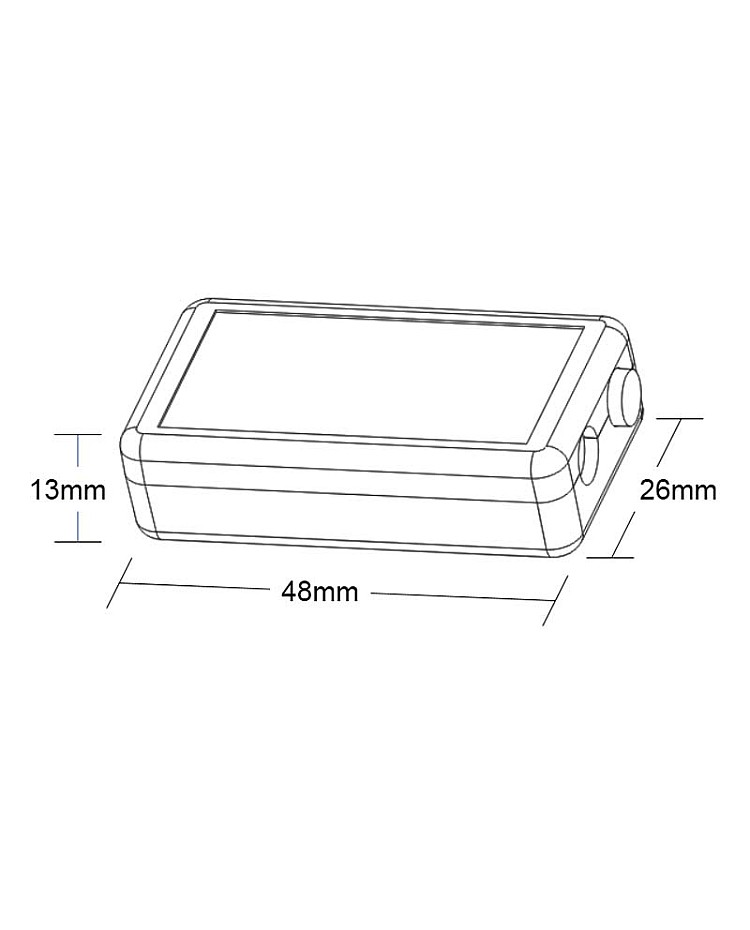

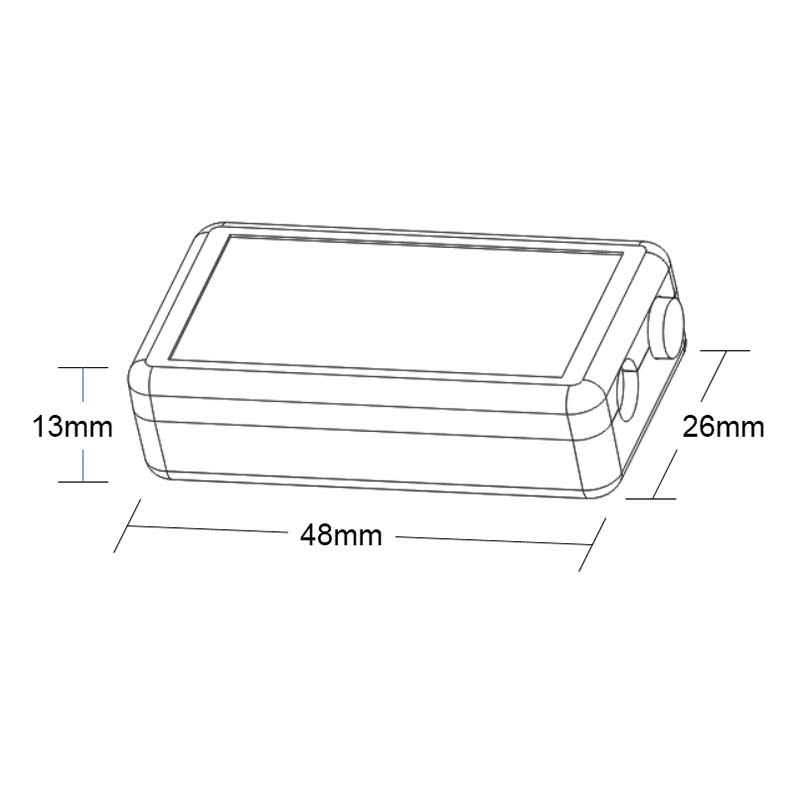

  • Size: 48*26*13mm
  • Working Temperature: -20℃~60℃
  • Working Voltage: DC12V-24V
  • Static Power Consumption: <1W
  • Connecting Mode: Common Anode
  • Gray Scale: 1024 Levels
  • Speed Stage: 1024 Levels
  • RF Frequency: 2.4GHz
  • RF Distance: <20m
  • Output Color Order Settable: YES(RGB/RGBW)
  • Memory Function: YES
  • Output: 1 CH(DIM)/2CHs(CCT)/3CHs(RGB)/RGBW(4CHs)
  • Output Current: 1*6A*(DIM)/2*3A(CCT)/3*2A(RGB)/4*1.5A(RGBW)
  • PWM Frequency: 1.95KHz


LED Remote Features:

  • Size: 150*40*20mm
  • Working Temperature: -20℃~60℃
  • Supply Voltage: DC3V(Powered By 2PCS AAA Batteries)
  • Standby Current: <18uA
  • Working Current: <25mA
  • Standby Power: 54uW
  • Working Power: 75mW
  • RF Frequency: 2.4GHz
  • RF Control Distance: <20m
  • Weight: 95g


Includes:

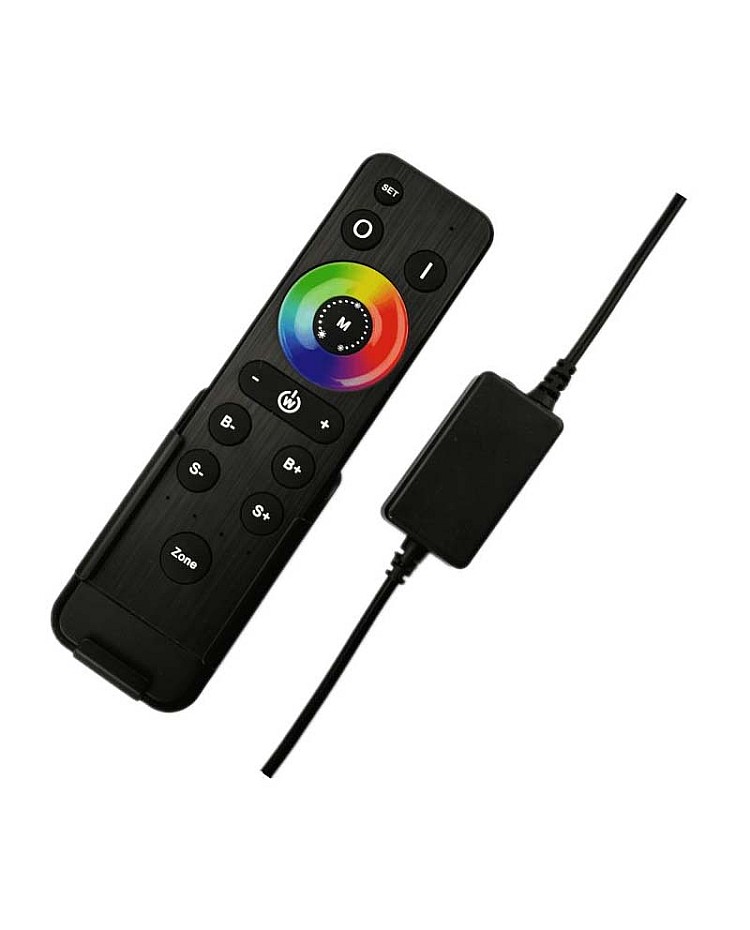

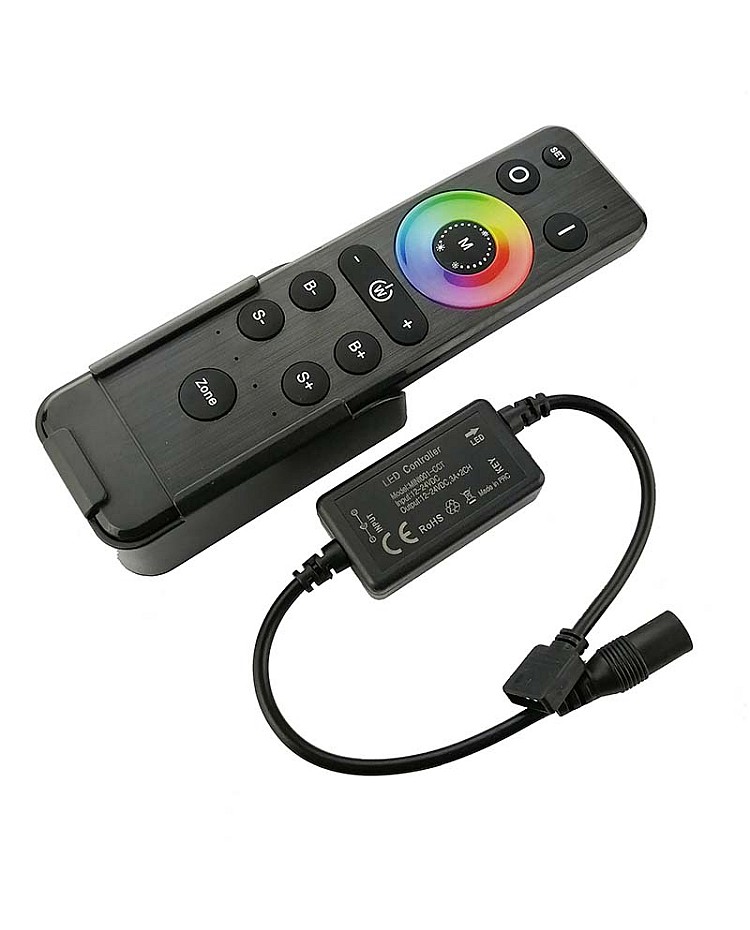

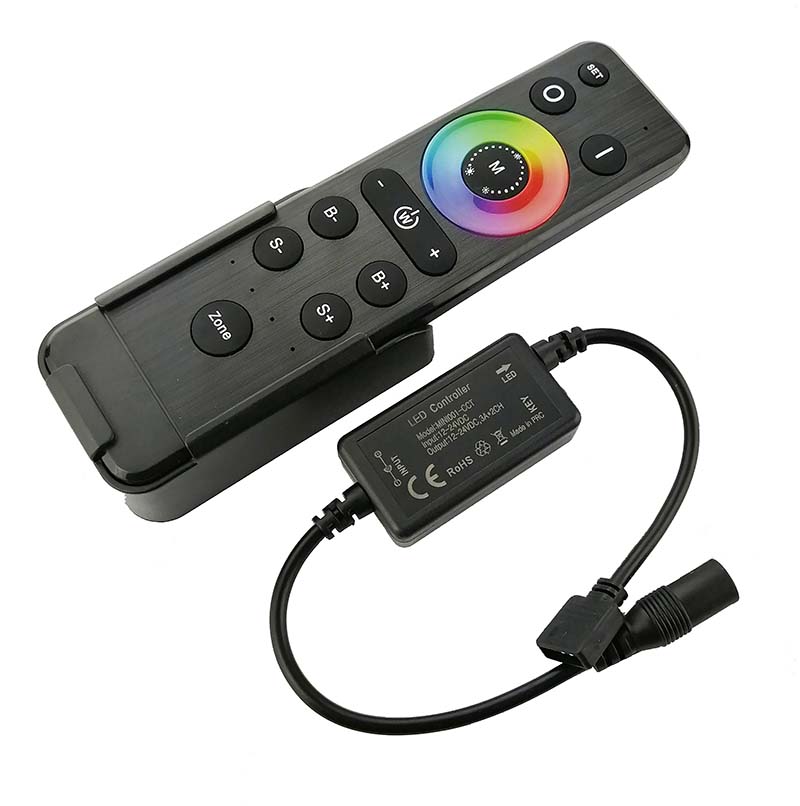

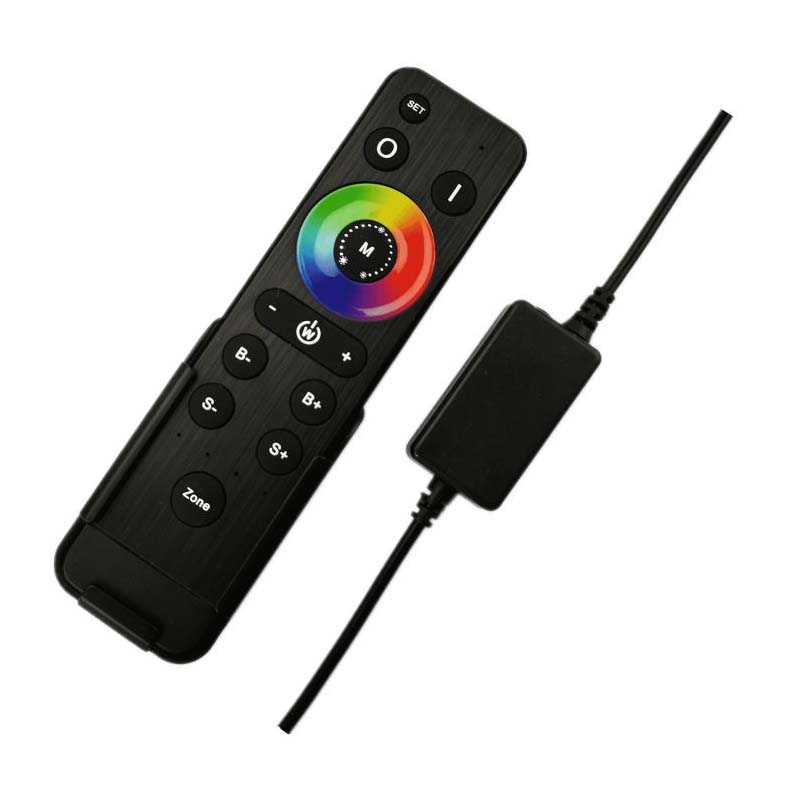

1*Mini Wireless LED Controller

1*Remote

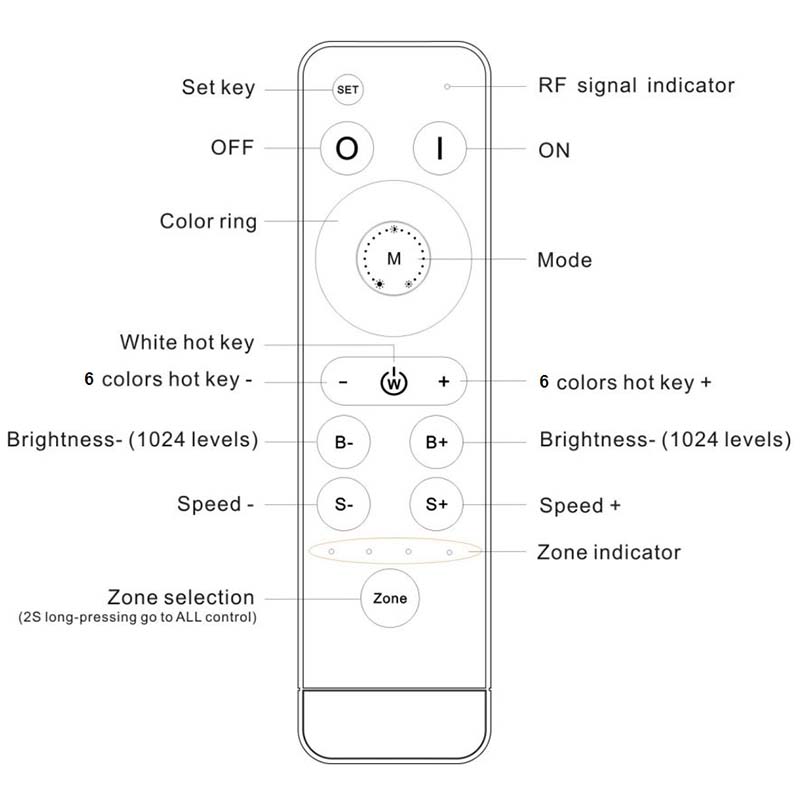

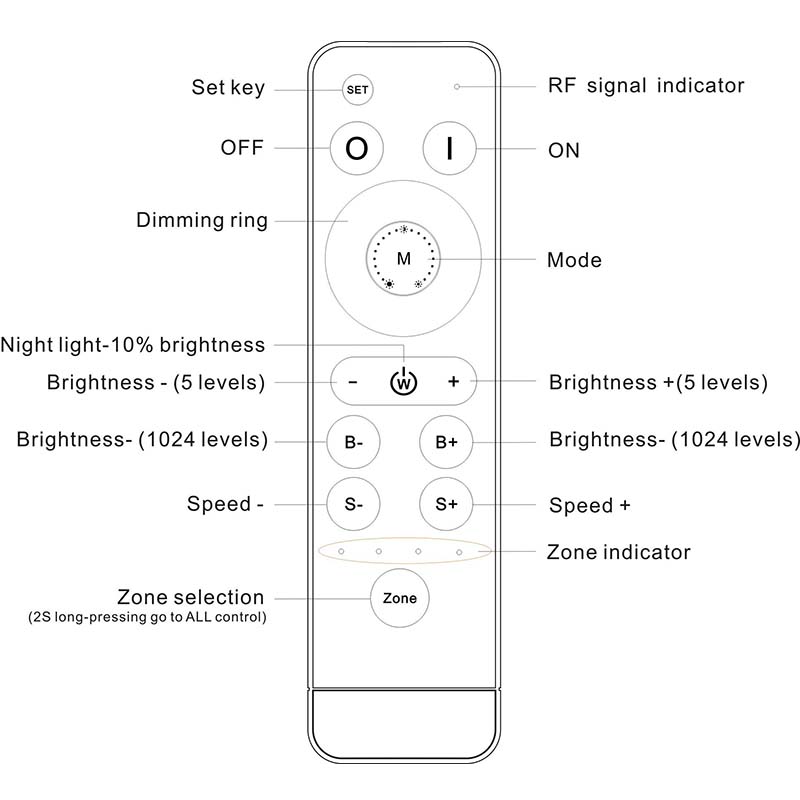

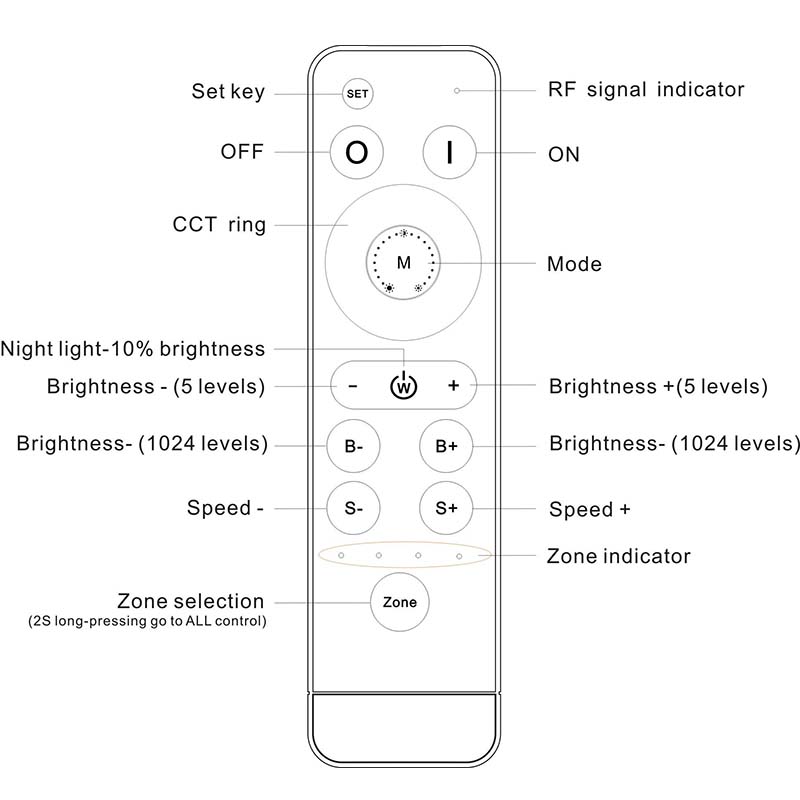

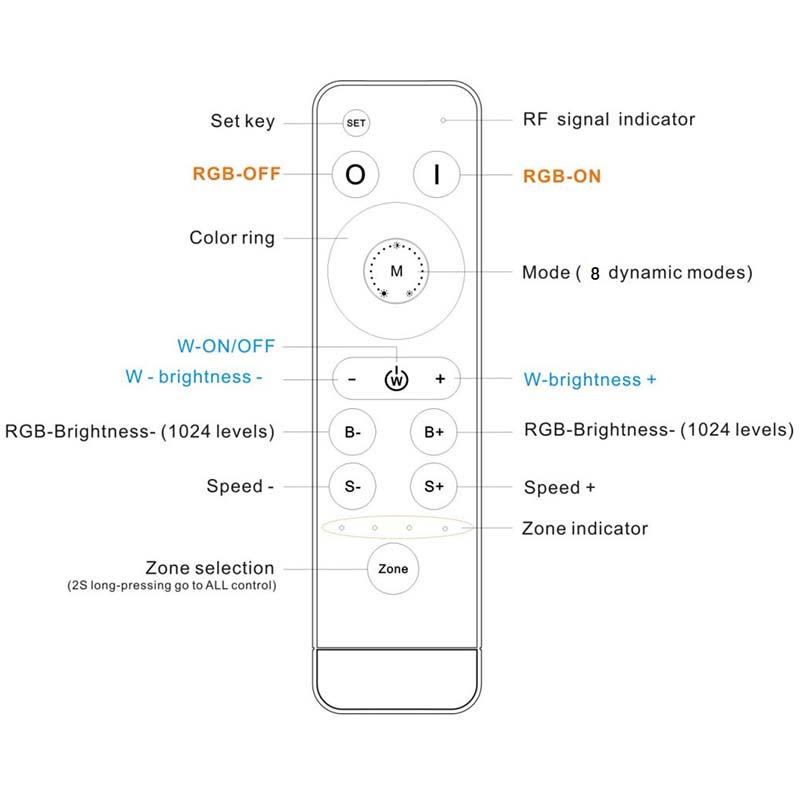

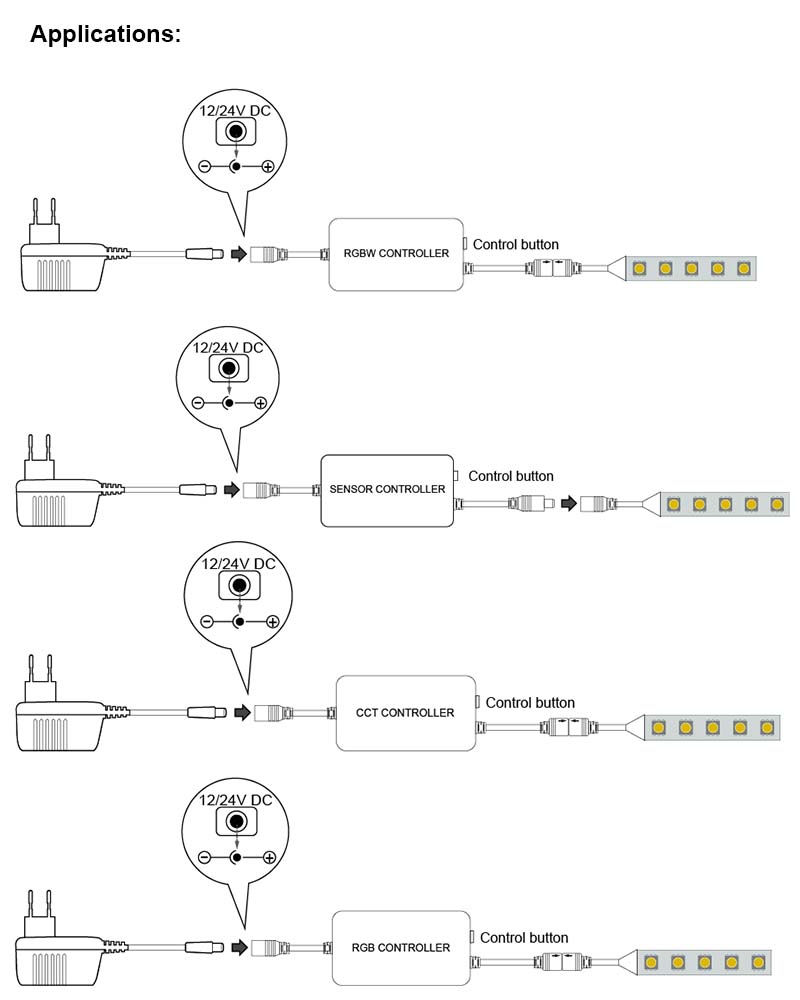

CCT LED Remote LED DIM Remote LED RGB RF Remote RGBW RF Remote Mini Wireless Sync LED Controller Applications
