  • Brand: Hoion
  • Product Code: HDBK

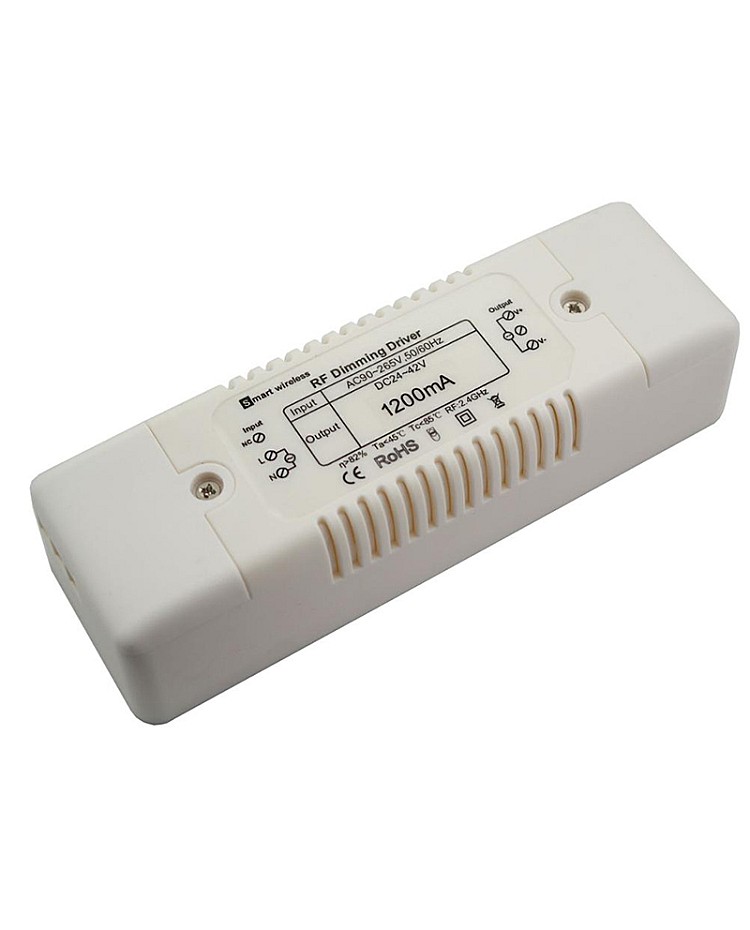

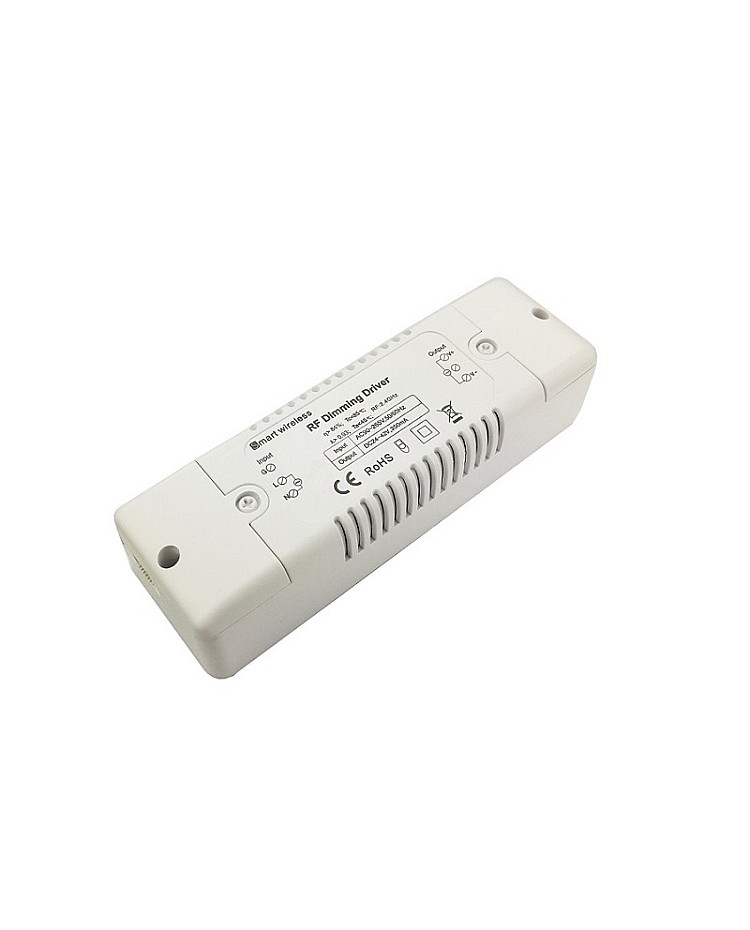

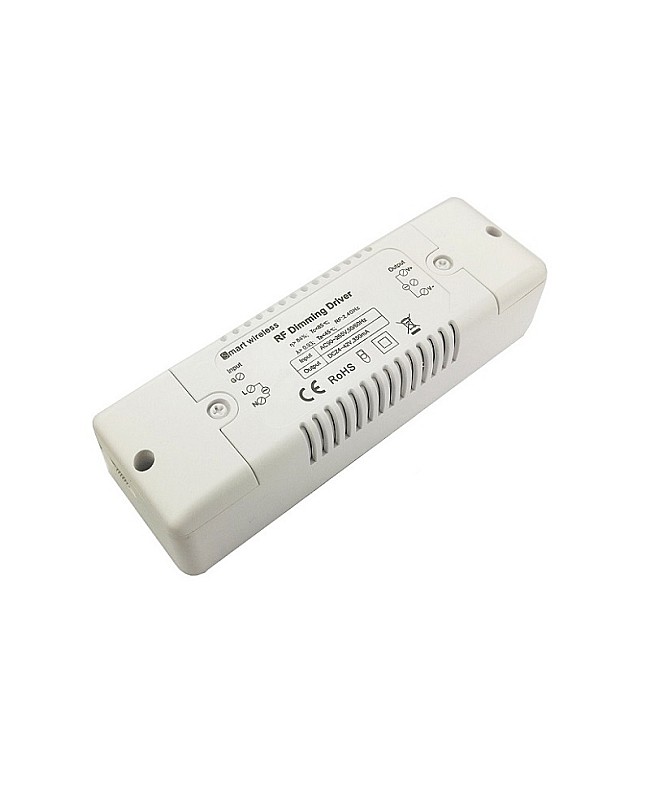

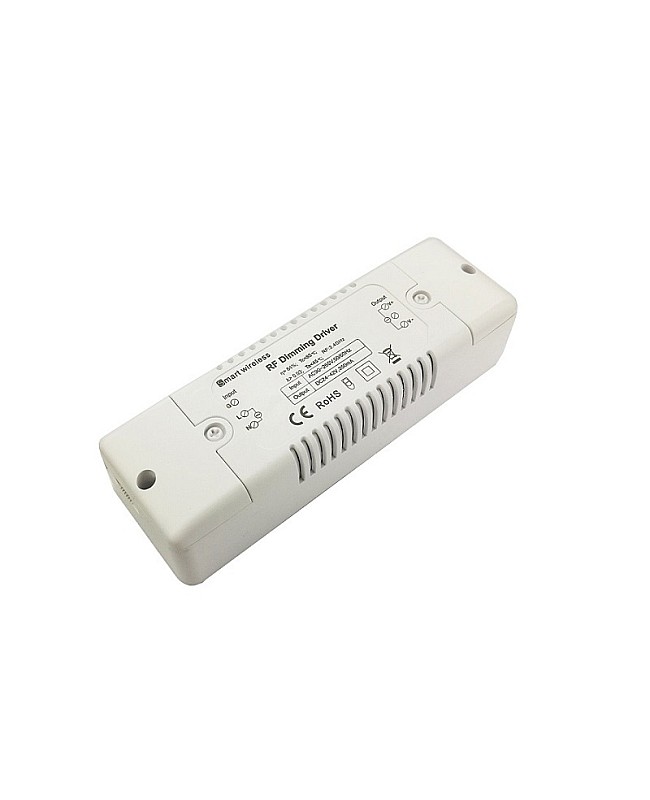

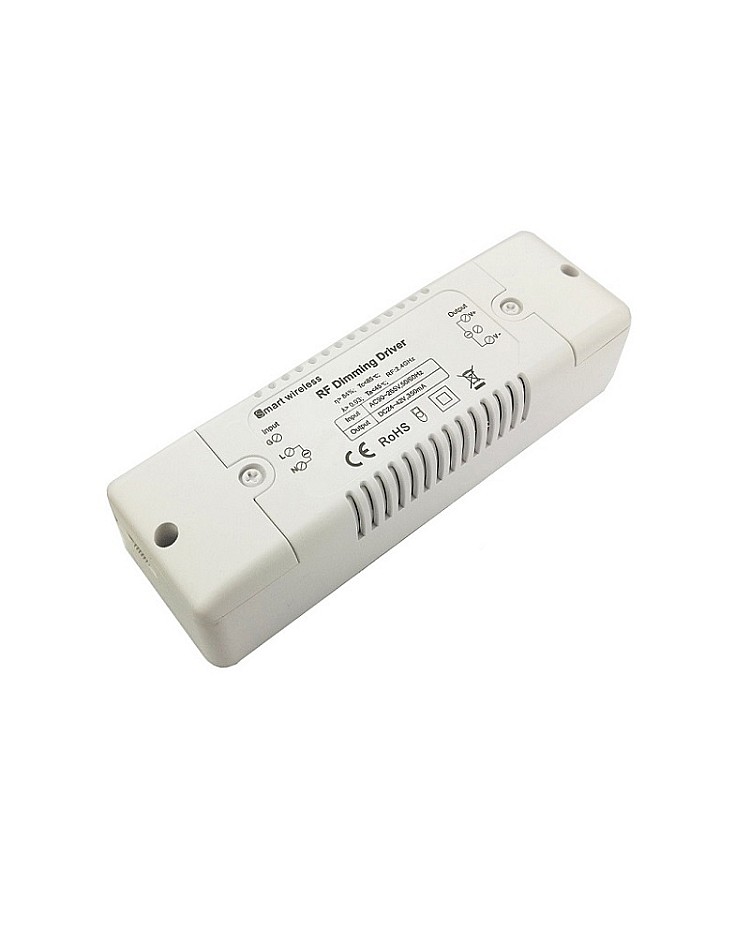

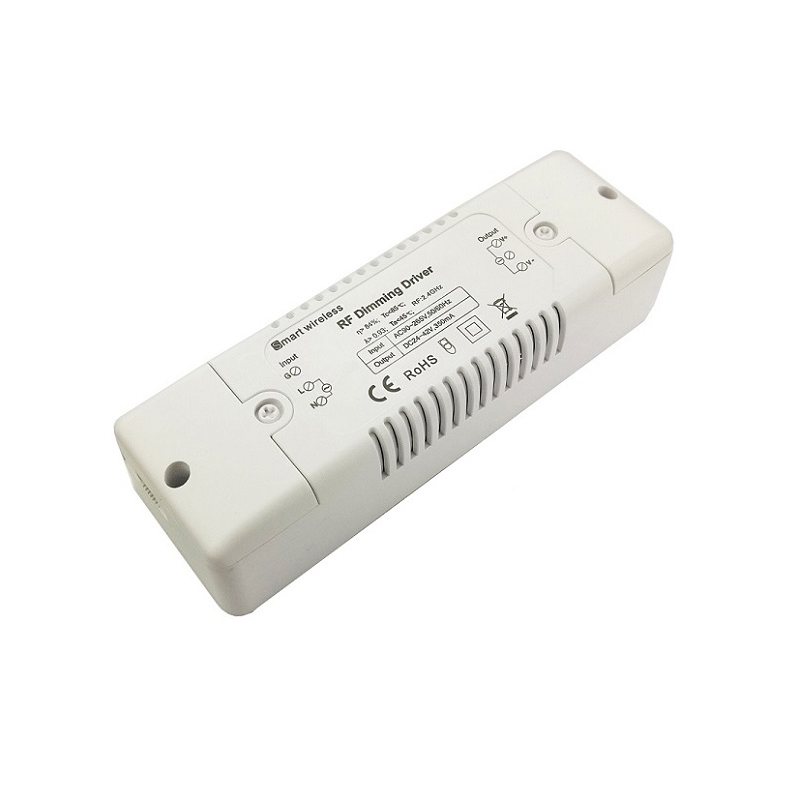

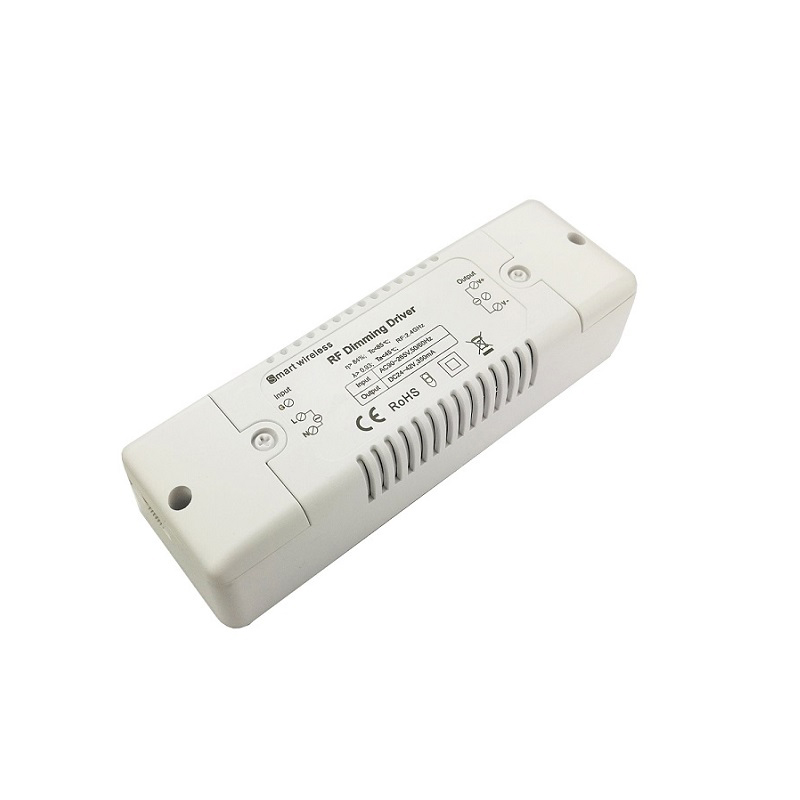

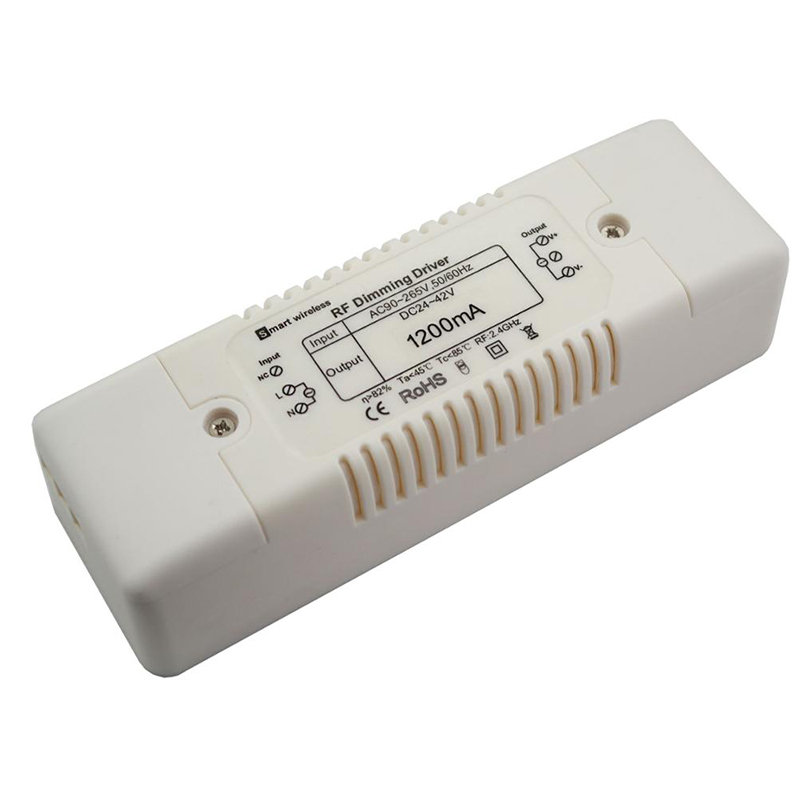

Check the 2.4G Wireless Constant Current LED Dimmable Transformer, with isolated power supply design, high efficiency, high PF, and flicker-free. Protected from miswire, overloading, over-voltage, and short circuit. adopts the advanced PWM technology, high-quality smooth dimming(4096 grades), 2.4GHz wireless control and air self-inspection sync control. compatible with free lighting control system, realized phone WIFI smart control, you can purchase the 2.4G RF LED Remote separately to adjust the brightness of your LED light synchronously with the remote. You can use LED Lamps, LED Panels, Ceiling Lights, LED Down Lights, and other constant current lights in the home, shop, office, or hotel.

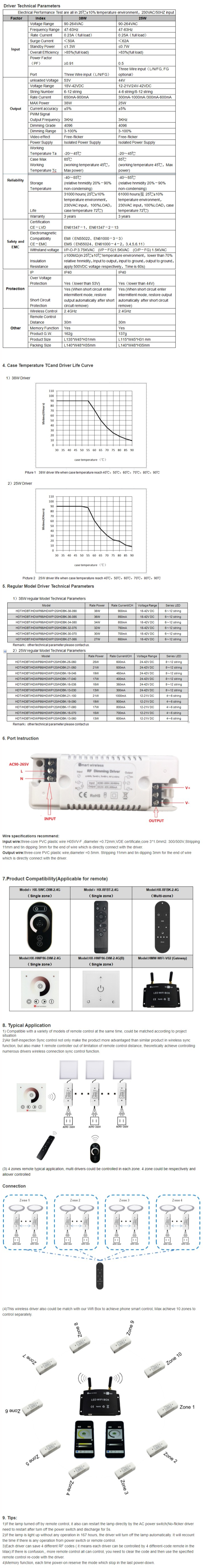

  • Working Voltage: AC90-264V
  • Frequency Range: 47-63Hz
  • Rated Current(Full Load): 0.23A(38W)/0.25A(25W)
  • Surge Current: <50A(38W)/<62A(25W)
  • Standby Power: ≤1.3W(38W)/≤0.7W(25W)
  • Efficiency(Full Load): >85%(38W)/>83%(25W)
  • Power Factor(PF): 0.9

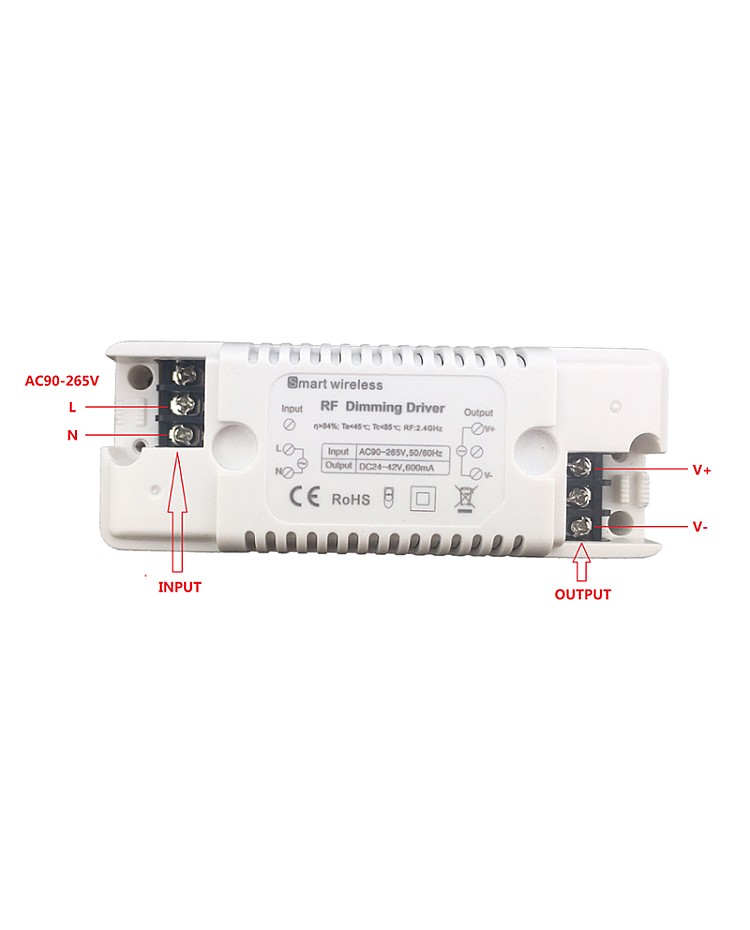

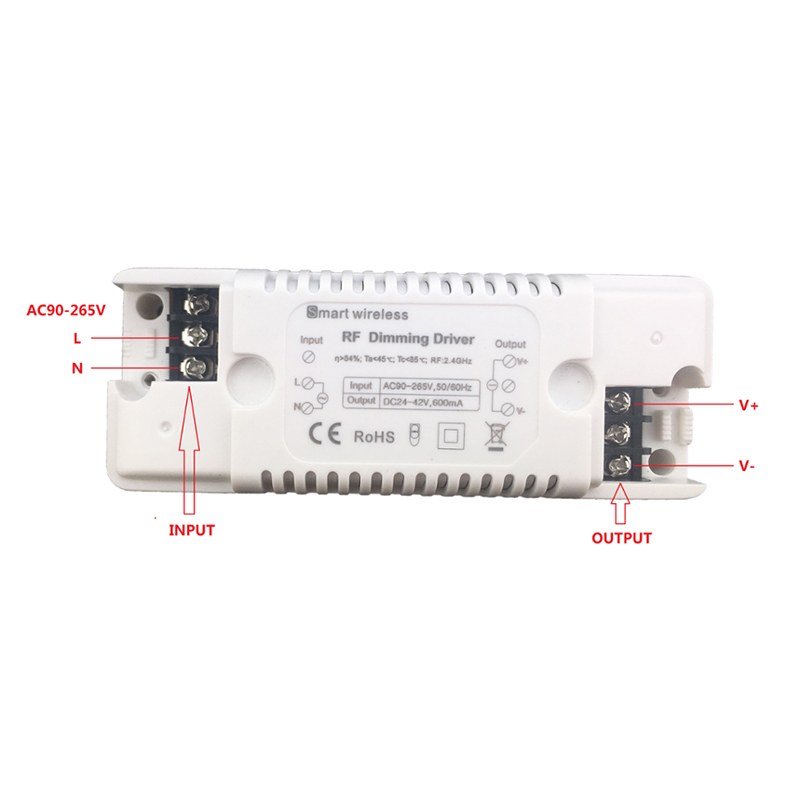

  • Port: Three Lines Input(L/N/FG)
  • No Load Voltage: 53V(38W)/44V(25W)
  • Voltage Range: DC18-42V(38W)/DC12-21V Or DC24-42V(25W)
  • LED String: 6-12 LEDs(38W)/4-6LEDs Or 8-12LEDs(25W)
  • Rated Current: 650-900mA(38W)/300-1000mA/300-600mA(25W)
  • Max Power Supply: 38W/25W
  • PWM Signal Output Frequency: 3KHz
  • Dimming Grade: 4096
  • Dimming Range: 3-100%
  • Video Effect: Free-flicker
  • Power Supply: Isolated Power Supply
  • Working Temperature: -20-45℃
  • Over Voltage Protection
  • Short Circuit Protection
  • Wireless Control: 2.4GHz
  • Remote Control Distance: 30m
  • Memory Function: YES
  • Compatible With Freelighting Control System, Realized Phone WIFI Smart Control
  • Applications: LED Panels, LED Ceiling Lamps, LED Down Lights In-Home, Shop, Hotel, Office, Household/Commercial Indoor Lighting
  • Remote Control Sold Separately
  • Warranty: 3 Years


1*Constant Current LED Dimmable Transformer(Remote Not Included And Sold Separately)

AC90-264V LED Dimmable Transformer
