  • Brand: Ledbe
  • Product Code: LS30-TS

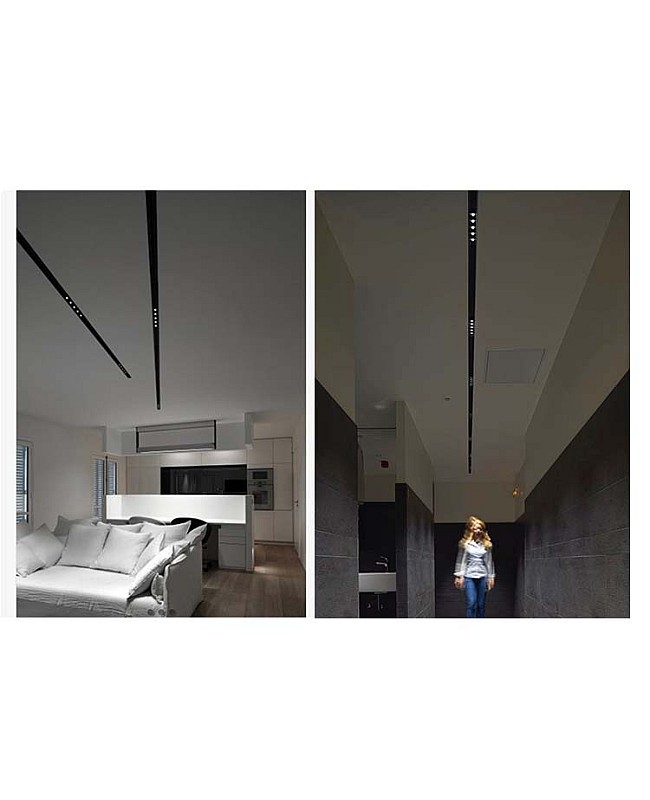

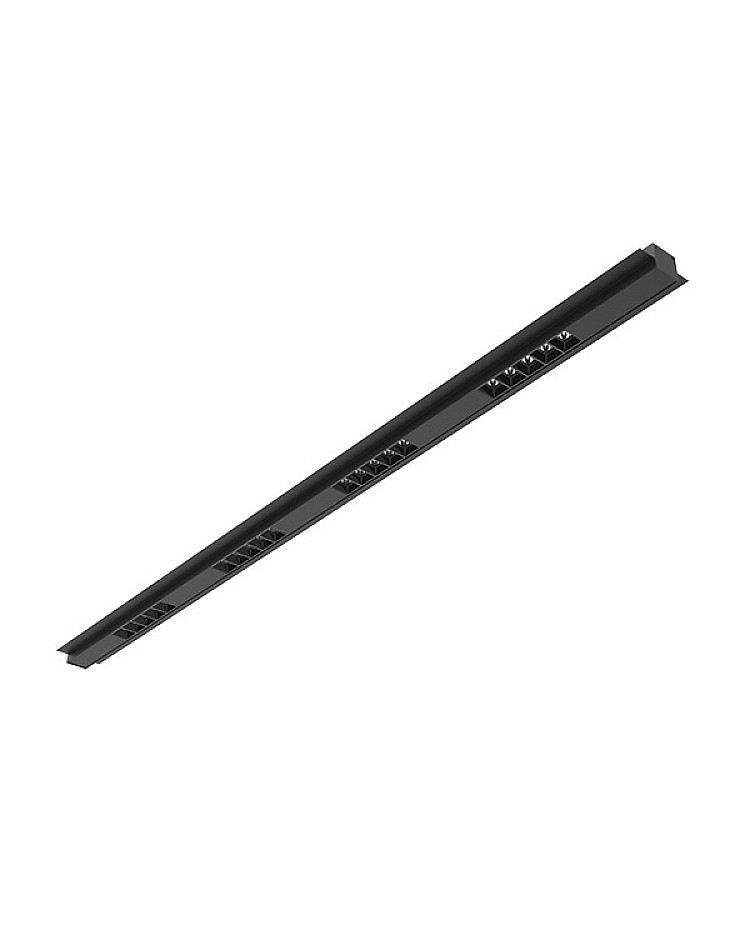

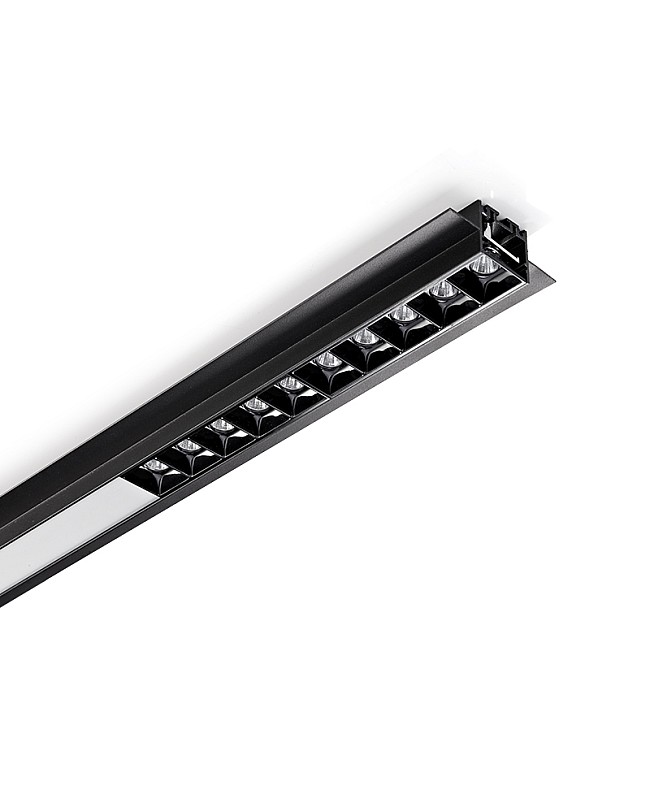

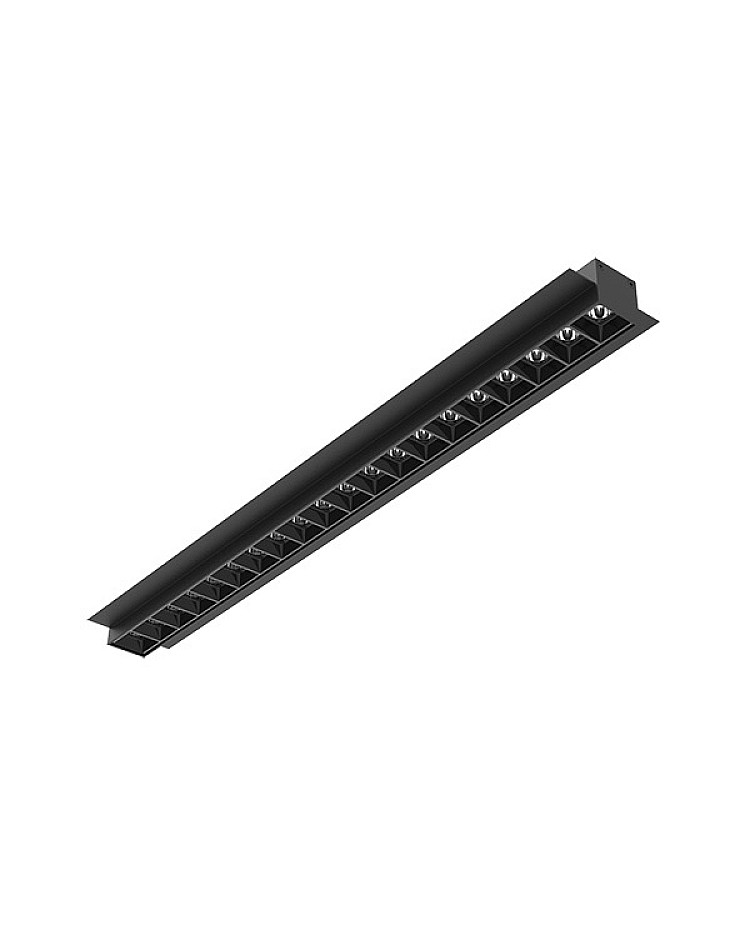

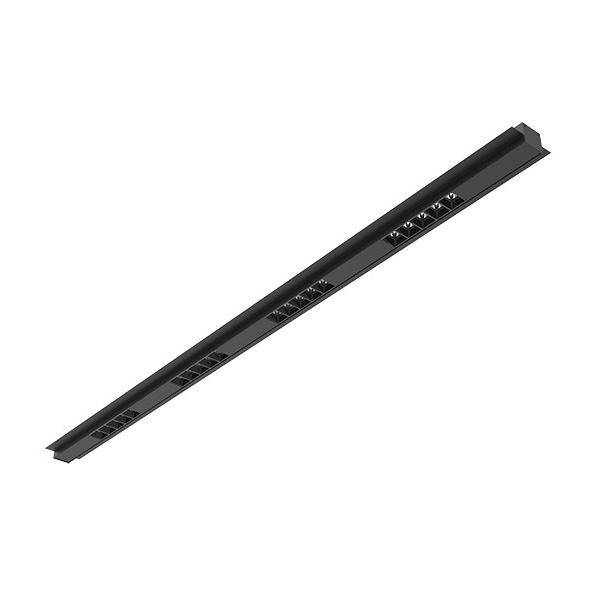

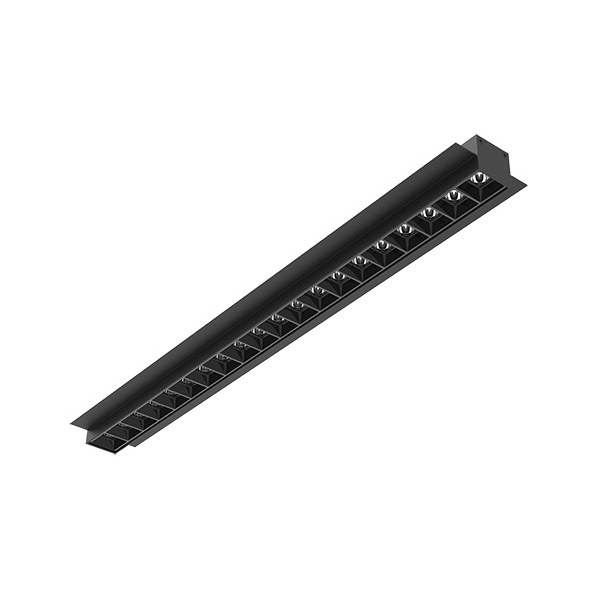

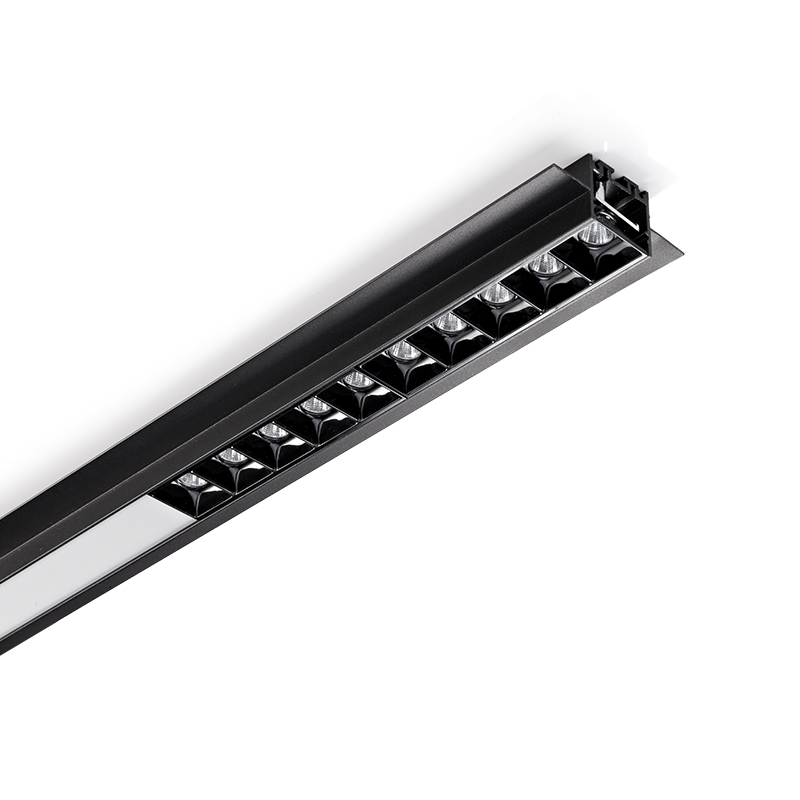

The Black Trimless Recessed LED Strip Extrusion is a great choice for architectural lighting, is designed to blend seamlessly into any environment and provide bright, even lighting that is perfect for lighting up stairwells, hallways, and other areas of a building. The Black LED Extrusion allows a combination of 15°, 30°, and 45° reflectors, PC frosted opal diffuser, and blind cover together for different needs of lighting. Made of 6063-T5 aluminum material with black anodized surface treatment, anti-oxidation resistance, and a longer lifespan than other similar products. The standard length is 1.2 meters per piece, and the max length is 2.5M per piece, which can be cut into any size fit for your projects. There are three types of couplers available: 90°, 90° vertical, and 180°, you can use them to reconnect the Light Extrusions for corner, upwards, and downwards applications. Ideal for being recessed in walls, and ceilings as modern, sleek lighting design in retail stores, schools, stores, hospitals, etc.

Quick Links:

Light Modules For LS30-TS LED Extrusion


  • Model: LS30-TS
  • Material: 6063-T5 Aluminum
  • Surface Treatment: Black Anodized

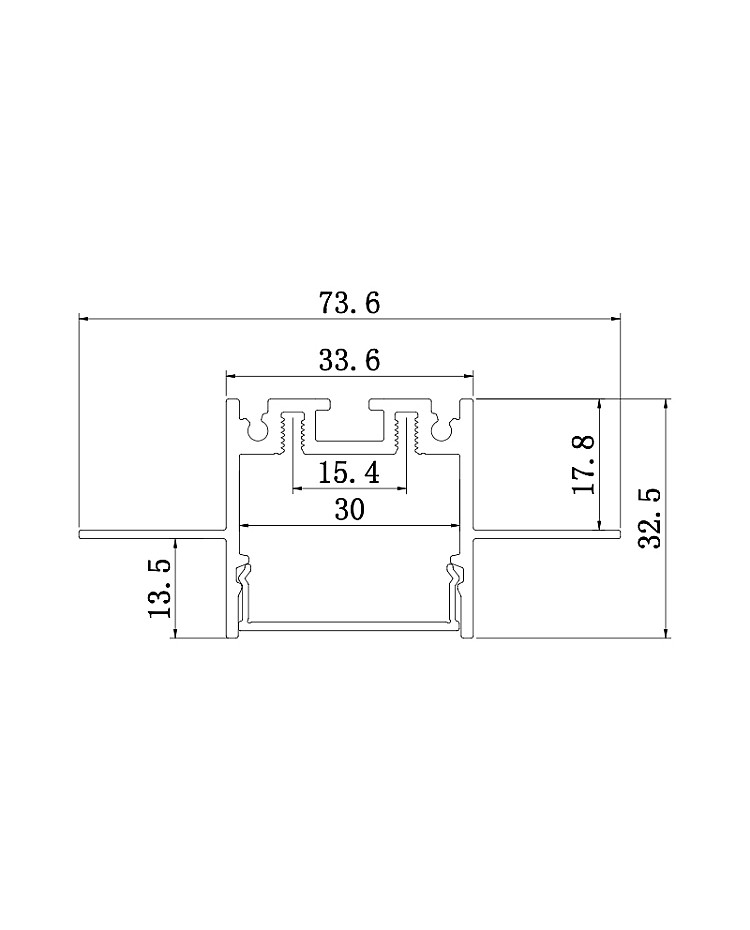

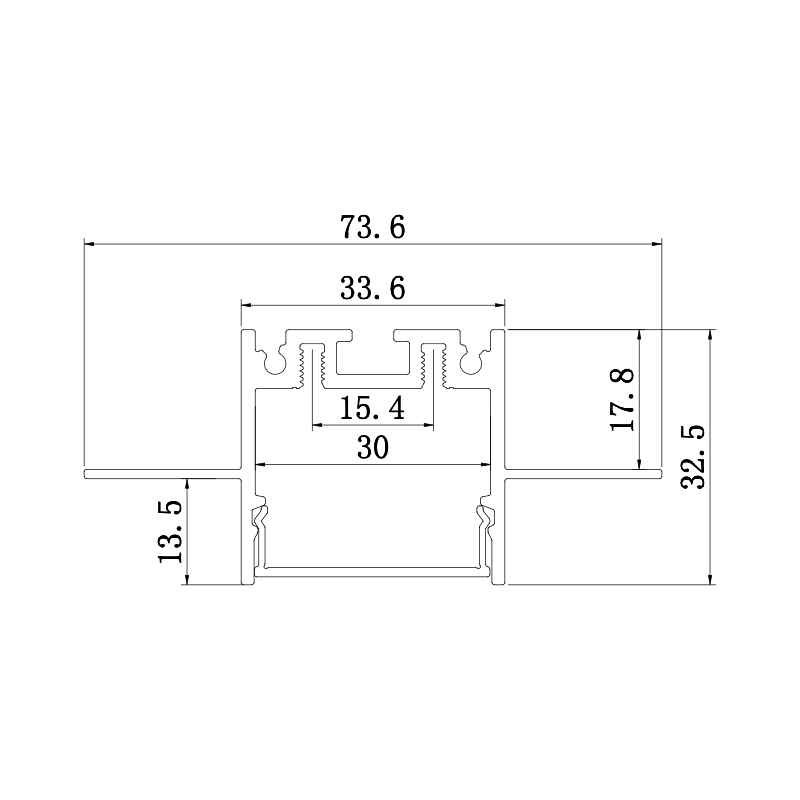

  • Size: 73.6*32.5mm

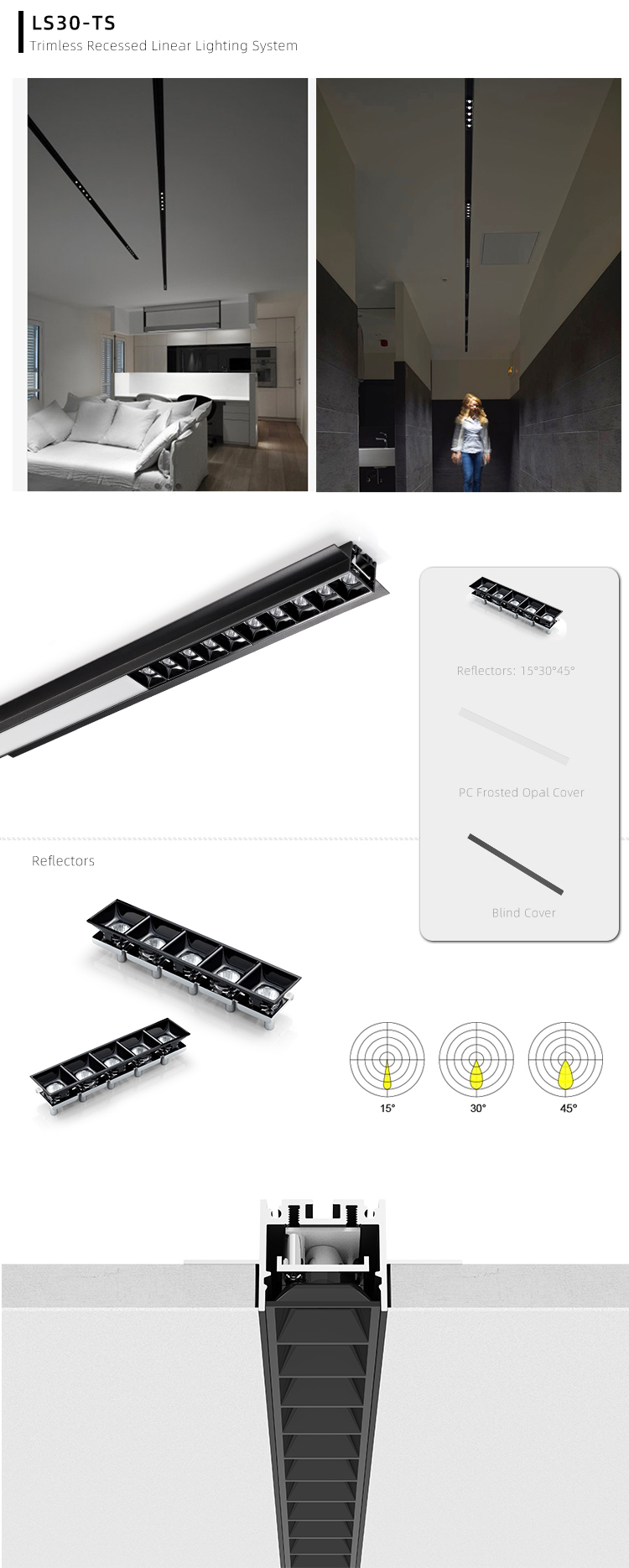

  • Optional Diffusers: Reflectors(15°,30°,45°), PC Frosted Opal Diffuser, Blind Cover
  • Reflector's Length: 13.25cm
  • Compatible With 140mm/PC, 280mm/PC, 560mm/PC 5LEDs/Unit LED Modules(Sold Separately)
  • Max Power: <30W/Meter
  • Standard: 1.2Meter
  • Other Lengths Available: 2.5M
  • Custom Length: YES
  • 180°, 90° Vertical And 90° Connectors Sold Separately

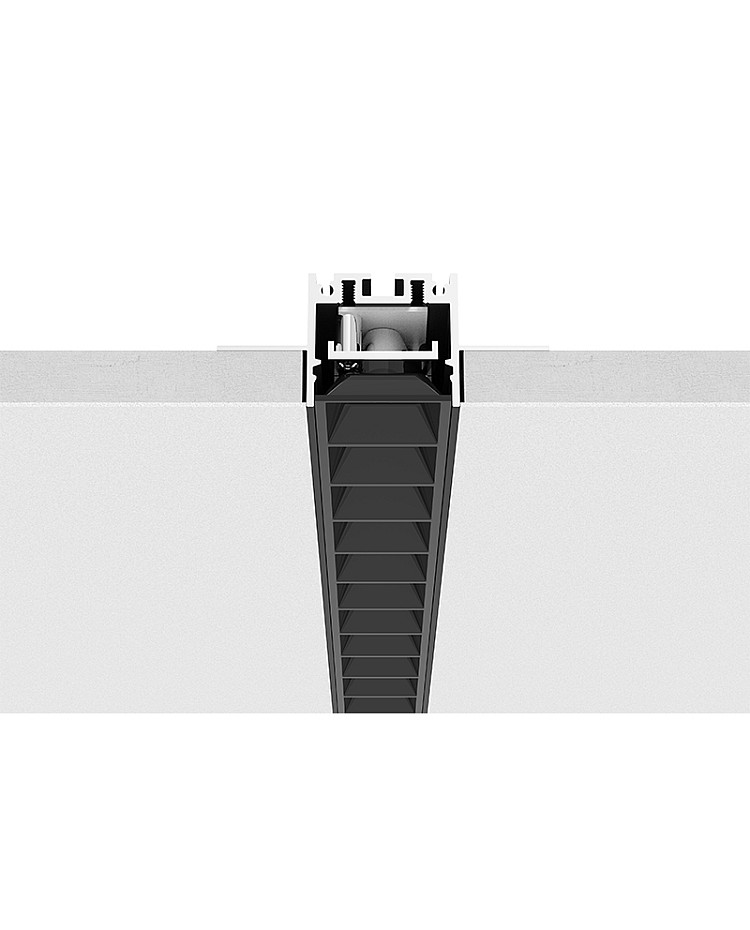

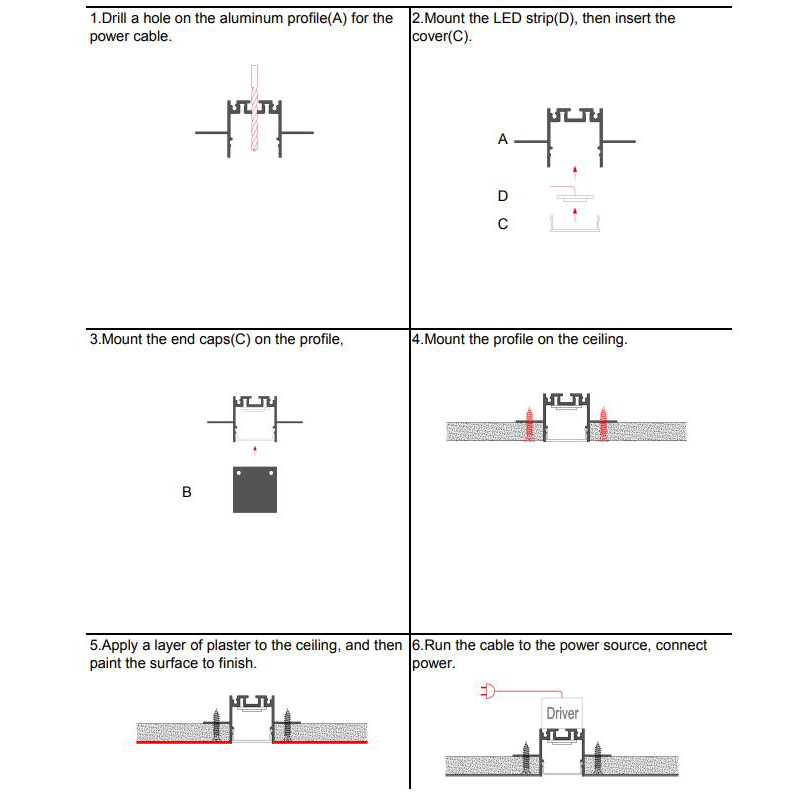

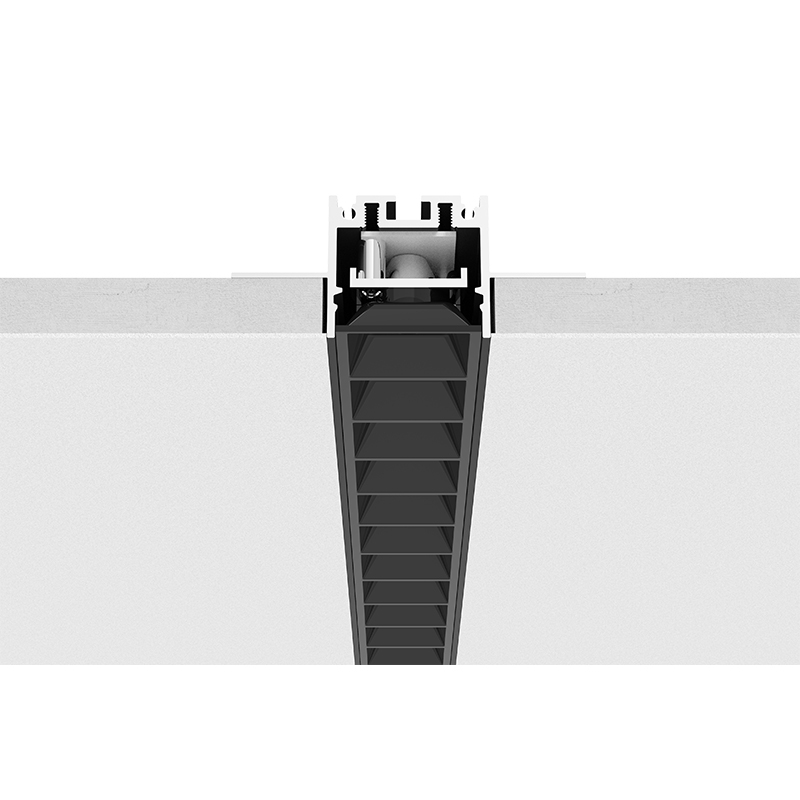

  • Installation: Recessed

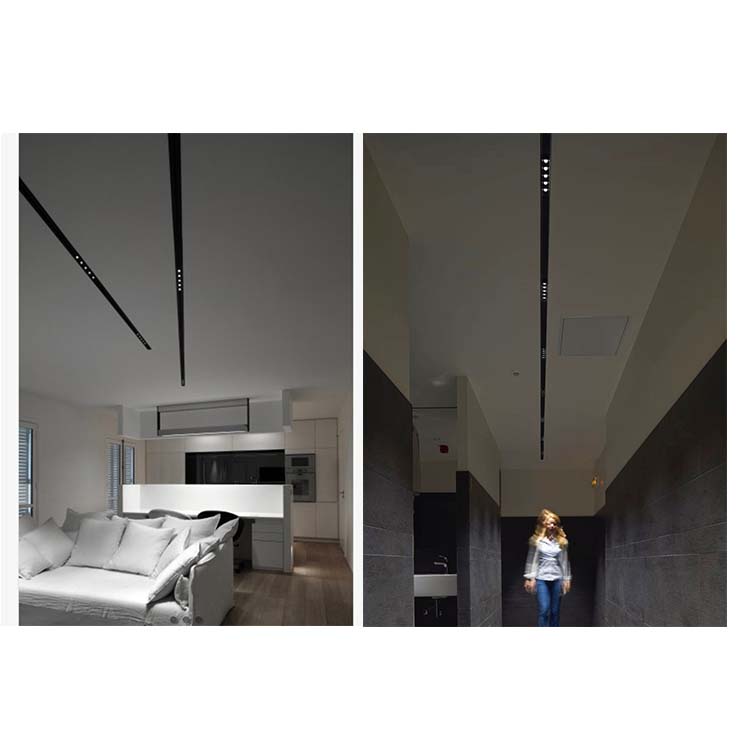

  • Applications: For Offices, Retail Stores, Supermarkets, Shops, etc
  • 5 Years Warranty

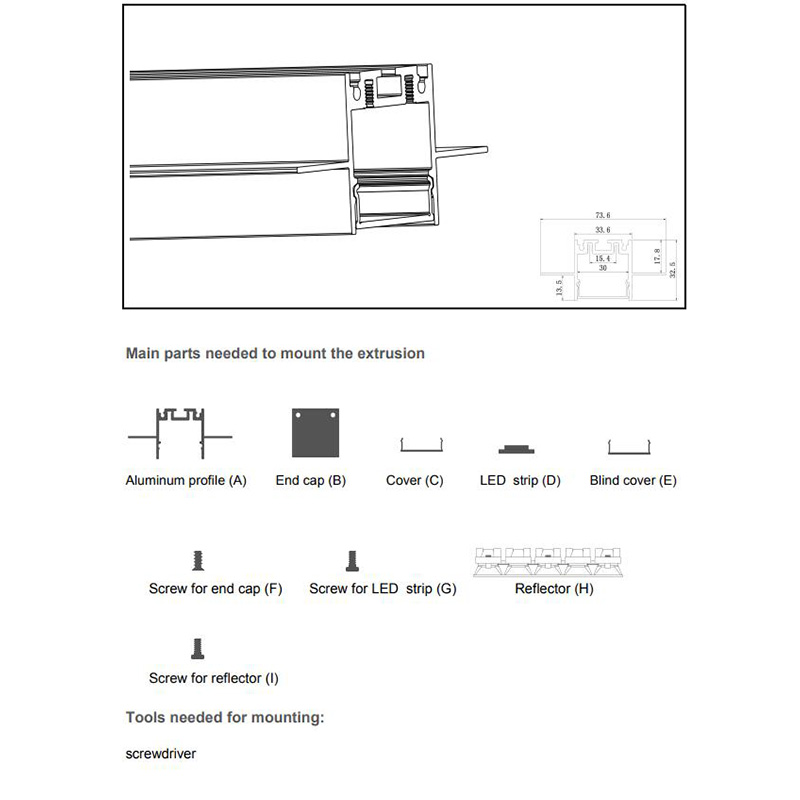

1*LED Strip Extrusion

End Caps


PC Frosted Cover(Optional)

Blind Cover(Optional)

LED Strip Extrusion Aluminium Recessed Linear Lighting System Trimless Linear Lighting System
