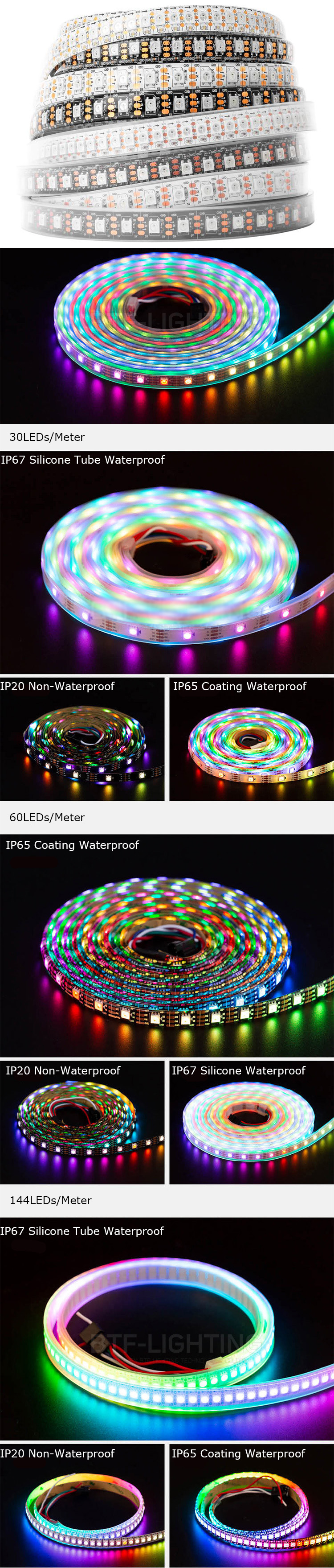

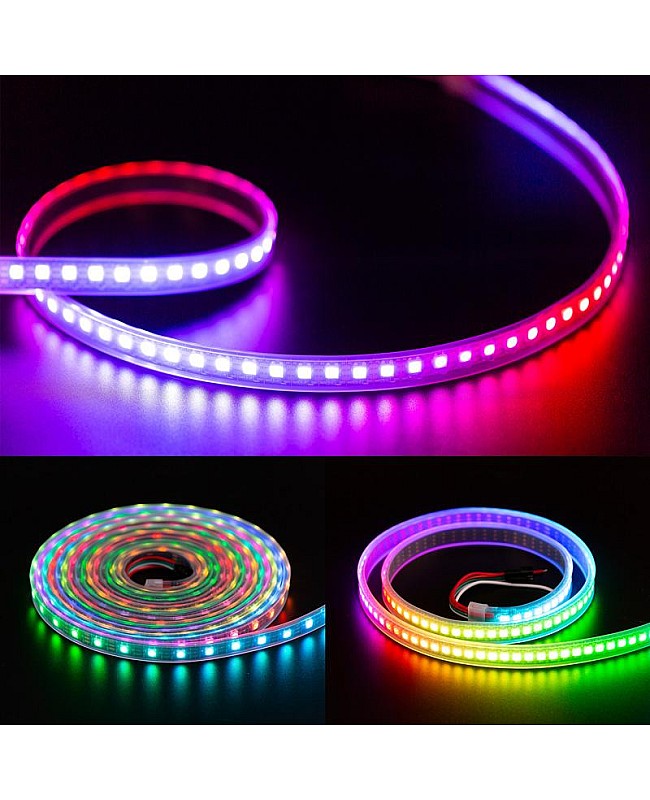

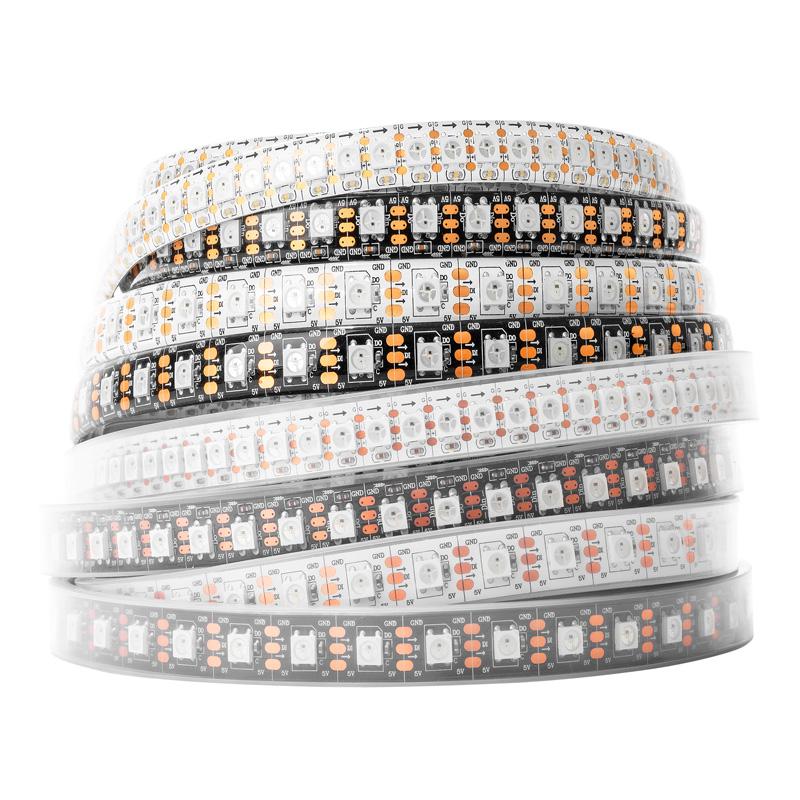

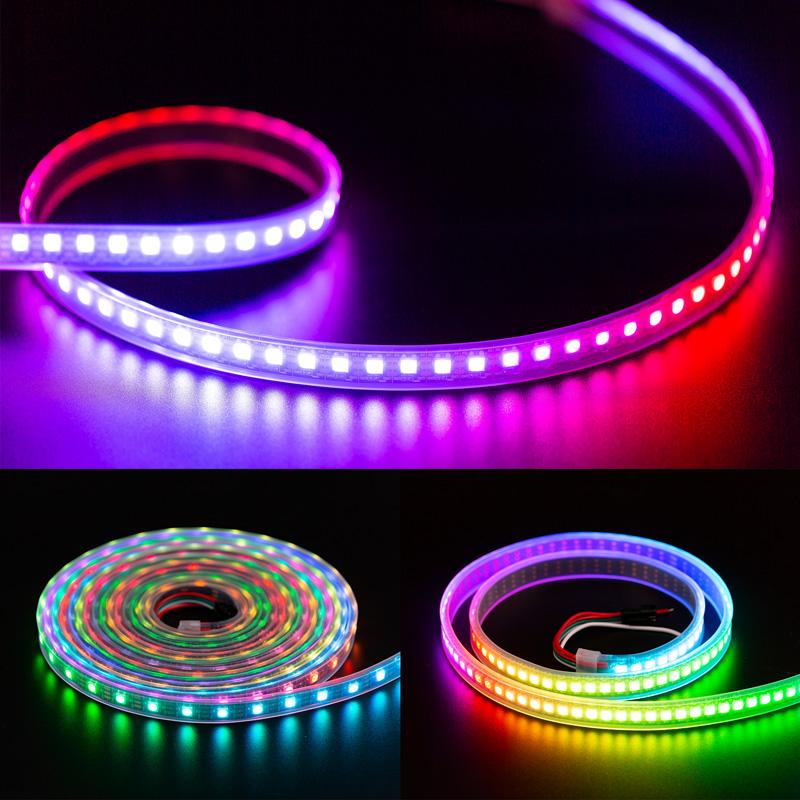

The WS2812B LED Strips, each LED chip is addressable; it can be individually programmed to produce different colors and brightness, produce millions of different colors, and be used for various lighting effects. The SMD LEDs are built-in ICs, and the IC type is WS2812B(the upgraded version of WS2812) for individually addressable. Each IC controls the RGB SMD LED to achieve the static effect, chasing effect, special effect, etc. The LEDs will have their color and brightness for 256 brightness display and a 24-bit full-color display. The Addressable LED Strips with various LEDs per meter products are available: 30LEDs/M, 60LEDs/M, 74LEDs/M, 96LEDs/M, 100LEDs/M or 144LEDs/M. Three waterproof products are available, the IP30 Non-waterproof, IP65 Coating Waterproof, and IP67 Silicone Tube Waterproof. The backside of IP30 and IP65 WS2812B Strip Lights 3M with double-sided adhesive tape, easy to stick to the place you want to install. Recommend using for indoor applications. You can use the LED Clips to fix the IP67 products in a wet, damp, or water location. RGB Strip Lights come with 3-pin JST-SM Connectors, easy to connect to Pixel LED Controllers to achieve thousands of amazing lighting effects, like curtain-up, flow water, raindrop, jump flash, and hundreds of other lighting effects. You can edit the animation effect with Coreldraw, Flash, or LedEdit software. Each LED can be cut off to any length for your project. only working in DC5V, do not try 12V or 24V. you can use them to produce LED Screens, Lighting walls, and Advertising boards and use them in hotels, KTV, Bars, Outdoor Signs, Holidays, etc.
Notes:

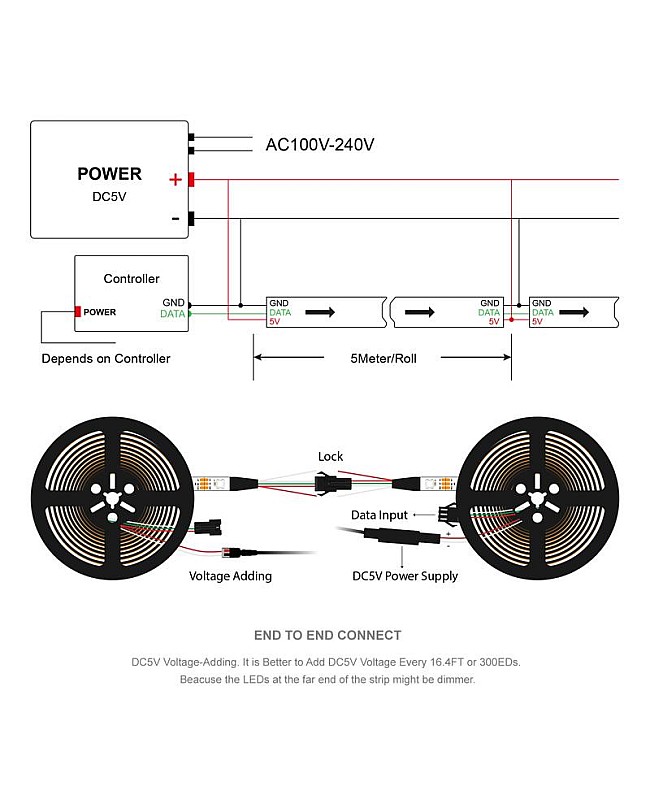

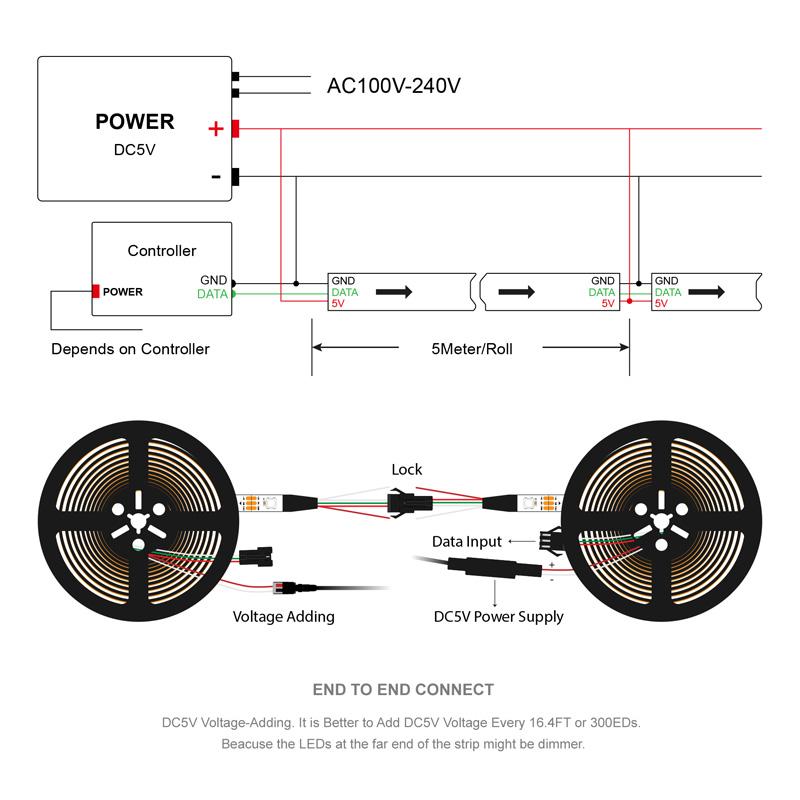

The LEDs at the far end of the Programmable LED Strips might be dimmer because of the added resistance and working voltage drop. We recommend adding the same working voltage every 5 meters (16.4FT) according to the actual situation to keep them with the same brightness.
Features:
- Working Voltage: DC5V
- LED Type: 5050 RGB SMD LEDs

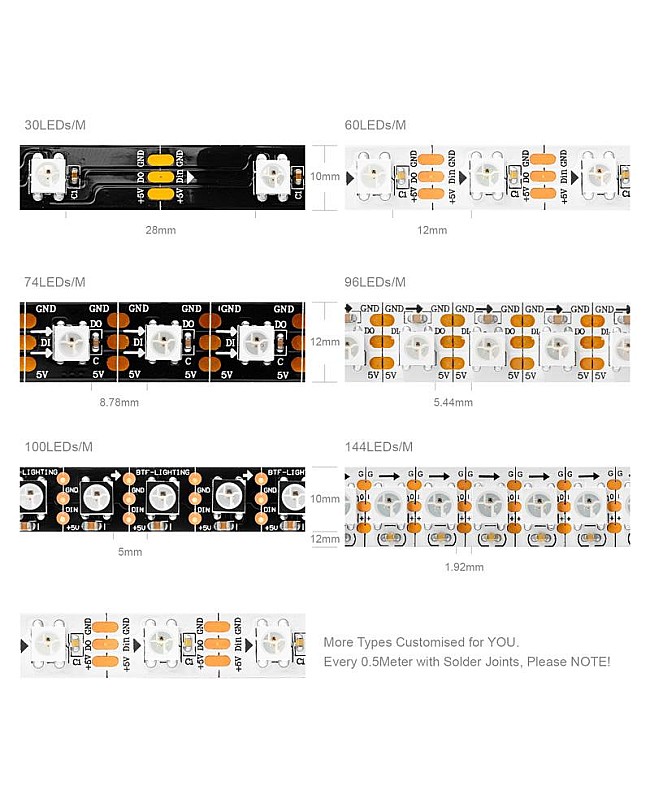

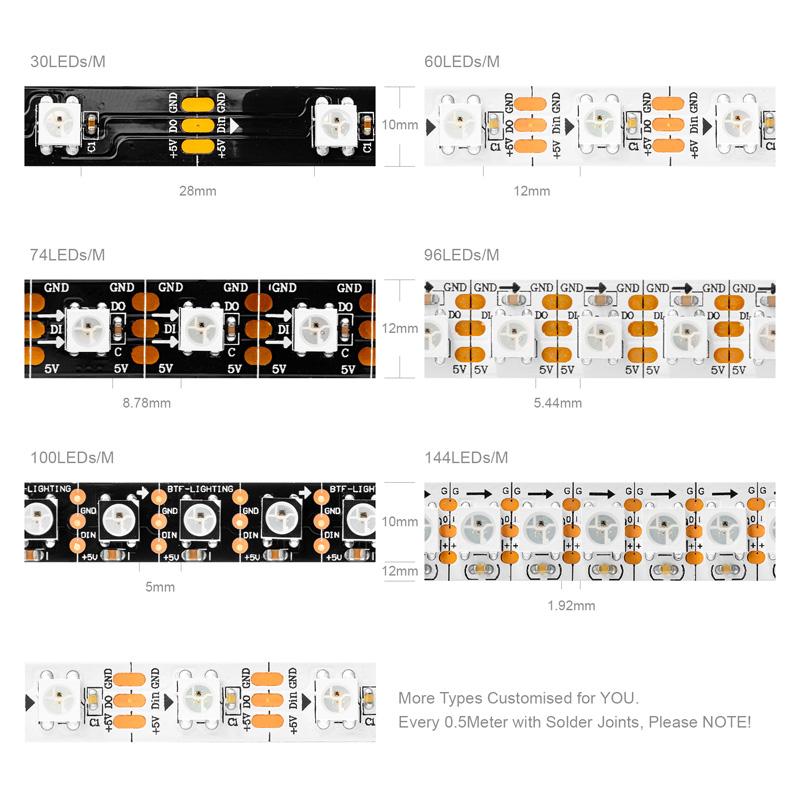

- LED Quantity: 30LEDs/Meter, 60LEDs/Meter, 74LEDs/Meter, 96LEDs/Meter, 100LEDs/Meter, 144LEDs/Meter
- IC Type: Built-In IC WS2812B(The Upgraded Version Of WS2812)
- IC Quantity:30PCS/M, 60PCS/M, 74PCS/M, 96PCS/M, 100PCS/M, 144PCS/M
- Individually Addressable
- Grayscale Levels: 256
- Angle View: 120°
- Power: 0.3W/LED
- Emitting Colors: Full-Color 24-Bit
- Colors Of PCB Boards: White/Black
- Lengths Available: 1M, 2M, 4M, 5M
- Width: 10mm(30LEDs/M, 60LEDs/M), 12mm(74LEDs/M, 96LEDs/M, 100LEDs/M, 144LEDs/M)

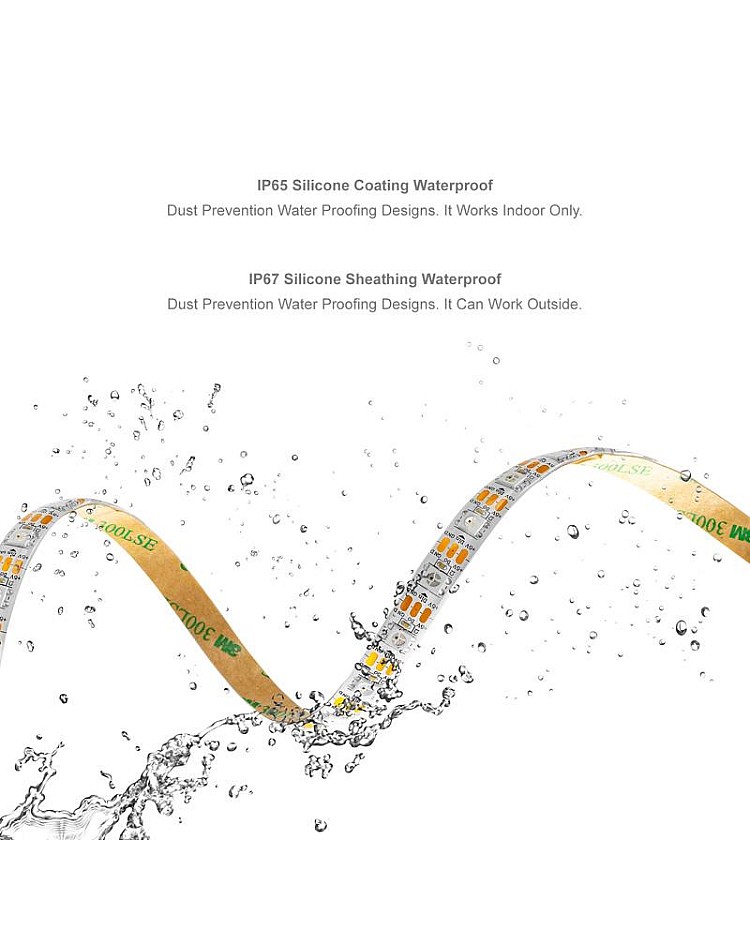

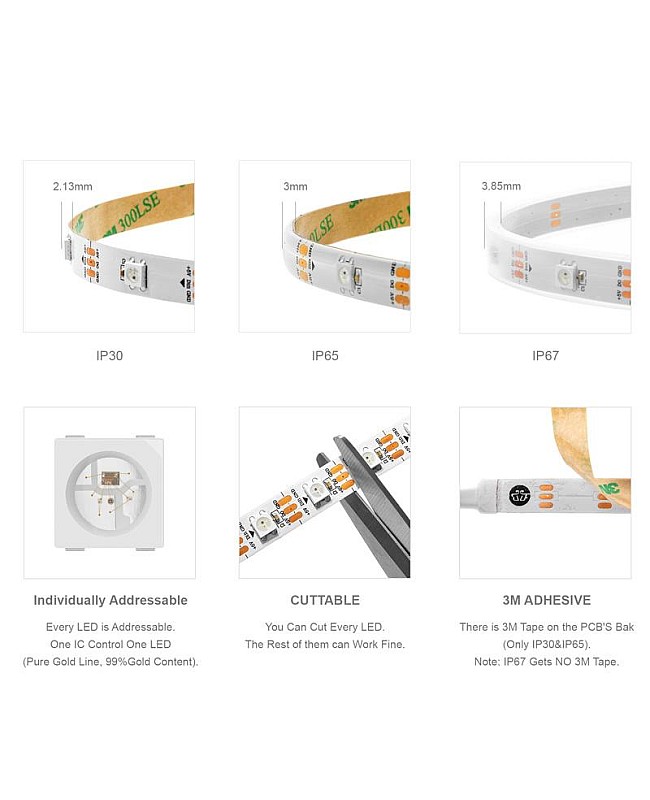

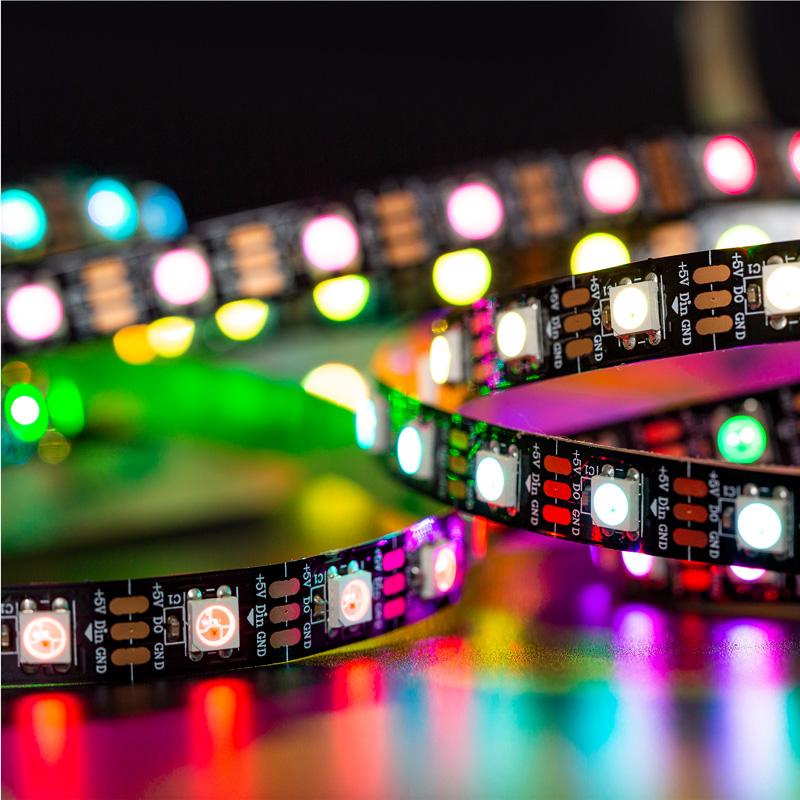

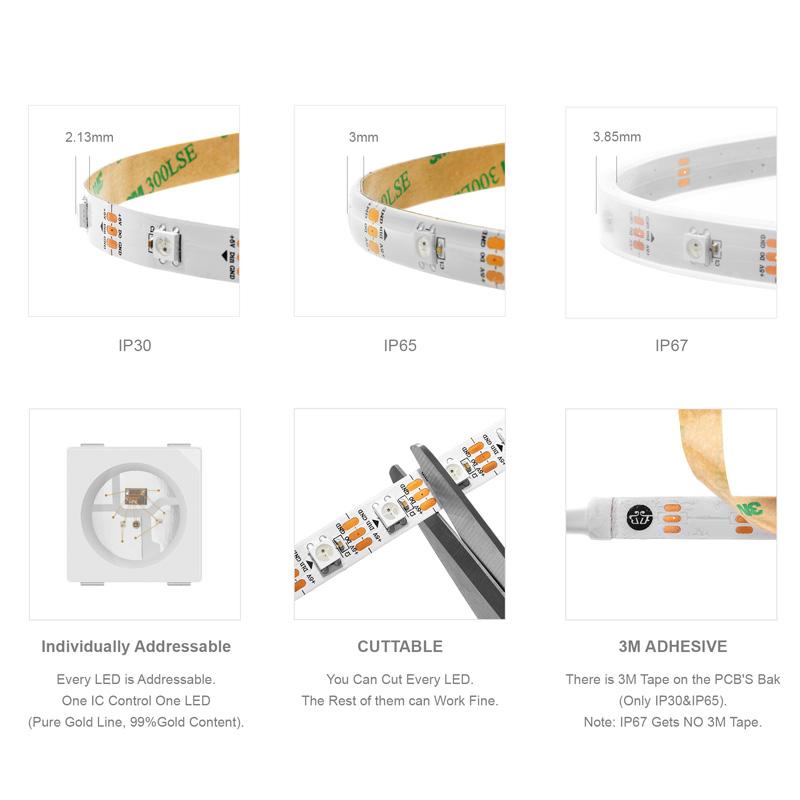

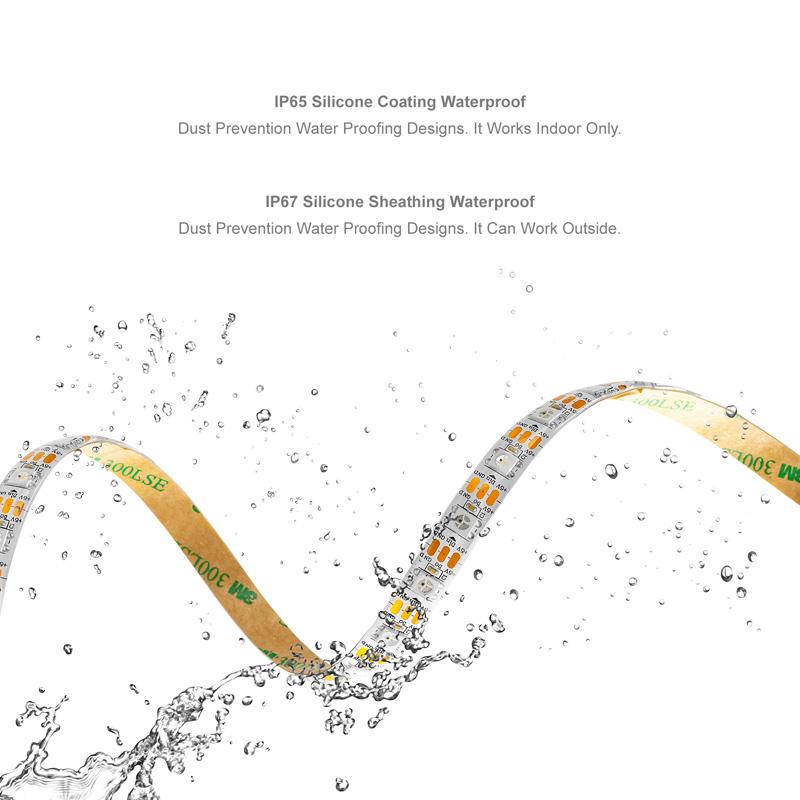

- IP Rating: IP30 Non-Waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof
- 3 Pin JST-SM Connectors Included
- Compatible With K-1000C, SP110E, SP105E, SP108E, SP110E, SP106E, SP107E, SP501E Programmable LED Controllers
- Working Temperature: -20°-+40°
- Wave Length: Red: 620-630nm, Green: 515-530nm, Blue: 465-475nm
- Every 3PCS LEDs Can Be Cut Off
- Lifespan: 50,000 Hours
- 2 Years Warranty
Includes:
1*WS2812 LED Strip Lights With 3 Pin Male Connector
