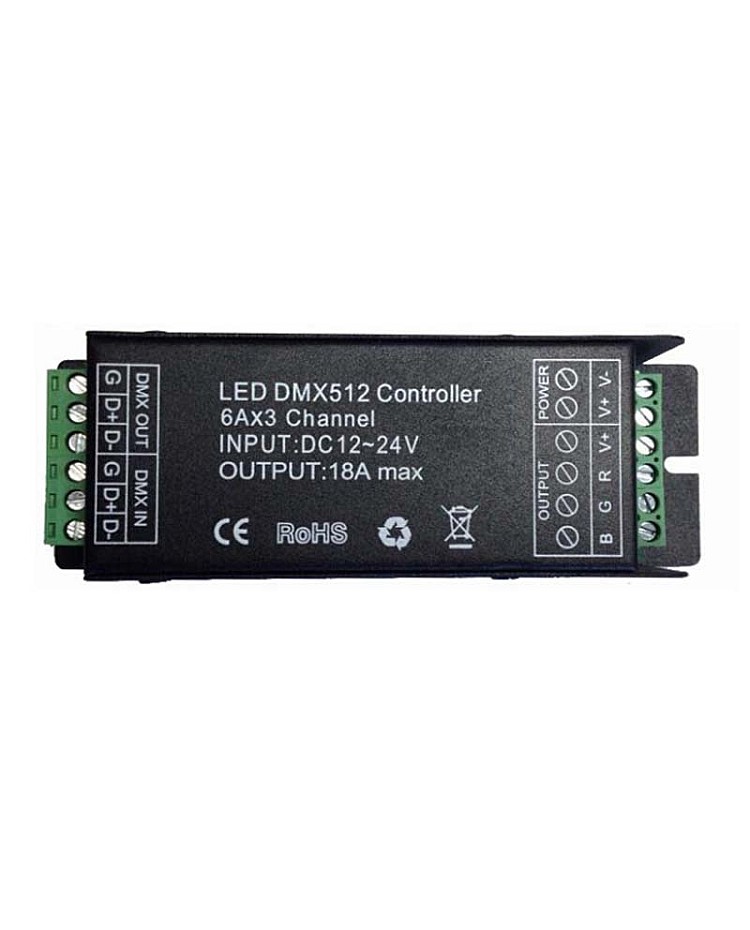

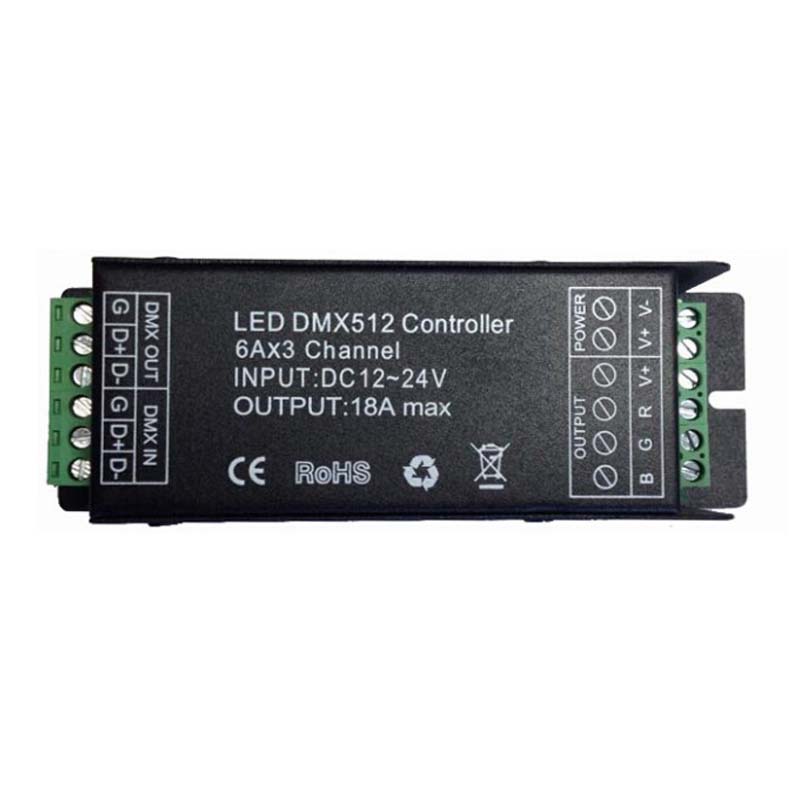

432W 3CHs RGB DMX Decoder

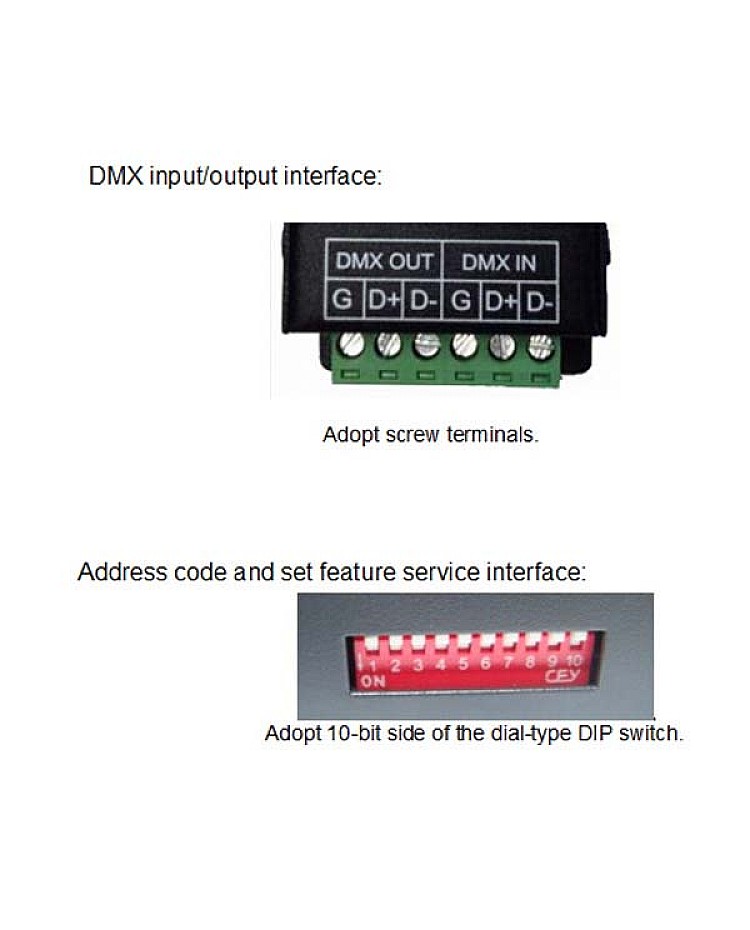

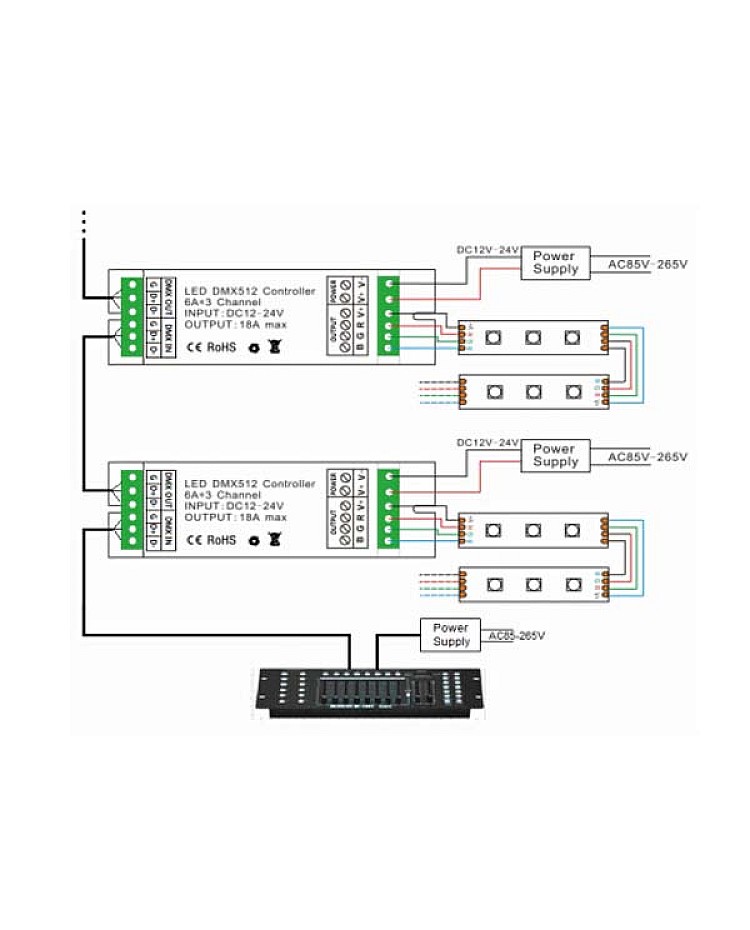

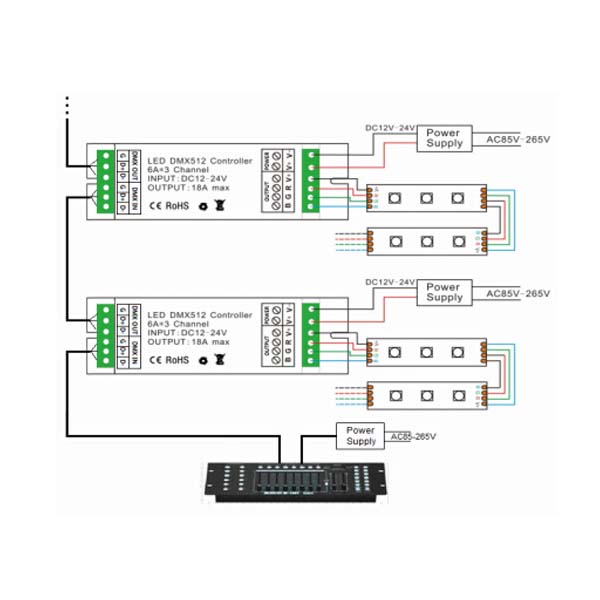

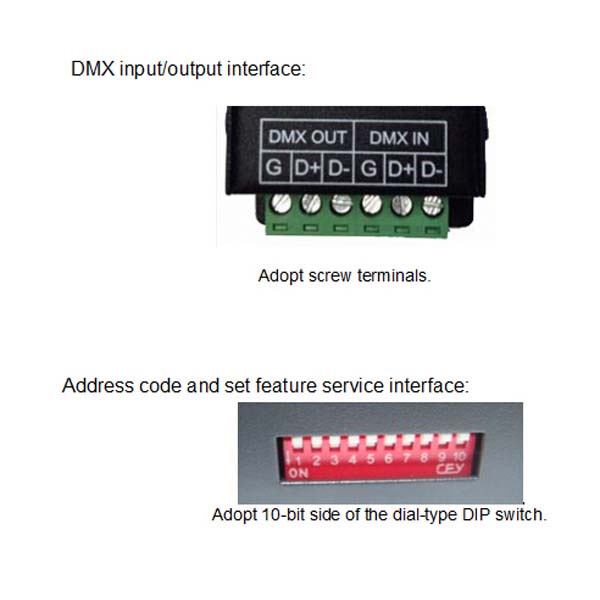

The 3CHs RGB DMX decoder adopts the advanced micro control unit, working in DC12V or DC24V, will receive the DMX-512 standard digital control signal and convert it to a PWM control signal to actuate the RGB LED light. The DMX512 LED decoder has a 3-output-channel design, the max output current of each channel is 6A, and the max loading power is up to 432W when working in DC24V. The DMX master can control the LED decoder, and you can connect the DMX digital console to change the LED light or each dynamic effect. The decoder can connect the signal line to expand the channels up to 512, and eventually achieve more changes in effect. When the DIP switch is all "0", the decoder controller assigns the address automatically, which can be required by the DIP switch. If the LED decoder is used as the RGB controller, there are 9 modes, and the DIP switch can be used to choose the working mode. Can work with the RGB LED amplifier to achieve the synchronization function.

Quick Links:

DMX 512 Controller RGB

Specifications:

• Size: L127* W42* H33 mm
• Working Voltage: -20-60℃
• Working Voltage: DC12V-DC24V

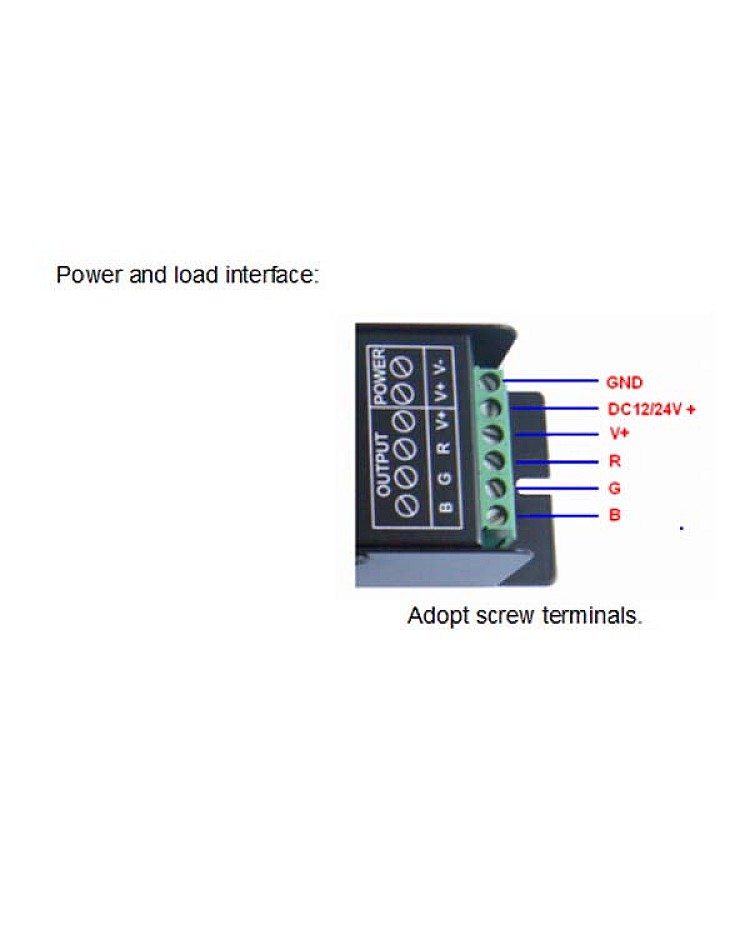

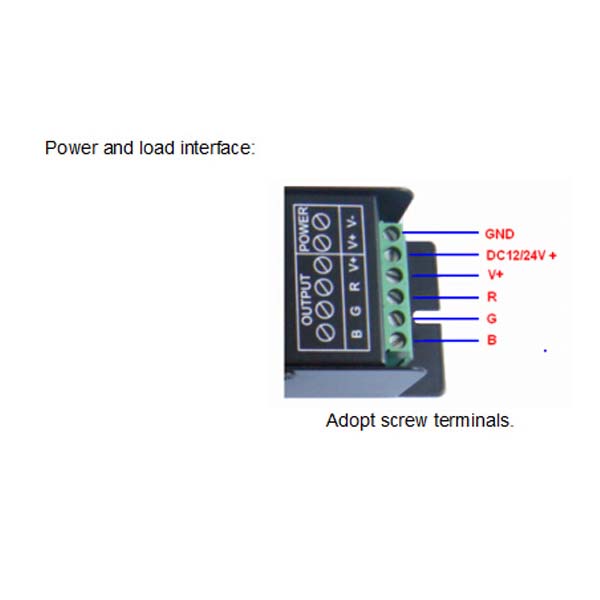

• Connecting Mode: Common Anode
• Output: 3 Channels
• Output Gray: 256 Levels(RGB Each)
• Max Output Current: 6A (Each Channel)
• Max Output Power: 216W(DC12V) / 432W(DC24V)
• Control Standard: DMX512
• Frequency Of RF Remote Control: 433.9MHz
• PWM Frequency: 7.8 KHz
• Accept The International DMX512 Standard Digital Control Signal
• Weight: 200g
• 2 Years Warranty

Includes:

1 * RGB DMX Decoder
