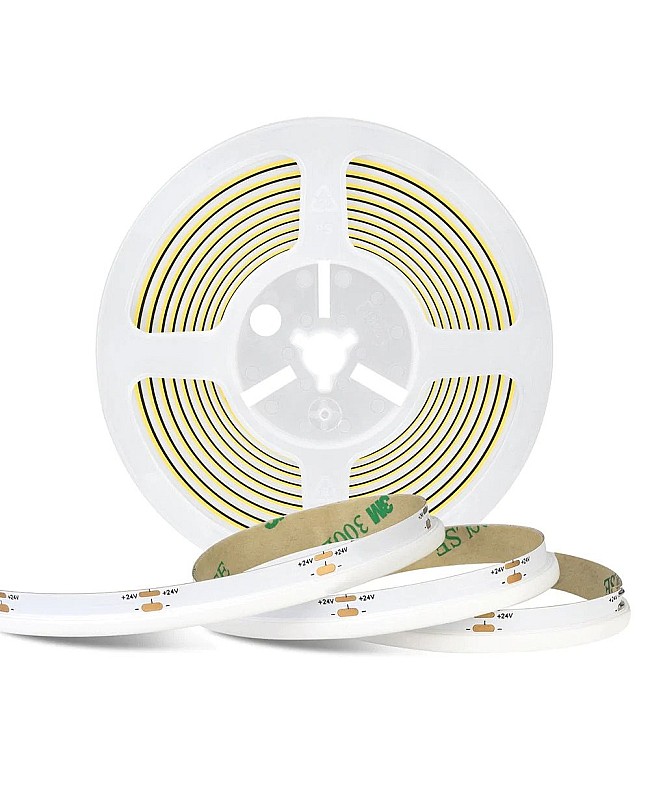

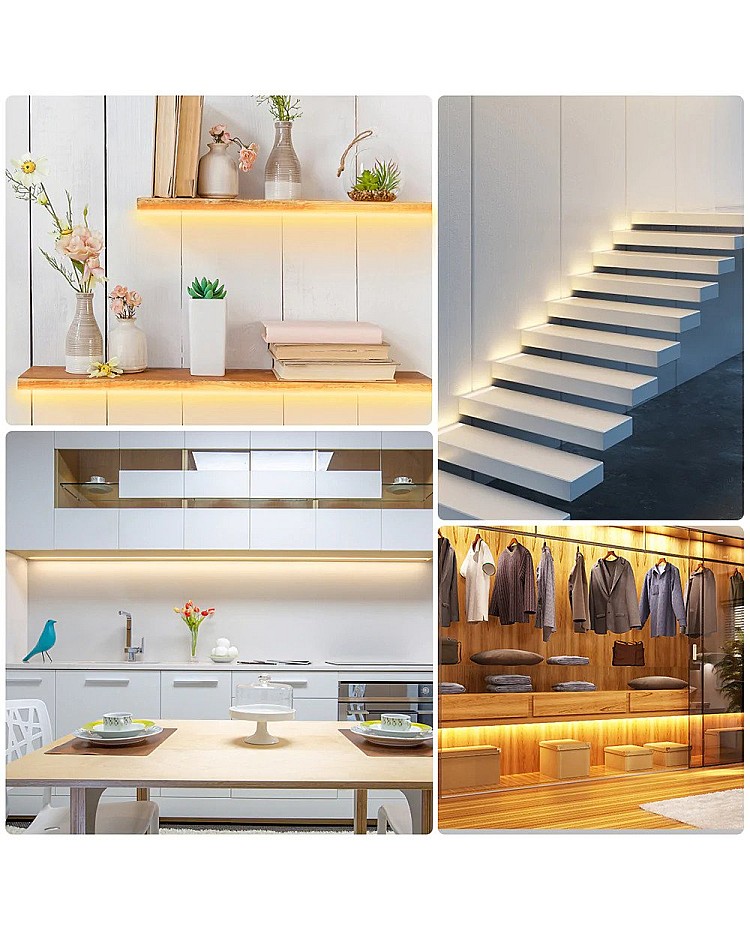

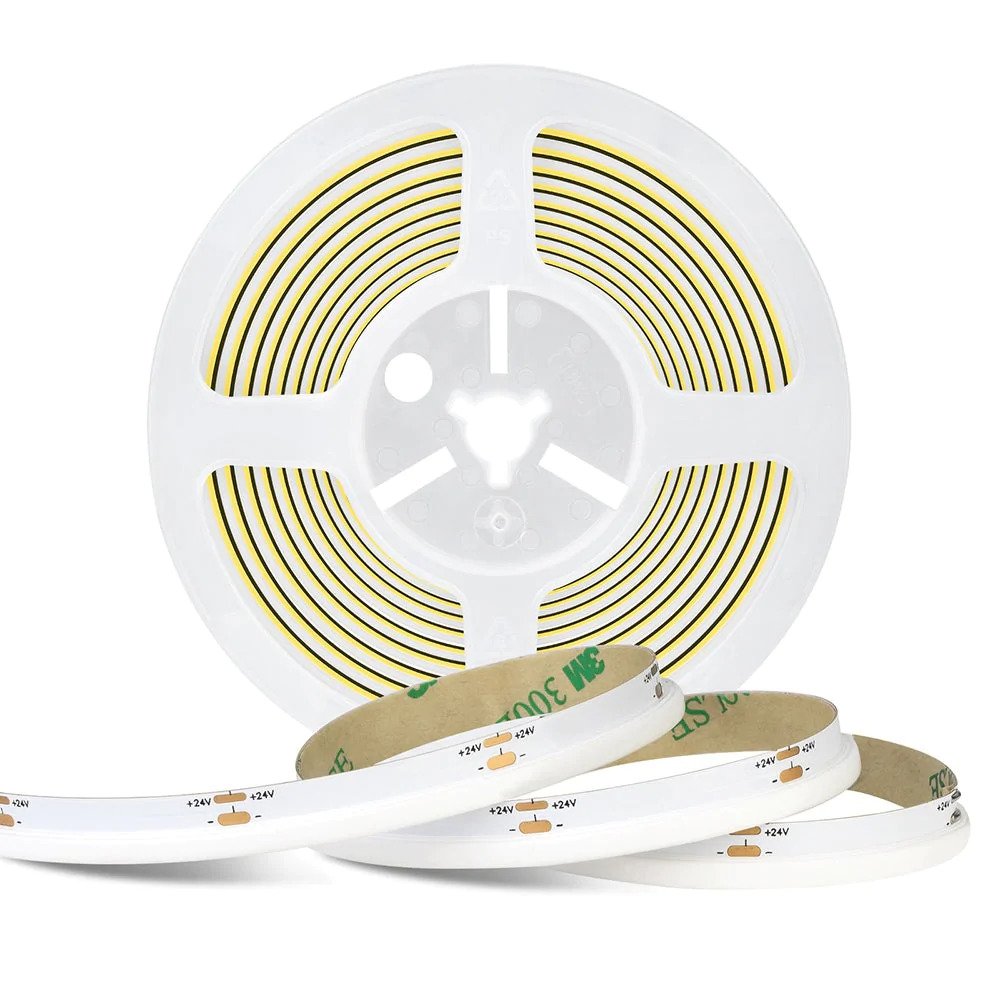

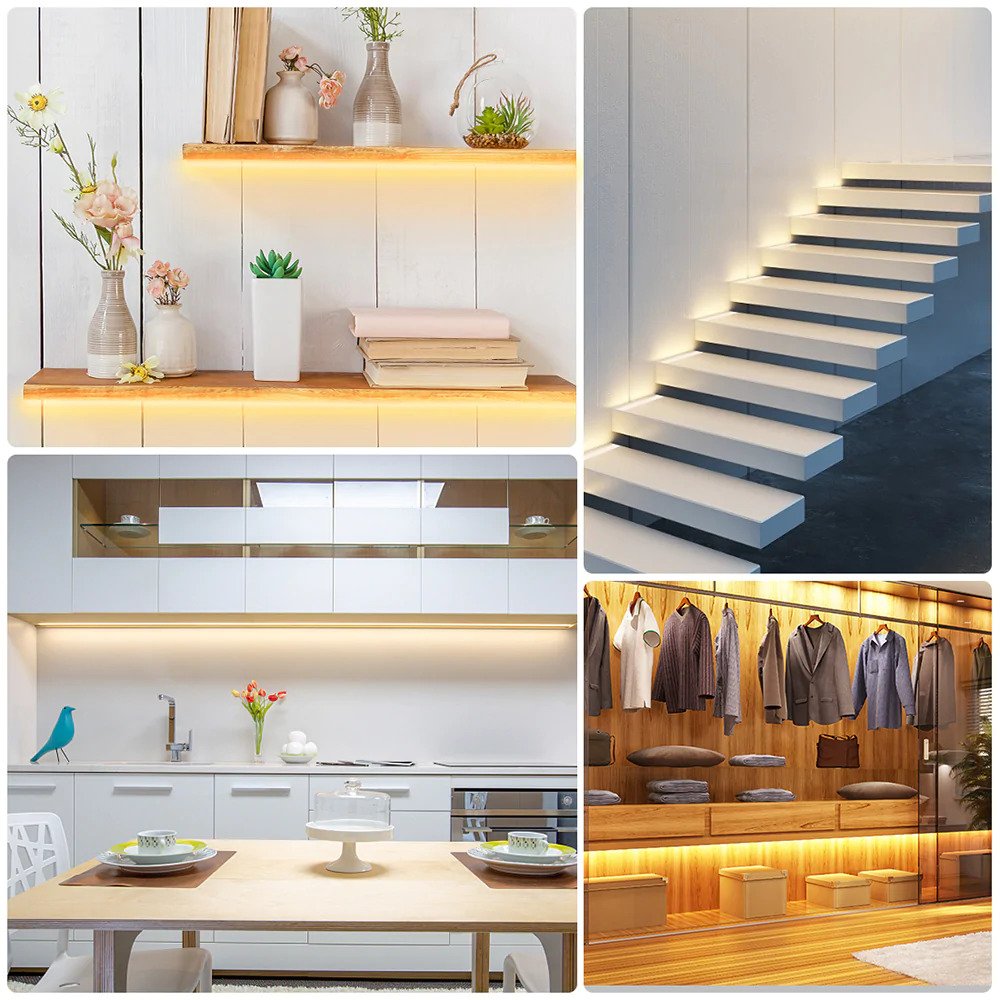

The Side Emitting COB LED Strips(COB stands for Chip On Board) are a type of LED Strip Lighting that emit light from the sides of the strip. This makes them ideal for lighting up narrow spaces like coves or for use in projects where light needs to be emitted from the side rather than the front. With a COB luminous surface, the light is evenly and soft with good effect. With the newest chip-on-board technology, 480PCS LED chips mounted on every meter double-layer PCB board are brighter than the SMD LED Strips, have no visible light dots, no dark areas, highly color-rendering index and lighting effect, no ultraviolet and infrared rays, do not contain mercury and other heavy metals, environment friendly. Side View COB LED Strips work in DC24V and can be folded into any shape. Brightness can be adjusted from 0% to 100% for any scene. Cuttable and the minimum cutting length is 33mm and can be cut to any length for DIY projects in hallways, stairs, and coves. The LEDs are designed to emit beams sideways, parallel to flat surfaces, without the strips being invisible. The waterproof level is IP20 non-waterproof, only recommended for indoor applications. With double-sided adhesive tape, it is easy to remove the protector paper on the tape and stick it to the place you want to install.


Features:

  • Type: Side Emitting COB LED Strips
  • Width: 8mm
  • Length Available: 1M, 2M, 3M, 4M, 5M
  • LED Quantity: 480PCS/M

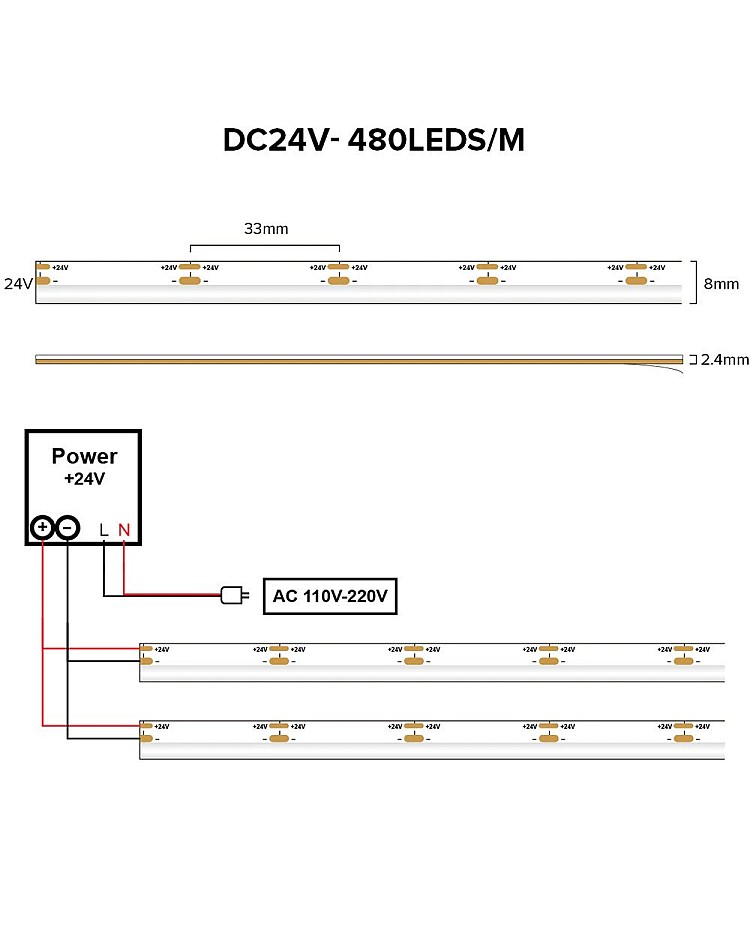

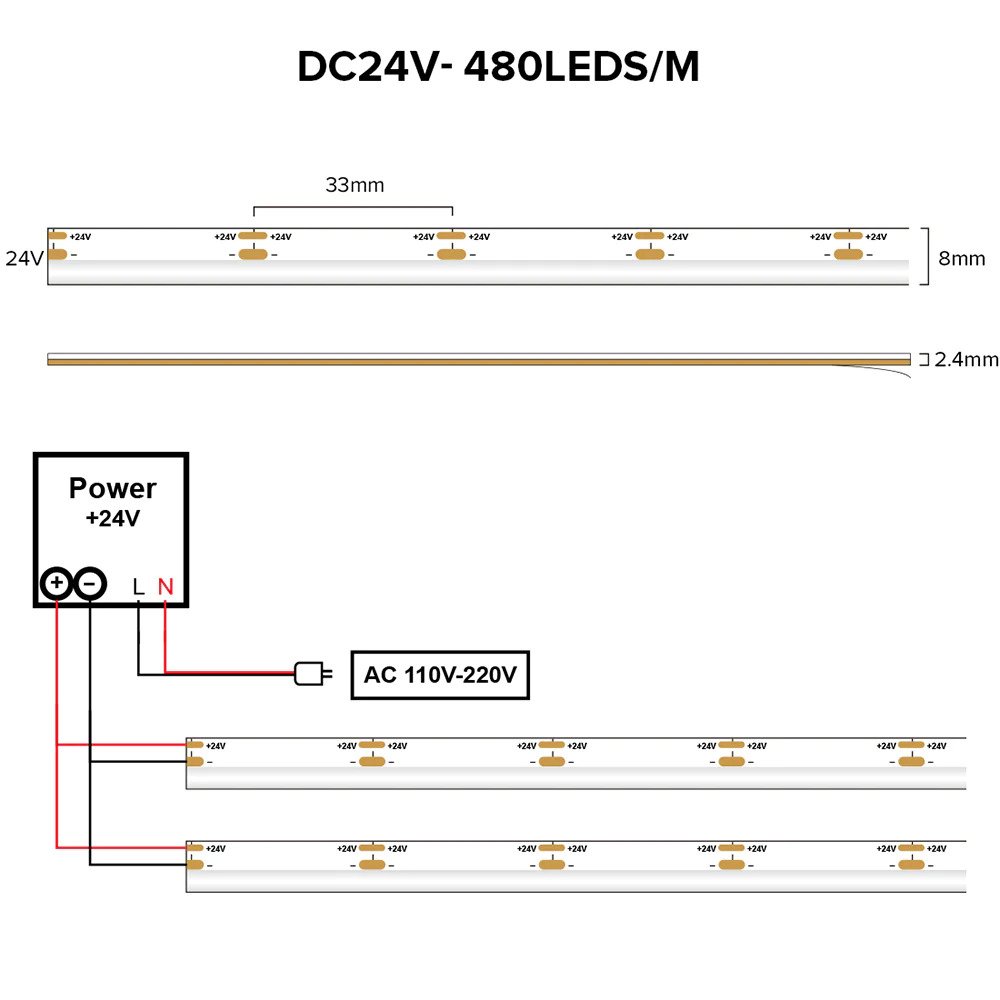

  • Mini Cutting Length: 33.33mm
  • Working Voltage: DC24V
  • Wattage: 10W/M

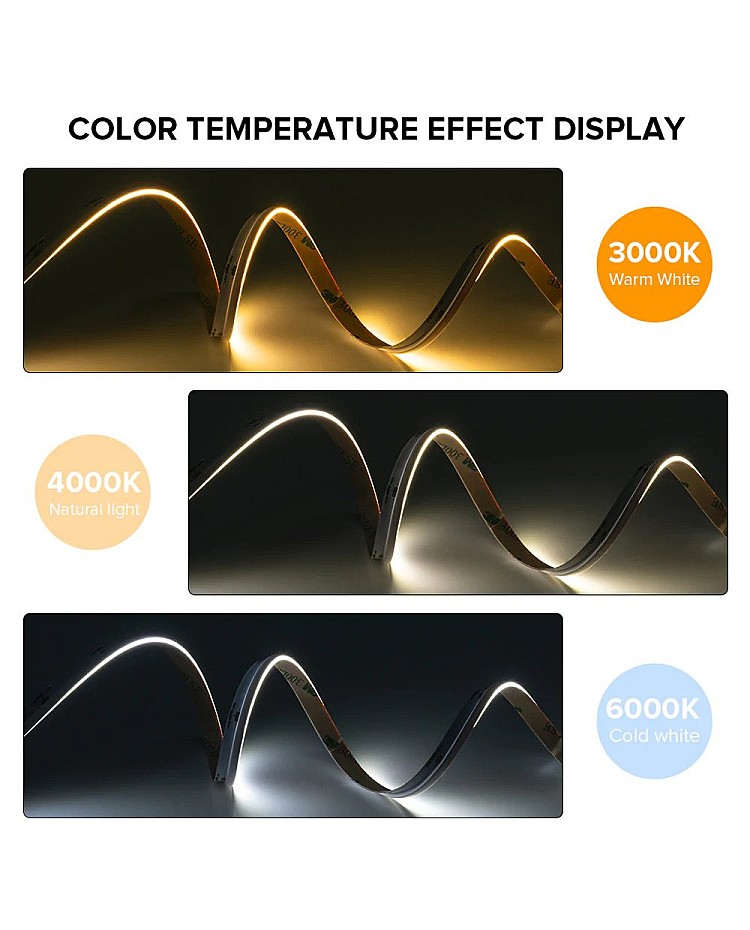

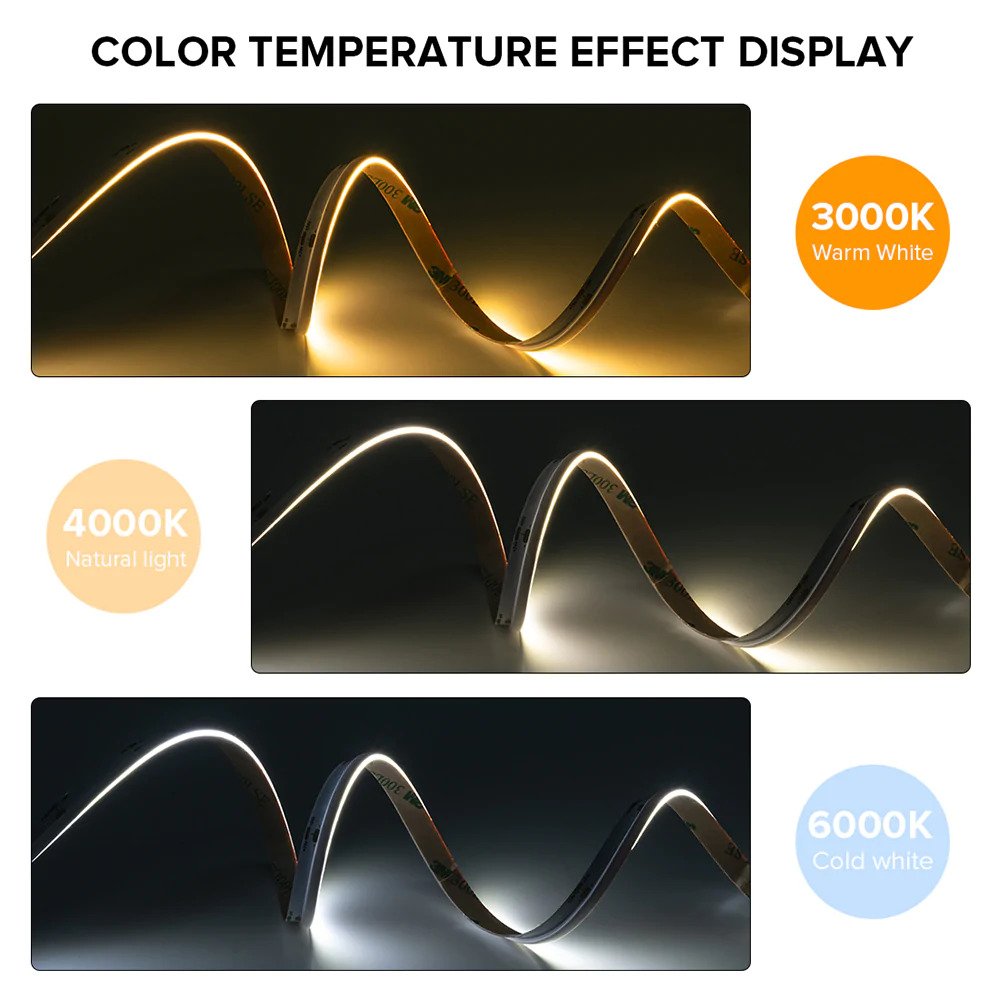

  • Colors: Warm White(3000K), Nature White(4000K), Cool White(6000K)
  • Luminous Flux: 600LM/M(2700K) / 650LM/M(3000K) / 700LM/M(4000K) / 800LM/M(6500K)
  • Light Efficiency: 60-80LM/W
  • Color Rendering Index: >90Ra
  • Waterproof Level: IP20 Non-waterproof
  • View Angle: 120°
  • Dimmable: 0%-100%
  • DALI, 0/1-10V, PWM Dimming Ways Supported
  • Back With Double-Sided Adhesive Tape

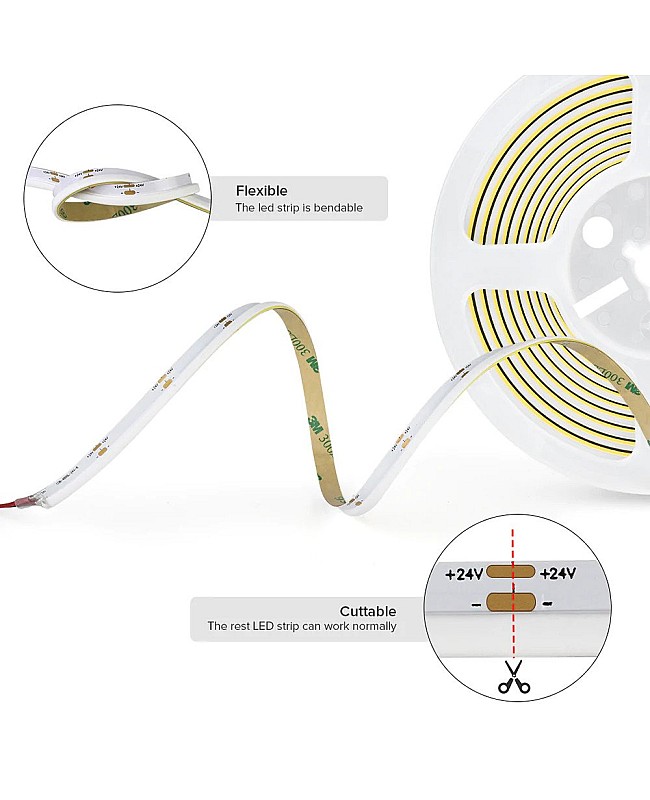

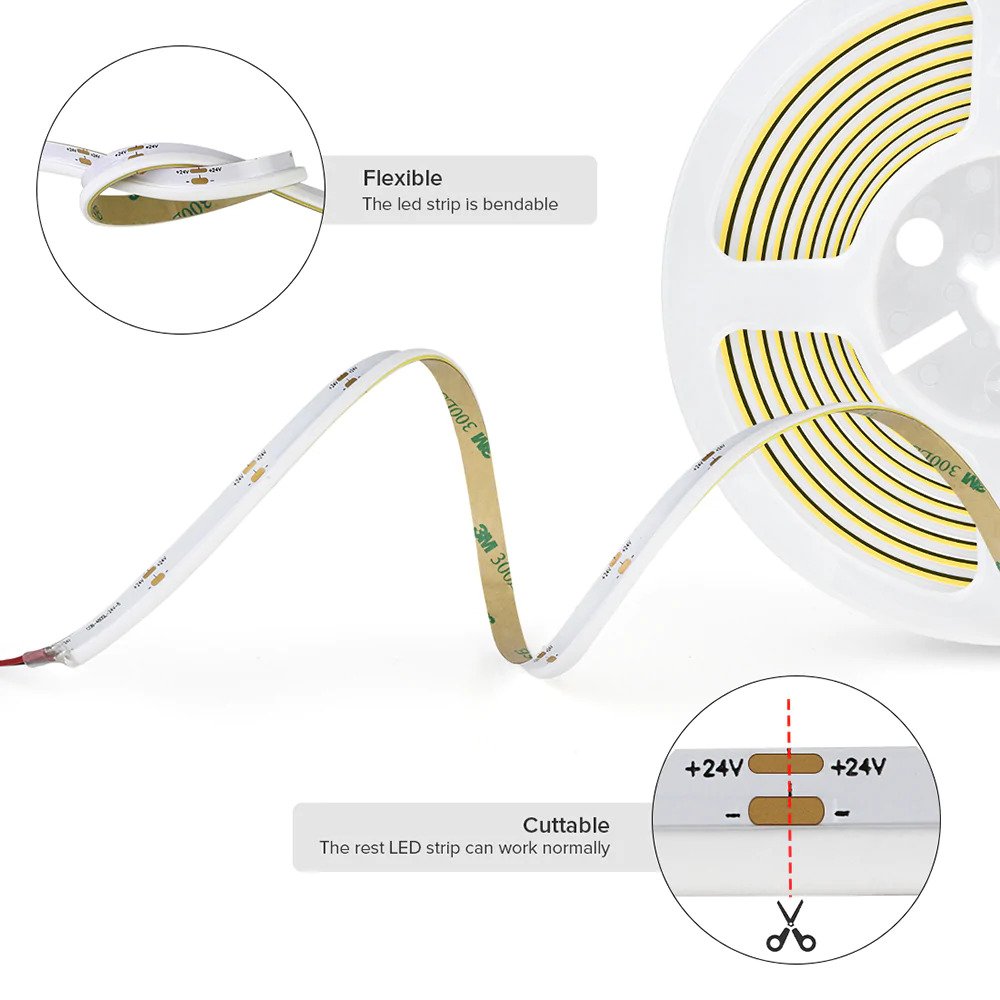

  • Flexible And Cuttable
  • Operation Temperature: -20℃-+40℃
  • Storage Temperature: -20℃-+45℃
  • Lifespan: 50,000 Hours
  • 3 Years Warranty


Includes:

1*Side Emitting LED Strip
