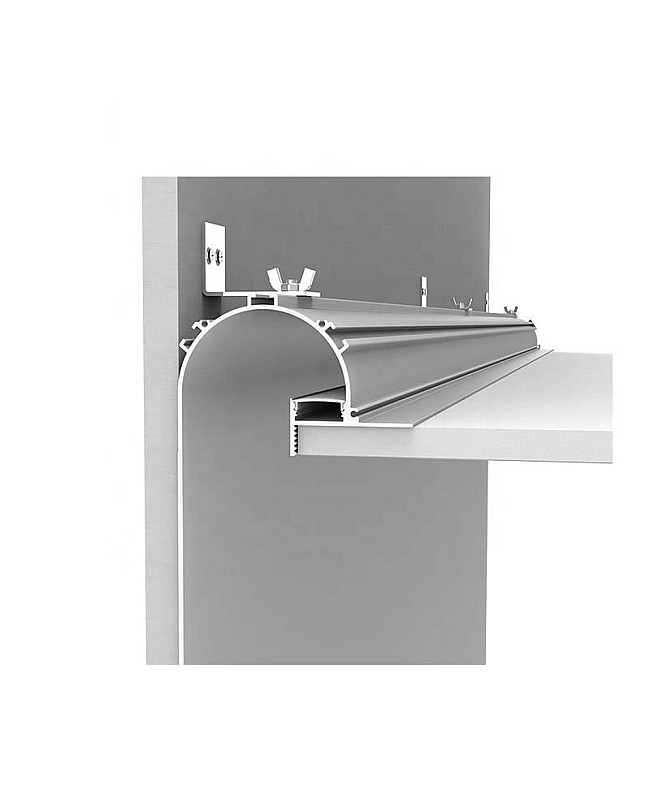

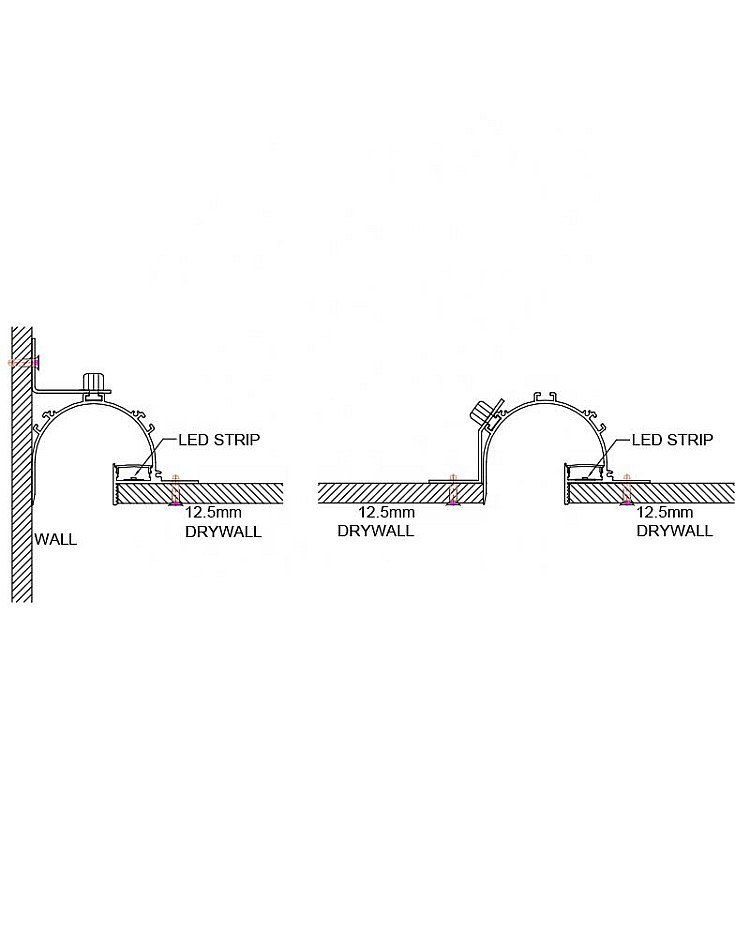

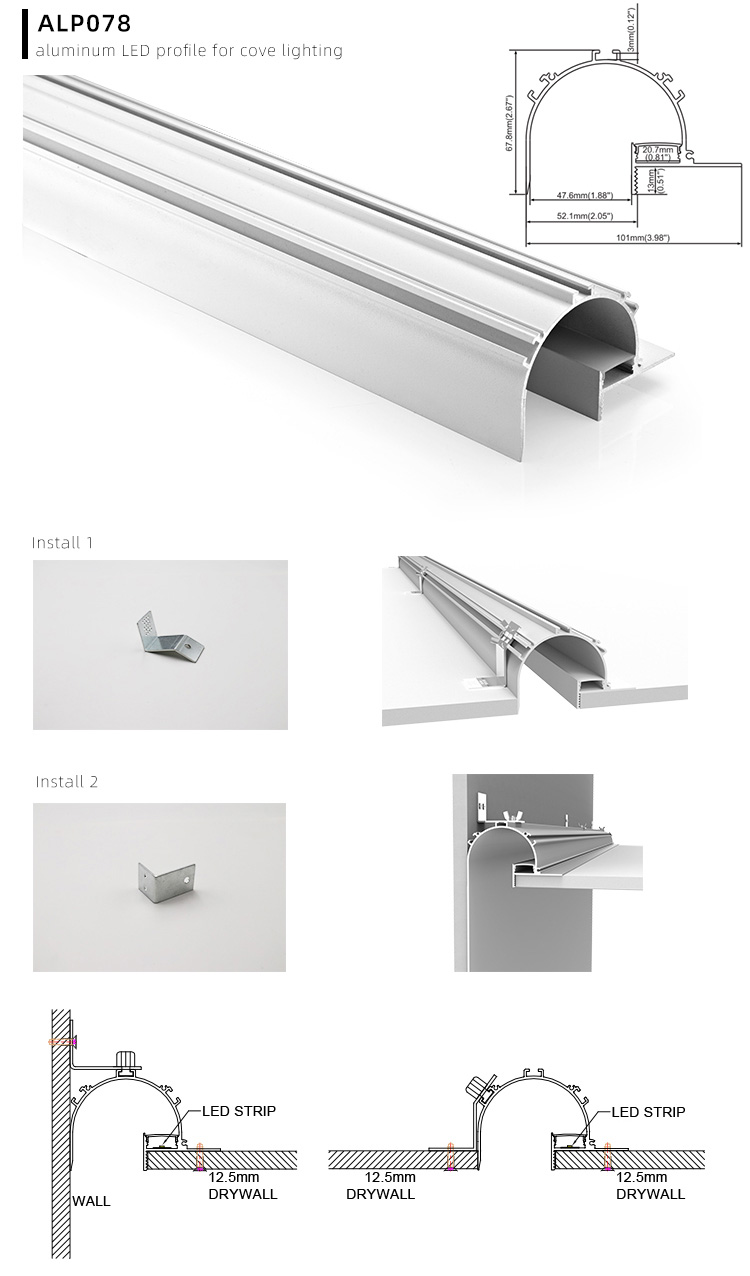

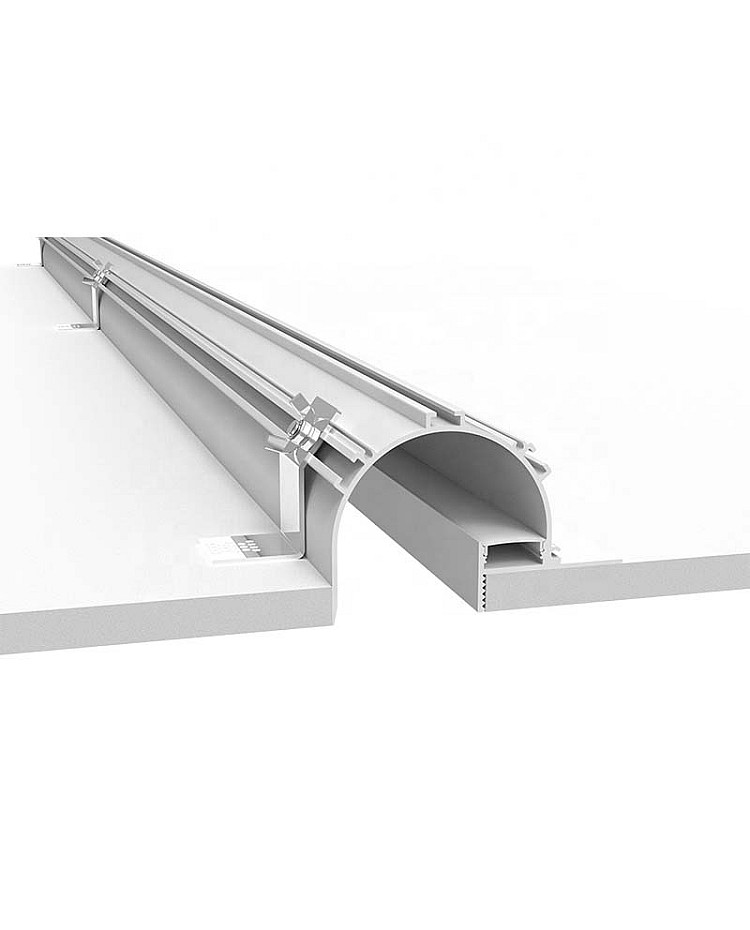

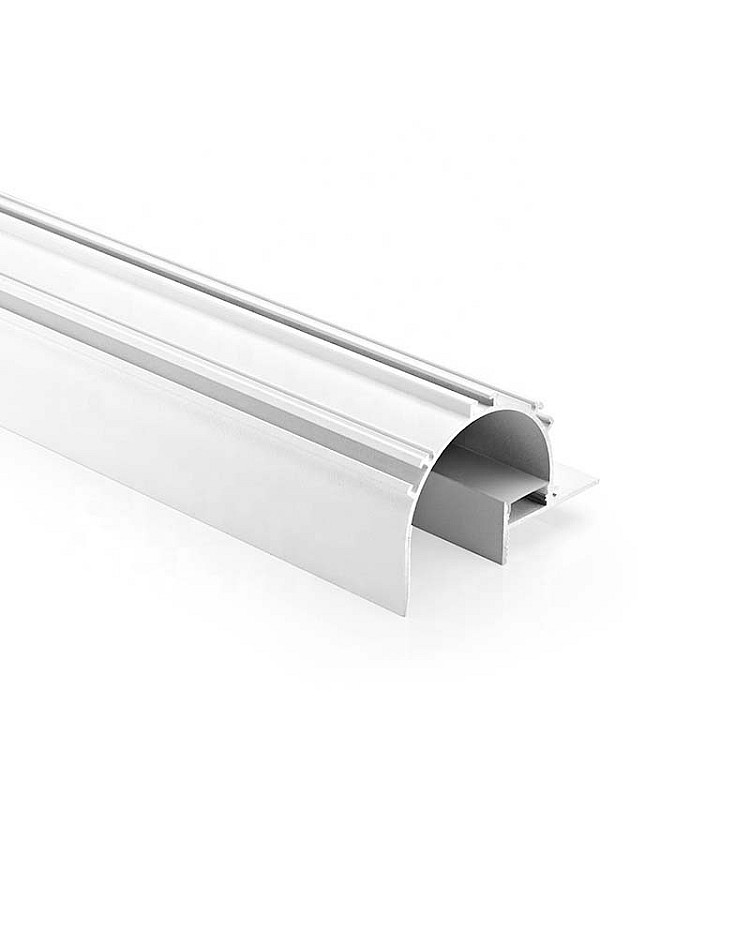

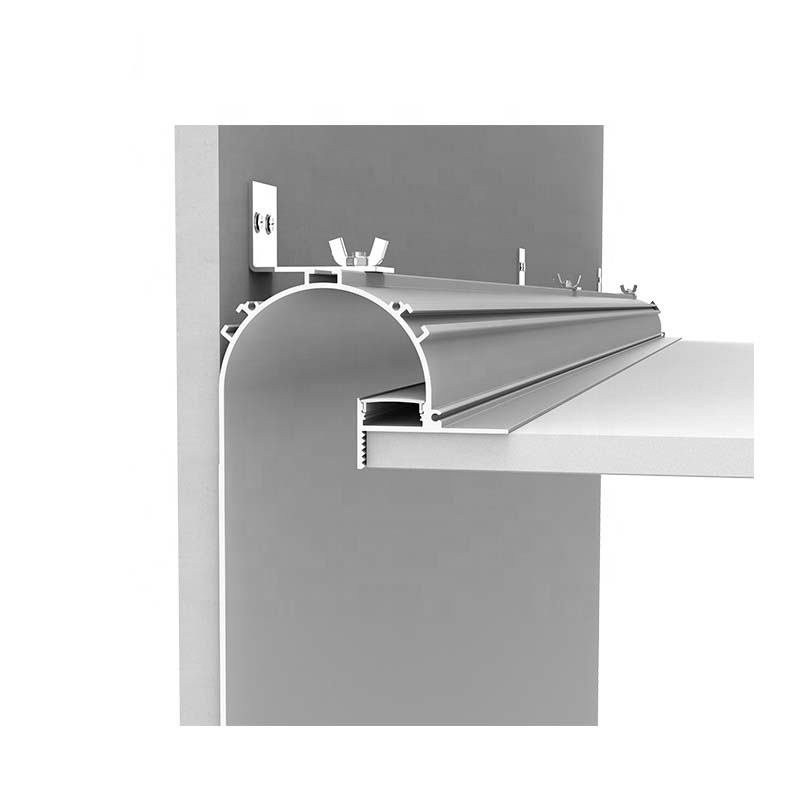

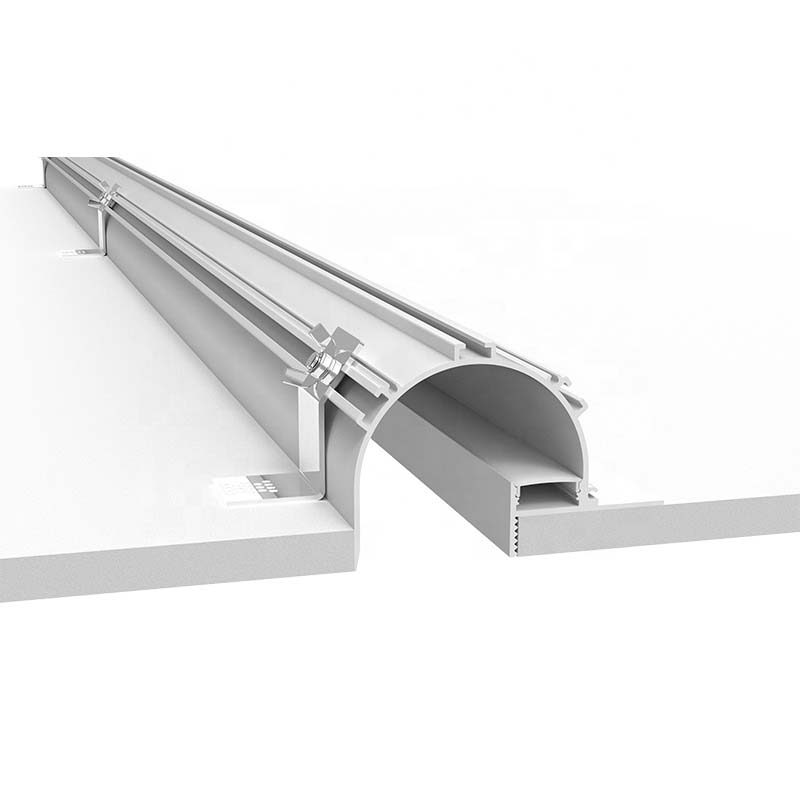

The LED plasterboard channels are designed for seamless integration into drywall, creating soft, indirect illumination for cove lighting. They feature a curved dome design that enables the lighting to spread smoothly, eliminating harsh glare and hotspots. There are two types of brackets available to allow you to mount them in the middle of drywall ceilings or at the perimeter of the ceiling. They are crafted from 6063-T5 aluminum alloy with a white powder-coated finish for anti-oxidation resistance and blended into the surrounding decorative elements. The standard lengths are 1 m and 2 m, and can be cut to any desired size. Custom lengths are available. There is only one type of diffuser available: the PC diffused cover, which is made of high-quality material with stable properties, anti-yellowing capabilities, and perfect light distribution. They will diffuse the emitting lighting from LED strips evenly for cozy illumination. The inner width of the gypsum LED profile is 20.7 mm, allowing for a maximum width of 20 mm for the LED tapes. End caps and mounting brackets are included.
Specifications:
- Material: AL6063-T5 aluminum alloy
- Model: ALP078
- Surface treatment: Power-coating
- Colors: White

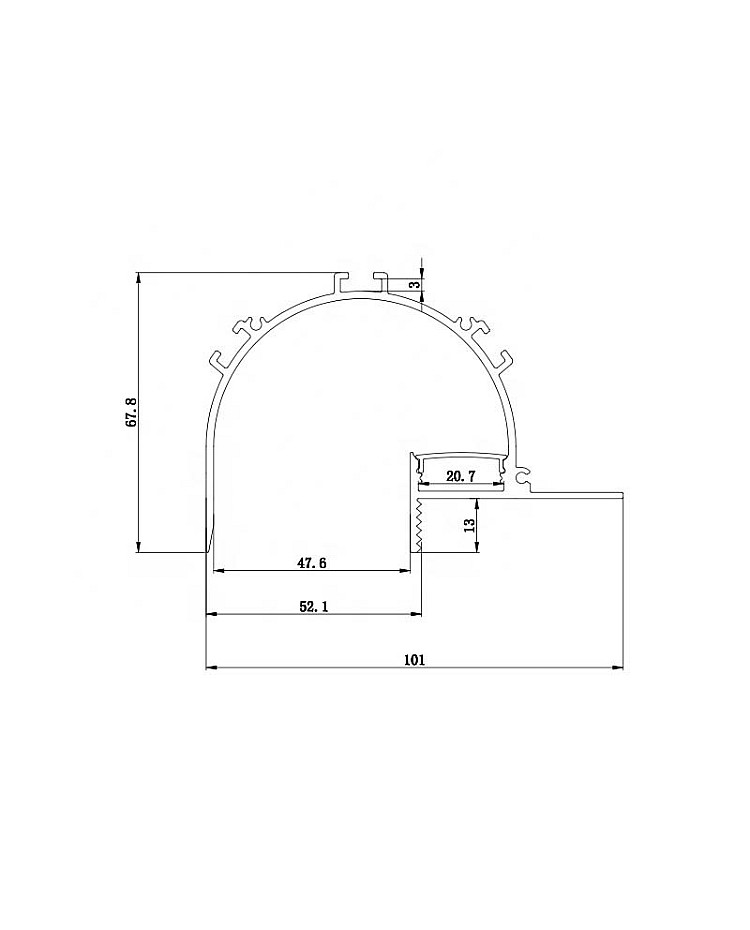

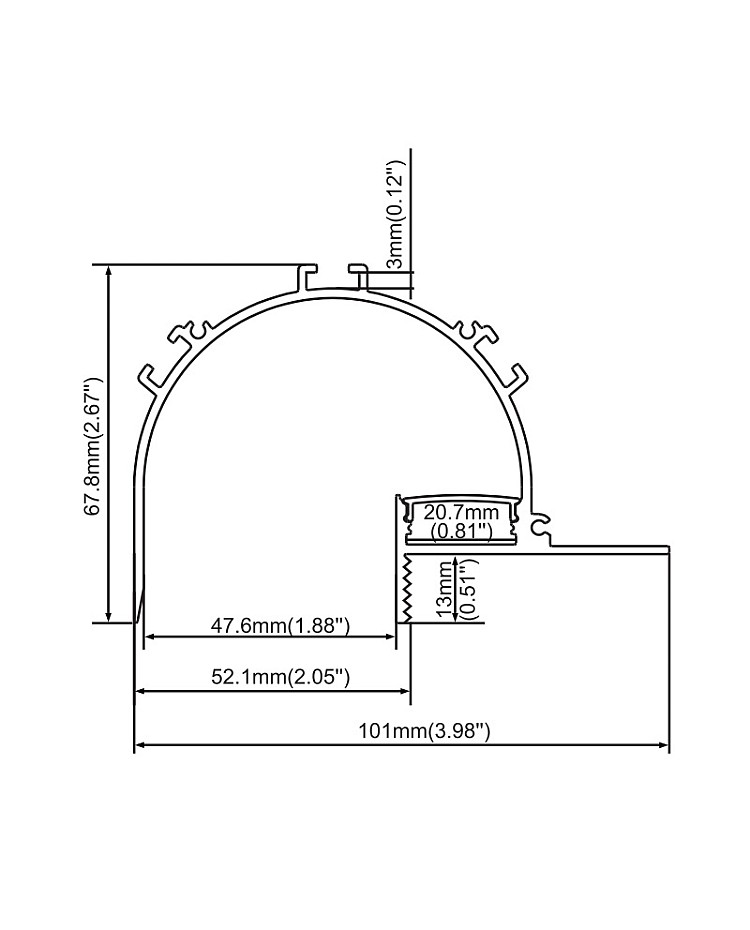

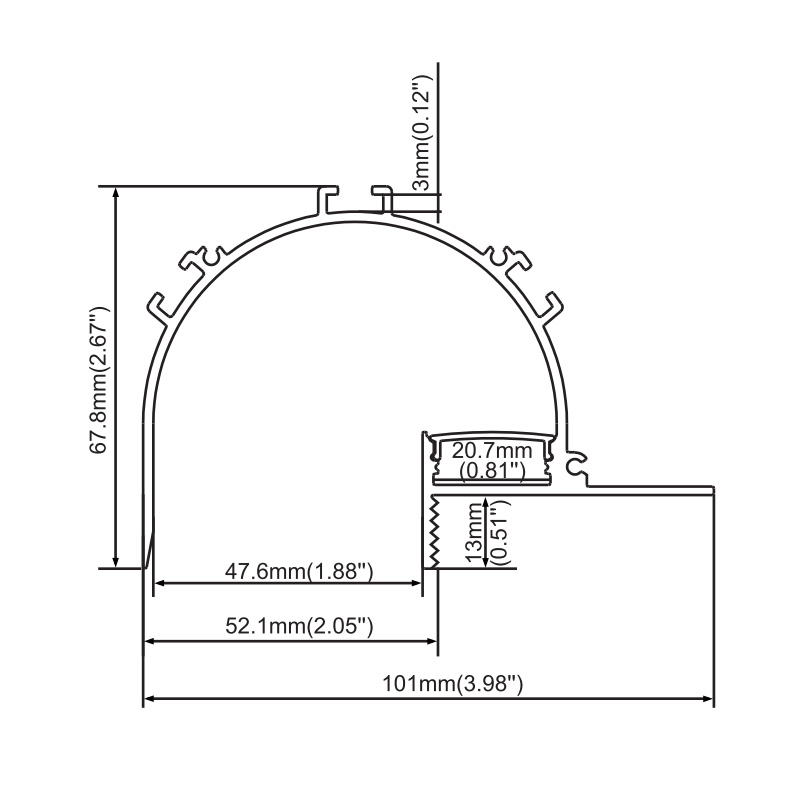

- Size( W x H ): 101 mm x 67.8 mm ( 3.98" x 2.67" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length Available: YES
- Inner width: 20.7 mm ( 0.81" )
- Max width of strip lights: 12 mm ( 0.47" )
- Max power: 18W/m
- Diffuser: PC diffused cover
- End caps and metal clips are included

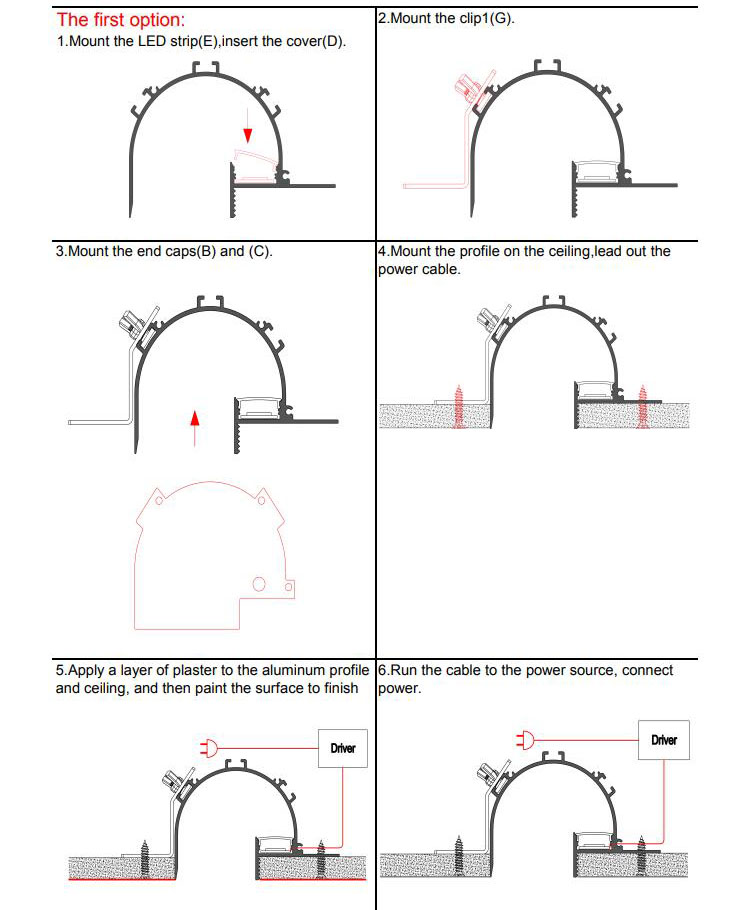

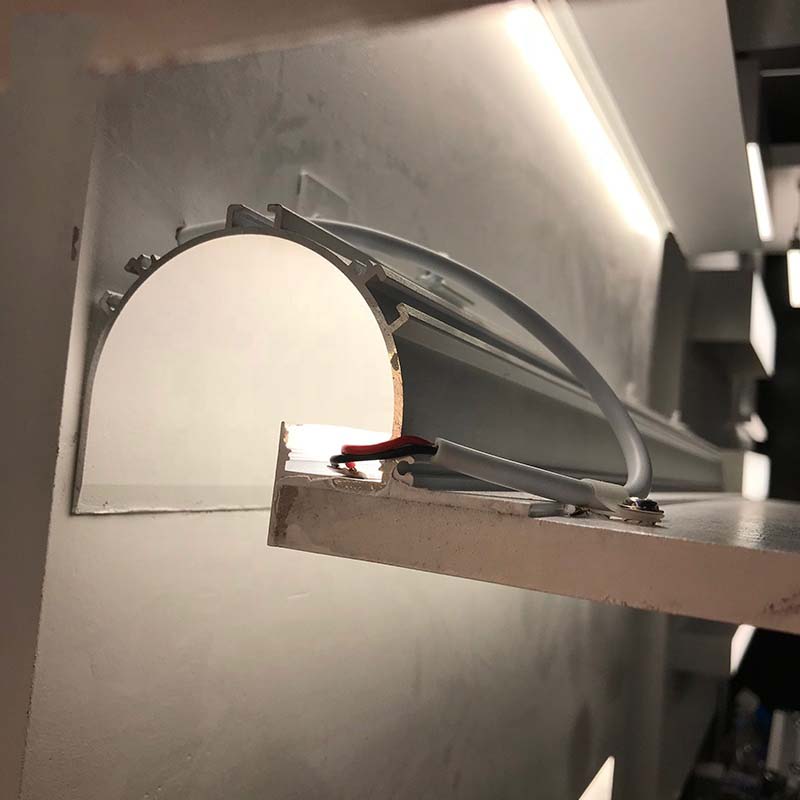

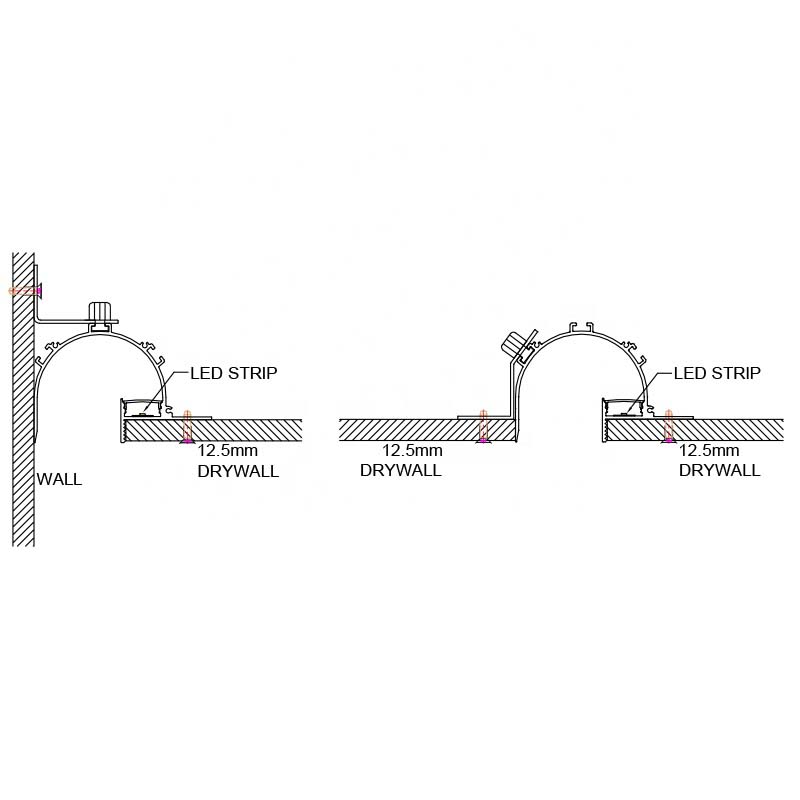

- Installation: 12.5mm Plasterboard-In Recessed
- Usage: Architectural Cove Lighting Project
- Certifications: CE, ROHS
- Warranty: 5 years

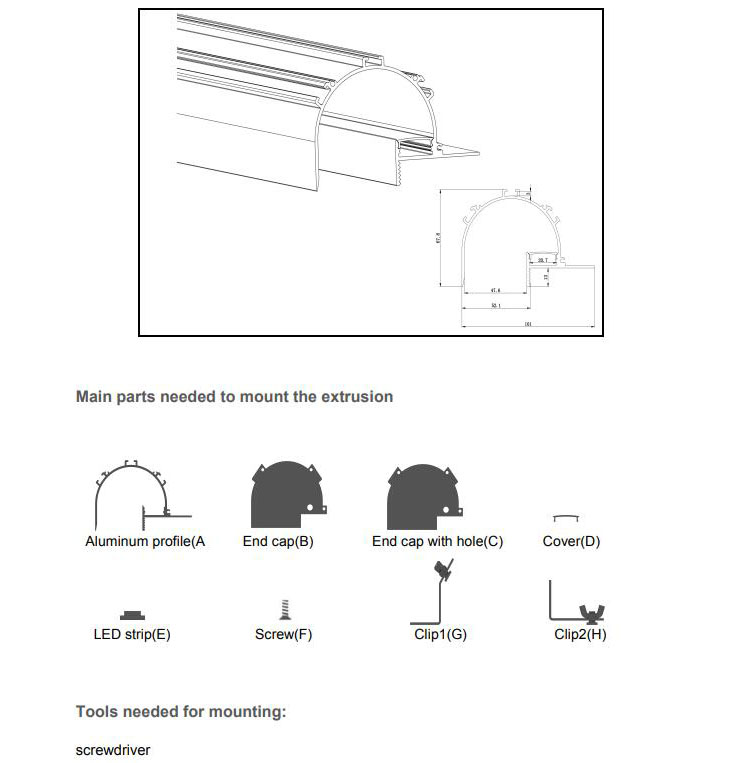

Includes:
1 * LED plasterboard channel with diffuser
End caps

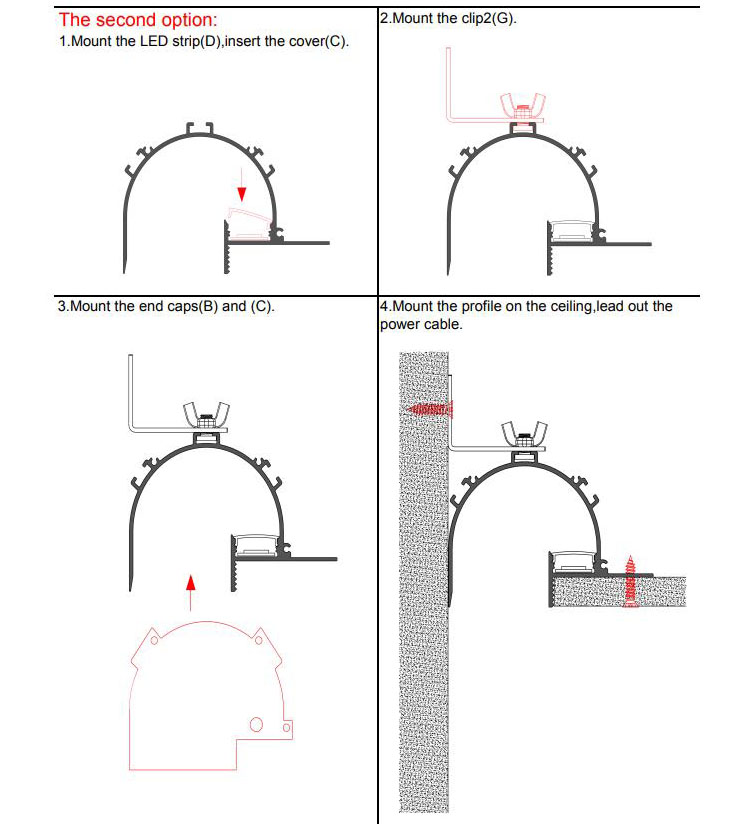

L or Z shape brackets
