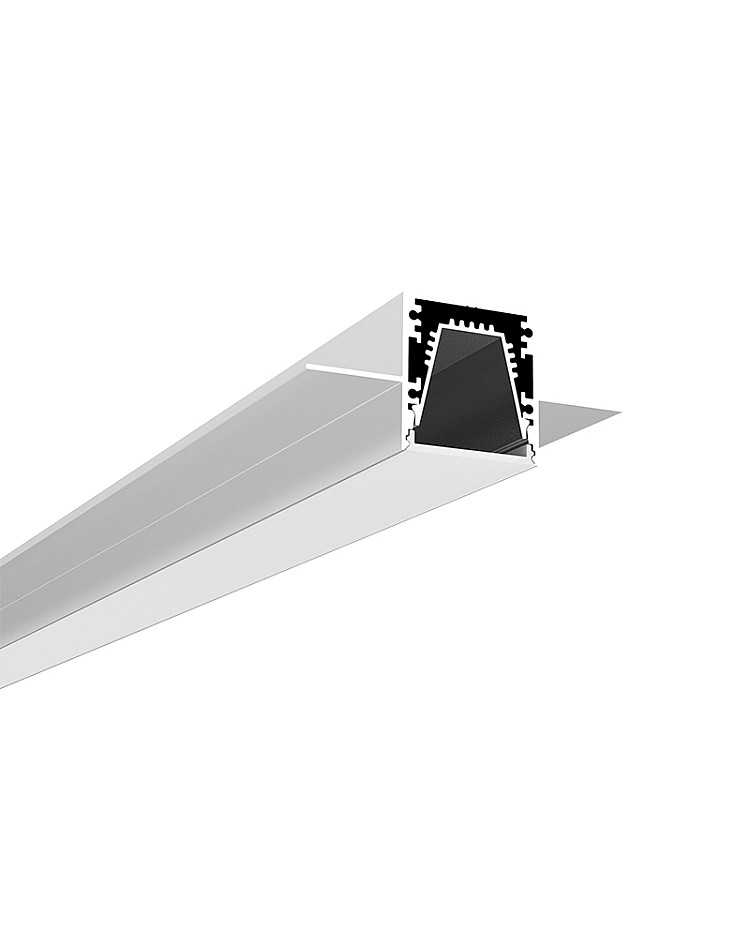

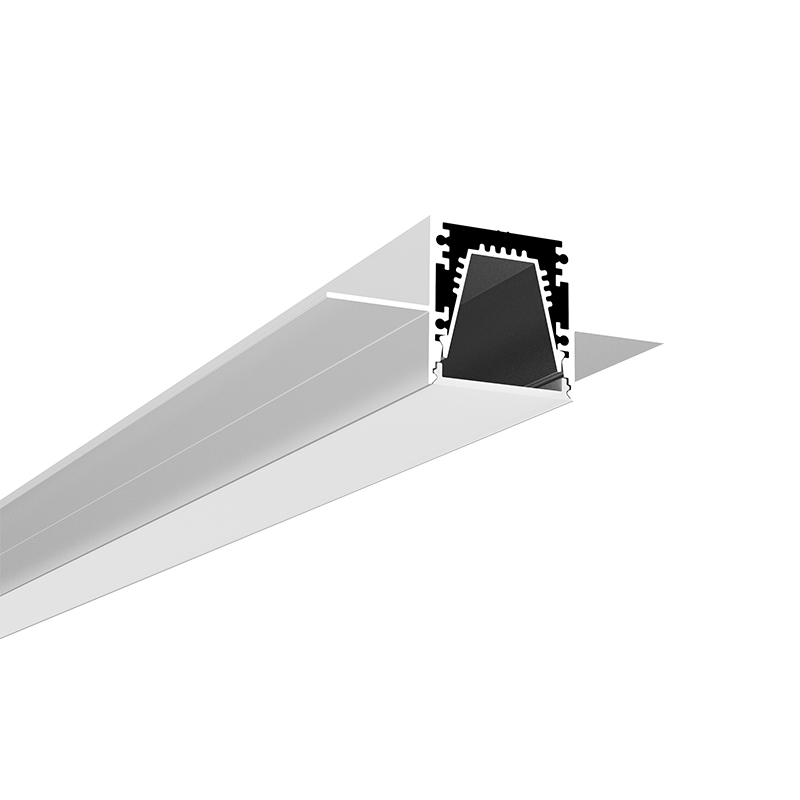

The Recessed 2M LED Profile with PC Cover for 12.5mm plasterboard without trim, is an ideal solution for creating an even and uniform lighting effect in any commercial or residential space. Made of 6063-T5 aluminum alloy material with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan than other similar products. The standard length is 2 meters per piece and cuttable, you can cut to any size for your project, and supports custom length too. There is only one type of diffuser available: the PC frosted cover, which is made of import brand-stable material, anti-yellowing, perfect light distribution, and evenly light output. The inner width is 12.72mm and allows the max width of LED Strips to be 12mm, recommend adding high-density COB LED Strips as the light source, with no dark areas and no light spots. There are 3 types of couplers available, you can use them to reconnect the LED Profiles.


  • Model: ALP3030-R
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

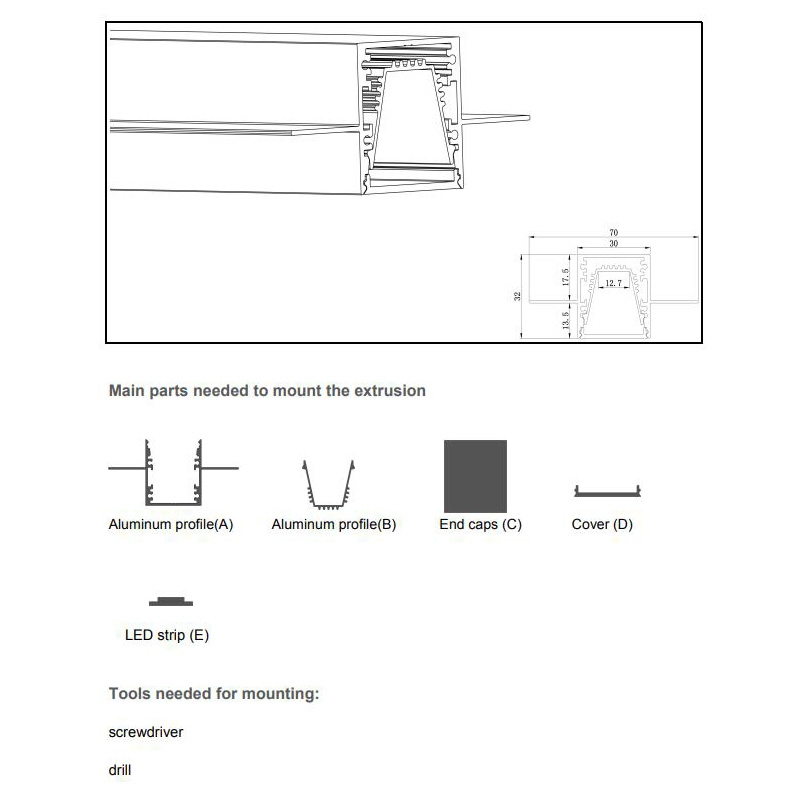

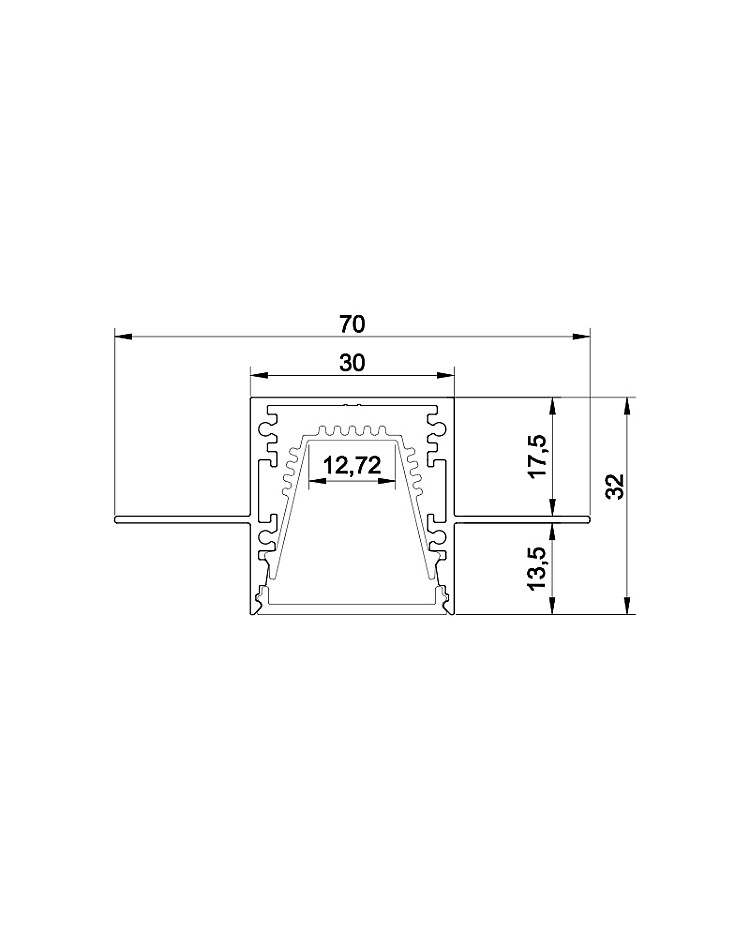

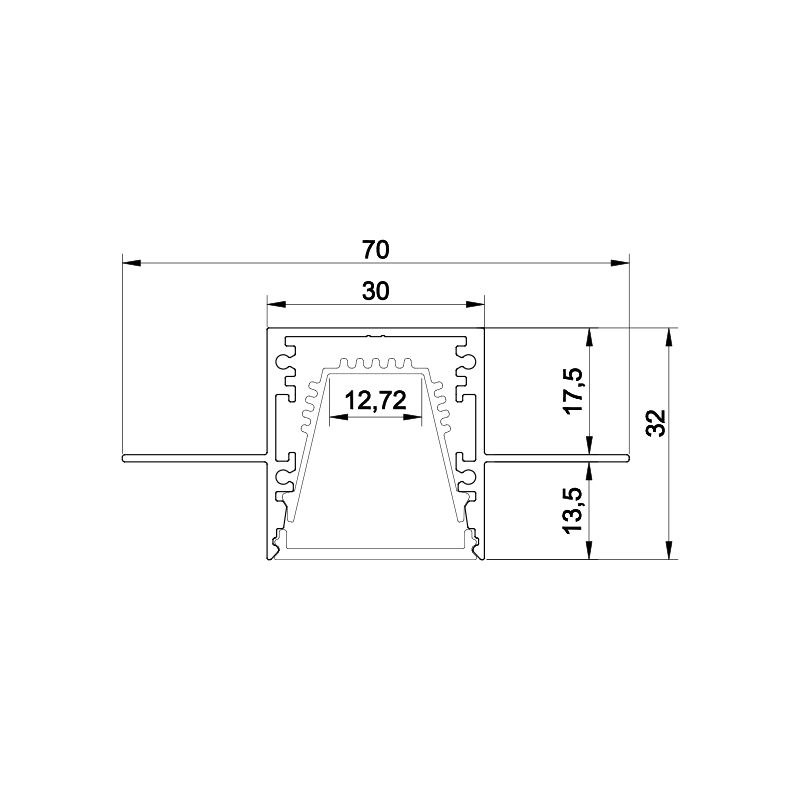

  • Size: 70*32mm(W*H)
  • Inner Width: 12.72mm
  • Compatible With Single Row 8mm/10mm/12mm LED Strips
  • Max Power: <15W/Meter
  • Diffuser: PC Frosted Cover
  • Standard Length: 2Meter
  • Other Lengths Available: 0.5M, 1M, 1.5M, 2.5M
  • Custom Length Available: YES

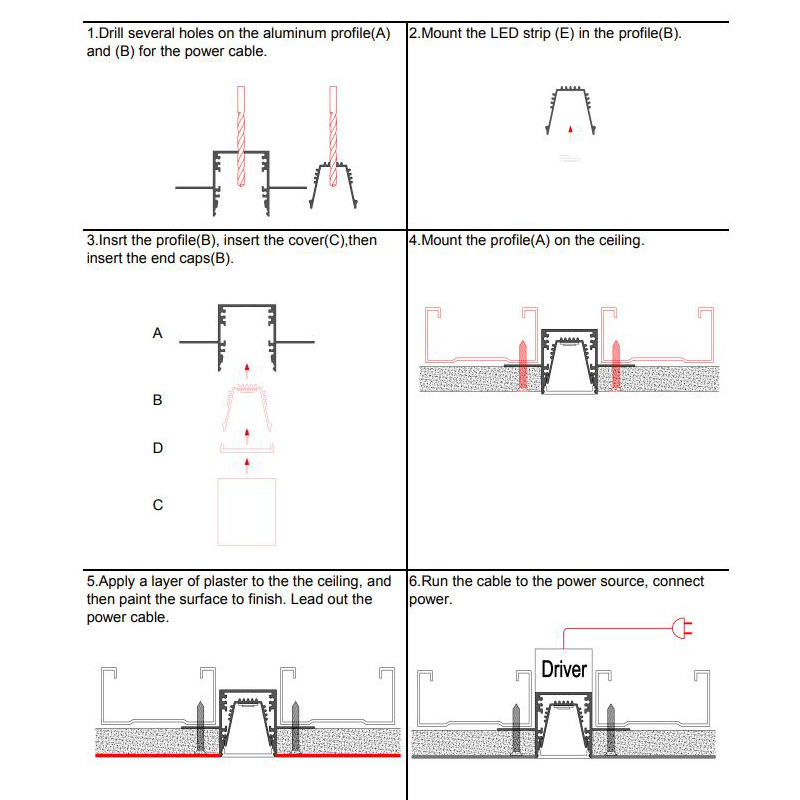

  • Installation: Recessed

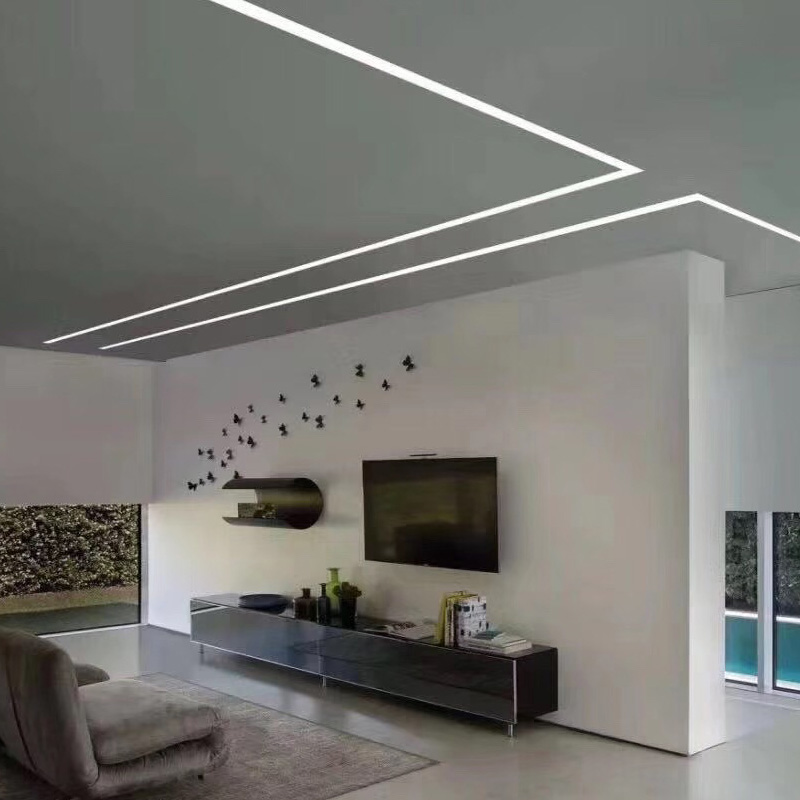

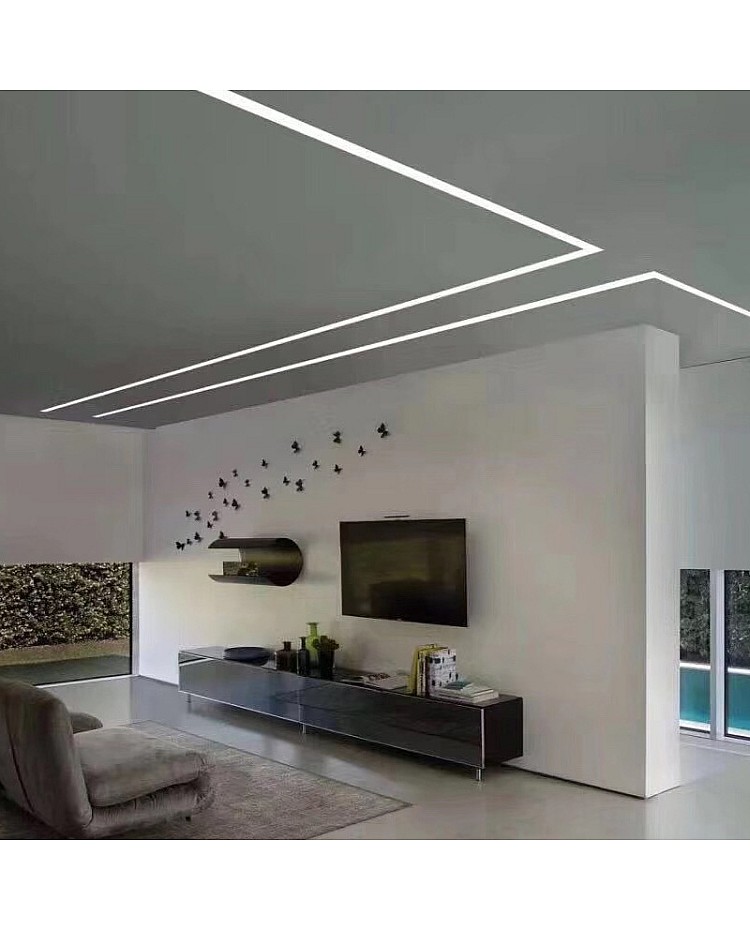

  • Application: For 12.5mm Thick Plasterboard / 1/2" Drywall
  • End Caps Included

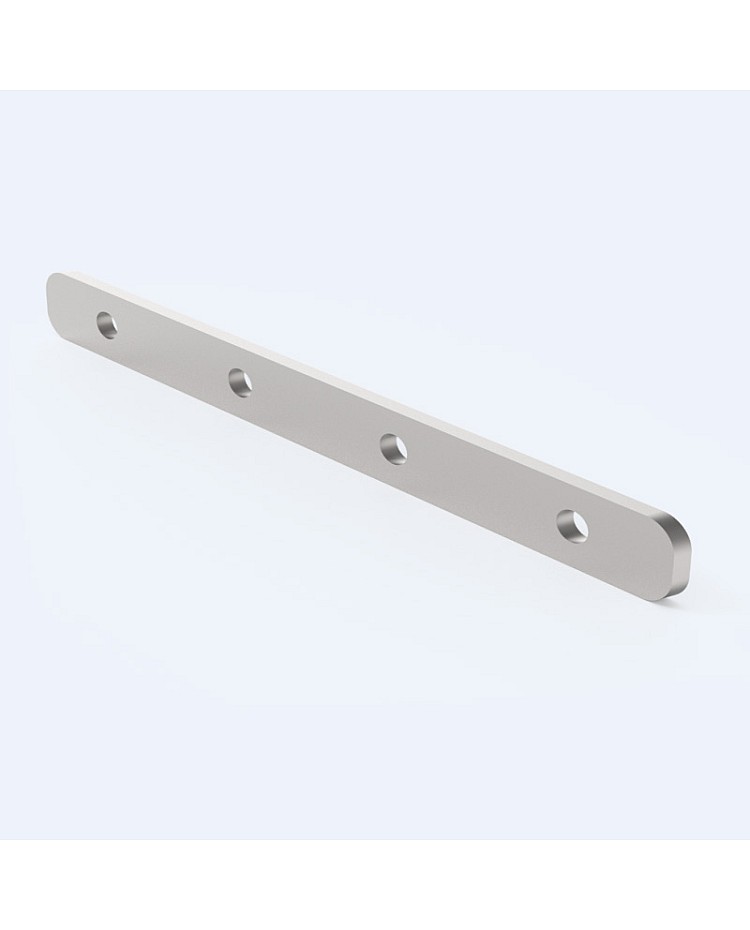

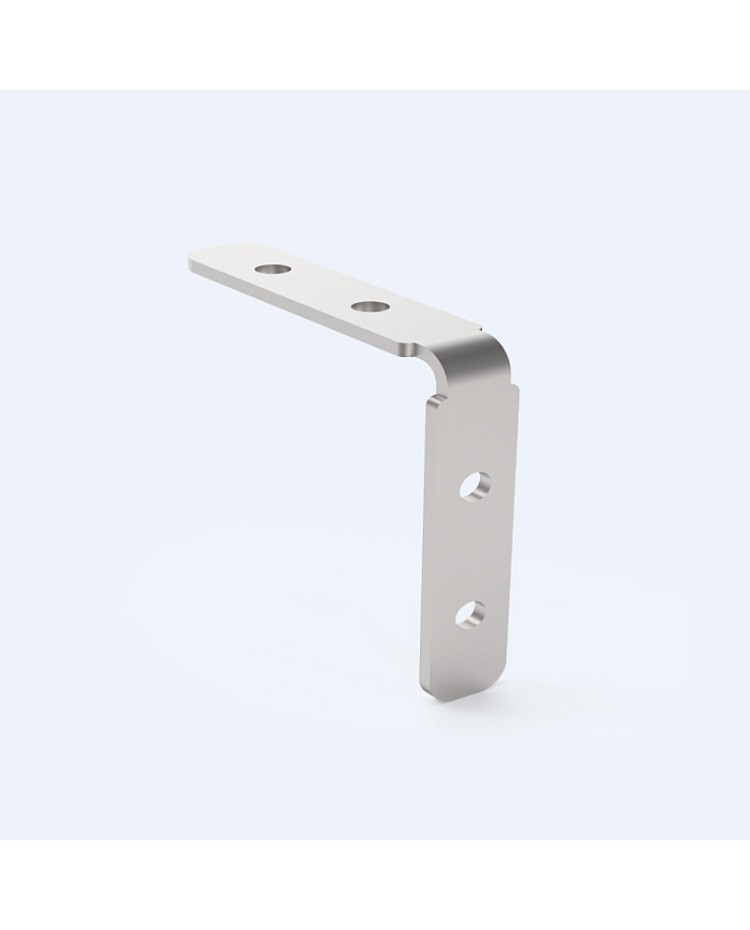

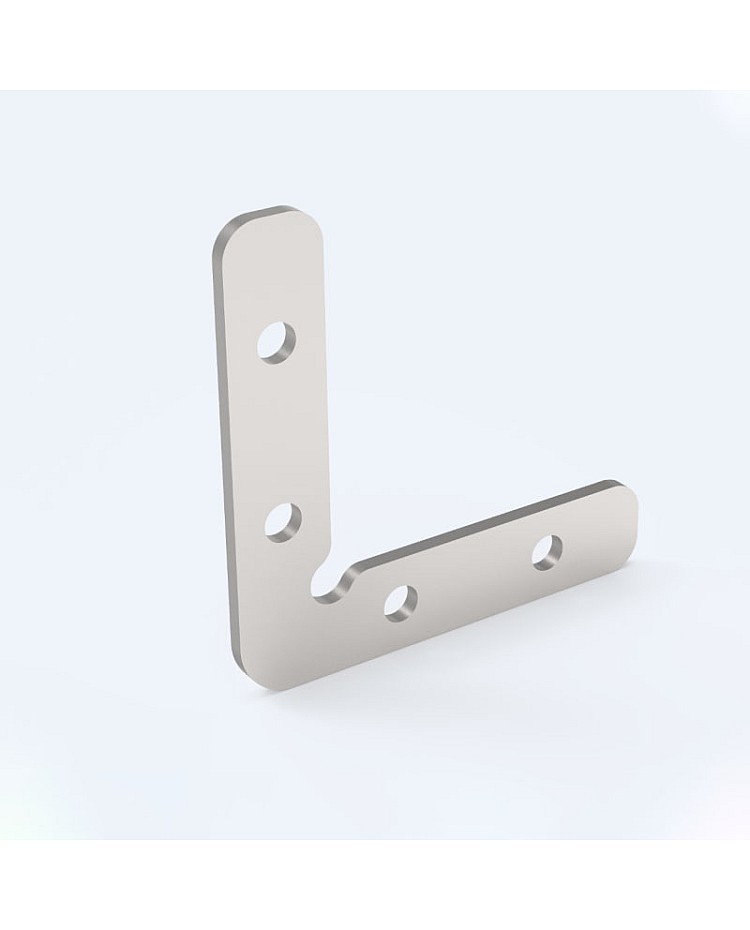

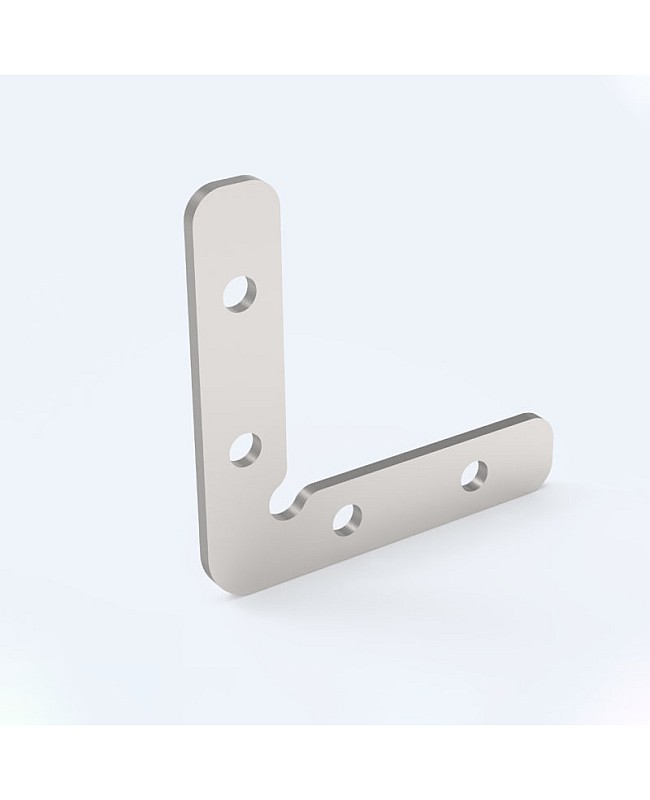

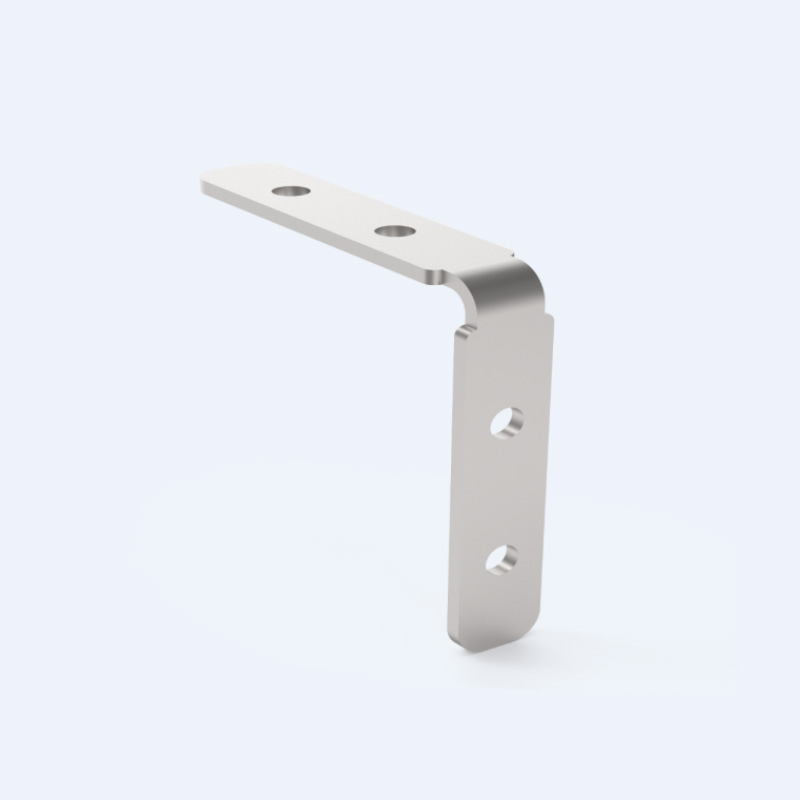

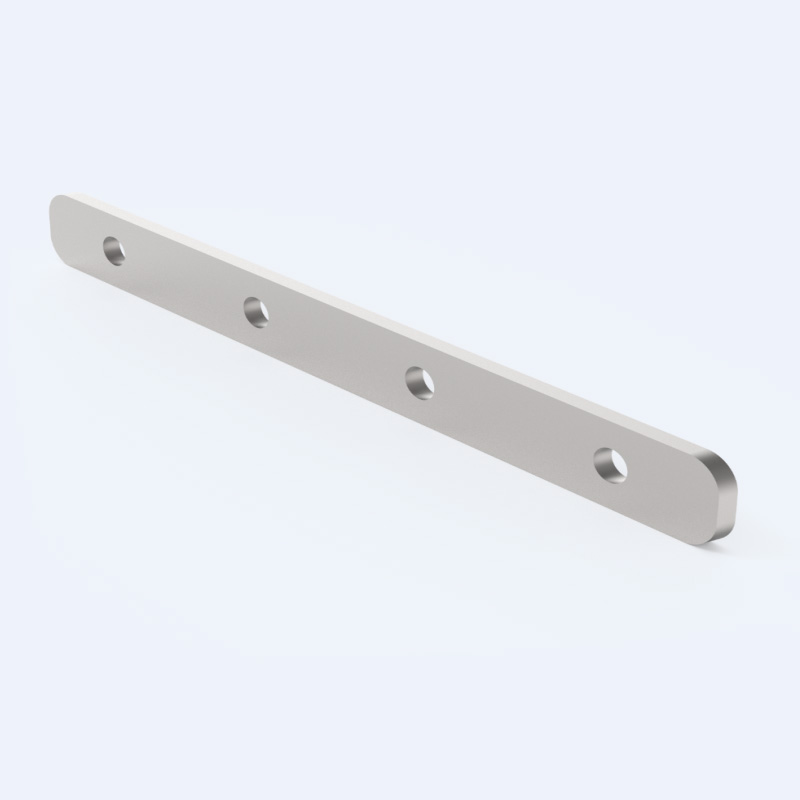

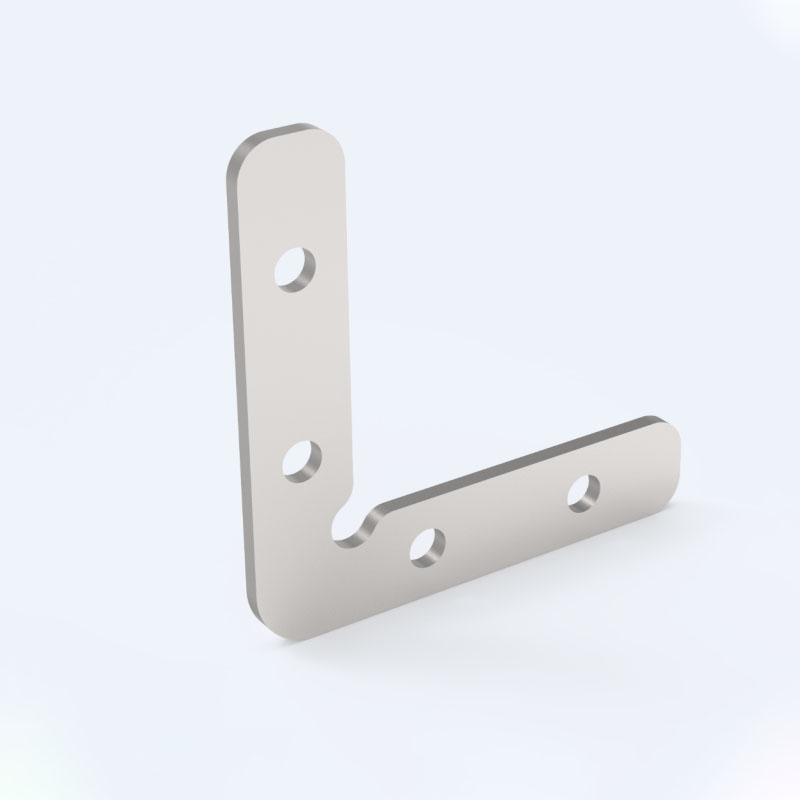

  • 90°, 90° Vertical And 180° Couplers Sold Separately
  • 5 Years Warranty


1*2M LED Profile With Diffuser

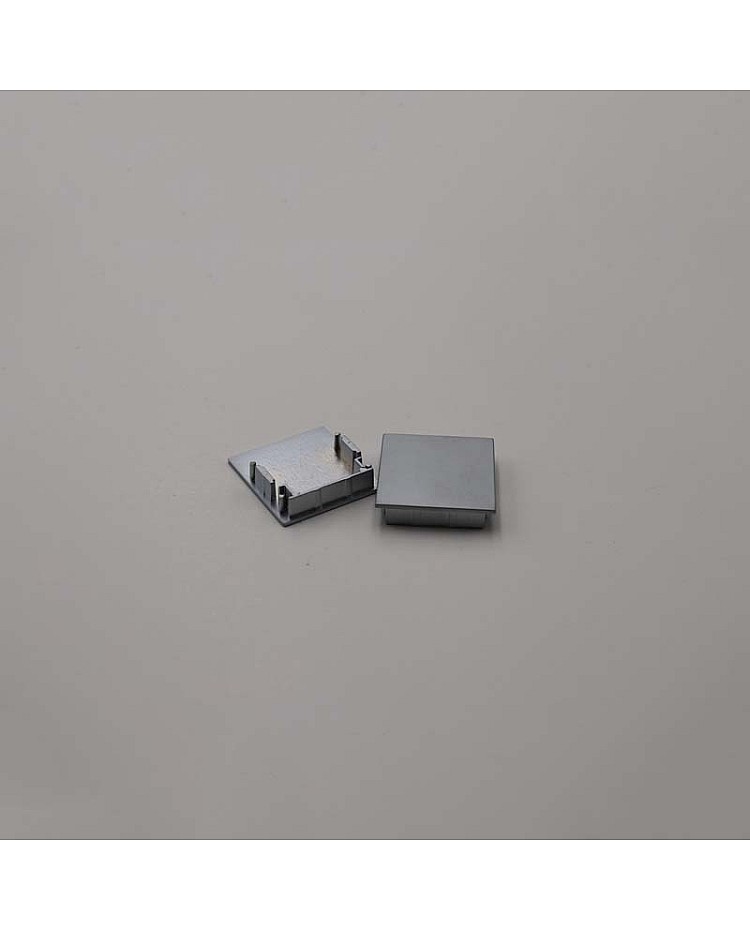

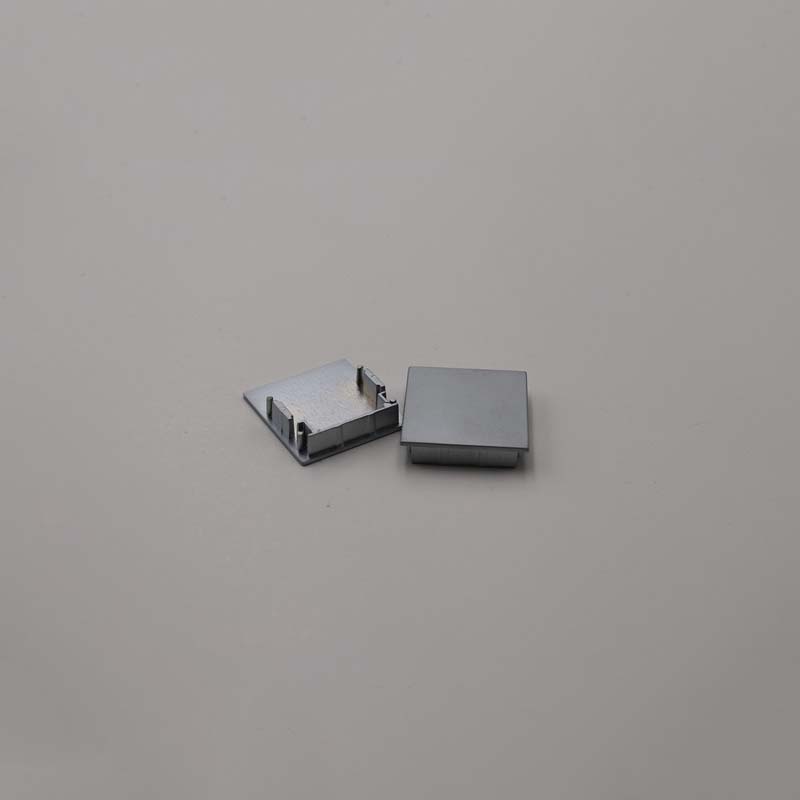

End Caps
