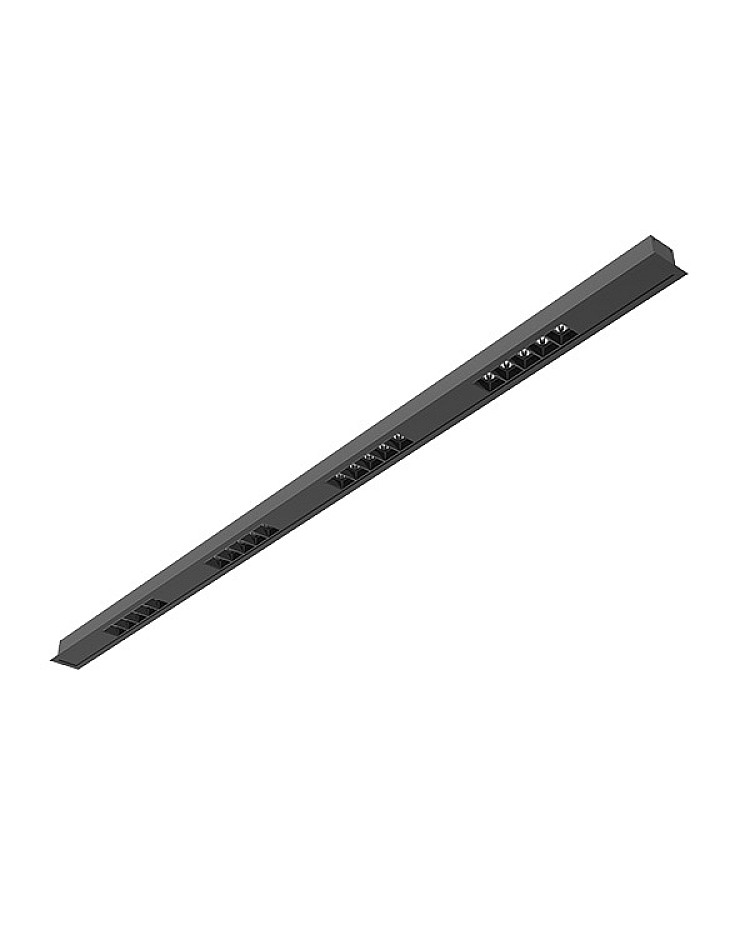

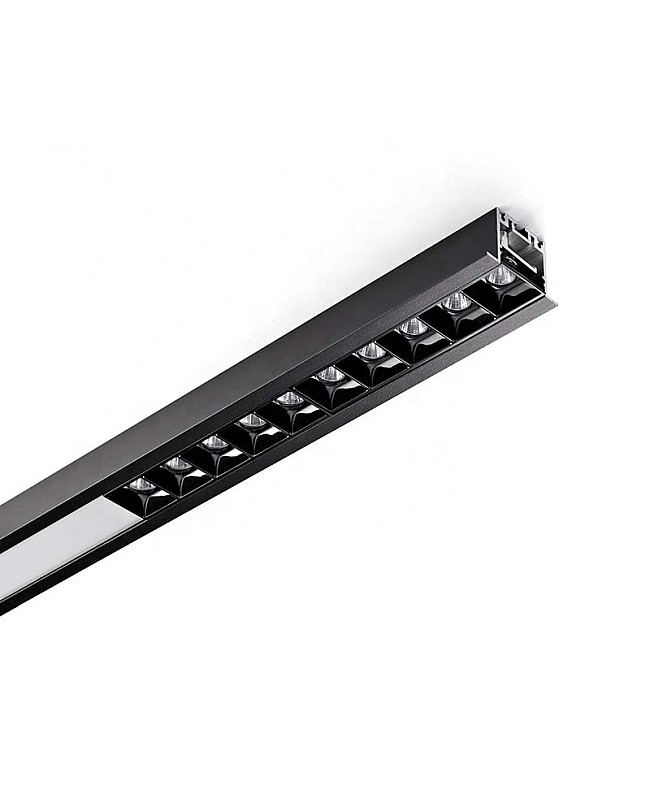

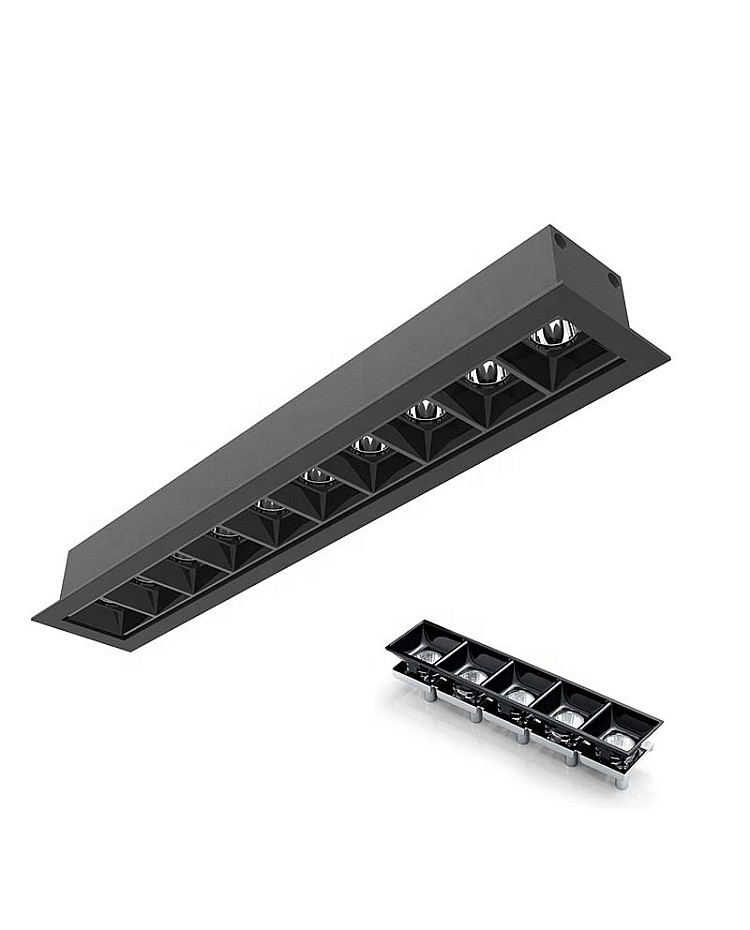

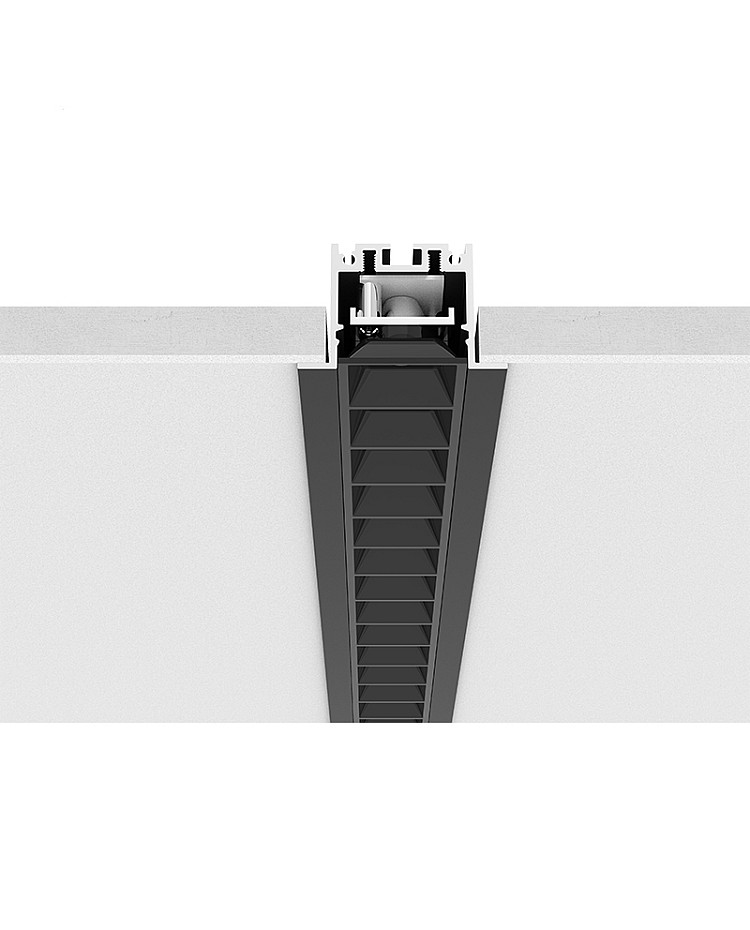

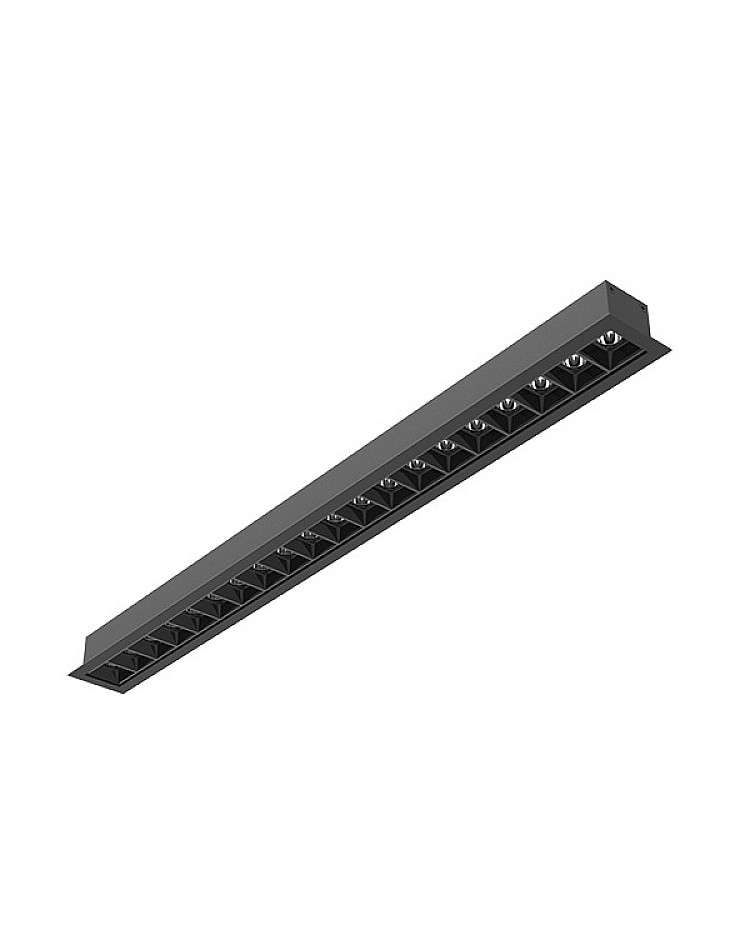

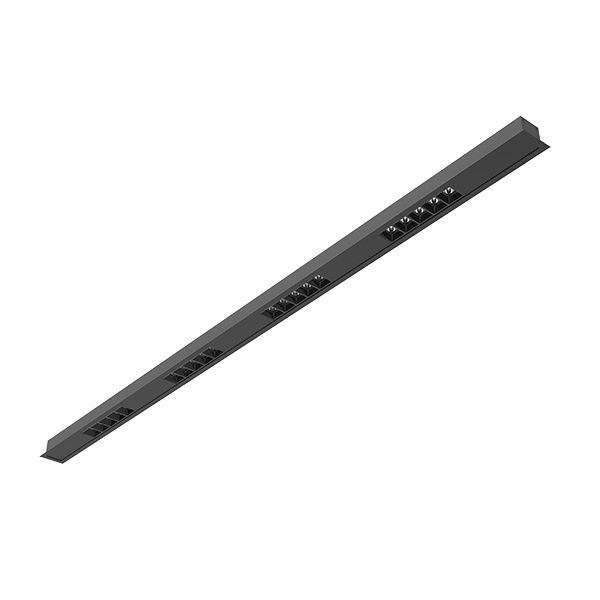

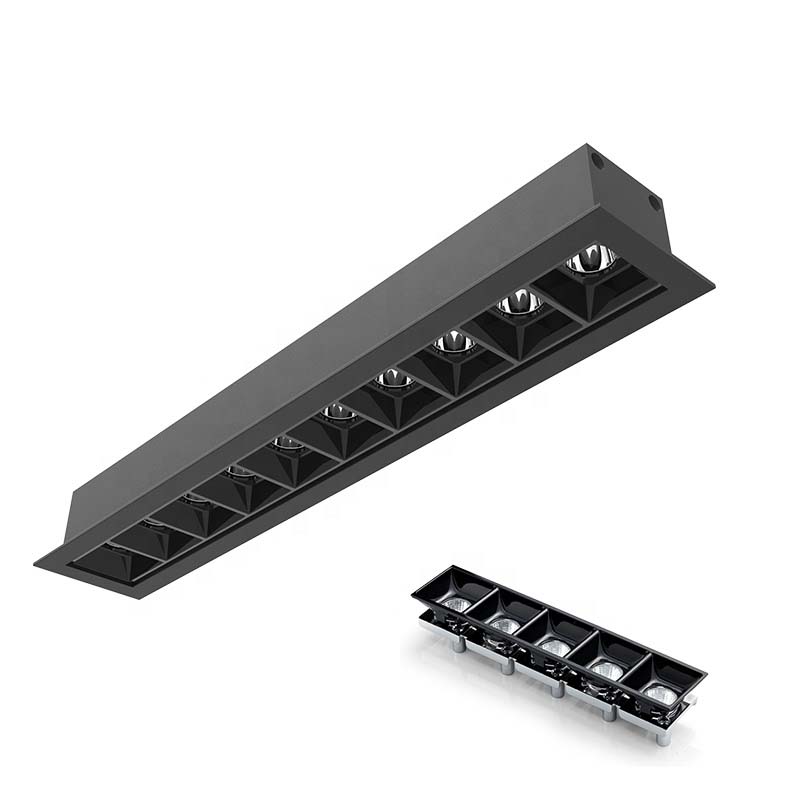

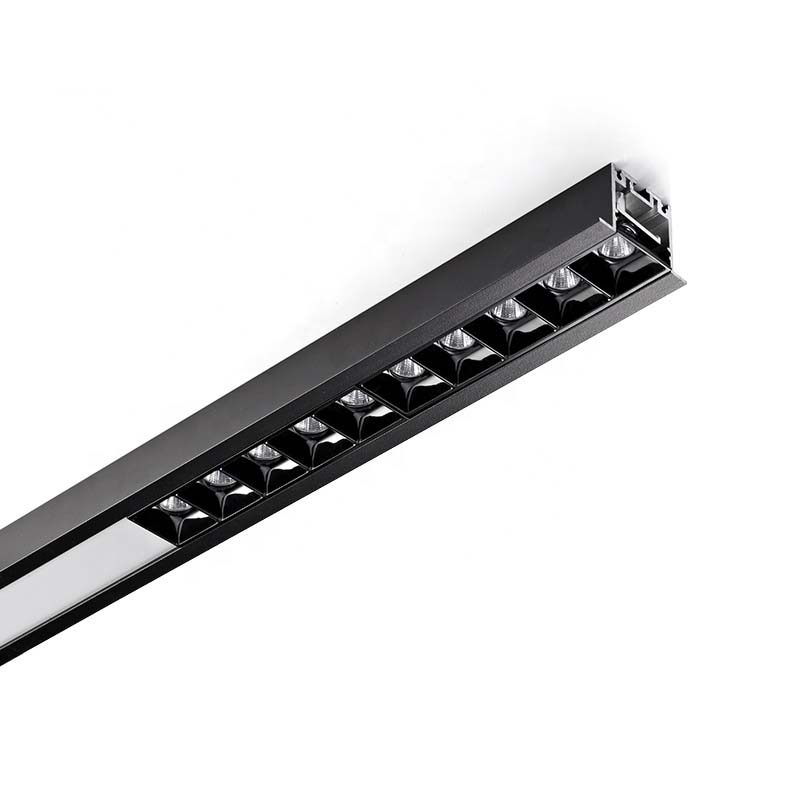

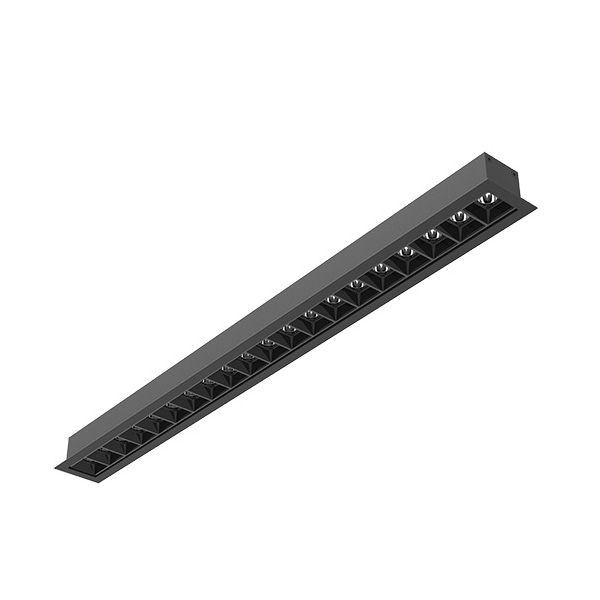

The LS30-T black recessed LED linear lighting system can be flush recessed into the ceiling and offers precision lighting with customizable beam angles. Its modular design allows for flexible configurations, making it ideal for both commercial and luxury residential applications. There are three types of reflectors available for sharp, controlled light distribution in 15°, 30°, and 45° beam angles, and they can combine the PC frosted covers and black aluminum blind covers, ensuring targeted illumination and minimal glare. The stock length is 2.5 meters per piece, and can be cut to your desired length easily. The LED linear channels are made of extruded aluminum material and have a black powder-coated finish for anti-oxidation resistance and a longer lifespan. The inner width is 30 mm, allowing for a maximum width of strip lights of 30 mm. If you want to add reflectors, they need to work with our 5LEDs LED modules. The spring clips are included, allowing the black modular light systems to be mounted on the ceiling conveniently.
Quick Links:
Specifications:

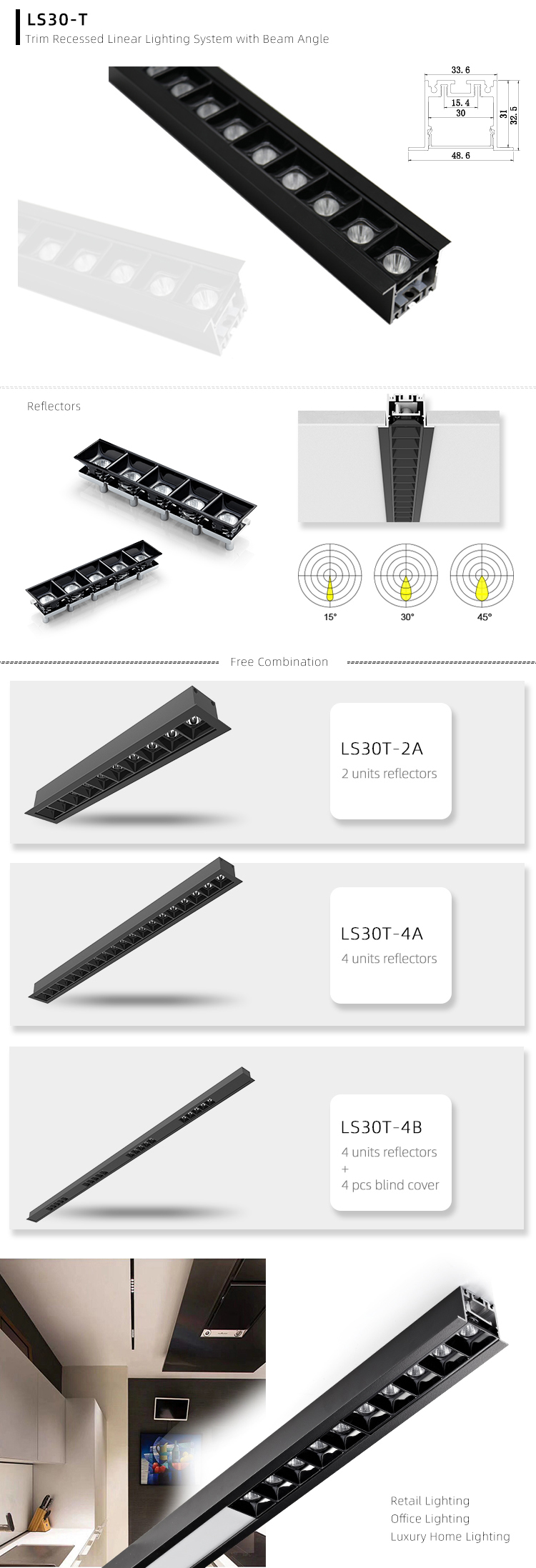

- Model: LS30-T
- Material: 6063-T5 extruded aluminium

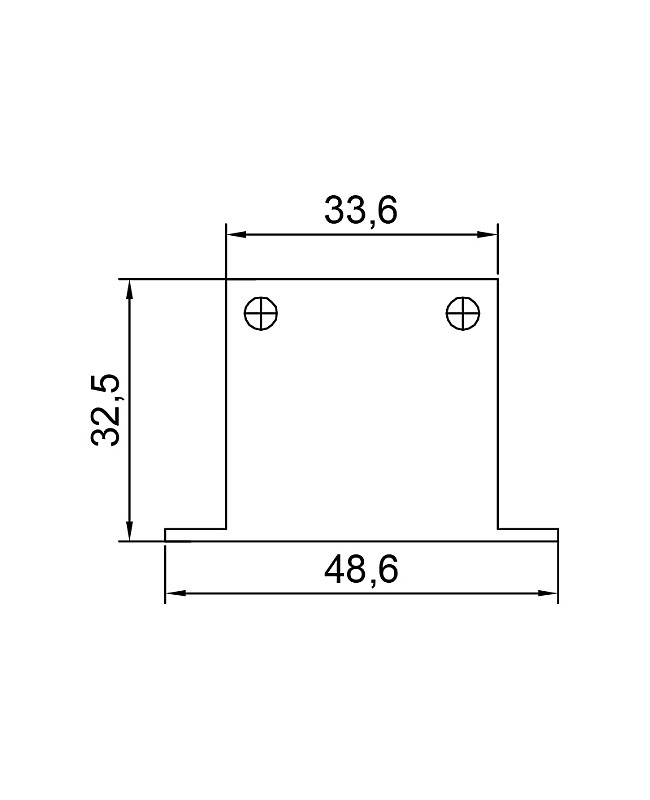

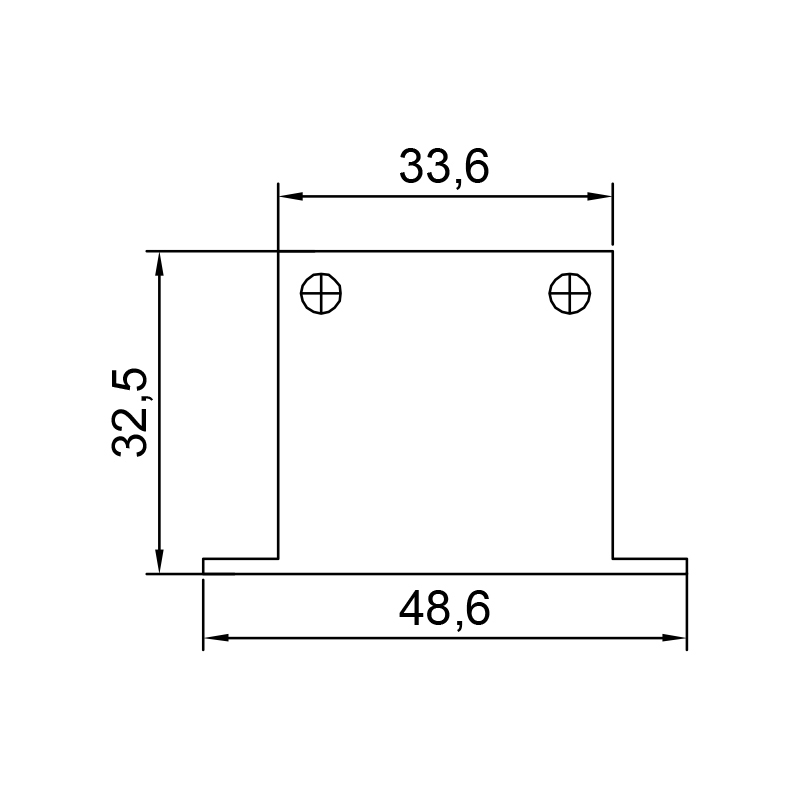

- Size ( W x H ): 48.6 mm x 32.5 mm ( 1.91" x 1.28" )
- Surface treatment: Powder-coated
- Color: Black
- Stock lengths: 2.5 m ( 98" )
- Custom length: YES
- Inner width: 30 mm ( 1.18" )
- Allow the maximum width of strip lights: 30 mm ( 1.18" )
- Max power: 30W/m
- Diffusers: PC frosted covers
- Beam angle: 100°(PC frosted covers)

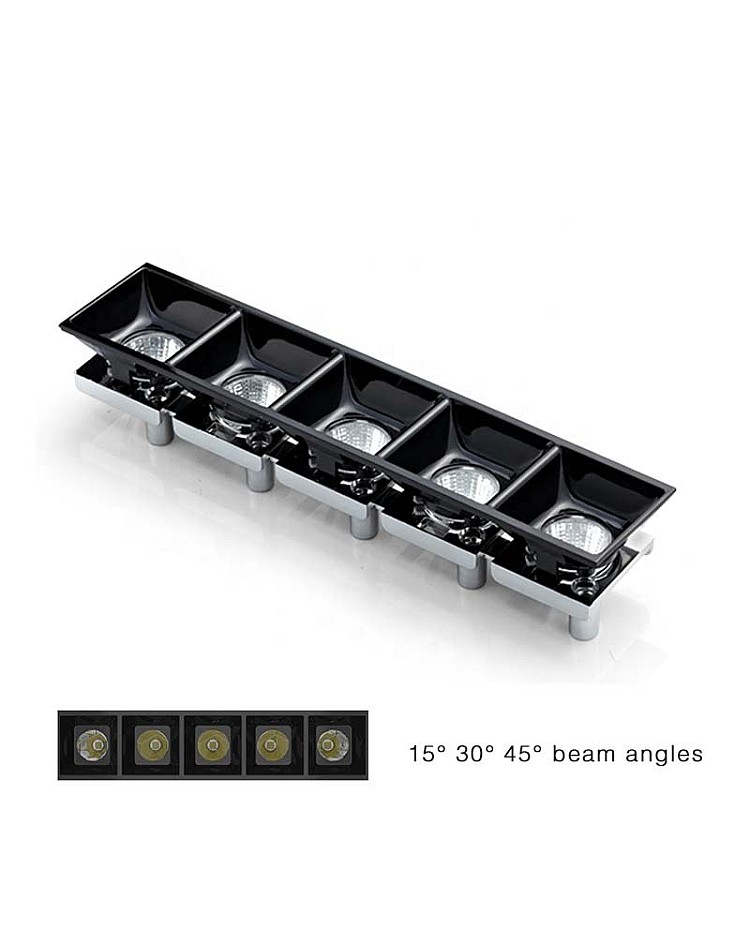

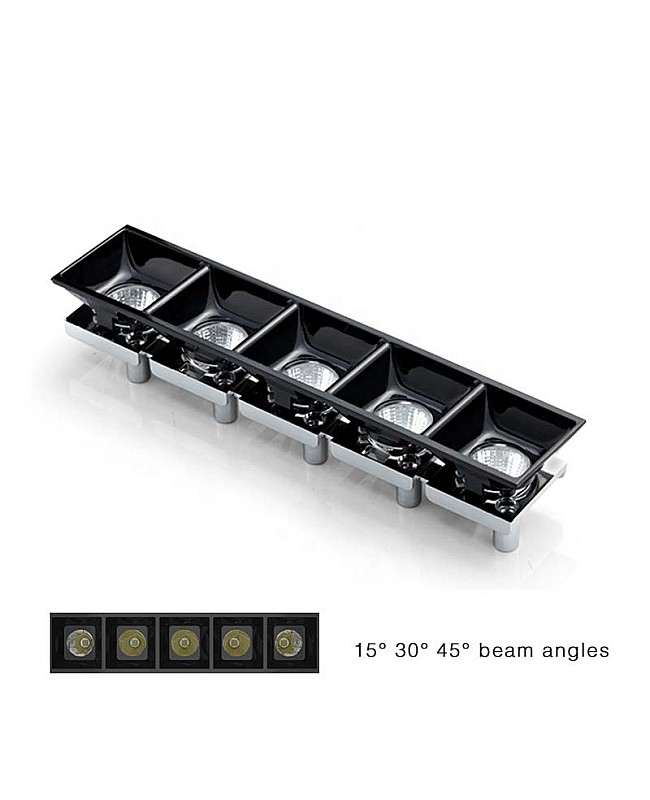

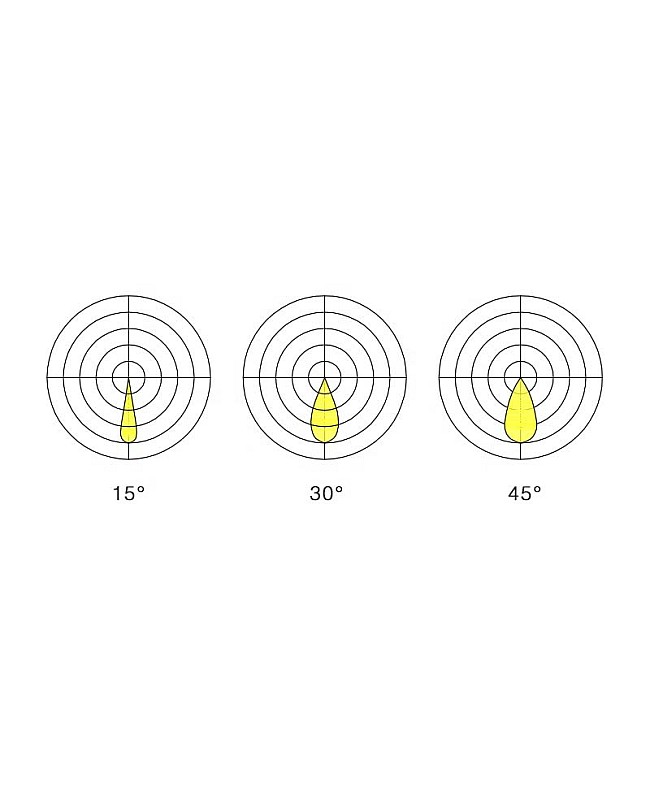

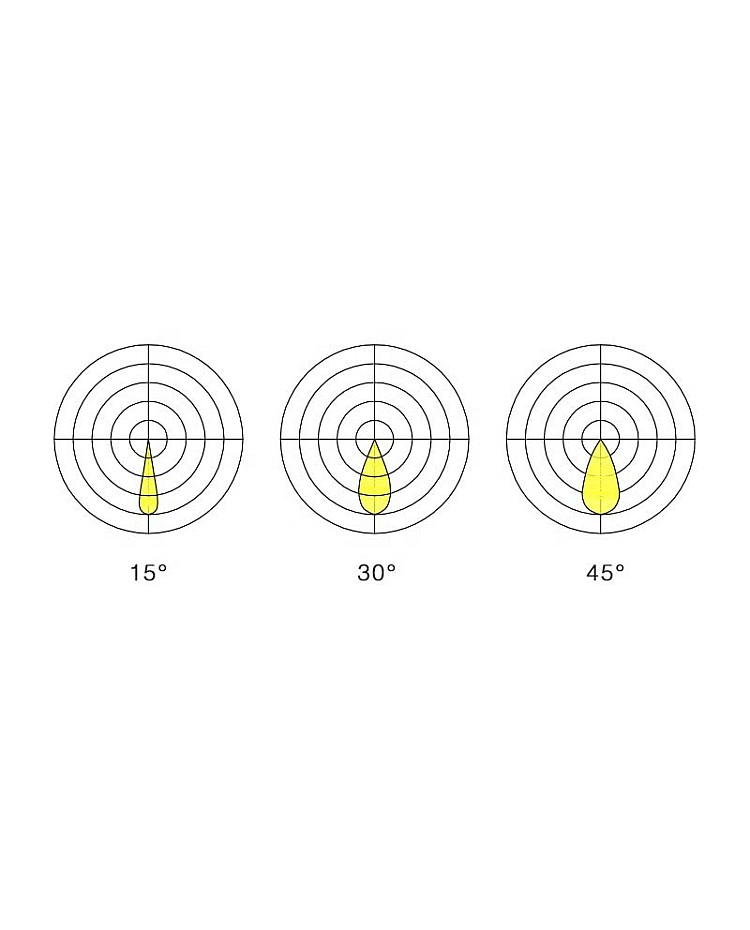

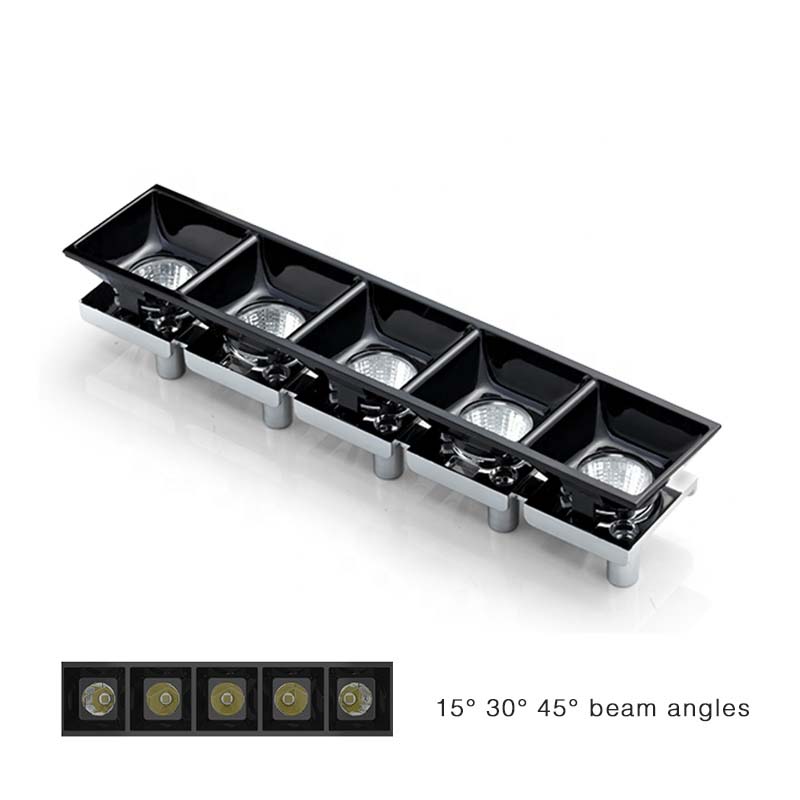

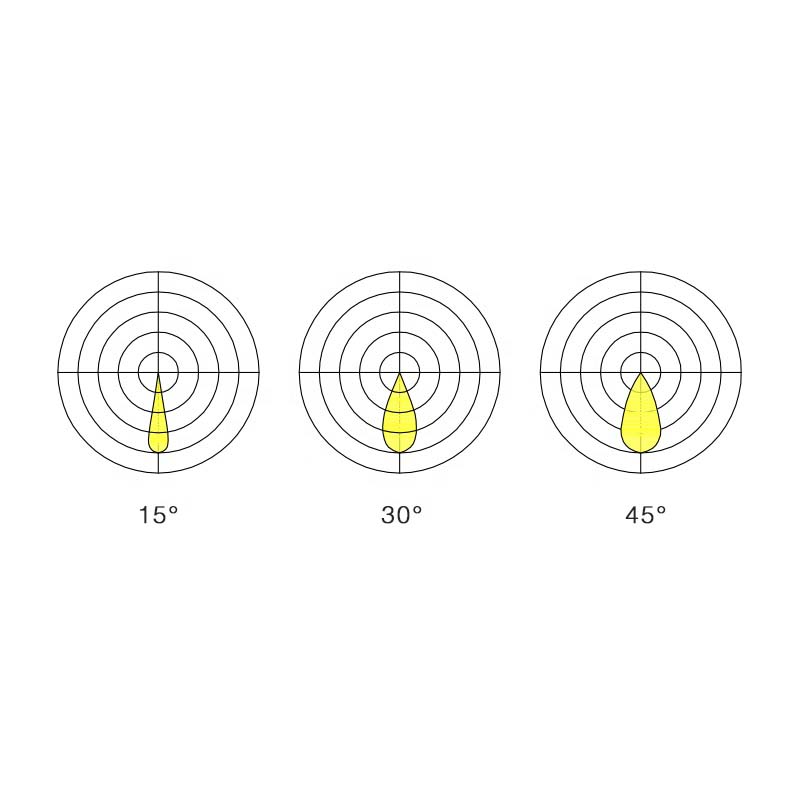

- Reflectors' beam angle: 15°, 30°,and 45°
- Reflector's length:13.25 cm
- Blind covers are sold separately
- 5LEDs LED modules are sold separately

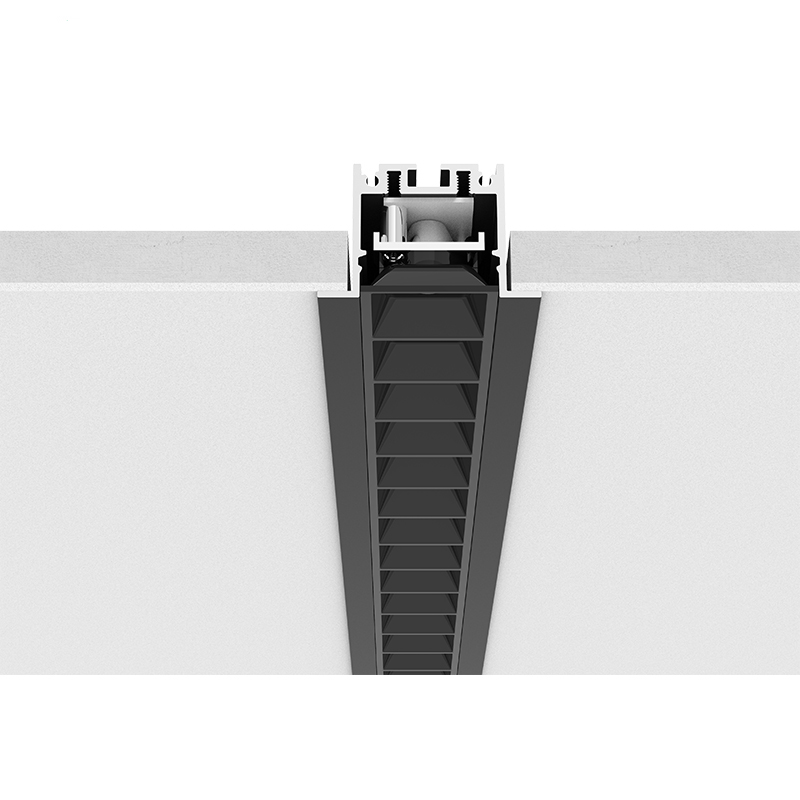

- Installation: Recessed

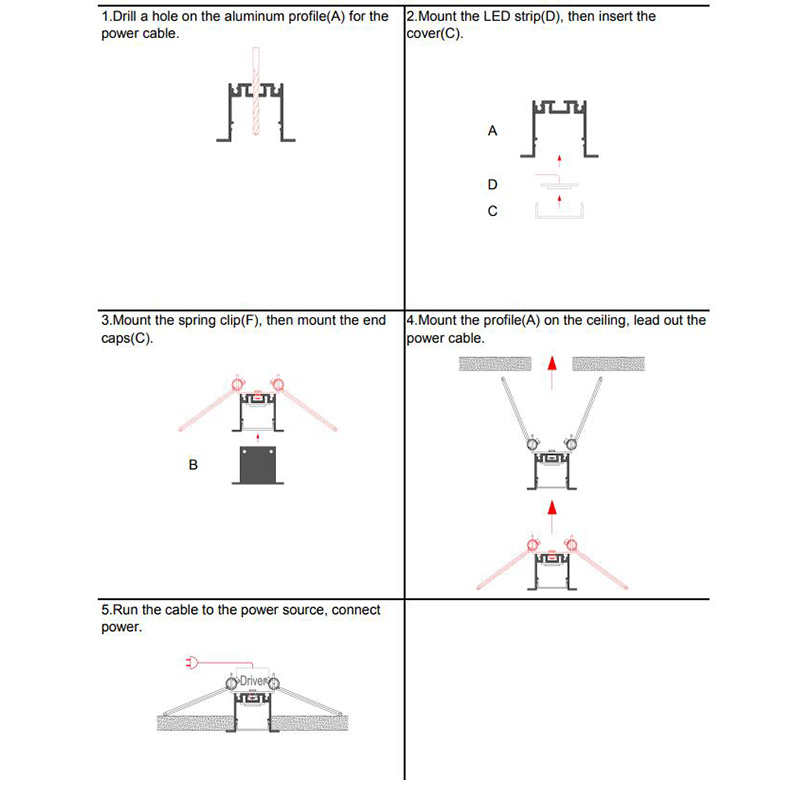

- End caps and spring clips are included
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Retail lighting: Create focused lighting on products or shelves.
- Task and ambient lighting: Can be installed in workstations, kitchens, or study areas for directed illumination. Also effective for ambient lighting in lobbies and lounges.

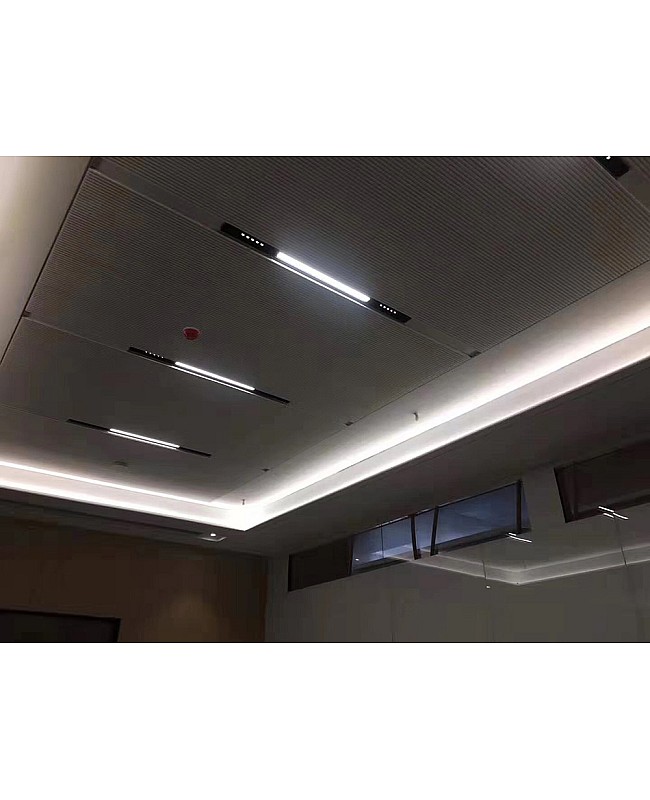

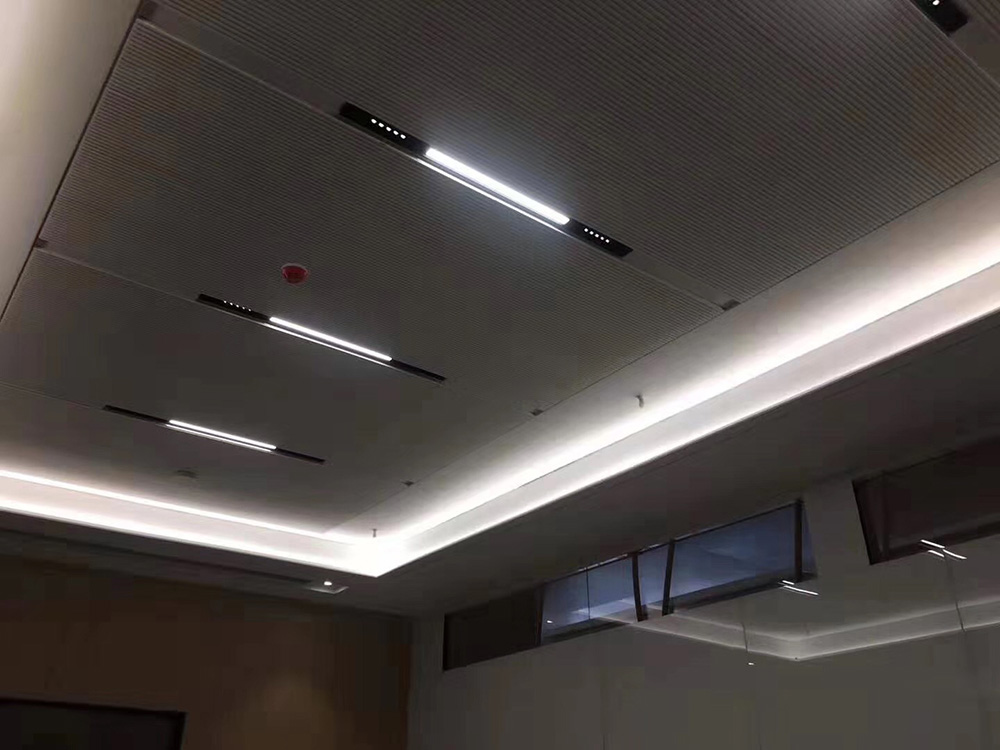

- Architectural accent lighting: Highlight architectural lines or ceiling designs.

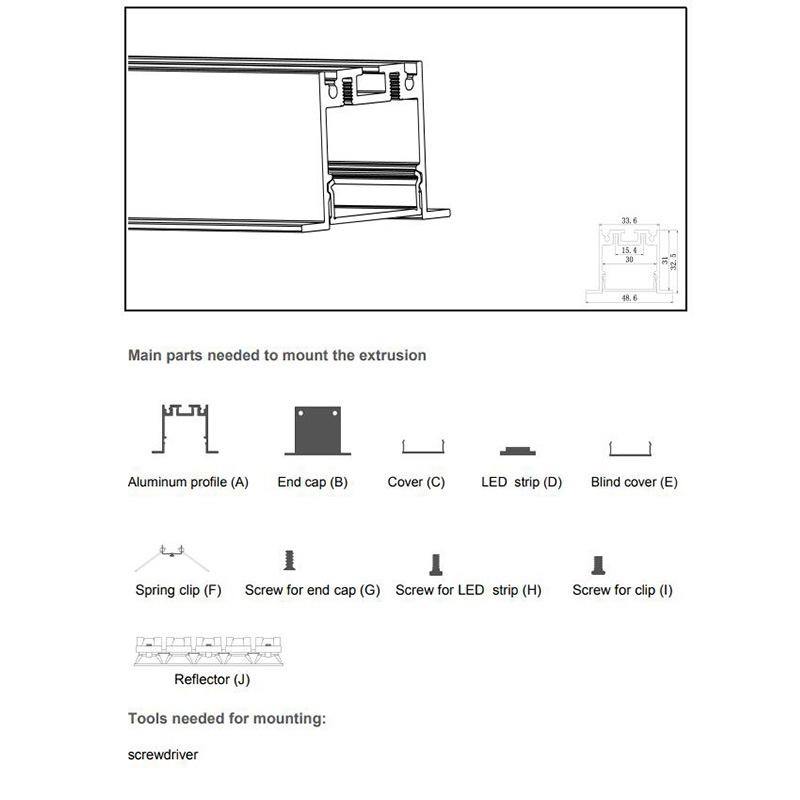

Includes:
1 * Black modular linear lighting system
Reflectors(Optional)
Blind cover(Optional)
End caps
Spring clips

+
+
+
+
+
+
+
+
