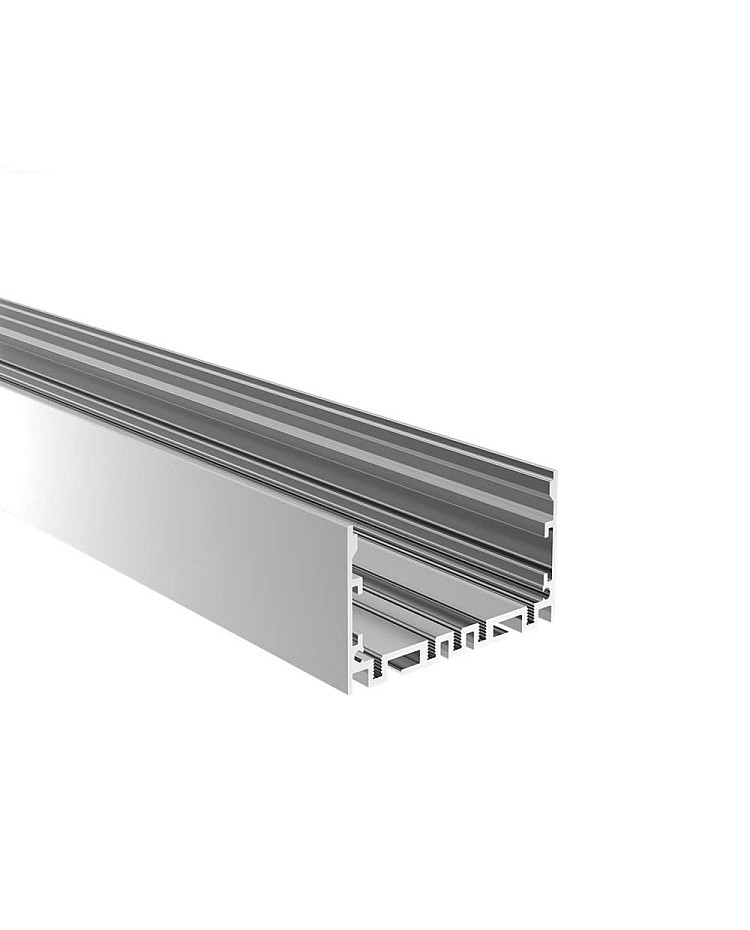

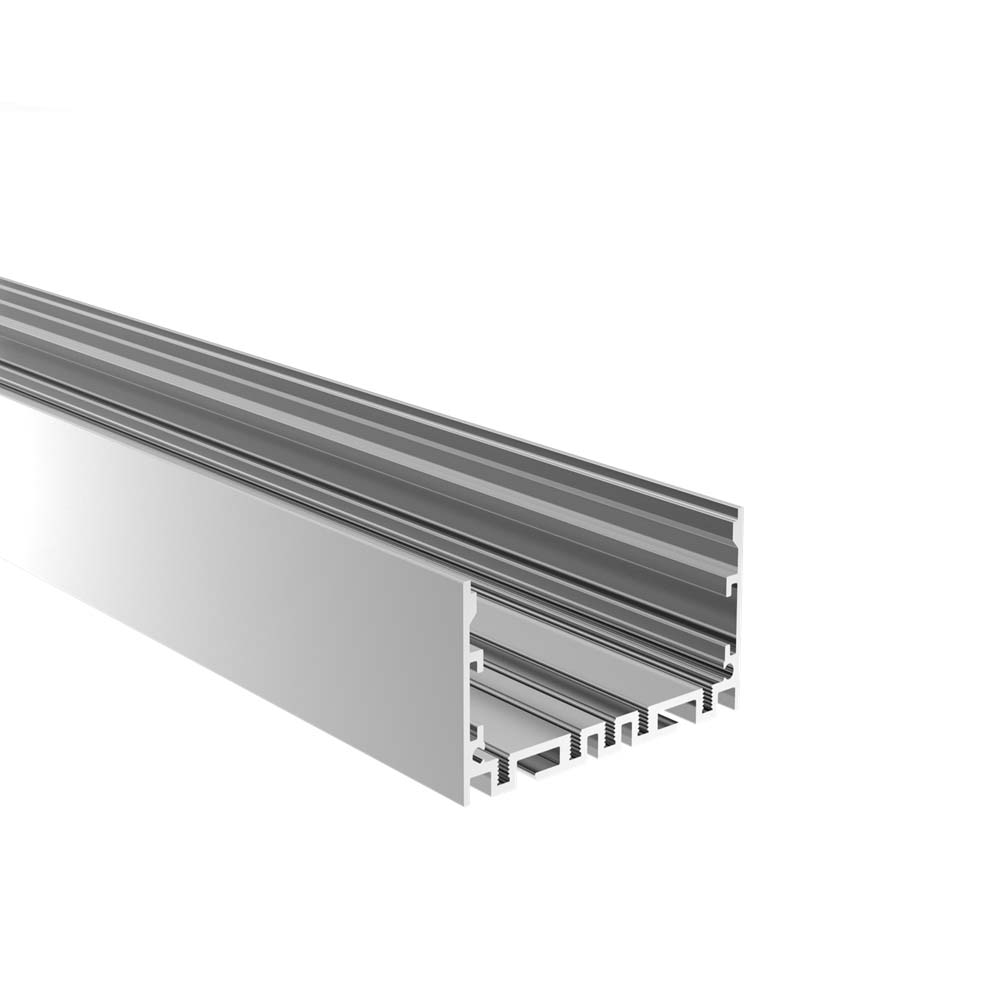

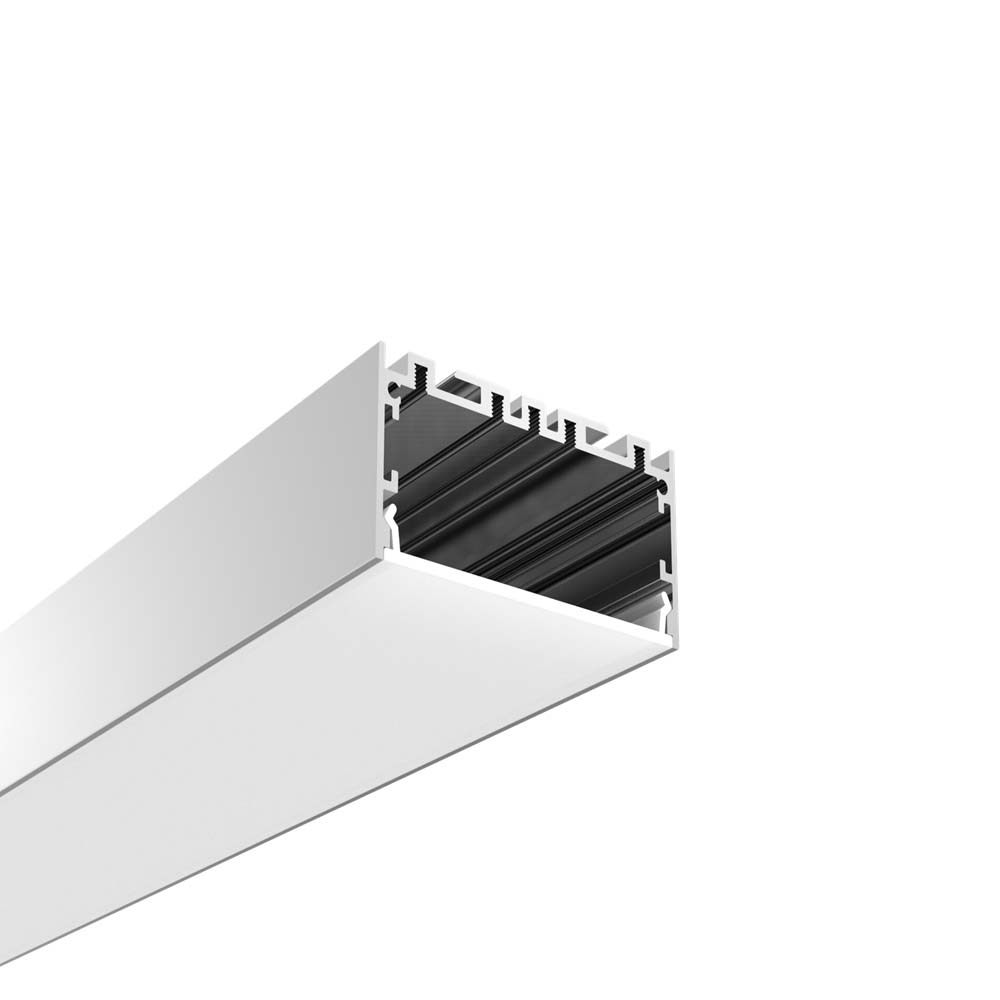

Check the 3 inches 75mm width LED Aluminium Profile Light, the inner width is 64.2mm and compatible with 140mm, 280mm or 560mm Rigid LED Module Lights or Flexible LED Strips as the light source, the metal clips and suspension wires included to support pendant or surface mounted installation. you can fix them in the office, bar, school, hospital, factory, etc as the main lighting. the LED Aluminium Profiles made of 6063-T5 aluminium alloy material and with silver anodized surface treatment, anti-oxidation resistance and better heat dissipation, has a longer lifespan than other similar products. the standard length is 1meter per piece and the max length 2.5meter per piece, can be cut to any size for your project, there is one type of diffuser available, the PC frosted cover, which is made of brand stable material, anti-yellowing, perfect light distribution and smooth light output. the end caps with wire holes included, easy to connect the LED Lights to the Dimmable LED Driver to light up or adjust the brightness.


  • Model: ALP7535
  • Material: 6063-T5 Aluminium Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

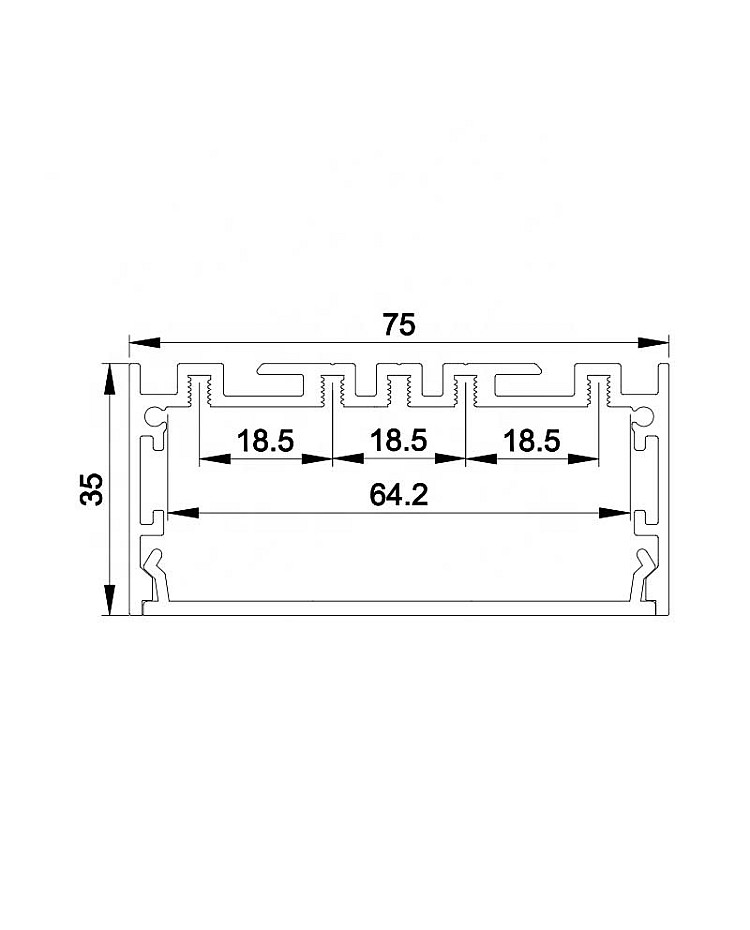

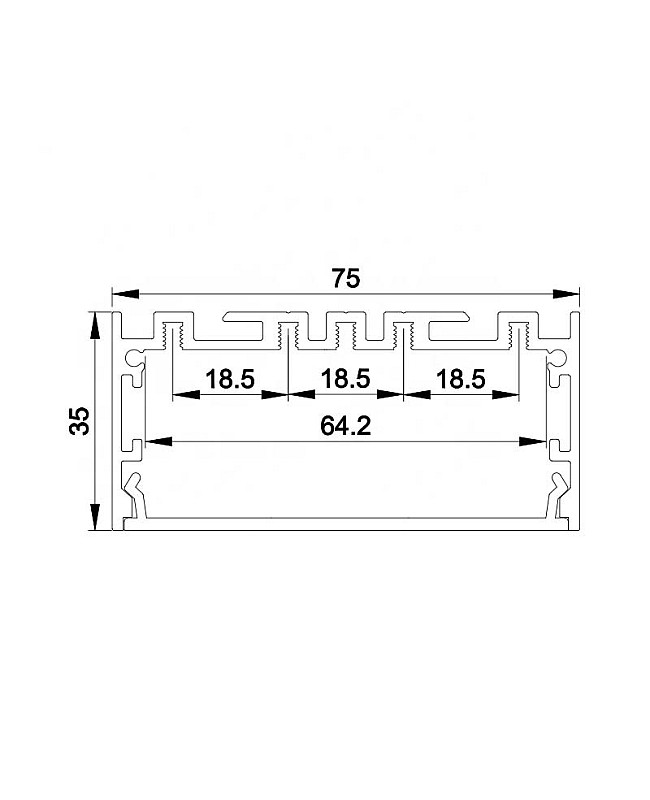

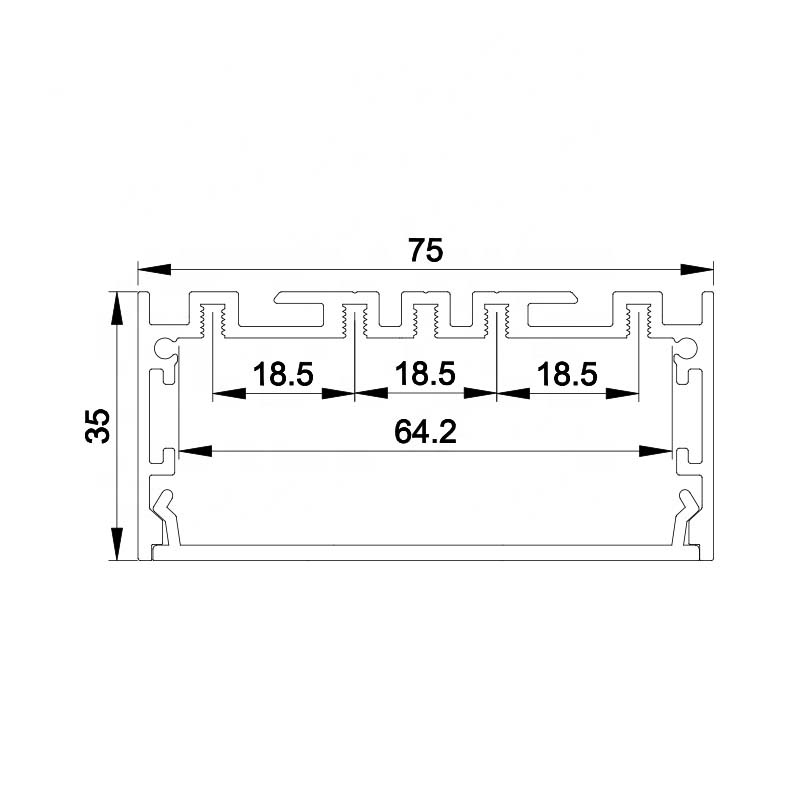

  • Size: 75*35mm(W*H)
  • Shape: Flat
  • Tolerance: ±1%

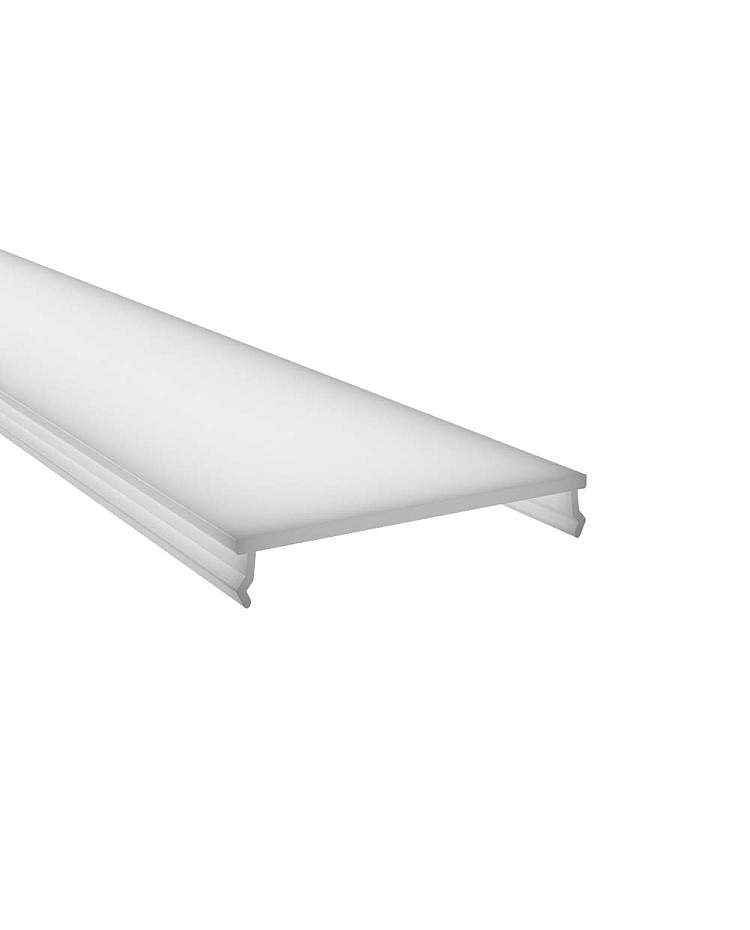

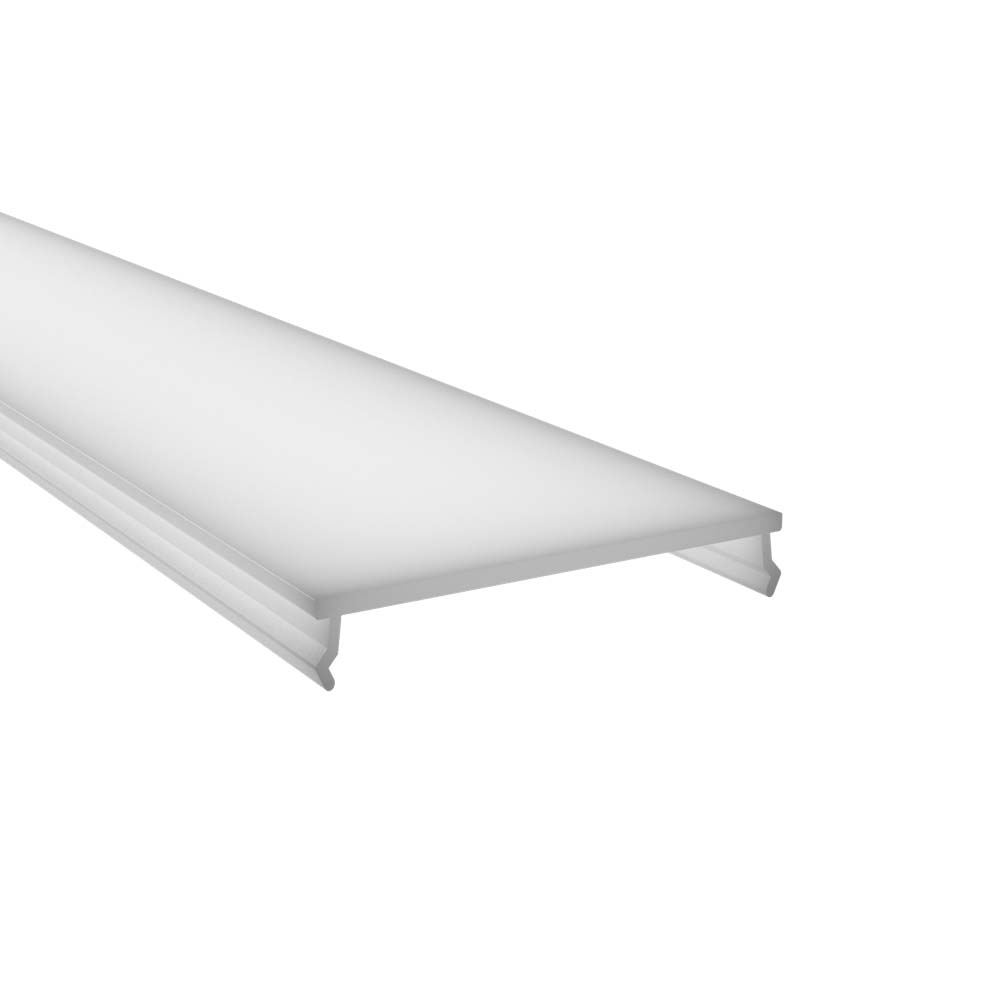

  • Diffuser: PC Frosted Cover
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M
  • Custom Length: YES
  • Inner Width: 64.2mm

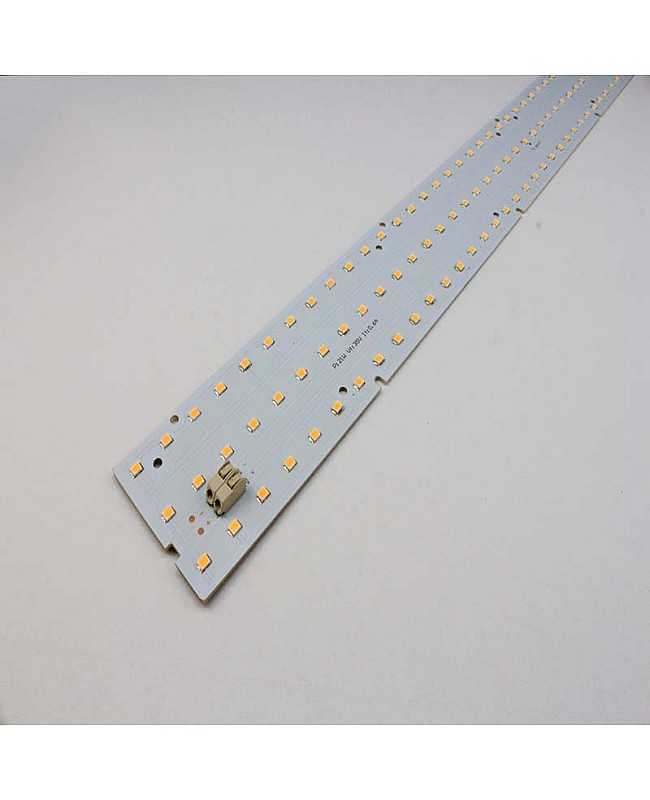

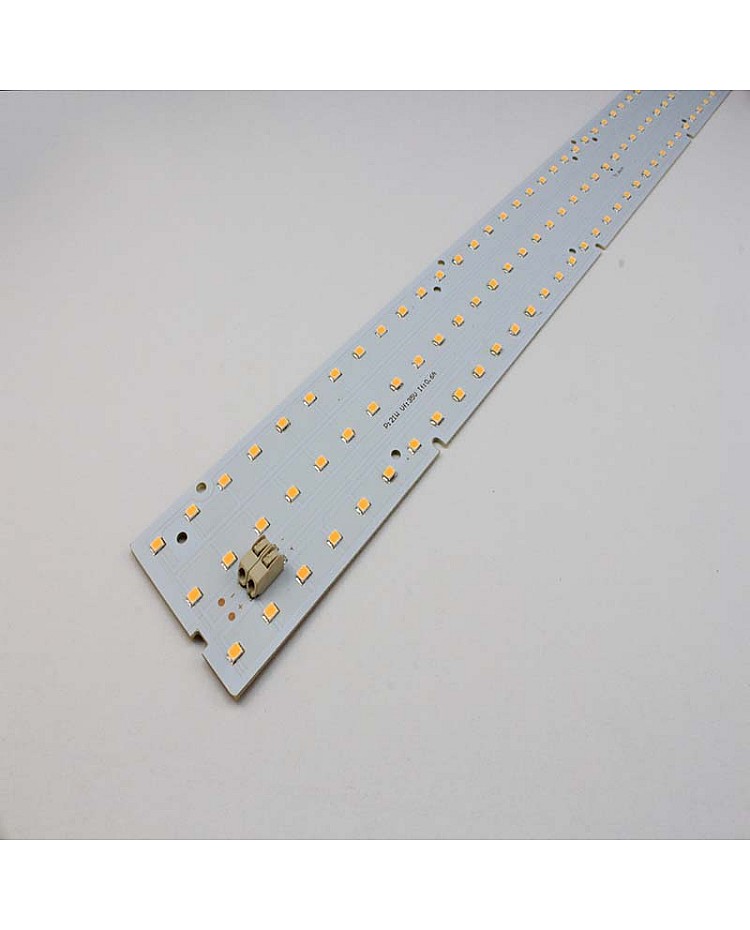

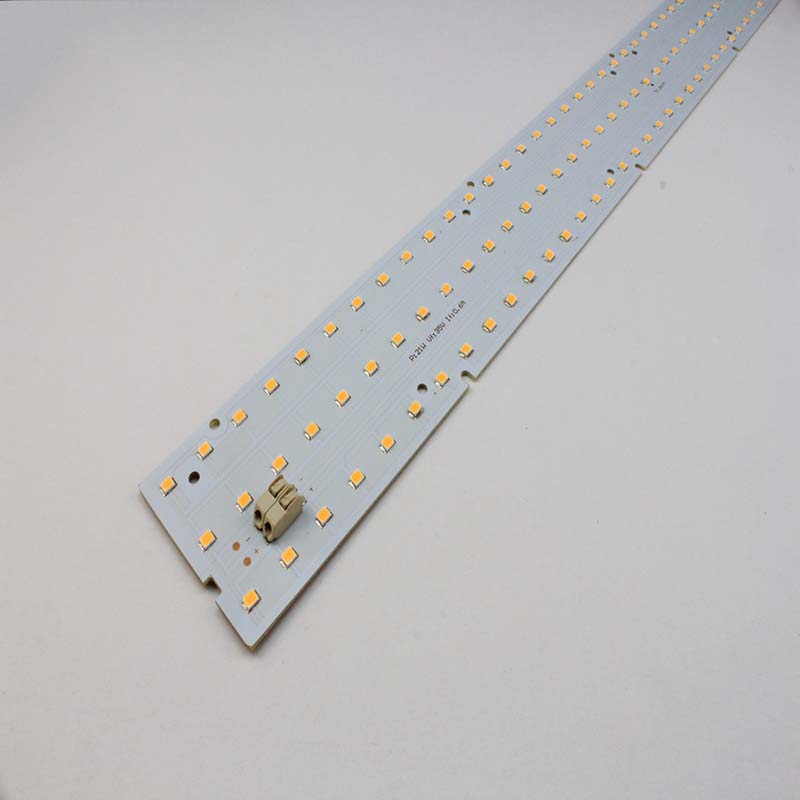

  • Compatible With 140mm/280mm/560mm Rigid LED Modules Or Flexible LED Strips
  • Max Power: <45W/M

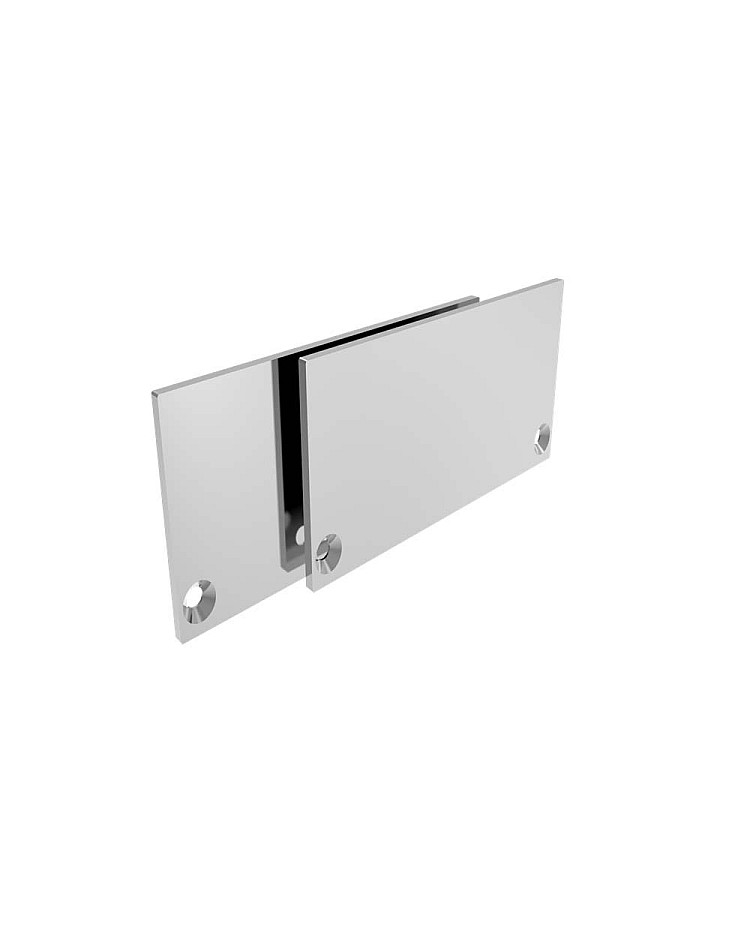

  • End Caps With Wire Holes Included

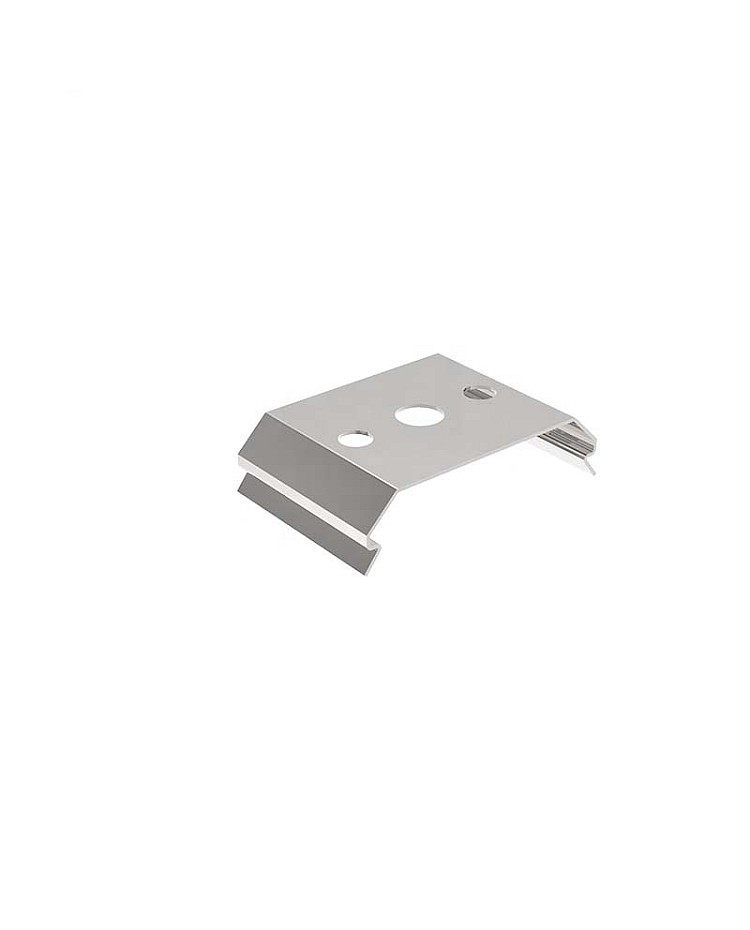

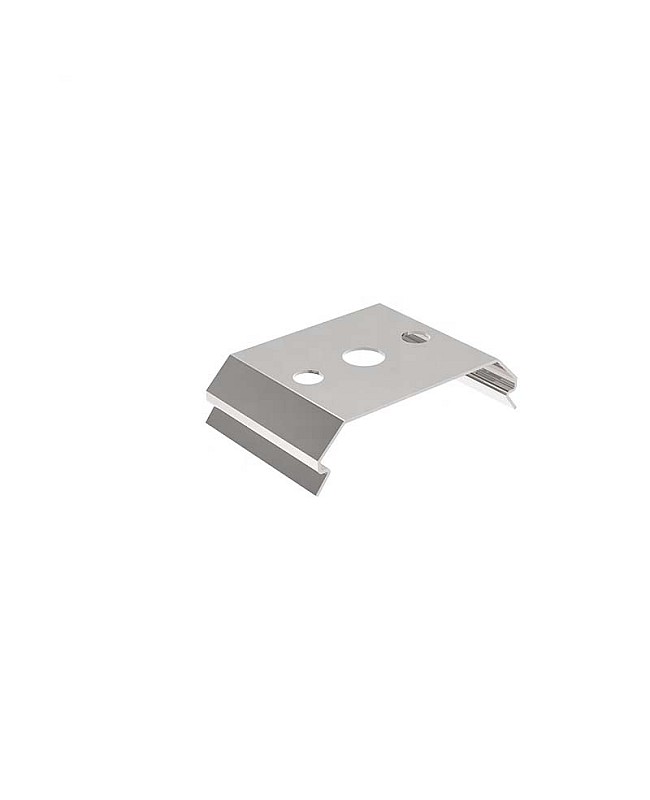

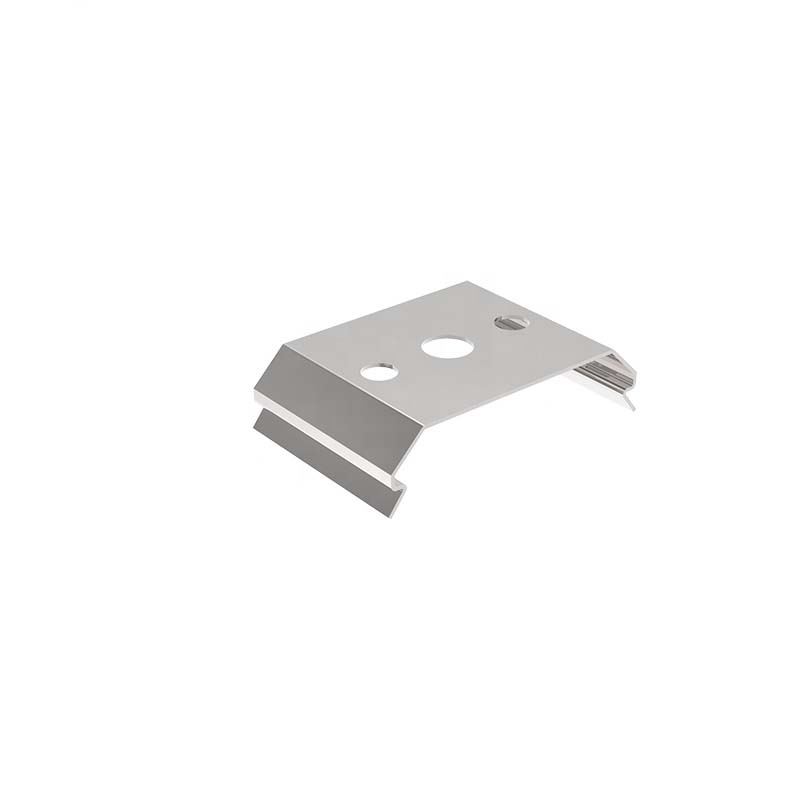

  • Metal Clips And Suspension Wires Included

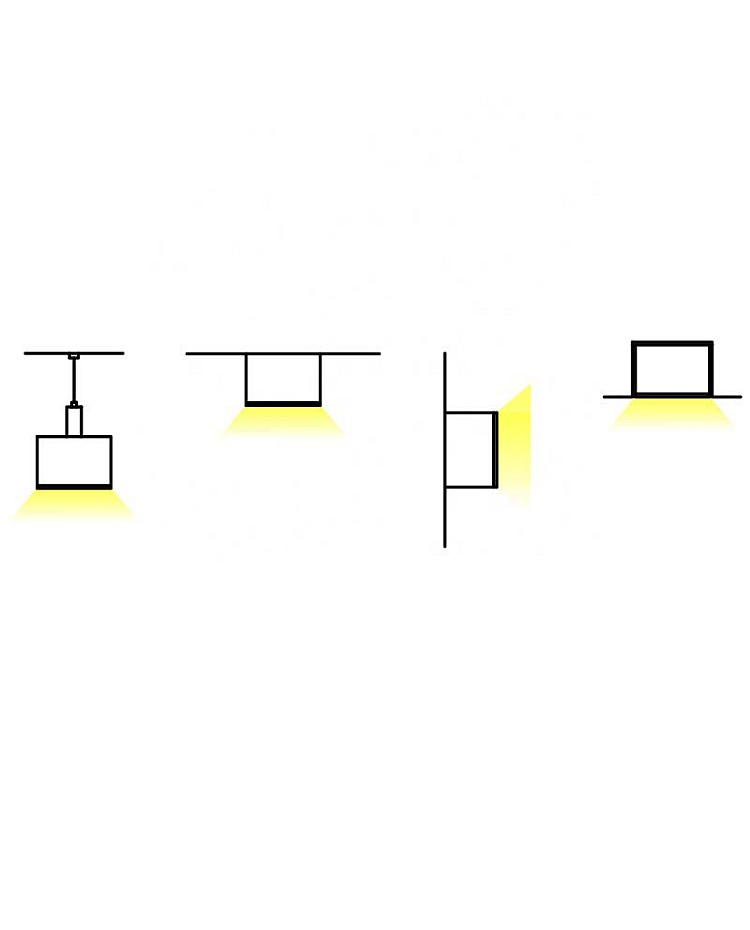

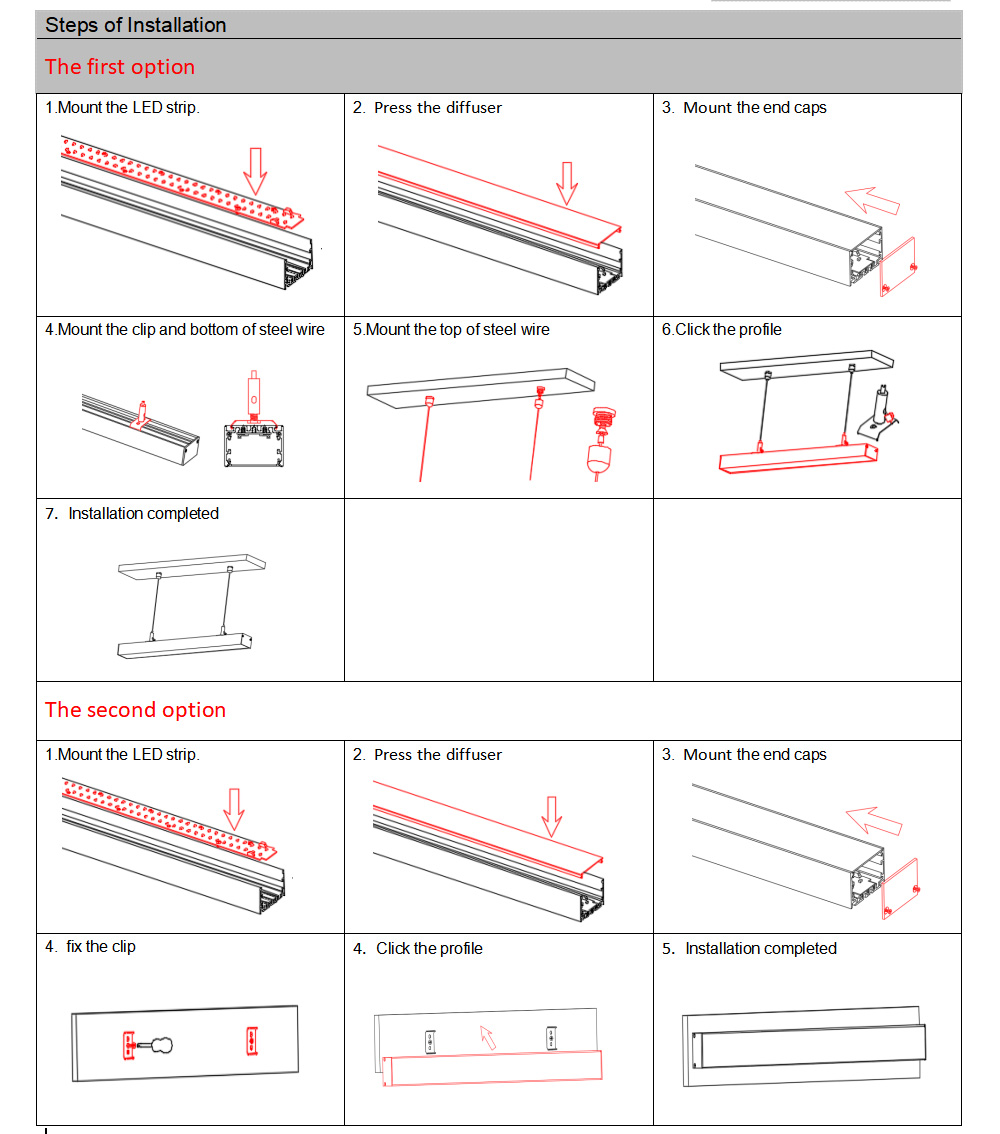

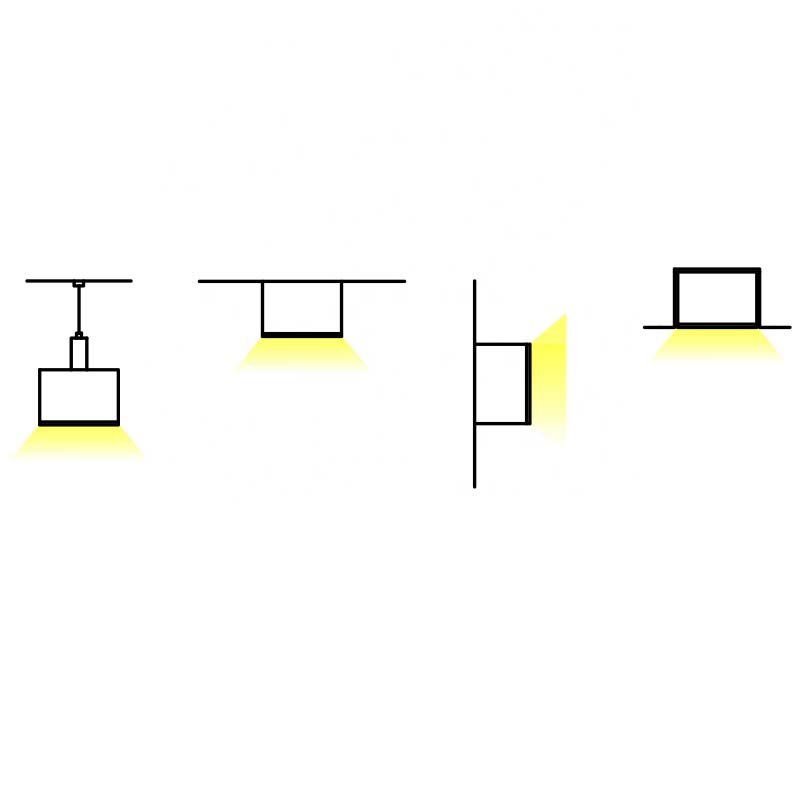

  • Installation: Pendant / Surface Mounted
  • Applications: LED Linear Lighting
  • 5 Years Warranty


1*LED Aluminium Profile Light

2*End Caps

2*Metal Clips

2*Suspension Wires

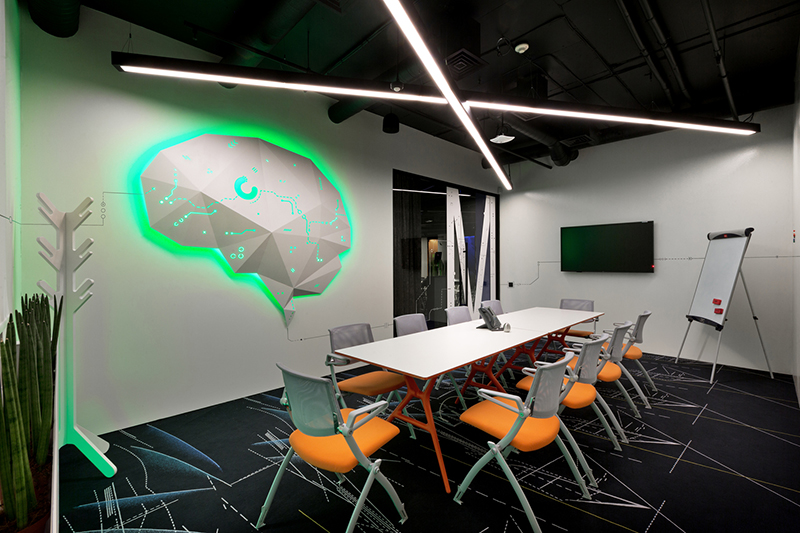

Aluminium Profile For LED Strip Lighting 2M Length 3 Inches LED Aluminium Channels
