In Stock
$17.30 $8.99 Sale -48% OFF
Reward Points: 9
  • Brand: UANCAI
  • Product Code: 16*16/11

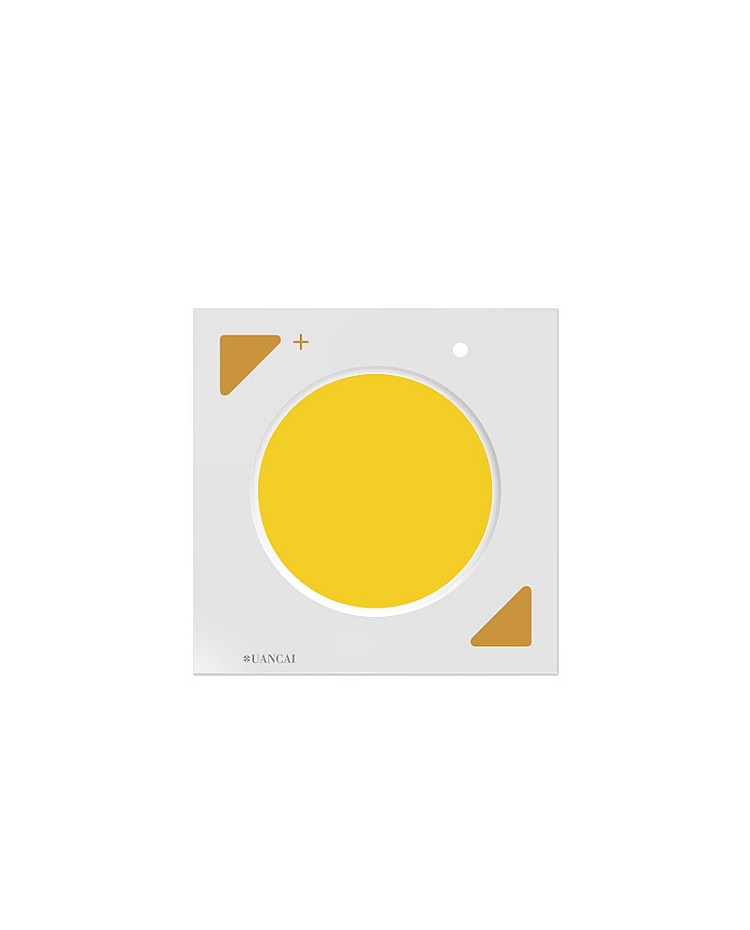

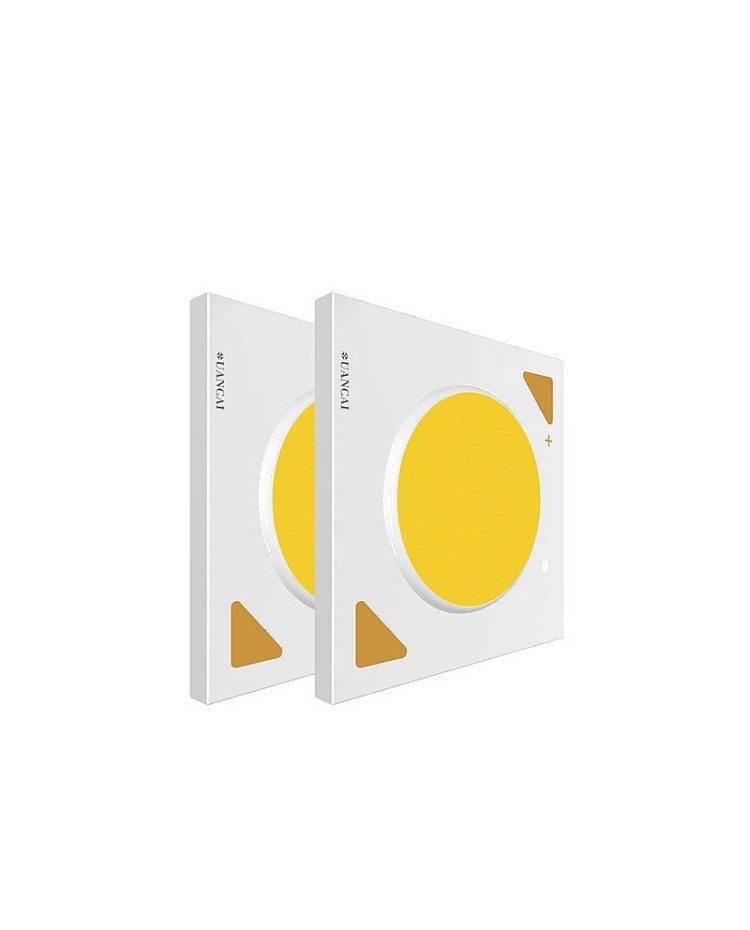

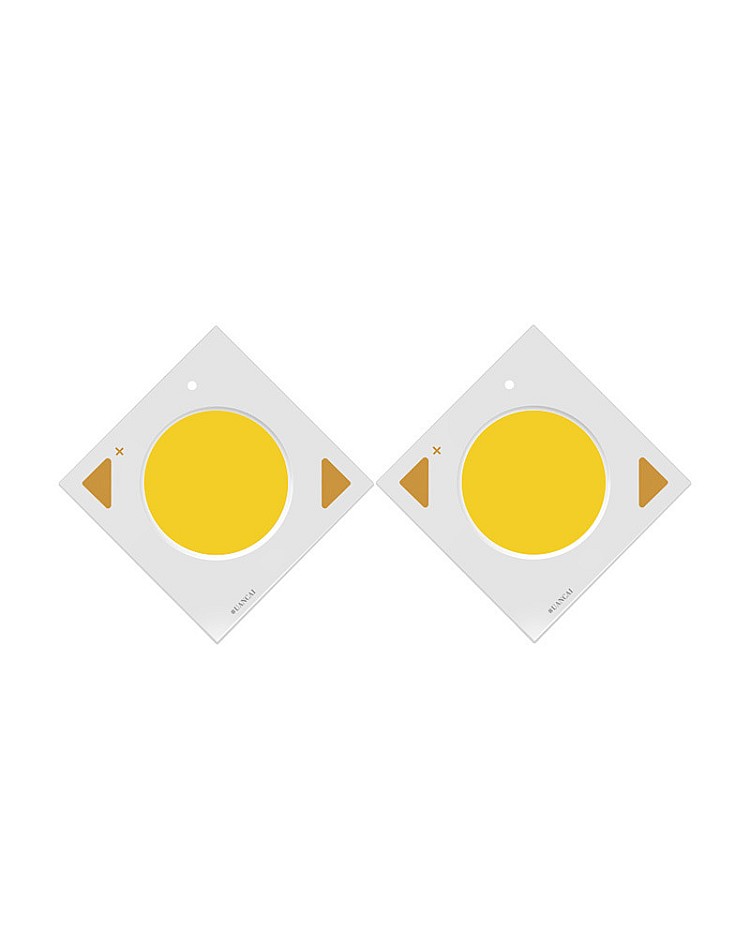

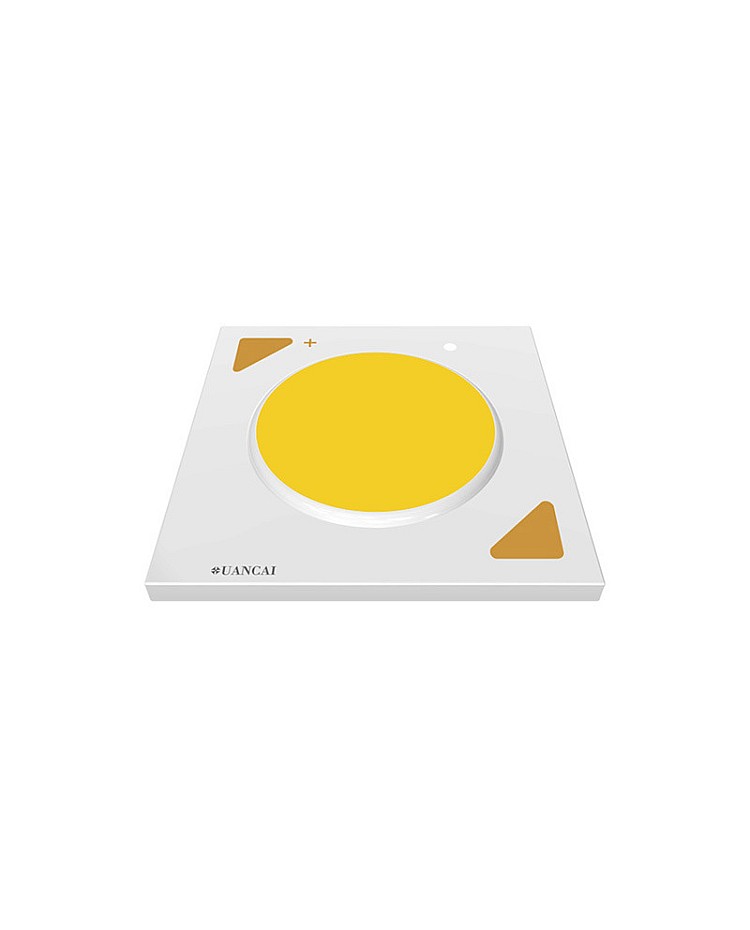

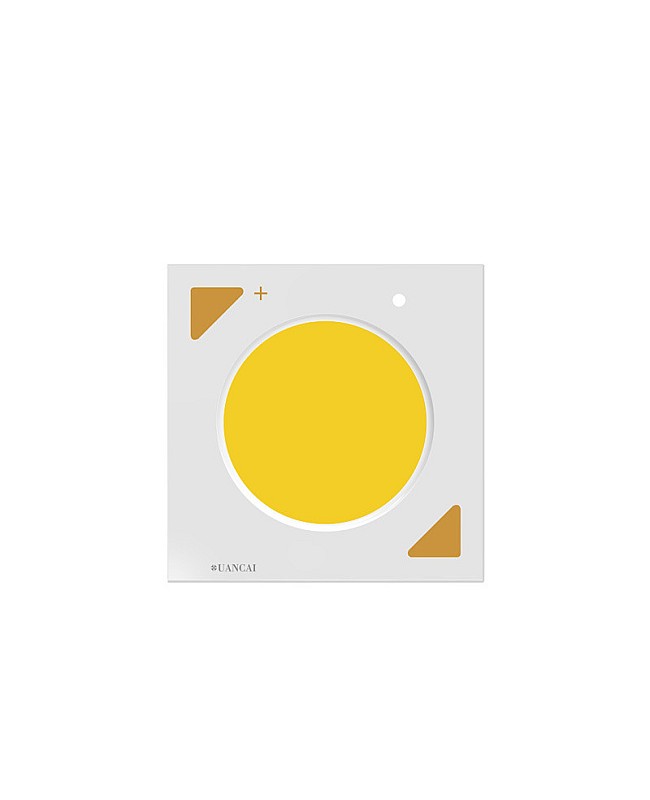

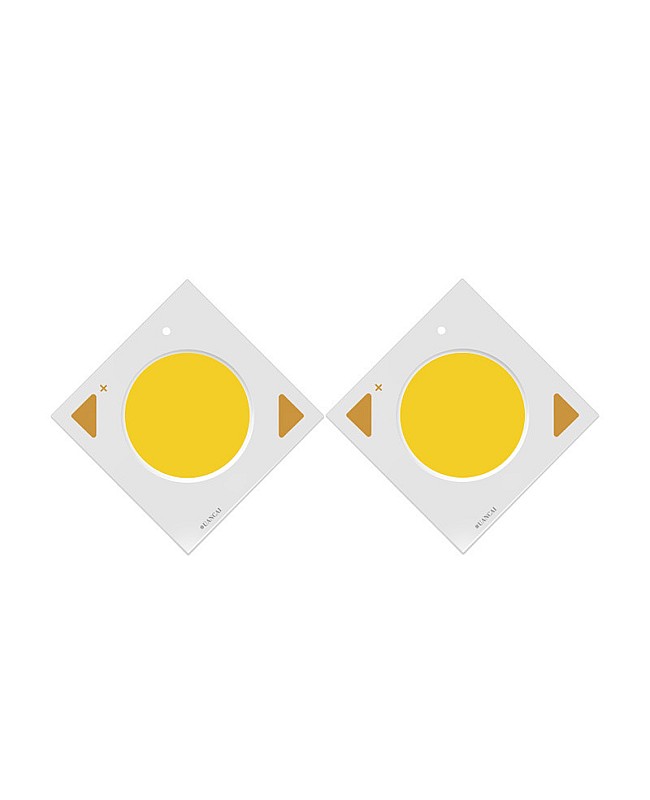

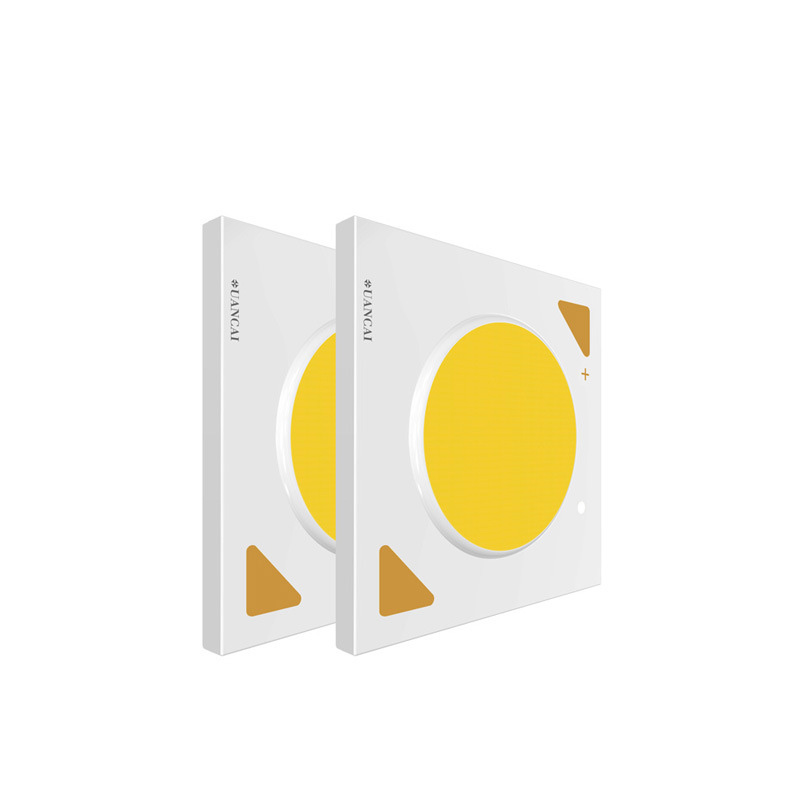

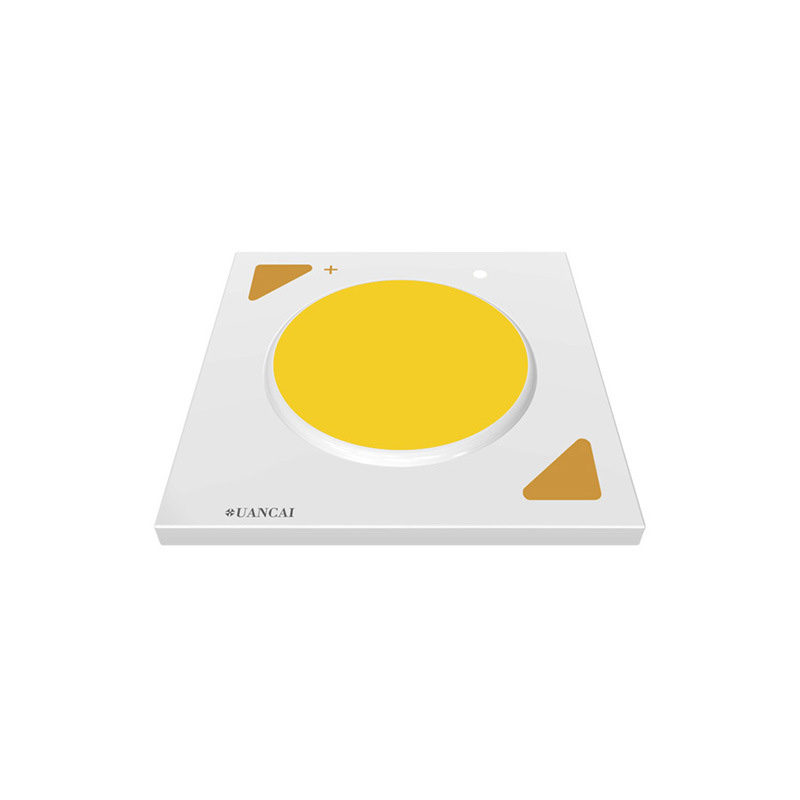

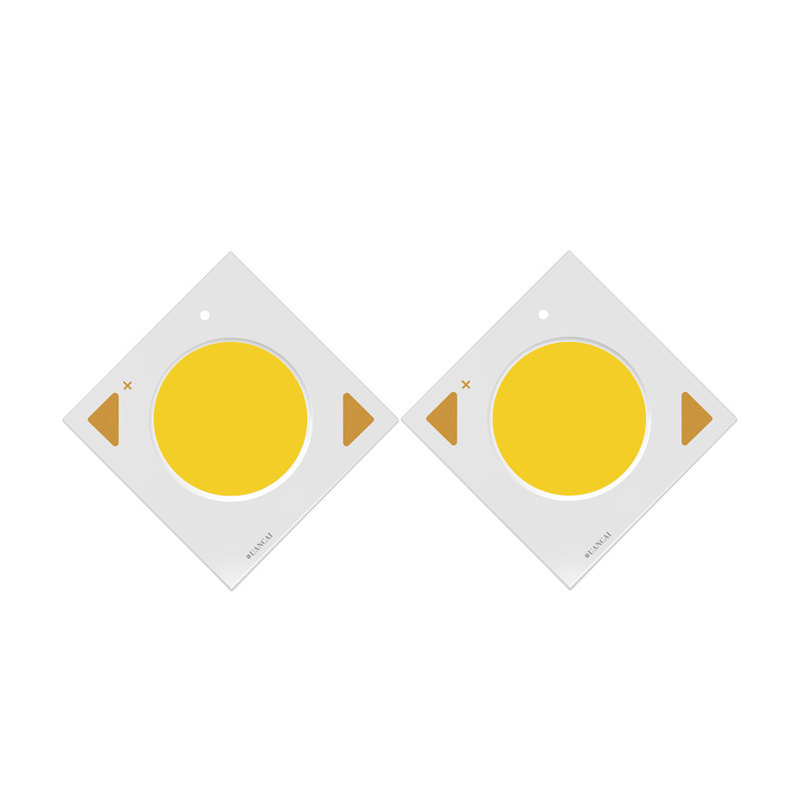

Check the High Power COB White LED Chips, you can choose various color temperatures from 2700K warm white to 6000K daylight white. the LED chips mounted on the thermoelectric separation placode, good heat dissipation, the thermal resistance less than 2.5℃, with the new COB LED technology allows for a much higher packing density of the LED array, high density, high CRI, high brightness and uniform light emission, no light dots and no dark area, high efficiency and longer lifespan, you can choose the various power products from 12W to 30W for indoor and outdoor lighting projects. the White COB LED Chips with small volume to realize high power efficiency, easy to install and light up. you can use them in a shopping mall, clothing shops, hotel, etc.

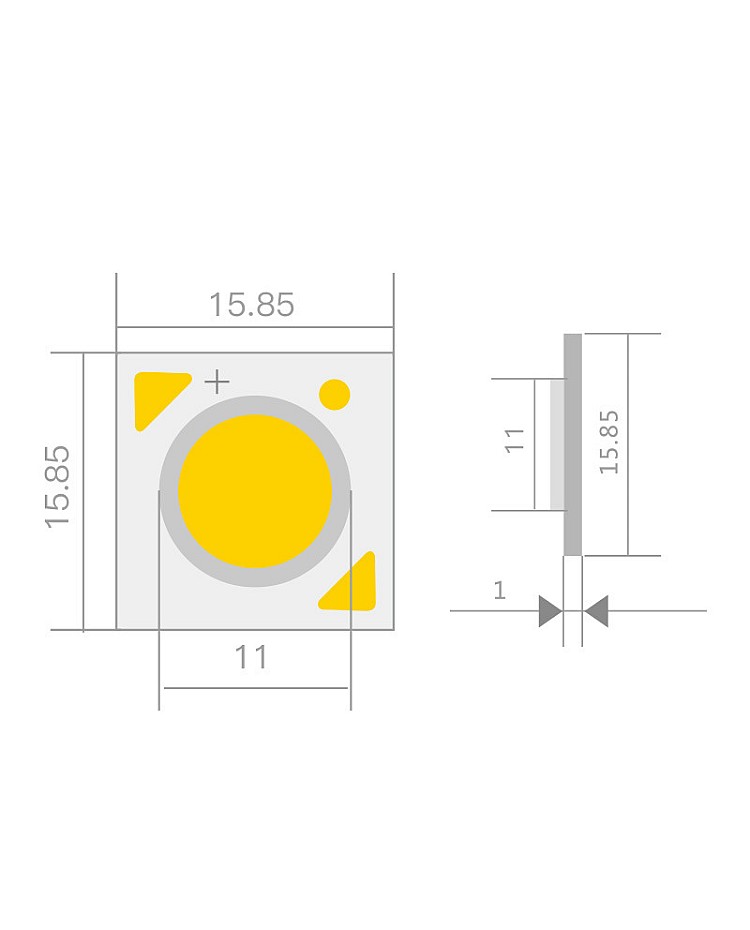

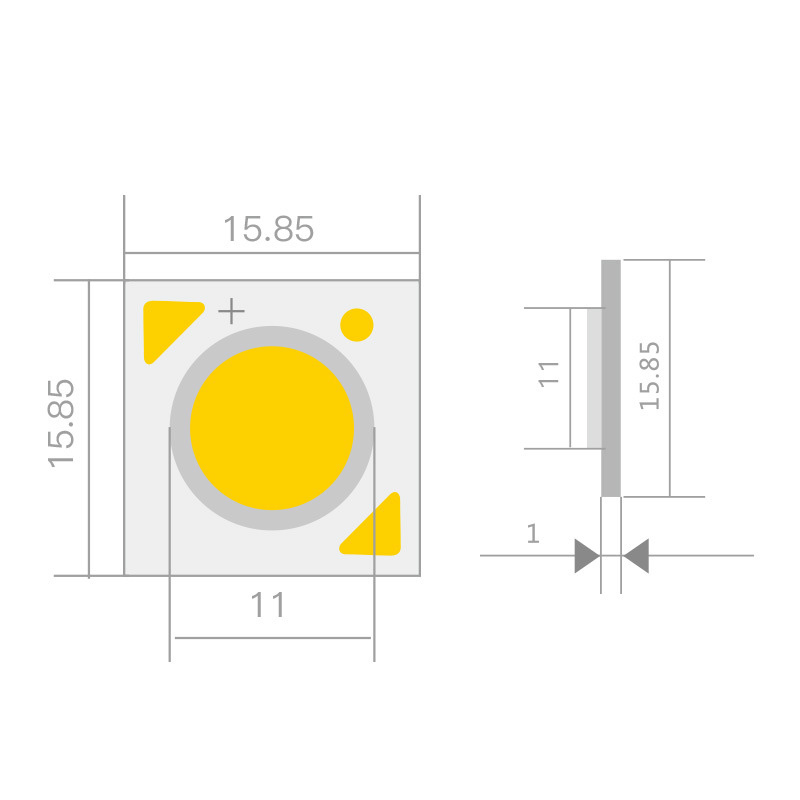

  • Size: 16*16mm(L*W)
  • Light Emitting Surface Size: ¢10.5(mm)
  • Power: 12W,  18W, 24W, 30W
  • Luminous Flux: 1440-2880lm
  • Chip Material: InGaN
  • Chip Brand: Bridgelux
  • Chip Size: 17*34mil
  • Emitting Color: White
  • Color Temperature: 2700K(Warm White), 3000K(Warm White), 4000K(Natural White), Cool White(6000K)
  • Forward Voltage: 36-40V
  • Rated current: 0.3-0.6 (A)
  • Luminous Intensity: 120-130LM/W
  • Reverse voltage: 0-5 (V)
  • Electrostatic Breakdown Voltage (ESD): 2000(V)
  • Optical Attenuation(%): 1
  • View Angle: 120°
  • Dimmable: NO
  • CRI: >90Ra
  • Color Tolerance: <5(SDCN)
  • Thermal resistance: <2.5 (°/W)
  • Maximum Allowable Junction Temperature: 90~120 (°)
  • Voltage Temperature Coefficient: -2 (mV/°C)
  • Pass The LM-80 Test: Y
  • Lifespan: 50,000 Hours
  • Storage Temperature: -40℃-+80℃
  • Working Temperature: -40℃-+80℃
  • 3 Years Warranty


1*High Power COB White LED Chip(10PCS/Pack)

30W Daylight White LED Chip
