In Stock
  • Product Code: HX-HCBT


The dimmable LED driver integrated dimming function,use PWM technology to achieve amazing dimming experience,smooth,flicker-free,dimming range from 0% to 100%,this dimmable LED power supply have three different output level products available,max output up to 45w,this style LED dimmable driver can be controlled by 14keys remote,max control distance up to wireless sync control,one remote can control multiple drivers.


Features od Dimmable LED driver:

  • Input:AC90-265V
  • Output:DC12-42V
  • Output current:≤1.2A*2CH
  • Output:<10W;10-25W;25-45W
  • PF:≥0.93
  • Control method:2.4GHZ remote
  • Dimming range:1-100%
  • Frequency:50/60Hz
  • PWM signal frequency:700Hz
  • Efficiency:>82%
  • RF distance:≤20M
  • Type:isolated


​Features of remote:

  • Working temperature:-20℃~60℃
  • Standby current:<18uA
  • Standby power:54uW
  • Working voltage:DC3V(2*AAA)
  • Workng current:<25mA
  • Working power:75mW
  • RF frequency:2.4GHz
  • RF distance:≤20m

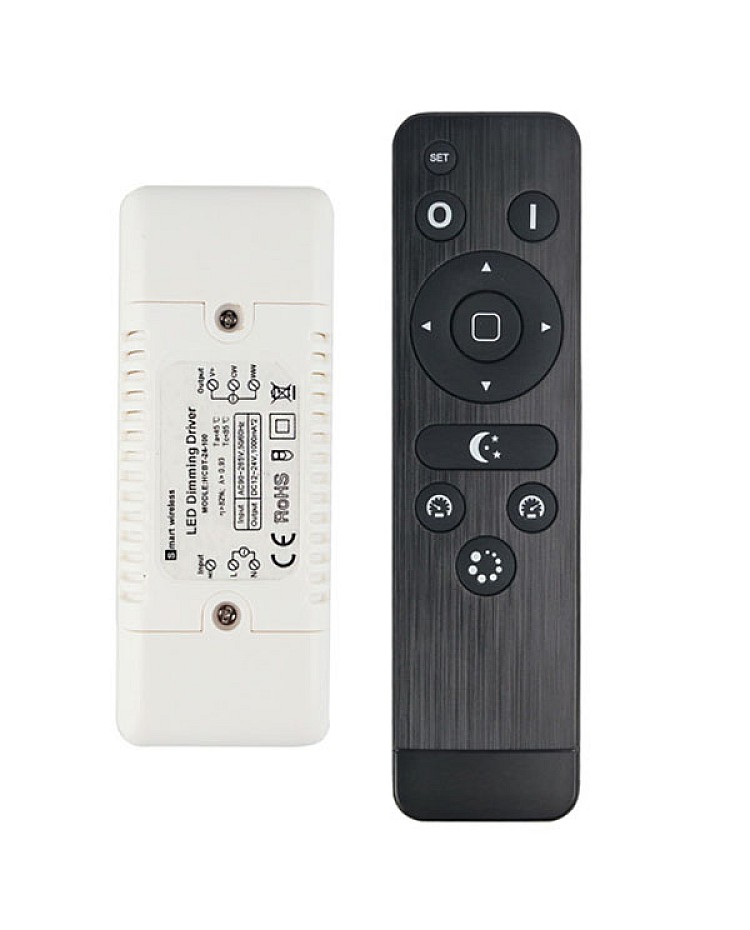

Constant Current CCT Dimmable LED Driver

Remote interface:

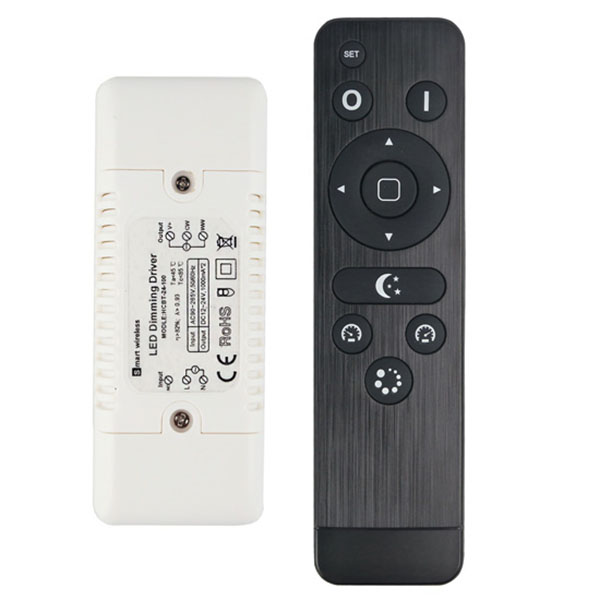

Constant Current CCT Dimmable LED Driver


Constant Current CCT LED dimmable driver



1*Dimmable LED driver
