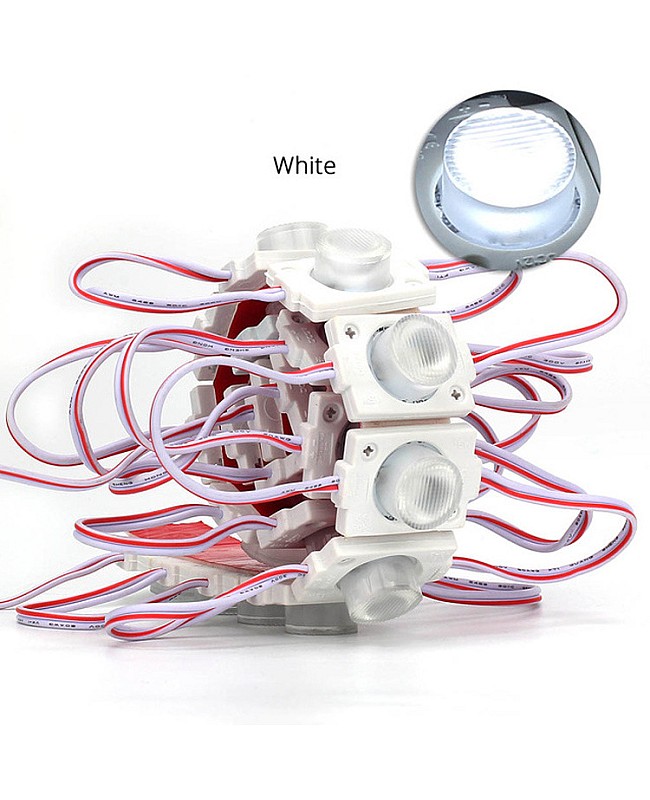

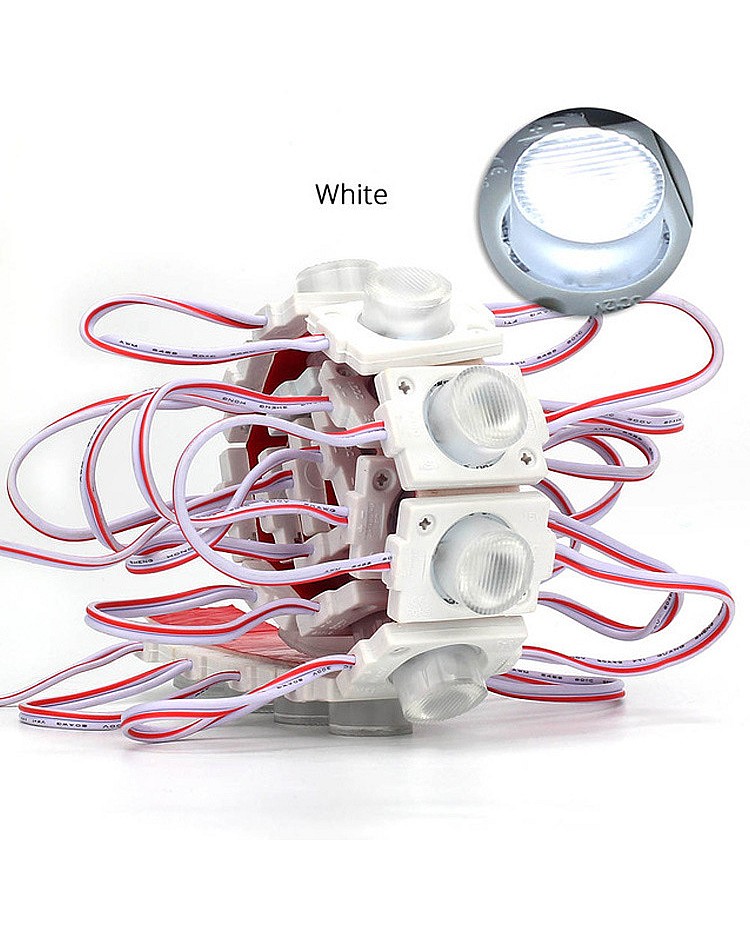

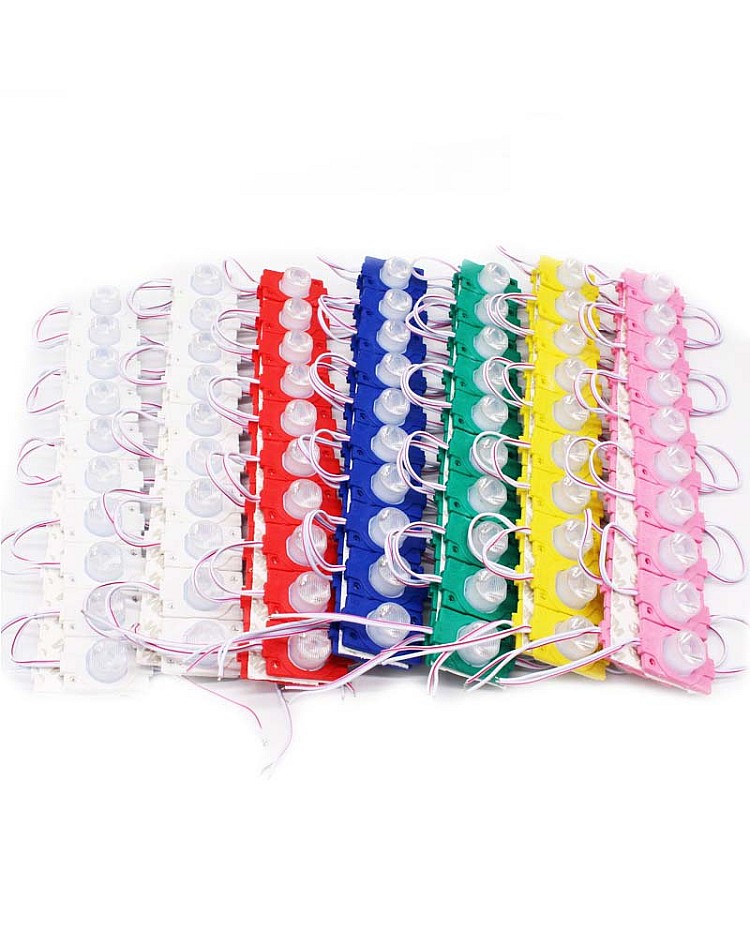

The LED Sign Lighting Modules With PMMA Lens use one-piece high-quality 3030 SMD LEDs as a light source. The LEDs are mounted on the aluminum PCB board for better heating dissipation and a longer lifespan. The shell made of PC and ABS material and with an injection molding process, looks fashionable and tightly sealed for the best protection when in use. Both sides have screw holes, you can fix them on the lighting project with screws. The LED Modules backed with double-sided adhesive tape, are easy to fix and use. Working on DC12V, safety to children and pets, with the constant current design, ensuring full bunch in the same brightness and stably working. The surface of SMD LED Modules with the high light transmittance PMMA Lens, 45*15° beam angle, the IP rating is IP65 can be used for indoor and outdoor applications. The LED Sign Modules are 20PCS per string, cuttable and reconnectable, and you can cut any quantity and reconnect them for the project. You can use them as the backlight for lightboxes, signs, channel letters, or decorations for the holiday.


Features:

  • Model: 3030BL
  • Working Temperature: -25°-+55°
  • Material: ABS+PC
  • Size: 49*31mm(L*W)
  • LED Type: 3030 SMD LEDs
  • LED Quantity: 1PC
  • Luminous Intensity: 4800MCD
  • Working Voltage: DC12V
  • Output Power: 1.2W/PC
  • Lumen: 110-140lm
  • IP Rating: IP65

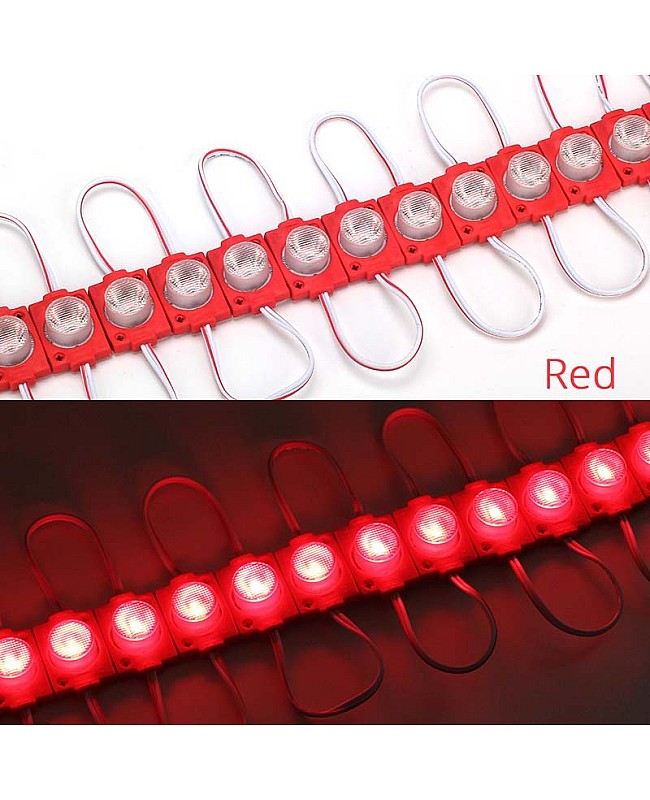

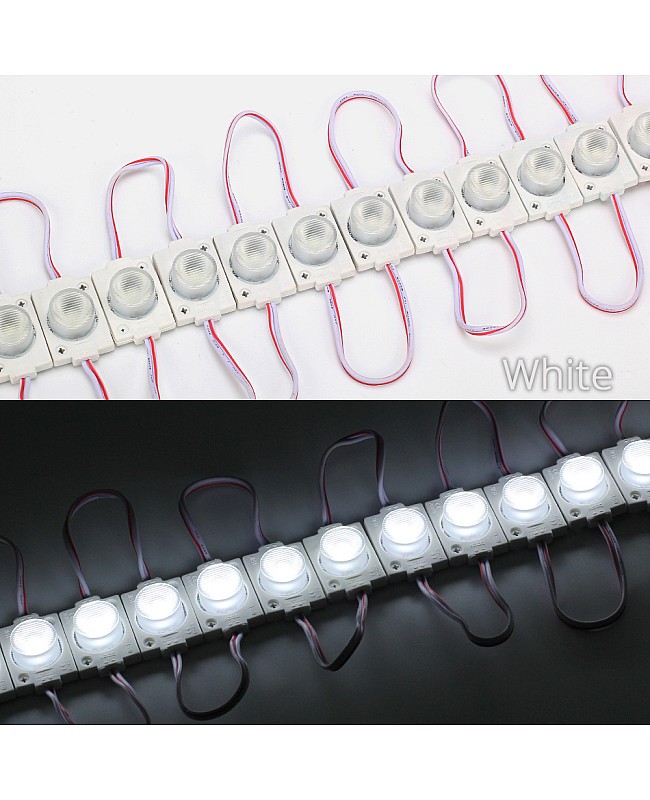

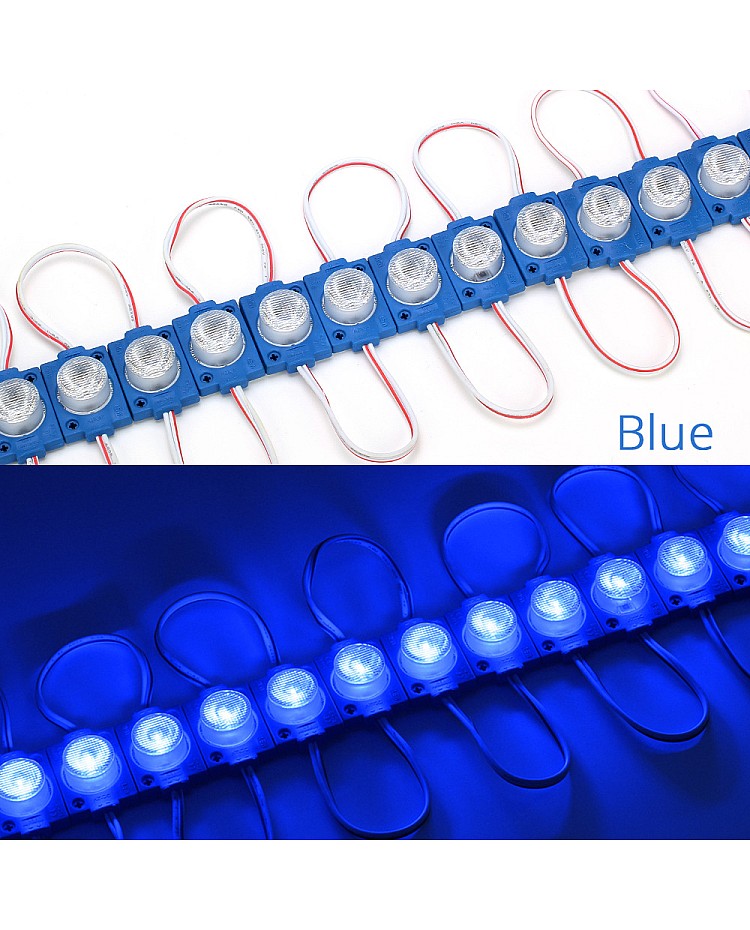

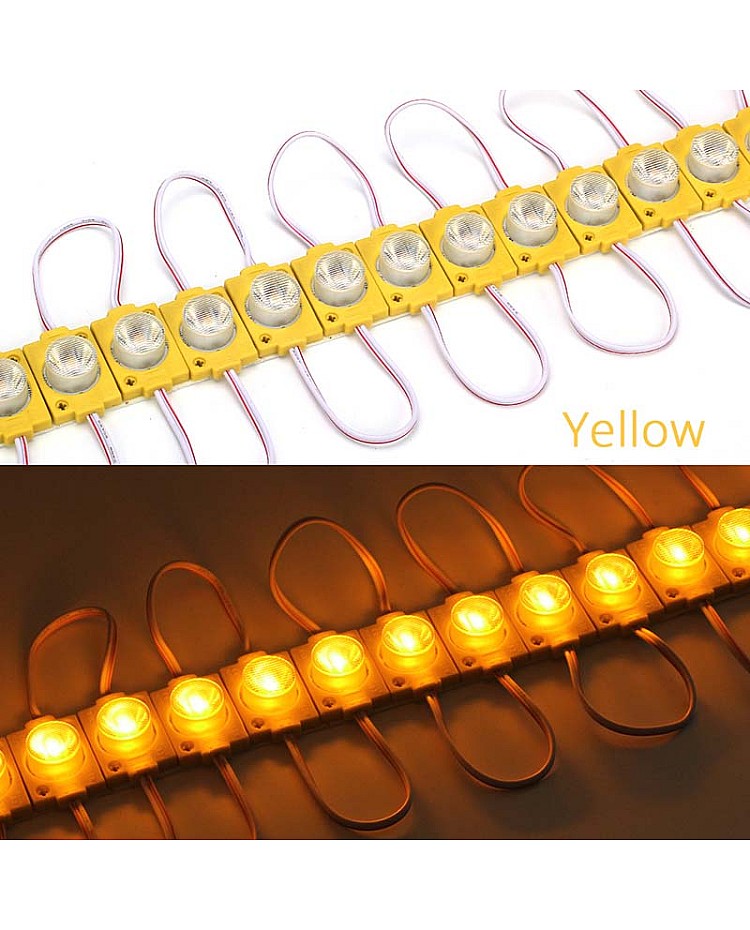

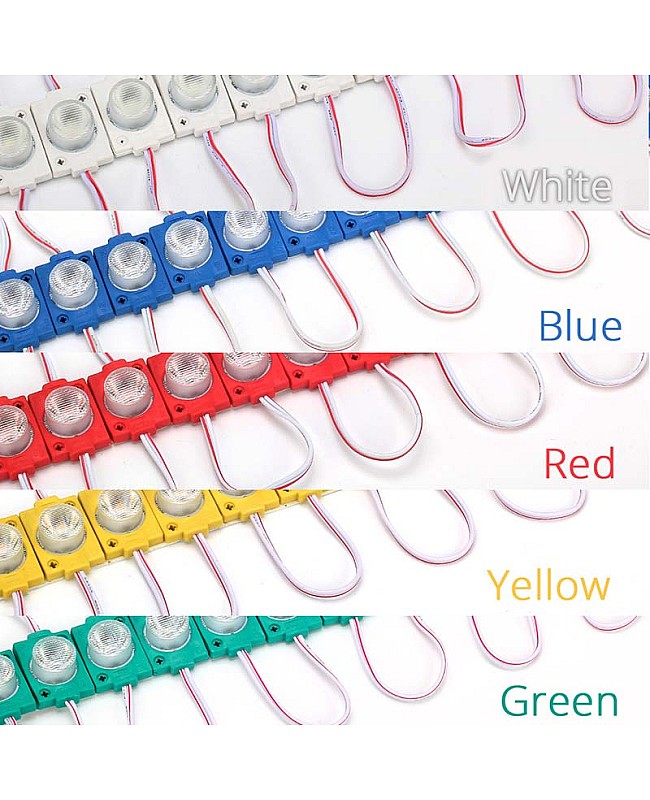

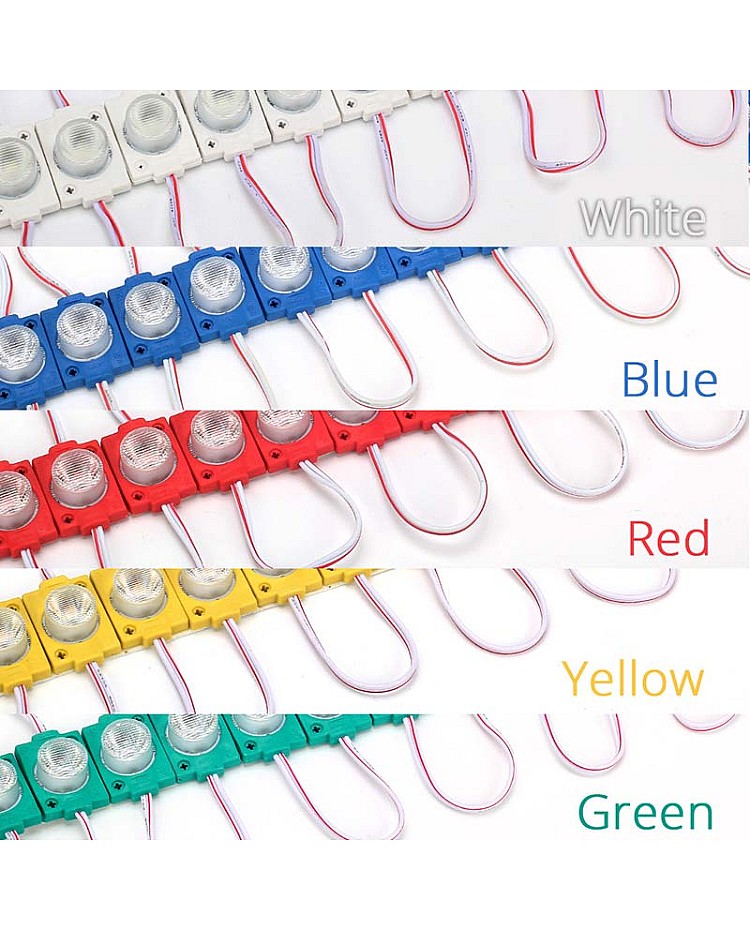

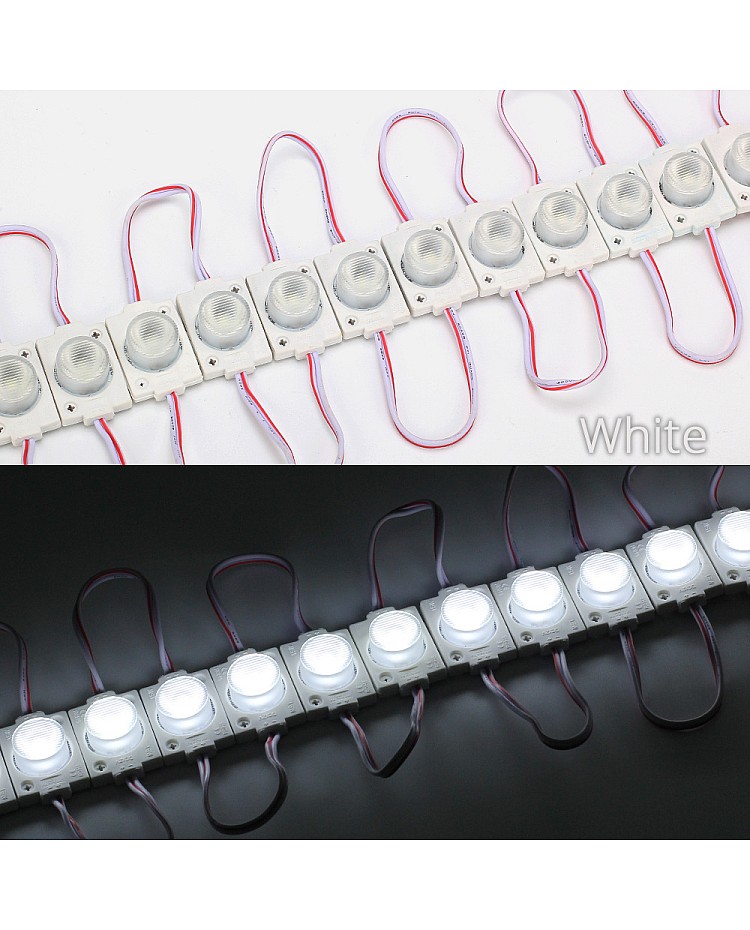

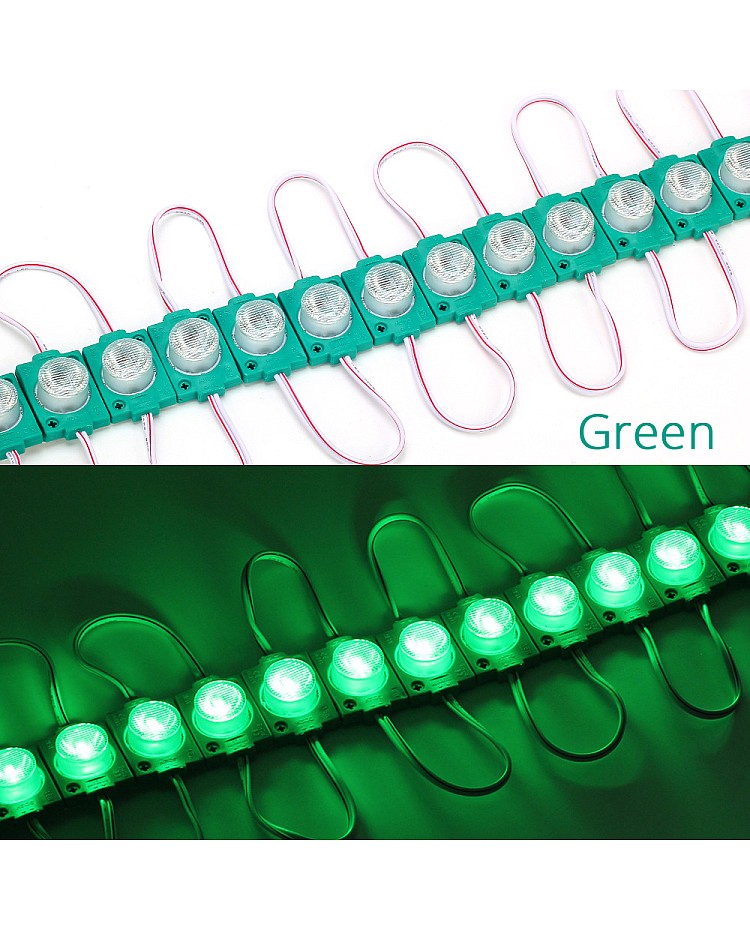

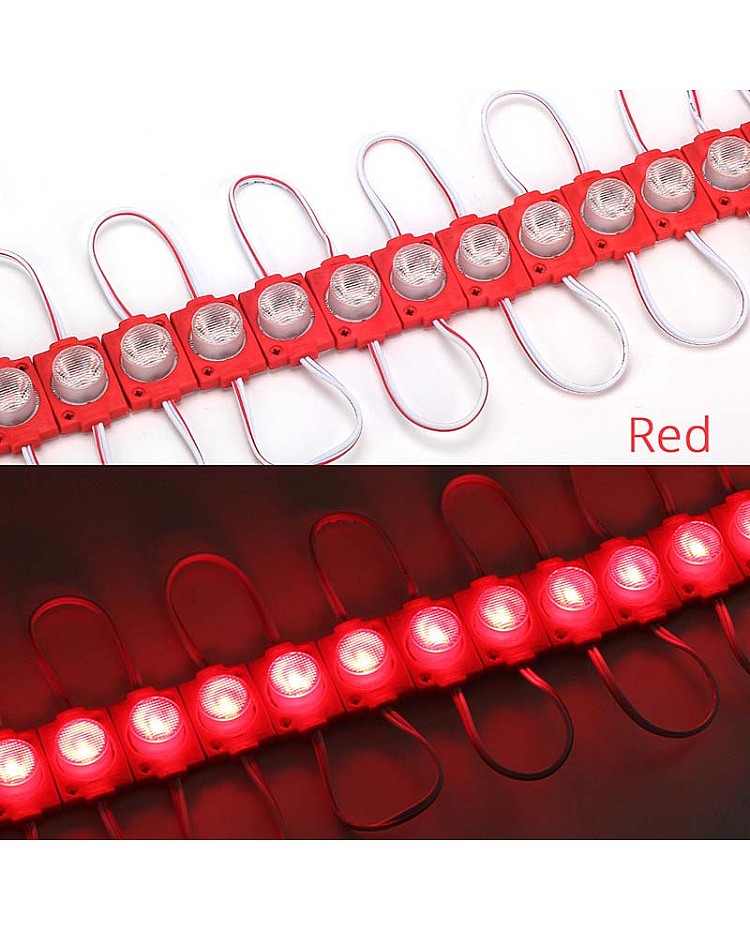

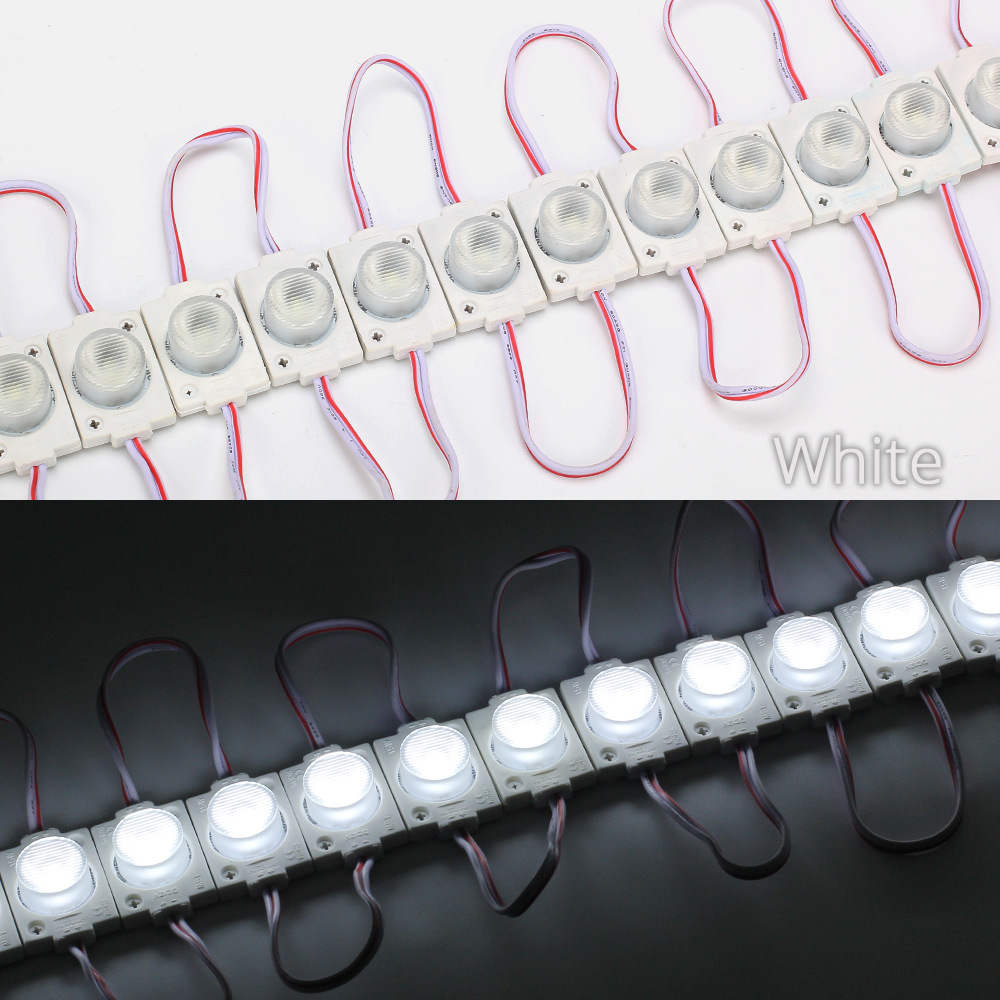

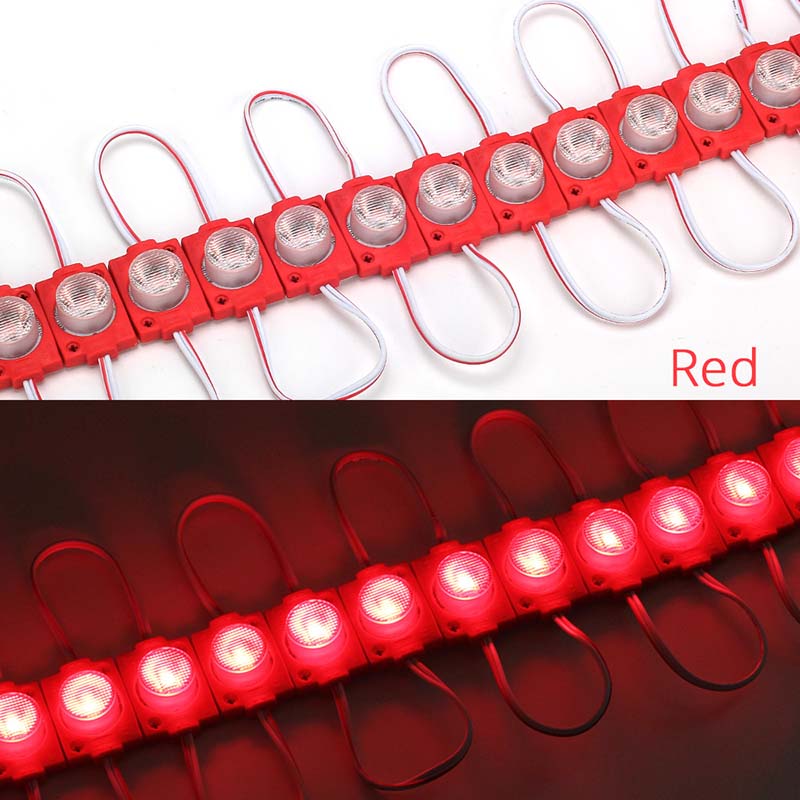

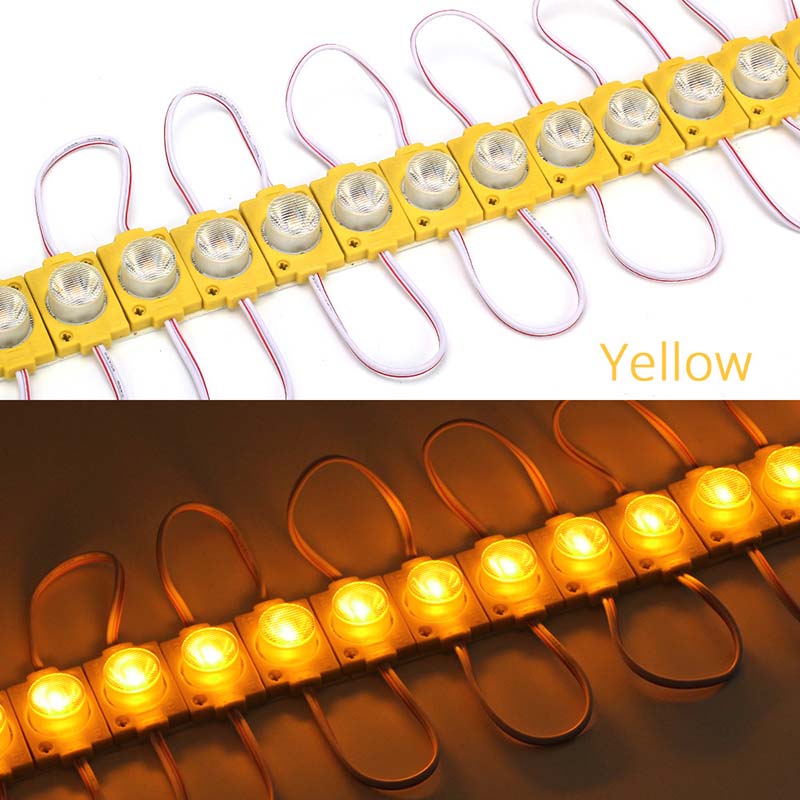

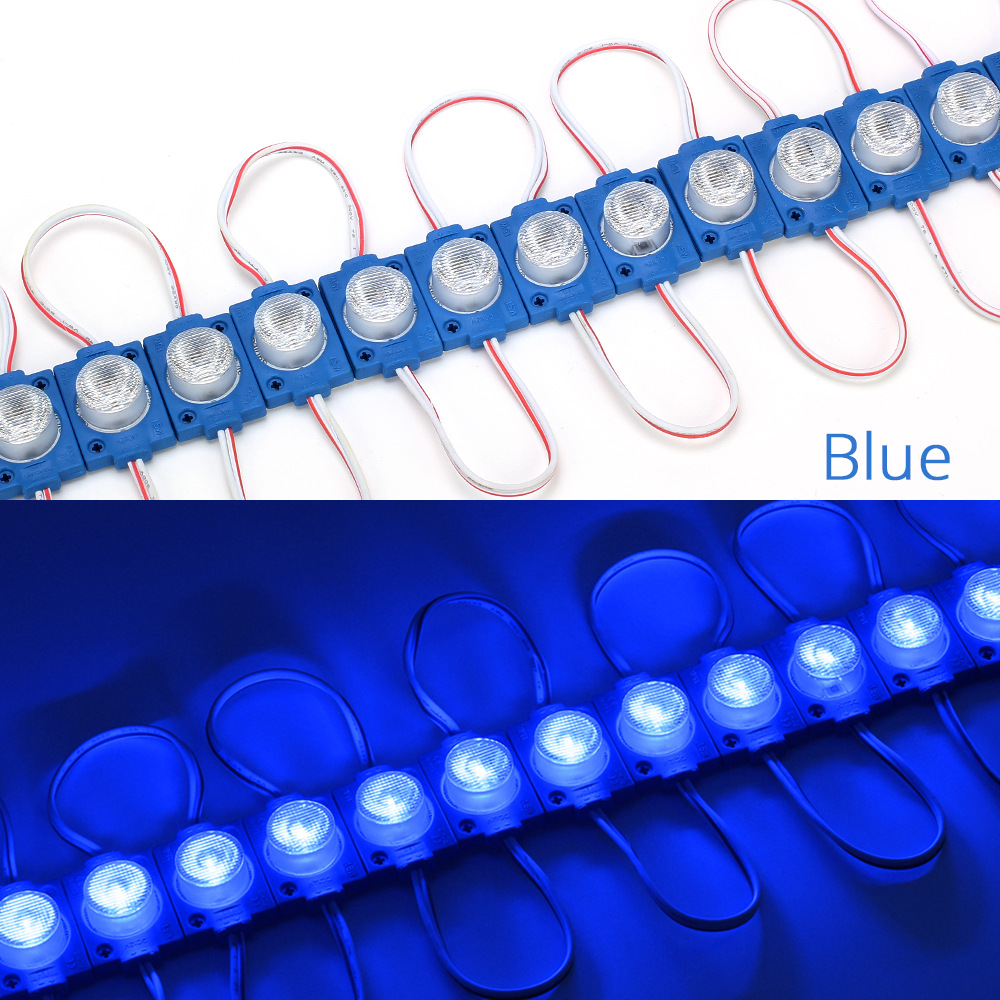

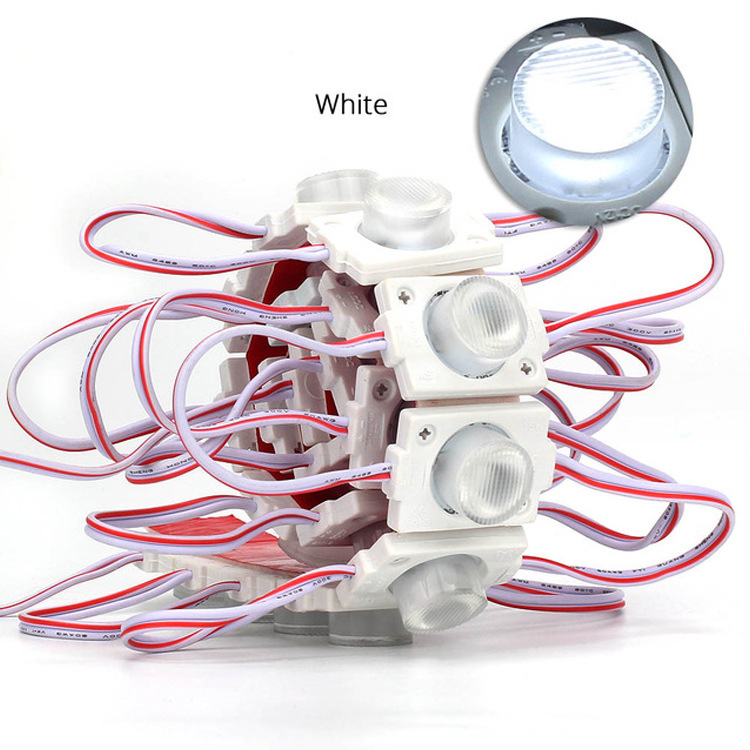

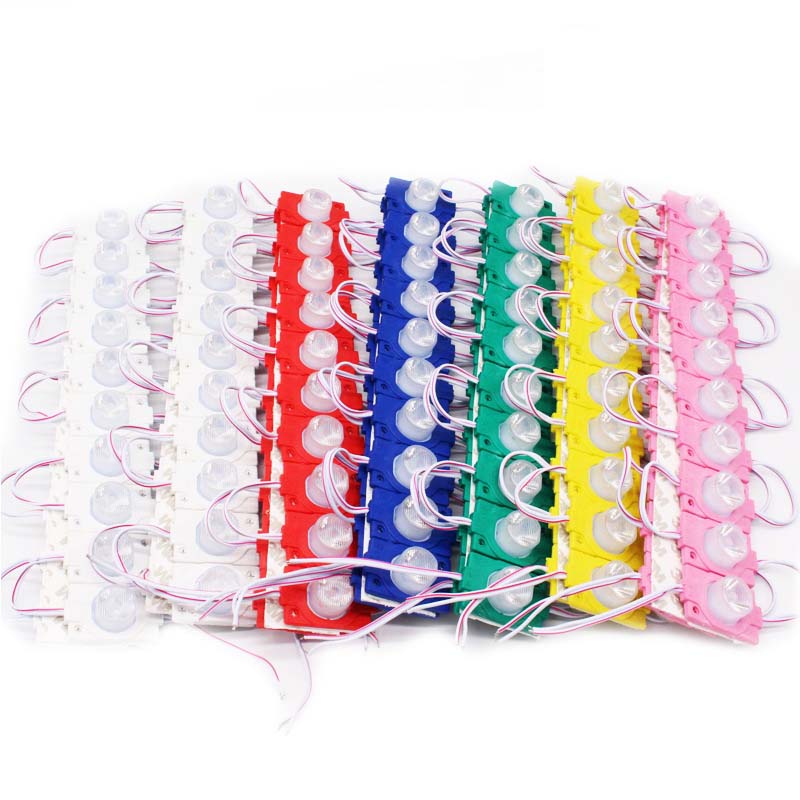

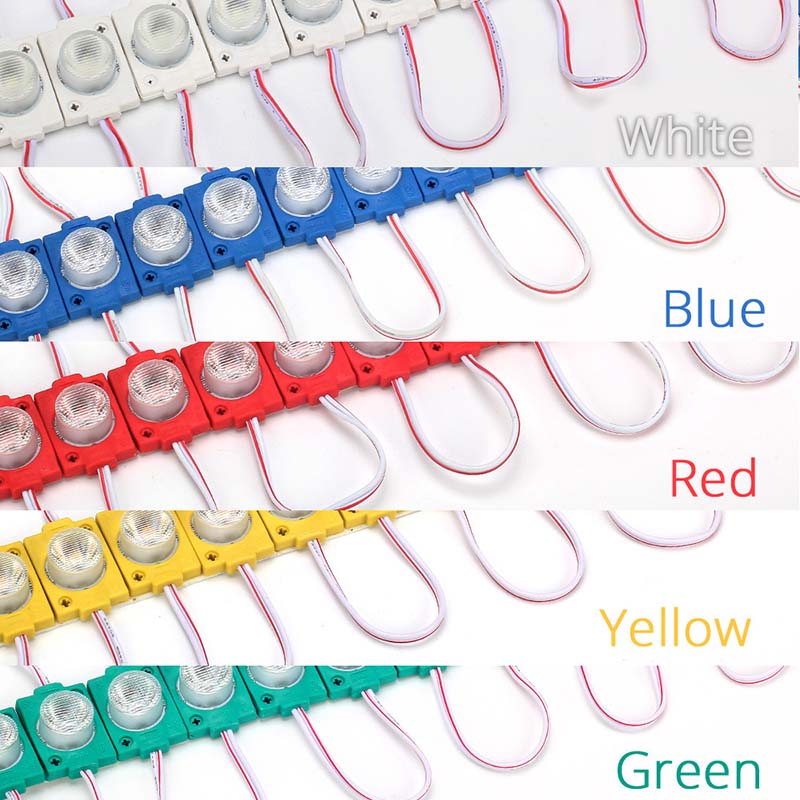

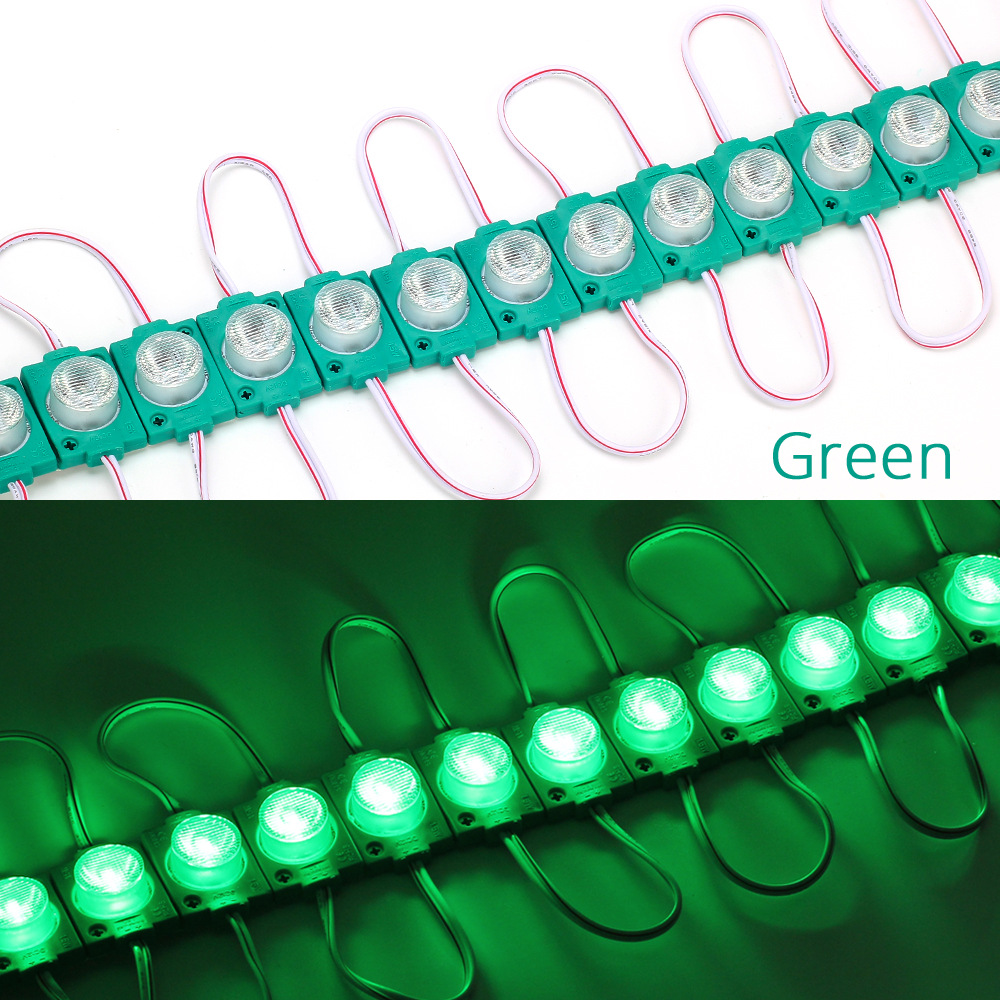

  • Emitting Colors: Warm White, Cool White, Blue, Green, Red, Yellow, Pink
  • View Angle: 45°*15°
  • Color Rendering: 80Ra
  • 20PCS Per String
  • Back With Double-Sided Adhesive Tape
  • Wire Length Between Modules: 14cm
  • Cuttable And Reconnectable
  • Lifespan: >30,000 Hours
  • 2 Years Warranty


Applications:

LightBox And Signage: 8-20cm Double-Sided Light Box,

Round Corner Advertising Signs, Exhibition Show, Ceiling Roof Light,

Institution Building, Commercial Lighting, Backlights For Channel Letters, Billboards.


Includes:

1*3030 LED Sign Lighting Modules(20PCS/String)

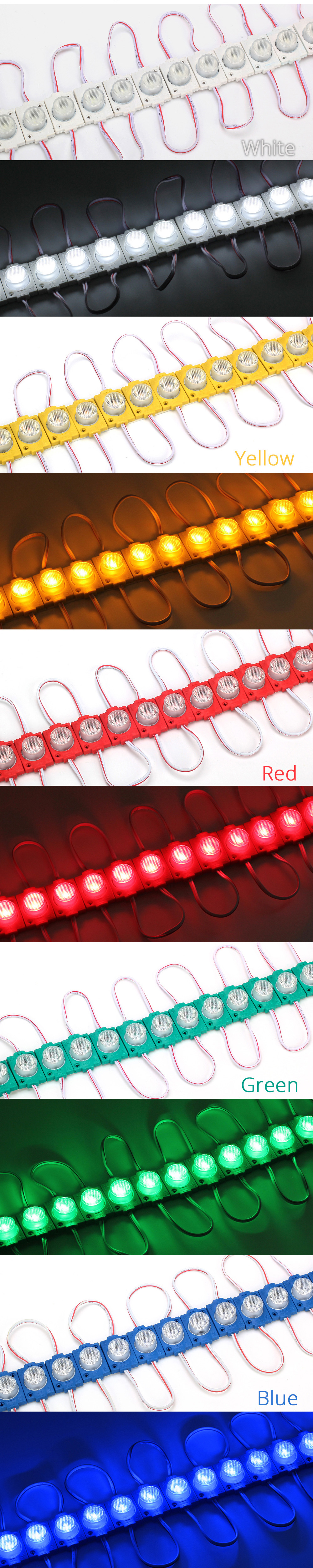

Injection LED Sign Module Lights
