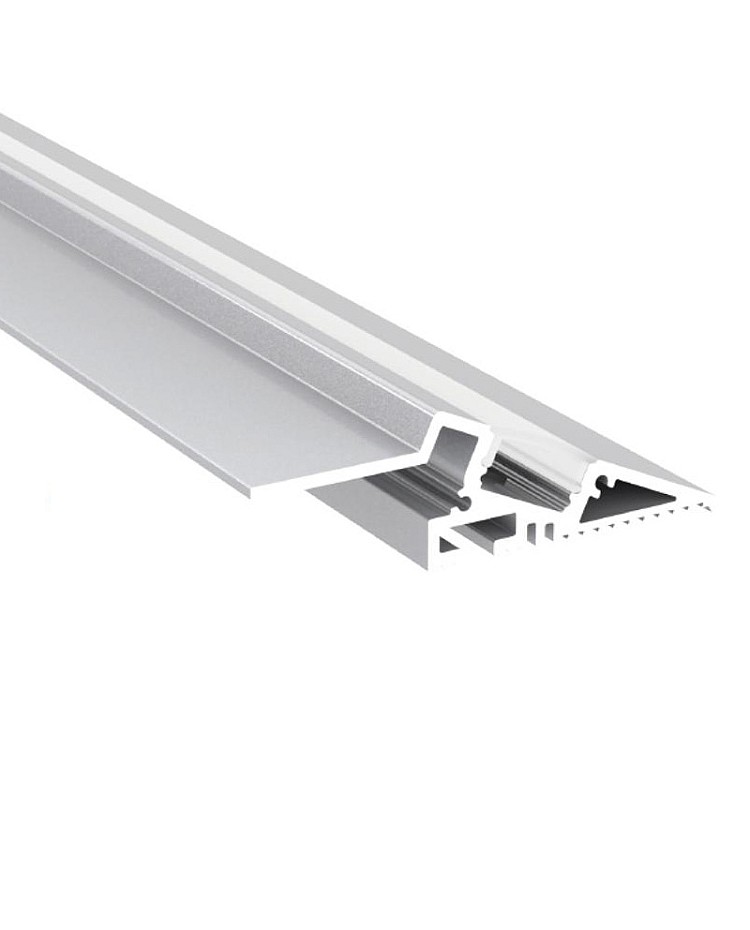

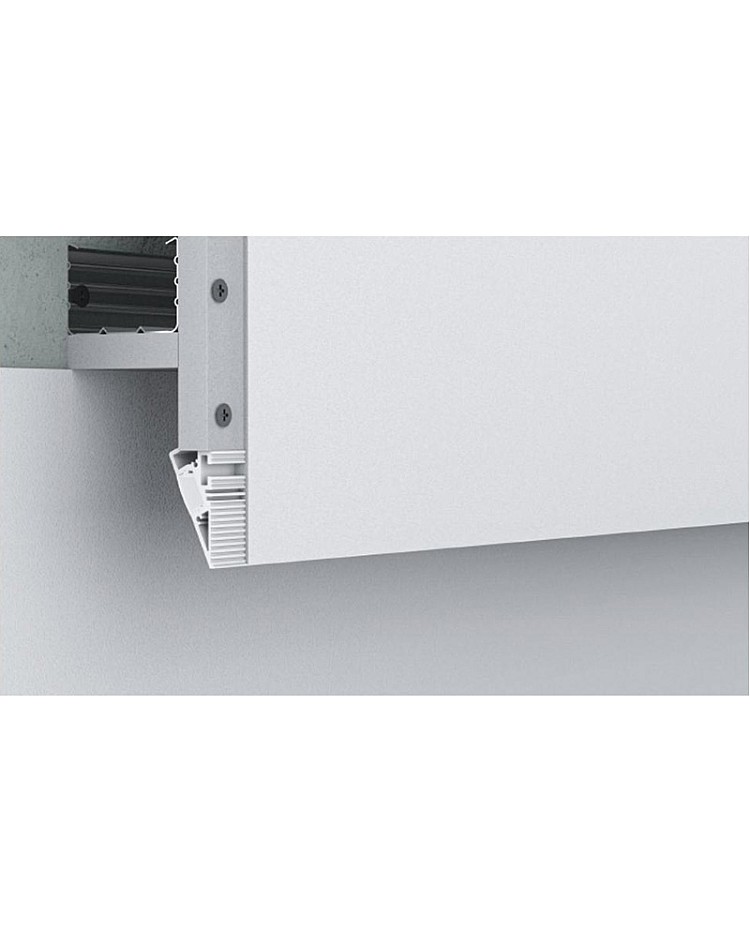

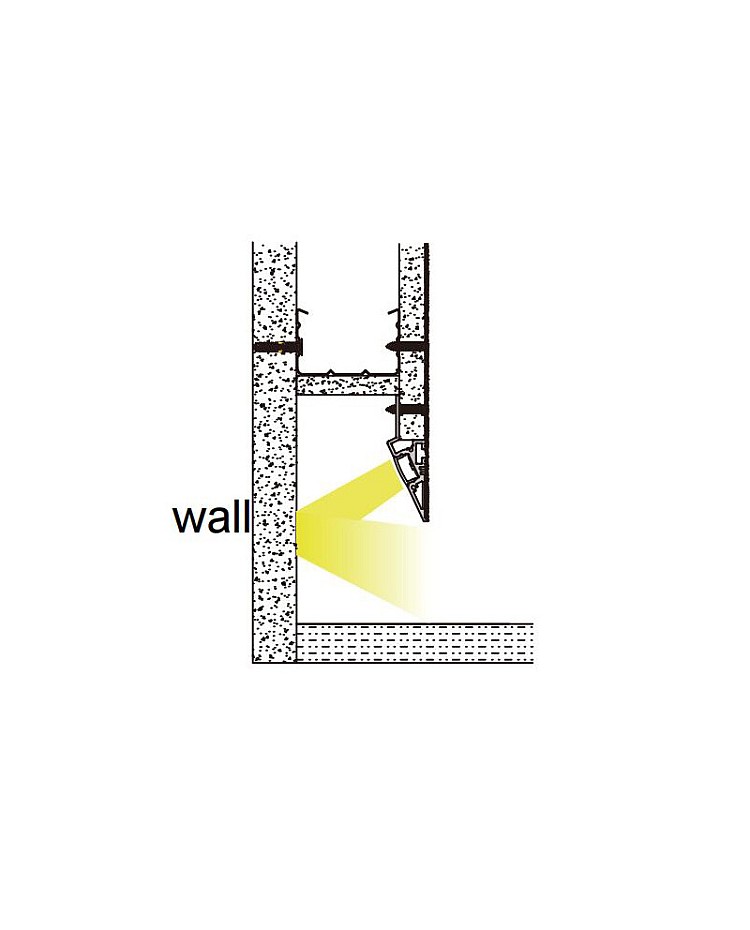

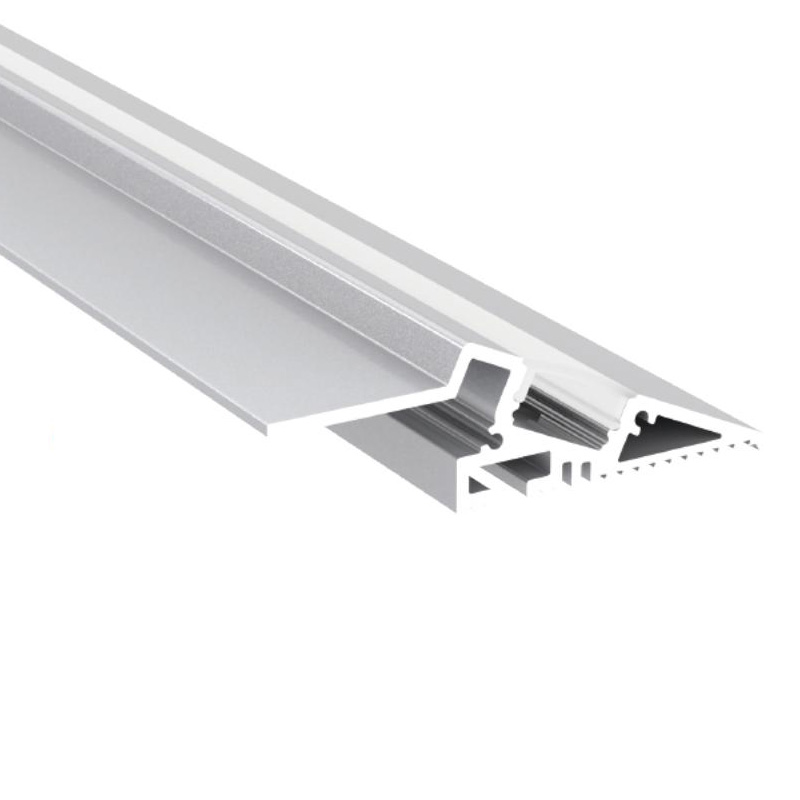

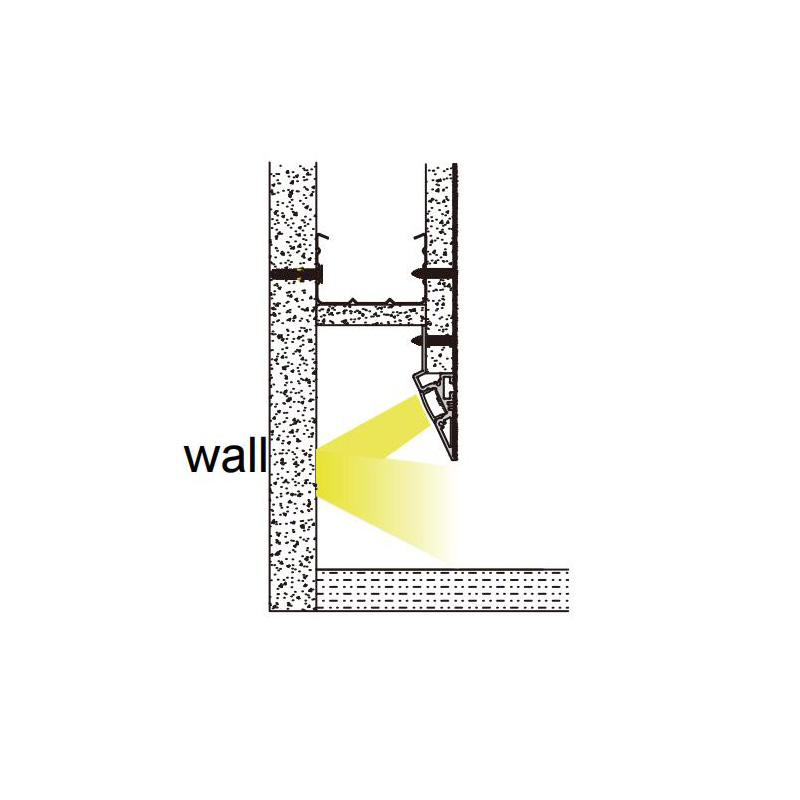

These trimless LED channels can be seamlessly installed flush in 1/2" plasterboards on false ceilings or walls for a clean and minimalist finish. They are designed for indirect wall-washing effects in drywall ceilings or false walls. The angled light output softly illuminates wall surfaces, making it ideal for ambient and decorative lighting in residential or commercial interiors. The stock lengths are 1m and 2m, and can be cut to any size to meet your needs. The aluminum LED channels are made of extruded aluminum alloy with an anodized finish, offering anti-oxidation resistance, energy efficiency, and long-lasting durability. Several types of diffusers are available, and they are made of brand-stable material, anti-yellowing, and with perfect light distribution. The inner width is 12.3 mm, allowing for a maximum strip light width of 12 mm. We recommend adding high-density SMD or COB LED strips as the light source, with no visible light dots, to create a smooth and seamless illumination. The 90° inside connectors, 90° outside connectors, and 180° couplers are available and can be used for interior lighting design.

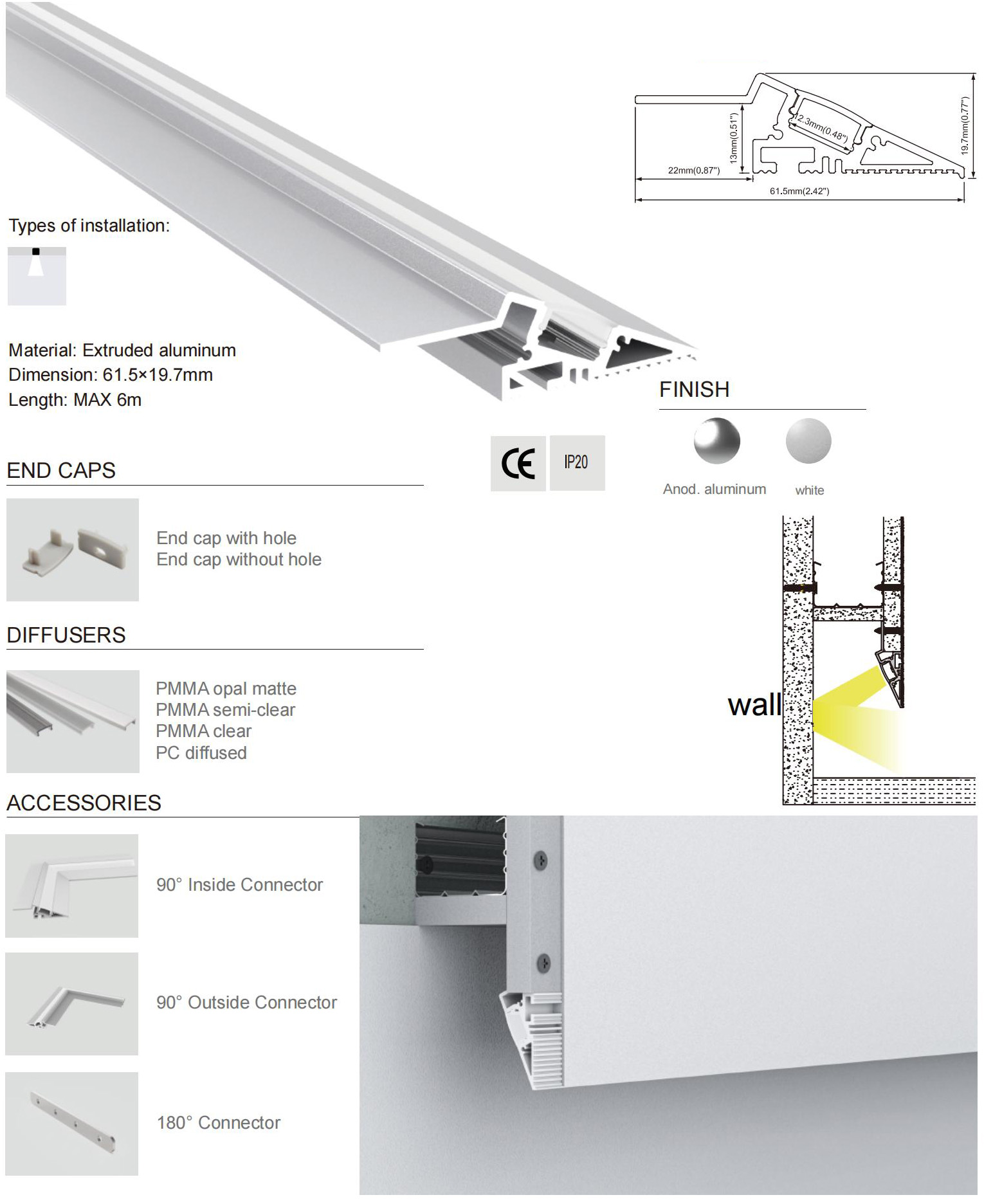

Specifications:
- Model: ALP199
- Material: Extruded aluminum
- Surface Treatment: Anodized finish
- Colors: Silver

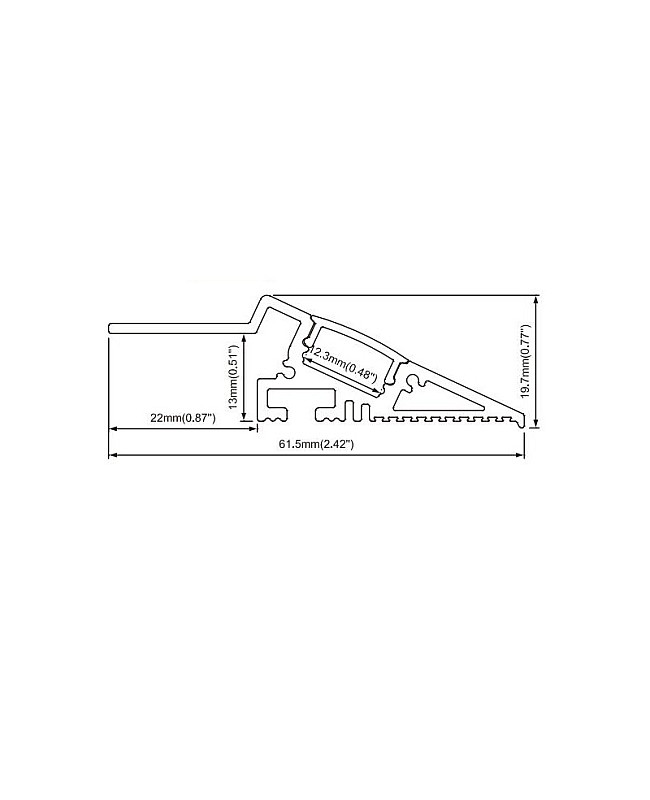

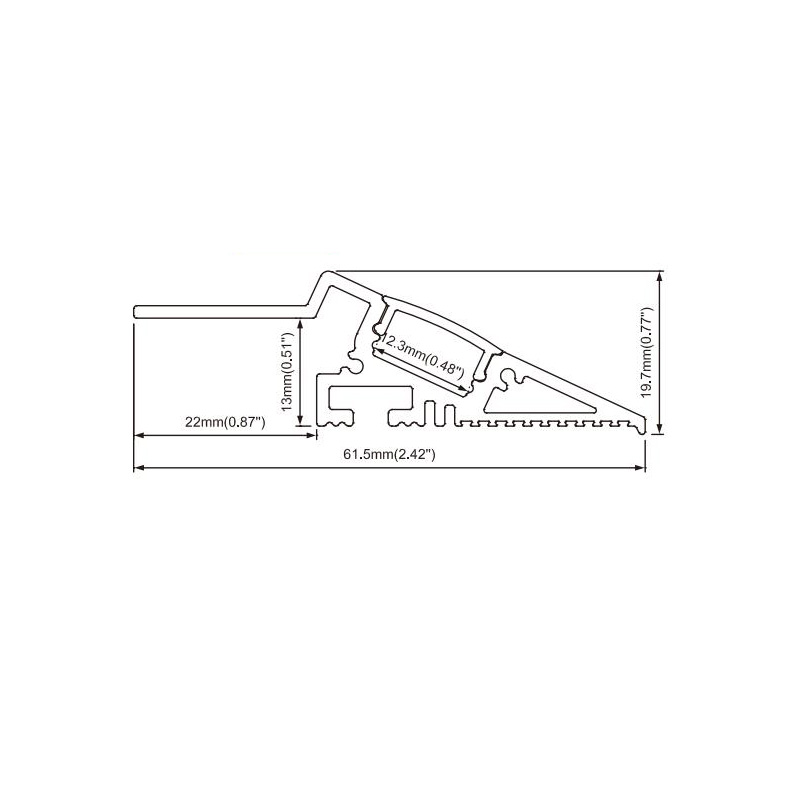

- Size(W*H): 61.5 mm x 19.7 mm ( 2.42" x 0.77" )
- Standard Length: 1 m( 39" ) / 2 m ( 78" )
- Custom Length: YES
- Inner Width: 12.3 mm ( 0.48" )
- Allows the maximum width of strip lights to be 12 mm ( 0.47" )
- Max Power: 15W per meter
- Diffusers: PC diffused cover / PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover

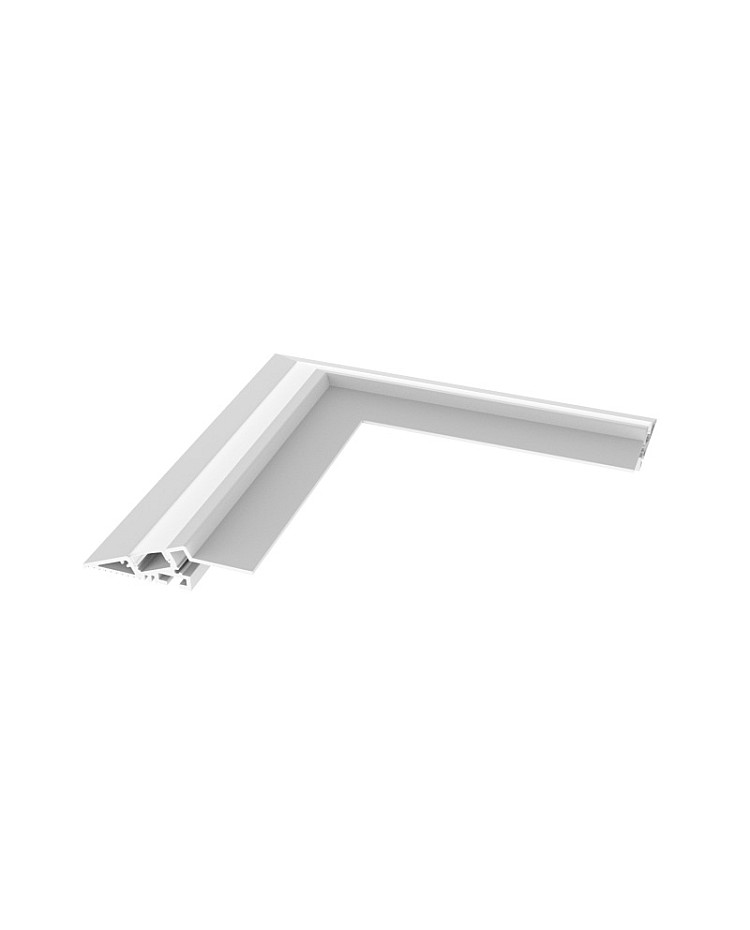

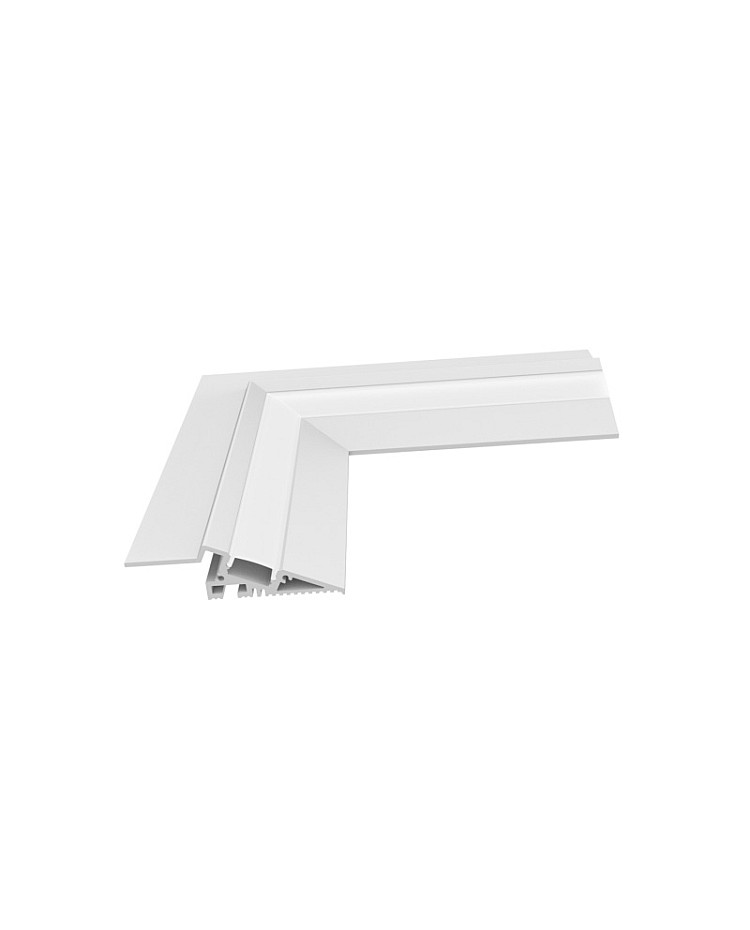

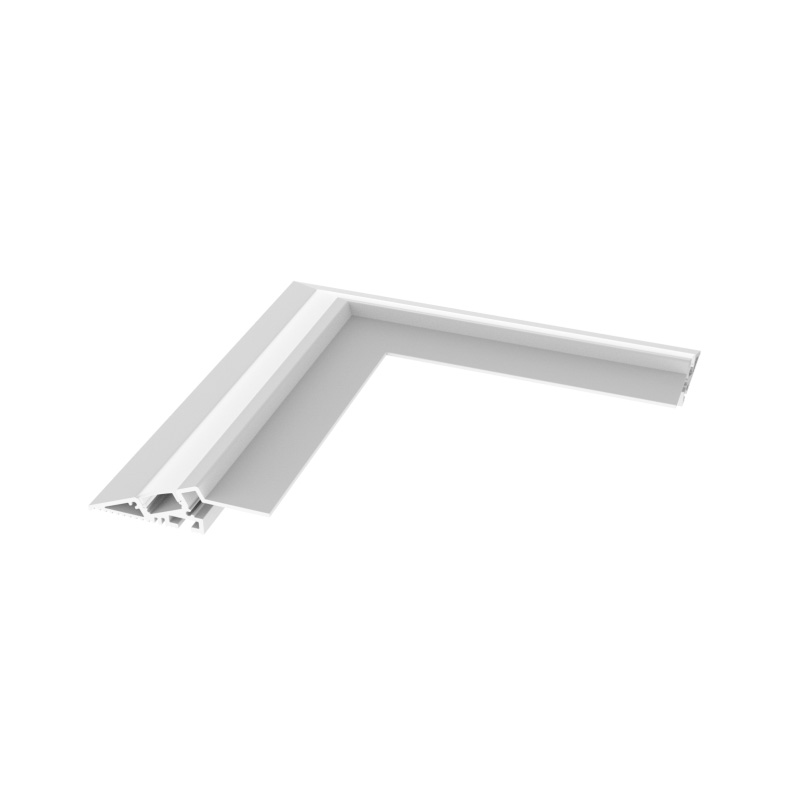

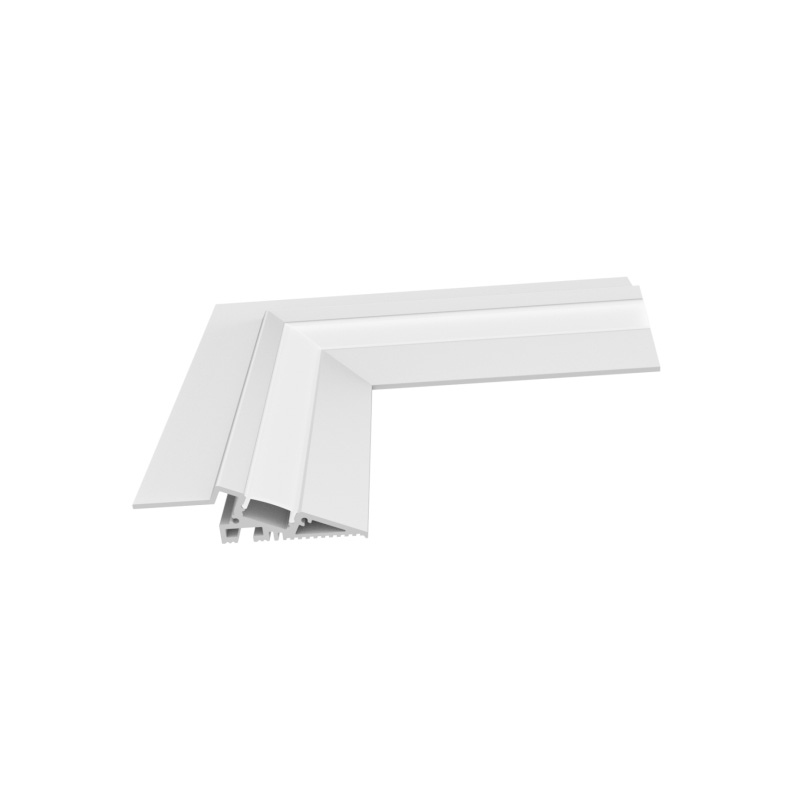

- 90° inside connector, 90° outside connector, 180° couplers are sold separately
- Installation: Plaster-in
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

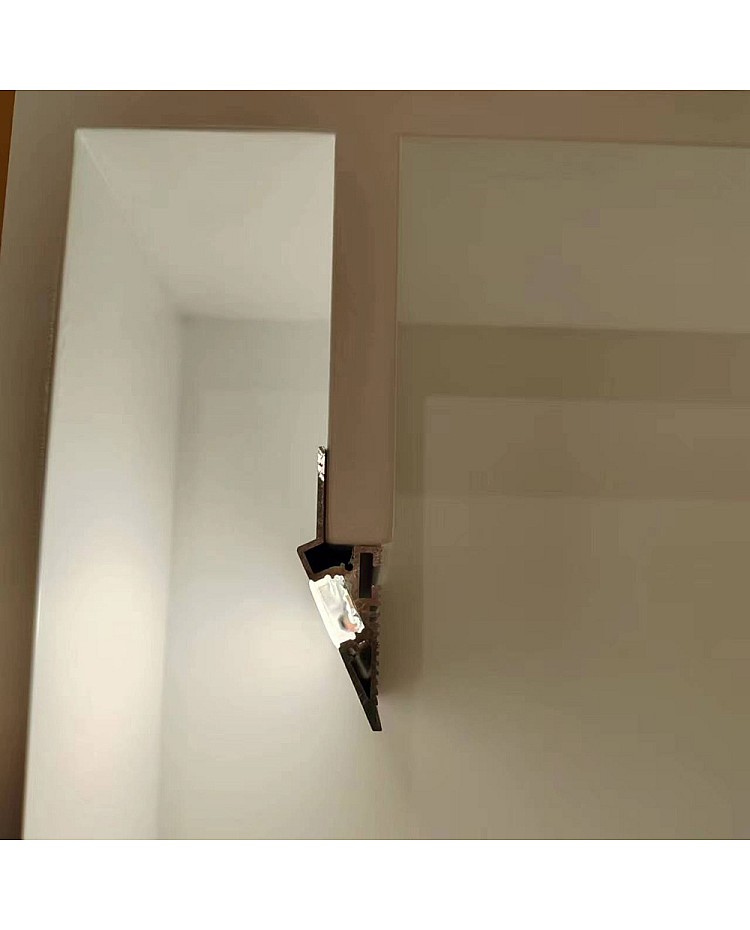

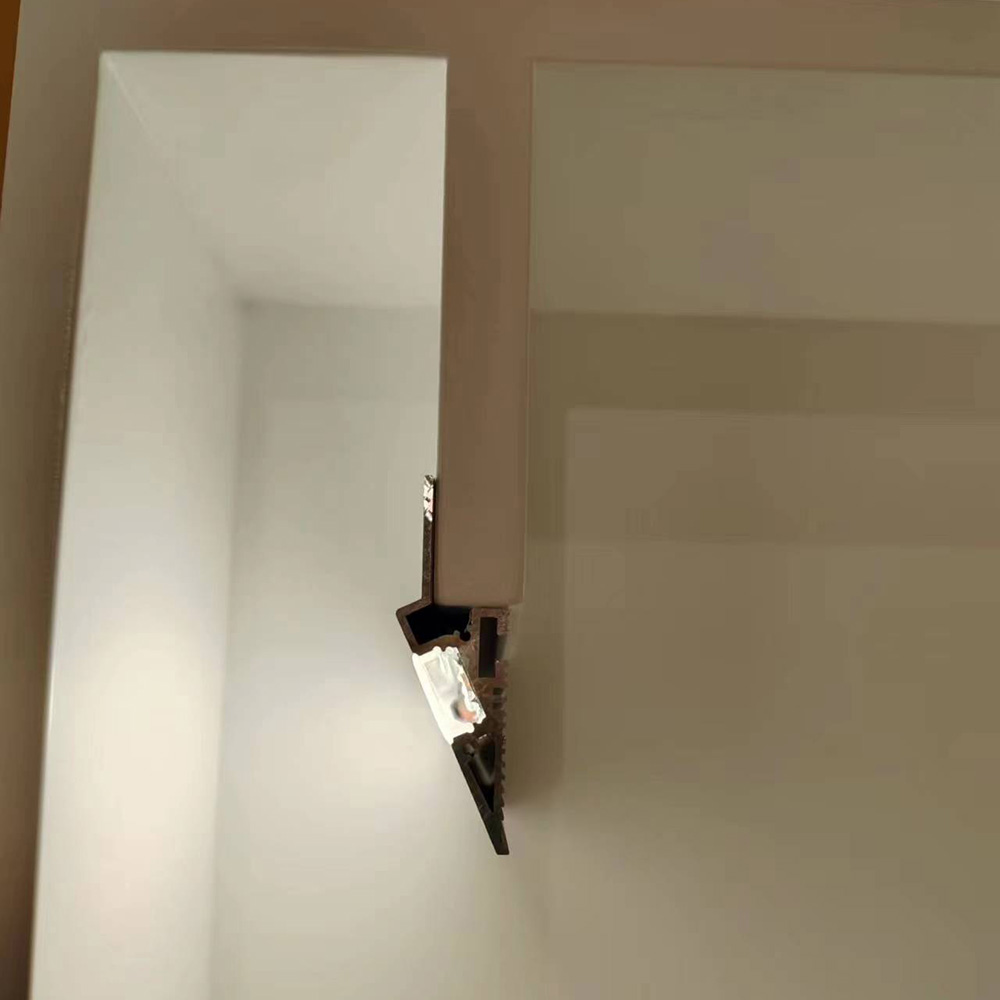

- Wall Cove Lighting: Recessed into a false wall or niche to cast soft, indirect light downward or upward onto a wall. Ideal for hotel lobbies, hallways, and feature walls.

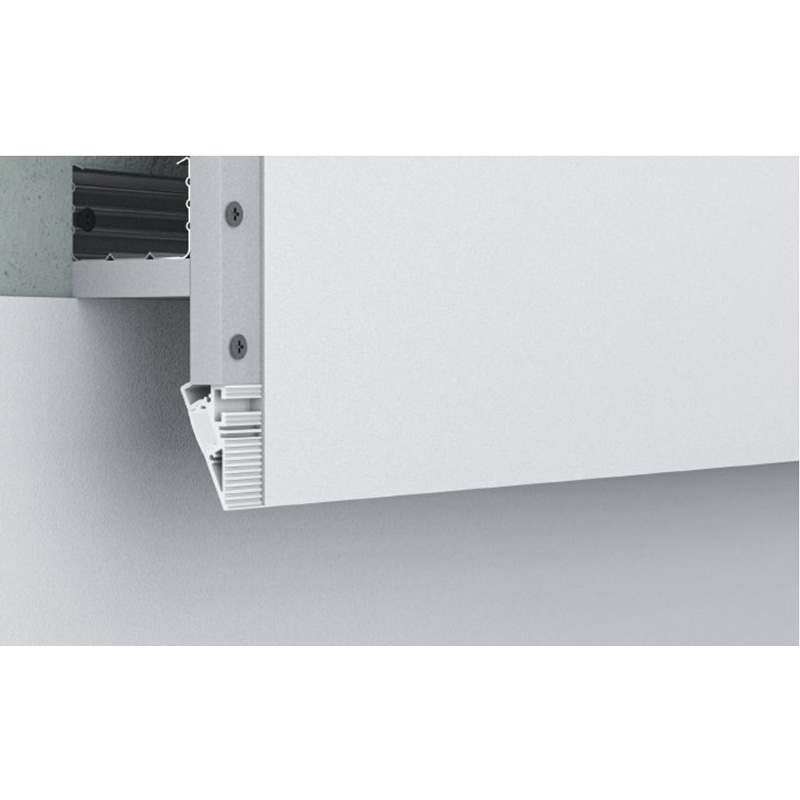

- Ceiling to Wall Transitions: Installed in suspended ceilings.
- Architectural Niches.
- Reception or Lobby Walls.
- Retail storefront walls.
- Residential accent walls in living rooms, staircases, and bedrooms.
Includes:
1 * Aluminum LED channel with diffuser

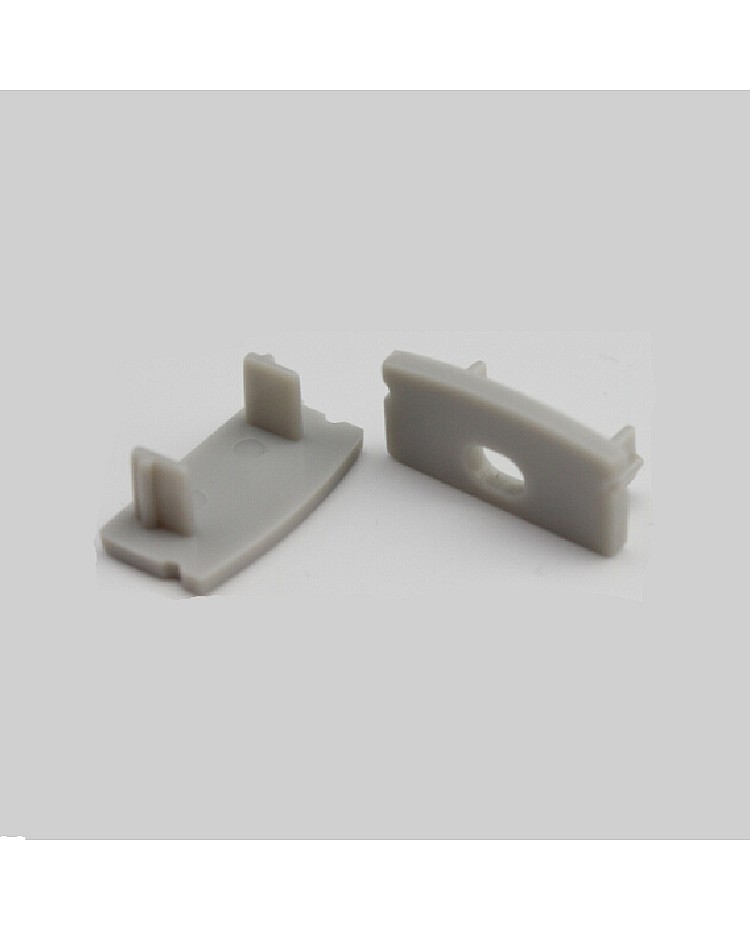

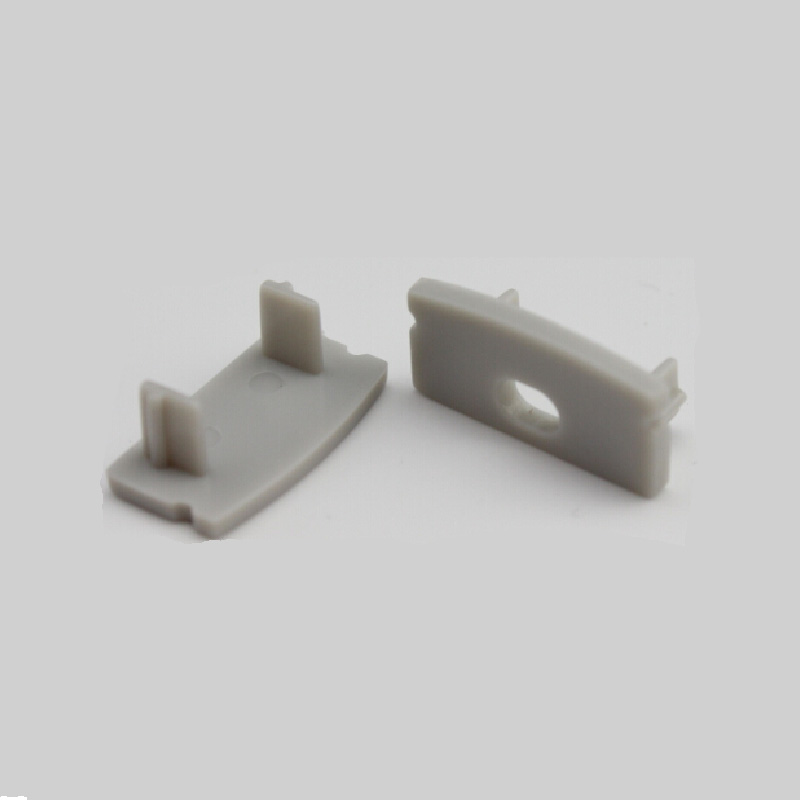

End caps
