  • Brand: Hoion
  • Product Code: DLC004

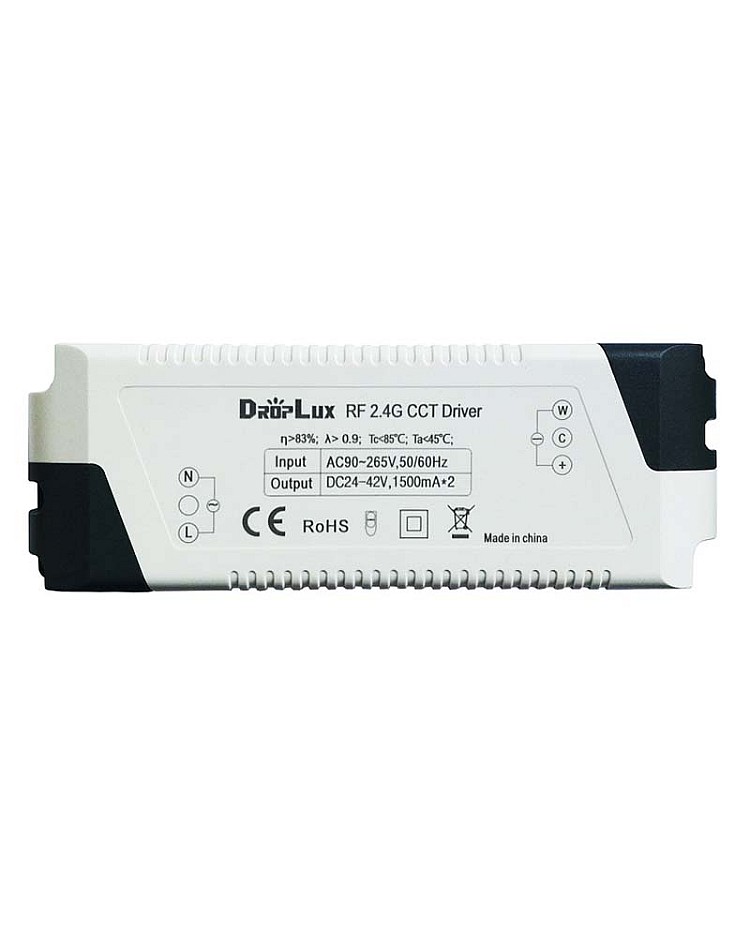

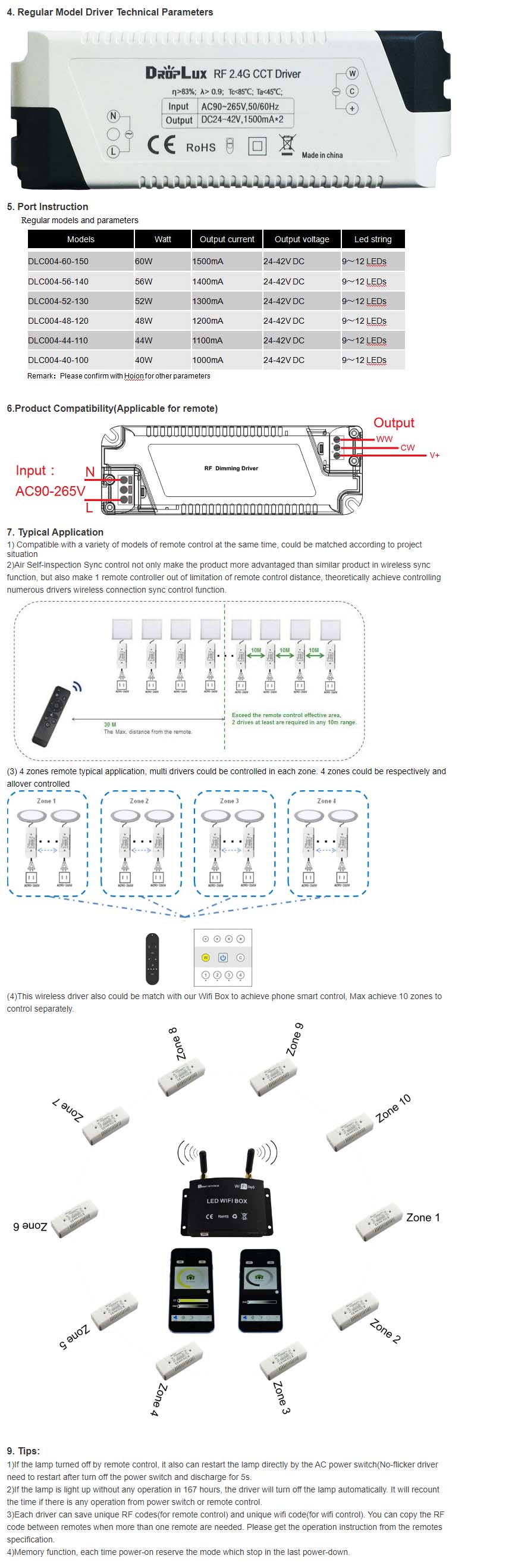

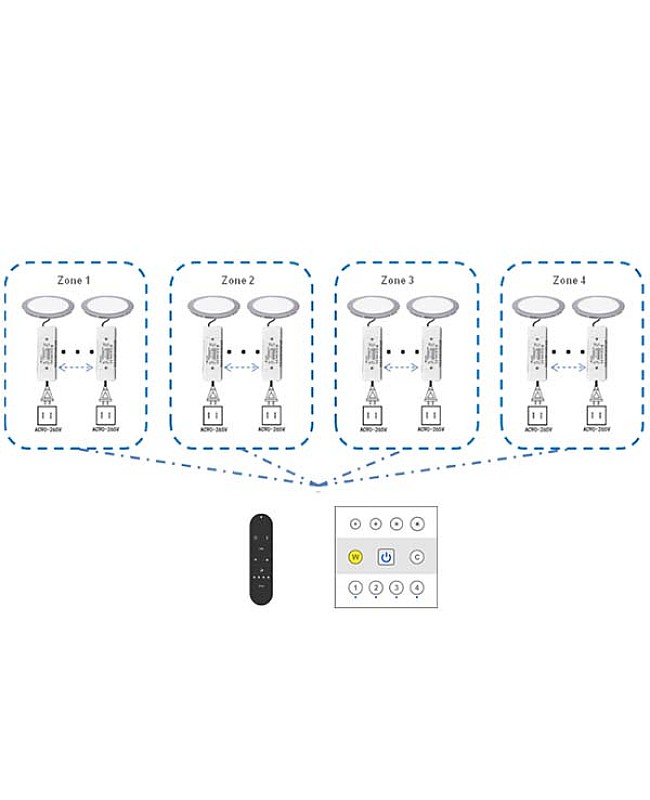

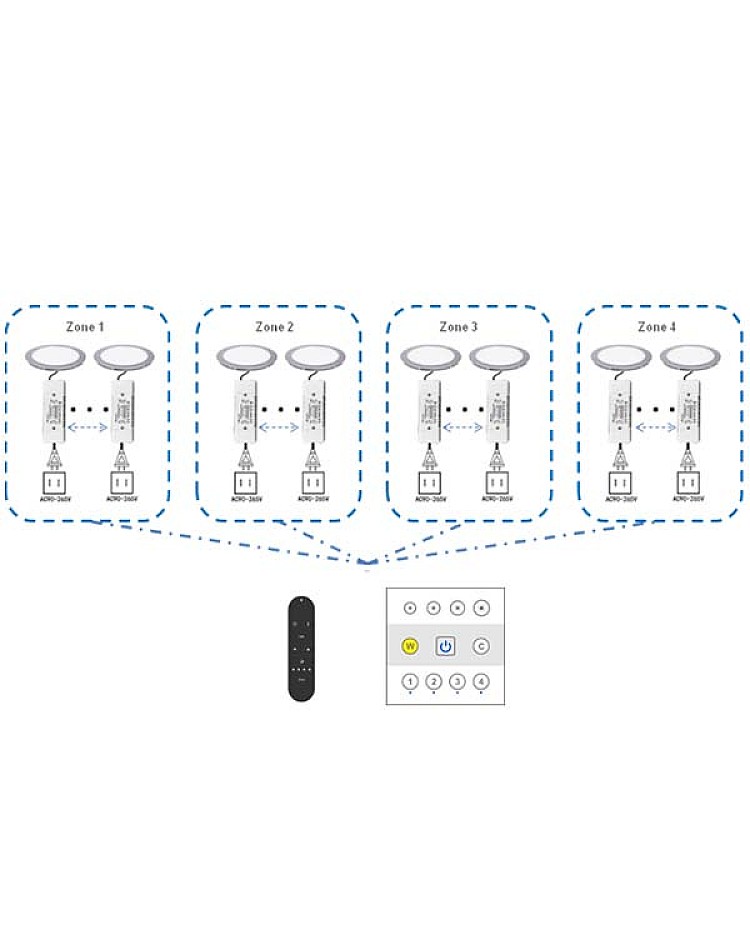

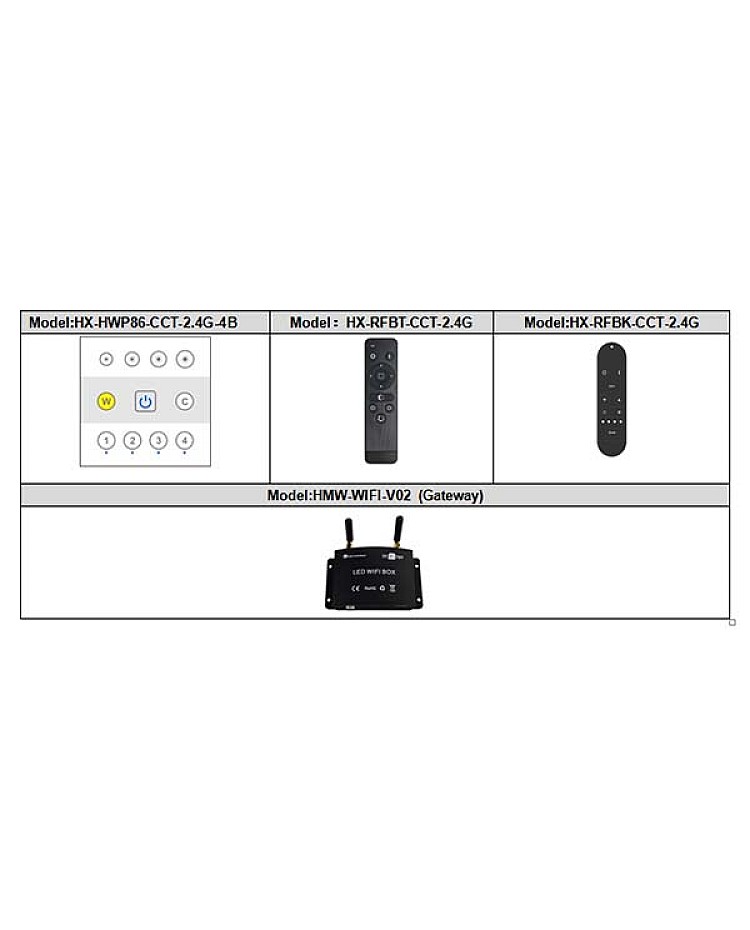

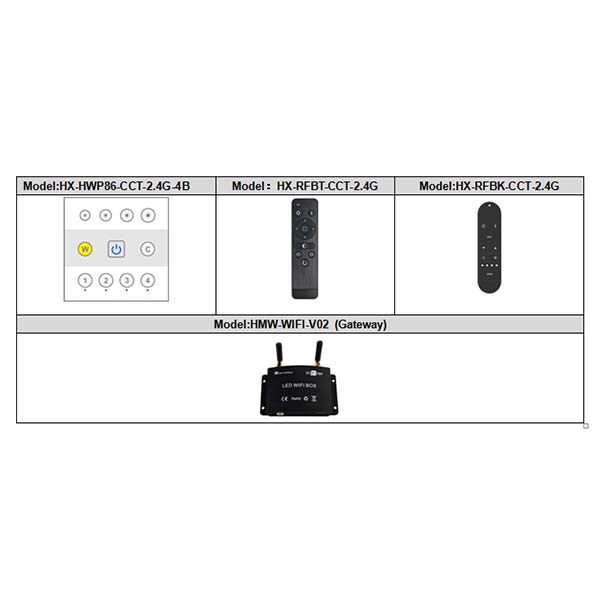

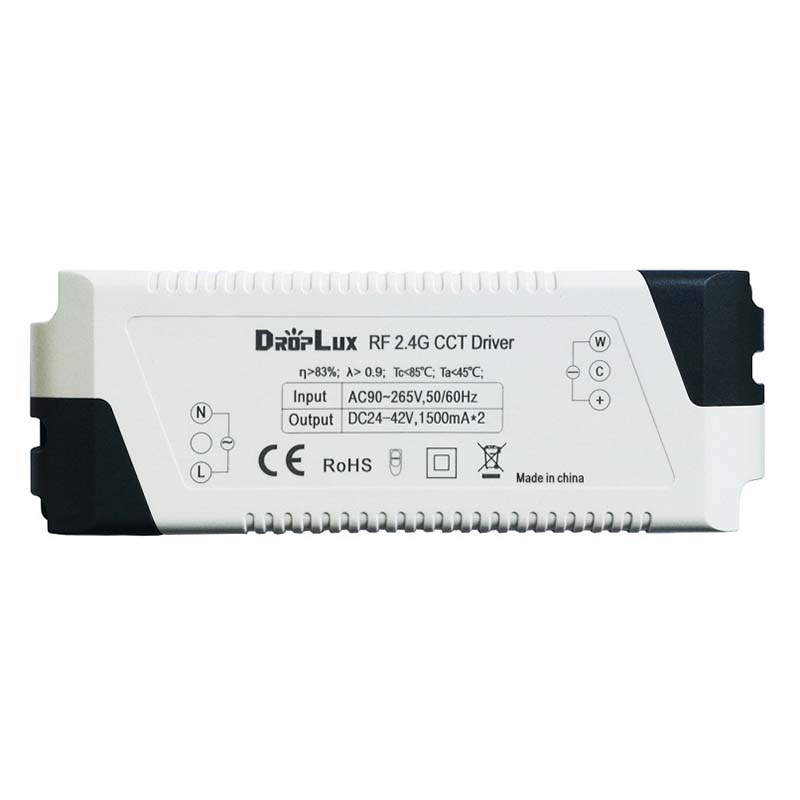

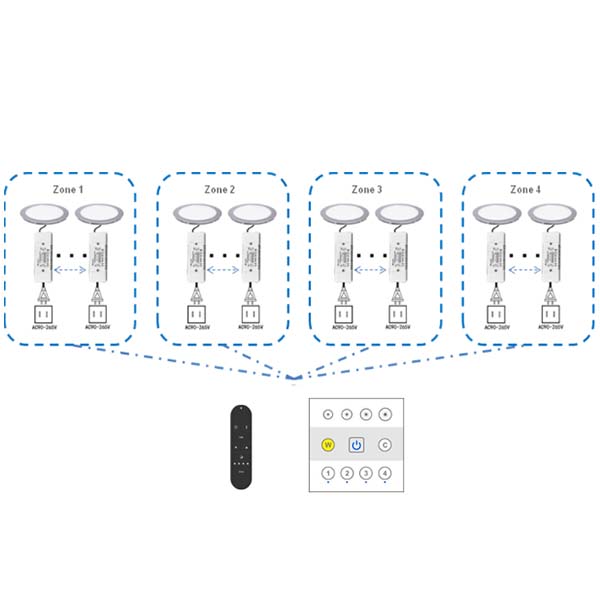

The 2.4G RF CCT LED Dimming Drivers are a perfect choice for constant current Tunable White LED Lights, and can be widely used for intelligent household, commercial indoor lighting, and many more. Various output current products are available, and you can choose the 1000mA, 1100mA, 1200mA, 1300mA, 1400mA, or 1500mA. Designed for the constant current CW+WW LED Lights, Panel Lights, Ceiling Lights, Downlights, etc. With an isolated driver design, working in AC90V to AC264V can connect to the public power system directly without an extra adapter. Adopts the advanced PWM digital dimming technology, 1024 levels dimming grade, and 3-100% dimming range allowing the dimming smoothly without any flash. Compatibility with Hoion 2.4G RF single-zone or multi-zone CCT LED Remote Controls allows you to adjust the brightness of color temperature freely. The Dimmable Driver is also compatible with the Freelighting App control system, achieving WIFI intelligent control by your mobile phone and Pads. The air self-inspection sync control technology, which makes the remote out of the limitation of remote control distance, theoretically achieves controlling numerous driver's wireless connection sync control functions.


  • Model: DLC004
  • Size: 157*54*36mm(L*W*H)
  • Input Voltage: AC90V-AC264V
  • Frequency Range: 47-63Hz
  • Input Rated Current: 0.31A(Full Load)
  • Surge Current: <50A
  • Standby Power: ≤1.1W
  • Efficiency: 87%(Full Load)
  • Power Factor: 0.95(Full Load)
  • Input Port: Two Lines Input(L/N)
  • No Load Voltage: 53V
  • Working Voltage Range: DC24V-DC42V
  • Max Loading Power: 60W
  • Current Accuracy: ±5%
  • PWM Frequency: 11.7KHz
  • Dimming Level: 1024
  • Dimming Range: 3-100%
  • Video Effect: Non-Flicker
  • LED Strings: 9-12
  • Output Rated Current: 1000mA(40W), 1100mA(44W), 1200mA(48W), 1300mA(52W), 1400mA(56W), 1500mA(60W)

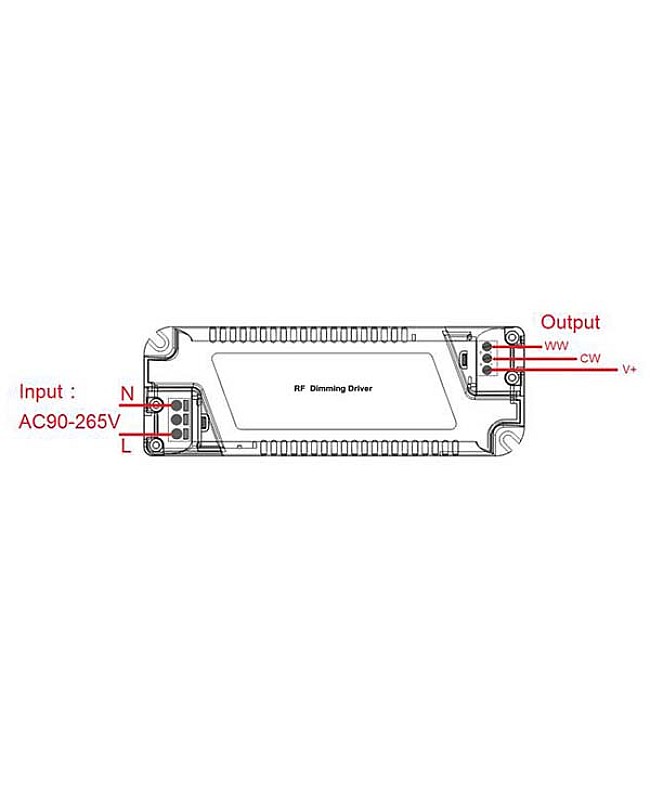

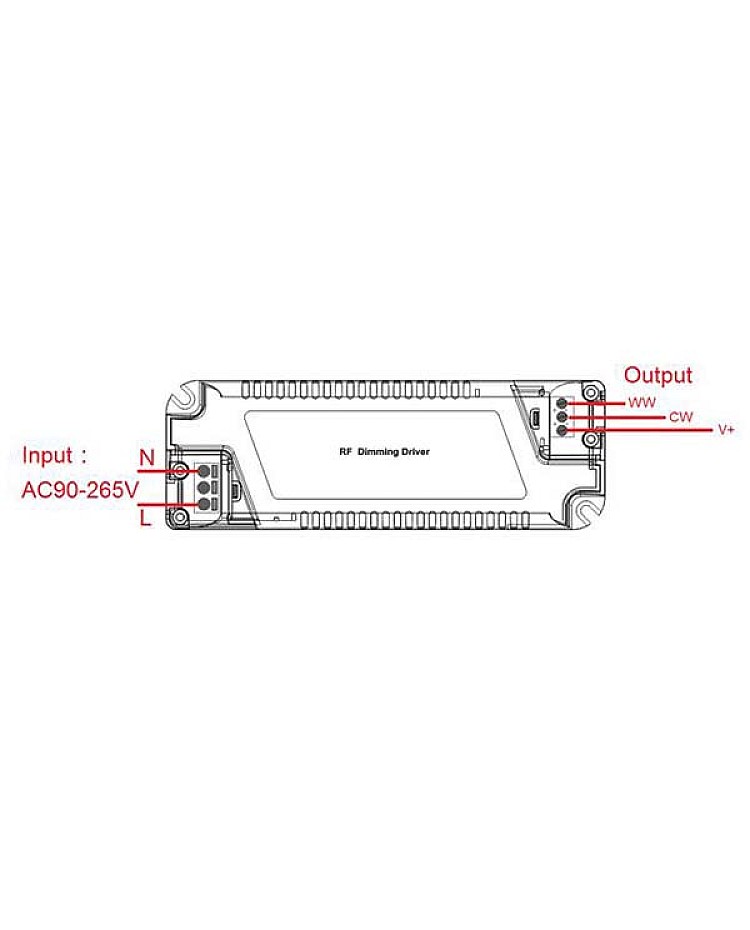

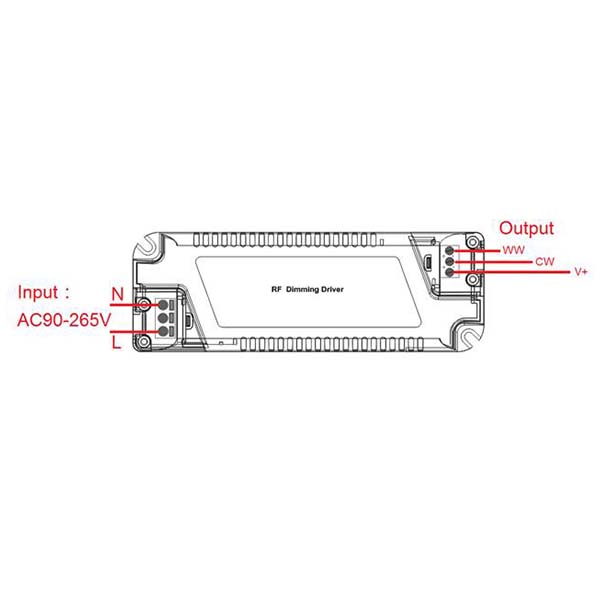

  • Output Port: WW-, CW-, V+
  • Working Temperature: -20-45℃
  • Dustproof/Waterproof Level: IP40
  • Frequency RF Remote Control: 2.4G
  • Remote Control Distance: 30m
  • Over-Voltage Protection: YES
  • Short-Circuit Protection: YES
  • Memory Function: YES
  • Remote Control Sold Separately
  • Weight: 300g
  • 3 Years Warranty


1*CCT LED Dimming Driver(Remote Not Included And Sold Separately)
