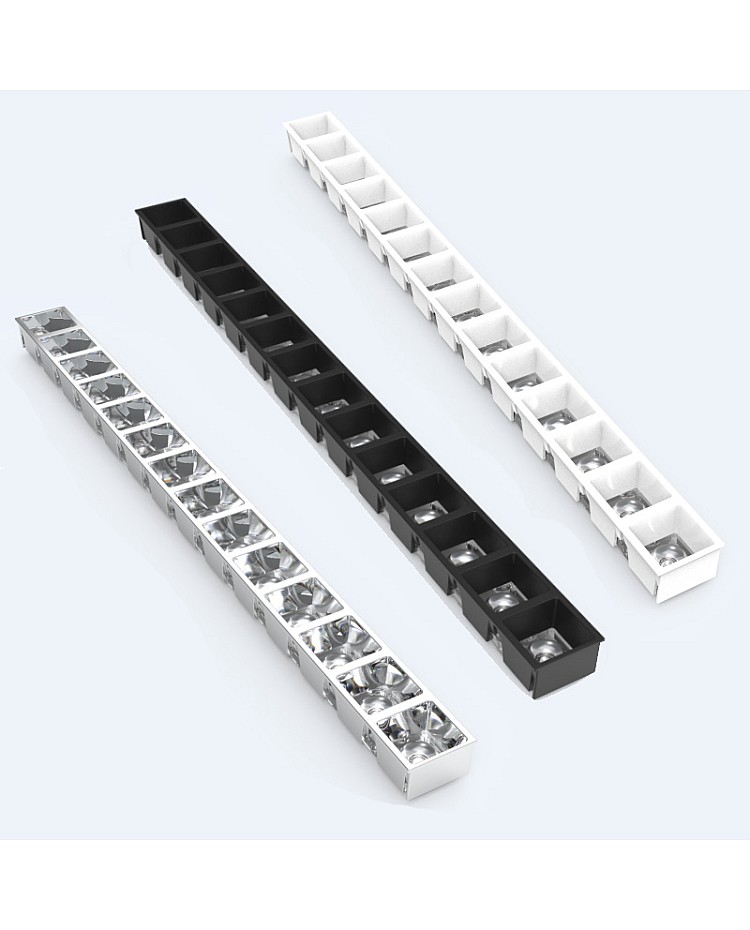

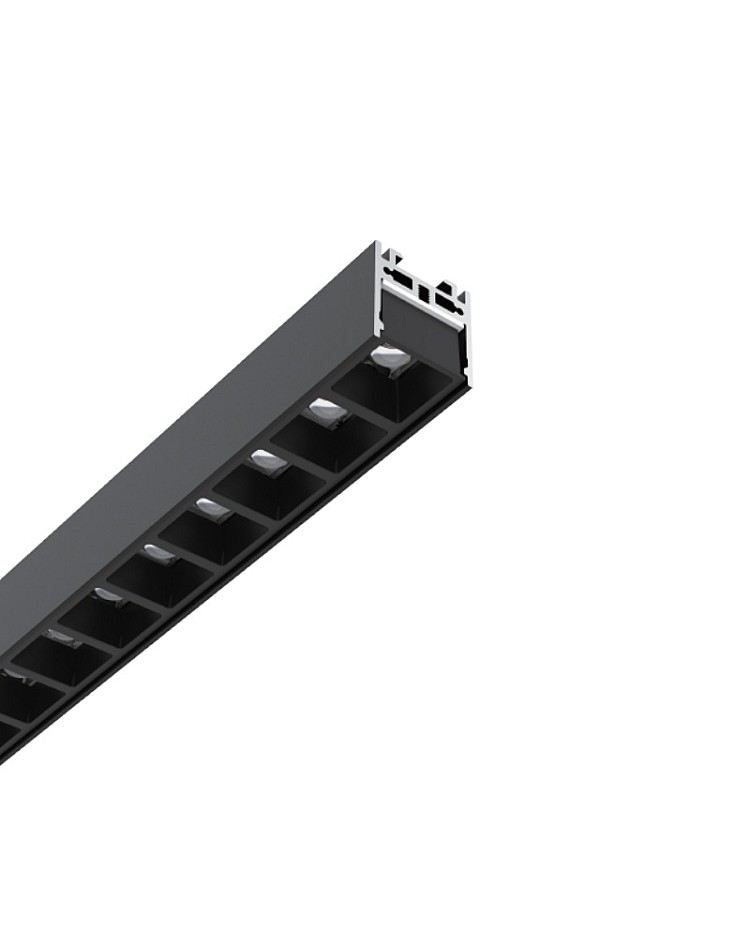

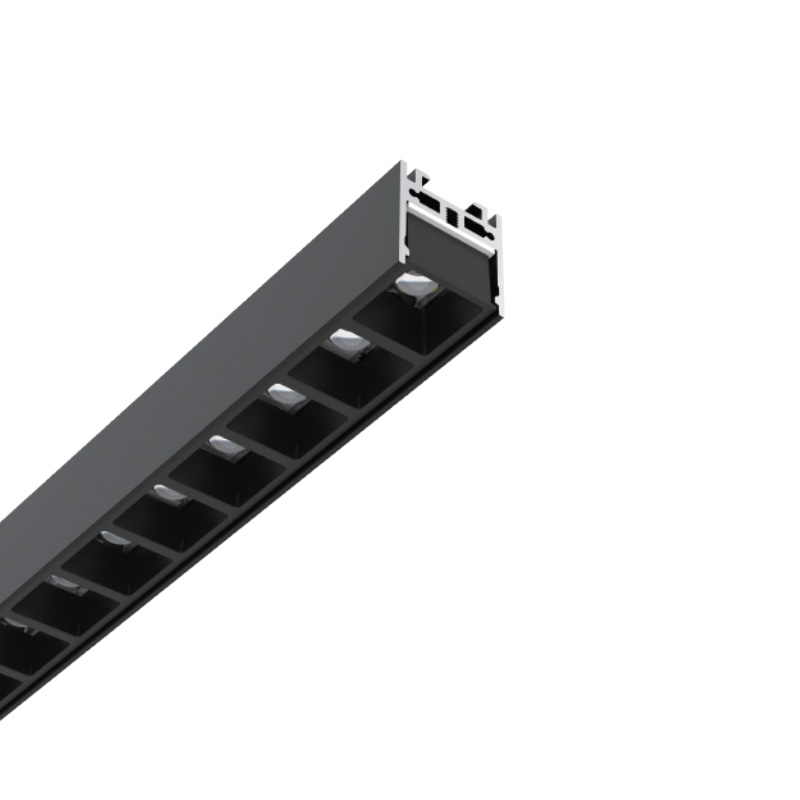

Check the 1-inch LED Strip Diffusers and Aluminum Channels, which have three types of reflectors for anti-flare. The Pendant Light Channels are made of 6063-T5 extruded aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan. Three colors are available: black, white, and silver. The standard length is 1M and 2M, and custom lengths are available. The inner width is 21.1mm, which allows the maximum width of LED strips to be 20mm. You can install a single row or multiple rows of LED lights inside as the light source, and aluminum Profiles can be used as heat sinkers for better heat dissipation. Except for the three types of reflectors, you can also choose other types of diffusers; all are made of imported brand material, anti-yellowing, perfect light distribution, and smooth light output. Choose the PC diffused cover, black PC frosted cover, prismatic cover, and PMMA lens. The pendant installation accessories are included. You can use them to install the LED Strip Diffusers DIY on the ceiling for indoor lighting projects. The surface clips, t-bar clips, and mounting brackets are sold separately,


  • Model: MAG2425
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized

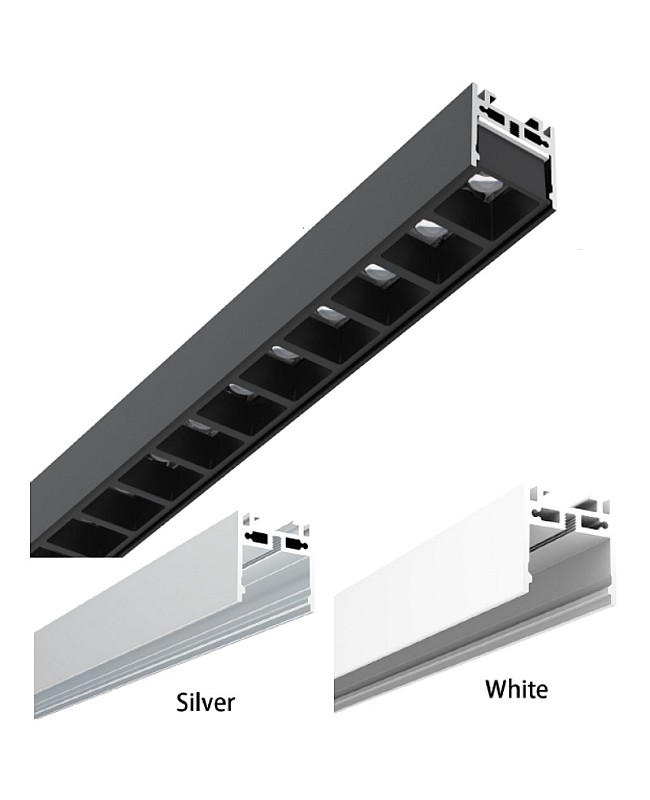

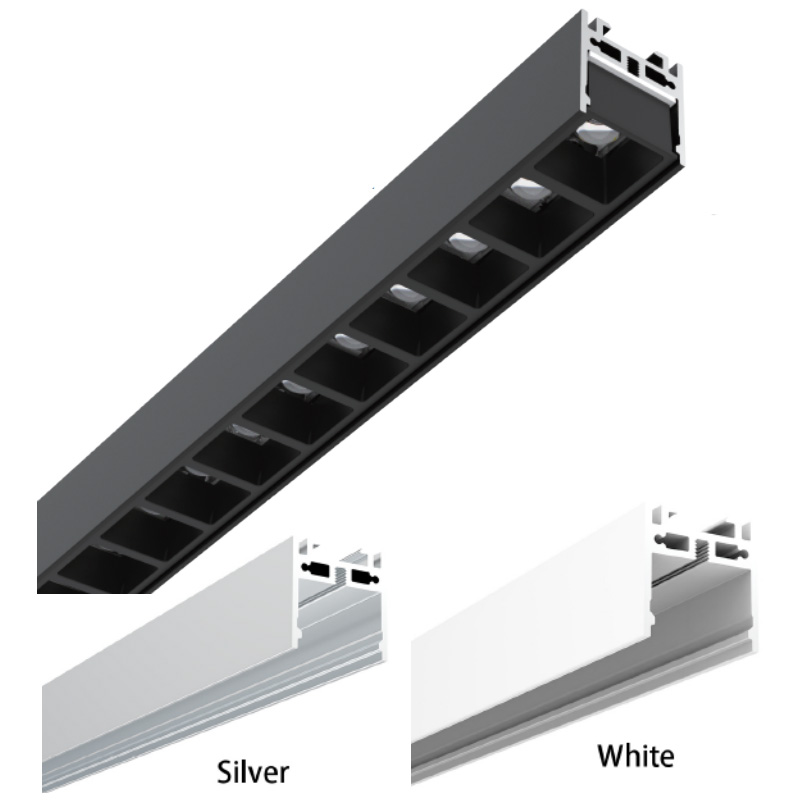

  • Colors: Black, Silver, White

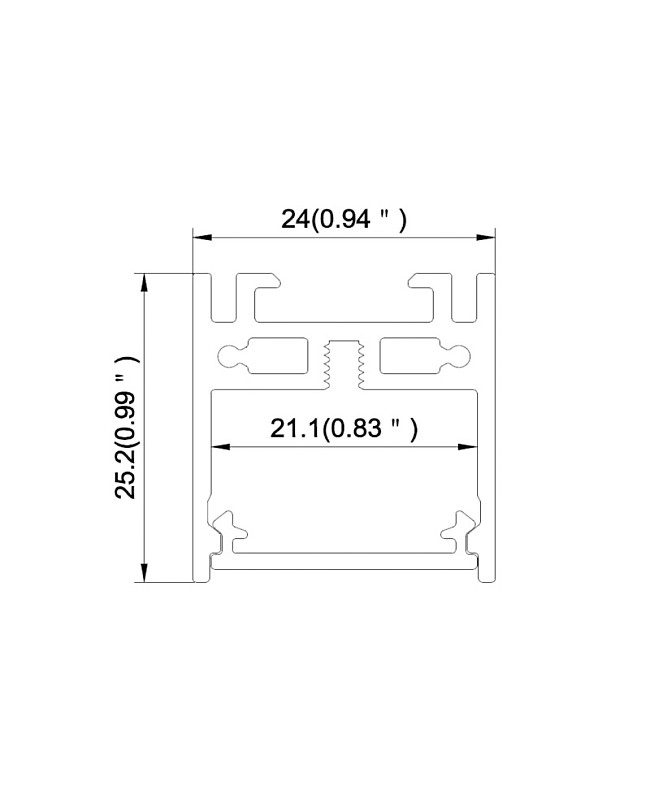

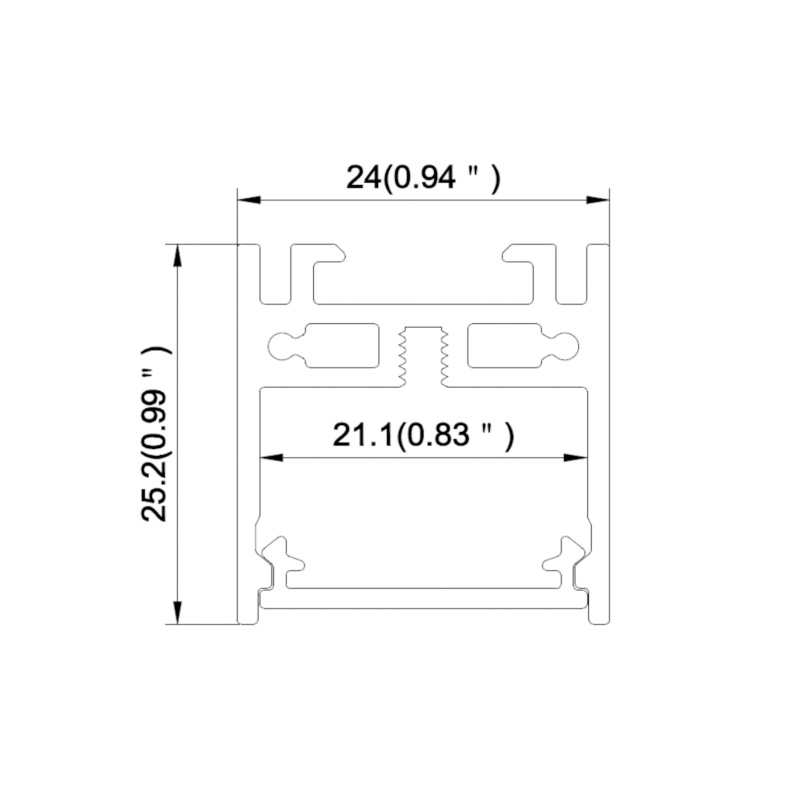

  • Size: 25.2*24mm(H*W)
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
  • Custom Length Available: YES

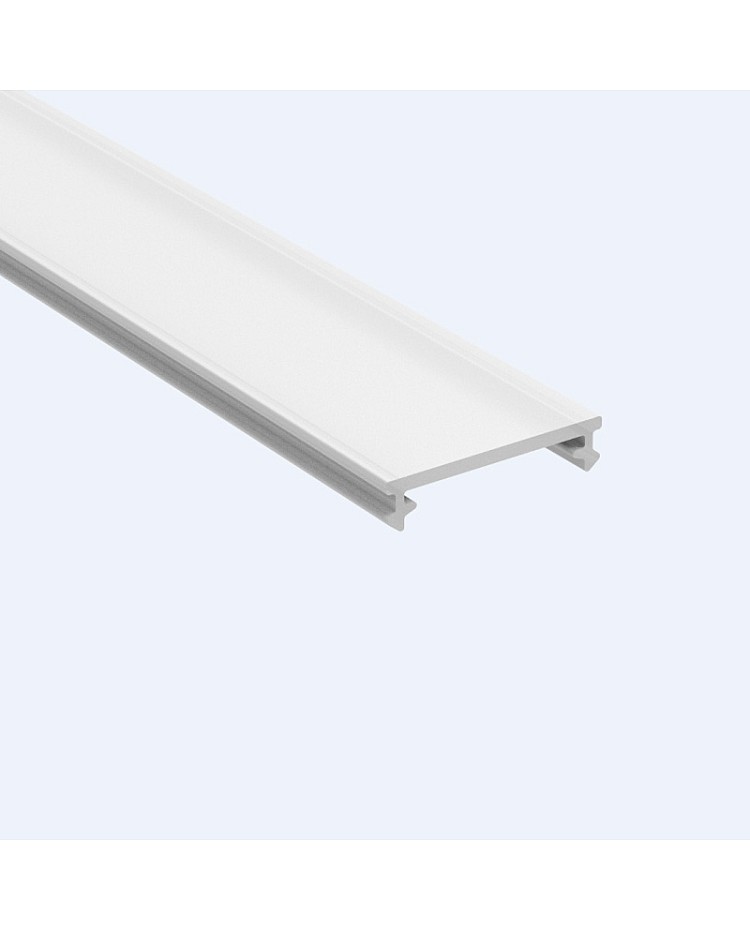

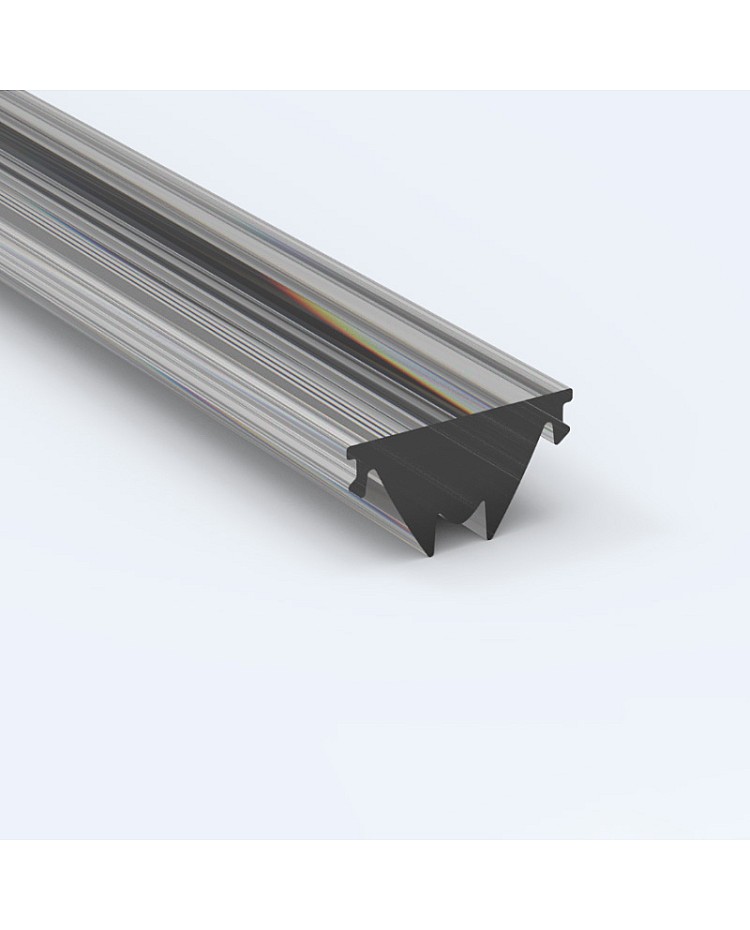

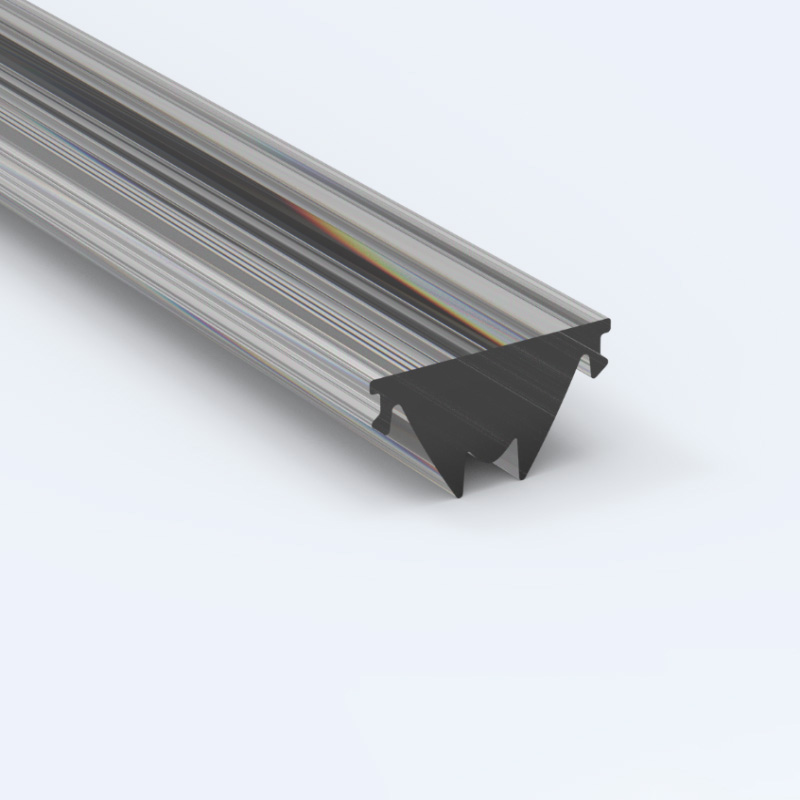

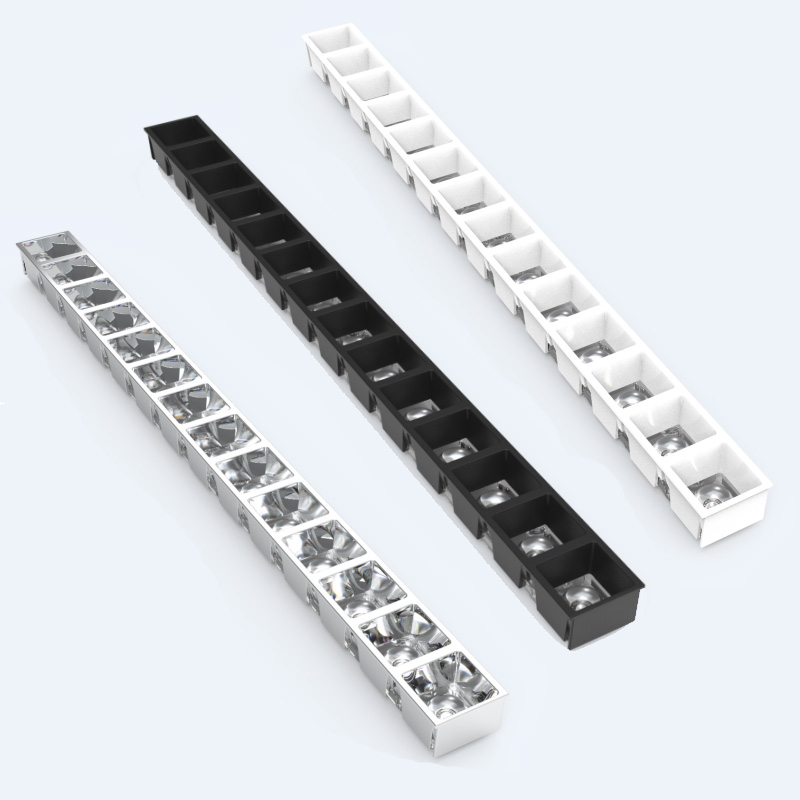

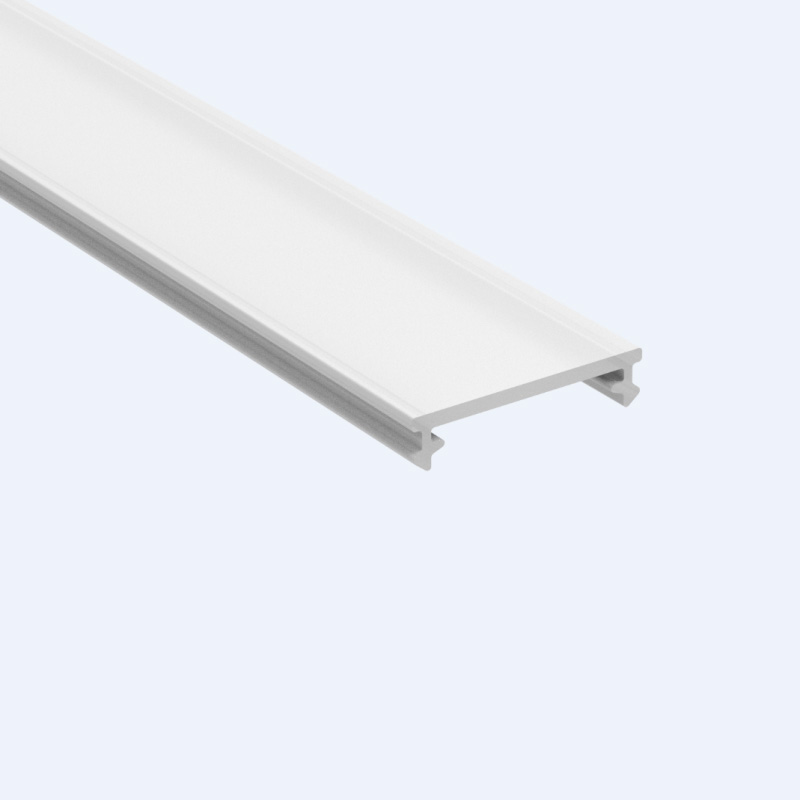

  • Diffusers: PC Diffused Cover, Black PC Frosted Cover, Prismatic Cover, 30°/55° Reflector(Black/Chrome/White), 15° PMMA Lens, PMMA Symmetrical Lens, PMMA Wall Washer Lens
  • Inner Width: 21.1mm
  • Max Width Of LED Strips: 20mm
  • Max Power: 24W/M
  • 30/55° Metal Gross Louver, 30/55° White Matt Louver, 30/55° Black Matt Louver Sold Separately
  • IP Rate: IP20 Non-waterproof
  • Tolerance: ±1%

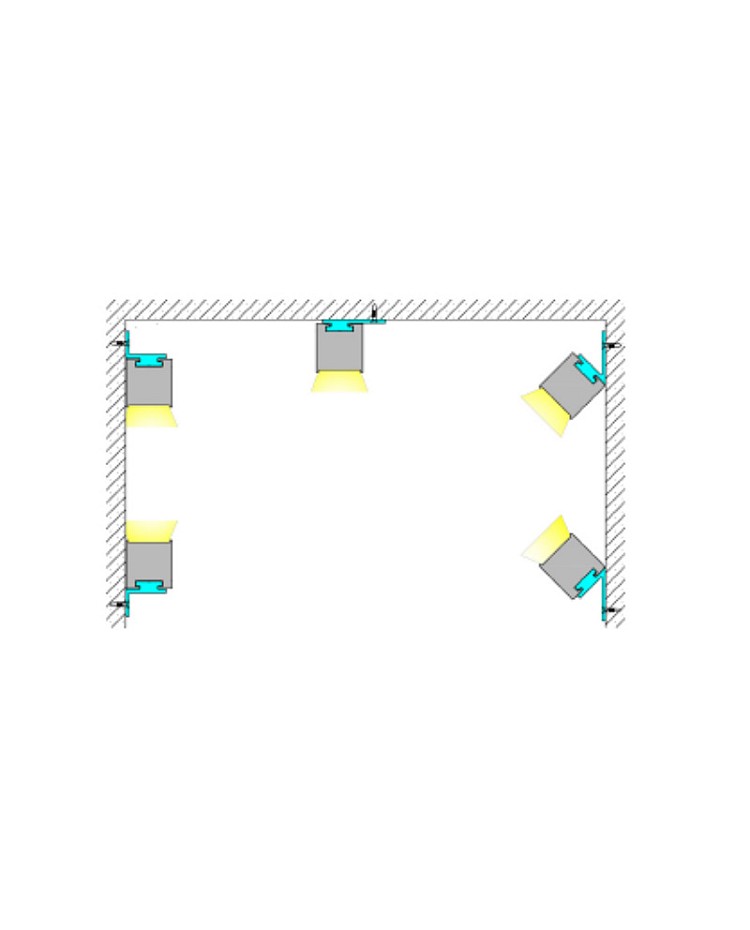

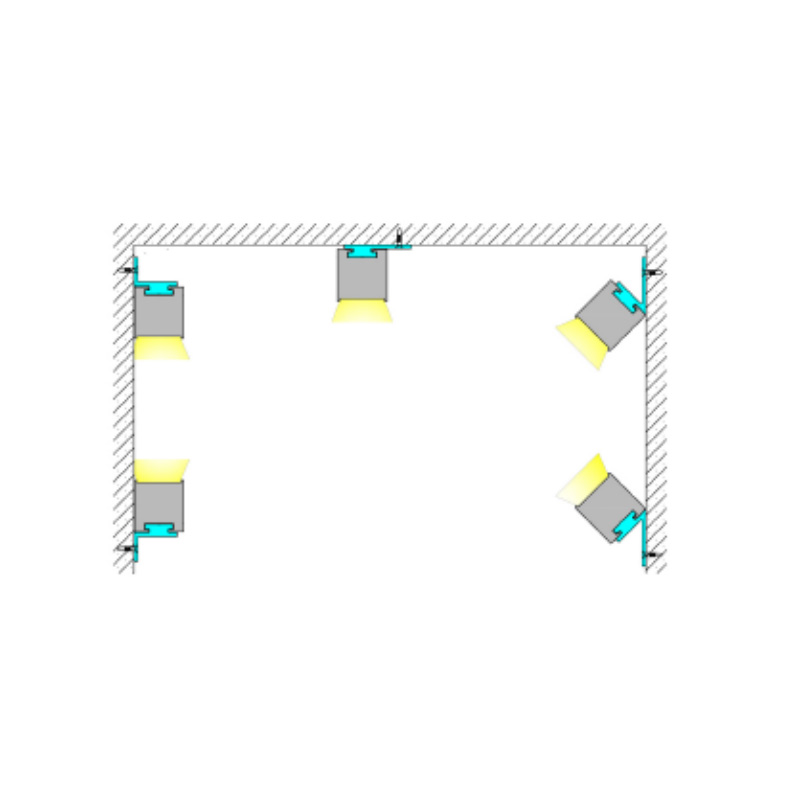

  • Installation: Surface/Pendant
  • End Caps And Suspension Wires Included
  • LED Strips For Reflectors And LED Strips For Lens Sold Separately
  • 5 Years Warranty


1*LEDStrip Diffuser And Channel

End Caps

Suspension Bracket

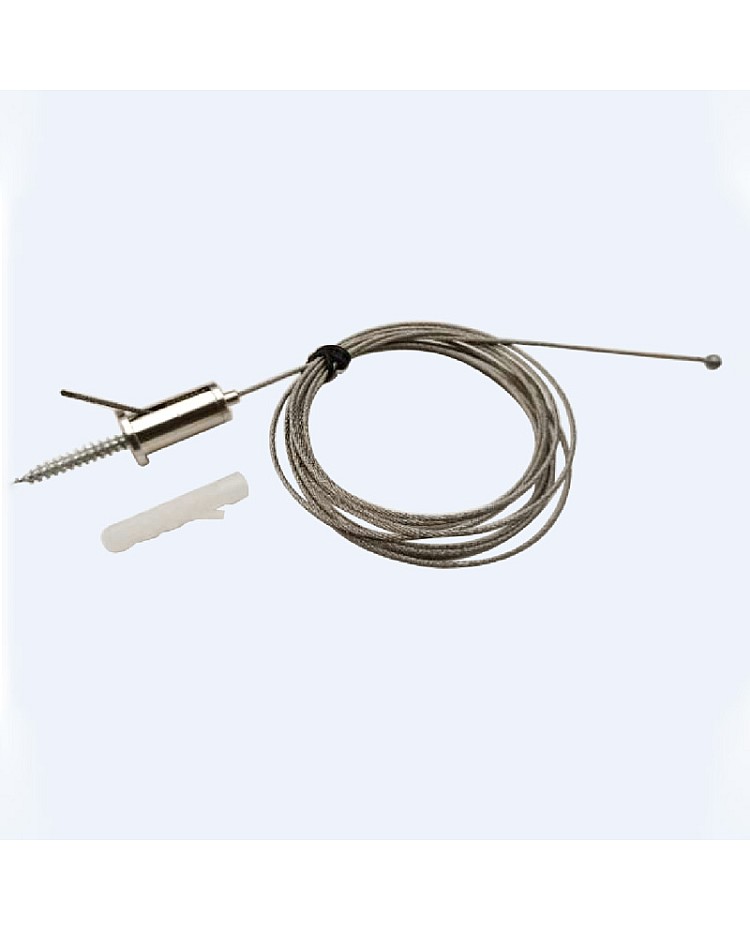

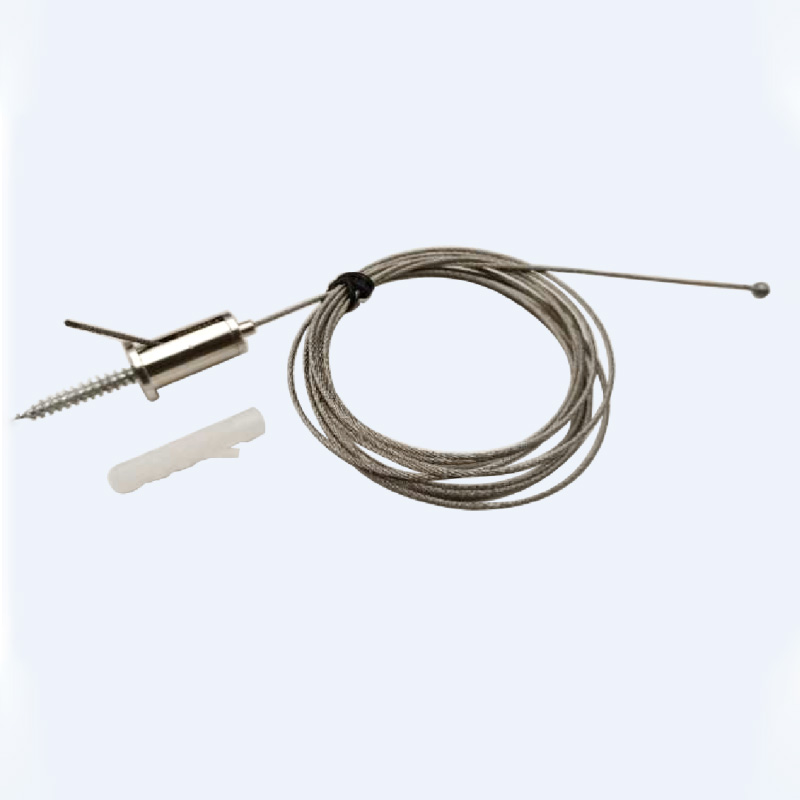

Suspension Wires

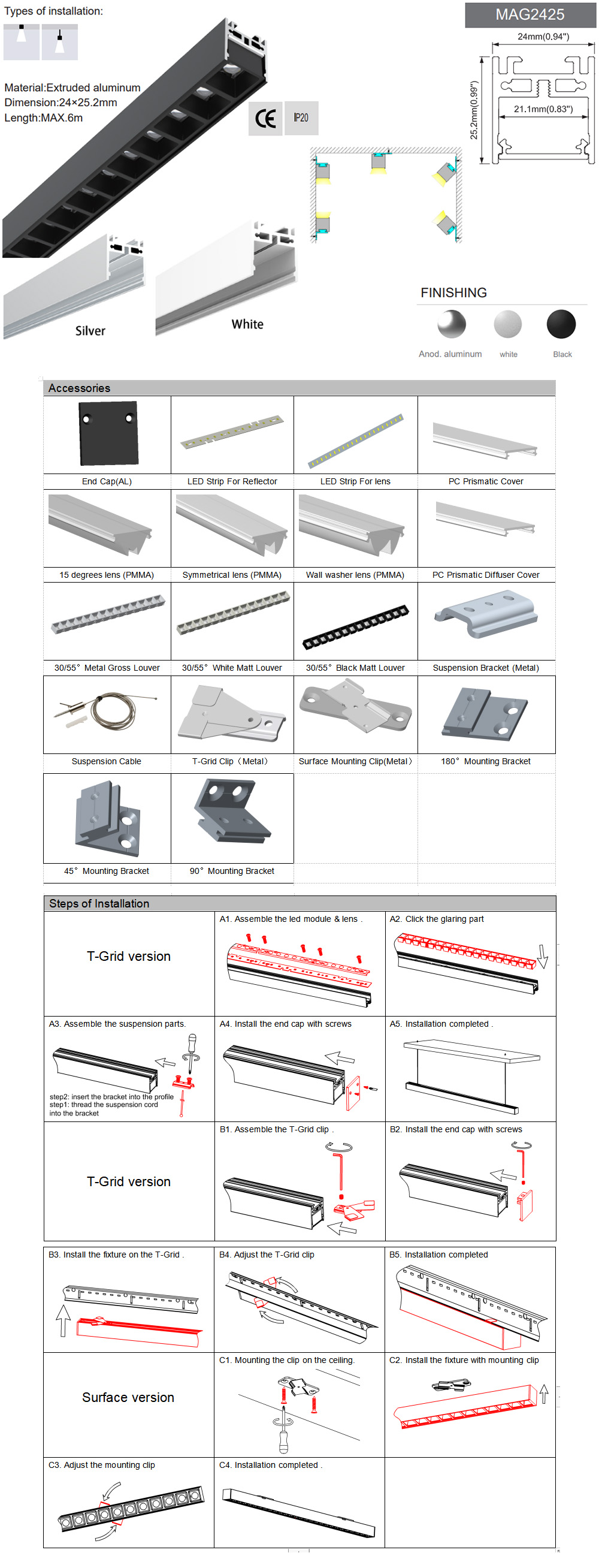

LED Strip Diffuser Black
