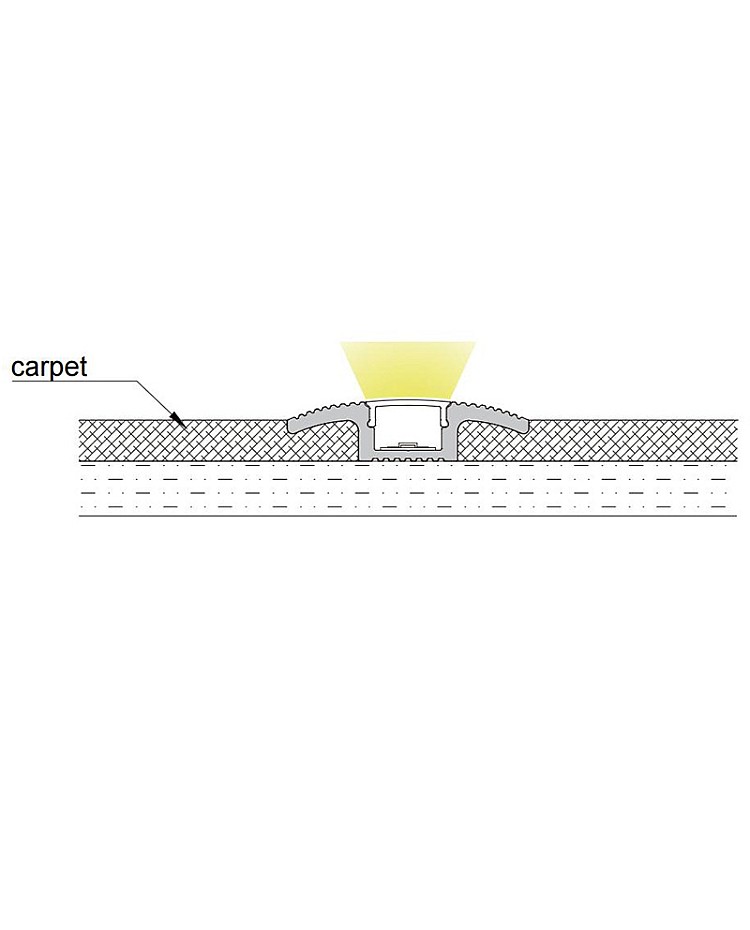

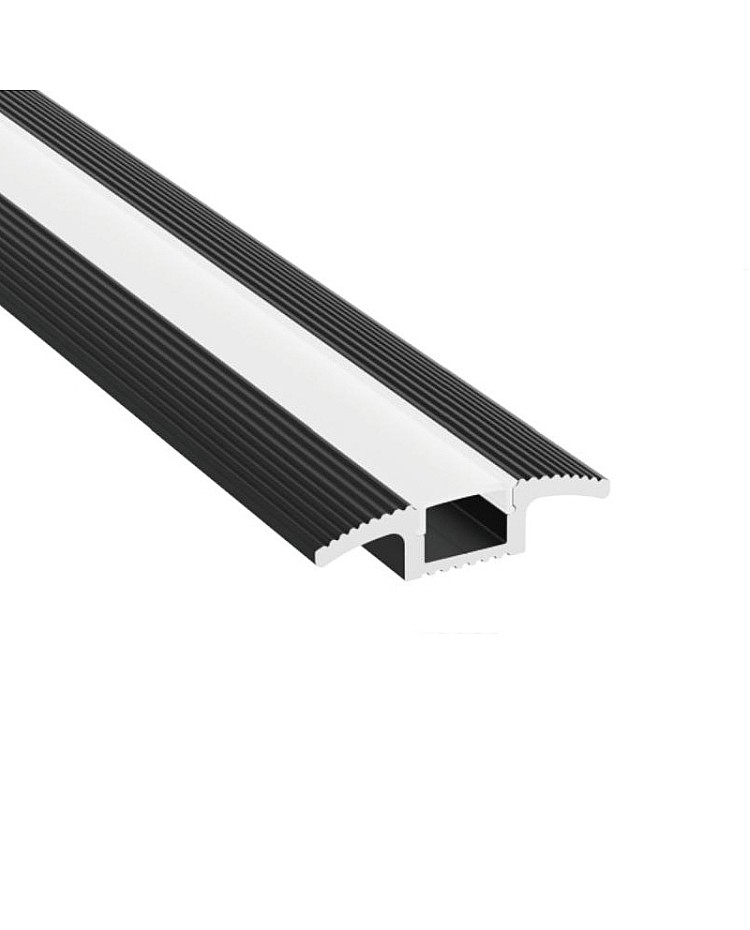

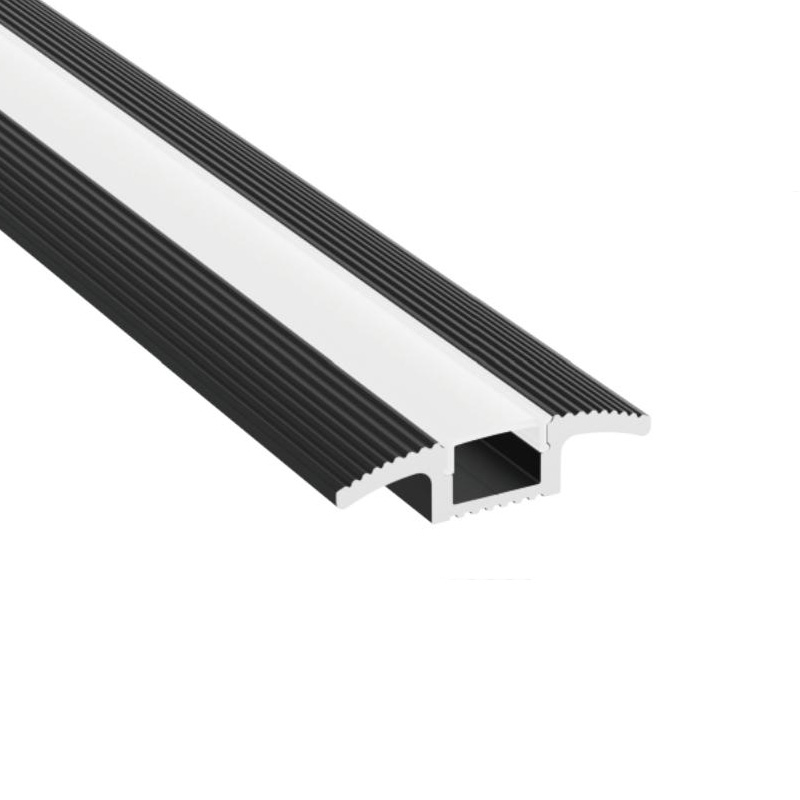

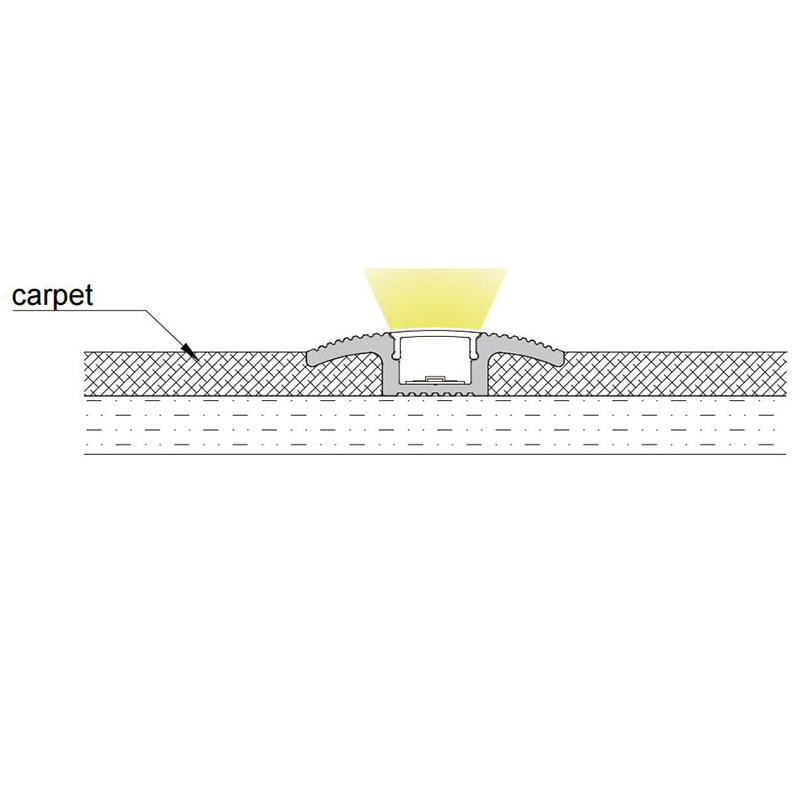

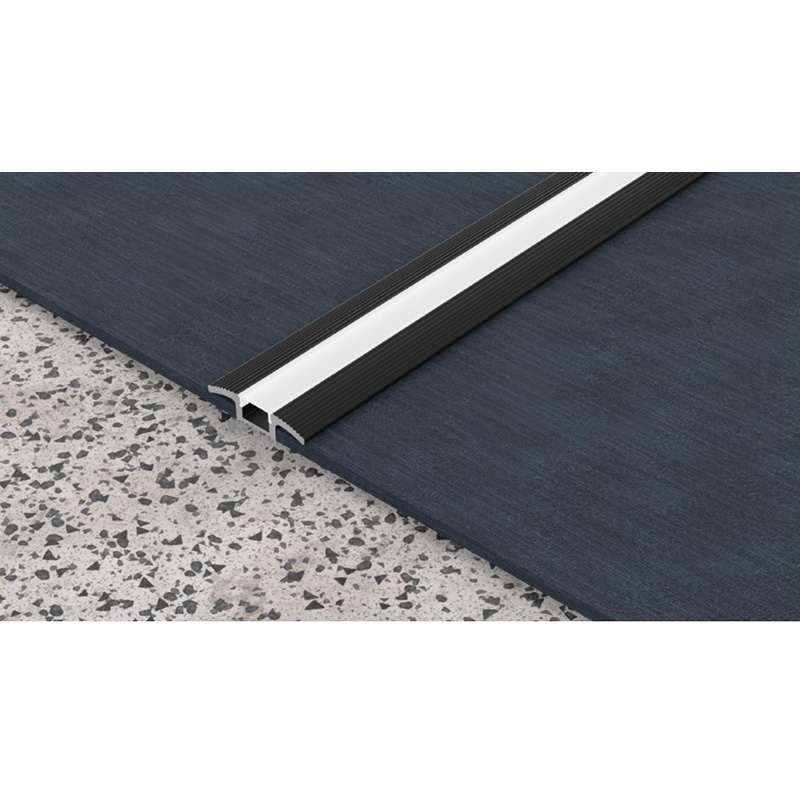

The floor recessed LED channel is designed to be recessed into floors with carpet, tile, stone, concrete, and wooden surfaces, providing low-profile, unobtrusive lighting. It's made of high-quality aluminum alloy material with a black anodized finish, offering anti-oxidation resistance, durability, and a long-lasting design. The standard lengths are 1 m and 2 m, with a maximum length of 3m. It can be cut to any size that fits your needs. Only PC diffused covers are available. It is made of a stable material, is anti-yellowing, and helps spread light evenly above the floor. The inner width is 12.3mm, allowing for a maximum width of 12mm for Strip Lights. I recommend using high-density SMD LED stripes or LED COB tapes as the light source, as they produce a uniform light without visible light dots. End caps with wire holes are included, making it easy to connect the LED lights to the Light Transformer for lighting or a dimmer for adjusting the brightness. With the slim LED channels, installation is easy in tight spaces, making them an ideal choice for illuminating any carpeted area on the floor.

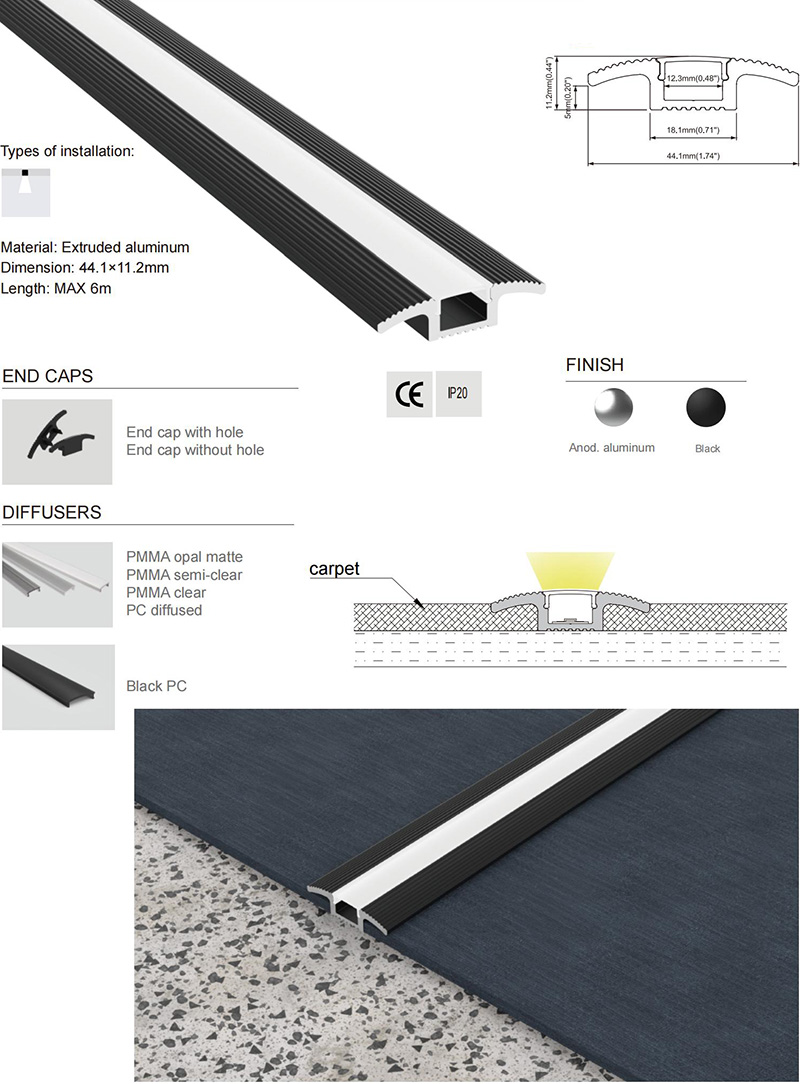

Specifications:
- Model: ALP208
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Colors: Black

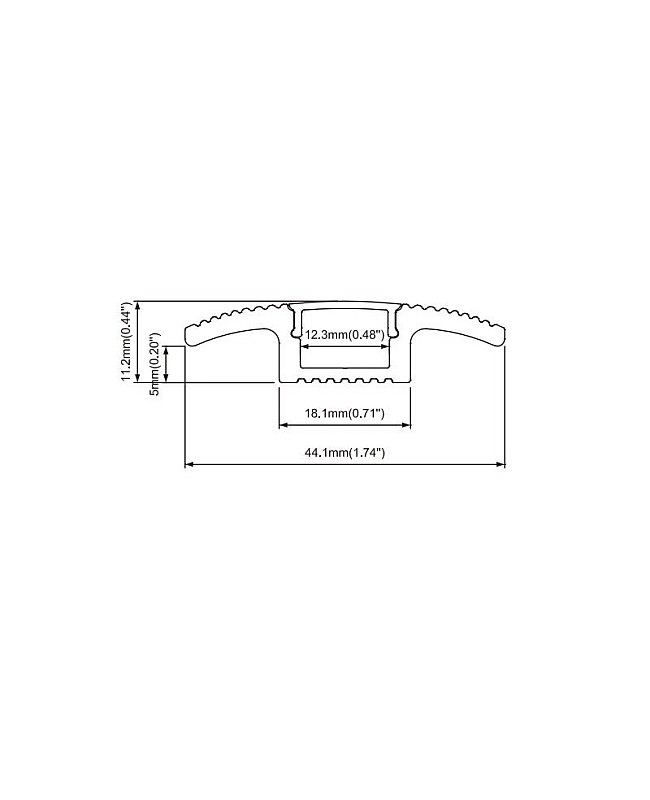

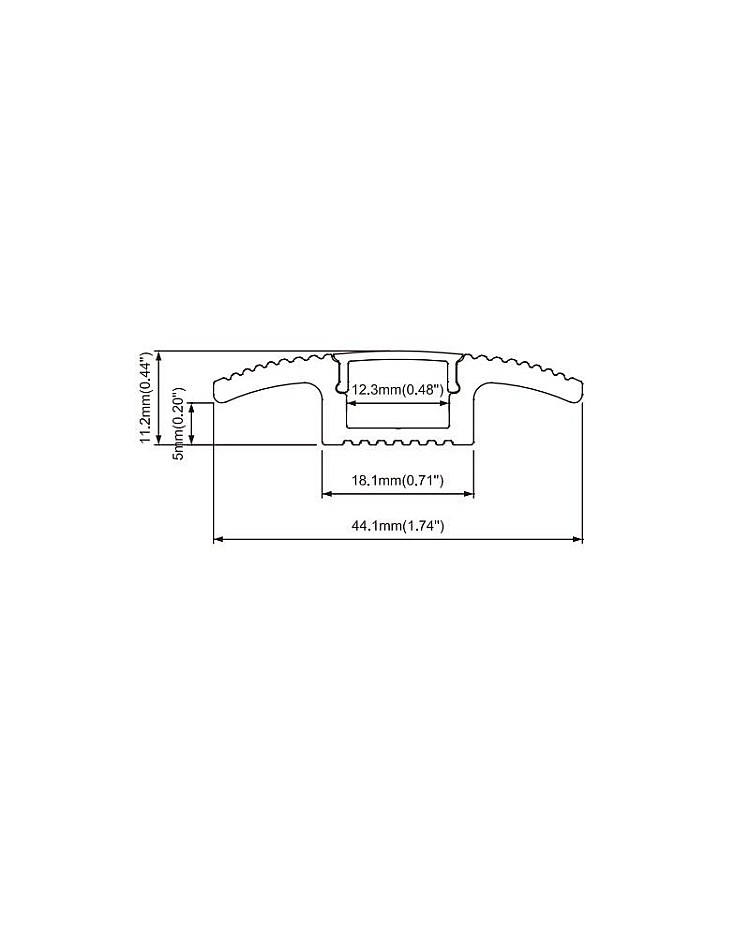

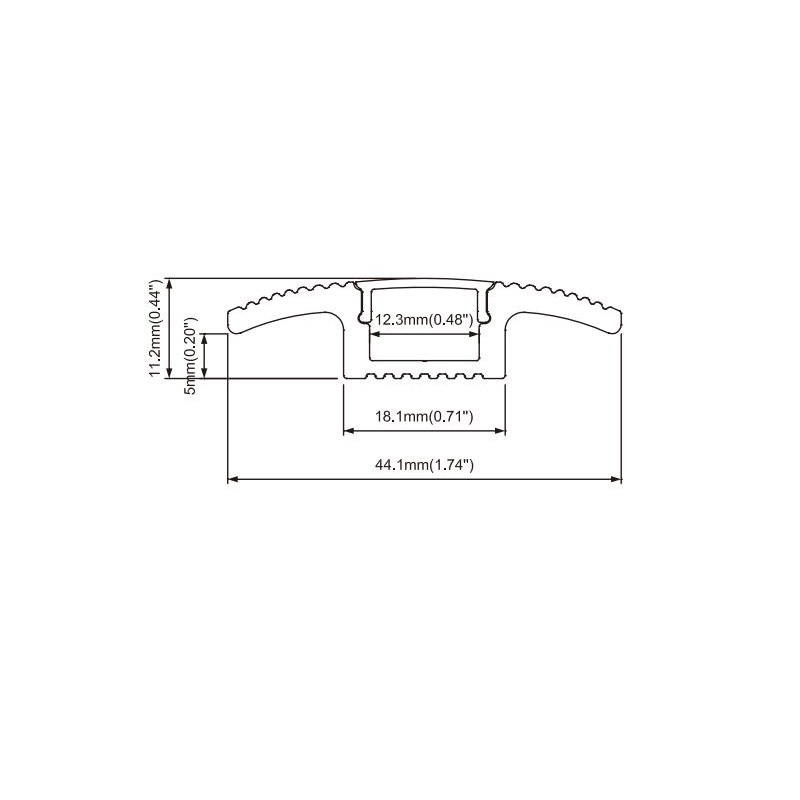

- Size ( W x H ): 44.1 mm x 11.2 mm ( 1.74" x 044" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length: YES
- Diffusers: PC diffused Cover, PMMA opal matte cover, PMMA semi-clear cover, PMMA clear Cover, black PC cover
- Inner width: 12.3 mm ( 0.48" )
- Allows the maximum width of strip light to be 12 mm ( 0.47" )
- Max power: 15W/m
- End caps with and without wire holes are included
- Installation: Recessed

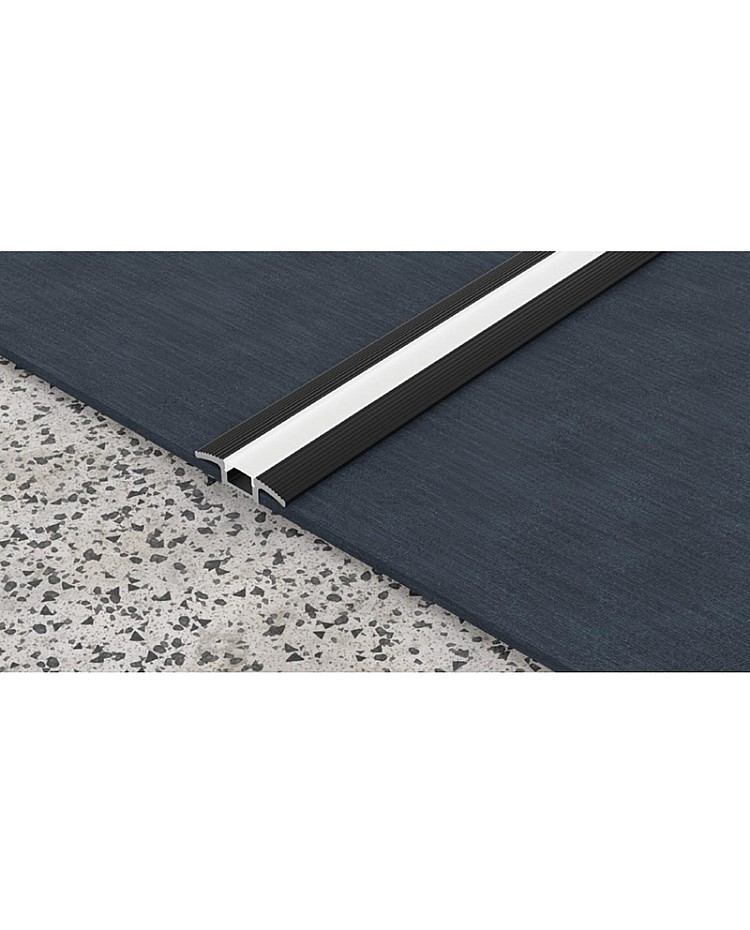

- Applications: Surface of carpet, tiles, stone, concrete, parquet, laminate wood, etc
- Certifications: CE, ROHS
- Warranty: 5 years
Includes:
1*Floor LED channel with PC diffuser
End caps(With wire holes and without wire holes)


+
+
+
+
