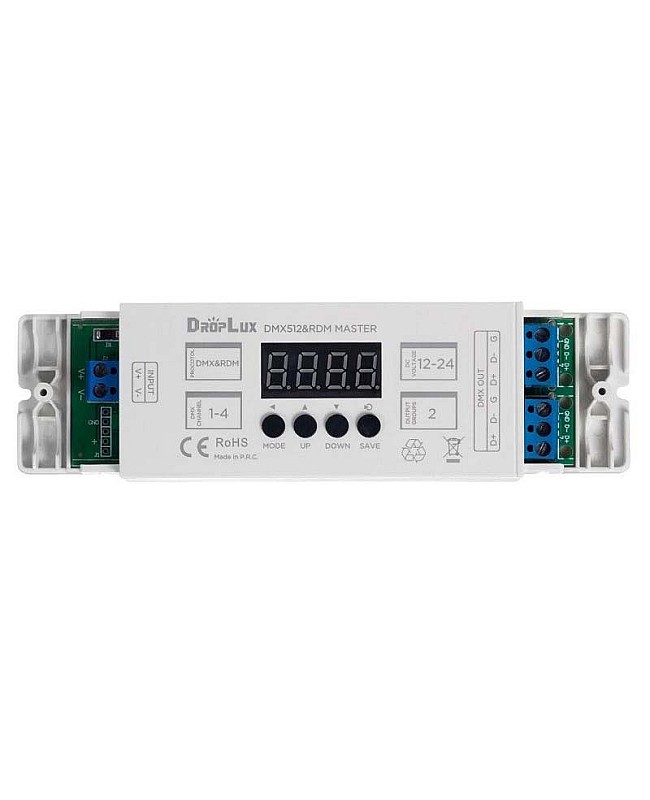

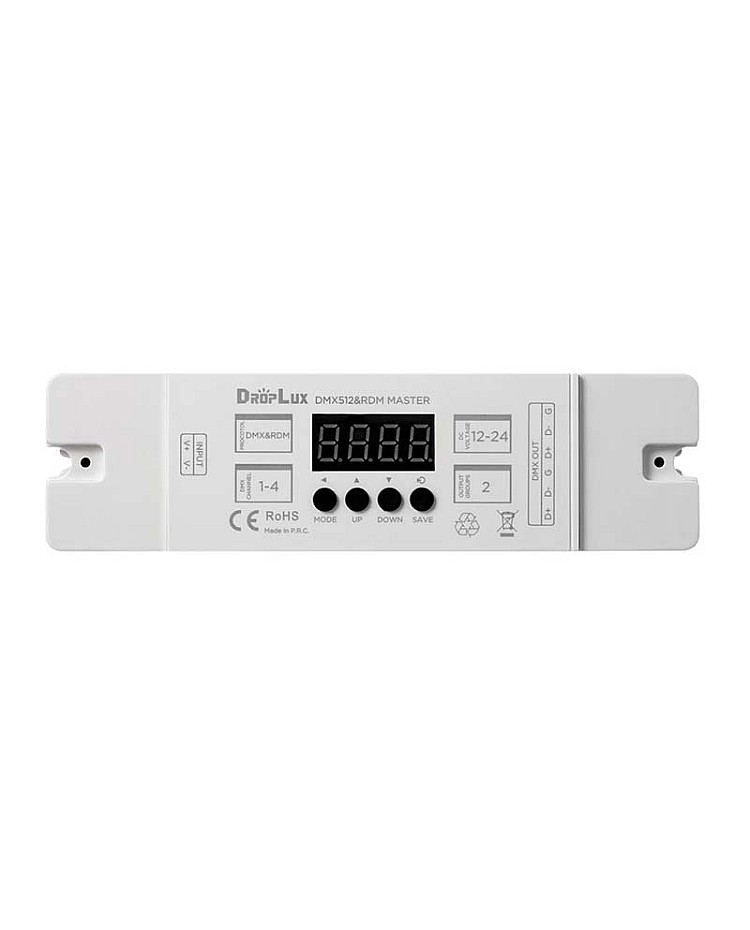

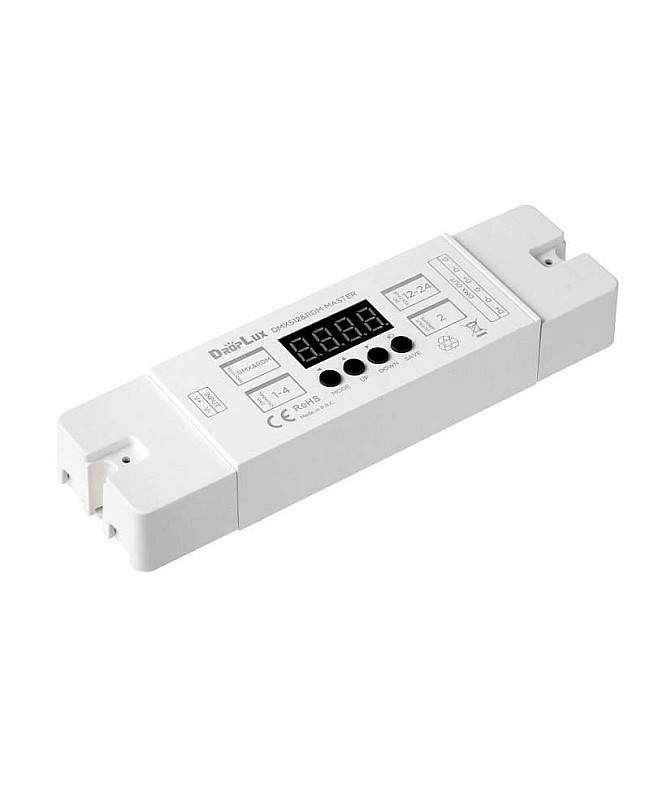

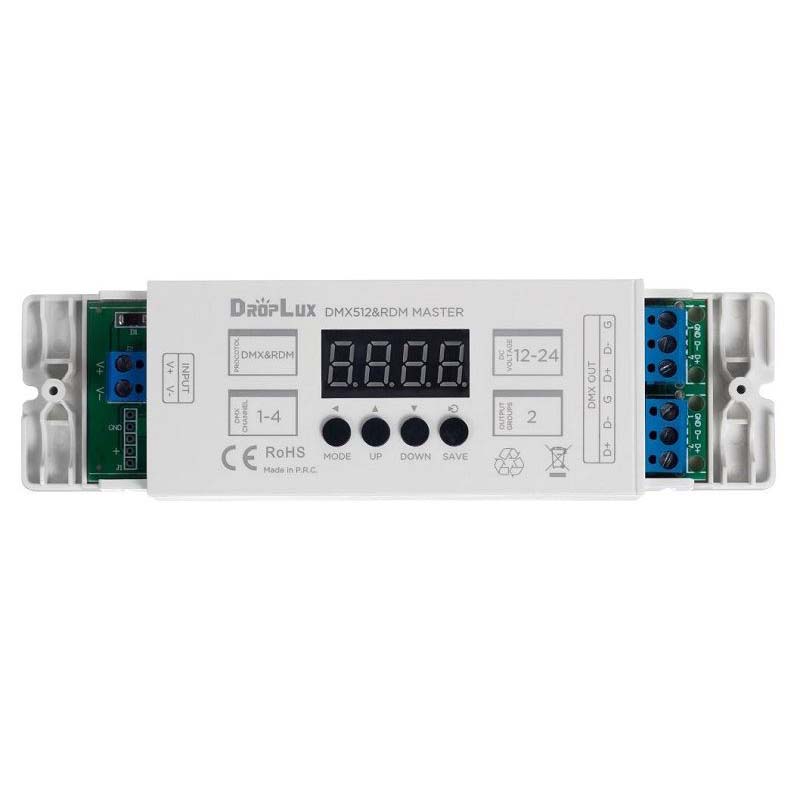

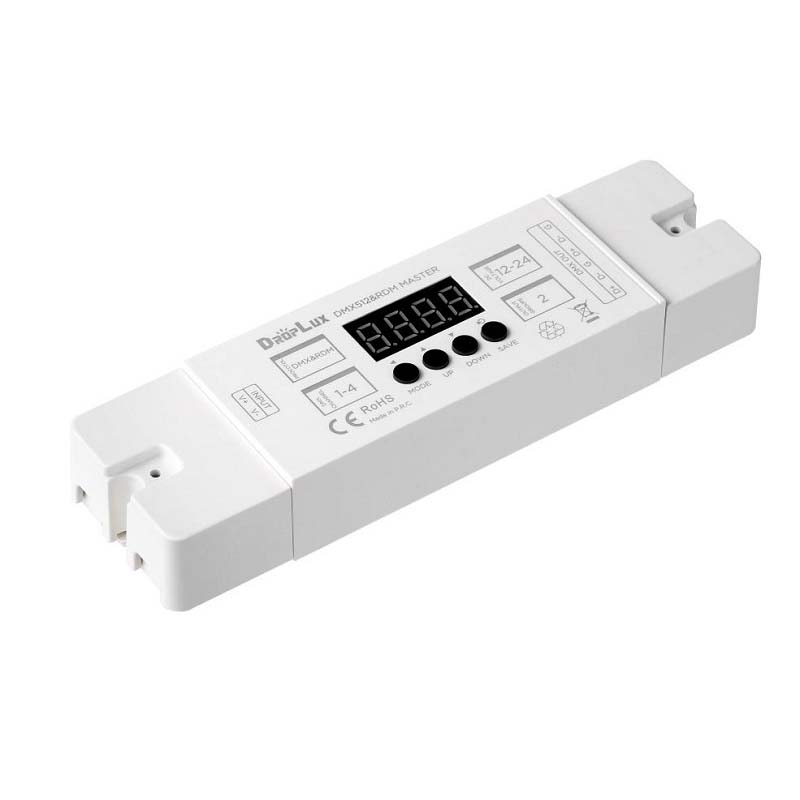

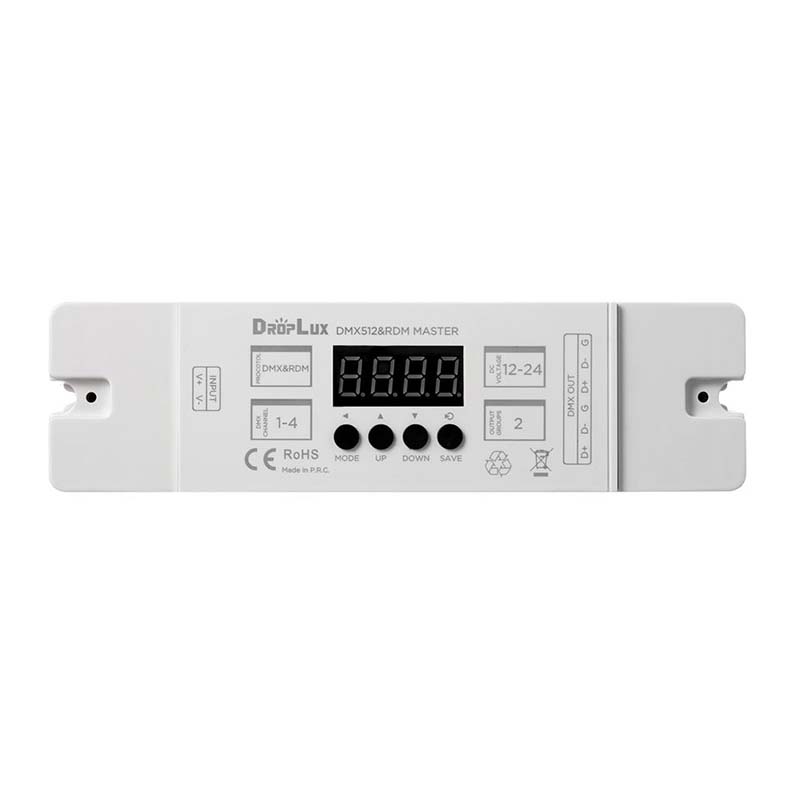

Check out the DMX512 RDM LED Master Controller, which supports DMX512 and RDM protocols, will output the DMX or RDM signals to the DMX or RDM decoders, you can choose 4 various modes, it supports Single Color, CCT, RGB and RGBW, you can choose the various change mode and change sped, you can identify the number of devices and change the device address through the RDM function of the DMX512 Controller. the LED Master Controller working in DC12V or DC24V, with 2 groups output signal with the same control effect. adopts the pushbuttons Mode, Up, Down and Save to make setting and control, the 4-digital tube displays the setting status intuitively.

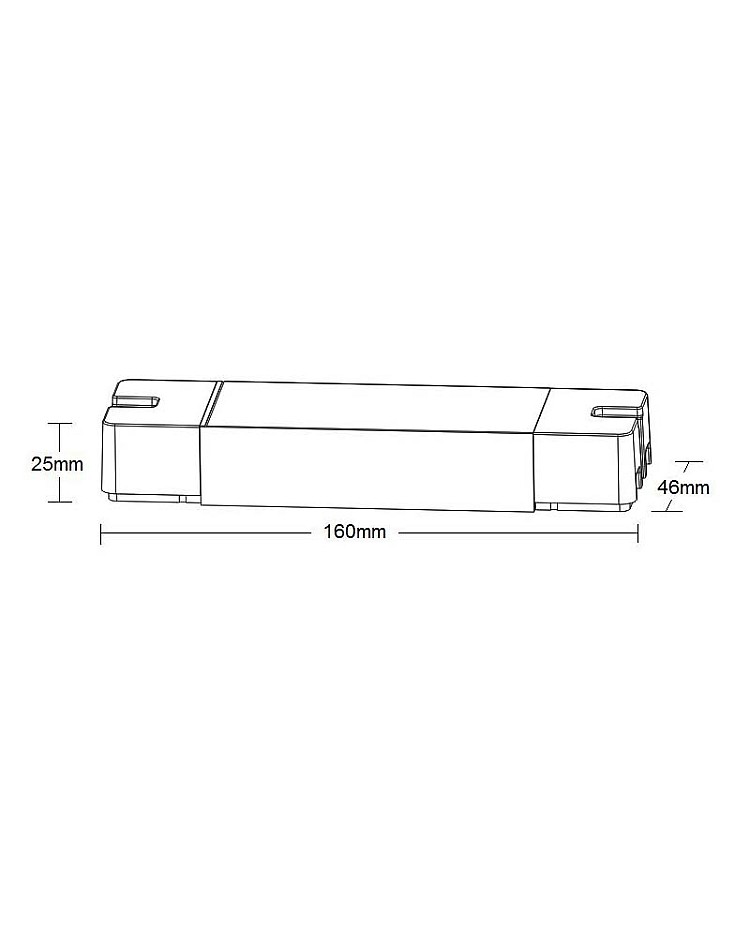

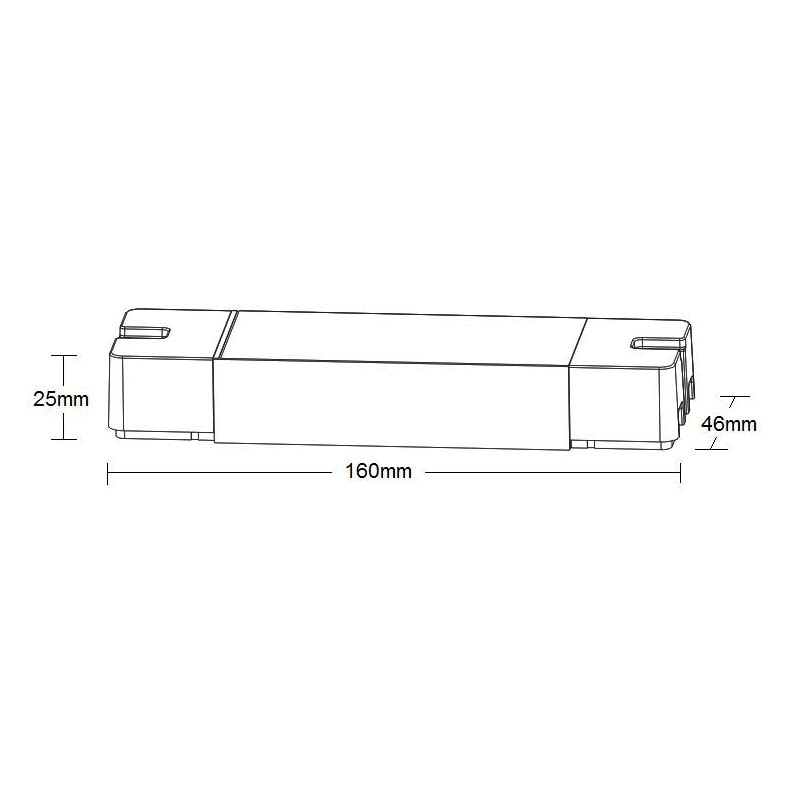

- Size: L162*W46*H25mm
- Working Voltage: DC12V/DC24V
- Static Power Consumption: <1W
- Output Signal: DMX512/RDM
- Output Gray: 100 Levels
- Speed Of Modes: 100 Levels

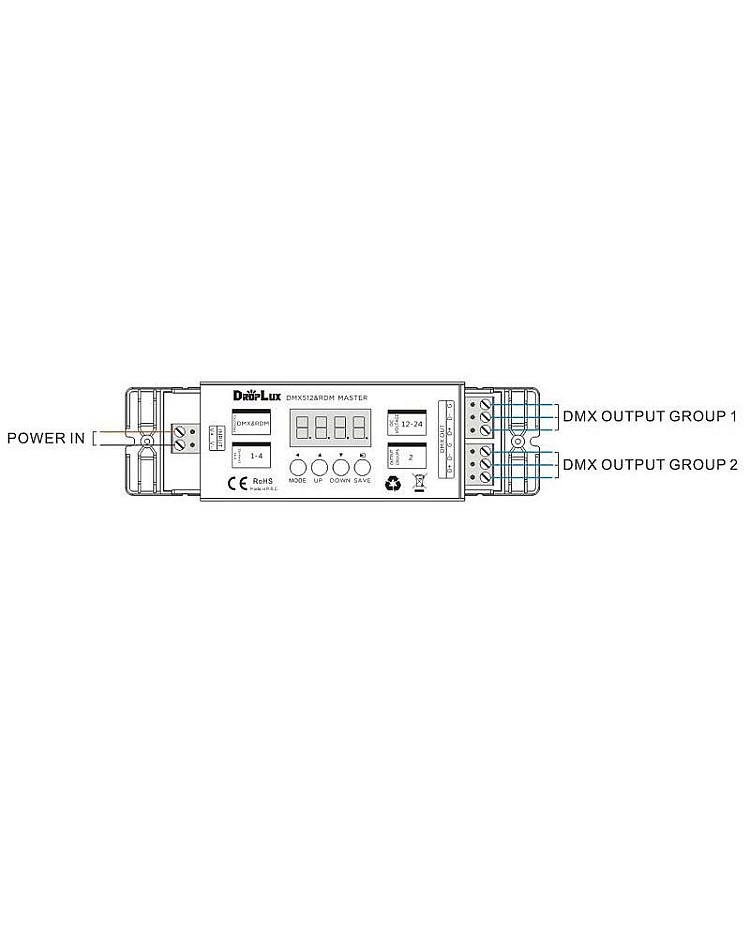

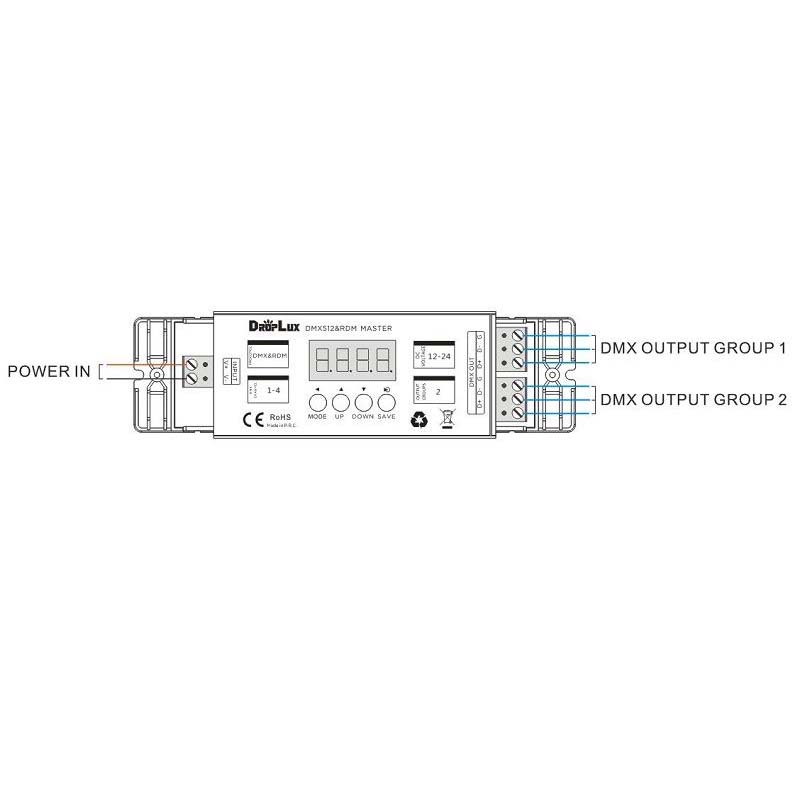

- Output Ports: 2 Groups
- DMX Profiles: 4 Profiles
- PH01 For RGB LED(3CH)
- PH02 For RGBW LED(4CH)
- PH03 For CCT LED(3CH)
- PH04 For Single Color LED(1CH)
- Weight: 200g
- 3 Years Warranty
1. Basic settings
In the power-on state, you can directly perform "basic settings", including control settings of mode / speed / brightness.
1) Mode setting
Turn on the power or press the "MODE" key briefly, when the digital tube displays Hxxx (xxx is determined by the effect), enter the setting page of mode. Press the "UP" / "DOWN" keys to set the effect. The effect is shown in the table below. Then press "SAVE" key to save and finish the operation(display SAVE 1 second and return to Hxxx).
2) Speed setting
By short press the "MODE" key, when the digital tube displays Sxxx (xxx is 000-255), enter the setting page of speed. Set the effect speed by short pressing the "UP" and "DOWN" keys. Then press the "SAVE" key to save and finish the operation (display SAVE for 1 second and return to Sxxx).
3) Brightness setting
By short pressing the "MODE" key, when the digital tube displays bxxx (xxx is 010-255), enter the setting page of brightness. Set the effect brightness by short-pressing (long-pressing the address quickly) "UP" and "DOWN" keys. Then press the "SAVE" key to save and finish the operation (display SAVE 1 second and return to bxxx).
1*DMX51 RDM LED Master Controller
