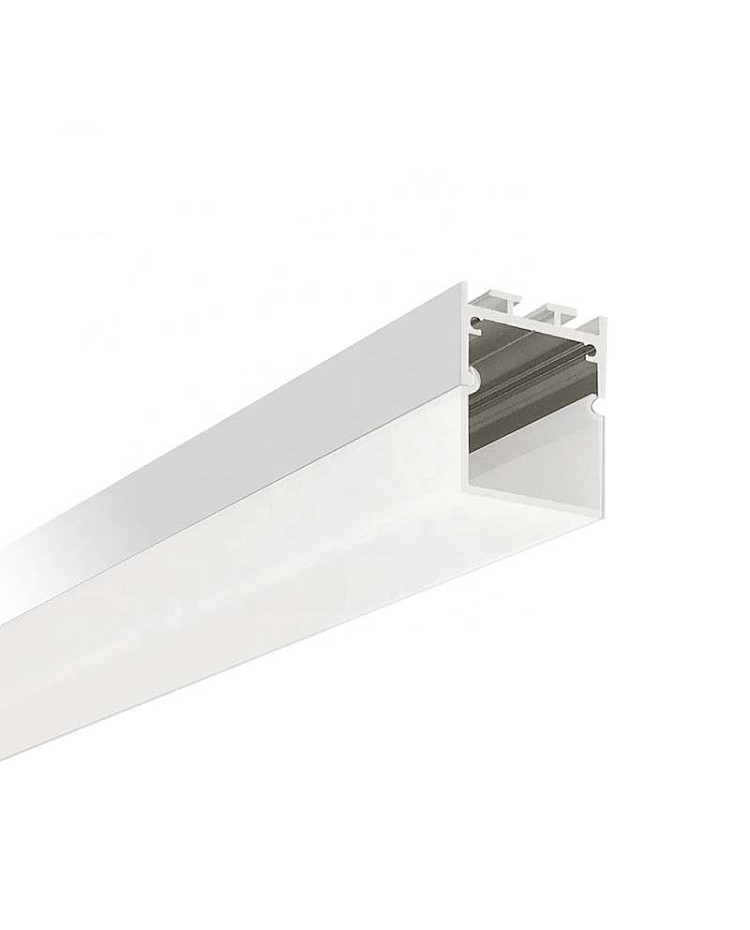

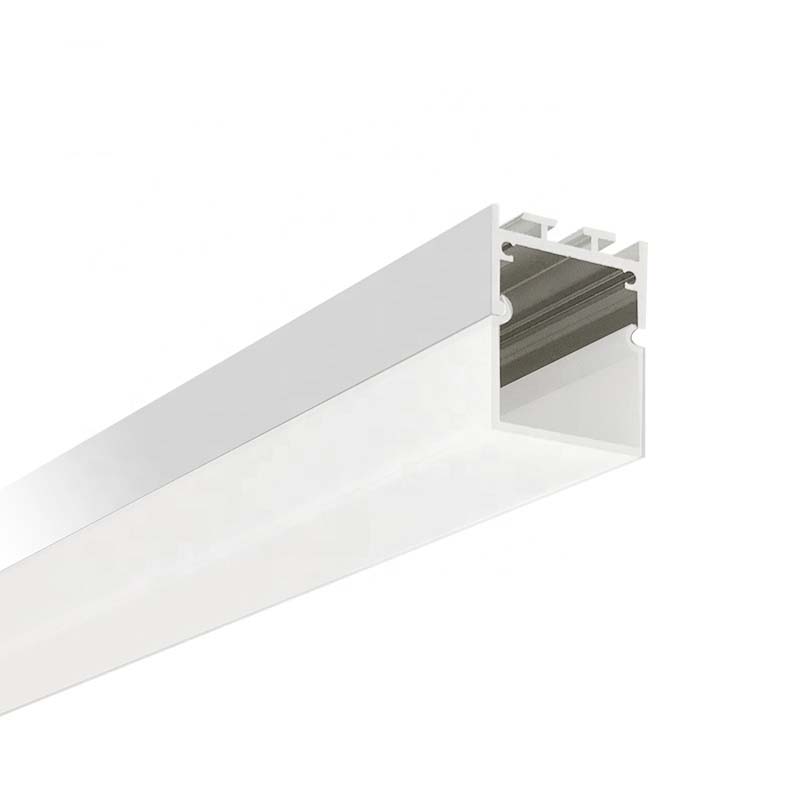

The LED Chanel with Dropped Diffuser is a great way to add a modern, minimalist look to any room. there is only one type of diffuser available:  the PC opal matte diffuser, which is made of import brand stable material, anti-yellowing. The diffuser is dropped, for a large view angle helps to soften and spread the light, creating a soft, even lighting effect. The suspension wires are included, and you could hang the LED Channels on the ceilings. The inner width is 24.1mm and allows the max width of LED Strips to be 24mm, recommend using the high-density COB LED Strips as the light source, with no dark areas and no light spots. The Aluminium Channel can be used as a heat sinker for better heat dissipation, which will extend the lifespan of LED Strips. The standard length is 1 meter per piece and the max length is 3 meters per piece and can be cut to any size for your project.


Features:

  • Model: ALP053-R
  • Material: 6063-T5 Aluminium Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

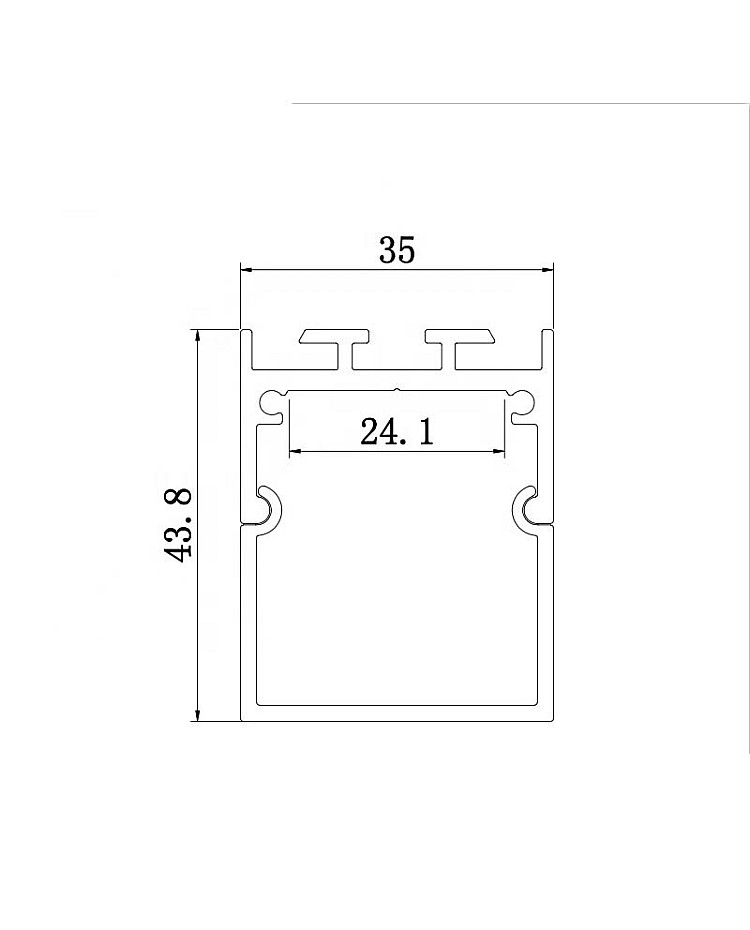

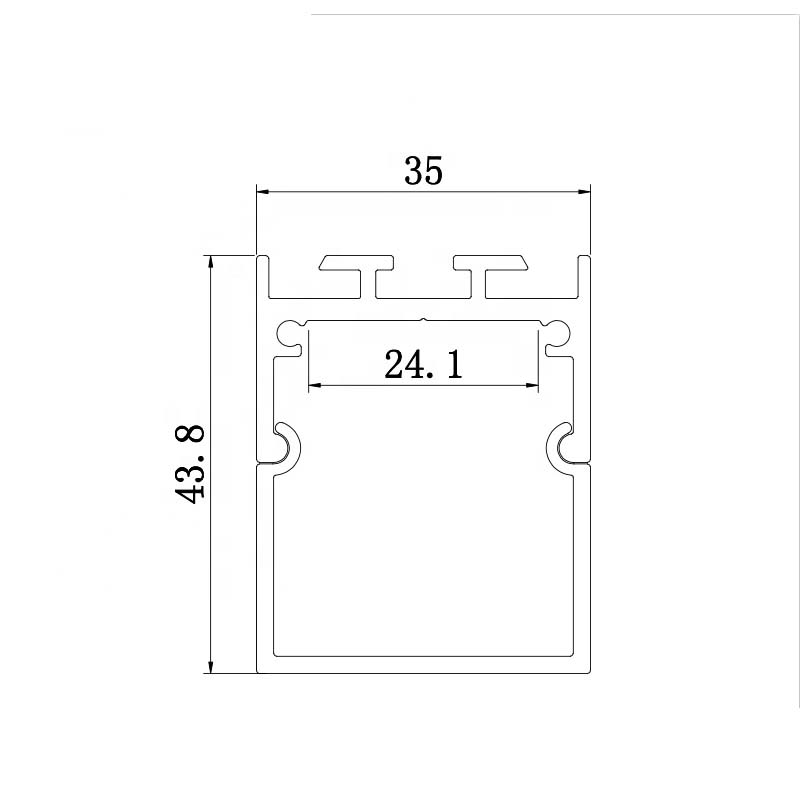

  • Size: 43.8*35mm(H*W)
  • Standard Length: 1M
  • Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M
  • Custom Length Available: YES
  • Inner Width: 24.1mm
  • Compatible With 5630 Or 5050 Multiple Rows LED Strips
  • Max Power: <30W/M
  • Tolerance: ±1%
  • Diffuser: PC Opal Matte Diffuser

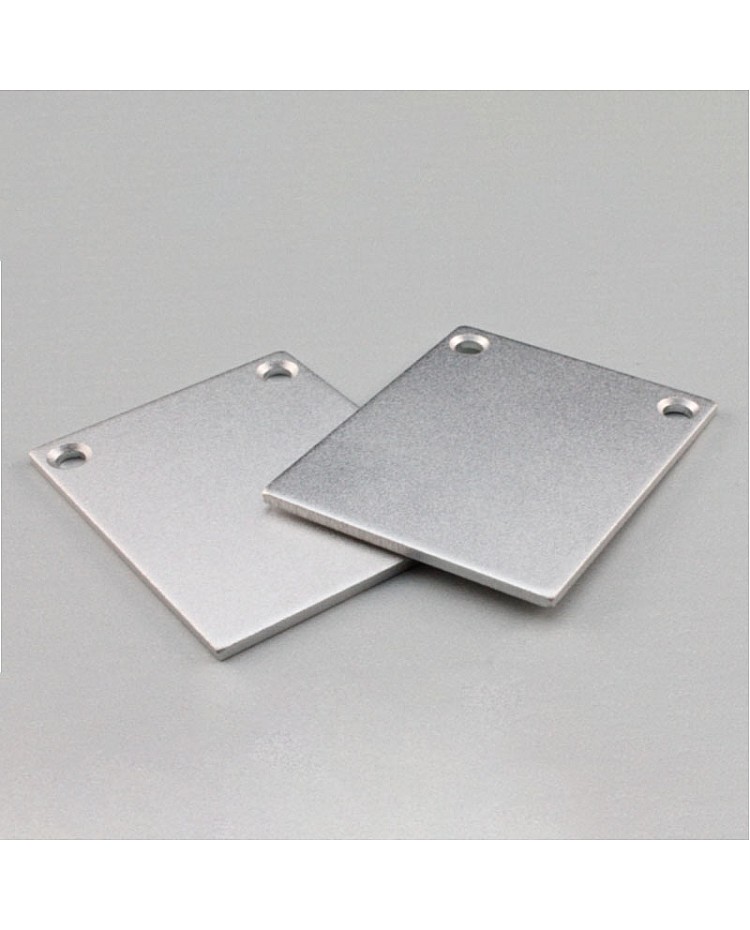

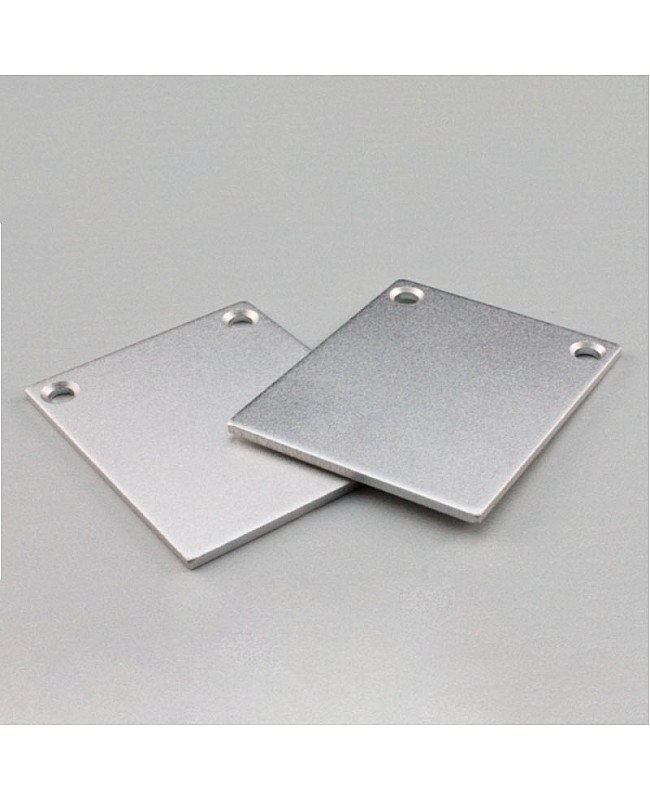

  • End Caps With Wire Holes And Suspension Wires Included
  • L And Straight Connectors Sold Separately

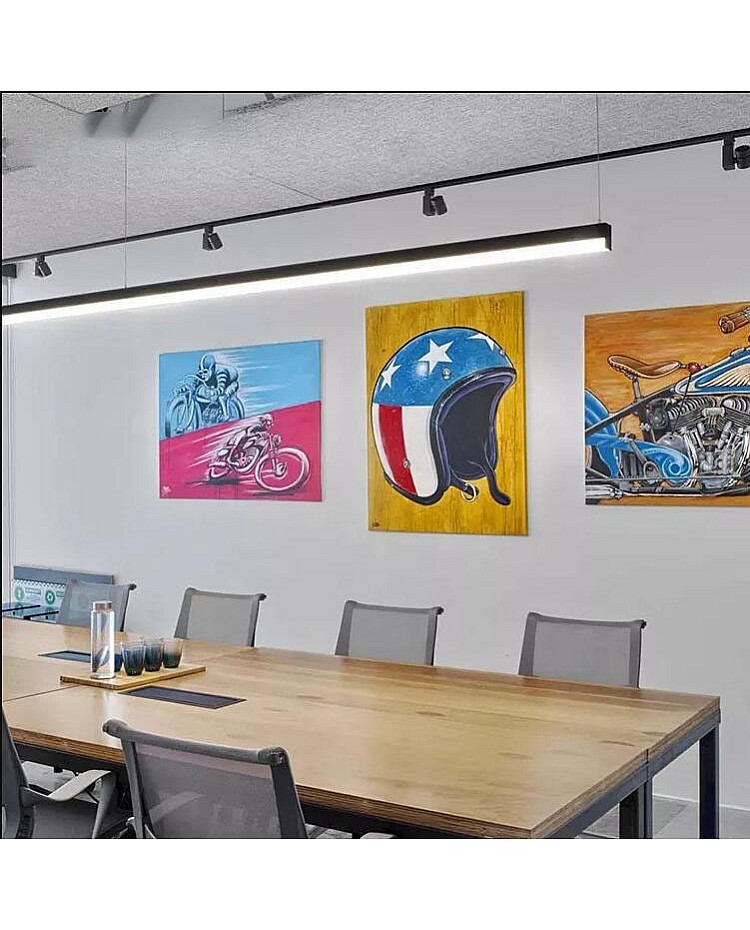

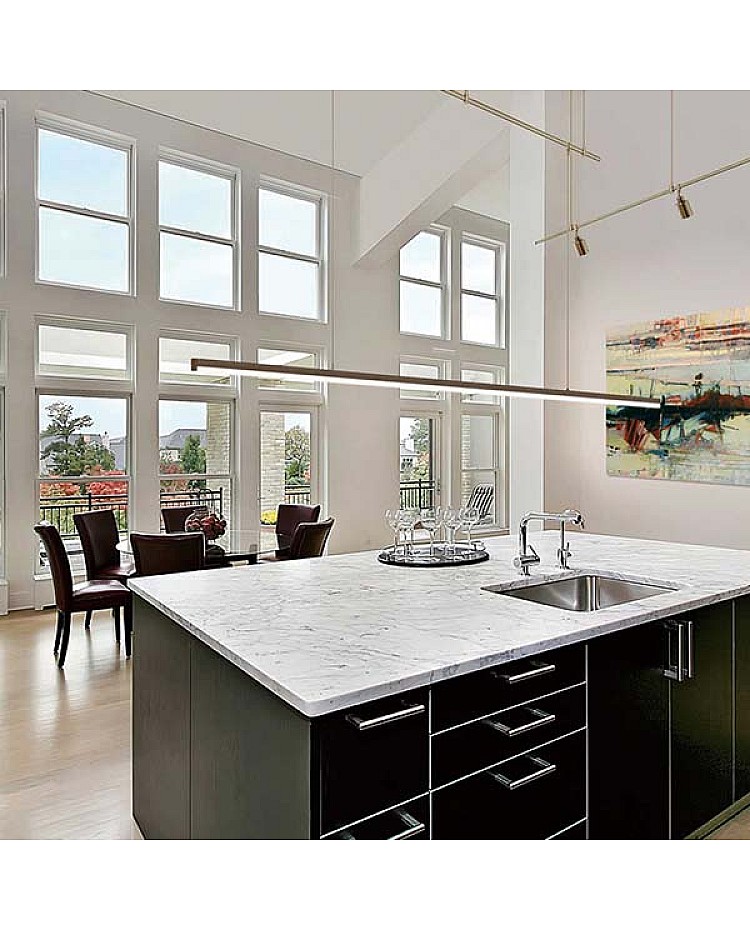

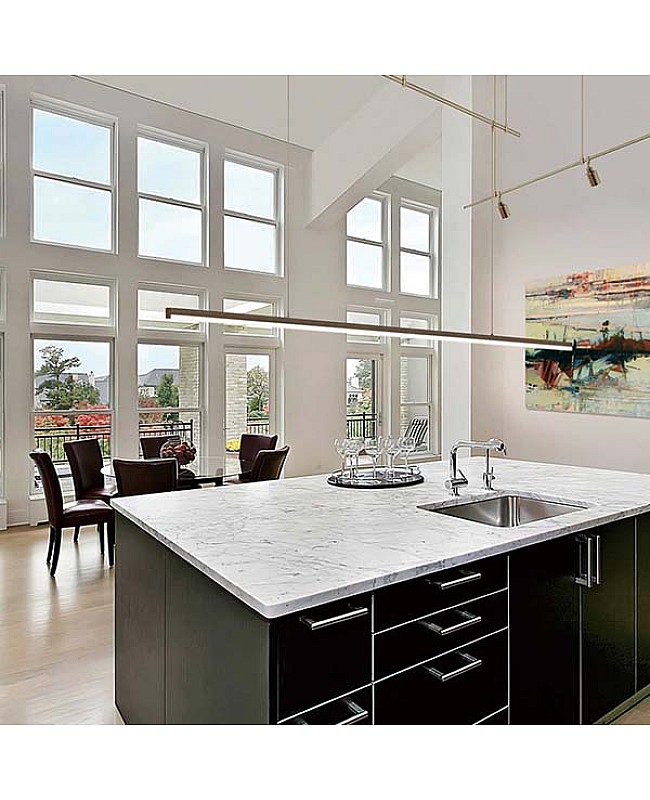

  • Installation: Ceiling Pendant / Surface Mounted

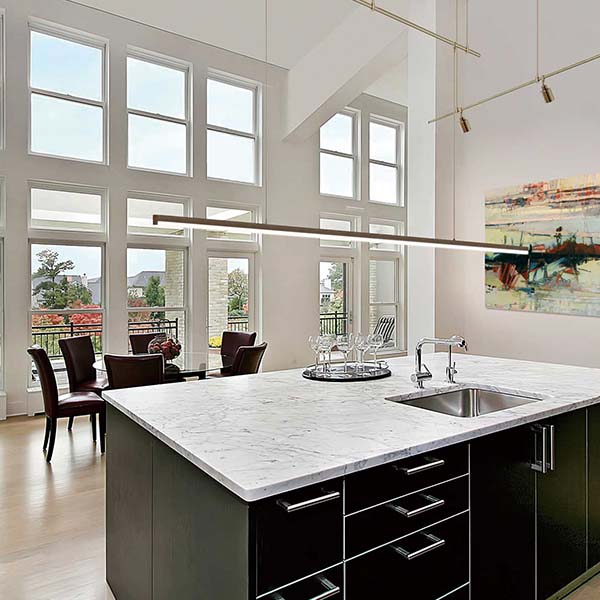

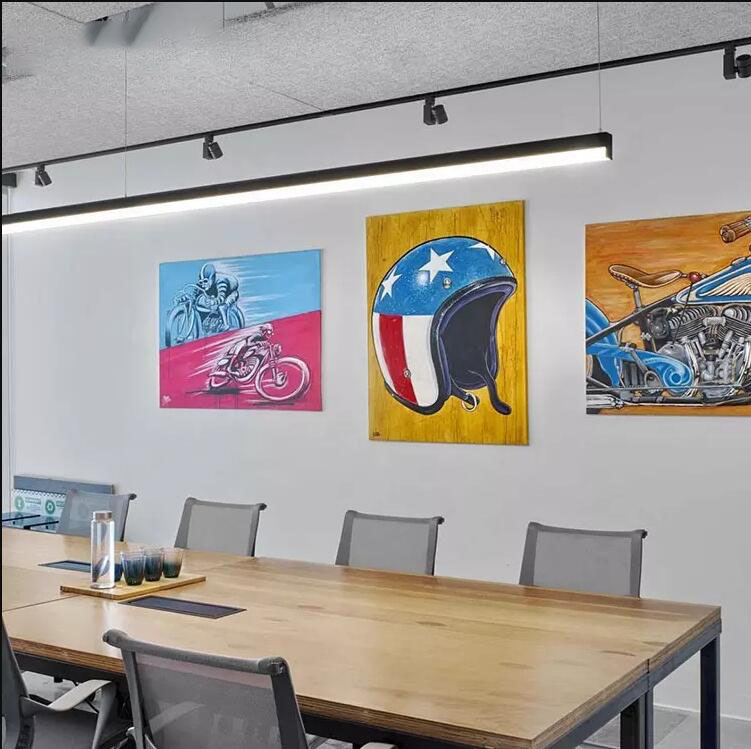

  • Applications: Office, School, Bar, Mall, Hospital, Home, etc
  • 5 Years Warranty


Includes:

1*LED Channel With Dropped Diffuser

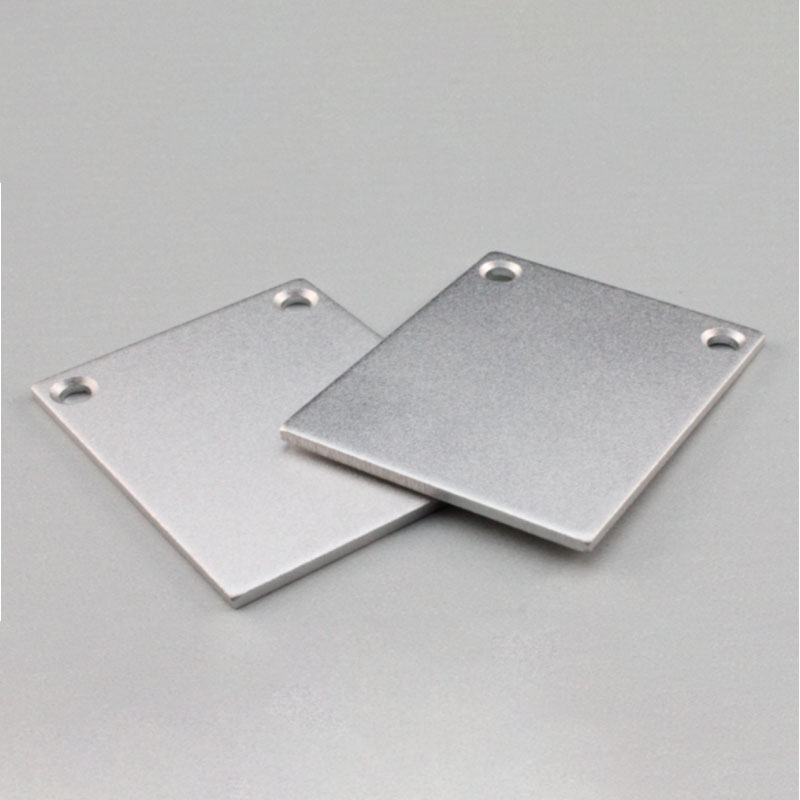

End Caps

Suspension Wires

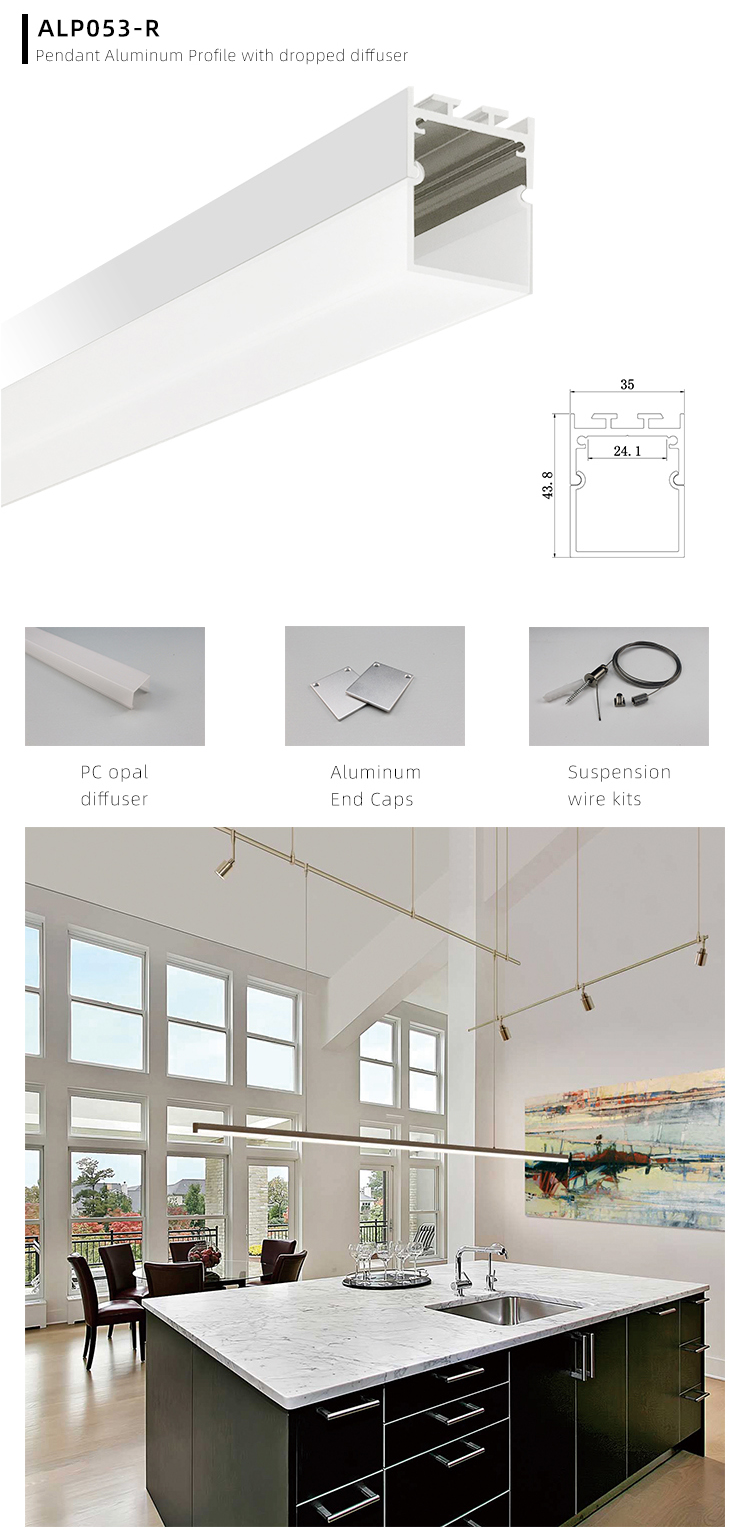

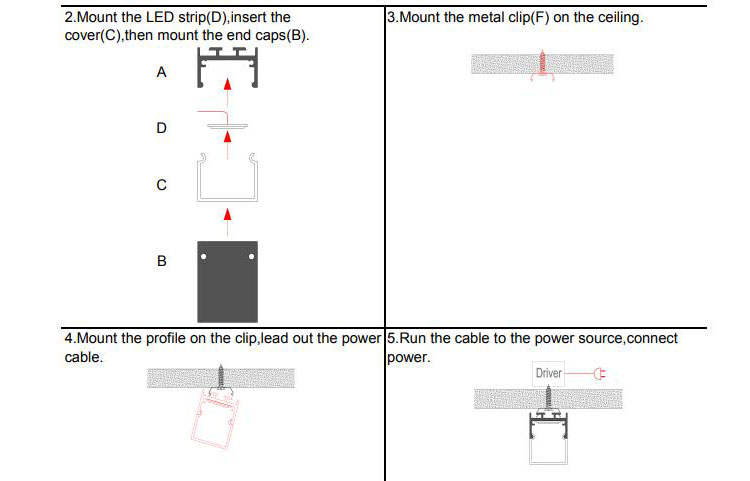

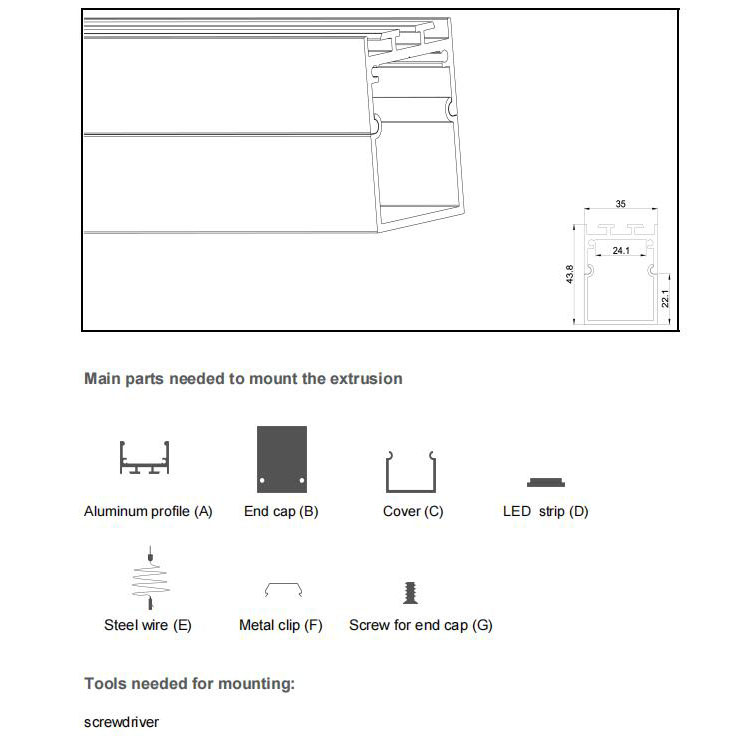

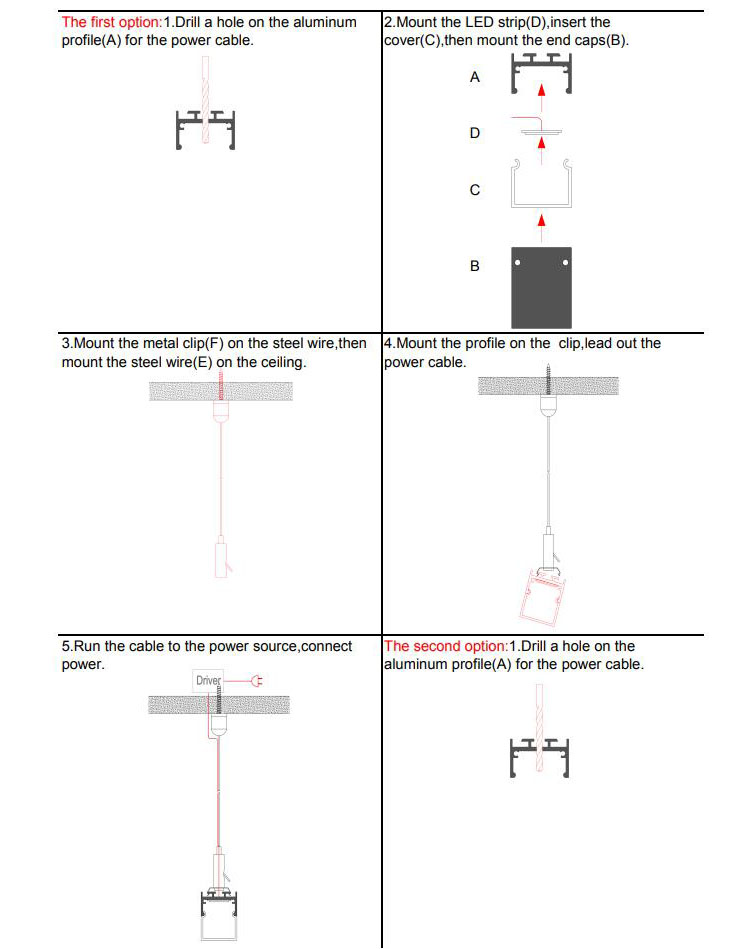

LED Channel System LED Channel With Diffuser How To Install LED Strip Channel With Diffuser How To Install LED Light Channel With Diffuser
