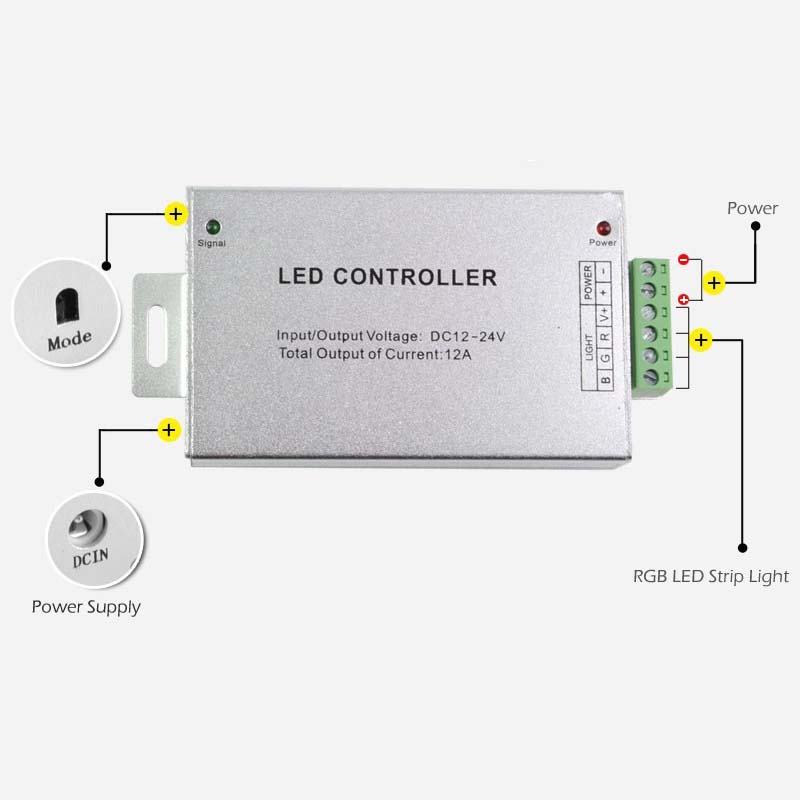

Check the LED Strip Controller, which enclosed in the aluminum shell for better heat dissipation, with 3 output channels design, the max output current is 4A and the max loading power up to 288W when working in DC24V. the LED Light Controller adopts the advanced micro control unit, can be used for controlling a variety of RGB LED Lights, Flexible LED Strips, Wall Washer Lamps, the infrared 44 keys remote included, 28 models in total, 20 static colors and 8 dynamic changes, the brightness of static colors and the speed of dynamic changes are adjustable. you can use the IR LED Remote to adjust the brightness of static colors or change the dynamic changes in lighting effects.


  • Item NO: TY-L-C-005
  • Size: 128mm*65mm*25mm(L*W*H)
  • Working temperature: -20-60℃
  • Static power consumption: <1W
  • Working voltage: DC12V-DC24V
  • Connecting Mode: Common Anode
  • Output Channels: 3
  • Max Current: ≤3*4A
  • Max Power: DC12V: ≤144W   24V: ≤288W

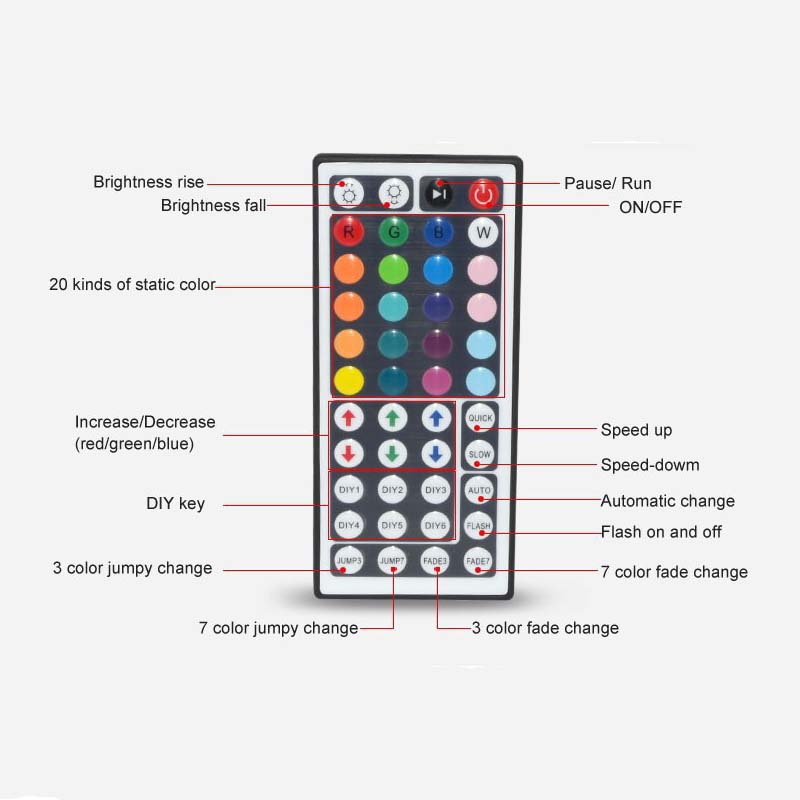

  • Infrared LED Remote With 44 Keys Included
  • 28 Modes In Total, 20 Static Colors And 8 Dynamic Modes
  • Weight: 215g

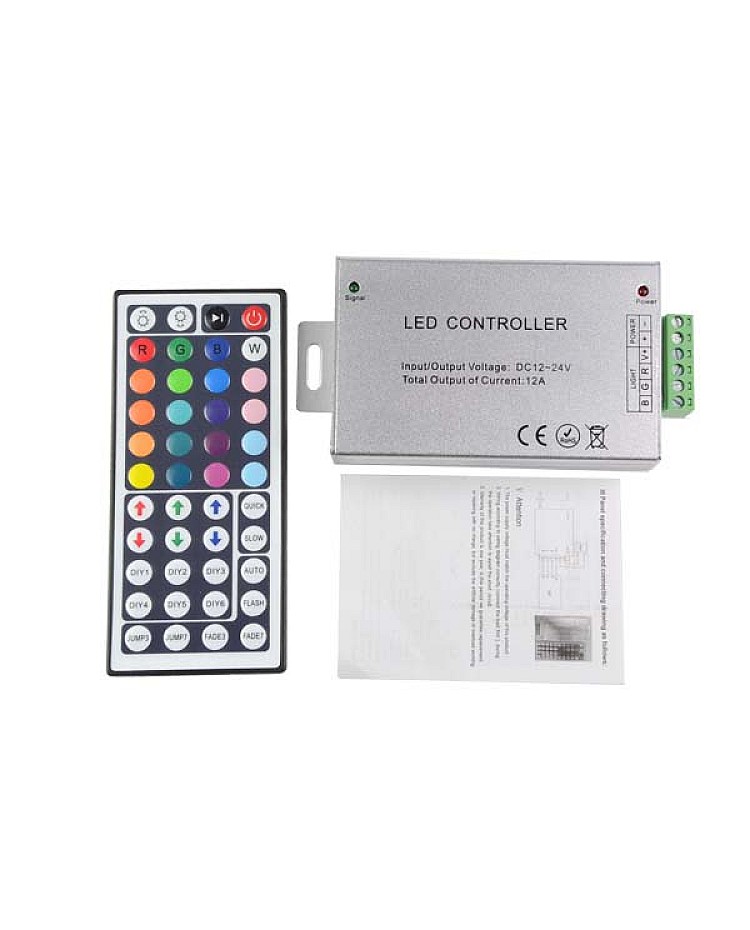

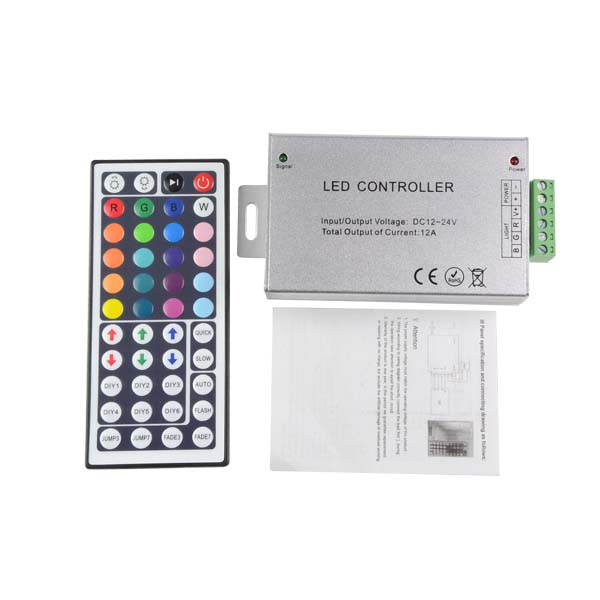

1*IR LED Strip LED Controller

1*44Keys Remote

LED Strip Controller With 44 Keys Remote RGB LED Strip Light Controller
