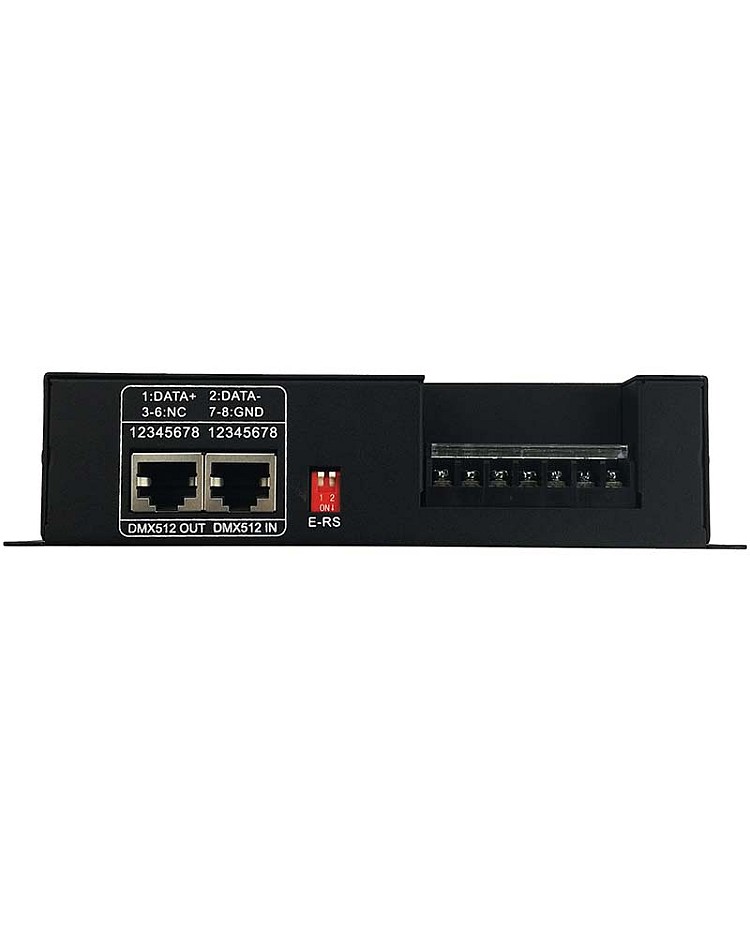

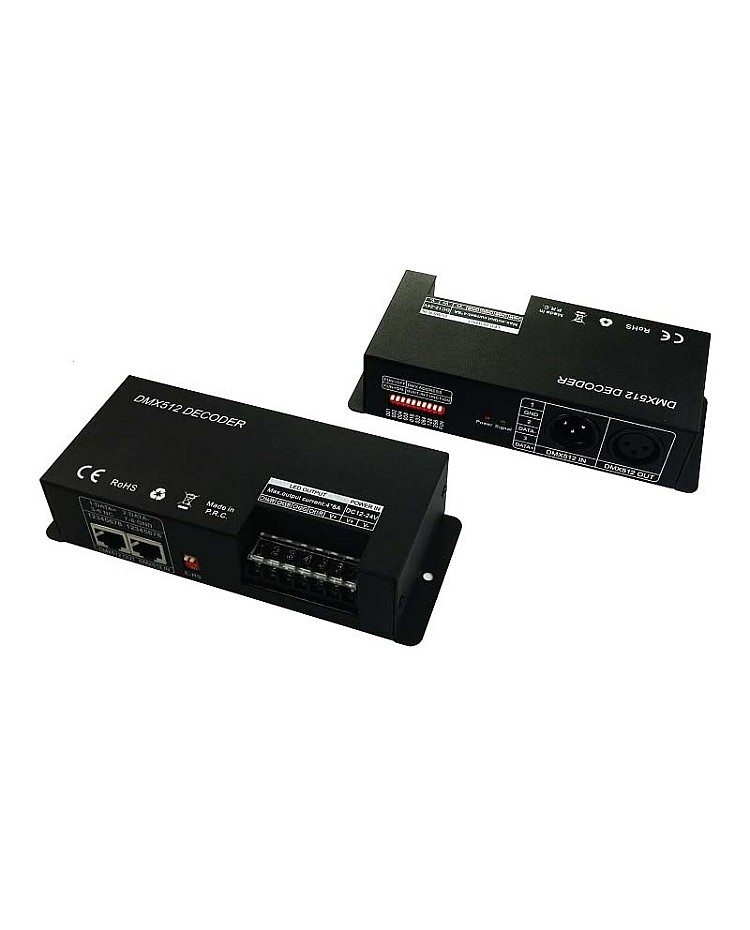

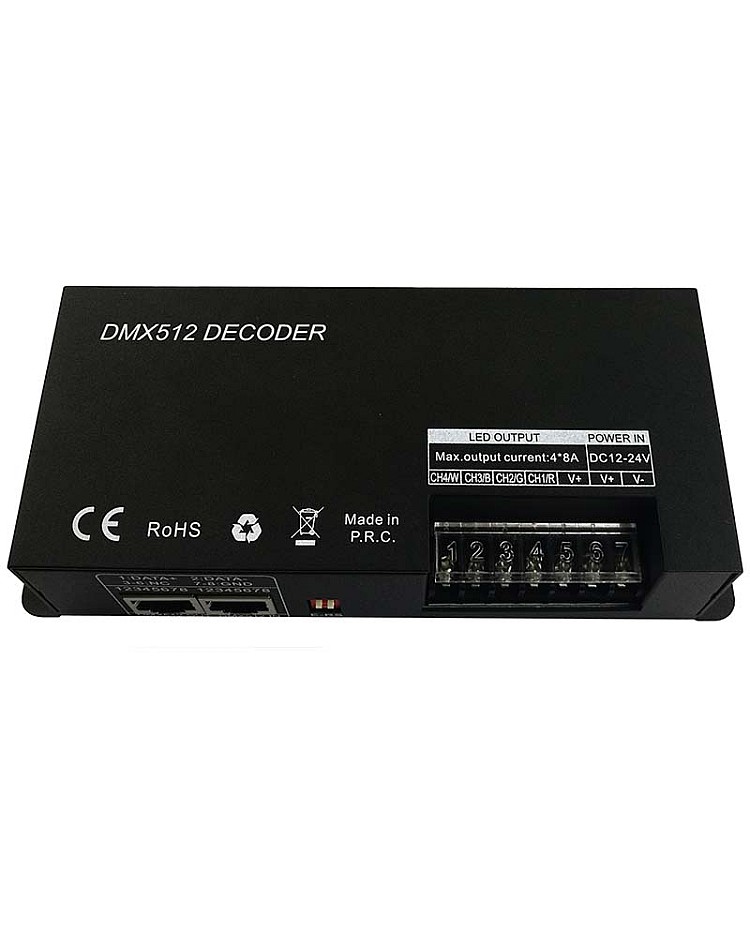

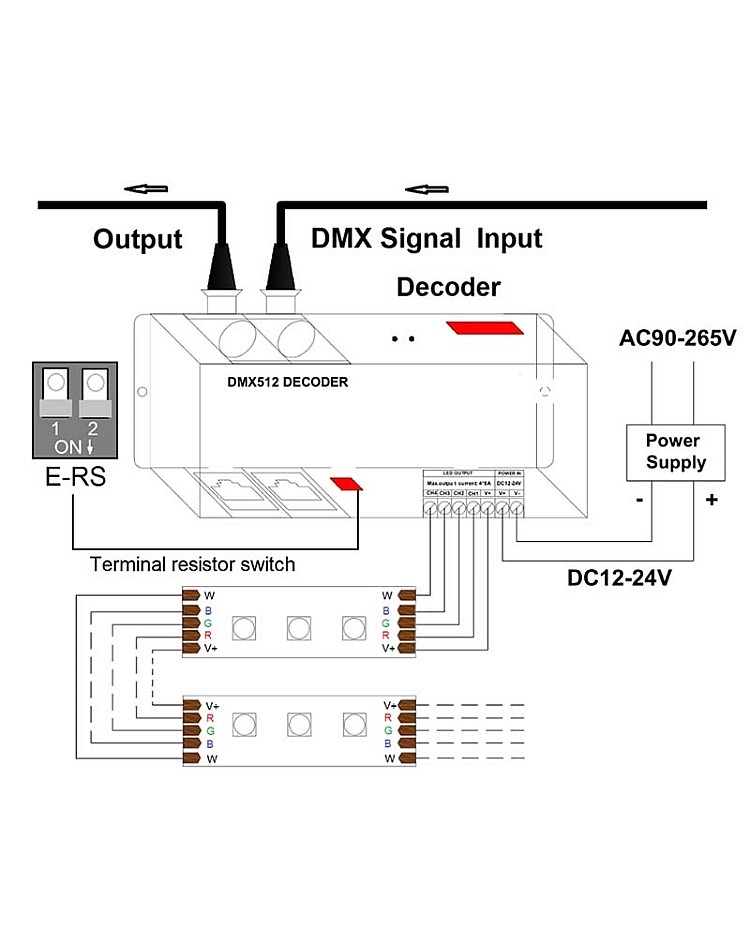

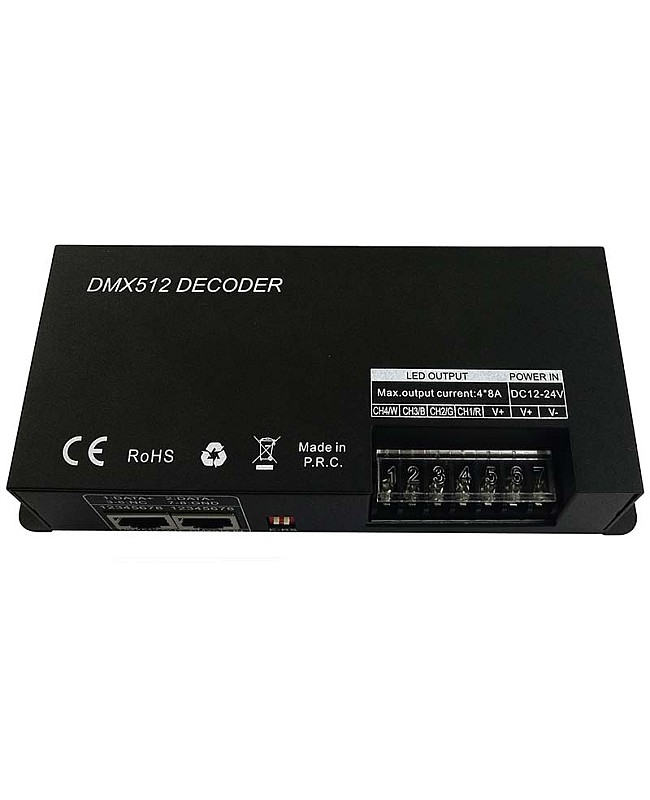

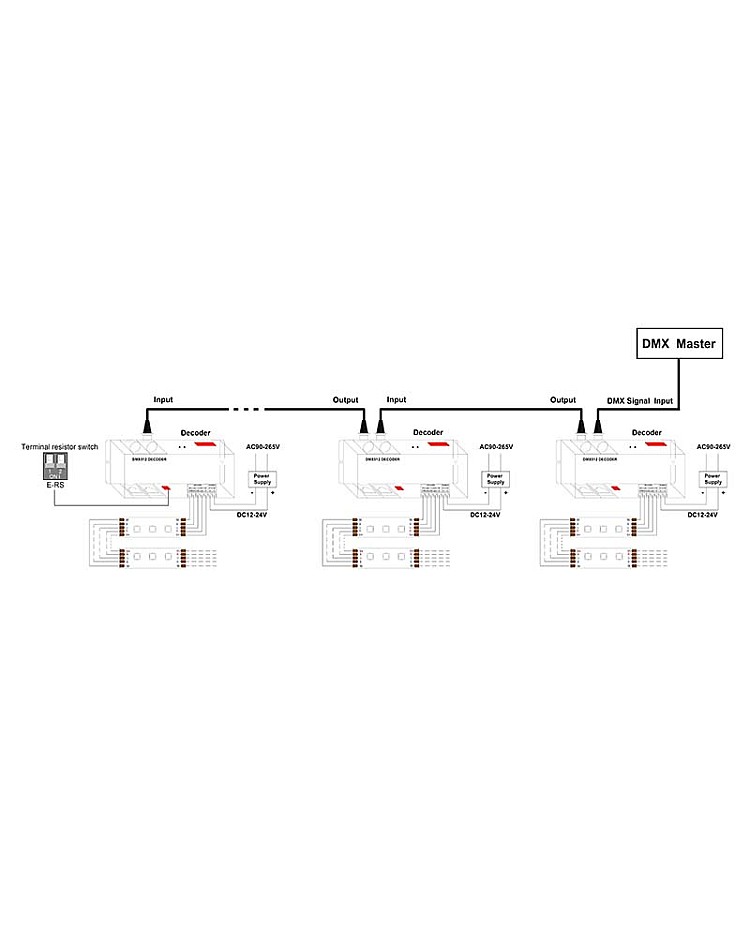

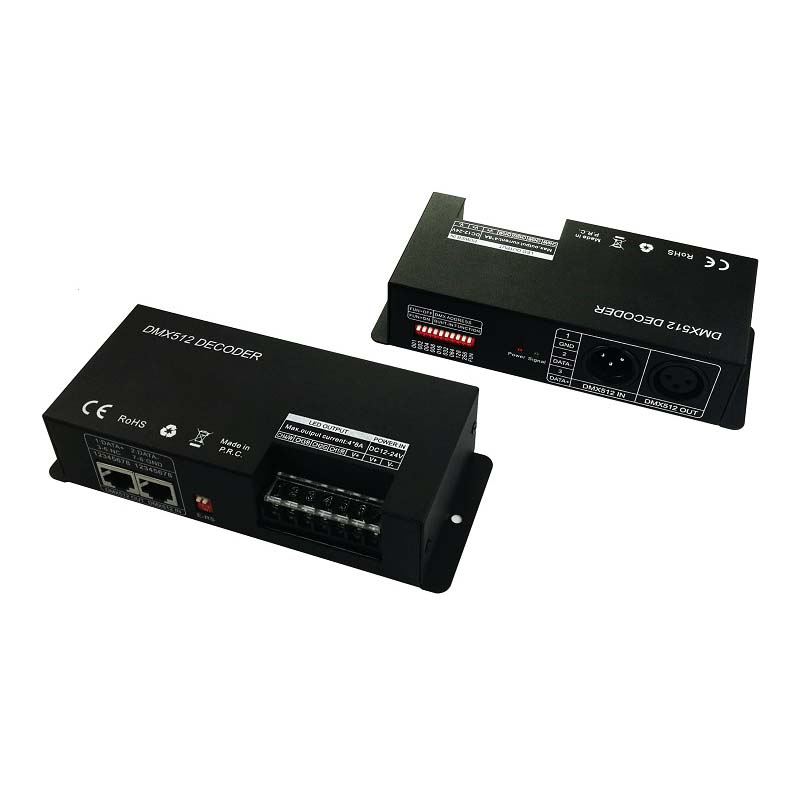

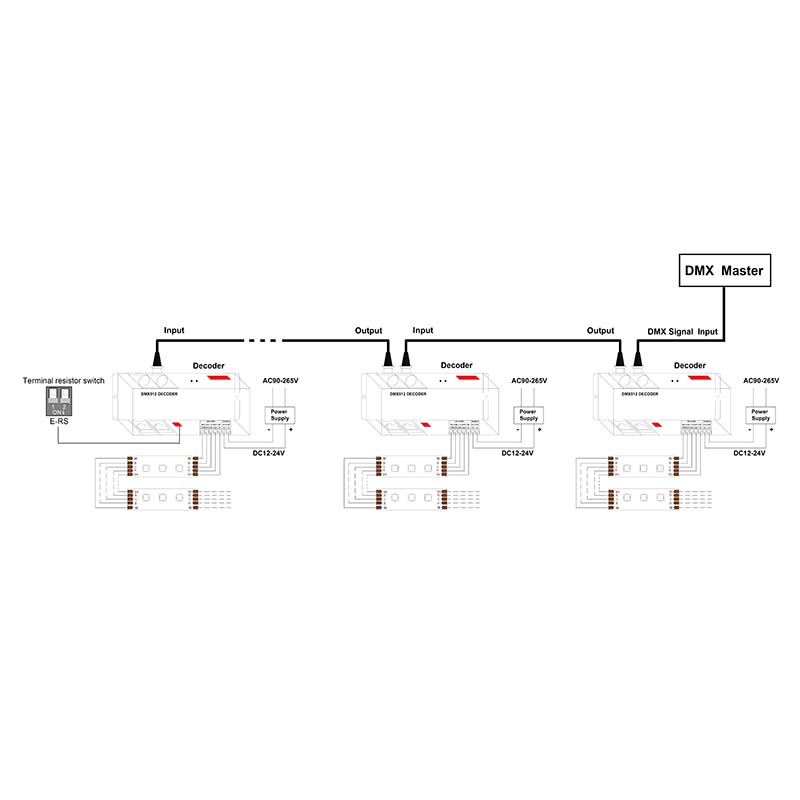

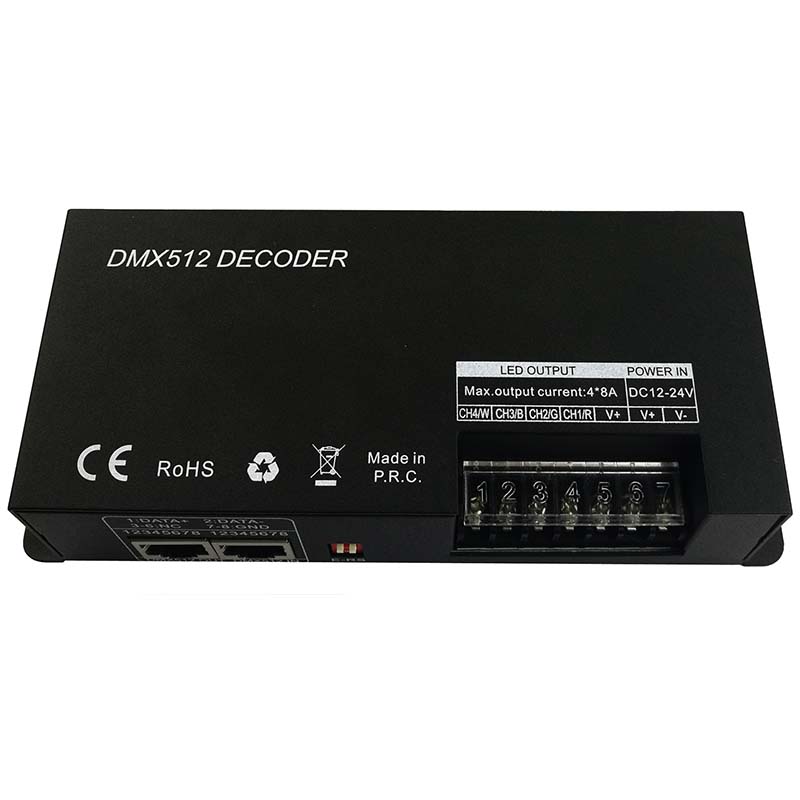

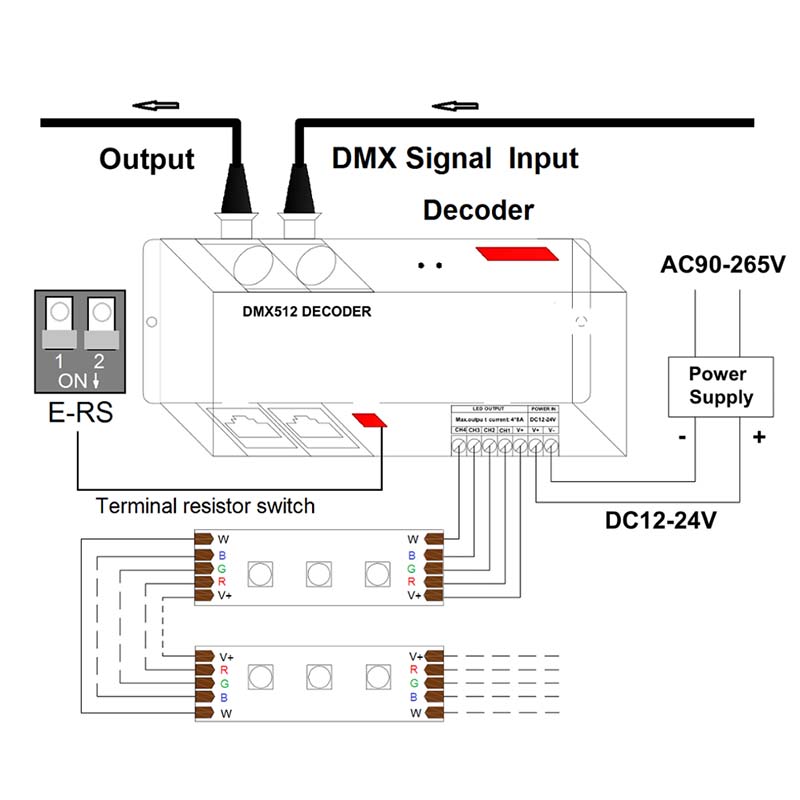

The RGBW 4CH DMX512 decoders are designed for constant-voltage LED lights. It works on DC 12V or DC 24V, can accept the internationally used DMX512 standard digital control signal, and converts it into a PWM signal to actuate LED RGBW lights. It can work with constant voltage LED lamps, LED modules, LED strips, and string lighting, among others. The DMX512 decoder 4 Channel can be connected via a signal line through RJ45 network ports or an XLR plug to continue expanding the channel or accept a manual-setting address via the DIP switch. It also controls the synchronization of multiple decoders' lighting effects through the DMX Master Controller. The DMX 512 decoder with four output channels is designed, with a maximum output current of each channel is 8A, and a maximum loading power of up to 768W when working in DC24V. If the DMX decoder cannot connect to the master control, it can be set as a master controller by pressing the DIP switch. When it functions as a controller, with nine working modes, it can be changed using the dip switch.
Specifications:
- Working Temperature: -20-60℃
- Size: 164*65*40mm(L*W*H)
- Working Voltage: DC12-24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Output Gray: RGB Each 256 Levels
- Transmit Signal: DMX Signal
- Output Channels: 4
- Output Current: <8A(Each Channel)
- Output Power: 384W(DC12V); 768W(DC24V)
- Power Off Memory Function: YES
- PWM Frequency: 1.95 KHz
- Mode: 9
- Short Circuit Protection: YES

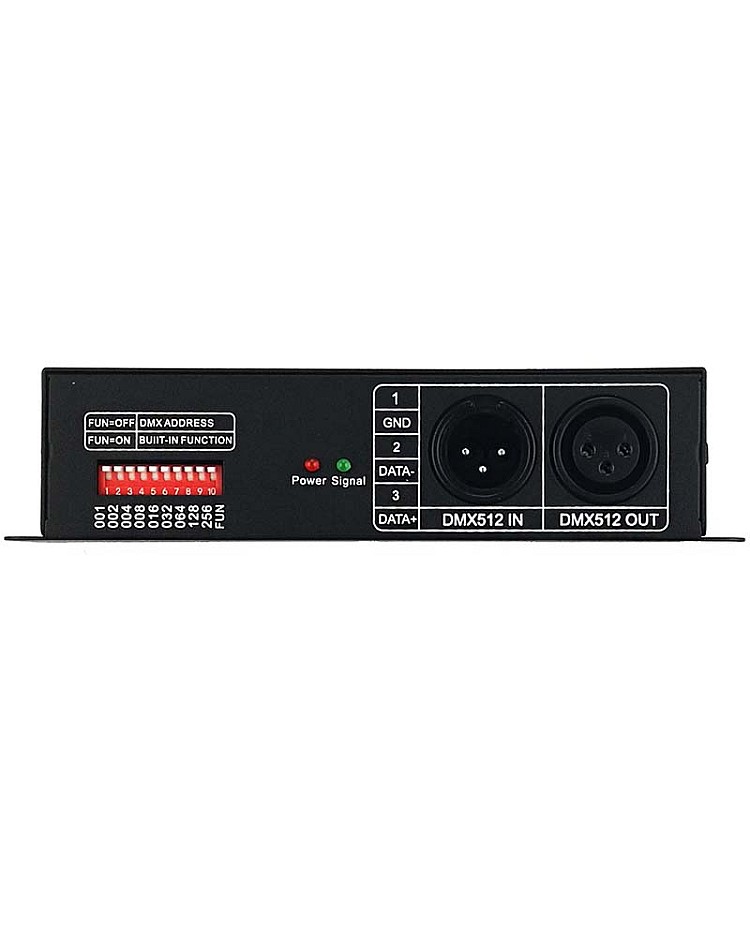

- Could Set Channel Address Through The DIP Switch As Well
- Can Be Changed By a DIP Switch To A Controller
- Standard RJ45 Cable Ports Included
- Weight: 360g
Package:
1 * RGBW 4CHs DMX512 Decoder
