Out Of Stock
$37.99
Reward Points: 38
-
+
  • Brand: Ledbe
  • Product Code: WS2812 Side Light

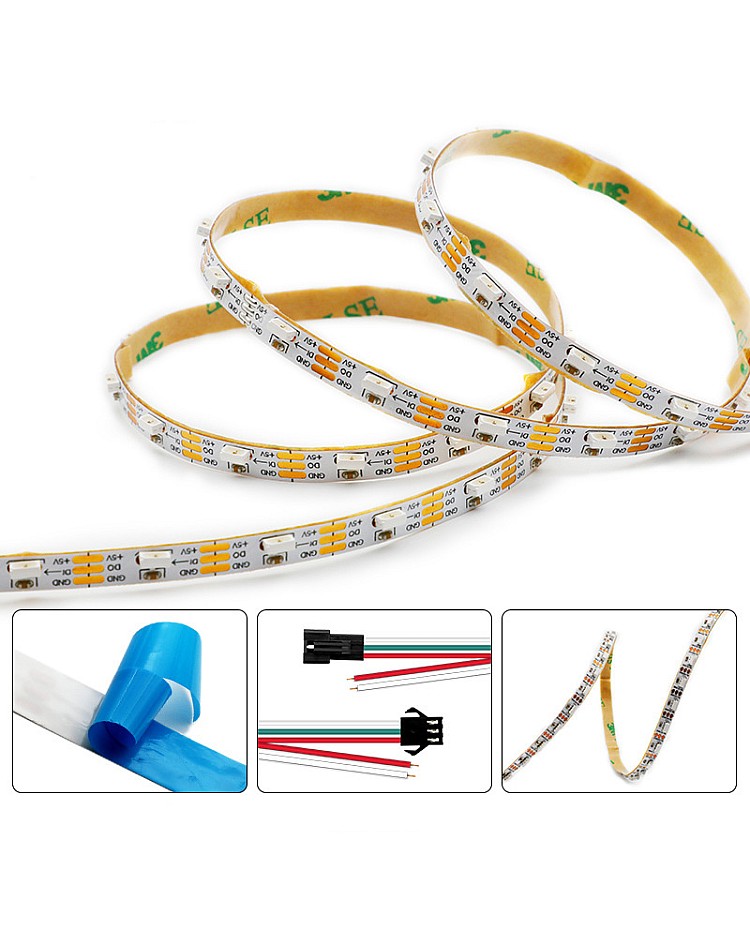

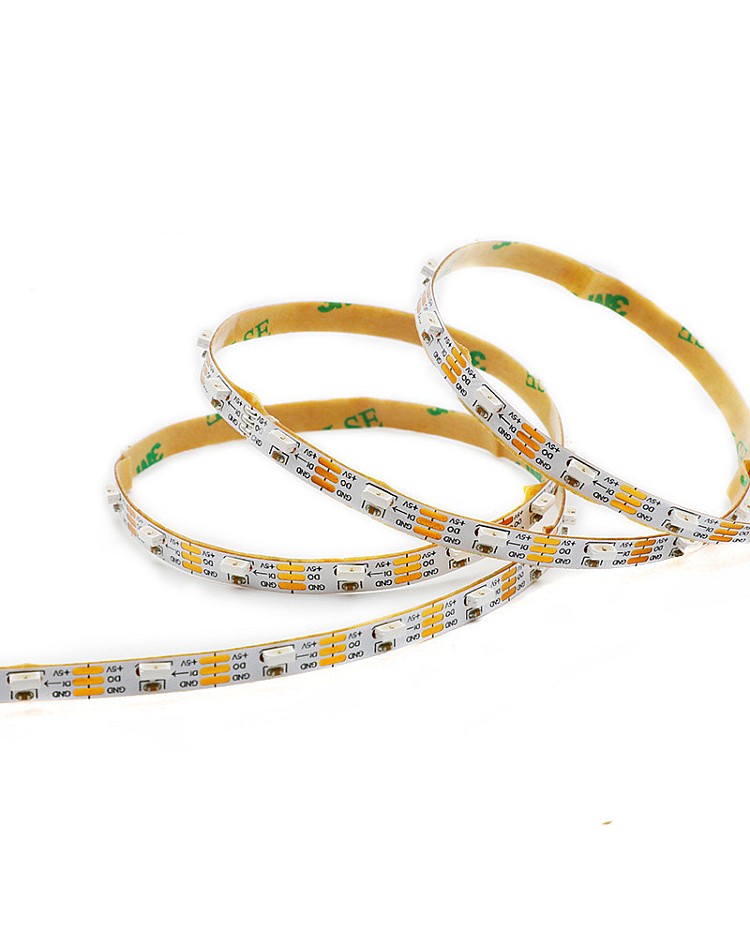

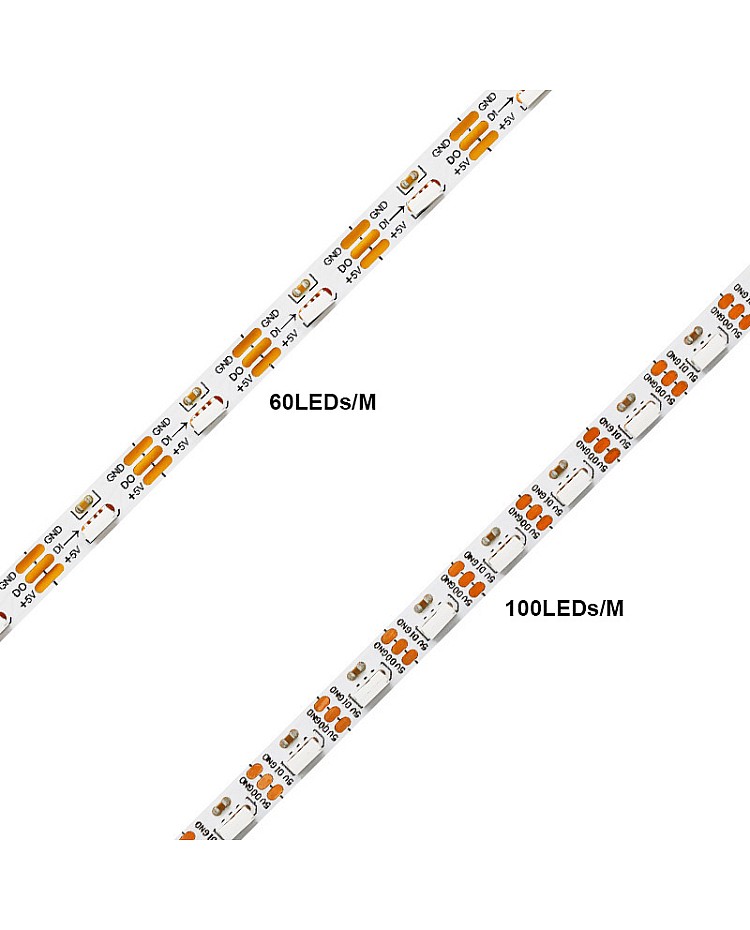

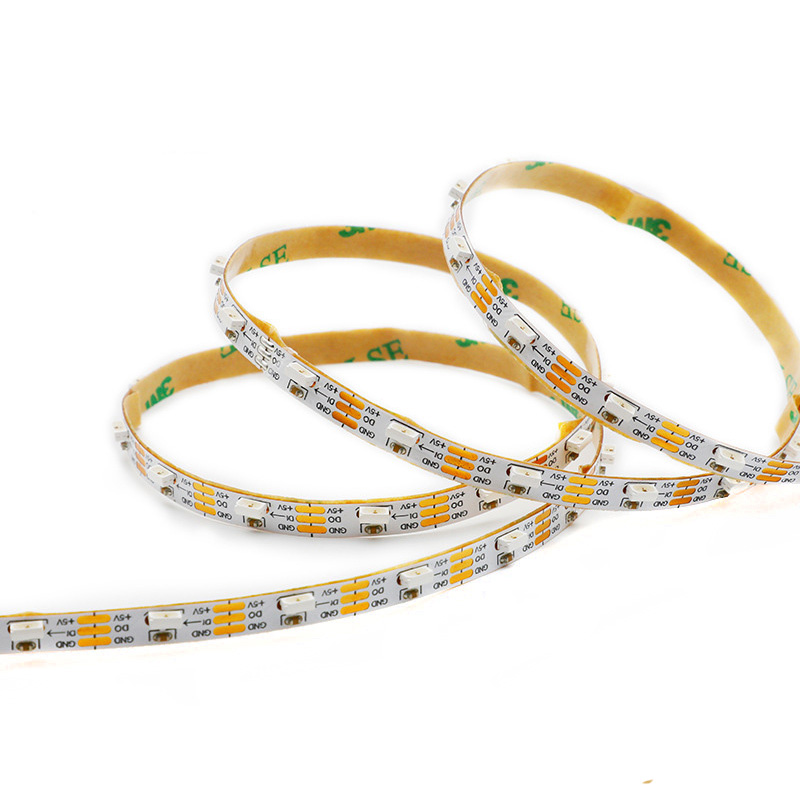

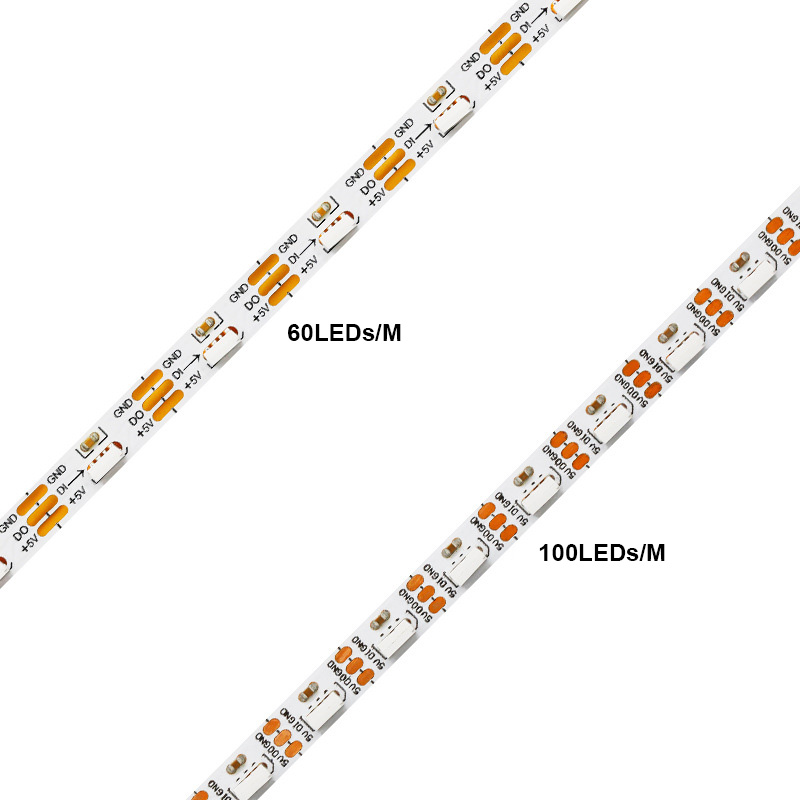

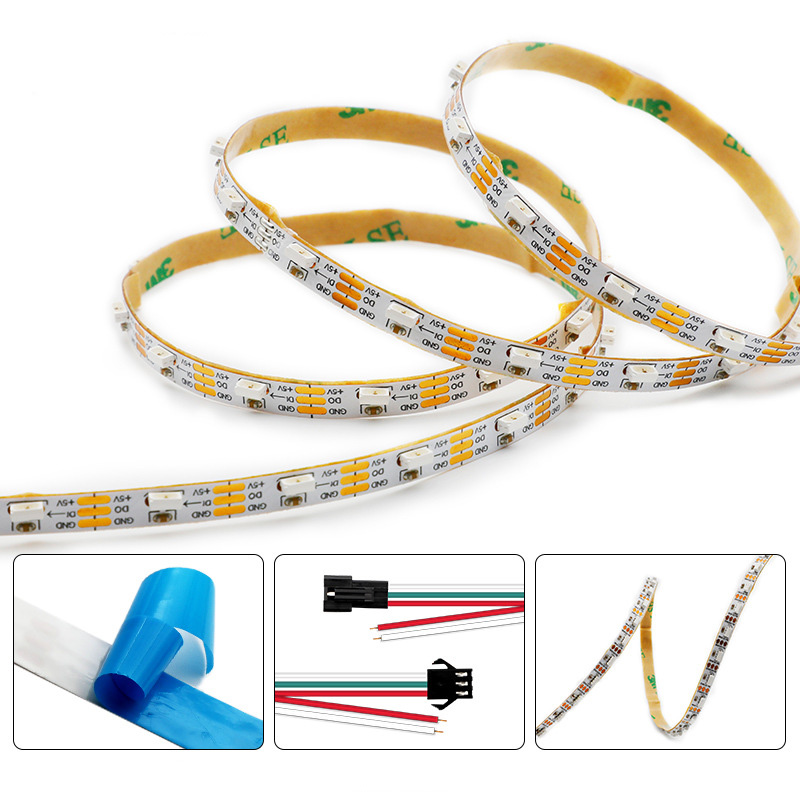

The super-thin WS2812 LED Strips, with a width of only 5mm, can be installed in narrow locations. Uses 4020 LEDs as the light source, with 60 LEDs per meter and 100 LEDs per meter available, and a length of 16.4 ft per roll. The LEDs are built with WS2812B ICs, which control the RGB LEDs to achieve fantastic lighting effects, including static colors, chasing effects, rain, drops, and more. They offer 256 levels of brightness and a 24-bit full-color display. The end of each roll of LED Strips comes with 3-pin JST SM Connectors, which are easy to connect to Controllers and use an APP or Remote to adjust the brightness and color-changing mode. Two waterproof level products are available: IP30 non-waterproof and IP67 silicone tubes. The back of the IP30 WS2812B LED strips features double-sided adhesive tape, making it easy to remove the protector and stick them in place where you want to install. Use silicone clips to mount the Waterproof Side View WS2812B LED Strips in a wet, damp, or water location. The minimum cutting length is 10mm, and each LED can be cut and reconnected for your projects. You can install them on furniture, computers, billboards, trucks, cars, models, etc.

Notes:

For the DC5V Programmable LED Strips, we recommend adding voltage every 16.4 feet, as the LEDs at the far end may be dimmer due to resistance and voltage drop.


Specifications:

  • Working Voltage: 5VDC
  • LED Chip: Epistar
  • Length: 5M/Roll(16.4FT)
  • Size: 5mm*1.9mm(Width*Thickness)
  • Power: 0.24W/LED
  • Emitting Colors: 24-Bit Full Color
  • Grayscale Levels: 256
  • Luminosity: 18-22LM/LED

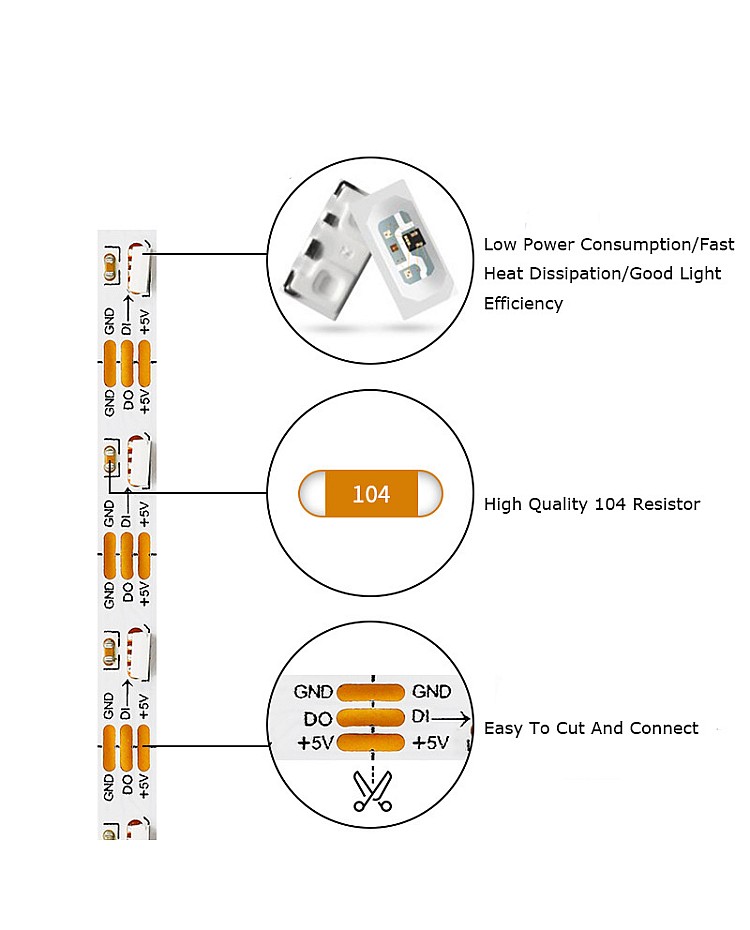

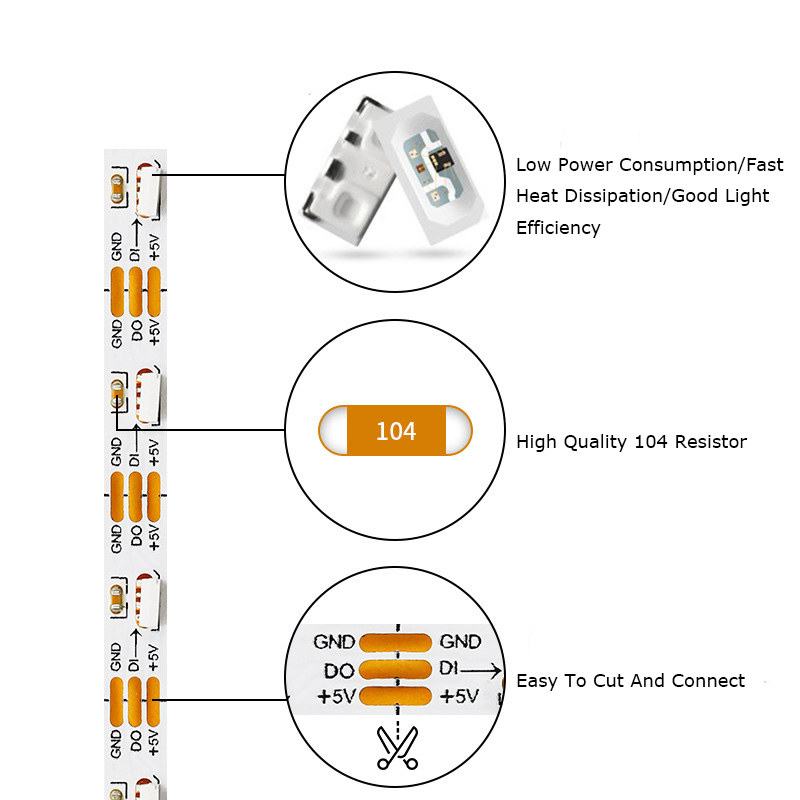

  • Mininm Cutting Length: 16.67mm(60LEDs/M), 10mm(100LEDs/M)

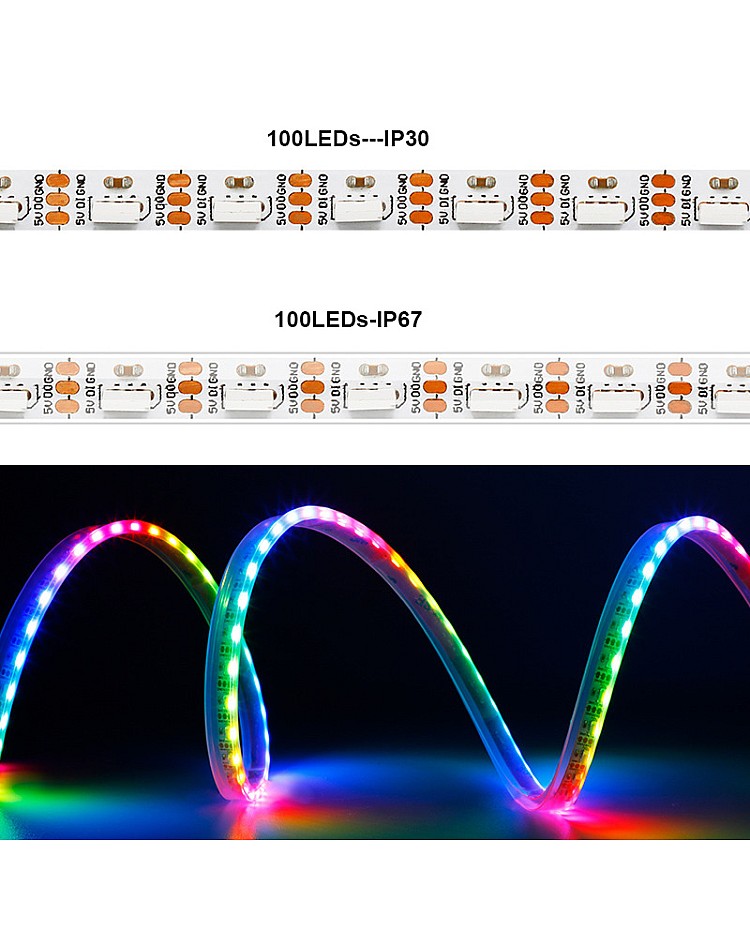

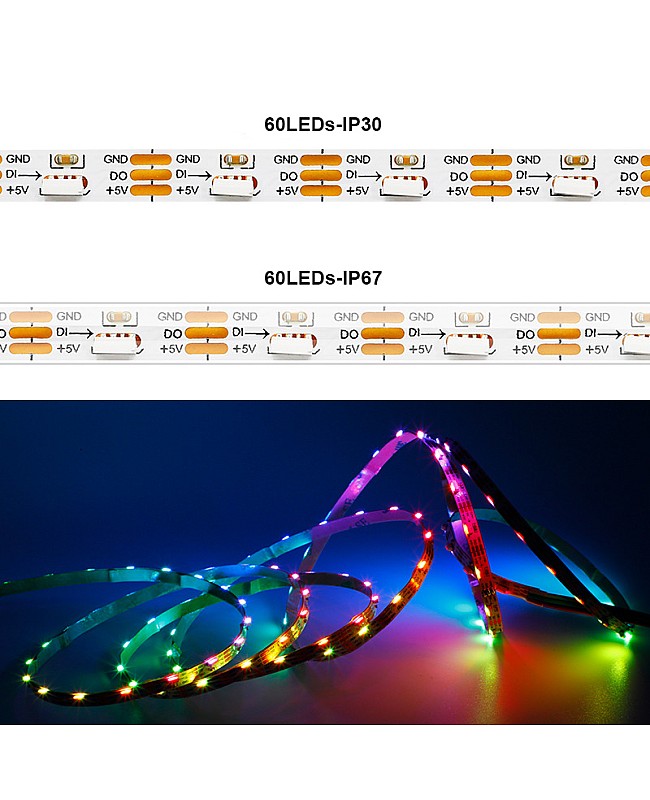

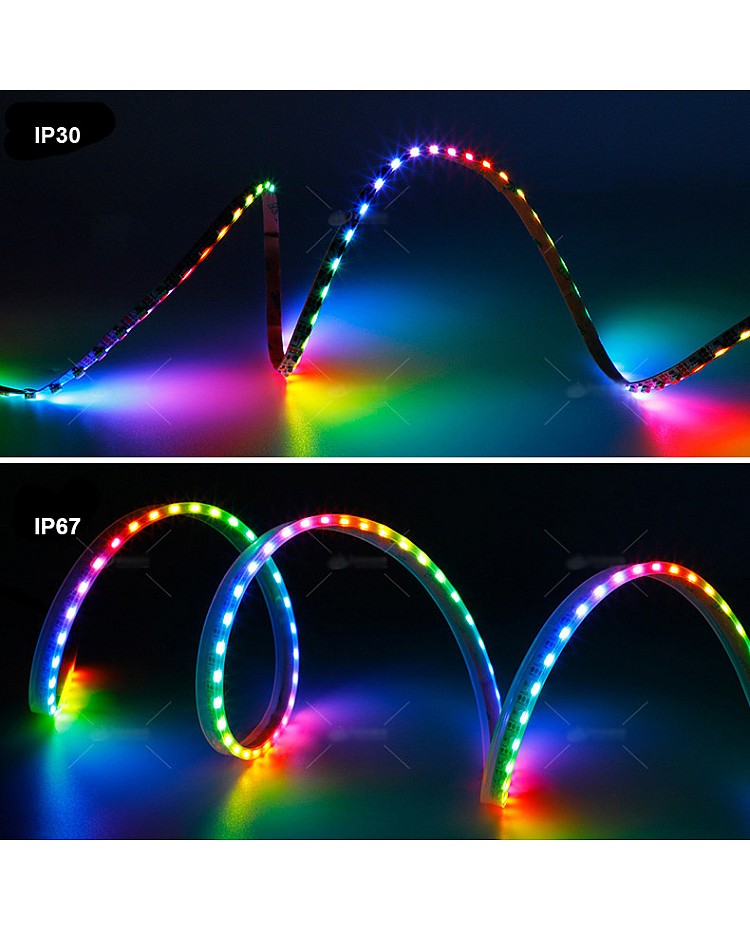

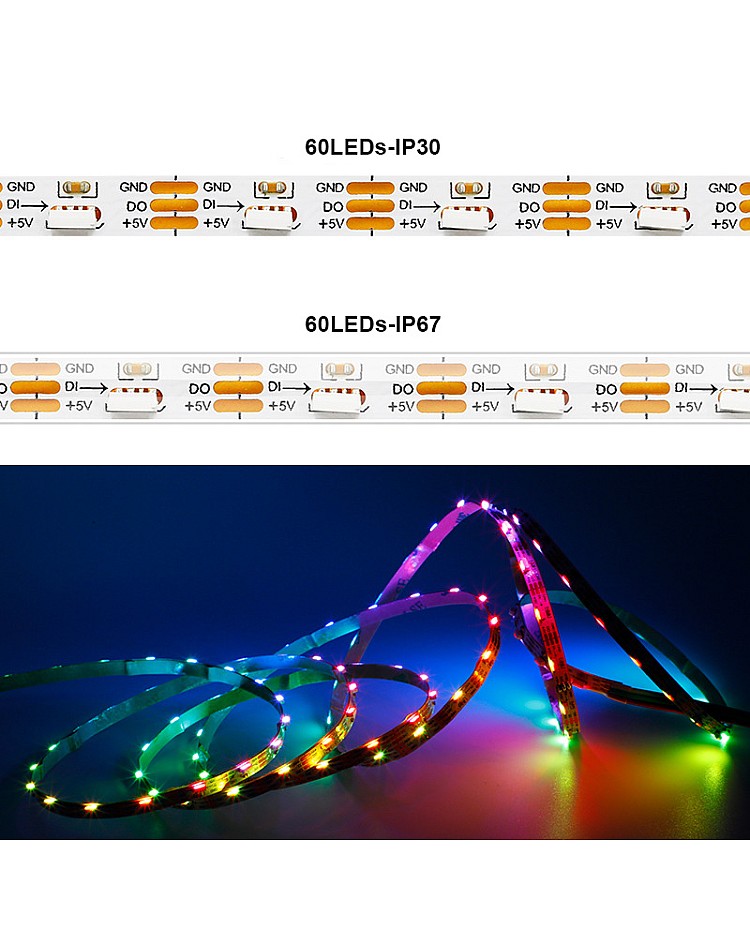

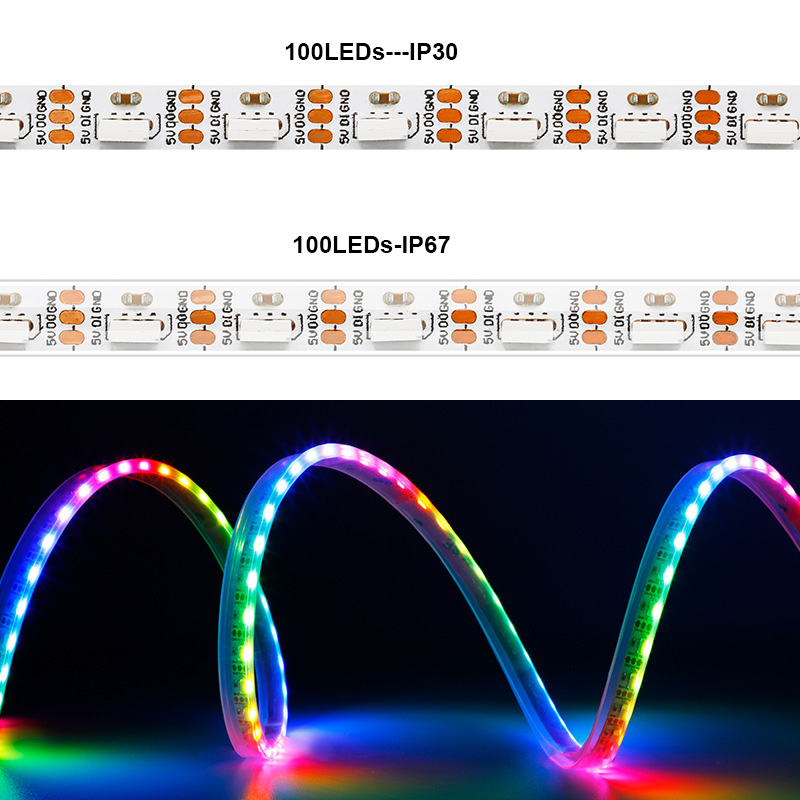

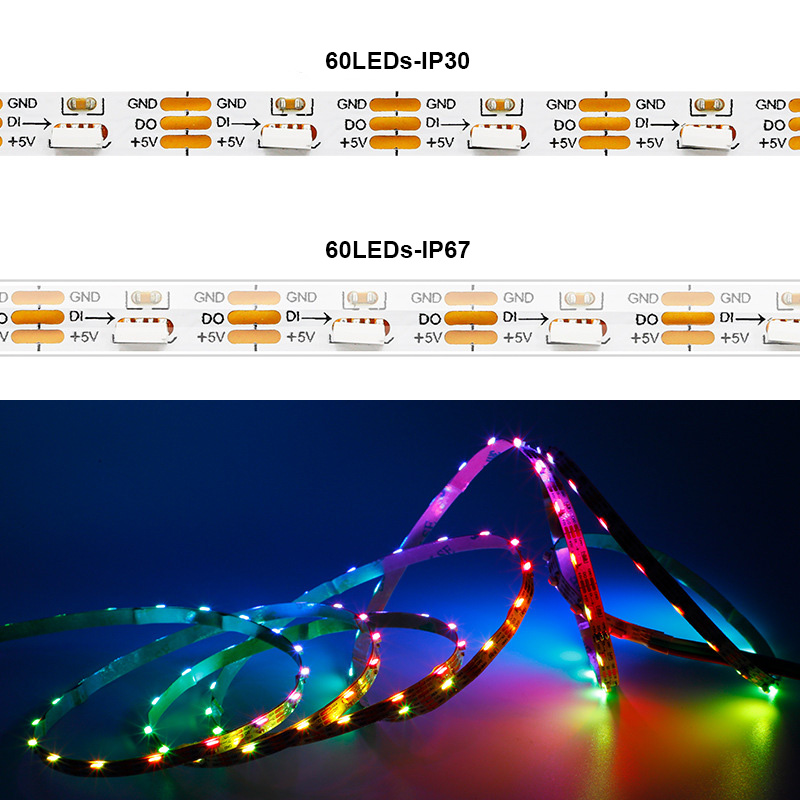

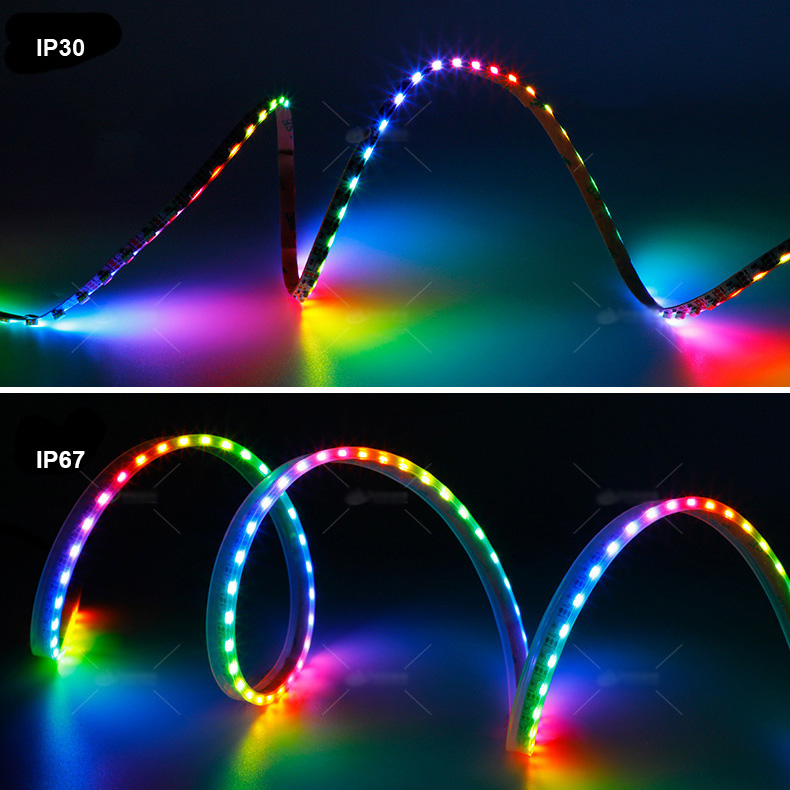

  • Waterproof Level: IP30(Non-waterproof), IP67(Silicone Tube Waterproof)
  • Color Of PCB Board: White
  • Color Order: GRB
  • Angle View: 180°
  • JST SM 3P Connectors Included
  • Light Driver And Controller Sold Separately
  • Lifespan: >30,000 Hours
  • 3 Years Warranty


Includes:

1 X 5mm Side Light WS2812 LED Strips(5M/Roll)

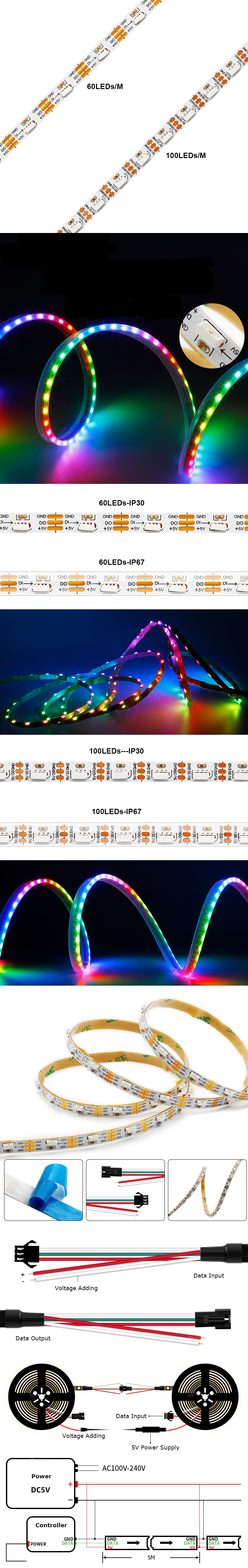

5MM Side Light WS2812 LED Strips Individually Addressable
