In Stock
$25.90 $17.96 Sale -31% OFF
Reward Points: 17
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP051

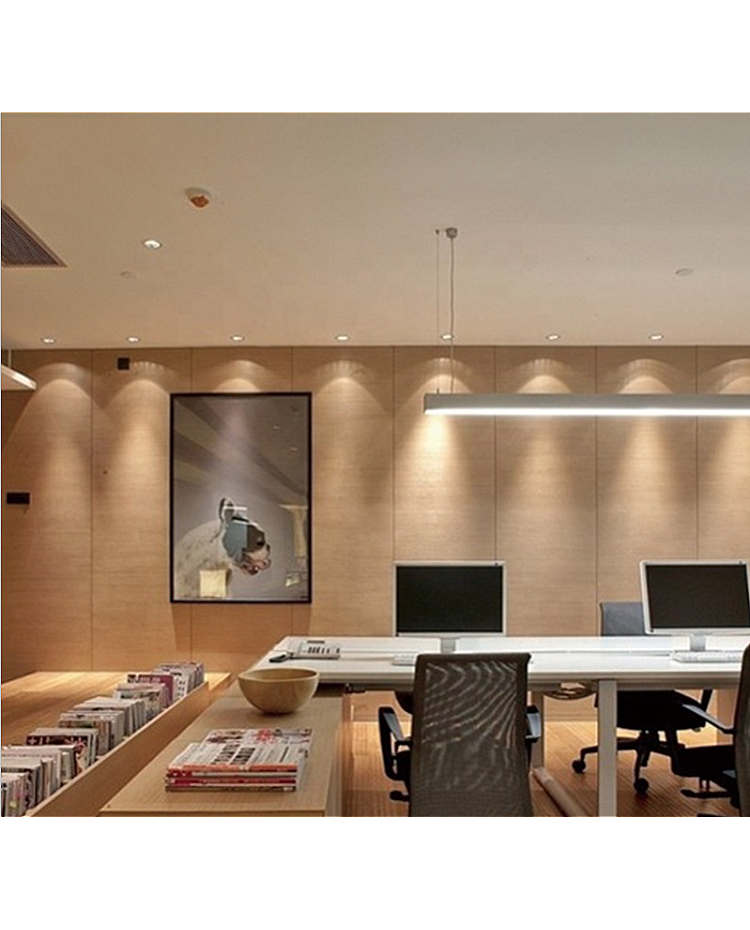

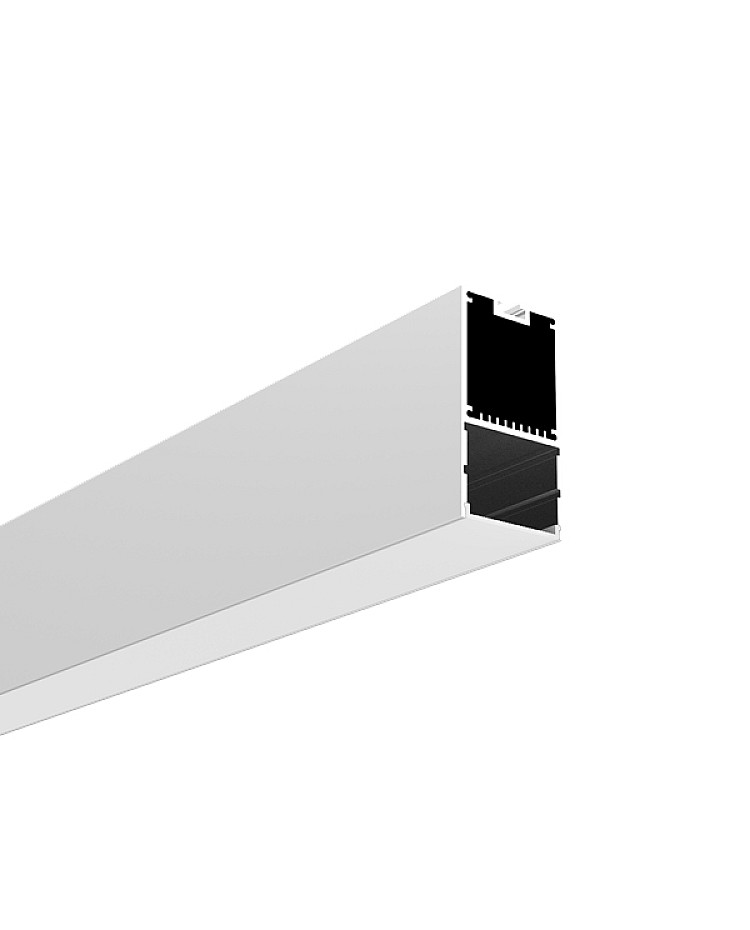

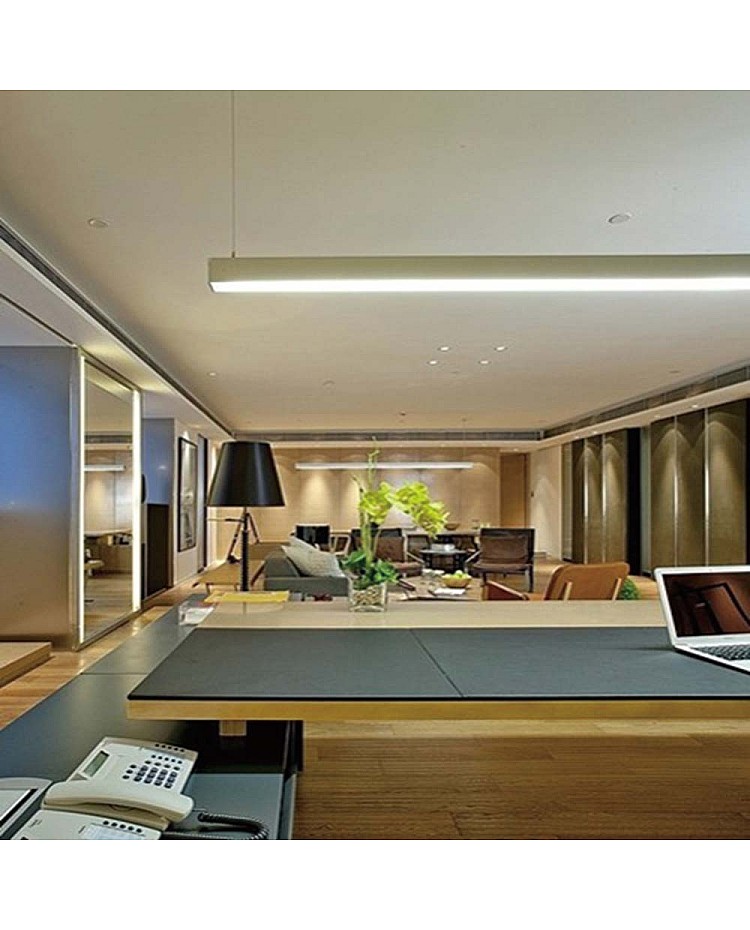

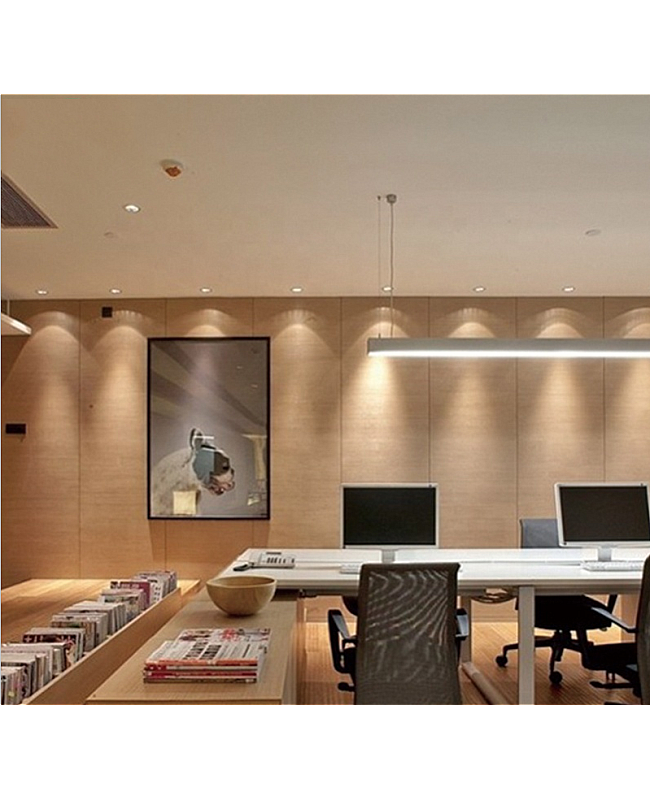

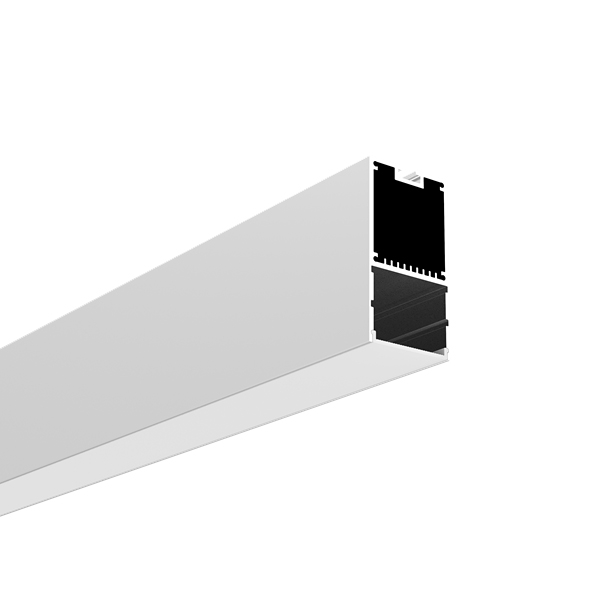

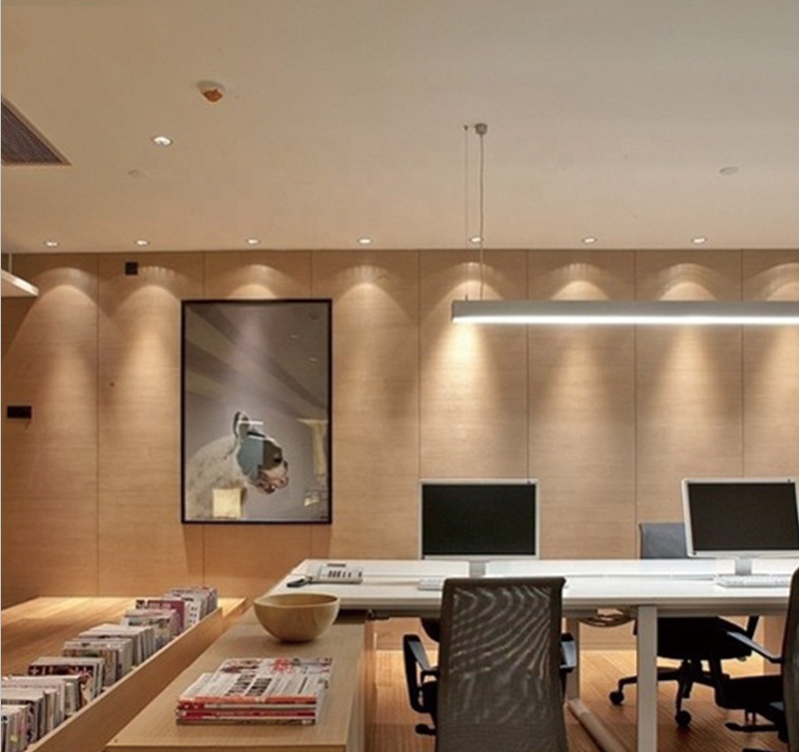

Check the 66.8mm Deep LED Channel, which can be used as the main lighting in the office, conference room, showroom, GYM, stores, hospital, etc, allows ceiling pendant or surface mounted installation, the end caps and suspension wires included, you can hang it on the ceiling or fix it on the surface of the LED Project. the Deep LED Channel made of 6063-T5 aluminium alloy material and with silver anodized surface treatment, anti-oxidation resistance, has a longer lifespan than other similar products. the Aluminium Channel can be used as a heat sink for better heat dissipation, the inner width is 33.6mm and allows to install of double rows of LED Strips into the slot easily, the end caps with wire holes and suspension wires included. easy to connect to the AC DC Power to light up. there are 3 types of diffusers available, the PC series and PMMA series, which are made of brand stable material, anti-yellowing, perfect light distribution and high light output. the standard length is 1meter per piece, max length is 3meter per piece, can be cut to 2m or other lengths for your lighting project.


  • Model: ALP051
  • Material: 6063-T5 Aluminium Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

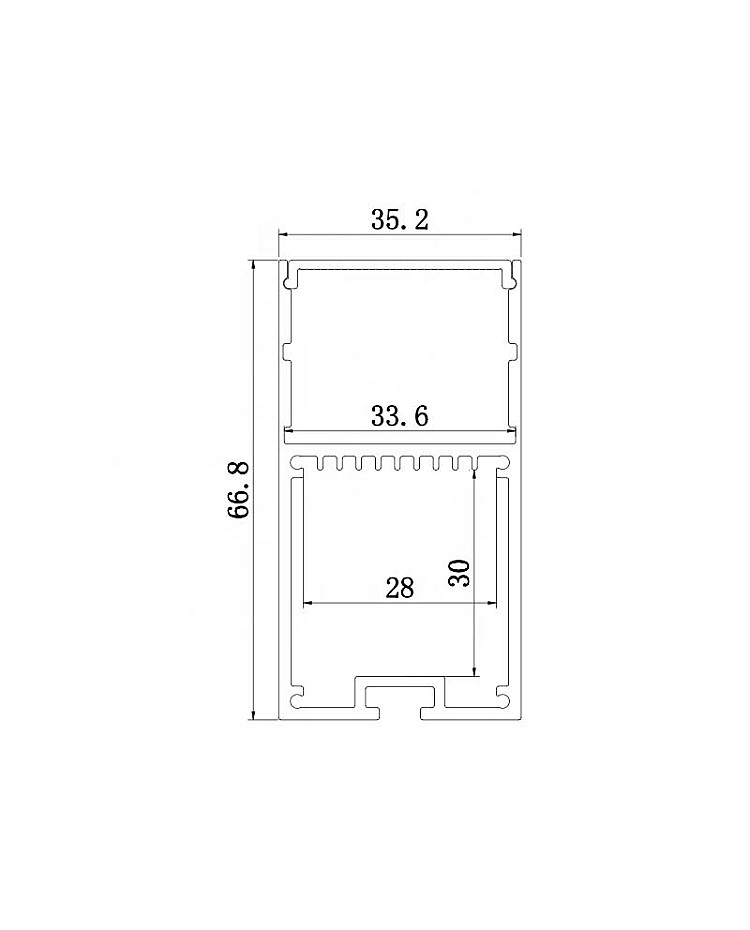

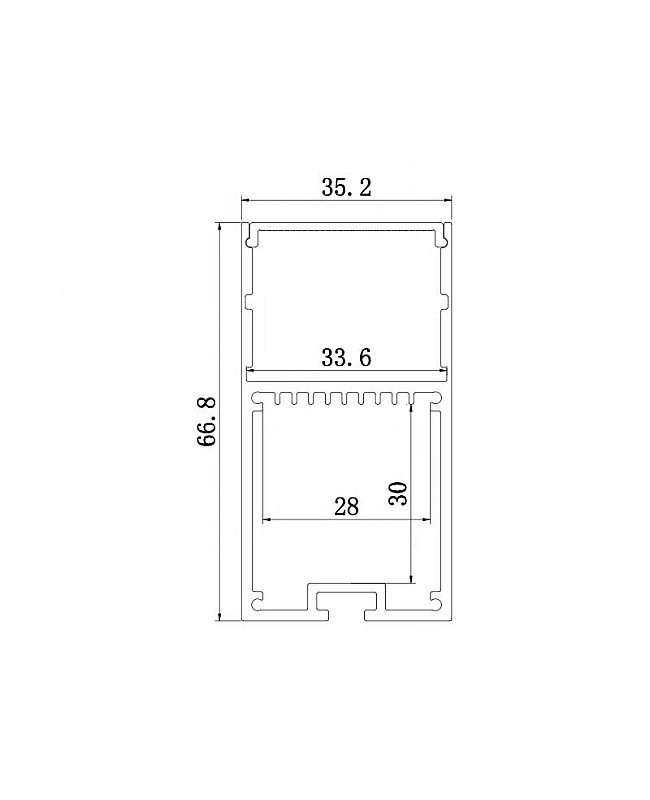

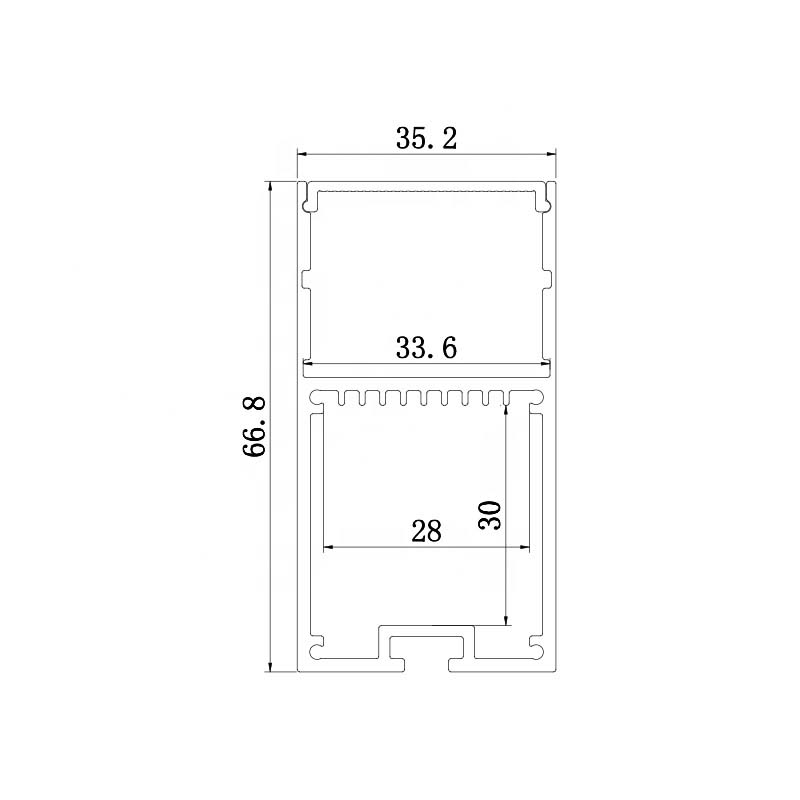

  • Size: 66.8*35.2mm(H*W)
  • Inner Width: 33.6mm
  • Compatible With Double Rows Flexible LED Strips
  • Max Power: <30W/Meter
  • Standard Length: 1M
  • Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M
  • Custom Length Available: YES
  • Diffusers: PC Opal Matte Diffuser, PC Semi-Clear Diffuser, PMMA Opal Matte Cover
  • End Caps With Wire Holes And Suspension Wires Included

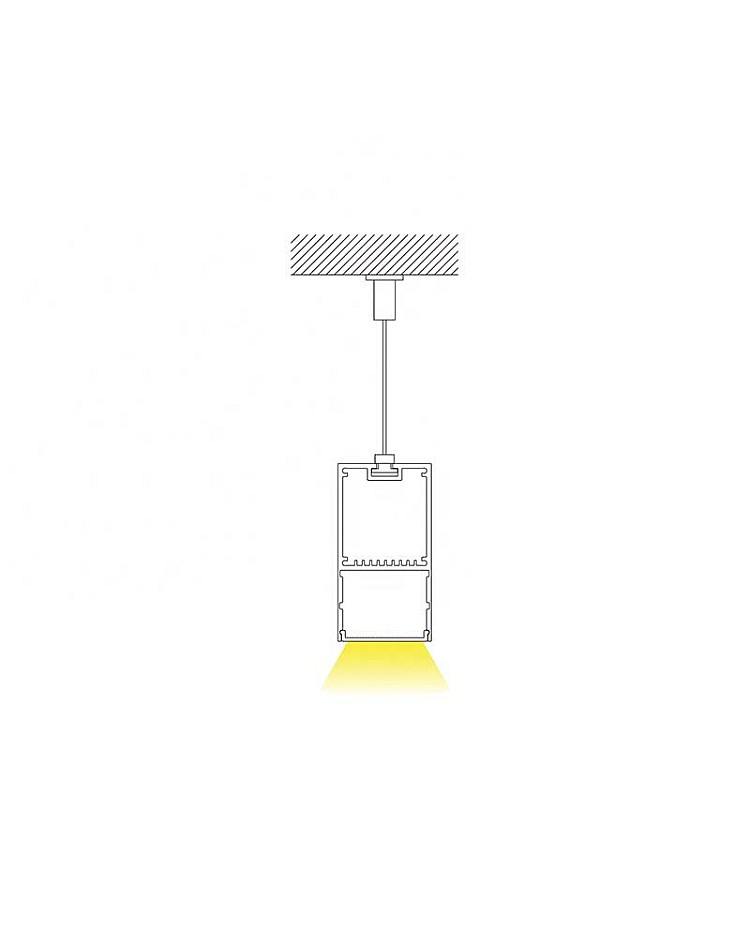

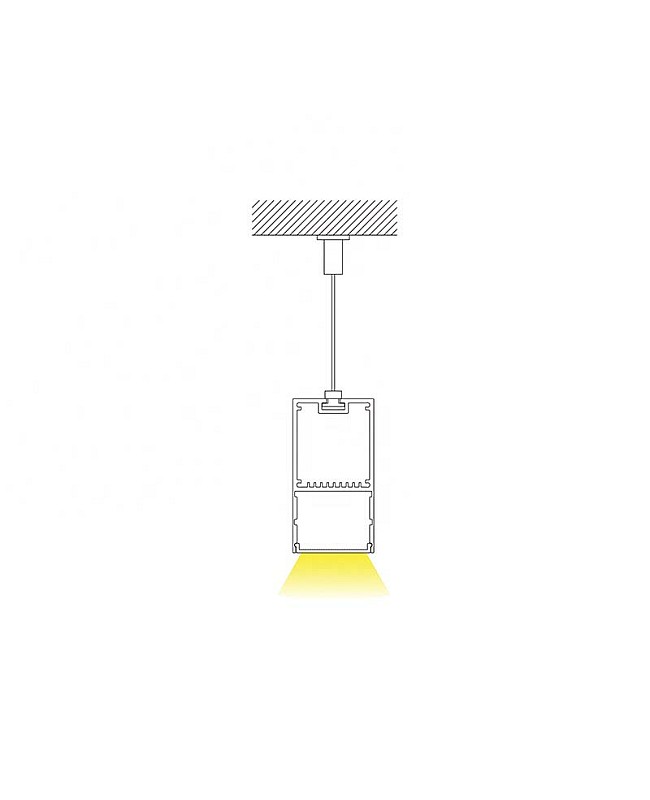

  • Installation: Ceiling Pendant / Surface Mounted

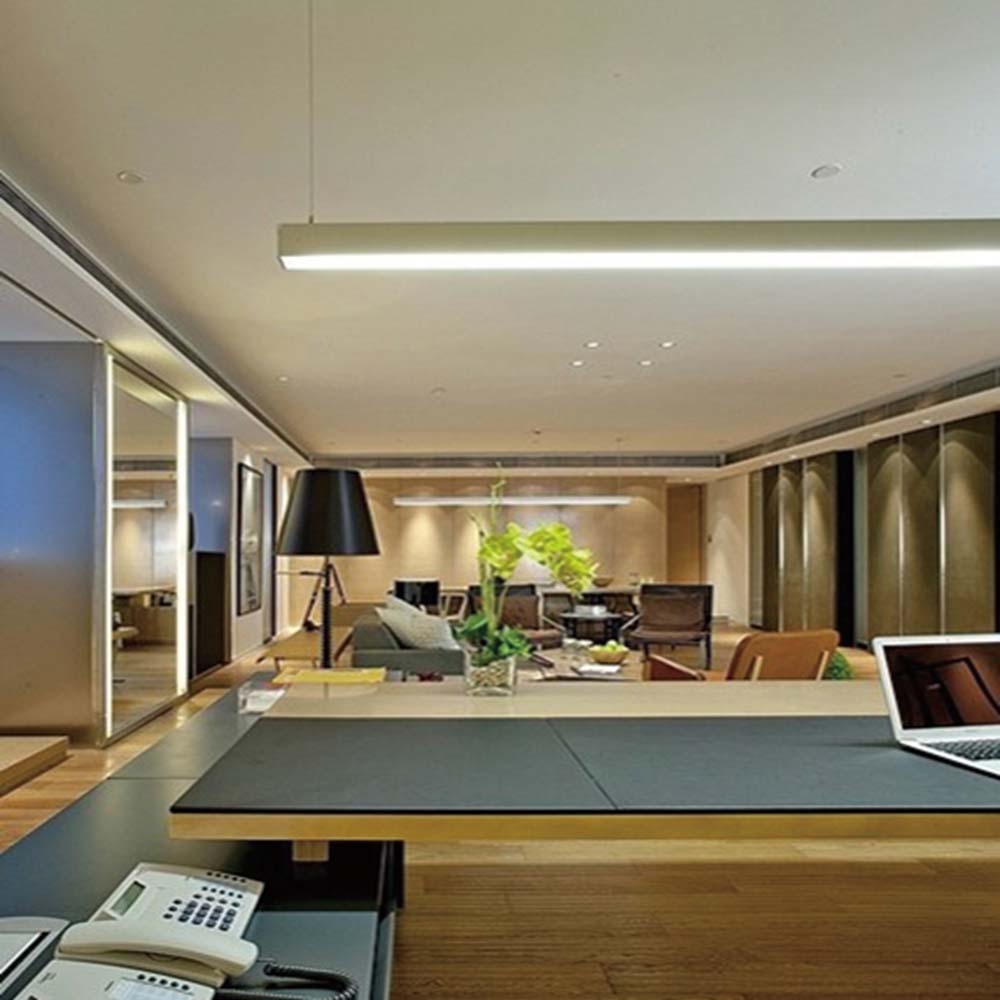

  • Applications: Office, Retail Stores, Supermarket, Shop, GYM, etc
  • 5 Years Warranty


1*Deep LED Channel

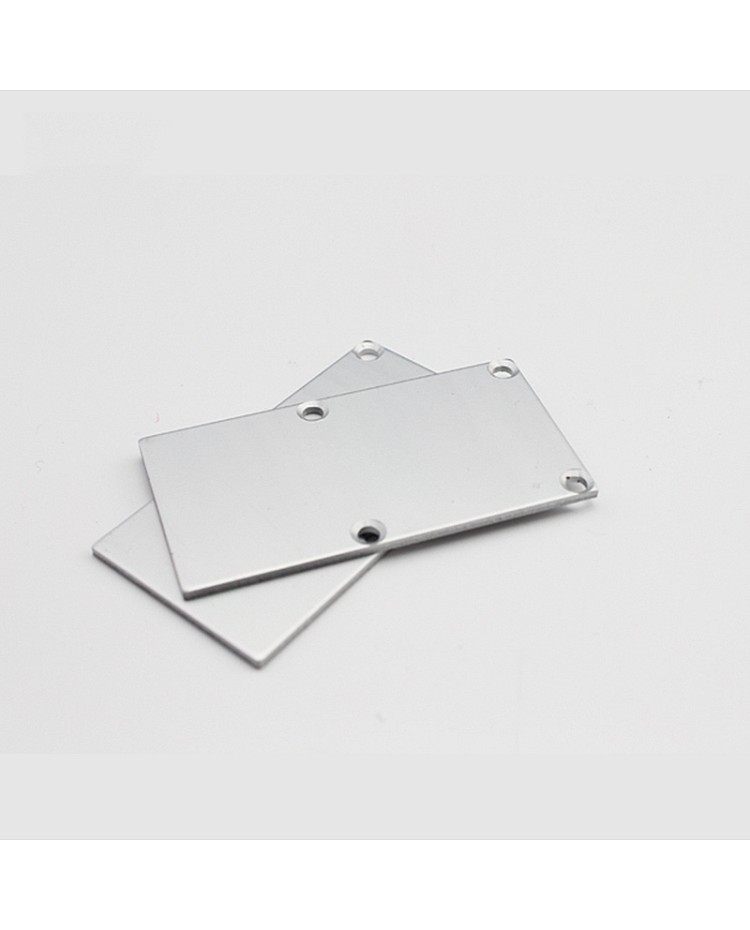

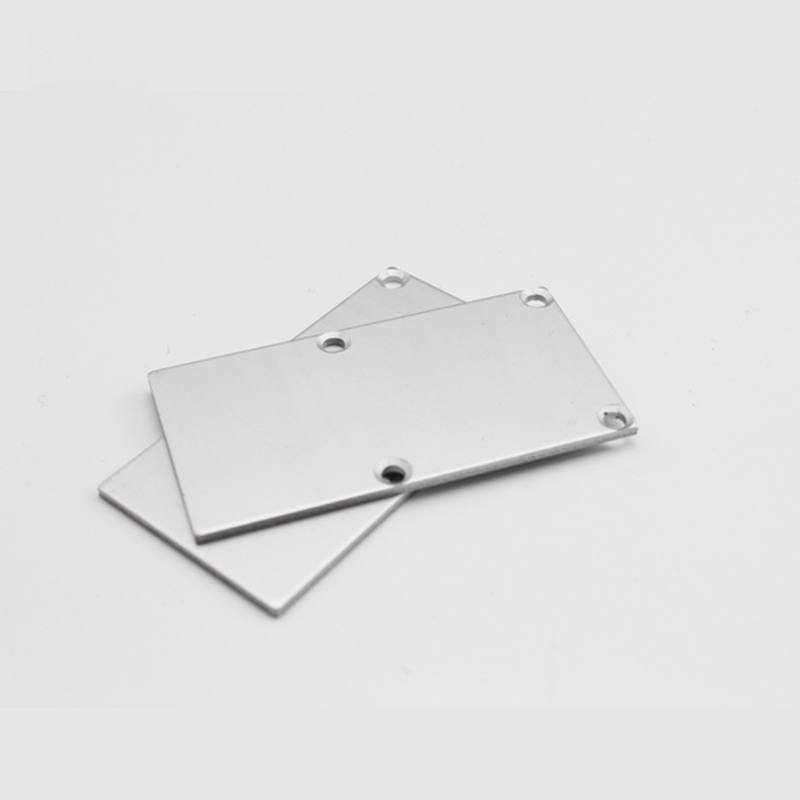

End Caps

Suspension Wires

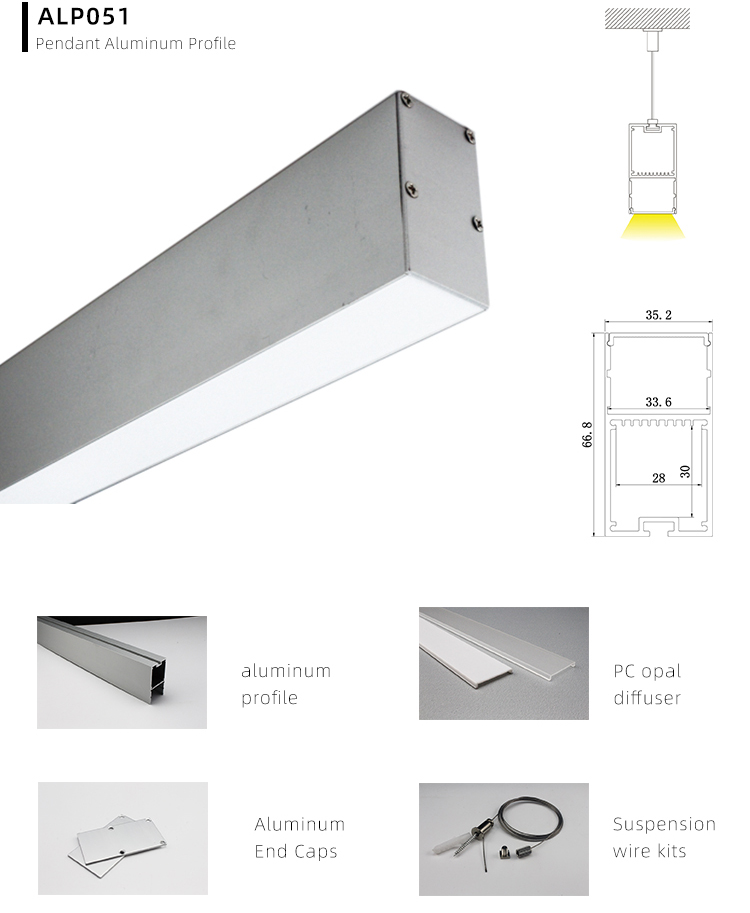

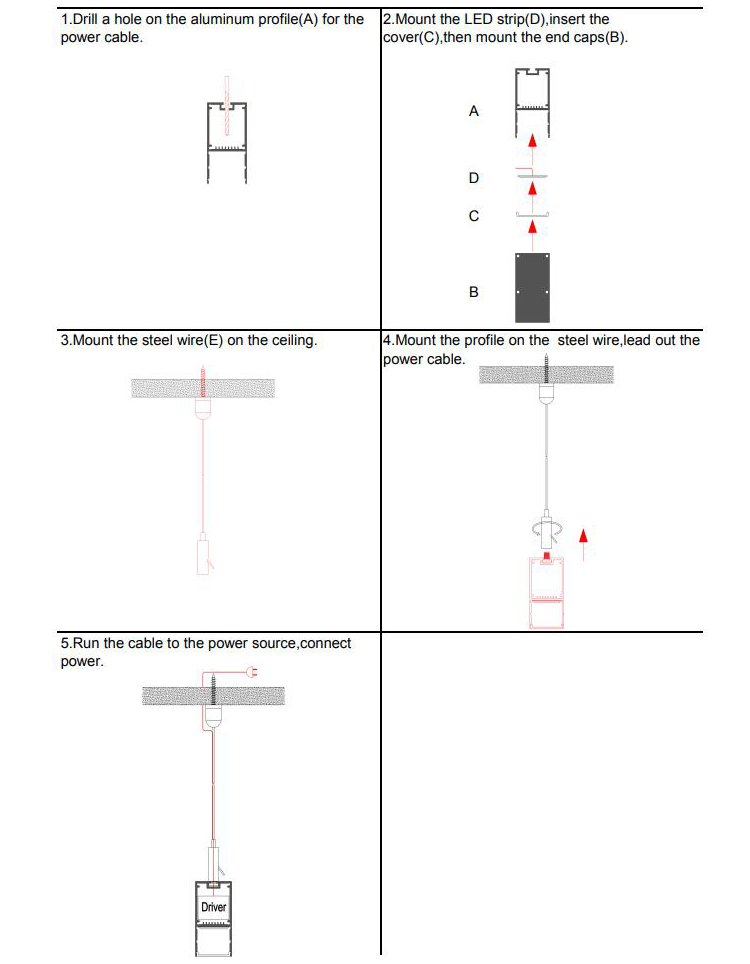

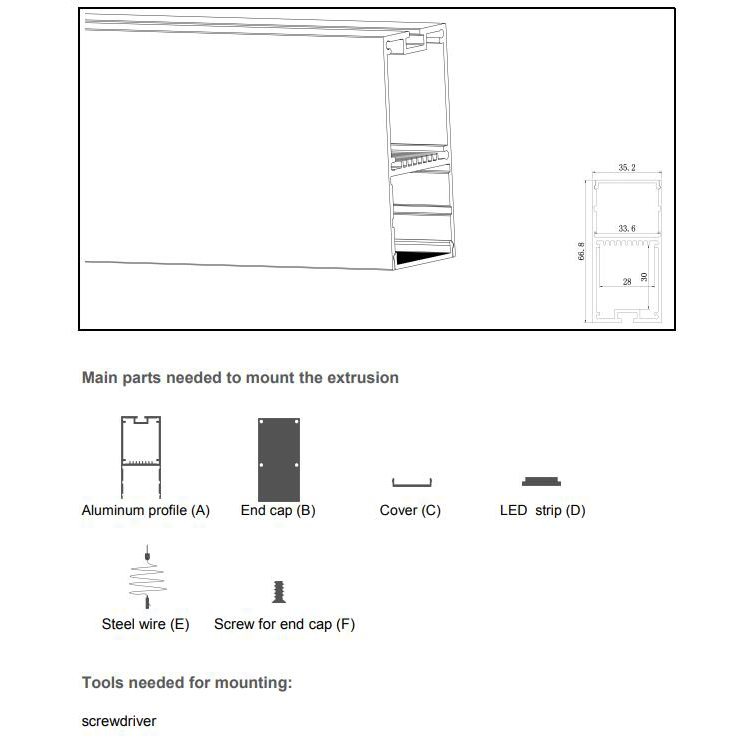

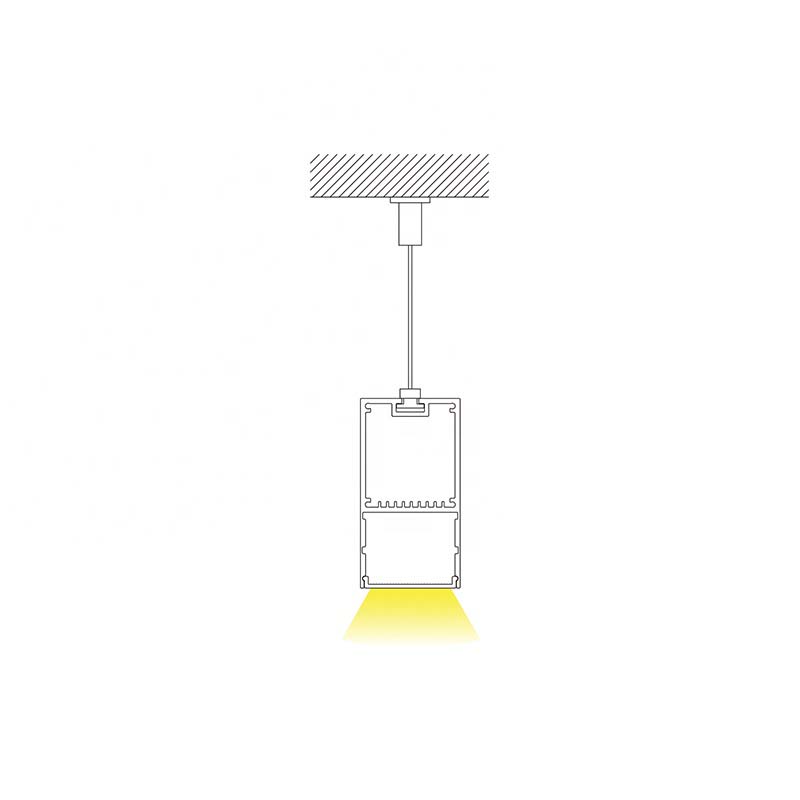

schattenfugenprofil led Pendant Deep LED Channel How To Install Deep LED Channel
