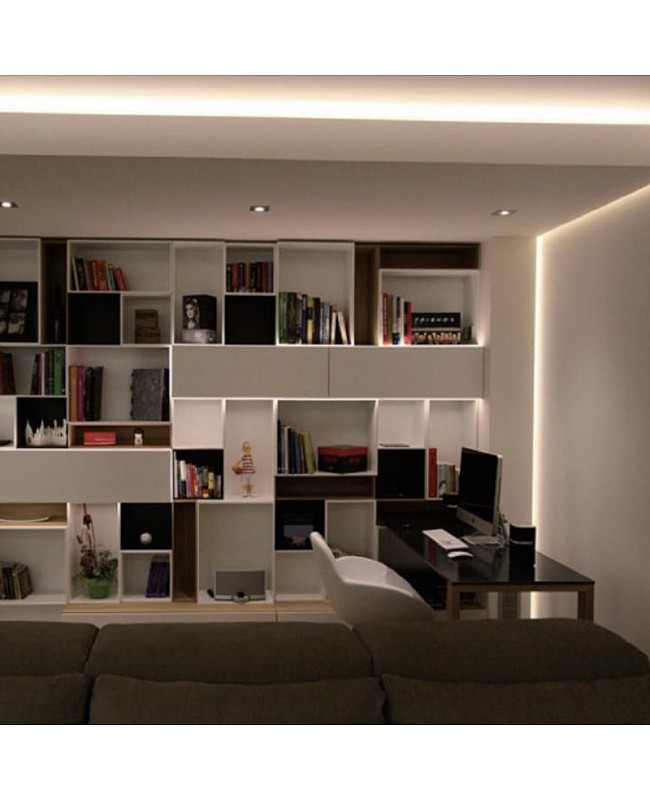

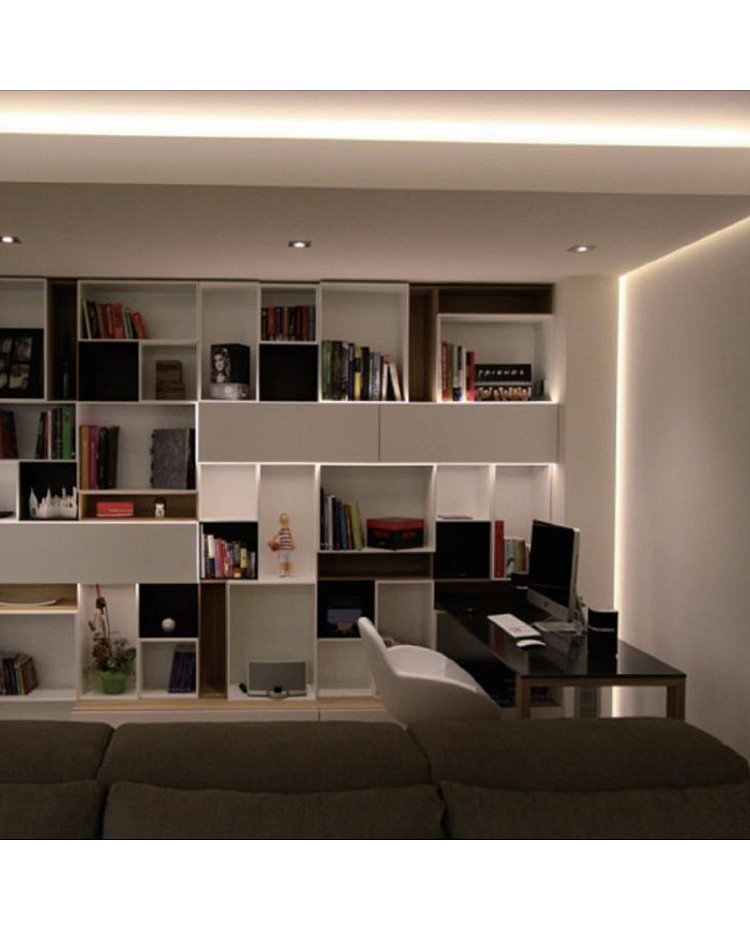

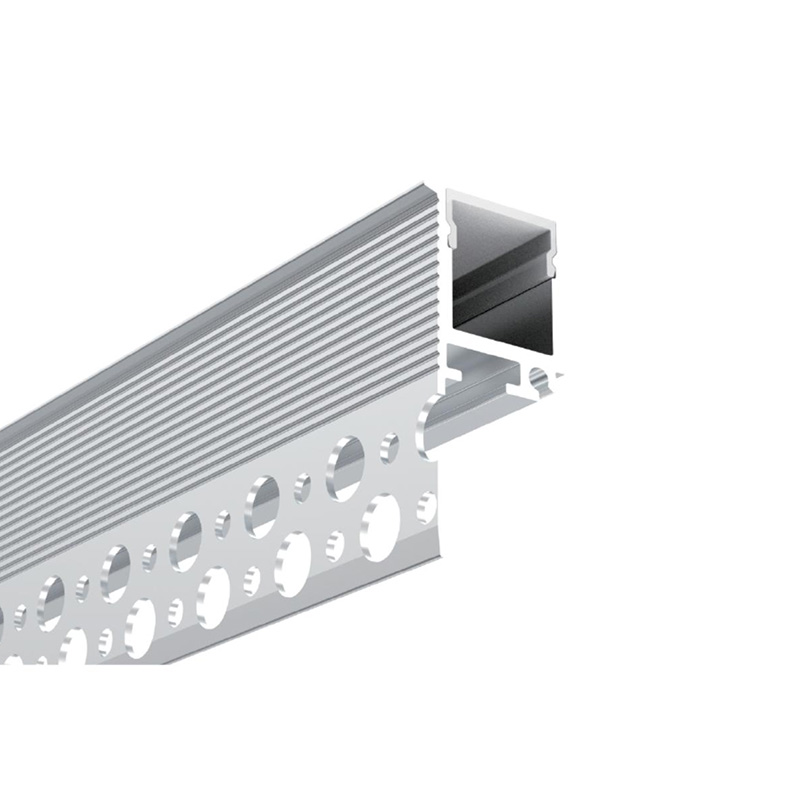

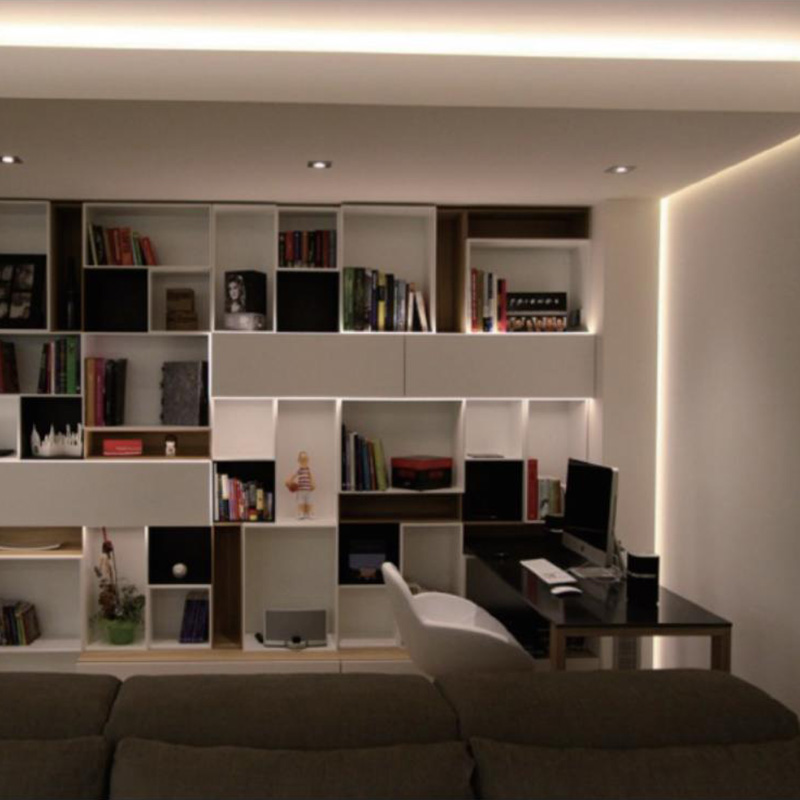

The LED strip light fixtures can be easily recessed into the 5/8" plasterboards for indirect lighting. You can use them to add beautiful, uniform accent lighting on walls or ceilings in your space. The plaster-in LED channels are designed for versatility, allowing you to create stunning backlit wall and ceiling panels, dynamic dropped-ceiling lighting effects, soft indirect floor illumination, and more.

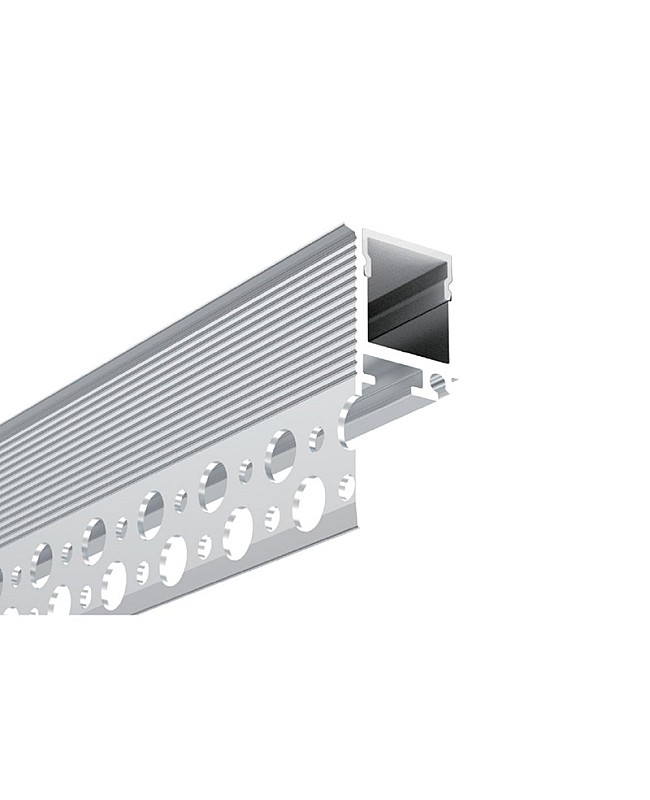

They are made of 6063-T5 extruded aluminum material and feature a silver anodized surface treatment, providing anti-oxidation resistance and a longer lifespan. The standard lengths are 1m and 2m, and are easy to cut to your desired length. The inner width is 13.9 mm, allowing strip lights with a maximum width of 13 mm to be accommodated. You can add our 10mm dotless WLED COB LED strips as the light source.
Only one type of diffuser is available: PC diffused cover, which is made of brand-stable material, is anti-yellowing, and has perfect light distribution. The diffusers will diffuse the lighting evenly for uniform illumination. Two types of LED profile connectors are available: 90° vertical connectors and 180° connectors. You can use them for angled or straight connections. End caps with and without wire holes are included.

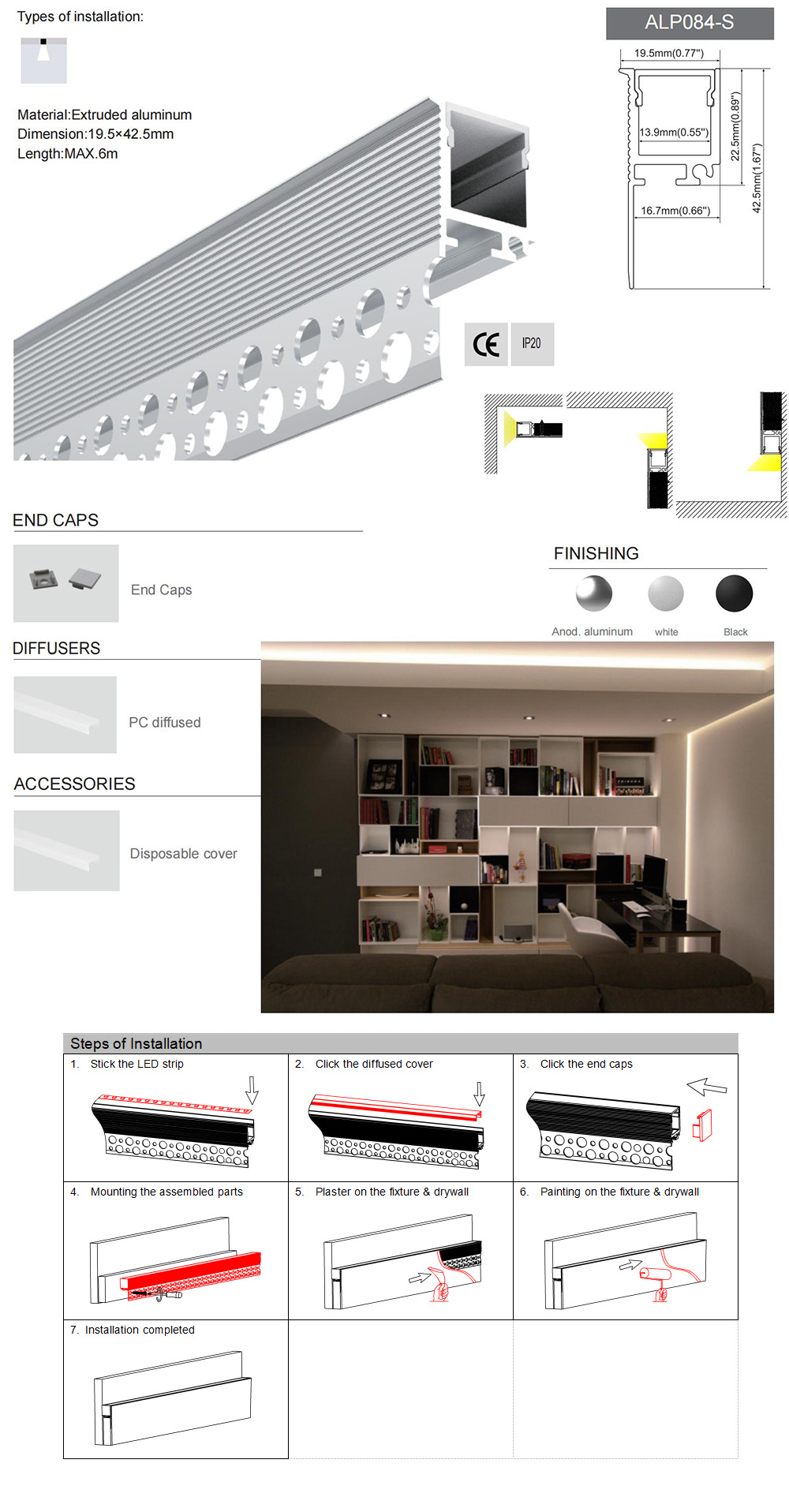

Specifications:
- Model: ALP084-S

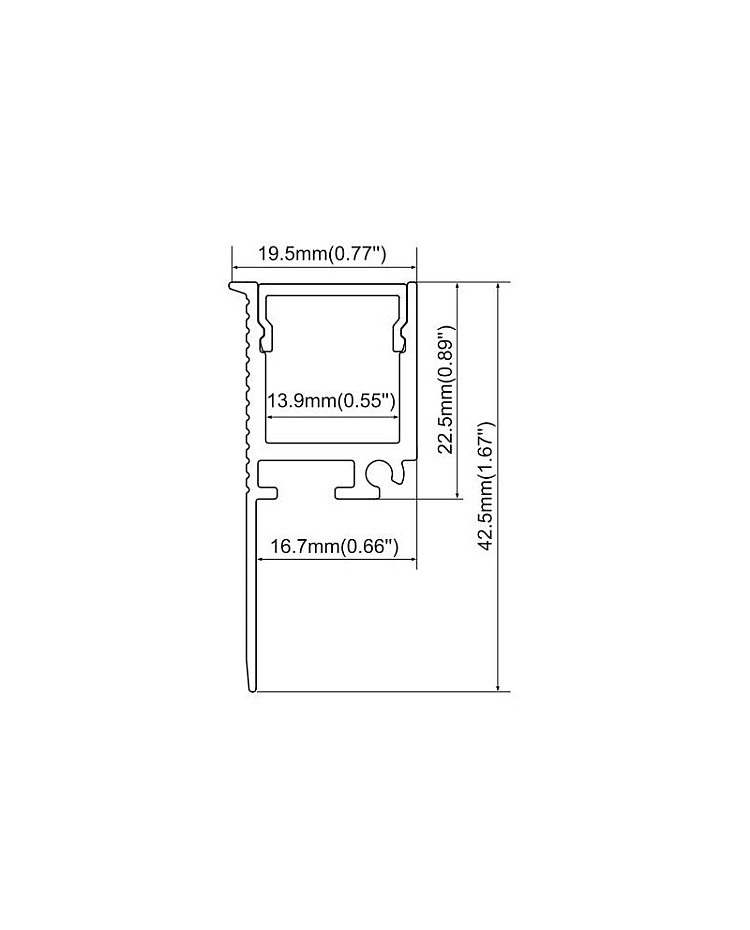

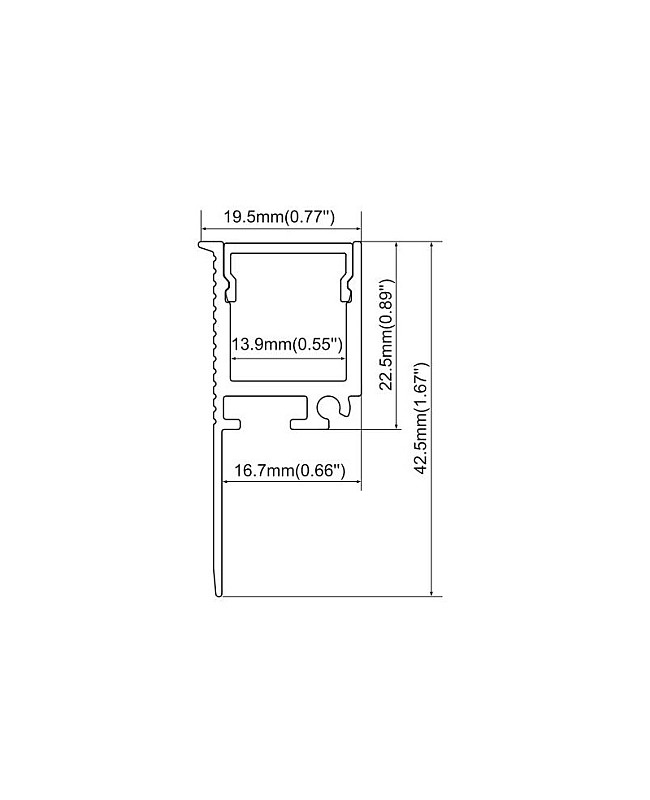

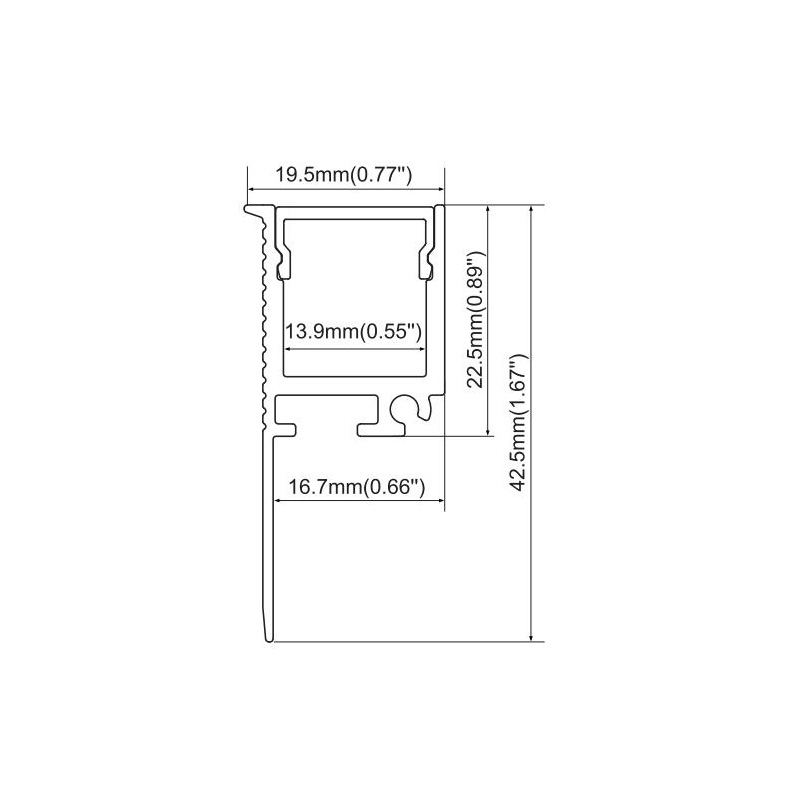

- Size ( H x W ): 42.5 mm x 19.5 mm ( 1.67" x 0.77" )
- Material: Extruded aluminum
- Surface treatment: Anodized
- Colors: Silver
- Standard lengths: 1 m ( 39" ) / 2 m ( 78" )
- Custom length available: YES
- Inner width: 13.9 mm ( 0.55" )
- Max width of LED strips: 13 mm ( 0.51")
- Max power: 12W/m
- Diffusers: PC diffused cover for dotless, uniform light diffusion
- Beam angle: 100° (wide, even illumination)

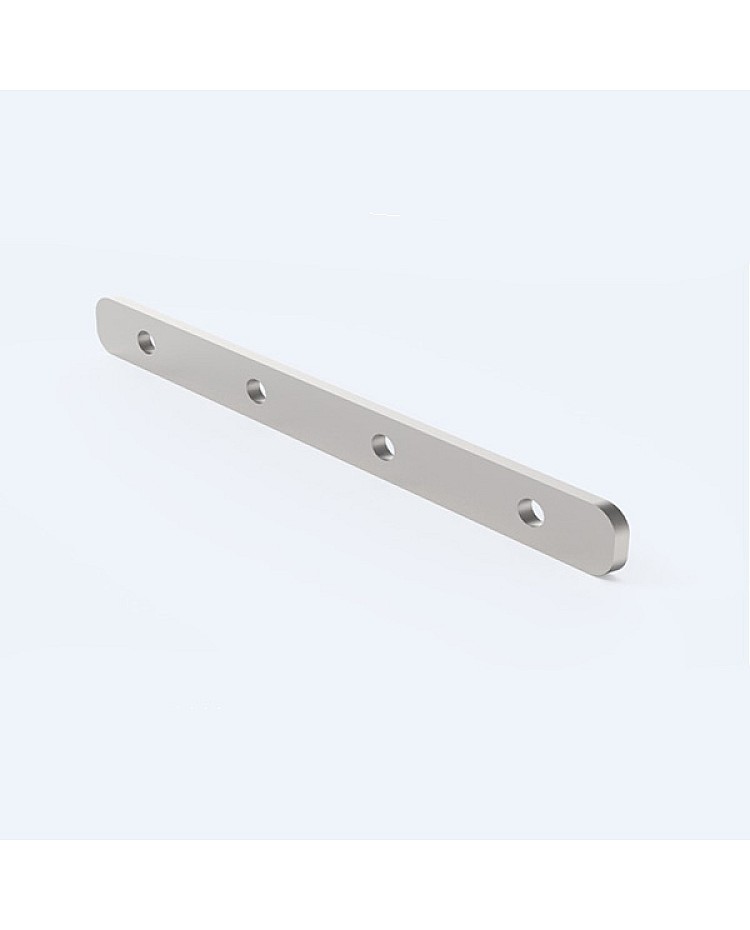

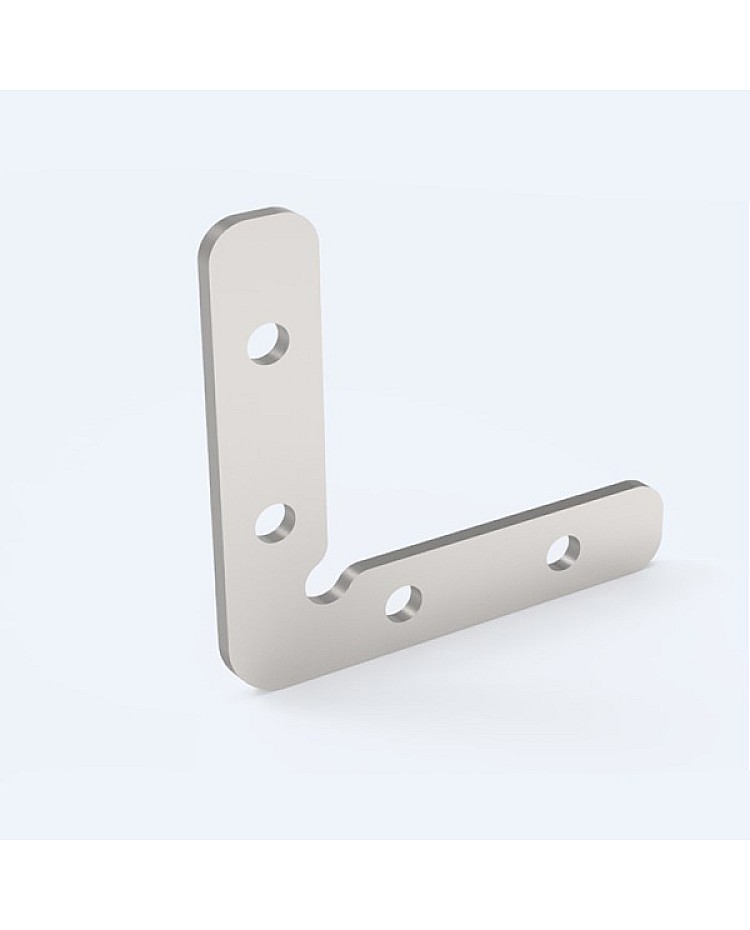

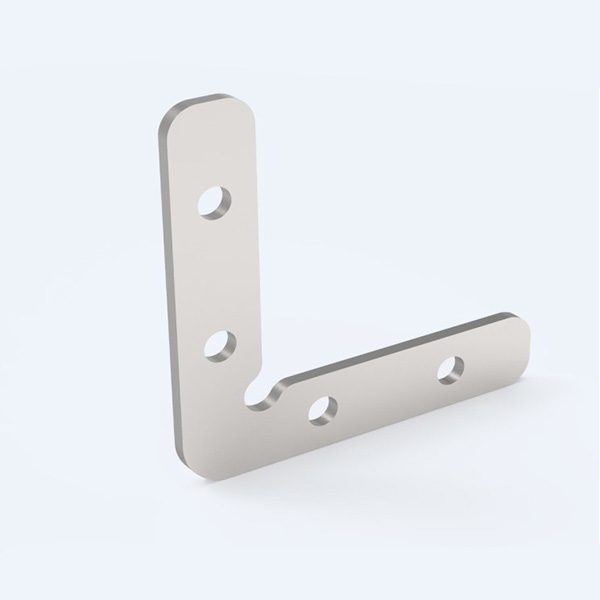

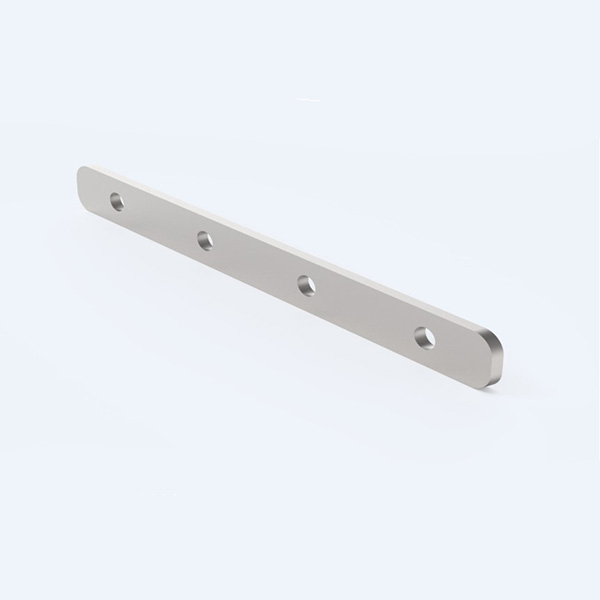

- 180° and 90° vertical connectors are sold separately

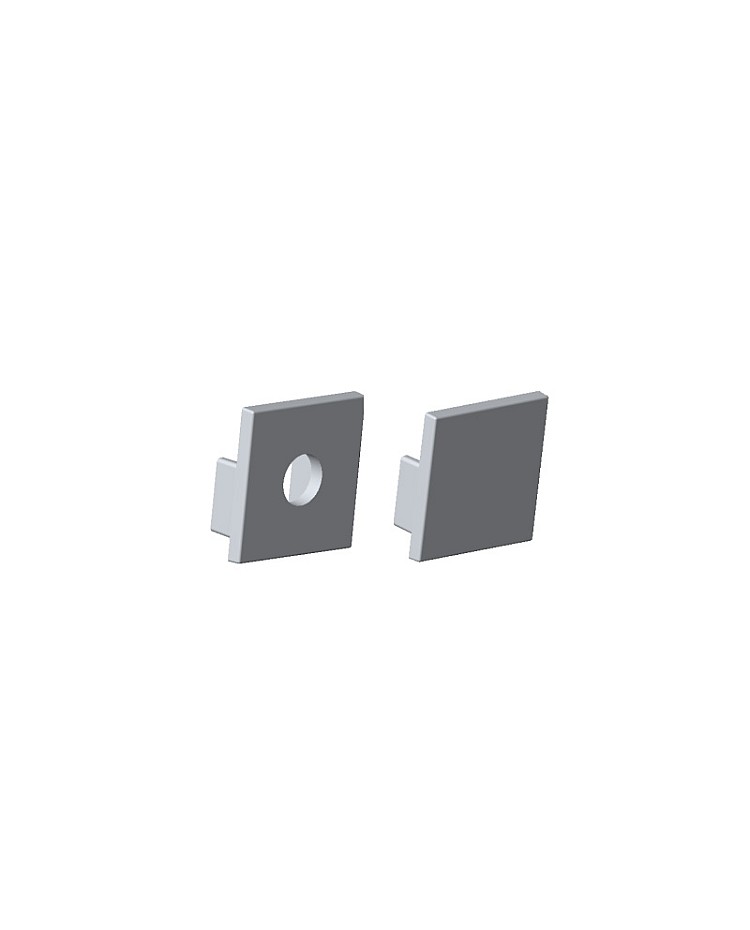

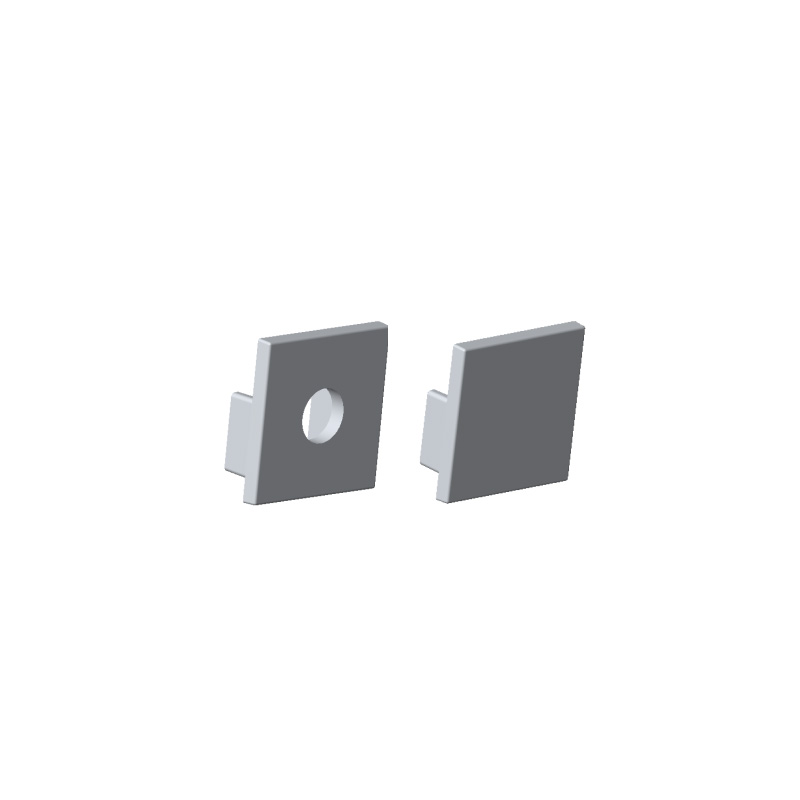

- End caps with and without wire holes are included
- Tolerance: ±1%

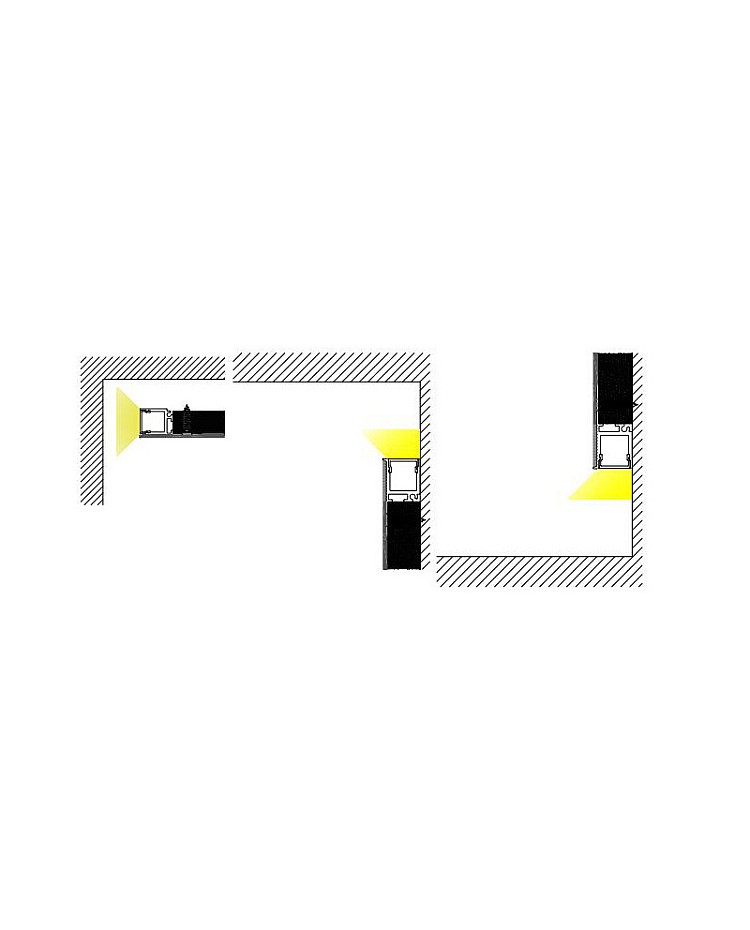

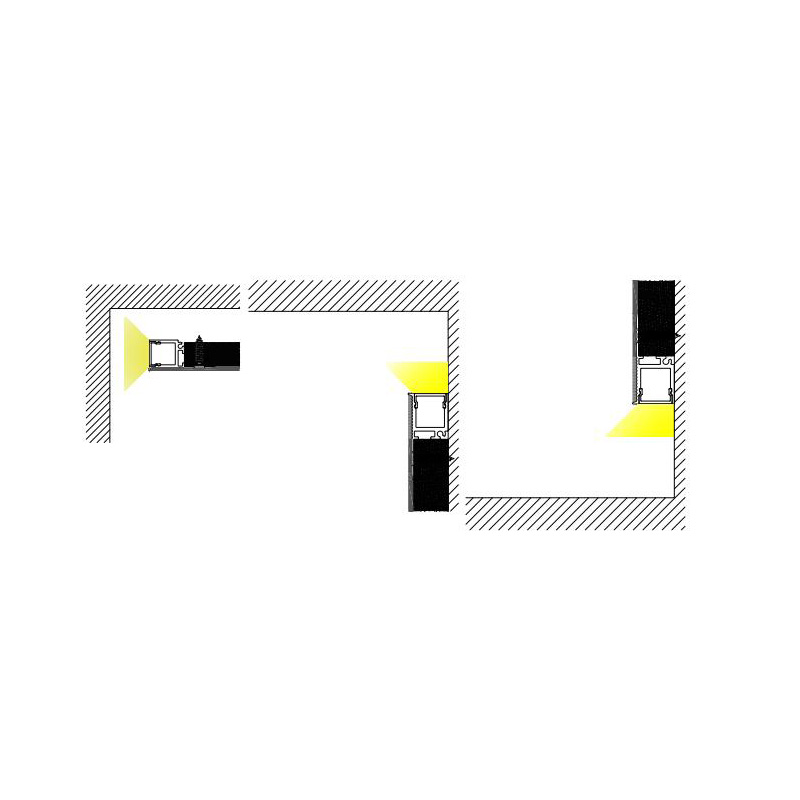

- Installation: Recessed into 5/8" plasterboard/drywall
- Warranty: 5 years
Applications:
- Backlit wall & ceiling panels
- Dropped-ceiling indirect lighting
- Indirect floor illumination
Includes:
1 * LED strip light fixture with diffuser
End caps(with/without wire hole)
