In Stock
Reward Points: 6
  • Brand: Ledbe
  • Product Code: WS2813

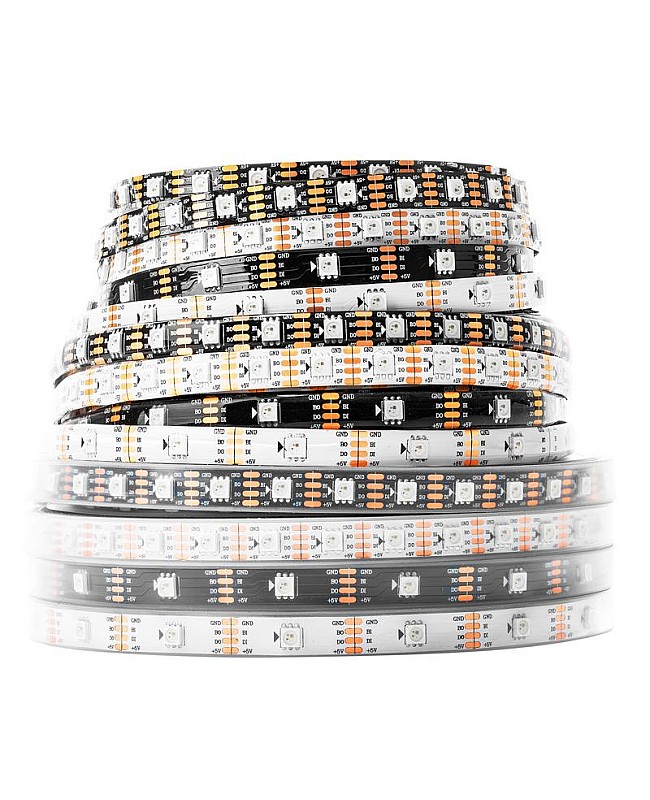

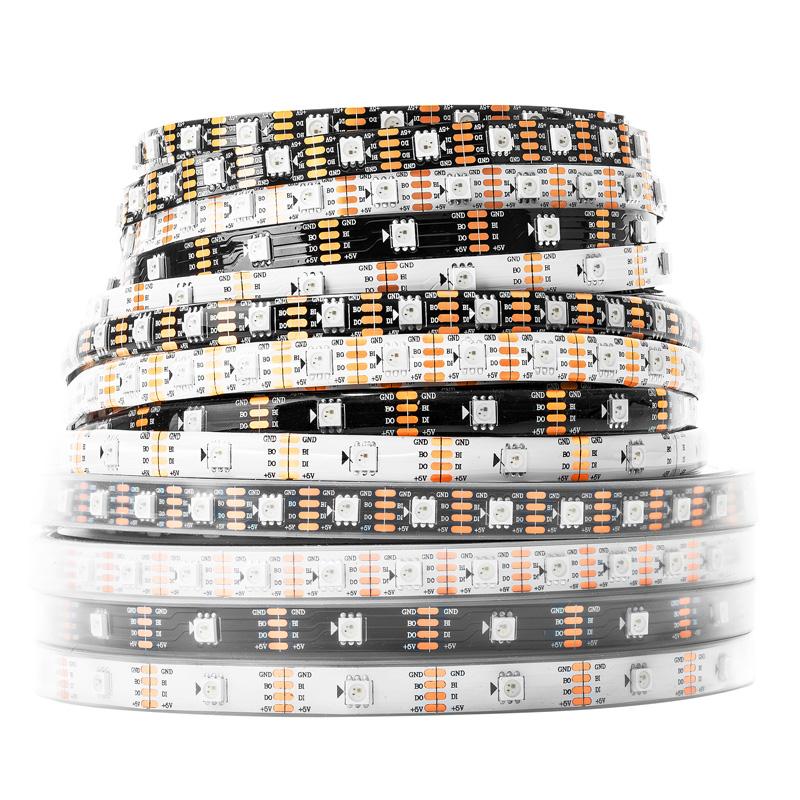

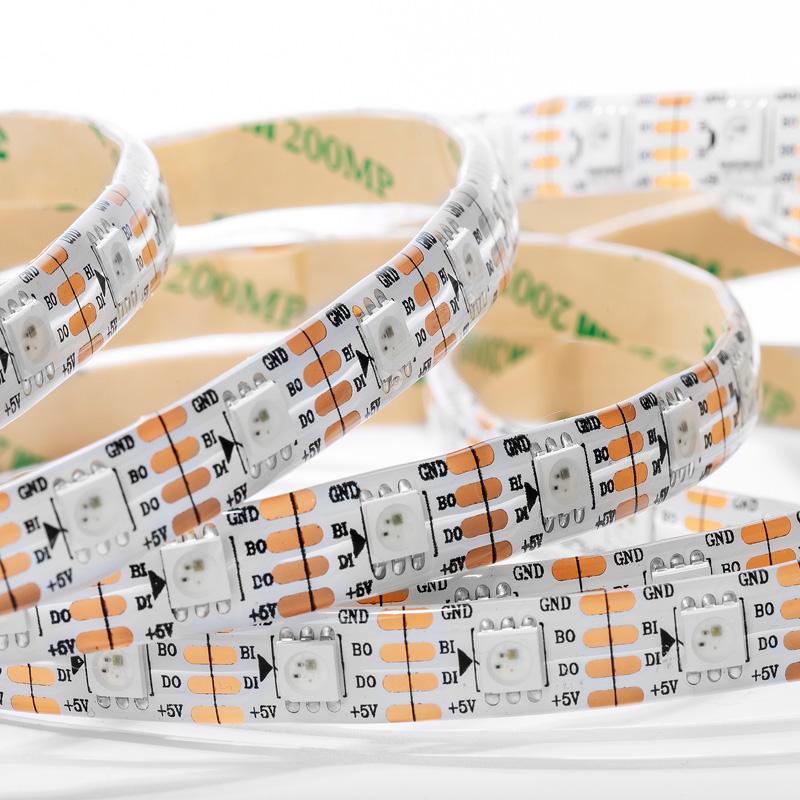

Check the LED Strips WS2813, which with individually addressable design, the 5050 RGB SMD LEDs built-in WS2813 IC(The Upgraded Version Of WS2812B), one IC controls one-piece LED, every LED can be cut, and you can cut to any length for your project. The WS2813 Strip Lights with dual-signal wires design; if one signal wire breaks and the backup data wire continues the transmission, the rest of the LED Light Strips still work fine. There are various LEDs per meter available, and you can choose the 30LEDs/meter, 60LEDs/Meter, and 144LEDs/Meter, and 1M and 5M lengths available. Three waterproof level products are available: IP30 non-waterproof, IP65 coating waterproof, and IP67 silicone tube waterproof. You can use the IP30 and IP65 for indoor applications; the back with double-sided adhesive tape is easy to install and use. The IP67 WS2813 Light Strips come with LED Clips; you can install them in a wet, damp, or water location. The Full-Color RGB Tape Lights are compatible with Our Pixel LED Controllers. You can let them work with K-1000C, SP105E, SP107E, SP108E, etc., to achieve thousands of amazing lighting effects like curtain-up, flow water, raindrop, jump flash, etc., can edit the animation effect by the Coreldraw, Flash, and LedEdit software by yourself. The Digital LED Strip Lights come with 4-pin JST SM Connectors and separated power/ground wires on both ends,

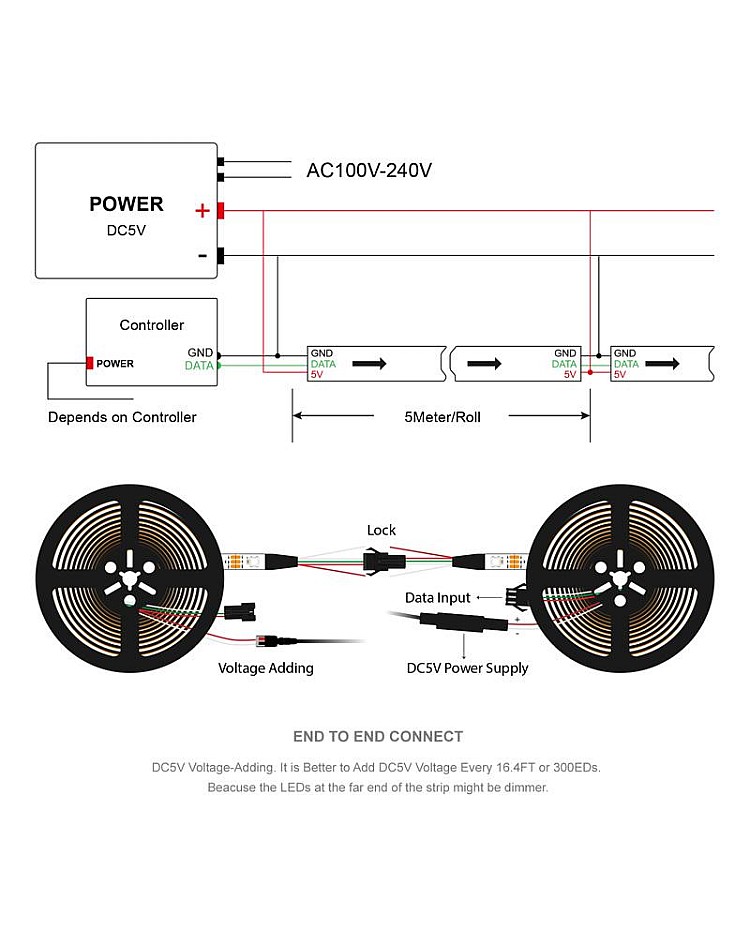

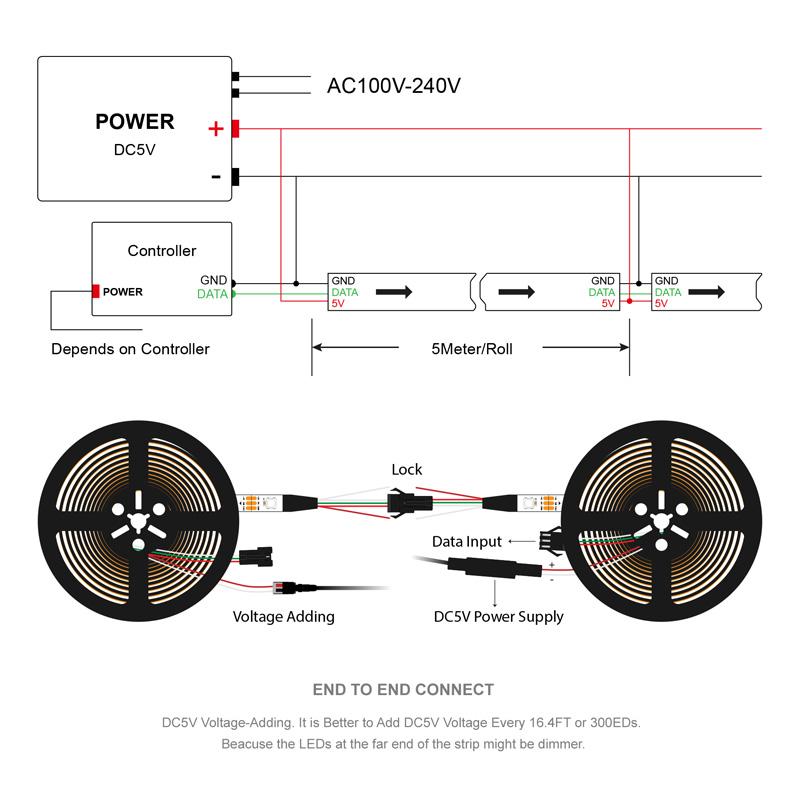

The LEDs at the far end might be dimmer because of the added resistance and working voltage drop. We recommend adding the same working voltage every 5 meters (16.4FT) according to the actual situation to keep them with the same brightness.


  • Working Voltage: DC5V

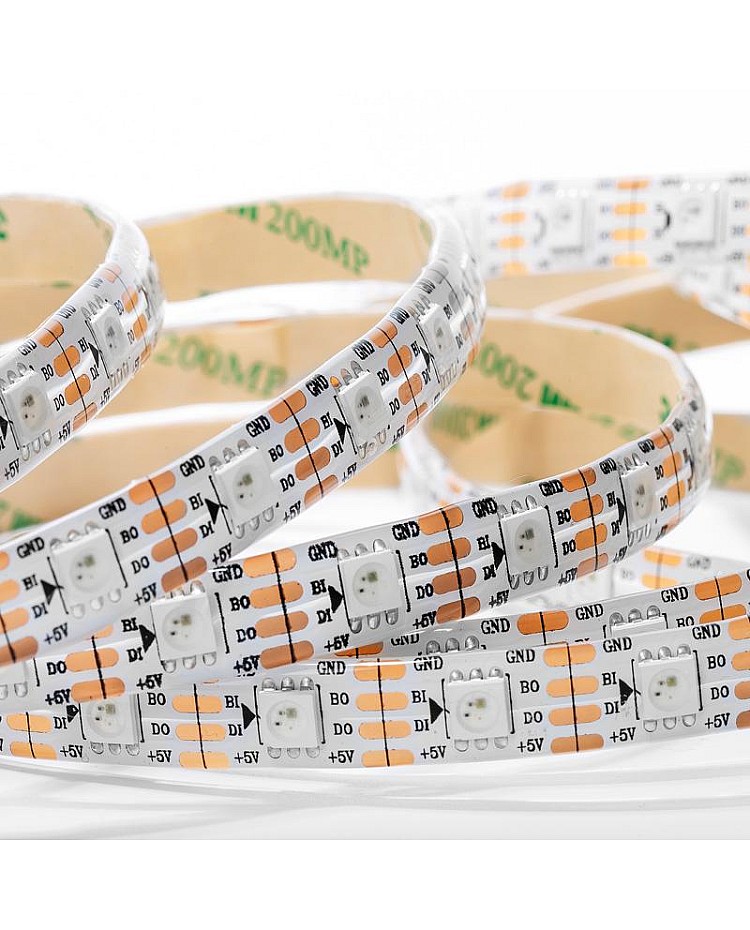

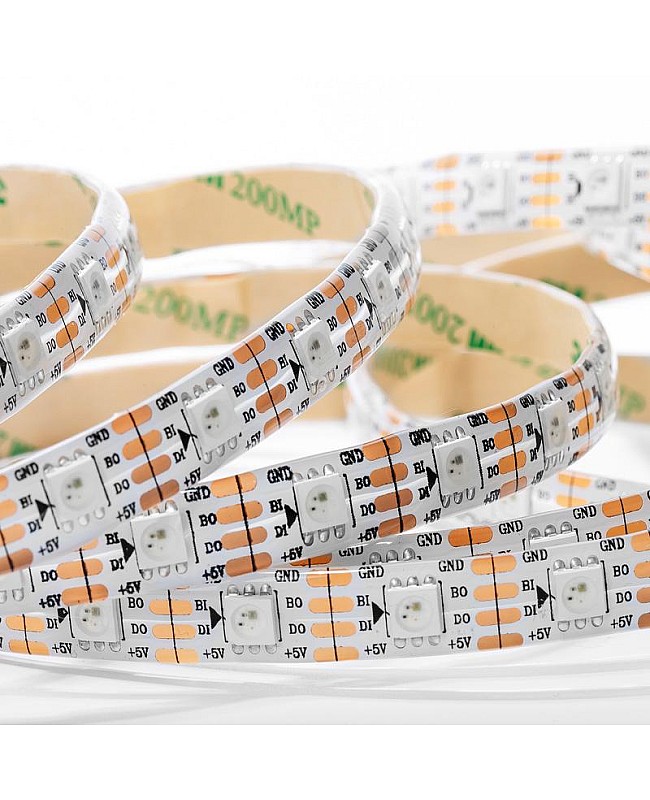

  • Colors Of PCB Board: White/Black
  • IC Type: Built-in WS2813 IC(Upgraded Version Of WS2812B)
  • Individually Addressable
  • LED Type: 5050 RGB SMD LEDs
  • LED Chip: Epistar

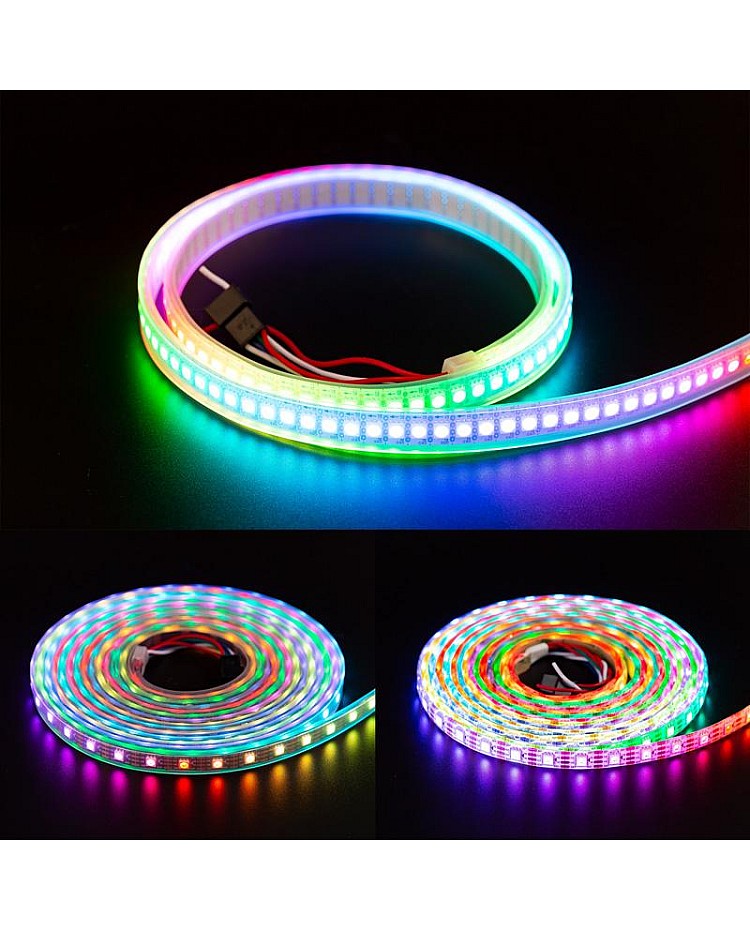

  • LED Quantity: 30LEDs/Meter, 60LEDs/Meter, 144LEDs/Meter
  • Luminous Flux: 8lm/LED
  • Grayscale Levels: 256
  • View Angle: 120°
  • Emitting Colors: RGBIC Full Color 24-Bit
  • Power: 0.3W/LED
  • Wave Length: Red: 650nm; Green: 520nm; Blue: 460nm
  • Width: 10mm(30LEDs/Meter, 60LEDs/Meter), 12mm(144LEDs/Meter)
  • Lengths Available: 1M, 5M

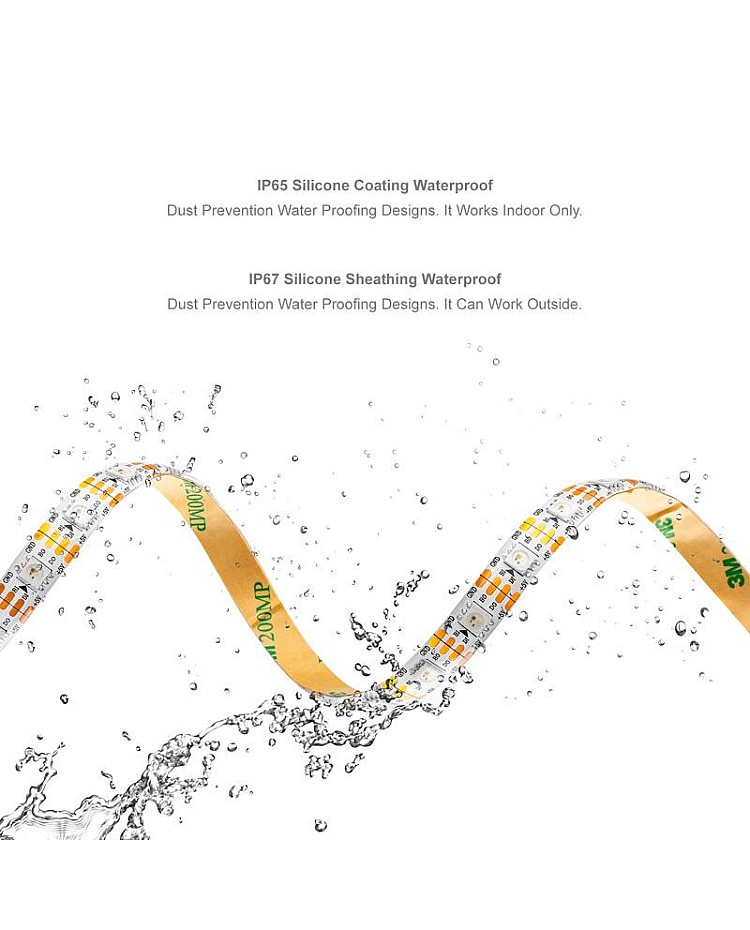

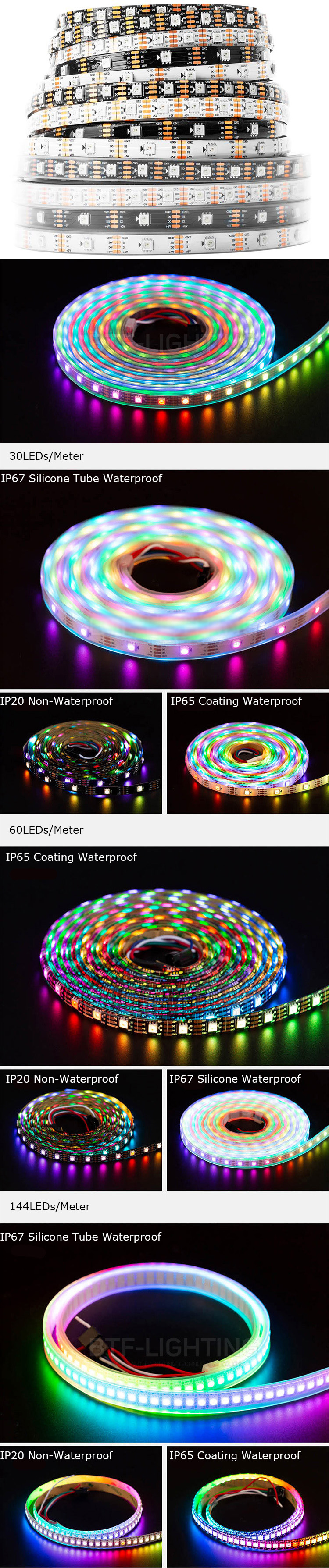

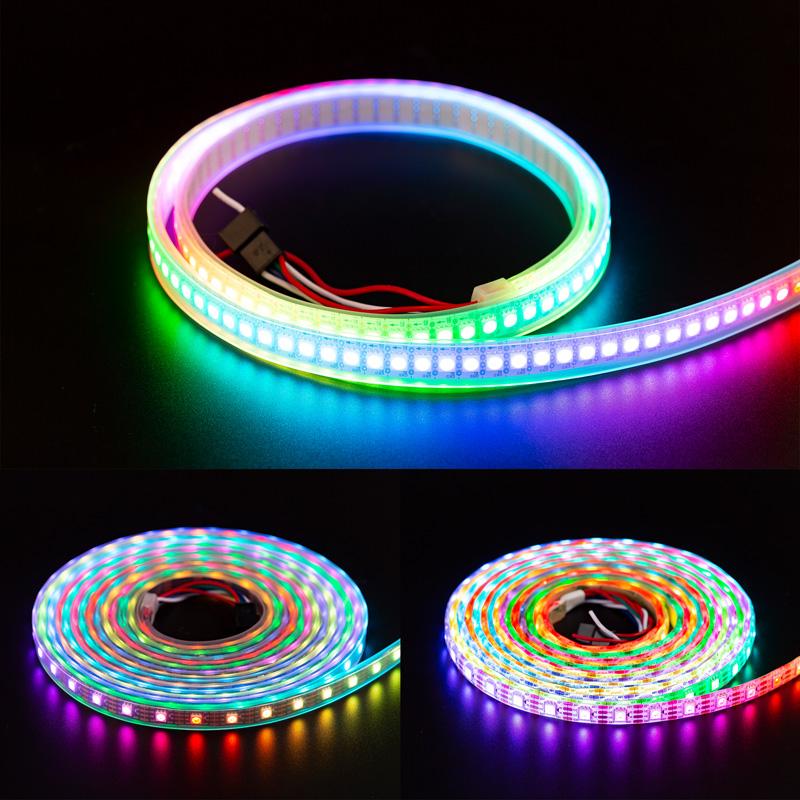

  • Waterproof Level: IP30 Non-waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof

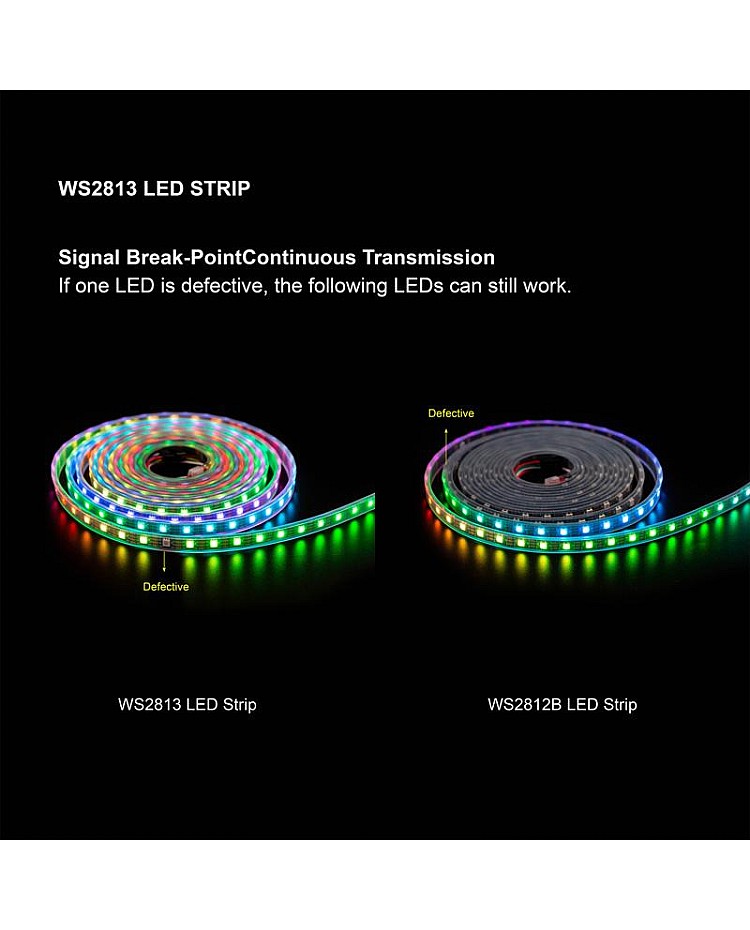

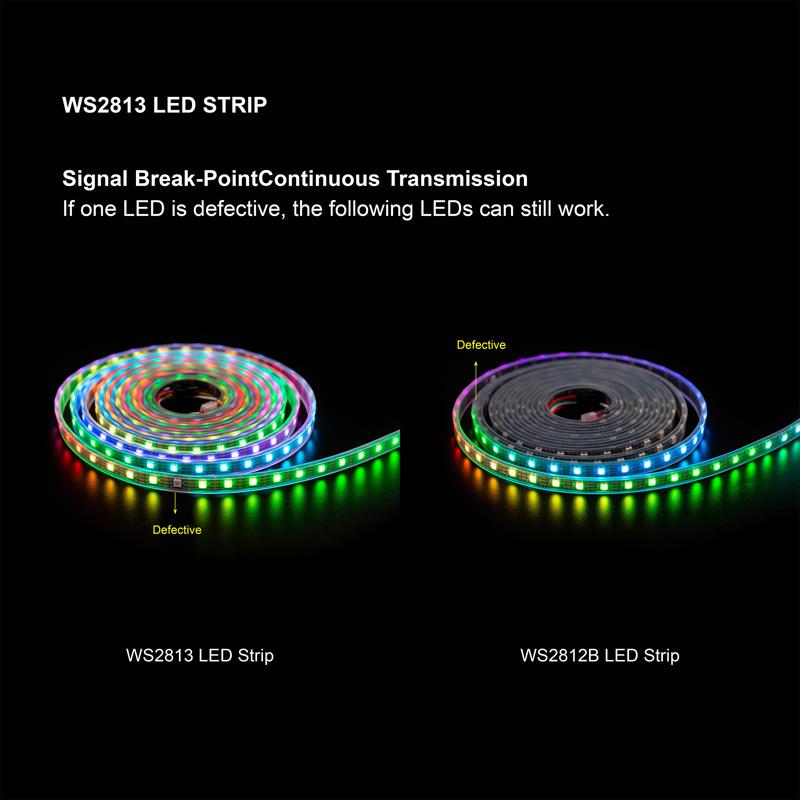

  • Dual-Signal Wires Design Signal Break-Point Continuous Transmission
  • 4-Pin JST-SM Connector Included

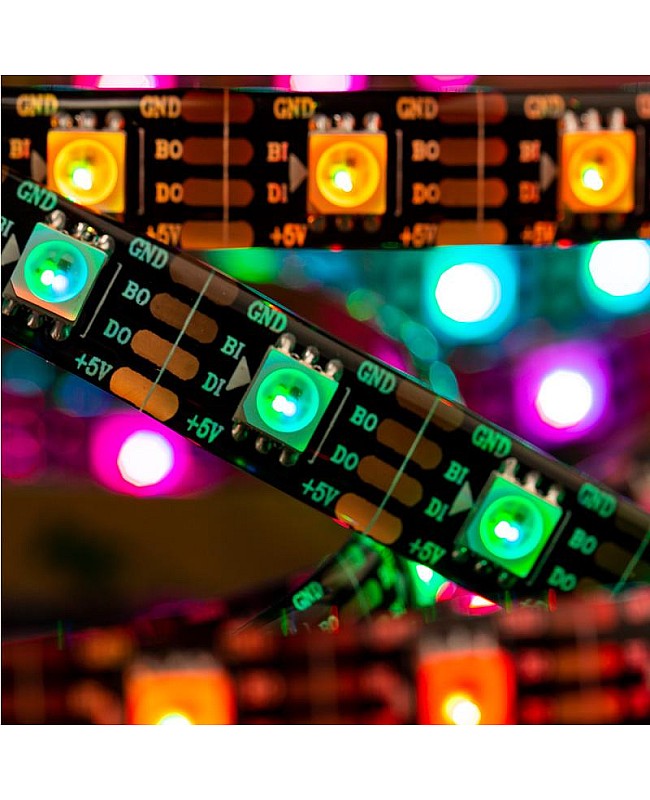

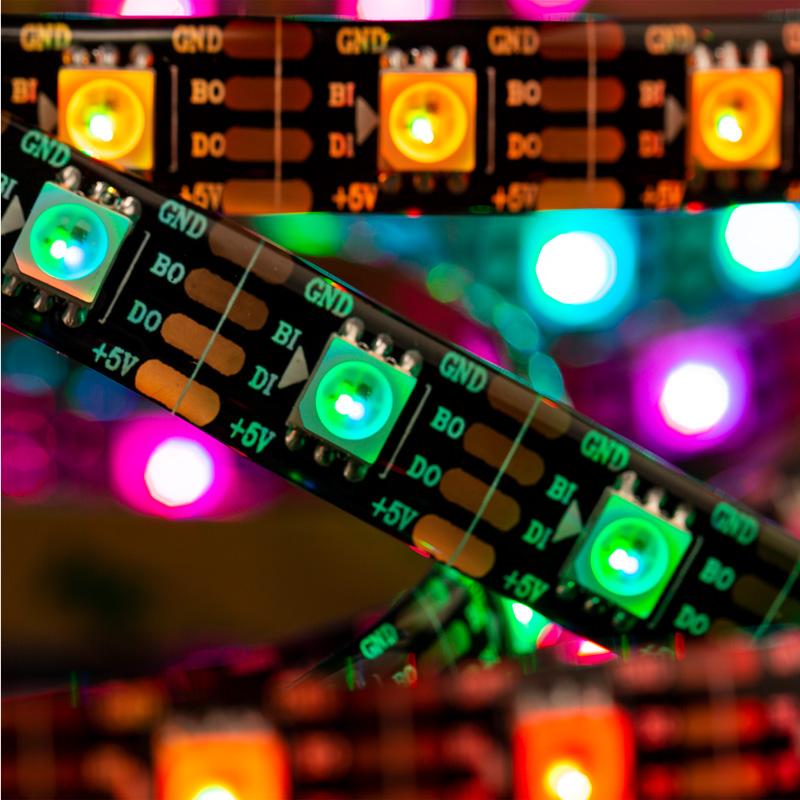

  • Pins:
  • 5V: Power Voltage +5V;(Red Wire)
  • DO: Control Data Signal Output(Green Wire)
  • DI: Control Data Signal Input(Green Wire)
  • BO: Backup Control Data Signal Output(Blue Wire)
  • BI: Backup Control Data Signal Input(Blue Wire)
  • GND: Data&Power Grounding(White Wire)
  • Working Temperature: -20℃-+40℃
  • Lifespan: 50,000 Hours
  • 2 Years Warranty


1*RGBIC LED Strip WS2813 With 4Pin Male Connector

WS2813 LED Strip
