  • Brand: MiBoxer
  • Product Code: MG5-06N-ZL

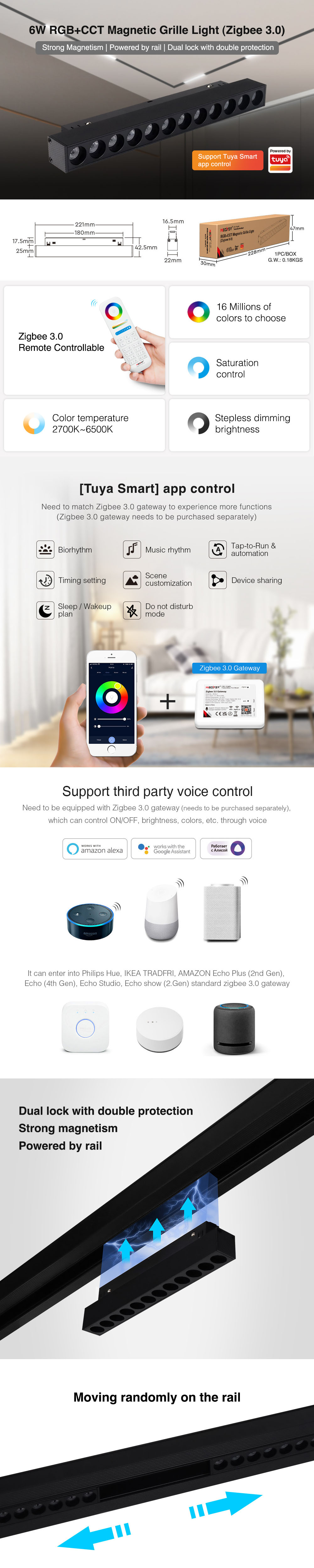

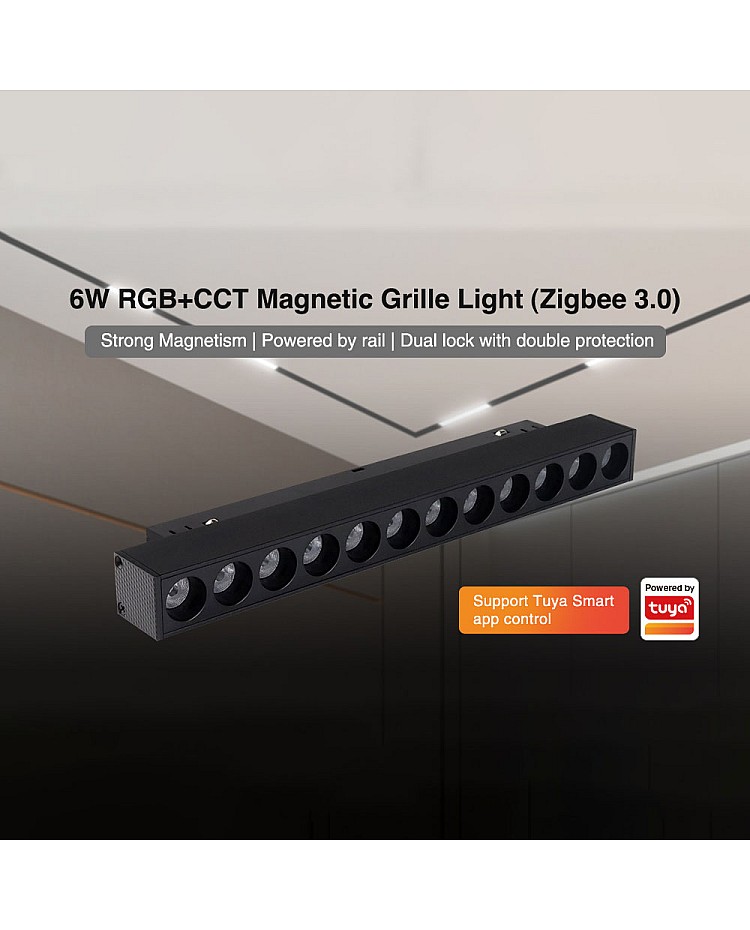

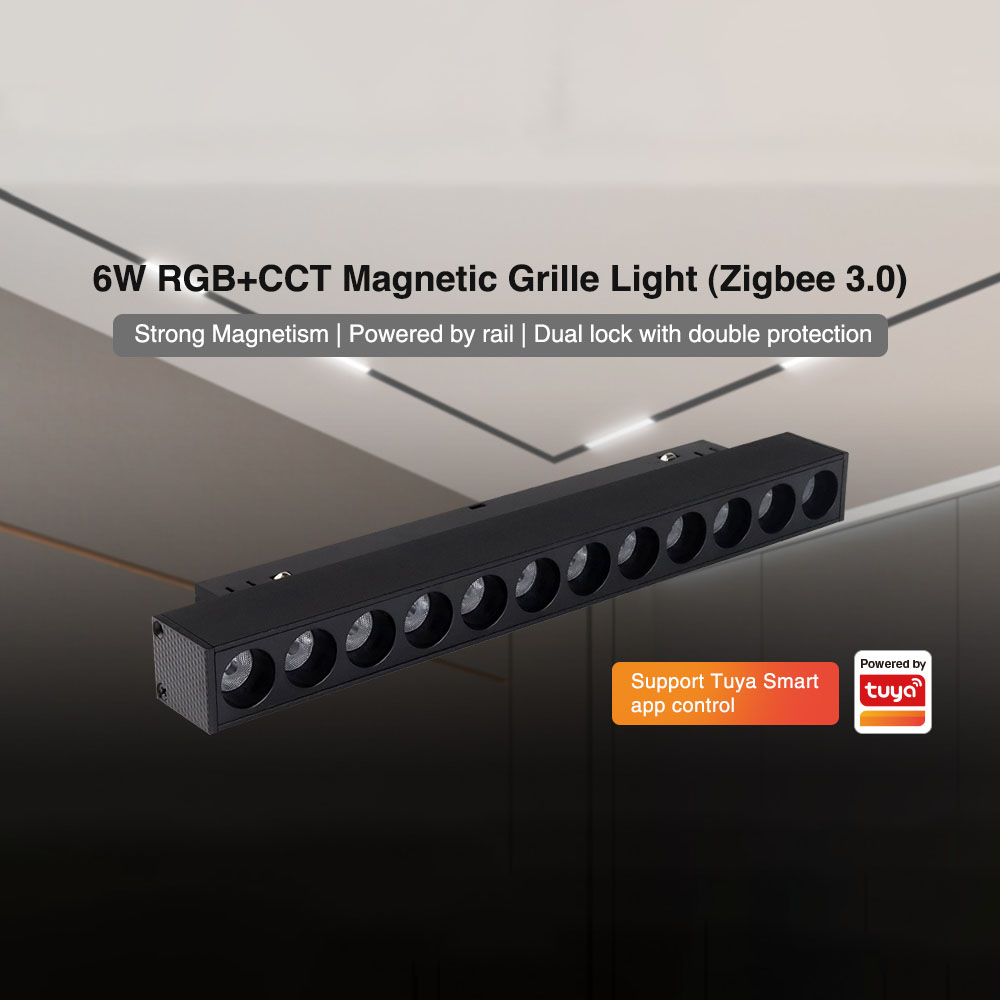

The MiBoxer Zigbee Magnetic Grille Lights is a unique lighting solution that provides RGB and CCT(Color Temperature) lighting effects. It's powered by Rail, with strong magnetism, dual lock with double protection, and can randomly move on the rail. The Grille Lights use high-quality LEDs as the light source, and the surface with a high-quality lens for a large view angle and smooth light output. The back with a high-quality aluminum shell for better heat dissipation and allows a longer lifespan for the LED Lights. It is designed to be used with Zigbee 3.0 technology, allowing for easy, wireless light control from any compatible device. The RGB+CCT Grille Lamps can be controlled by Remote Control, a smartphone APP, and support third-party voice control after adding Zigbee Gateway, which can work with Amazon Alexa and Google Assistant. Can enter into Philips Hue, IKEA TRADFRI, Amazon Echo Plus, Echo series standard Zigbee 3.0 Gateways, can control ON/OFF, brightness, colors, etc. remotely. There are 16 million colors available, color temp adjustable from 2700K to 6500K, and brightness and saturation adjustable for various scenes. You can download the APPs " Tuya Smart " or " MiBoxer Smart “ to achieve further functions like music rhythm, timing, scene customization, device sharing, sleep/wakeup plan, etc.


  • Model:
  • RGB+CCT Series: MG5-06N-ZL(6W)/MG5-12N-ZL(12W)
  • CCT Series: MG2-10N-ZL(10W)/MG2-20N-ZL(20W)
  • Size: 221*42.5*22mm(6W)/436*42.5*22mm(12W)
  • Working Voltage: DC48V
  • Power: RGB+CCT: 6W/12W / CCT: 10W/20W
  • Luminous Flux: 440LM(6W RGB+CCT)/900LM(12W RGB+CCT) / 800LM(10W CCT) / 1530LM(20W CCT)
  • Luminous Efficiency: 65LM/W(6W RGB+CCT)/75LM(12W RGB+CCT) / 80LM/W(10W CCT) / 75LM/W(20W CCT)
  • Color Temperature: 2700K-6500K
  • Wireless Technology: Zigbee 802.15.4
  • Zigbee Wireless Frequency: 2.400-2.480GHz
  • Control Distance: ≤50m(Open Area)
  • Zigbee 3.0 Remote Controllable(Zigbee 3.0 Gateway Needed)
  • Smart Phone APP Controllable(Zigbee 3.0 Gateway Needed)
  • Third-party Voice Controllable(Zigbee 3.0 Gateway Needed)
  • Can Work With Amazon Alexa/Google Assistant
  • CRI: >80Ra
  • Beam Angle: 24°

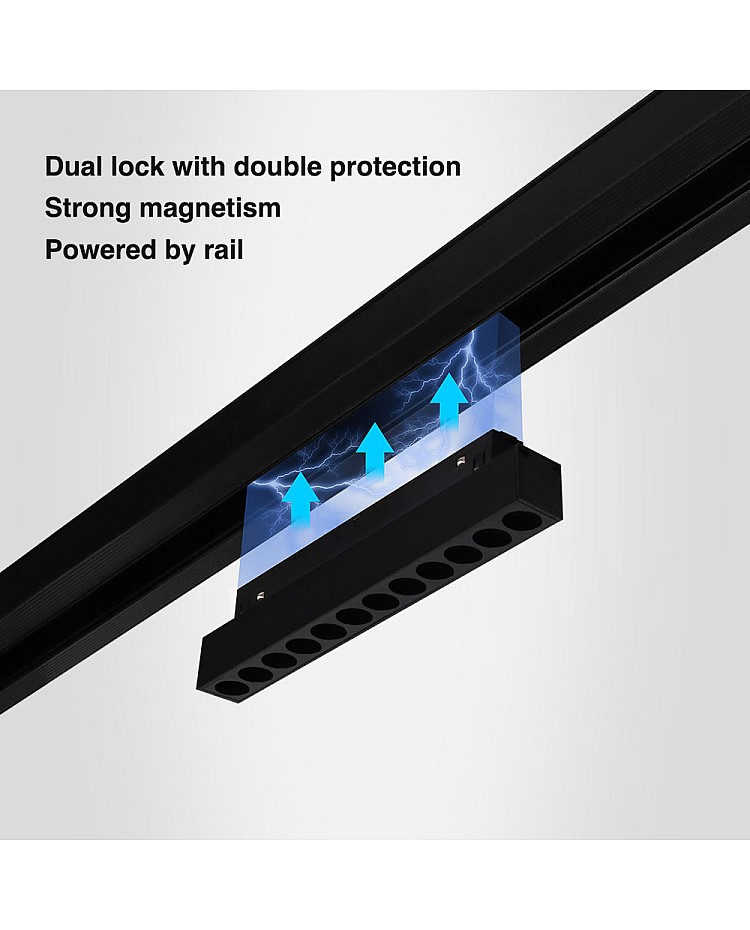

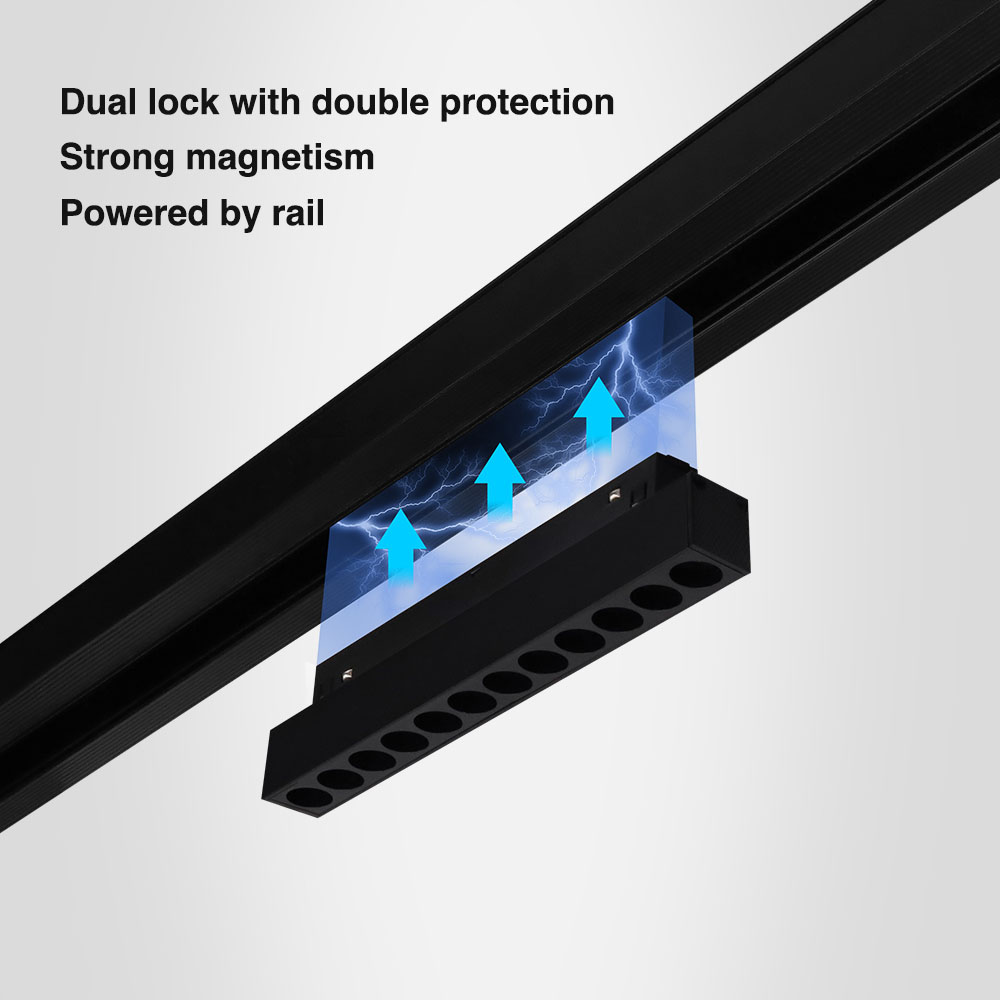

  • Dual Lock With Double Protection
  • Strong Magnetism
  • Powered By Rail

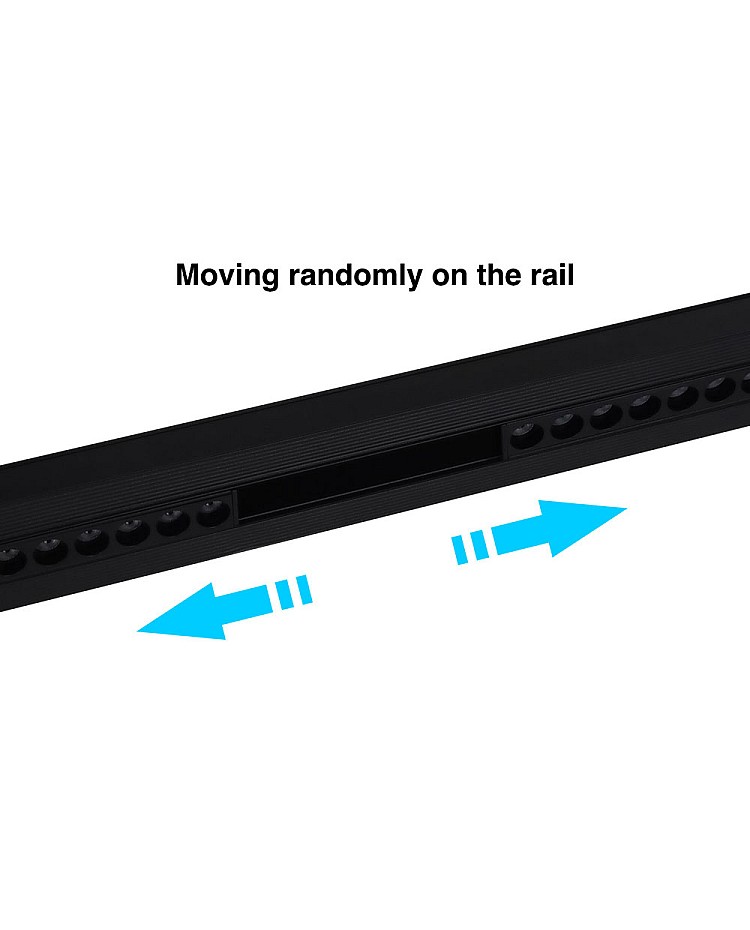

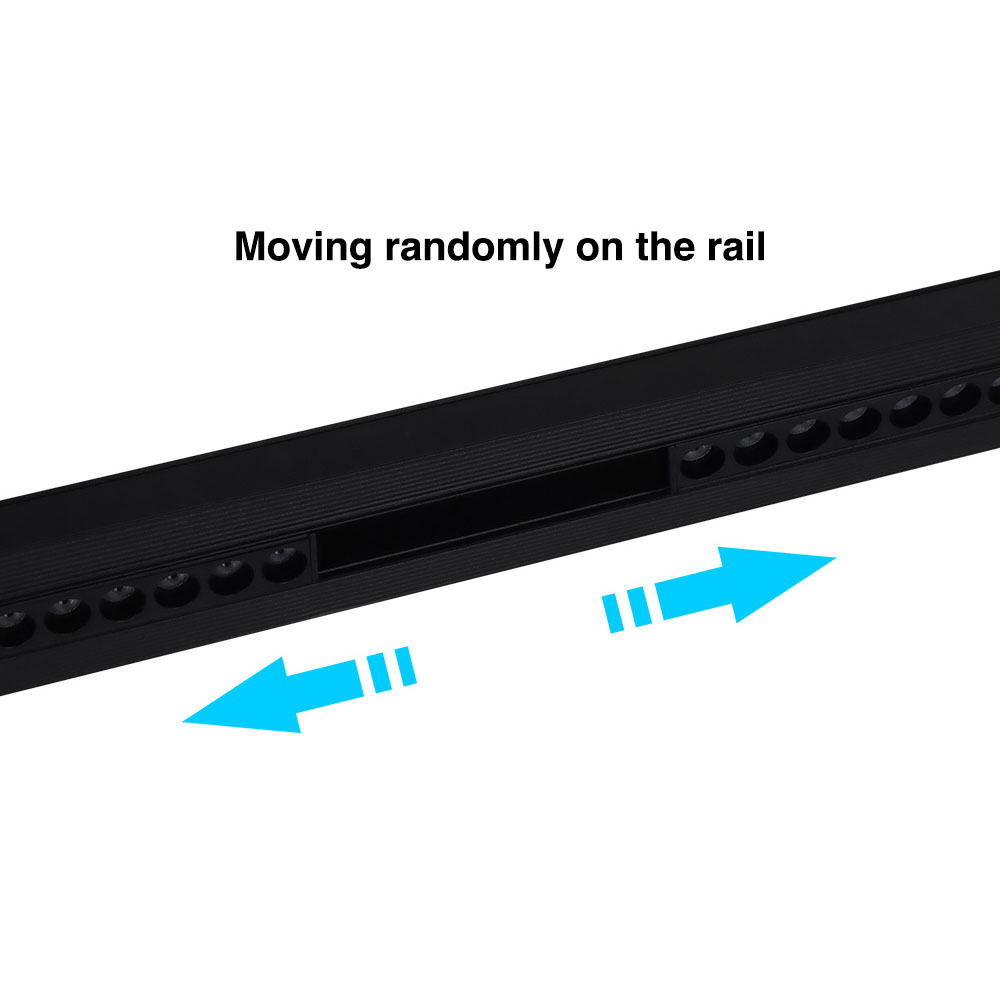

  • Moving Randomly On The Rail
  • IP Rate: IP20 Non-waterproof
  • Working Temperature: -10-40℃
  • Lifespan: 50,000 Hours
  • 3 Years Warranty


1*Zigbee Magnetic Grille Lighting
