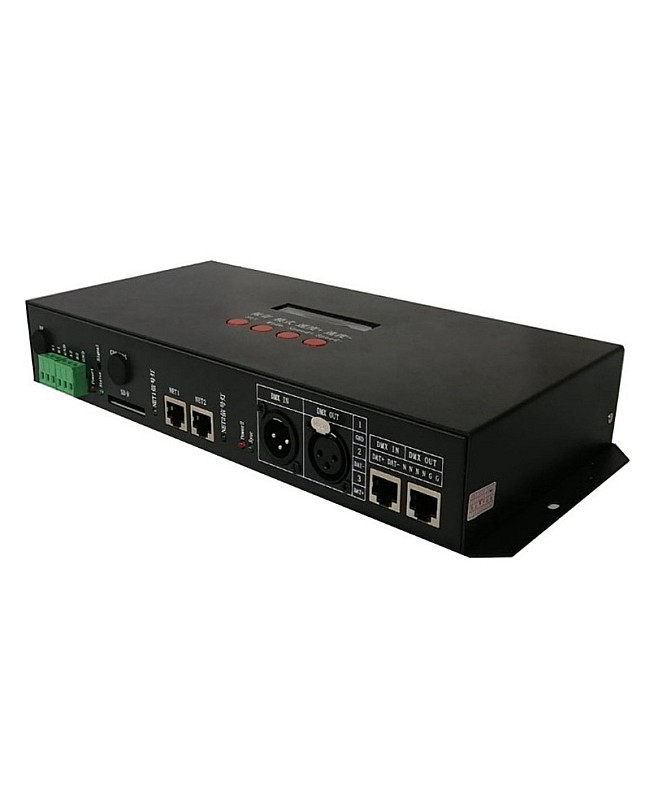

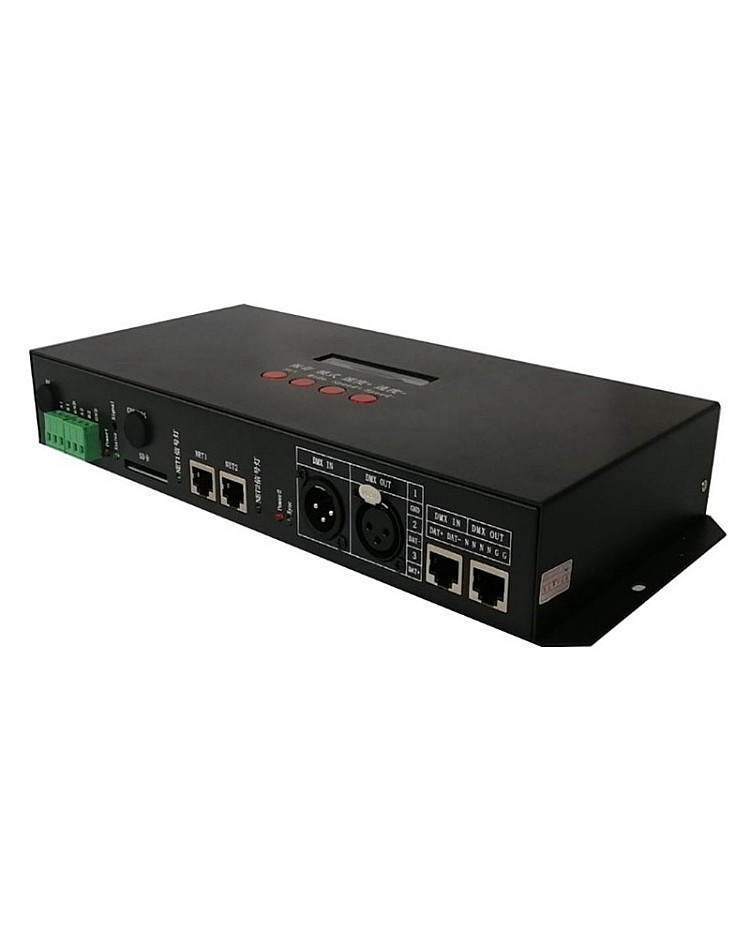

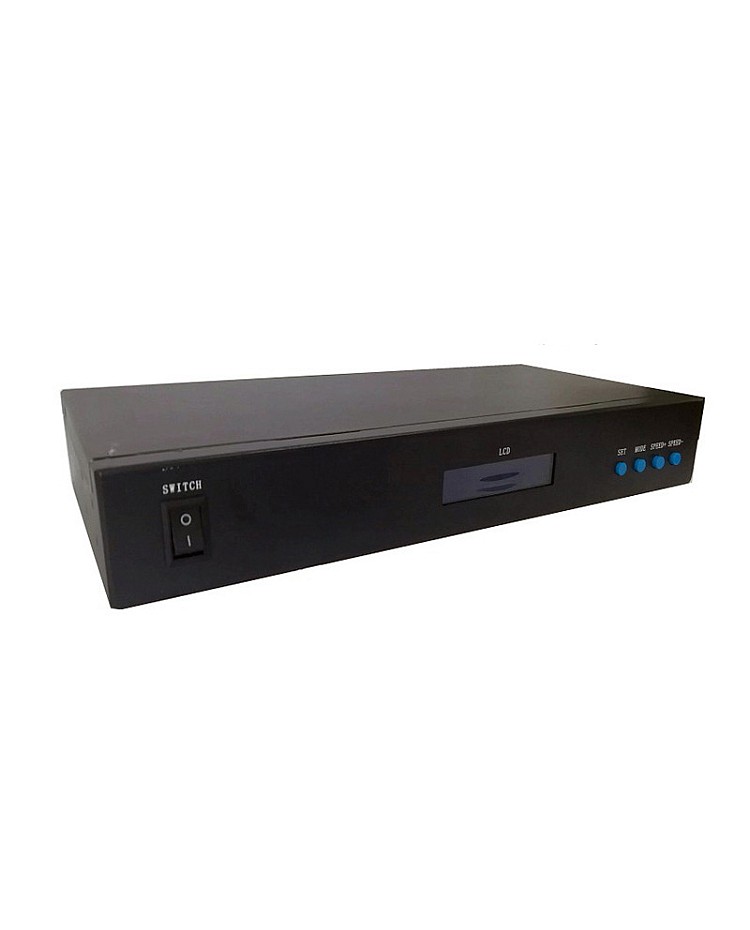

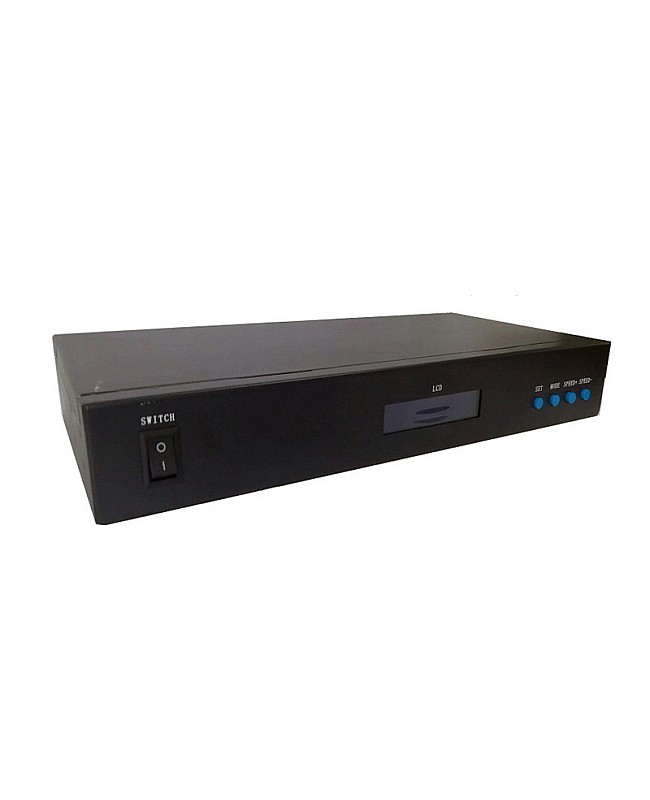

The T-790K RGB Pixel Controller is a powerful and versatile DMX512 Pixel Controller that supports Madrix, which has 8PCS 3Pin Connecting Ports. Each port can carry up to 170/512/1024PCS IC depending on the type of LED Chips and supports the main type of smart ICs in the market, designed to be easy to use, allowing users to quickly and easily set up and control their lighting effects, adjust the speed, color palette selection, and dimming control. The T-790 supports two signal protocols, DMX512 and SPI/TTL serial protocols. The DMX512 Protocols include the DMX512/1990 international standard and the DMX512 extended protocol. The Pixel Controller has an automatic/manual numbering function, which can be numbered with multiple controllers or individual controller numbers. With built-in effects to test on-load luminaires, all supported by RGB/RGBW luminaires. T790 has a DMX512 write function and address test. The single or all ports carry the DMX512 IC write address and perform an address test on the luminaire. The communication between the Pixel Controllers adopts the international standard TCP/IP network protocol, the transmission rate supports 100M/Gigabit adaptation, and the transmission speed is more stable and fast. The maximum transmission distance between Controllers is up to 100 meters. With LCD screen display to show you the information clearly. The Controller has 3 protections to ensure the output and working is safe, reliable, and easy to connect to the Addressable LED Strips. It supports Madrix software control; each port supports a maximum of 6 unit signal outputs. The Master Control and Sub-Control are adopted, and the playback effect is stored in the SD card of the Master Controller(Offline Player). The same project only needs to be inserted in the master control card, and the sub-controller does not need to insert a card.
Link:
Features:
- Model: T-790K
- Size: 310*152*42mm(L*W*H)
- Input Voltage: AC100-240V
- Power Consumption: 5W
- Output Type: 4 Pin Terminal
- Port's Quantity: 8
- Supports DMX512/1990, DMX512, SPI/TTL Protocols
- Each Port Carry Up To 170/512/1024 Pixels(Depends On LED Chips)
- Controller ID Automatic/Manual Numbering Function
- With Built-In Effects To Test On-Load Luminaires (All Supported By RGB/RGBW Luminaires)
- Has DMX512 Write Function And Address Test
- Adopts The International Standard TCP/IP Network Protocol
- 32-65536 Gray Level Control, Software Gamma Correction Processing
- Support Various Point, Line, And Surface Light Sources, Various Rules, And Special-Shaped Processing

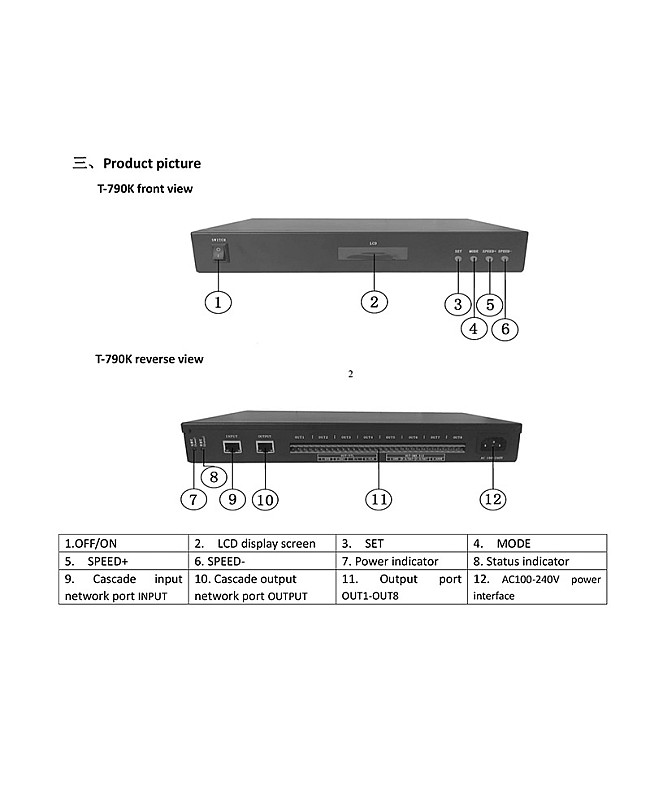

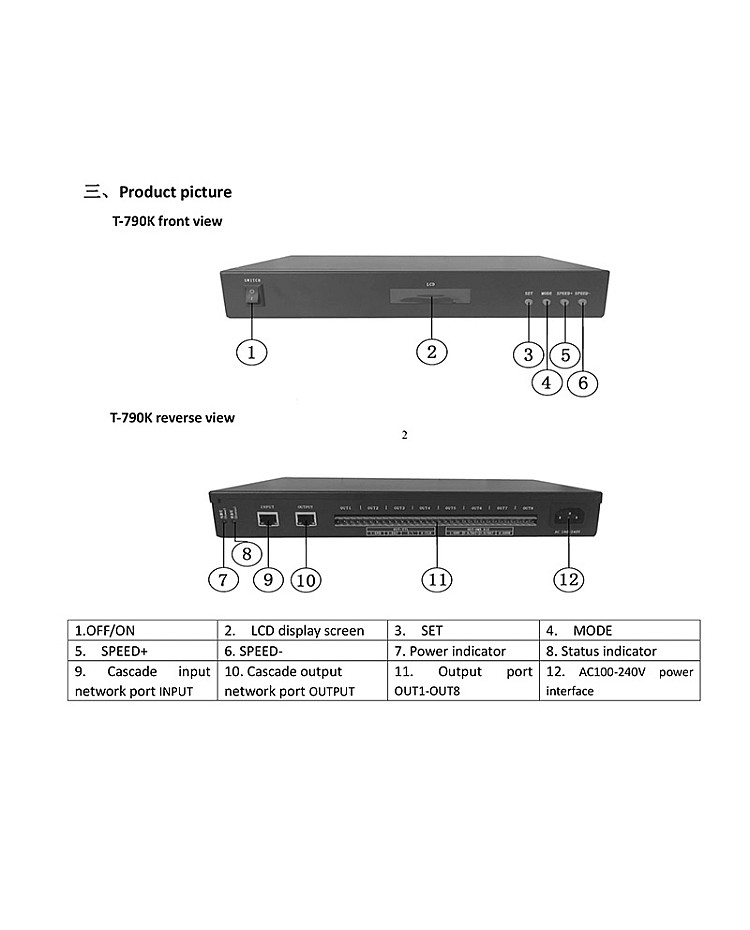

- LCD Display Screen
- Short Circuit Protection
- Reverse Protection
- Installation Method: Conventional Installation/Rack Installation(Equip With Mounting Bracket)
- Working Temperature: -20℃-+75℃

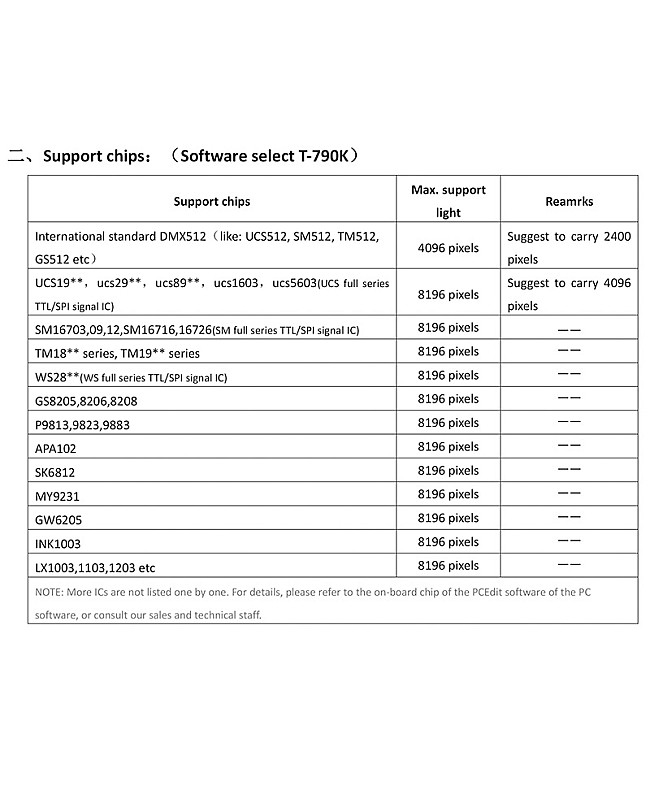

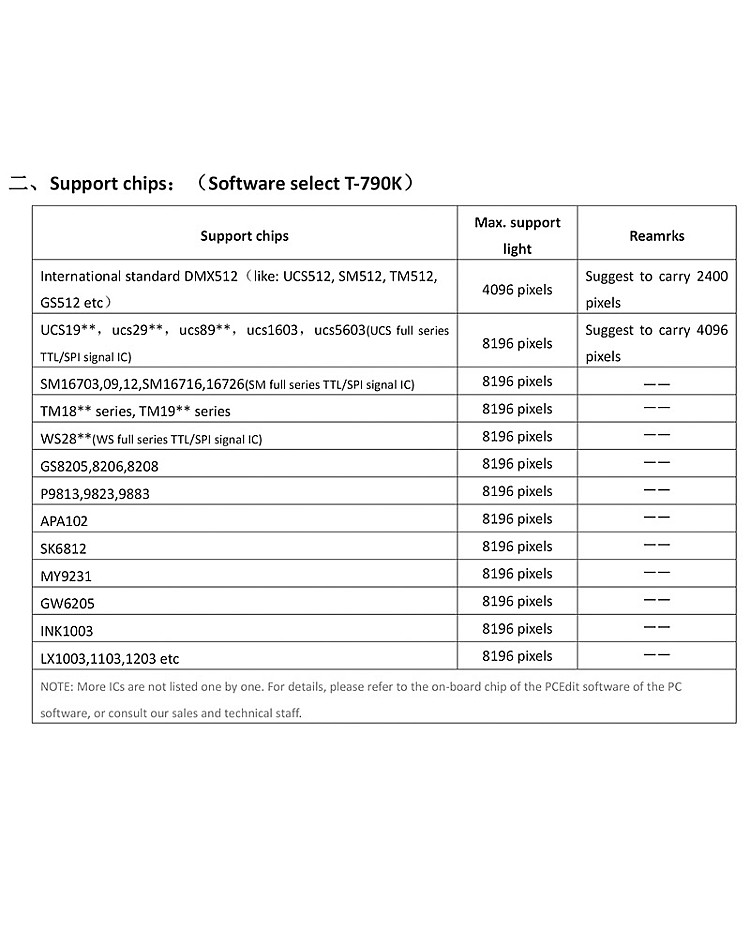

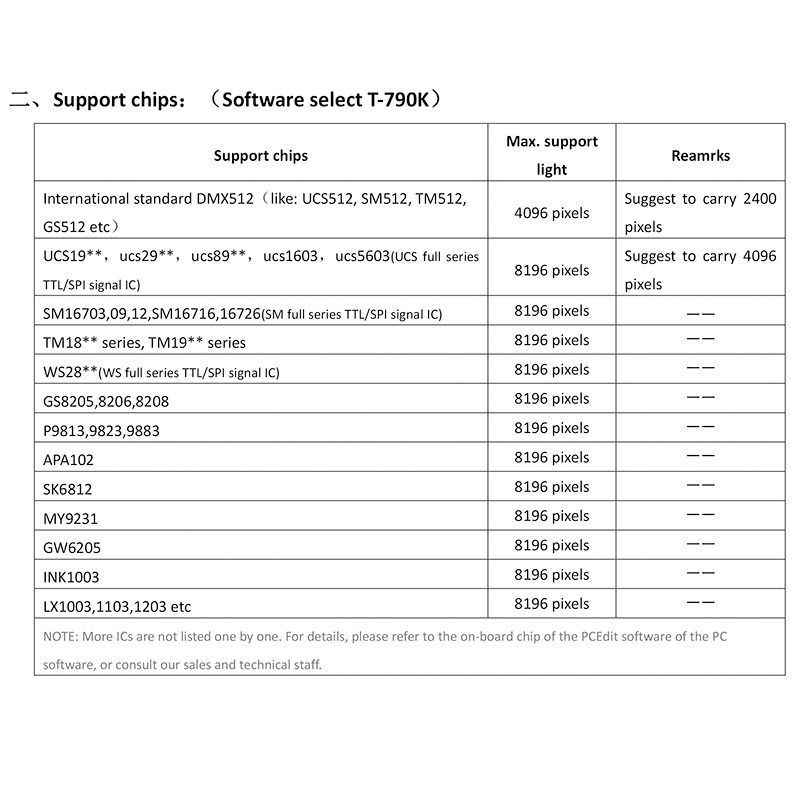

- Supports Types Of ICs: UCS512, SM512, TM512, GS512, UCS1603, UCS5603, SM16703, SM16716, TM Series, WS Series, APA102, SK6812, MY9231, GW6205, INK1003, LX1003, etc
- 2 Years Warranty
Includes:
1*T790K Pixel Controller
