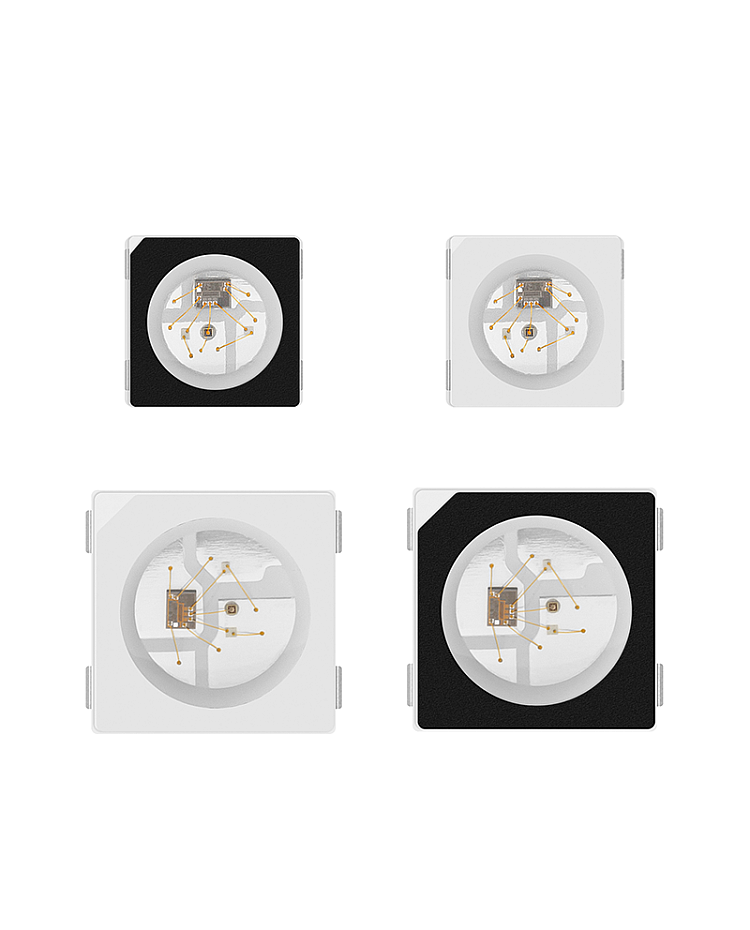

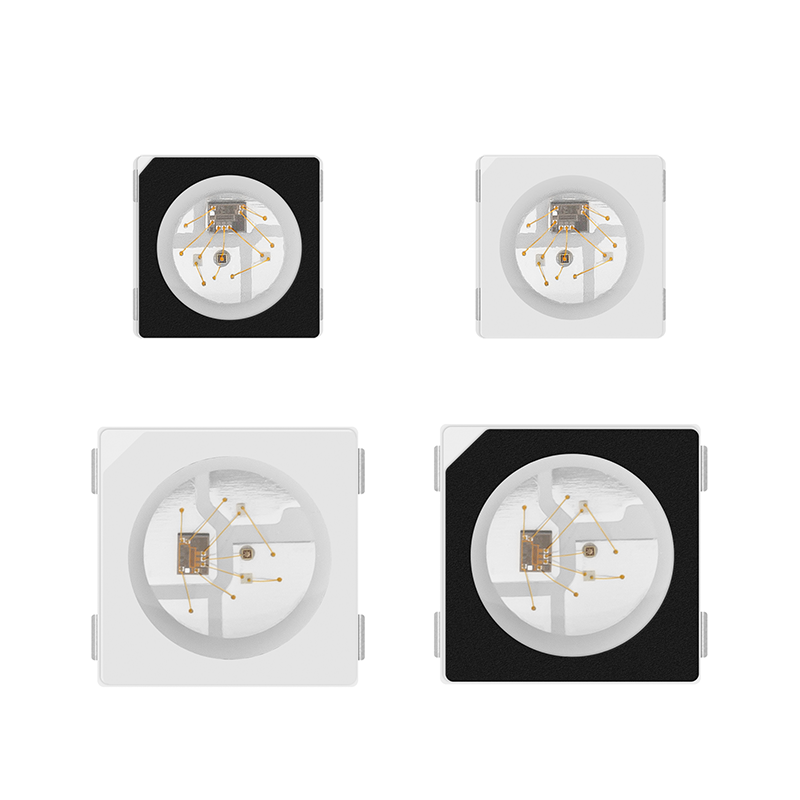

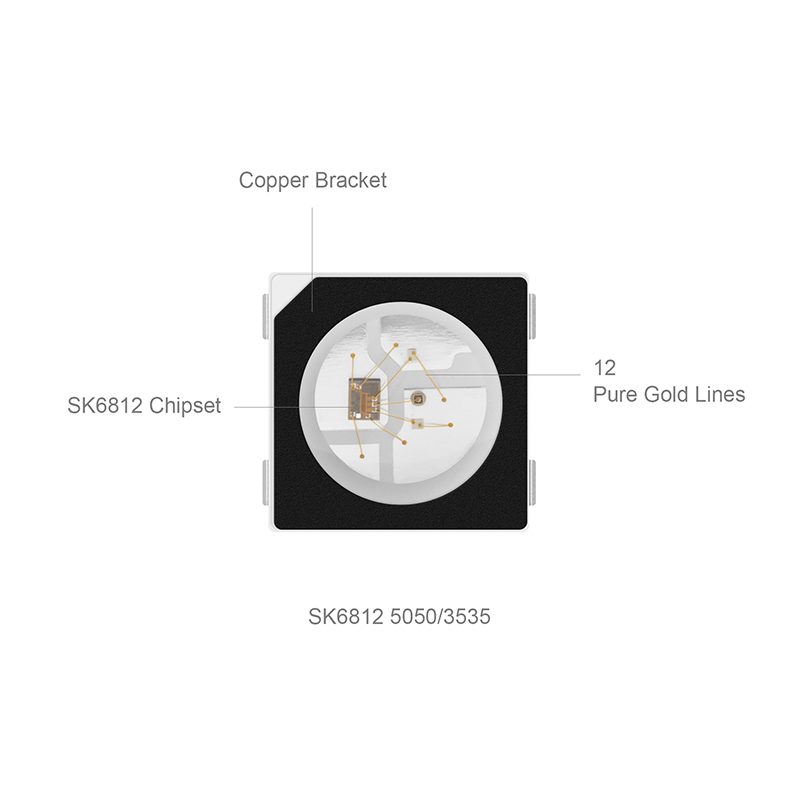

The SK6812 addressable RGB SMD LEDs are available in two types: 5050 and 3535. Both have built-in SK6812 ICs; you can choose a different surface color, black or white. Various quality LEDs per pack are available: 10PCS, 100PCS, and 200PCS. You can use those LEDs with ICs to replace the broken LEDs on your individually addressable LED strip lights or for DIY lighting projects.

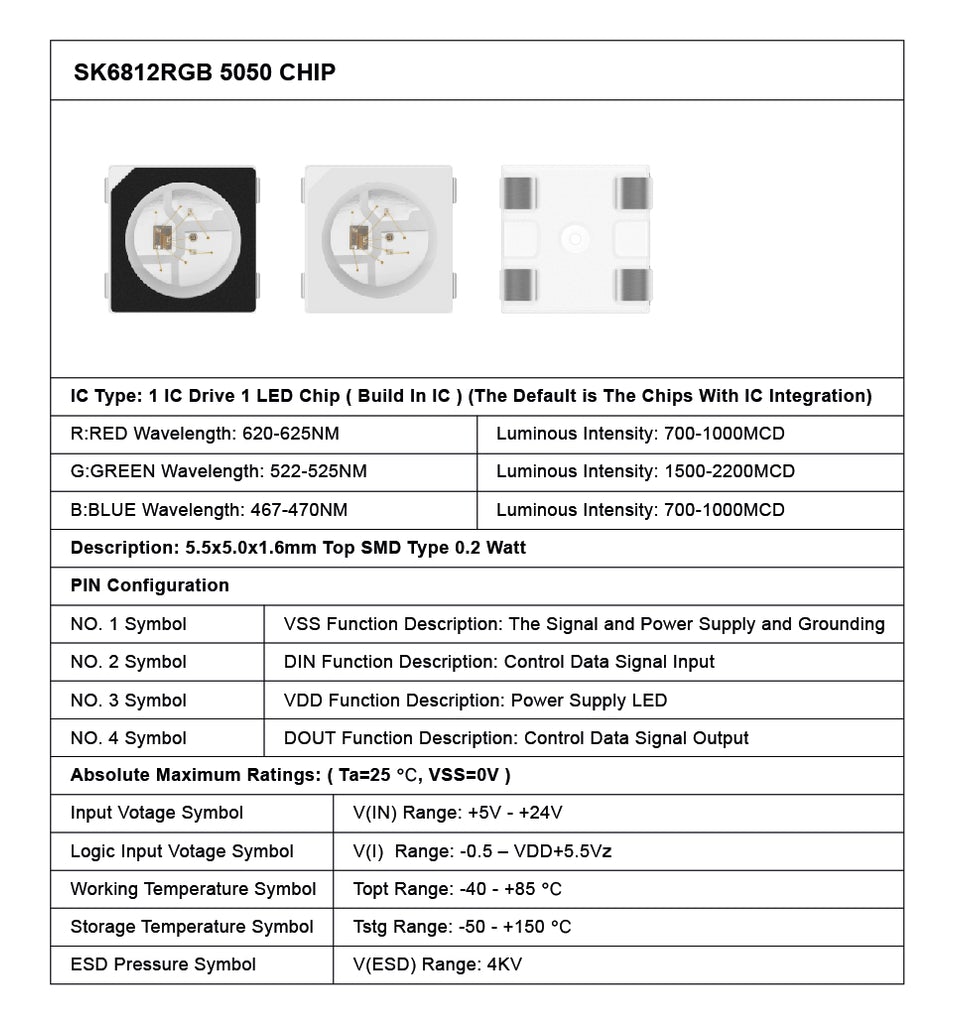

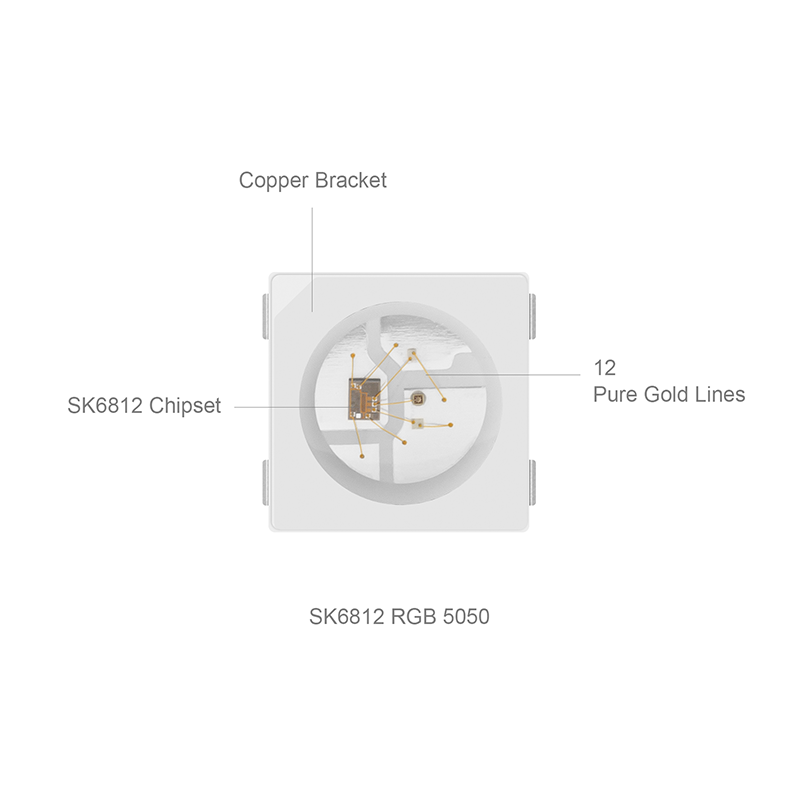

SK6812 5050 RGB SMD LEDs Specifications:
- IC Type: Built-in SK6812
- Size: 5.5*5.0*1.6mm Top SMD Type 0.2 Watt
- Red LED Chips: Wavelength: 620-625nm, Luminous Intensity: 700- 1000 MCD
- Green LED Chips: Wavelength: 522-525nm, Luminous Intensity: 1500- 2200 MCD
- Blue LED Chips: Wavelength: 467-470nm, Luminous Intensity: 700- 1000 MCD
- Pin Configuration:
- NO.1 Symbol: VSS Function Description: The Signal, Power Supply, And Grounding
- NO.2 Symbol: DIN Function Description: Control Data Signal Input
- NO.3 Symbol: VDD Function Description: Power Supply LED
- NO.4 Symbol: DOUT Function Description: Control Data Signal Output
- Absolute Max Ratings: (Ta=25℃， VSS=0V)
- Input Voltage Symbol: V(IN) Range: +5V-+24V
- Logic Input Voltage Symbol: V(I) Range: -0.5-VDD+5.5V
- Working Temperature Symbol: Topt Range: -40-+85℃
- Storage Temperature Symbol: -50-+150℃
- ESD Pressure Symbol: V(ESD) Range: 4KV

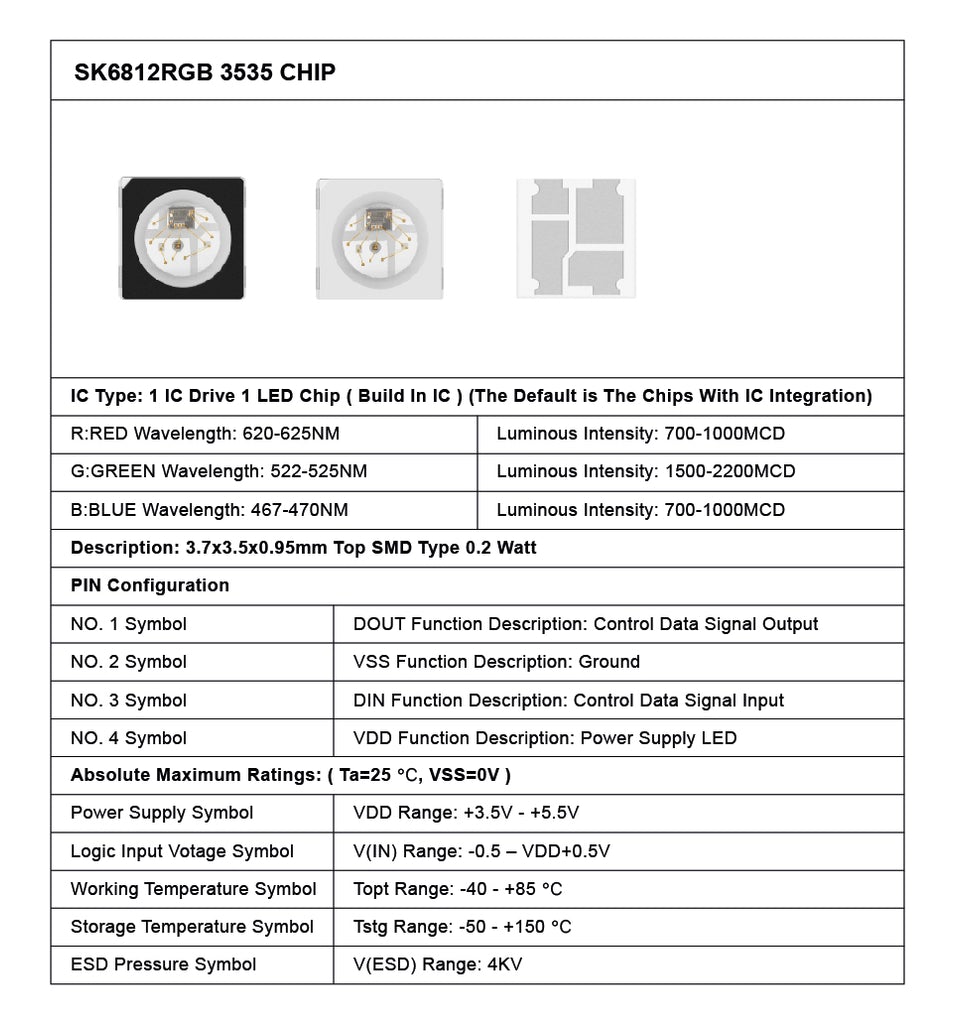

SK6812 3535 RGB SMD LEDs Specifications:
- IC Type: Built-in SK6812
- Size: 3.7*3.5*0.95mm Top SMD Type 0.2 Watt
- Red LED Chips: Wavelength: 620-625nm, Luminous Intensity: 700- 1000 MCD
- Green LED Chips: Wavelength: 522-525nm, Luminous Intensity: 1500- 2200 MCD
- Blue LED Chips: Wavelength: 467-470nm, Luminous Intensity: 700- 1000 MCD
- Pin Configuration:
- NO.1 Symbol: DOUT Function Description: Control Data Signal Output
- NO.2 Symbol: VSS Function Description: Ground
- NO.3 Symbol: DIN Function Description: Control Data Signal Input
- NO.4 Symbol: VDD Function Description: Power Supply LED
- Absolute Max Ratings: (Ta=25℃， VSS=0V)
- Power Supply Symbol: VDD Range: +3.5V-++5.5V
- Logic Input Voltage Symbol: V(IN) Range: -0.5-VDD+0.5V
- Working Temperature Symbol: Topt Range: -40-+85℃
- Storage Temperature Symbol: -50-+150℃
- ESD Pressure Symbol: V(ESD) Range: 4KV
Includes:
1 * SK6812 5050/3535 RGB SMD LEDs
