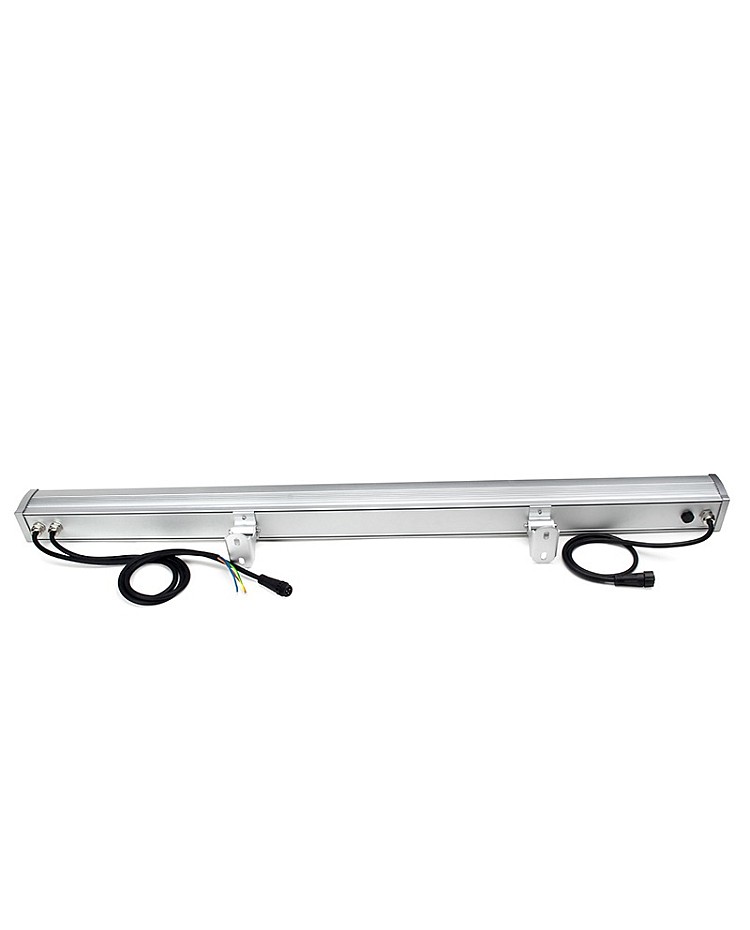

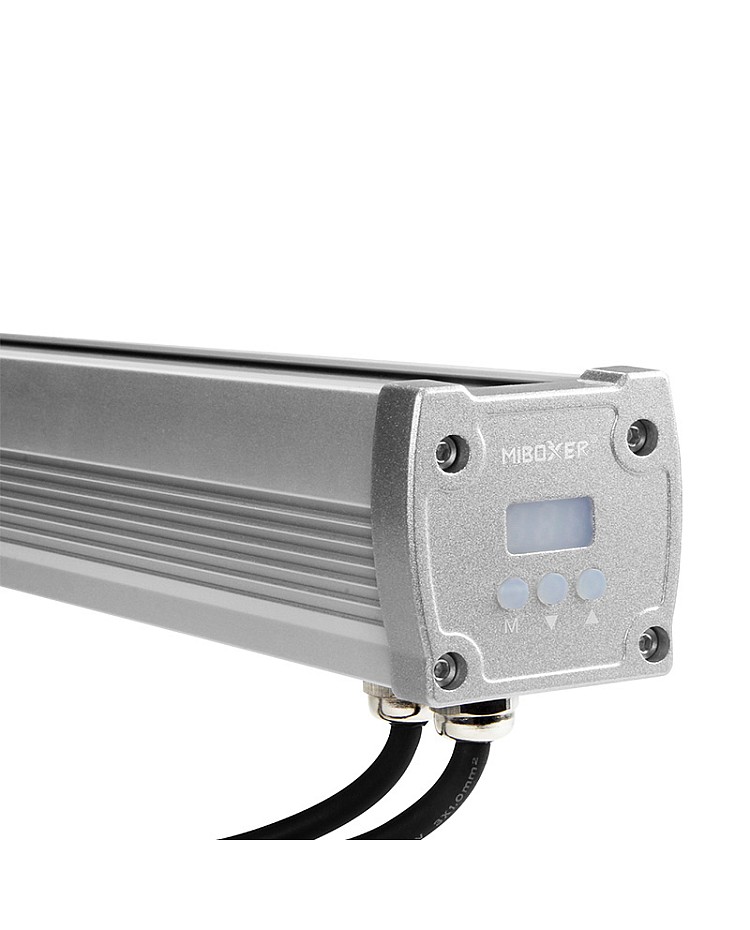

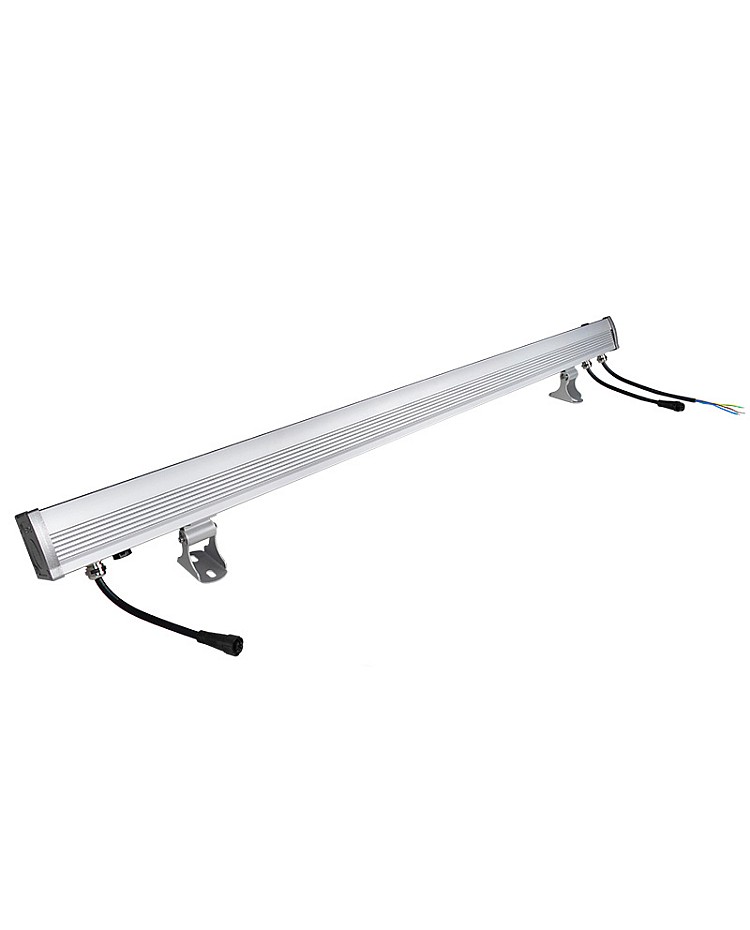

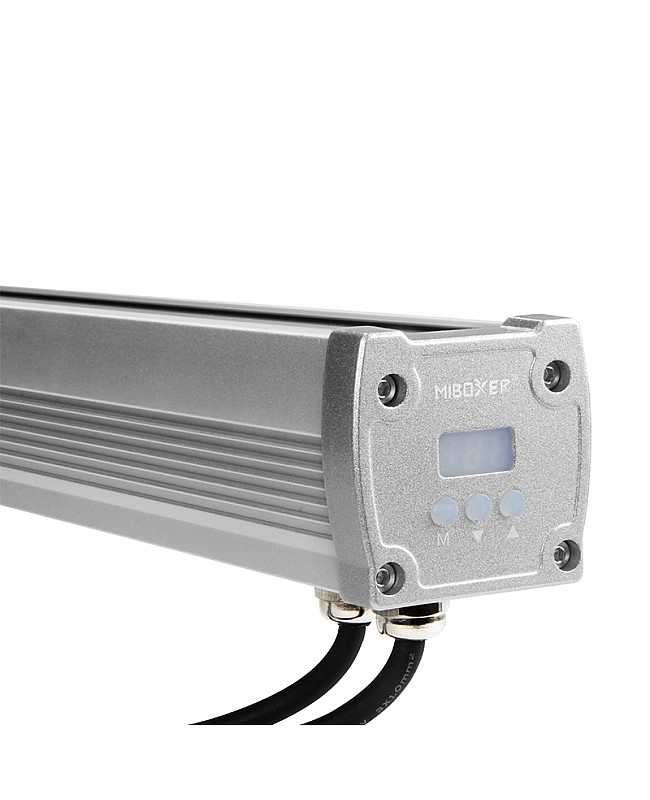

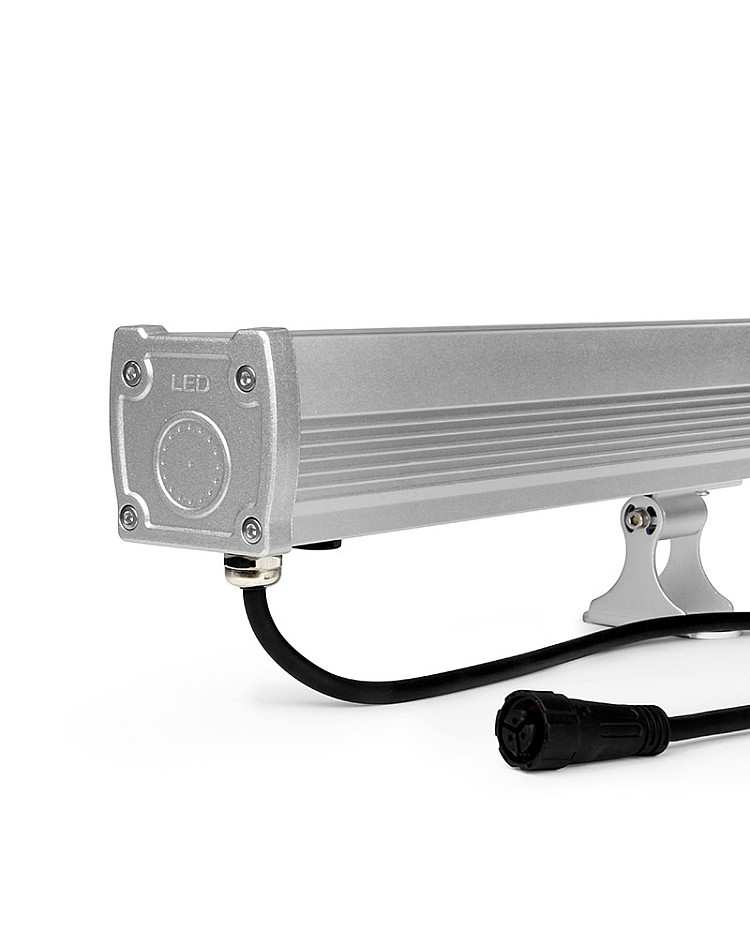

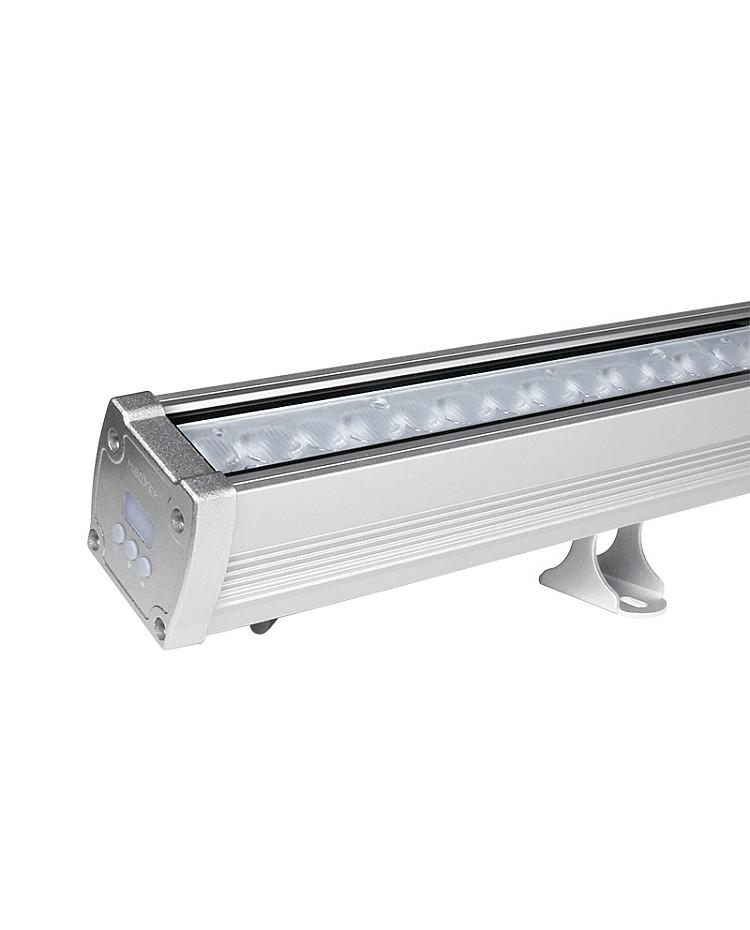

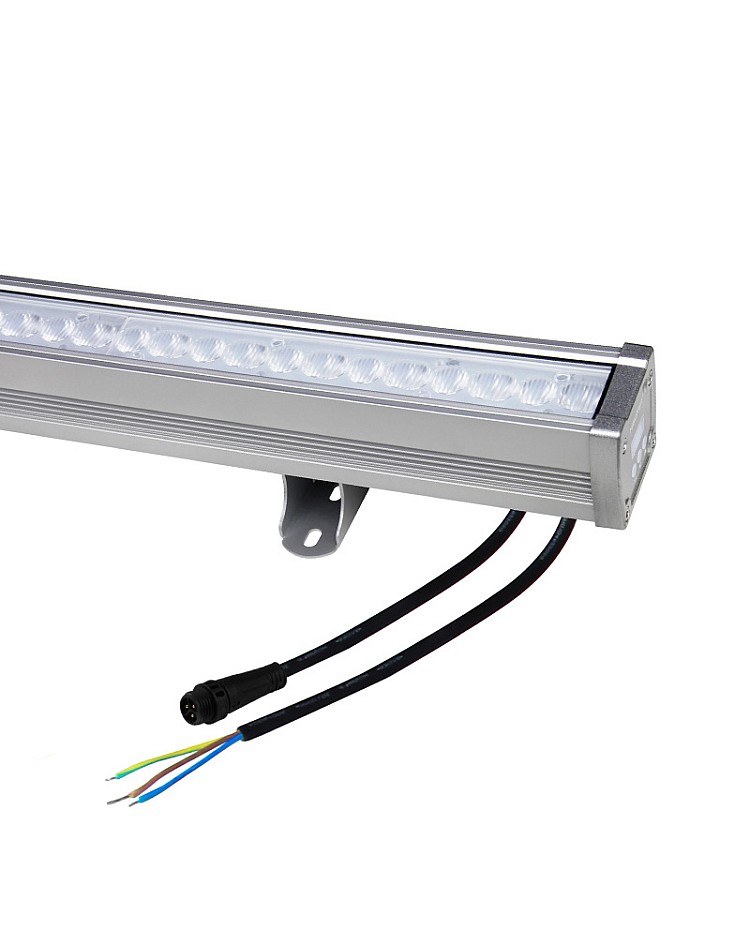

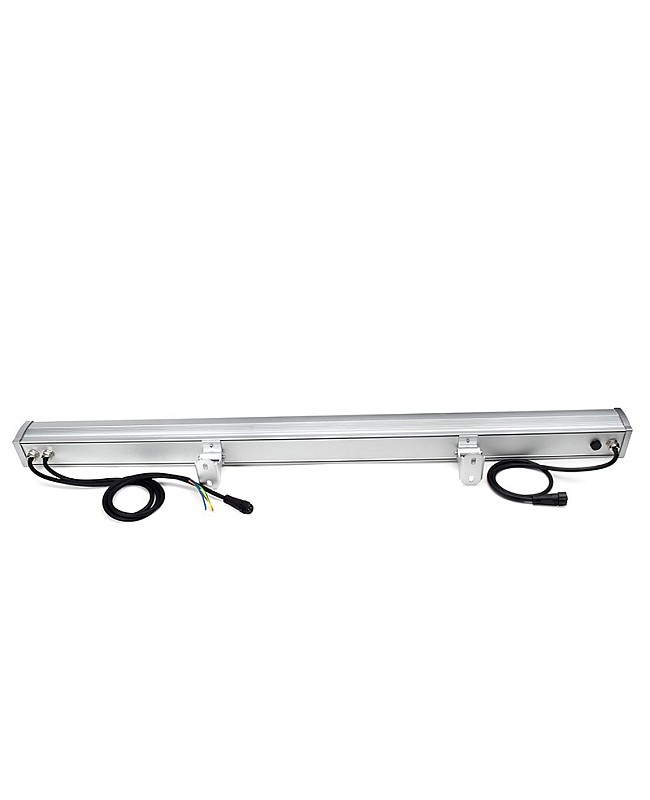

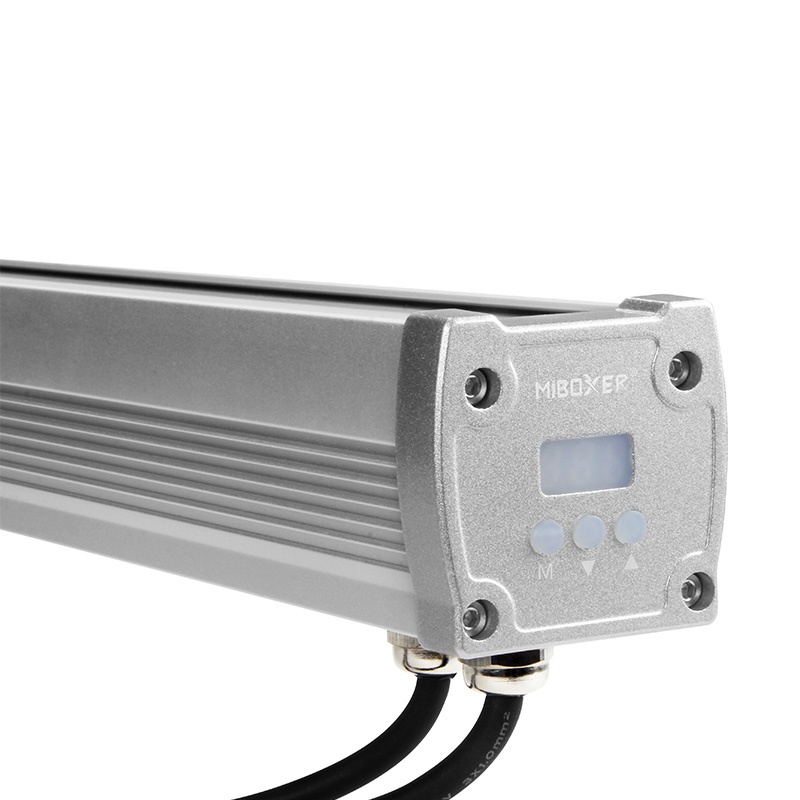

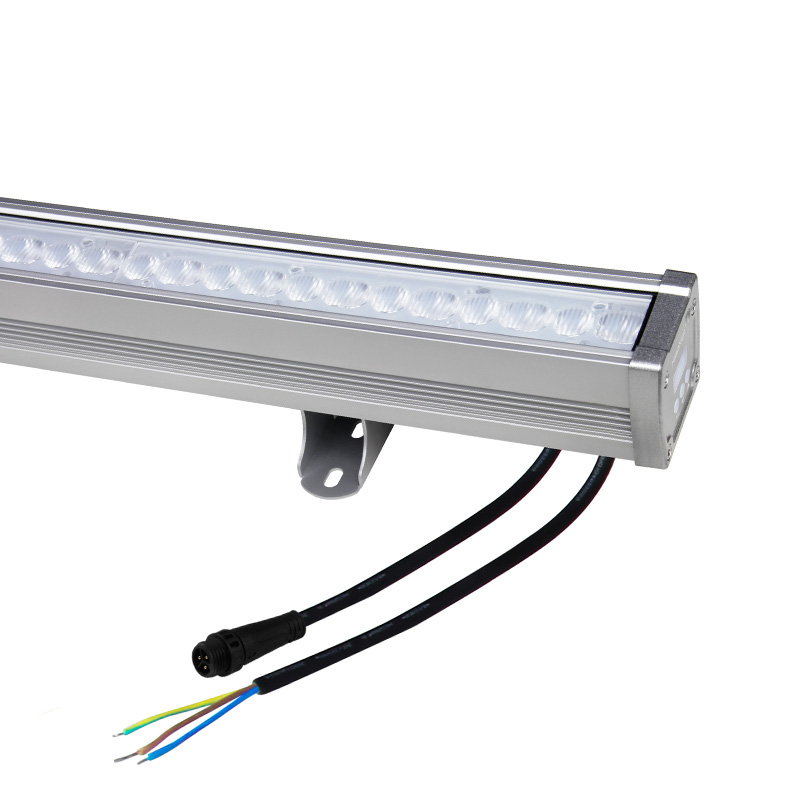

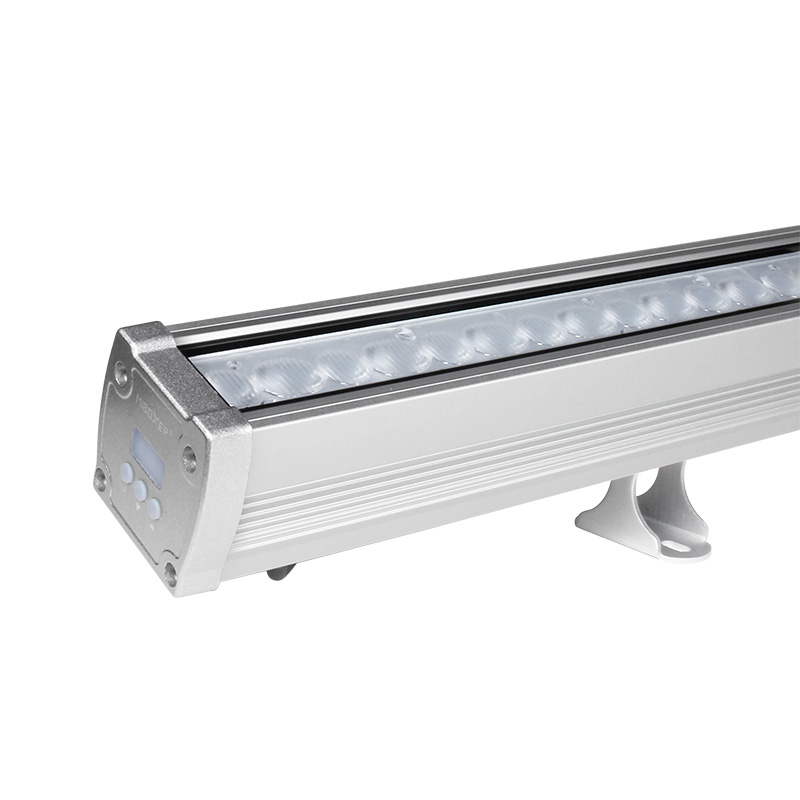

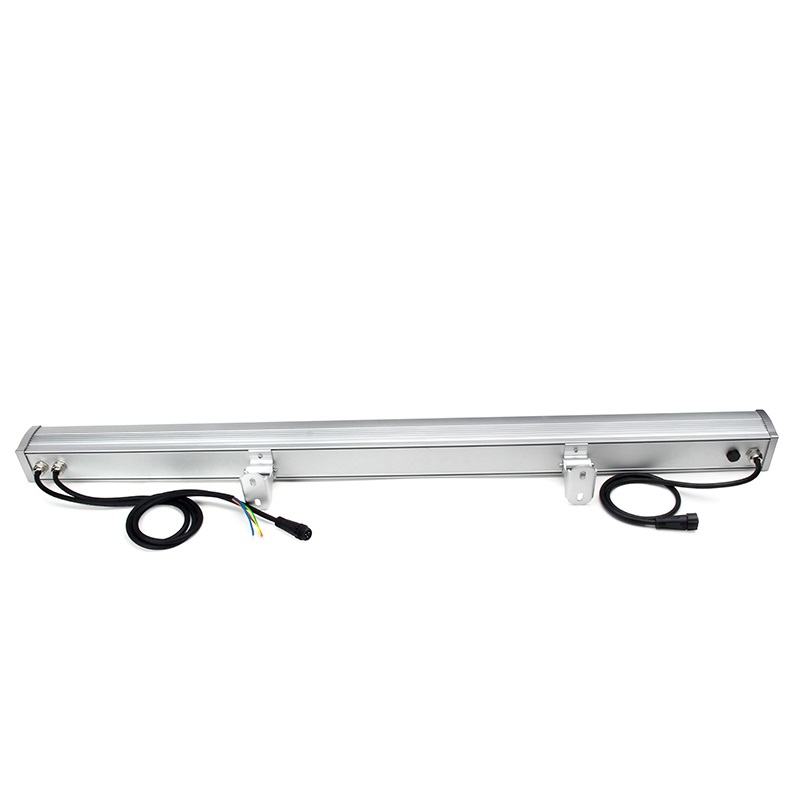

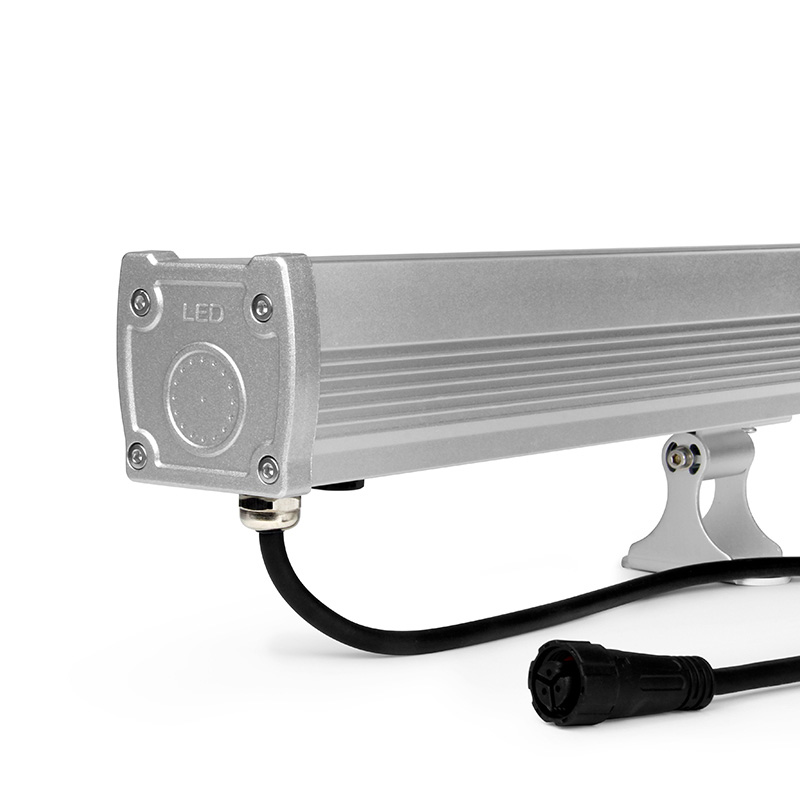

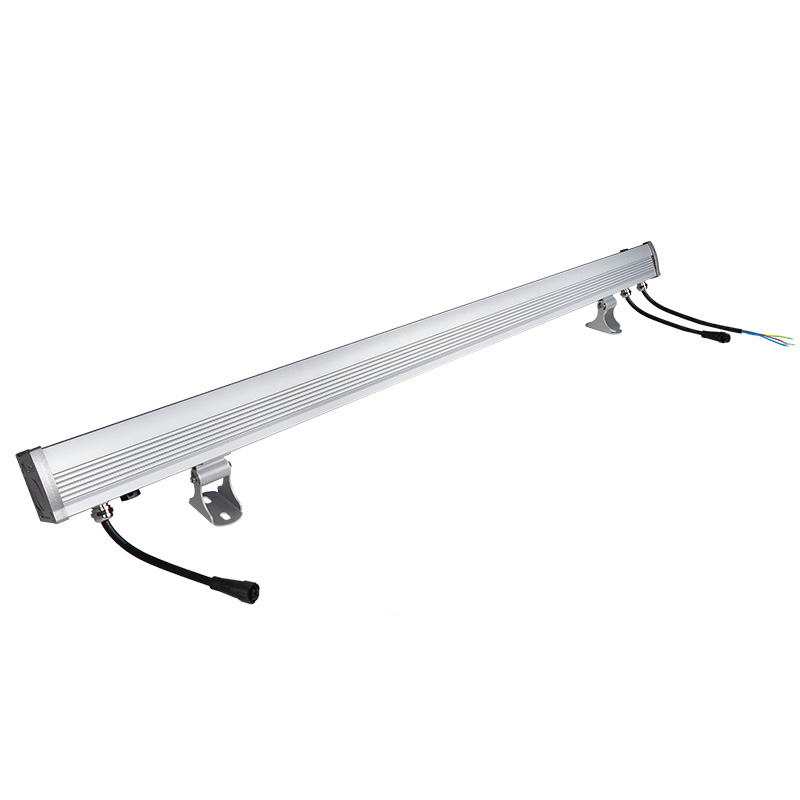

The MiBoxer RGBW LED Wall Washer Lights, which comply with DMX512, DMX512(1990), DMX512-A, and RDM V1.0 international standard agreement, and you can change RGBW colors freely to make a smart lighting atmosphere. There are 2 optional dimming curves: logarithmic and linear for various scenes. The waterproof level is IP66, which allows it to be installed in water locations and used on rainy days. The 180° rotatable brackets are included, easy installation, and are adjustable randomly, and you can adjust the beam angle freely. The Wall Washer Lighting uses high-quality LED Chips as a light source, low power consumption and luminance decrease, bright color, and high brightness. The surface with optical lens for high lighting-transmitting rate, wide beam angle, and long illumination distance. The strong hardness salinity cover for cold-resistant and heat-resistant. The high-quality aluminum alloy housing for fast heat dissipation and anti-corrosion. There side with a digital display and 3 buttons that allow setting the DMX address or choosing a dimming curve. You can connect them to a DMX 512 console or the MiBoxer X4 DMX Dimming Panel to change the color to set the dynamic mode. You can use them for hotels, restaurants, buildings, bridges, parking, etc.

Quick Links:

MiBoxer D4-W72 User Manual


Features:

  • Model: D4-W72
  • Size: 1020*64*62mm(L*W*H)
  • Input Voltage: AC100-240V, 50/60Hz
  • Power: 72W
  • Emitting Color: RGBW
  • Luminous Flux: 560LM(Red), 1080LM(Green), 300LM(Blue), 2600LM(Warm White)
  • Color Temperature Adjustable: 2700K-3000K
  • CRI: >80Ra
  • PF: >0.9
  • Beam Angle: 15*60°
  • Comply With DMX512, DMX512(1990), DMX512-A, RDM V1.0(E1.20-2006 ESTA Standard) International Standard Agreement
  • Occupy 4 DMX Address
  • Support RDM Function
  • Optional Dimming Curve
  • IP Rate: IP66
  • Compatible With MiBoxer X4 DMX RGBW Control Panel
  • Working Temperature: -20℃-+45℃
  • Lifespan: 50,000 Hours
  • 3 Years Warranty


Includes:

1*RGBW LED Wall Washer

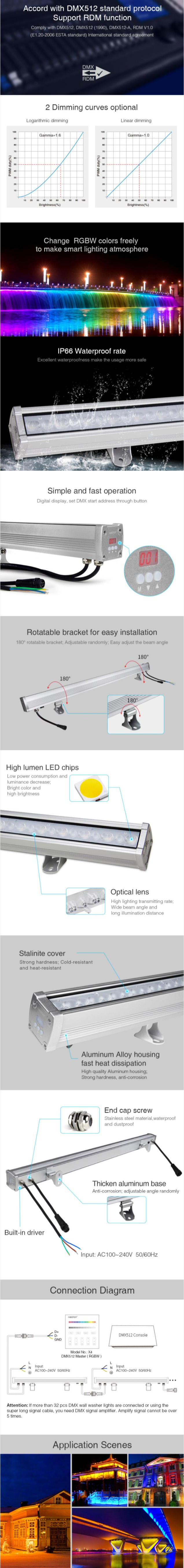

MiBoxer 72W Adjustable Wall Washer
