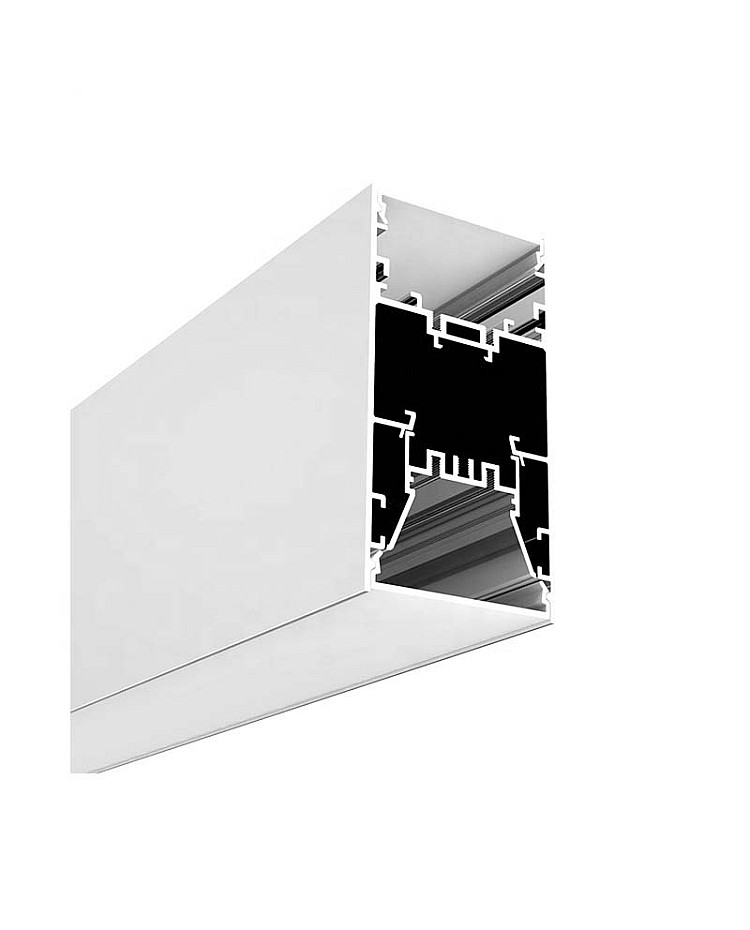

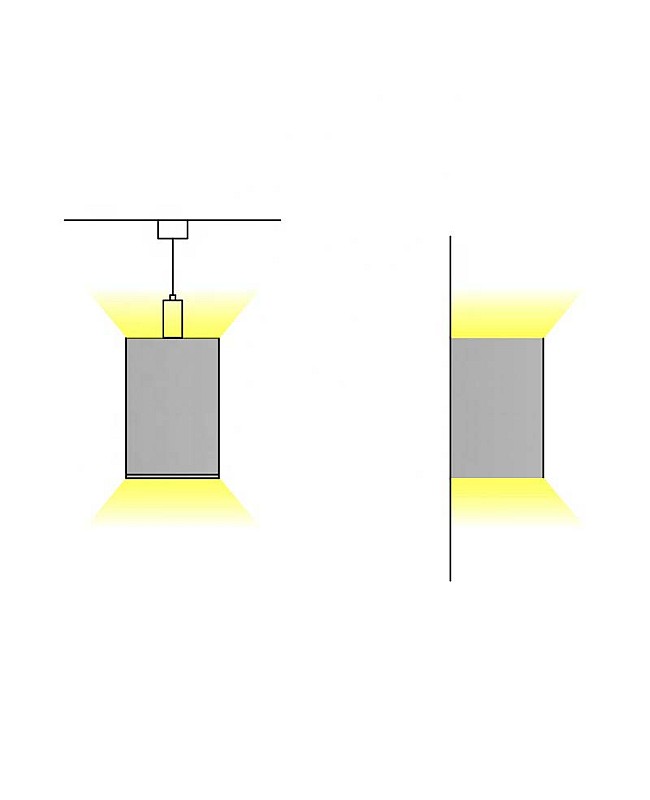

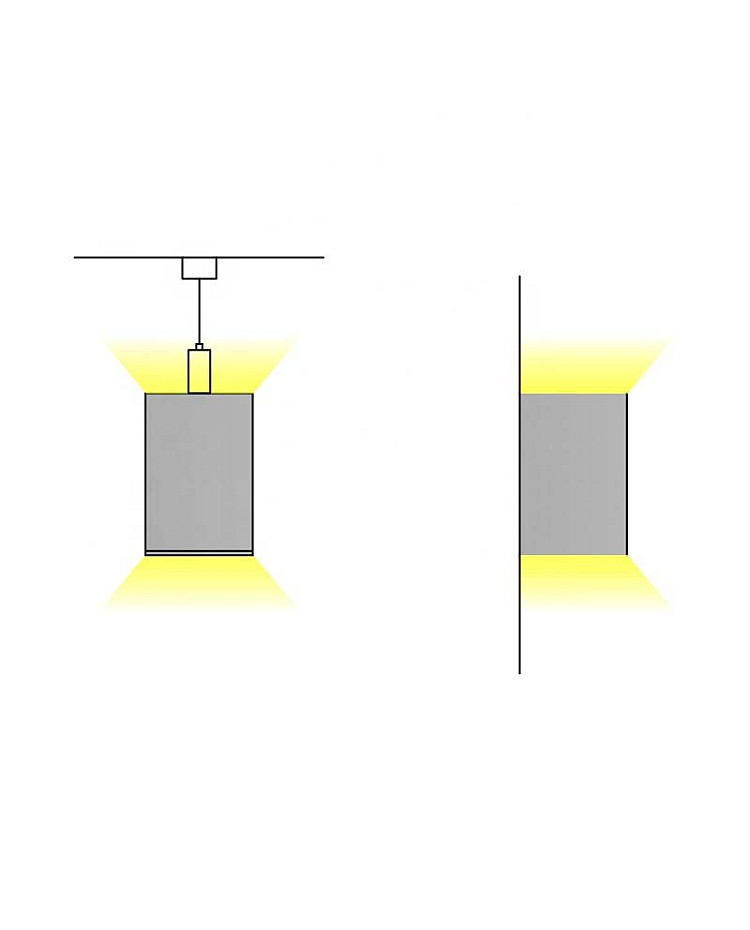

The LED profile diffusers with up-and-down light designs are perfect for wall lighting or ceiling lighting applications in commercial or residential spaces. Sleek, contemporary design that adds a modern touch to any room; easy to install and compatible with various LED light fixtures.

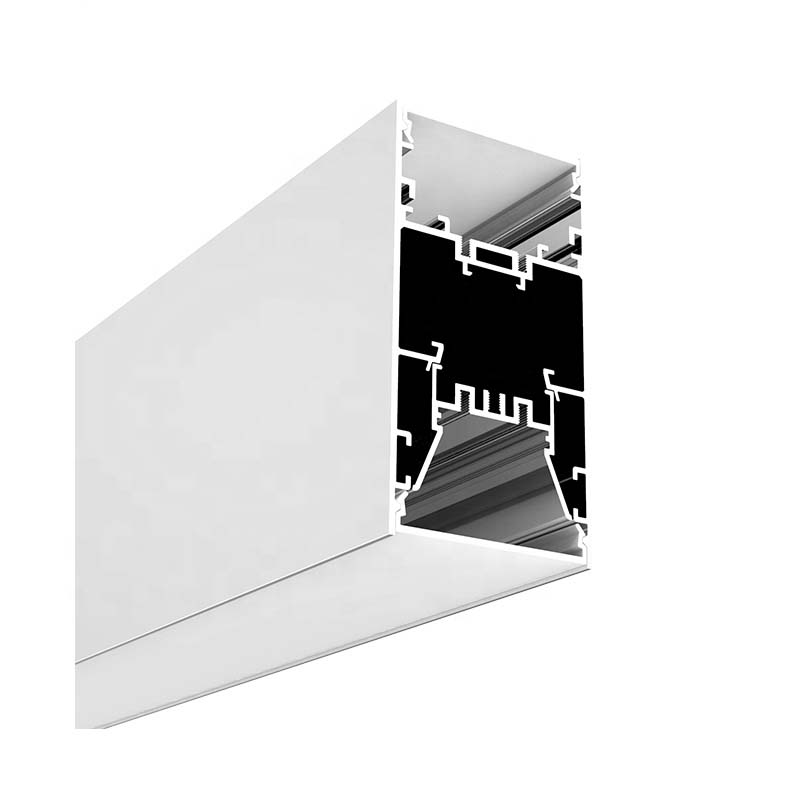

The standard lengths are 1M and 2M. The max length is 2.5M, and it can be cut to any size for your light project. They are made of 6063-T5 aluminum alloy with a silver anodized surface treatment, offering oxidation resistance and a longer lifespan than similar products.
The inner width is 18.5mm, allowing the max width of LED Strips to be 18mm, and the aluminum profile Base can be used as a heat sink for better heat dissipation. There is only one type of diffuser available: the PC frosted opal cover, made of brand-stable, anti-yellowing material, designed to distribute light and reduce glare, ensuring uniform illumination.

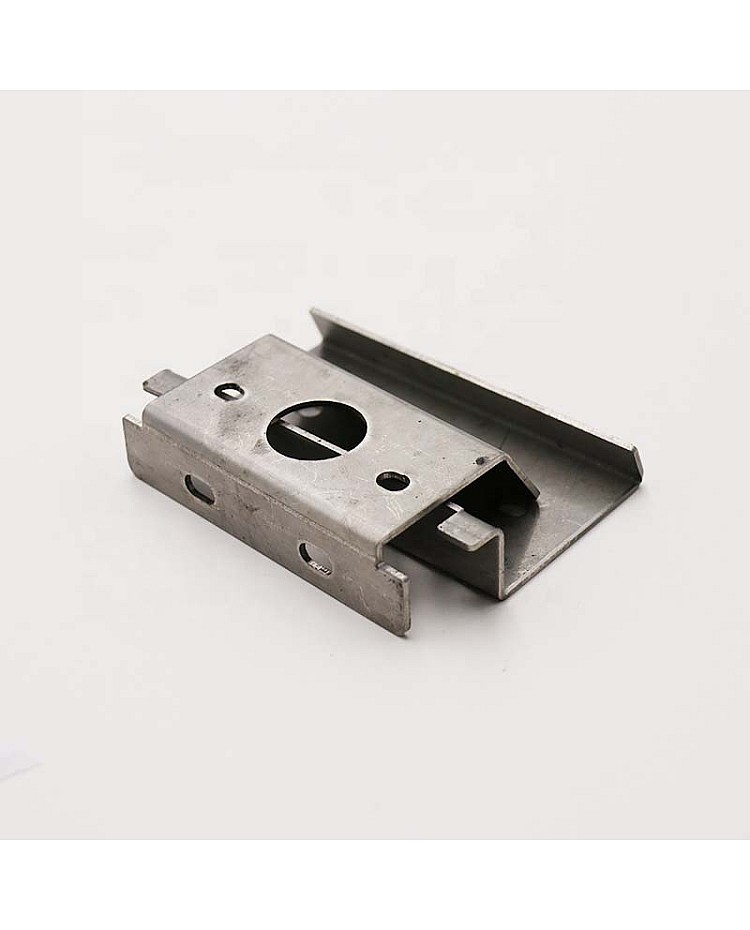

End caps, metal clips, and suspension wire kits are included; you can hang them on the ceiling or mount them on the walls.
Specifications:

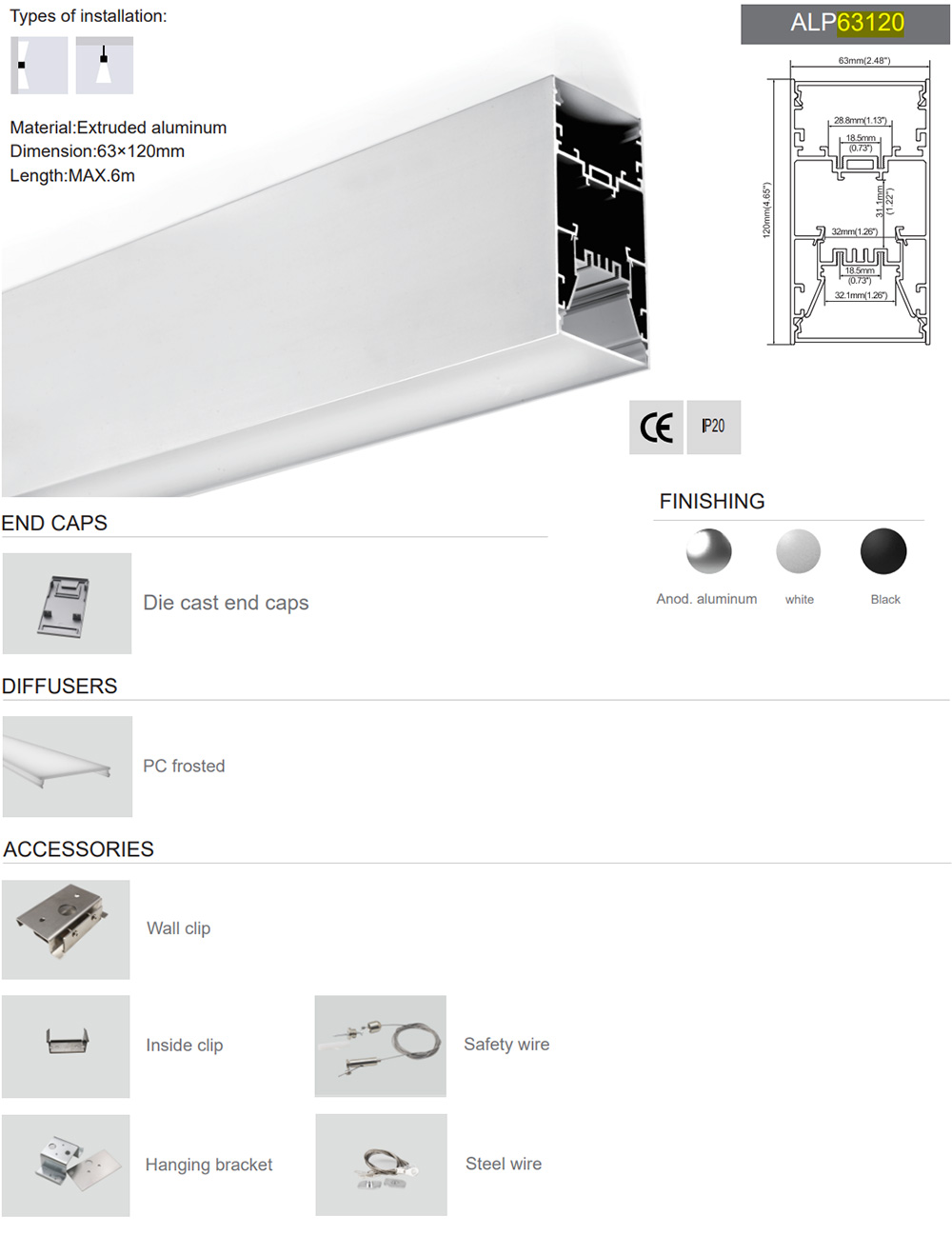

- Model: ALP63120
- Material: 6063-T5 Aluminum Alloy
- Surface Treatment: Silver Anodized

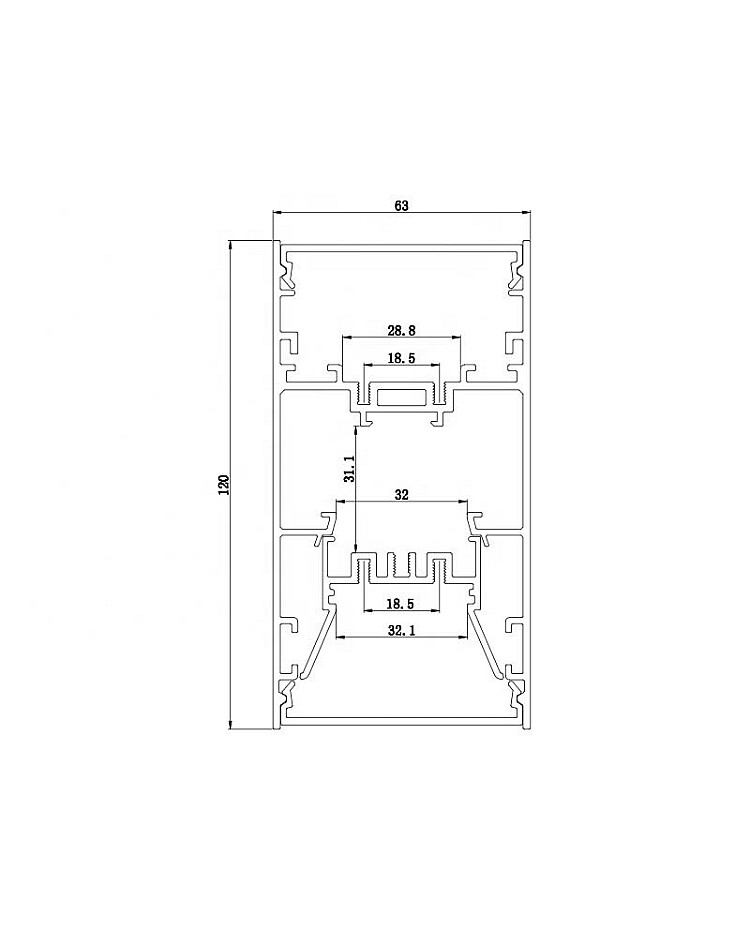

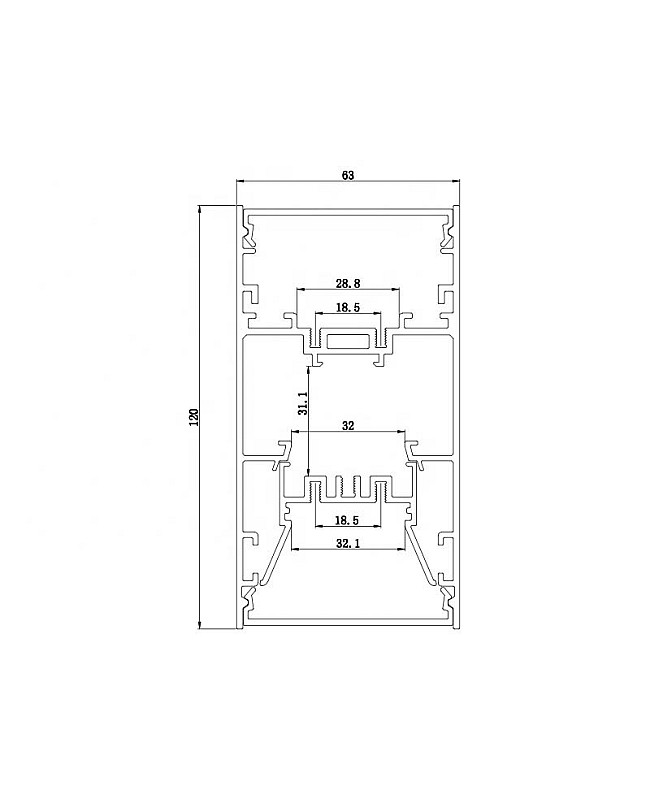

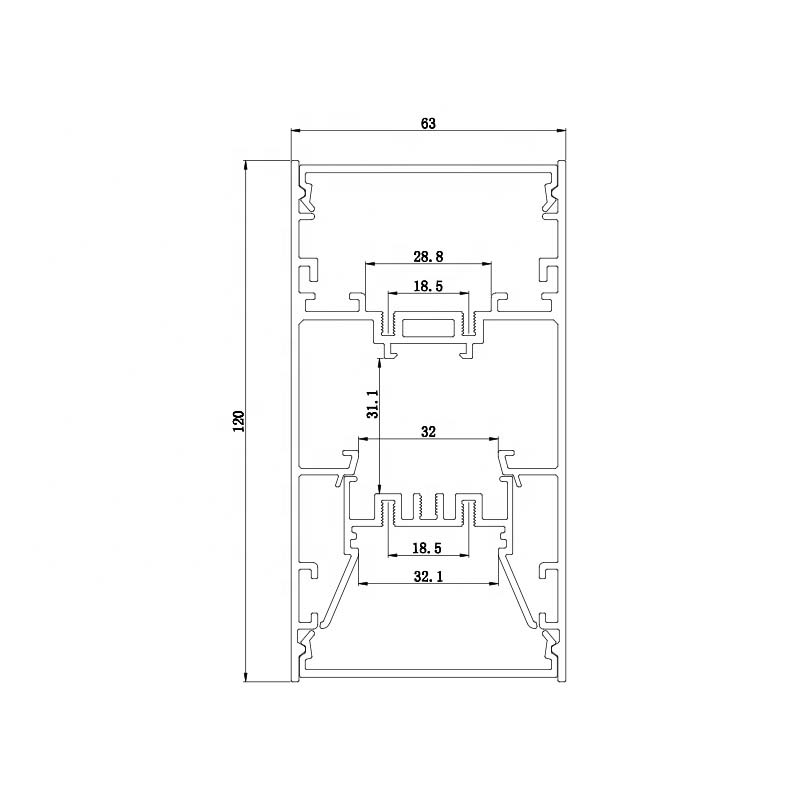

- Size: 63*120mm(W*H)
- Inner Width: 18.5mm
- Compatible With 140mm/280mm/560mm Constant Current LED Modules Or Flexible LED Light Strips
- Max Power: <50W/Meter
- Diffusers: PC Frosted Opal Covers
- Standard Length: 1 Meter
- Other Lengths Available: 1.5M, 2M, 2.5M
- Custom Length: YES

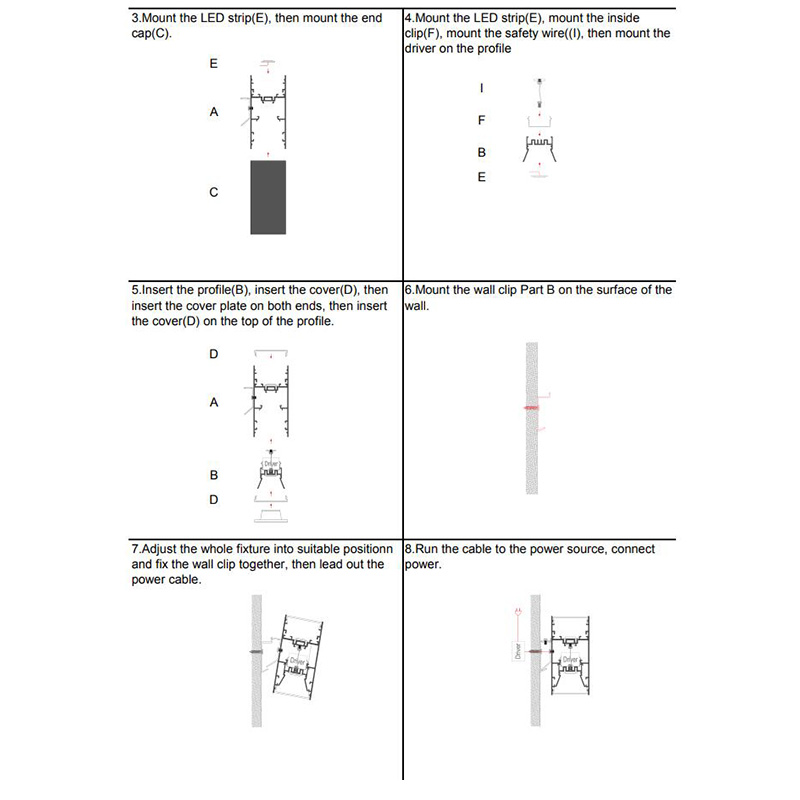

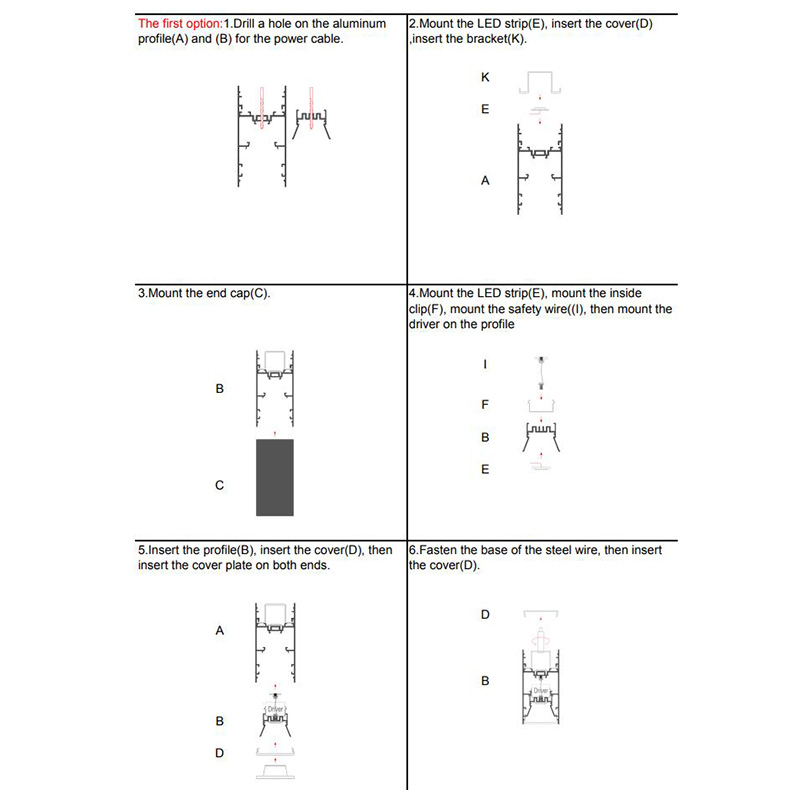

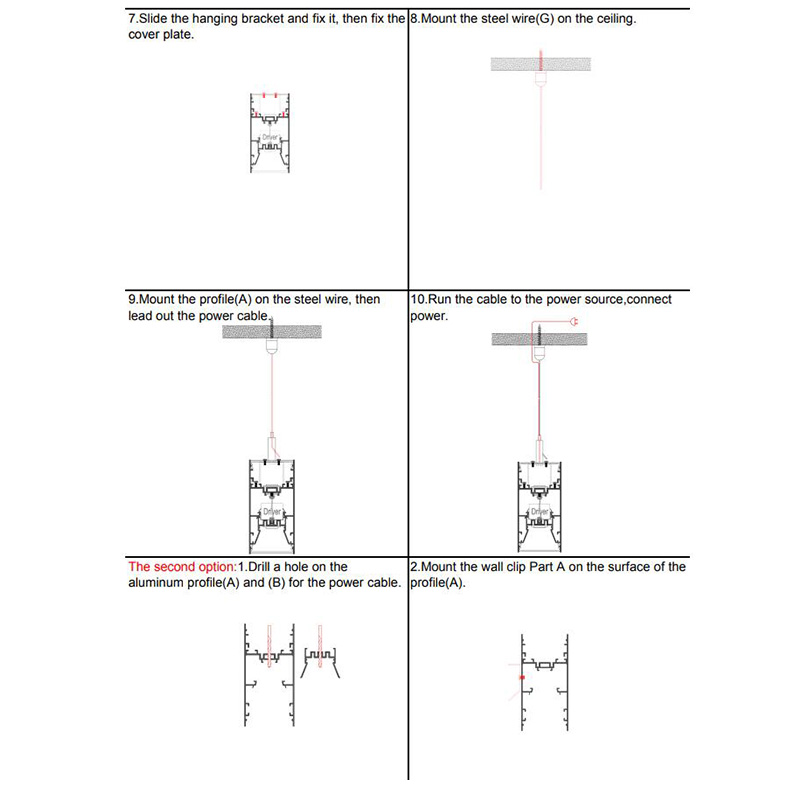

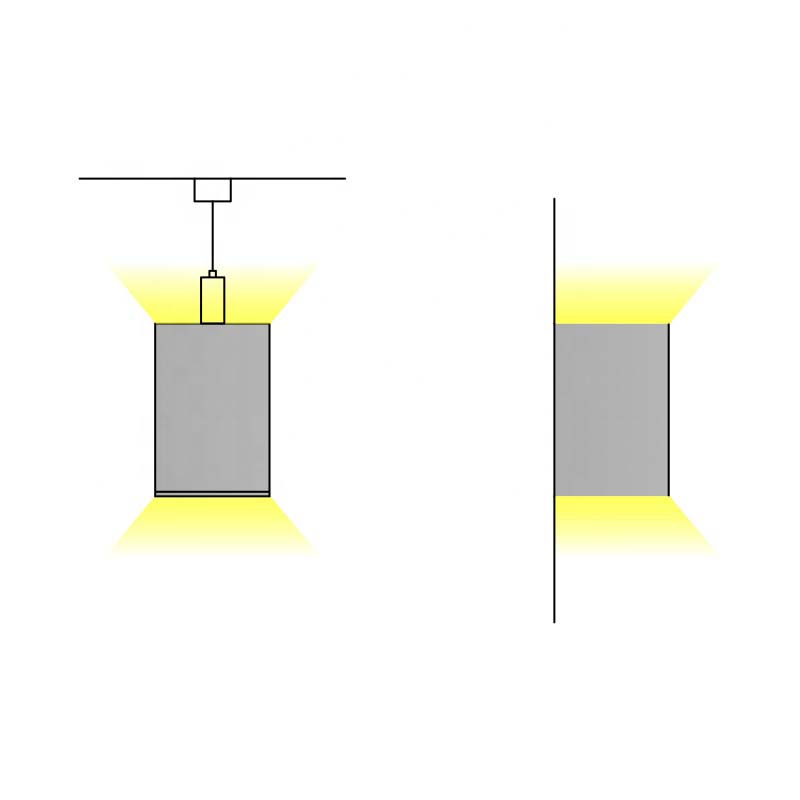

- Installation: Pendant/Wall Mounted
- Applications: Office/Shop/Retail/Hotel Lighting, etc
- Metal Clips, End Caps, Diffusers And Suspension Wires Included
- LED Modules And LED Strips Not Included
- 5 Years Warranty

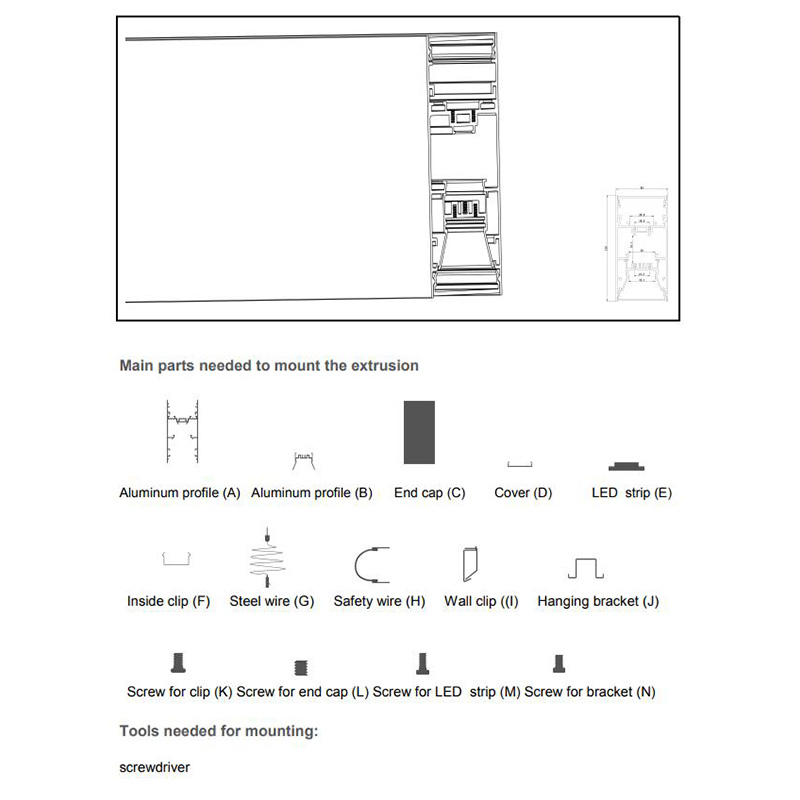

Includes:
1 * LED Profile Diffuser

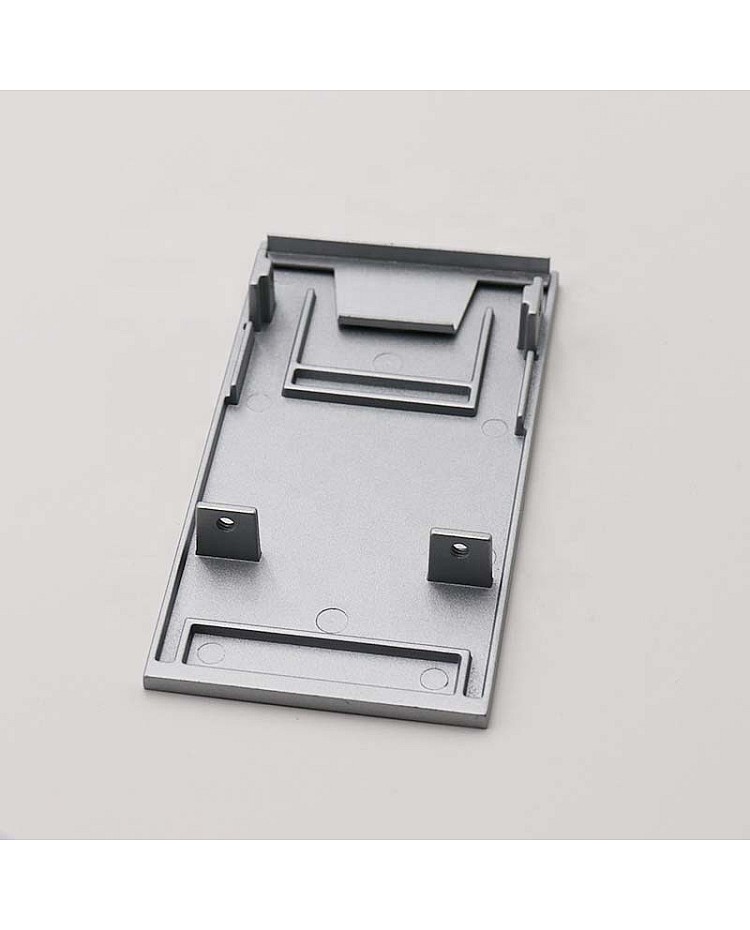

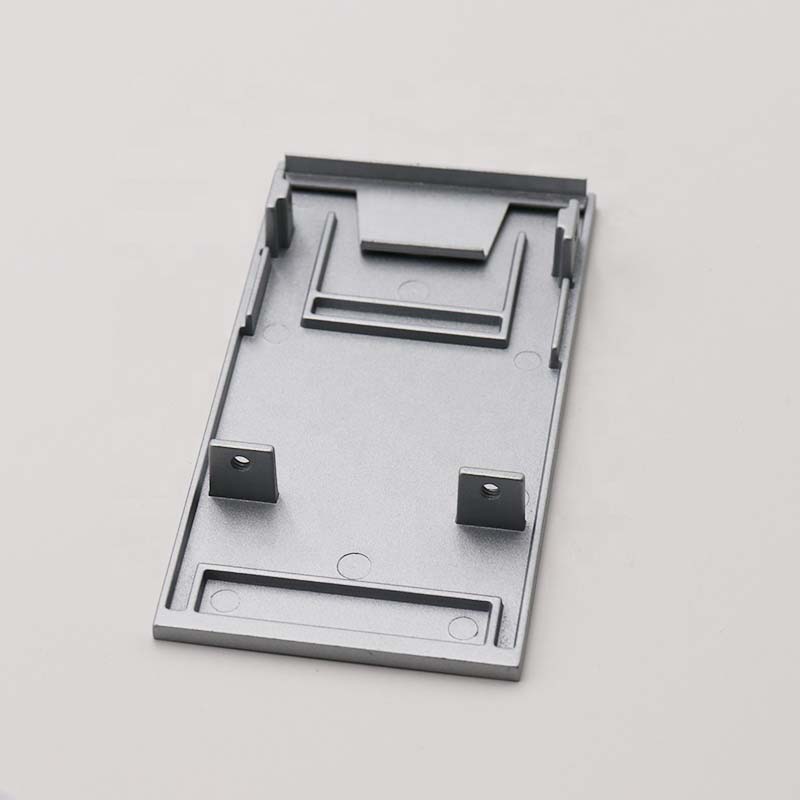

End Caps

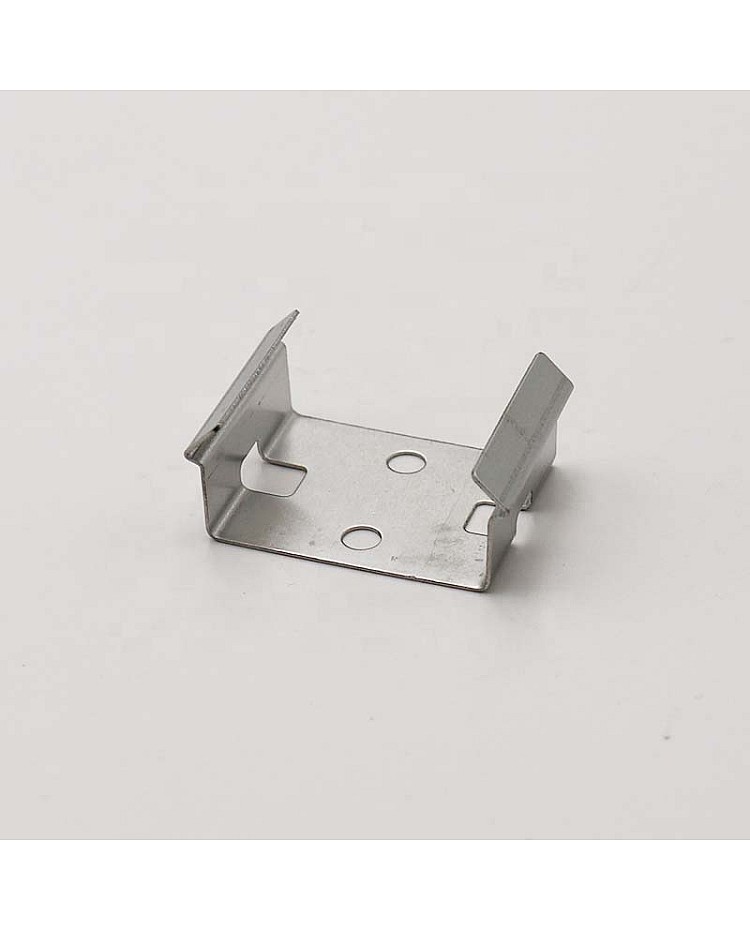

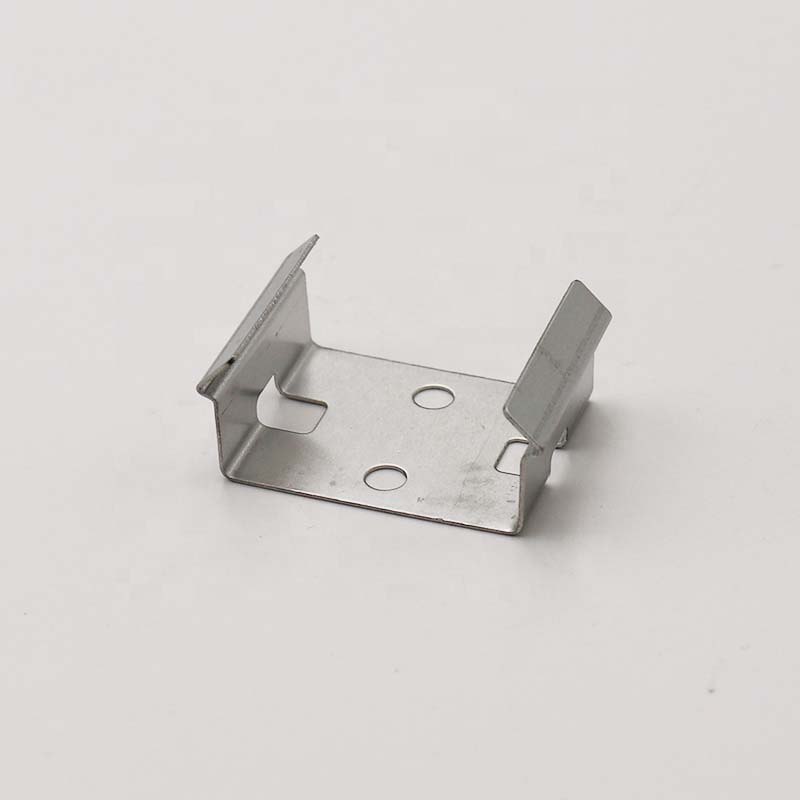

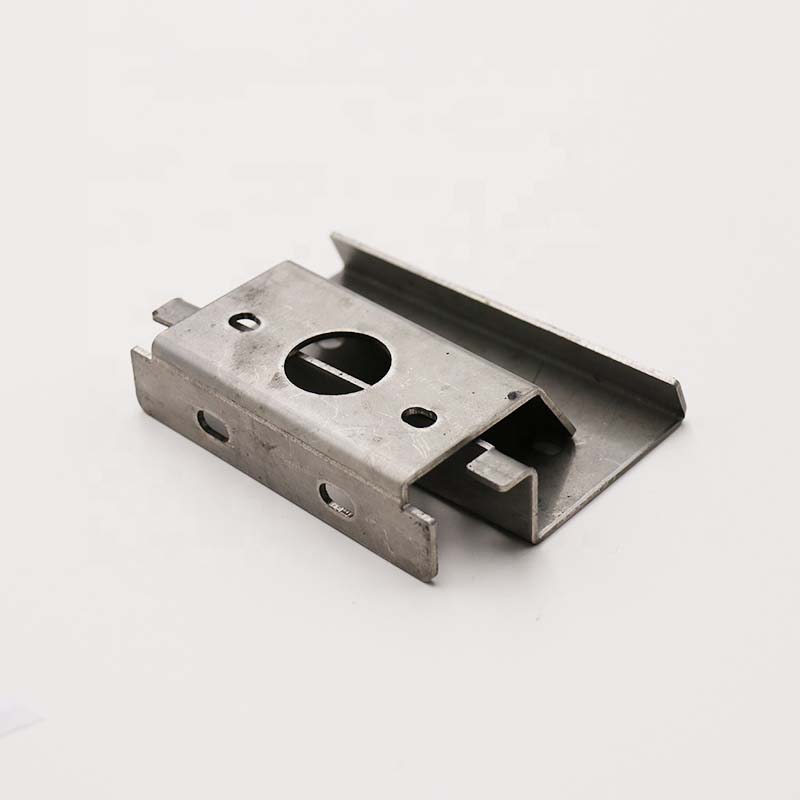

Metal Clips
Suspension Wires
