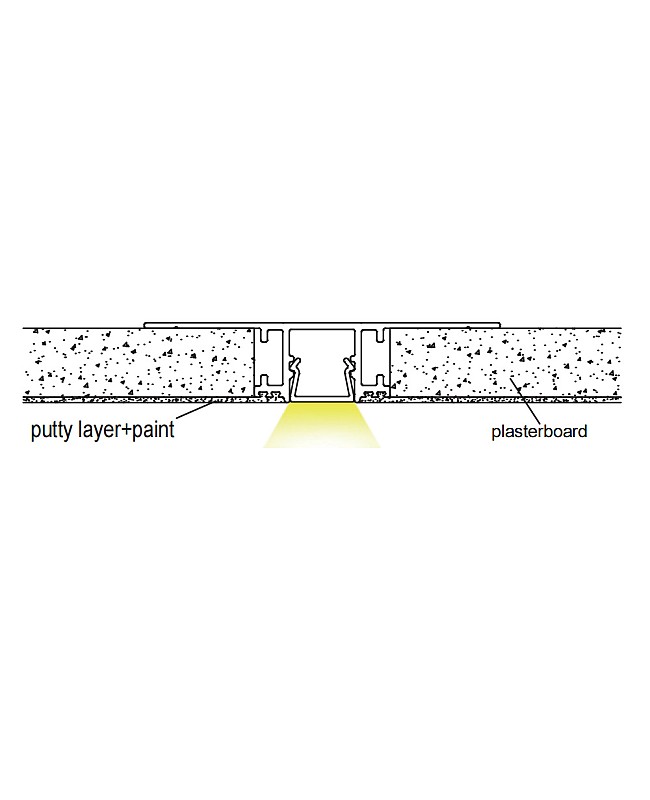

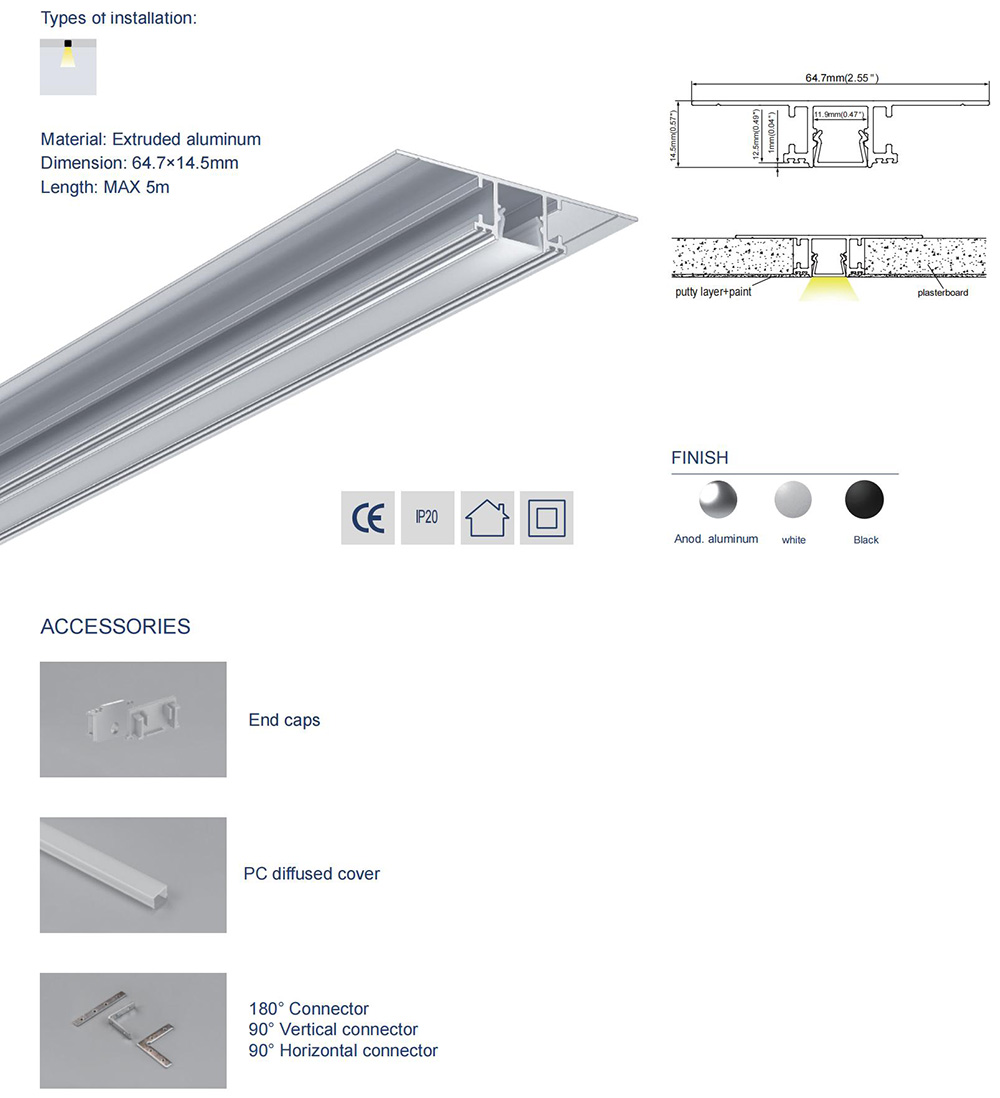

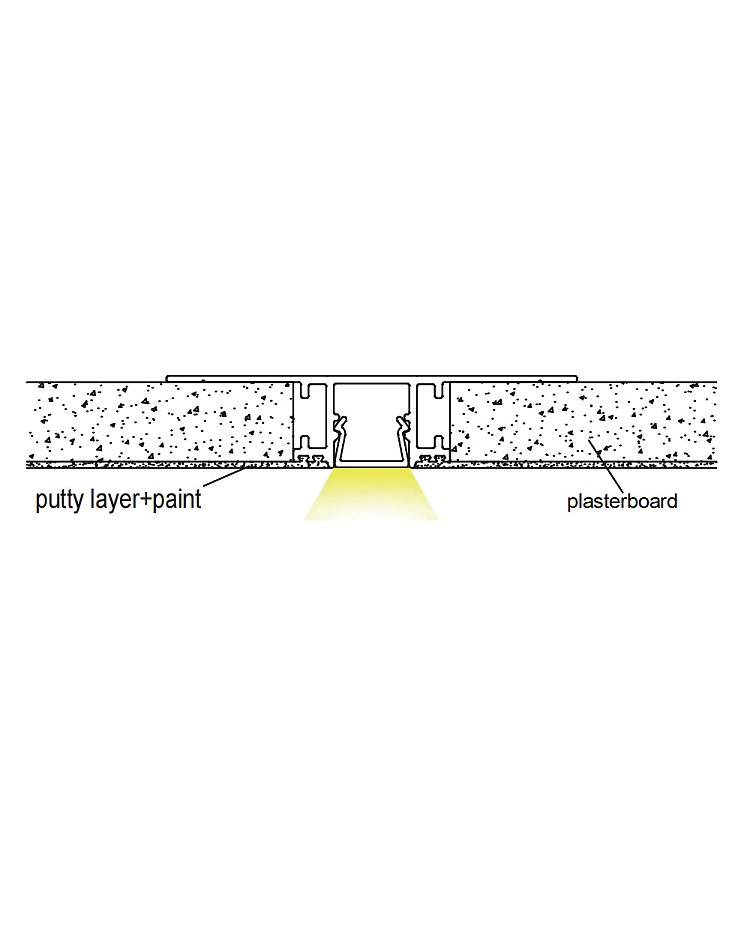

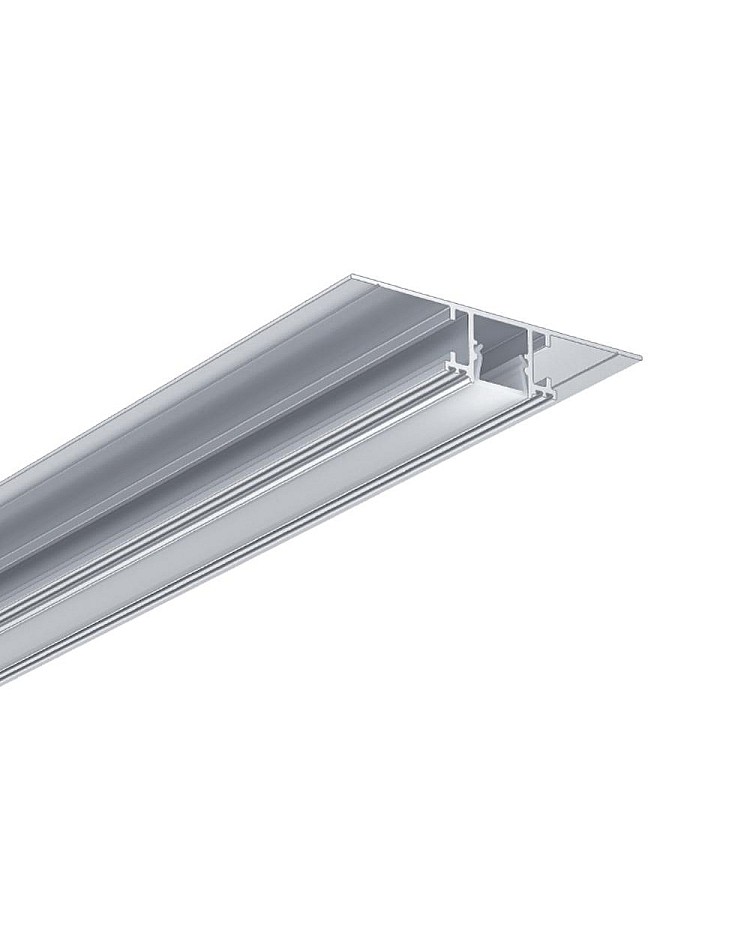

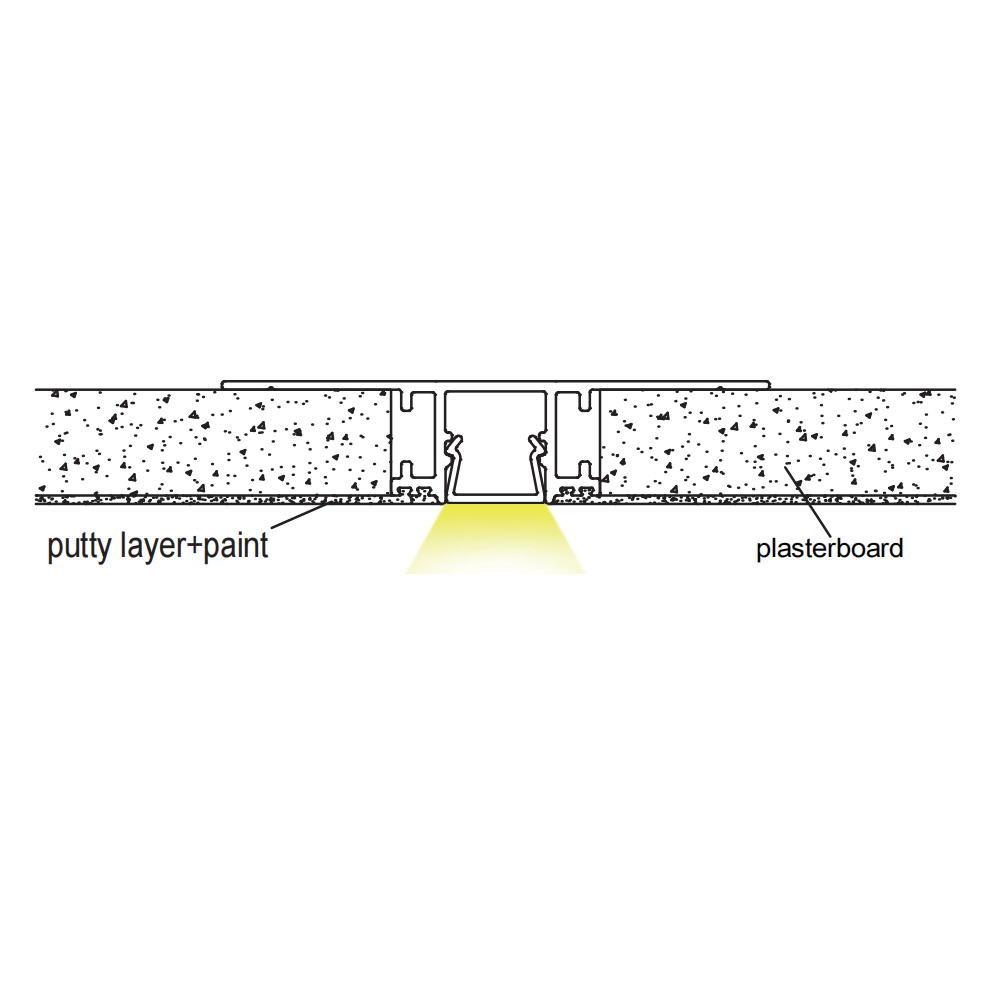

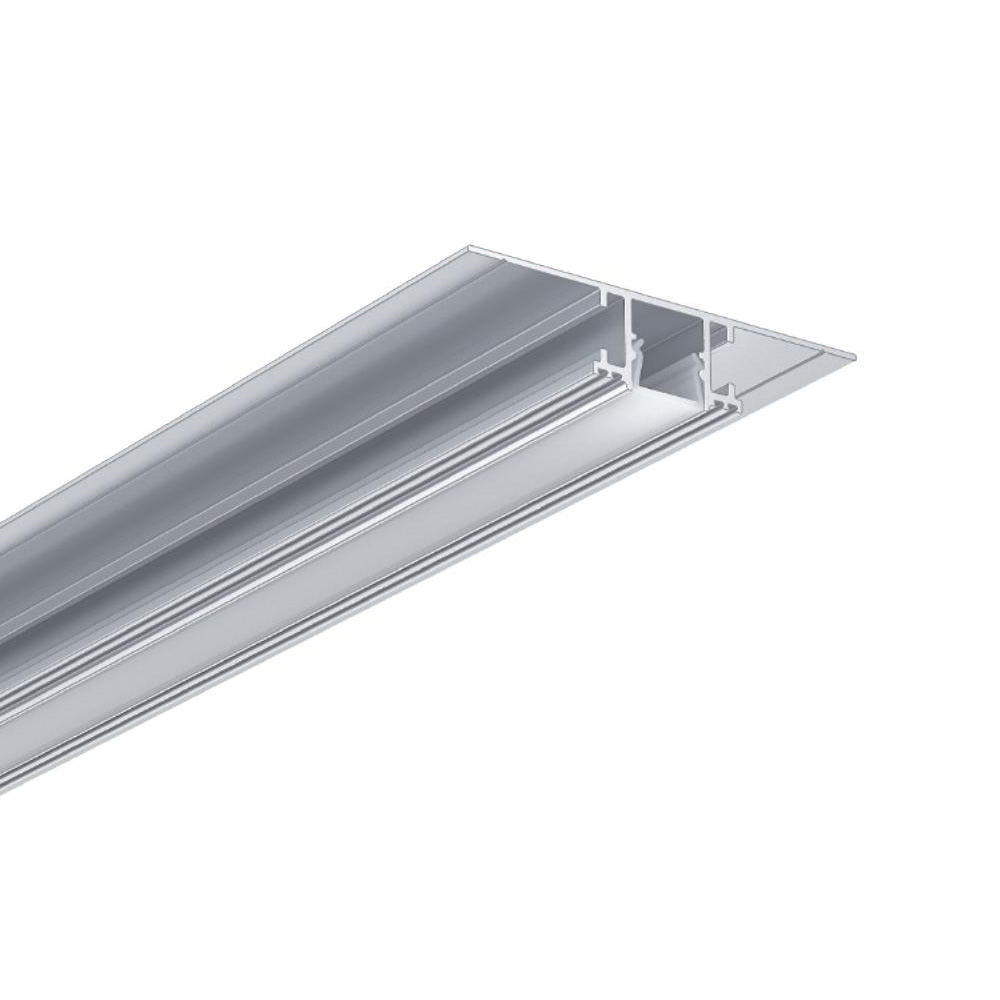

The LB240 LED channels are designed to be seamlessly flush-mounted to plasterboard and to integrate LED strips into walls and ceilings. The T-shaped LED strip channels can be recessed into 12.5mm plasterboards to create a clean, minimalist appearance. The PC diffuser covers ensure even light diffusion and eliminate visible edges. They will provide soft, uniform lighting, ideal for both ambient and task lighting in residential, commercial, and hospitality environments.
They can accommodate the LED strips up to 11mm. We recommend using our dotless COB strip lights as the light source to avoid hotspots. The ceiling LED profiles are made of durable aluminum with an anodized finish for a longer lifespan. They can act as heat sinks to improve heat dissipation, thereby prolonging the lifespan of LED lights. The standard lengths are 1 m and 2 m, and the maximum length is 5 m per piece.

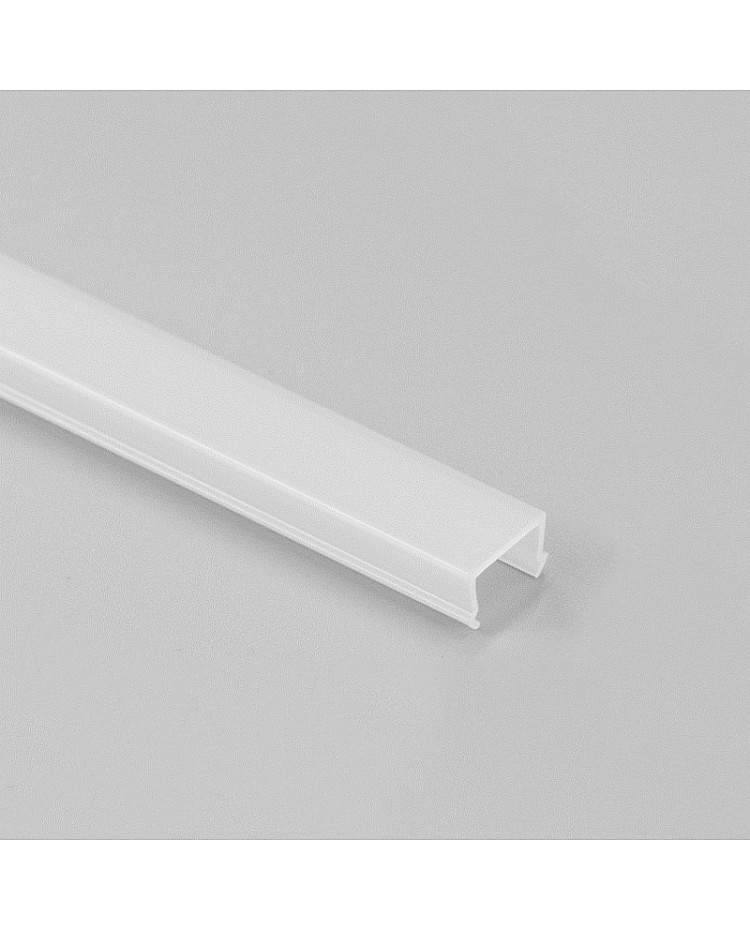

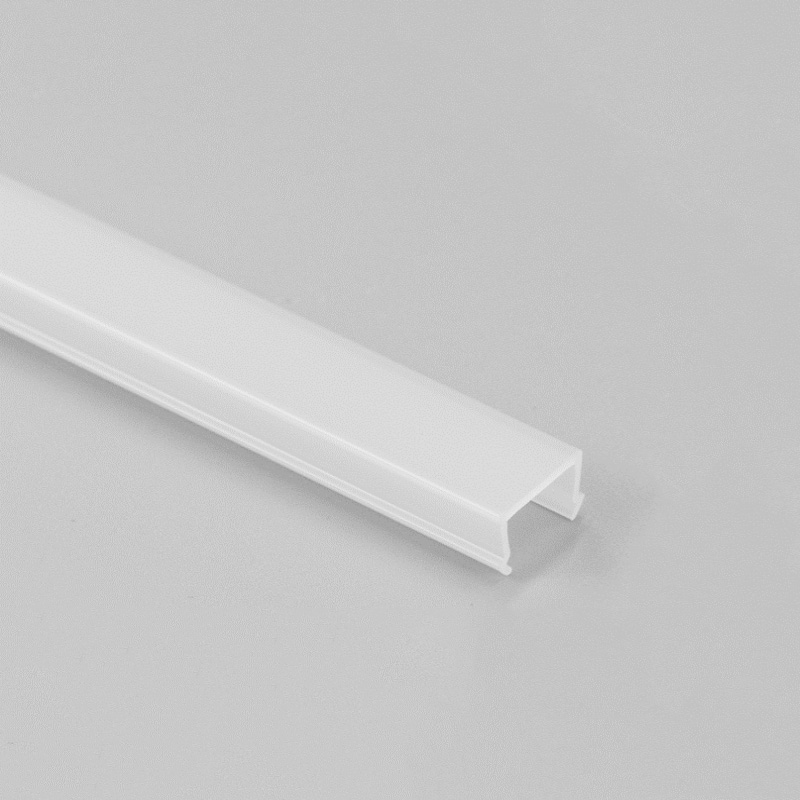

Only one type of diffuser is available: the PC diffuser cover. They can diffuse the strip lighting to achieve uniform illumination. The diffusers are made from high-quality materials to prevent yellowing and have perfect light distribution. Three types of connectors are sold separately; you can use them for corner installations and straight connections.

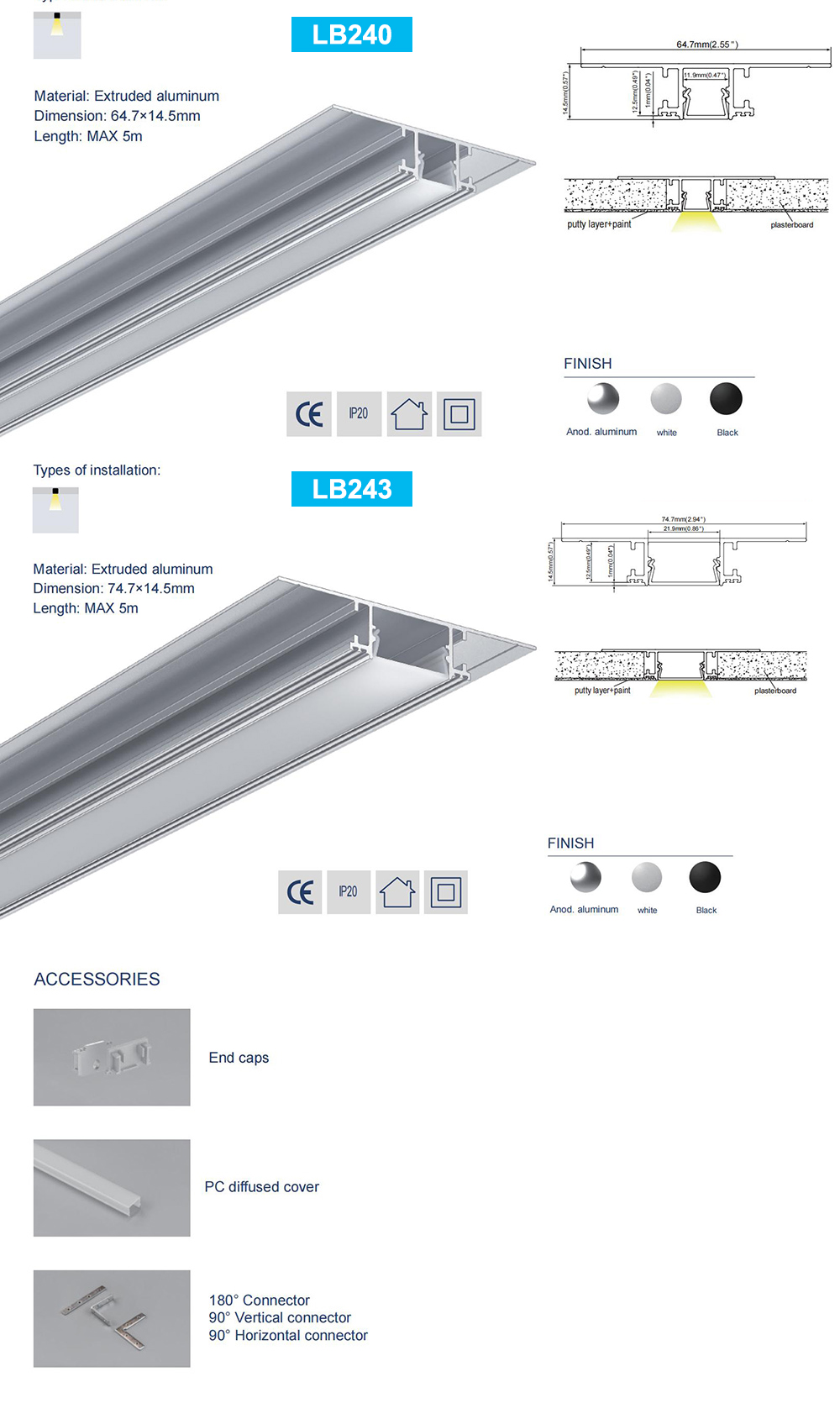

Features:
- Material: Extruded aluminum
- Surface treatment: Anodized
- Color: Silver

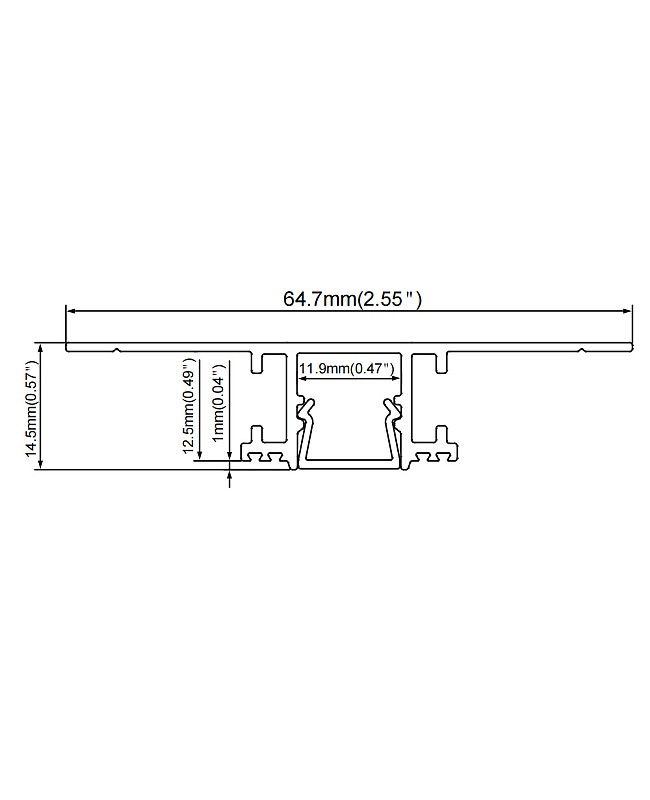

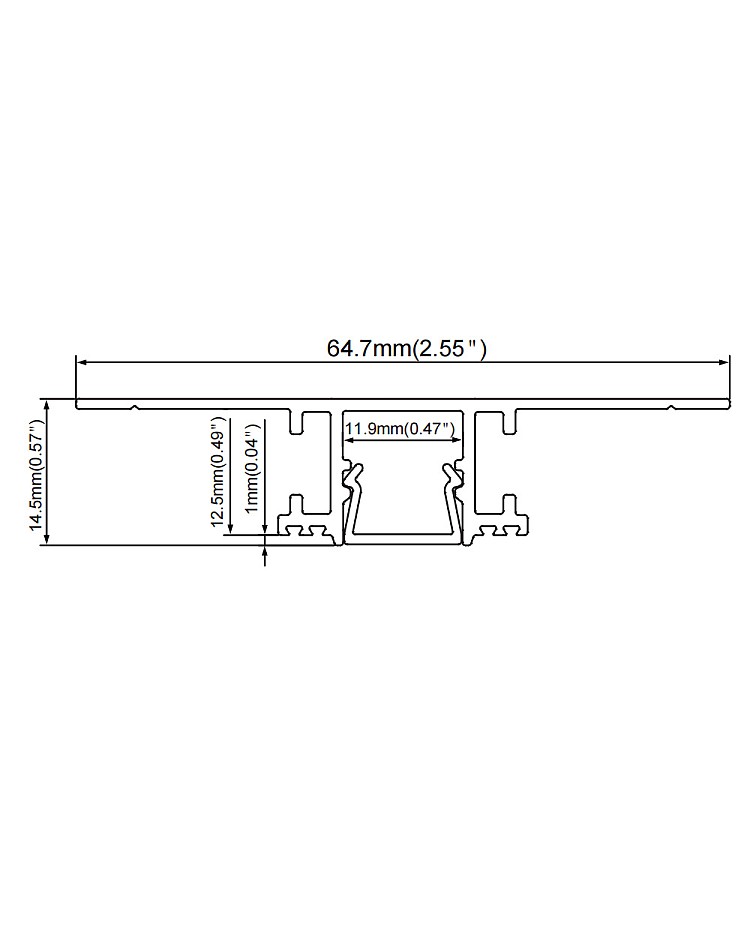

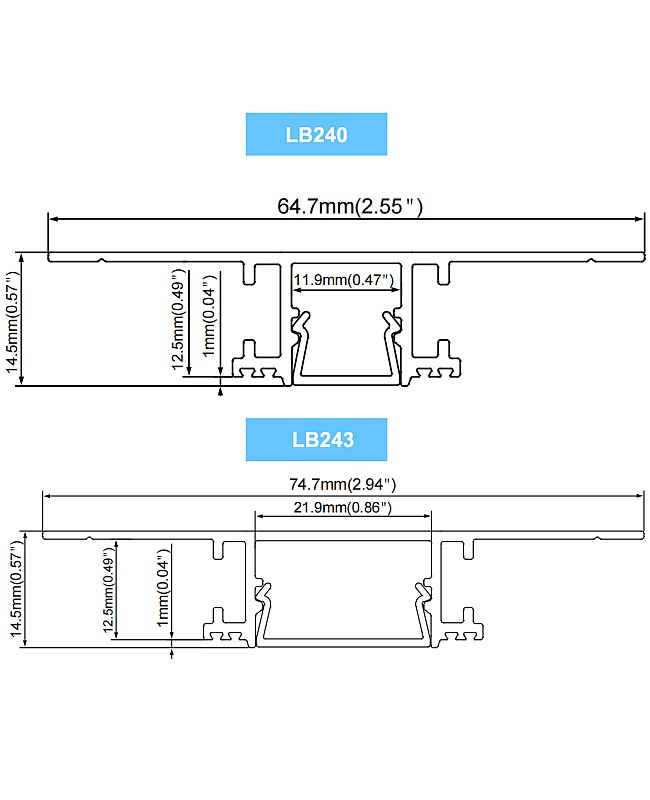

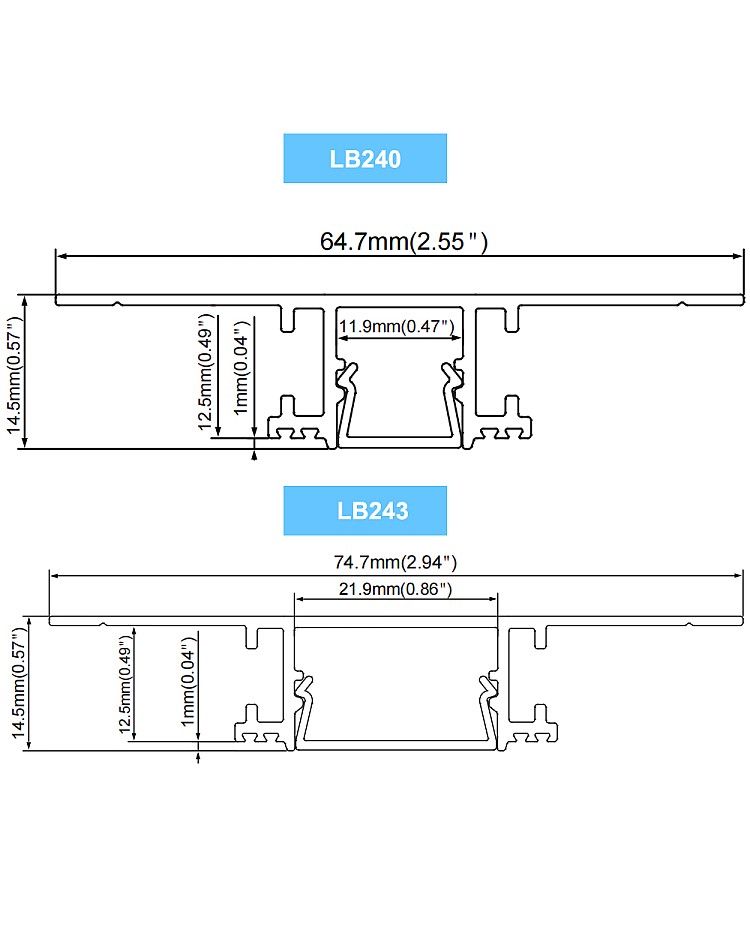

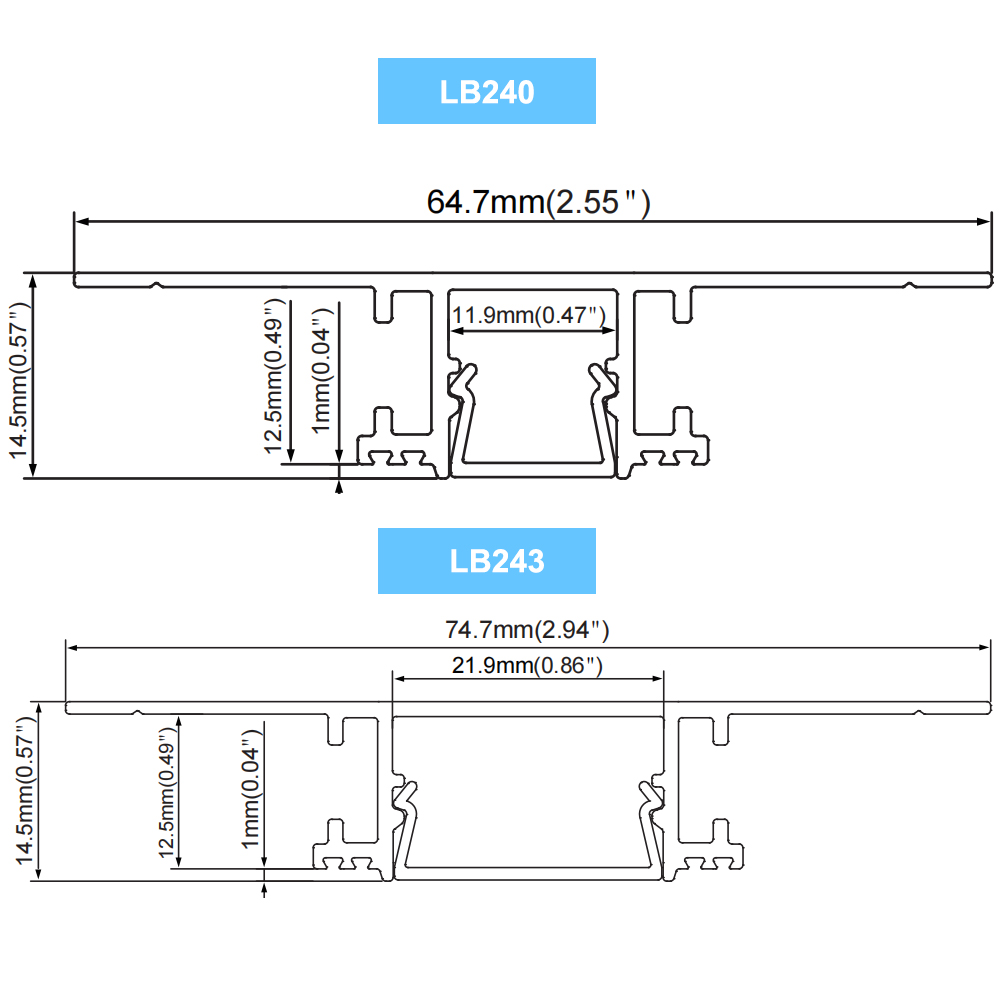

- Size ( Width x Height ): 64.7mm x 14.5mm/2.55" x 0.57"
- Lengths available: 1m ( 39" ), 2m ( 78")
- Custom length available: YES
- Max length available: 5m
- Inner width: 11.9mm/0.47"
- Allow the maximum width of strip lights to be 11mm/0.43"
- Maximum power: 15W/m
- Diffuser available: PC diffused covers
- Waterproof level: IP20 non-waterproof

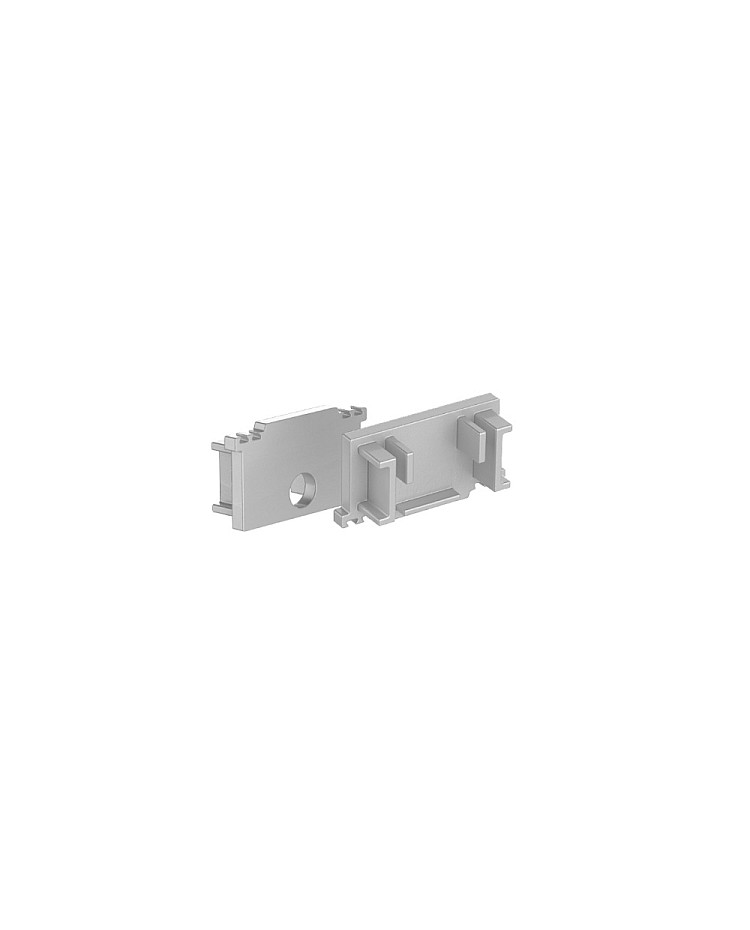

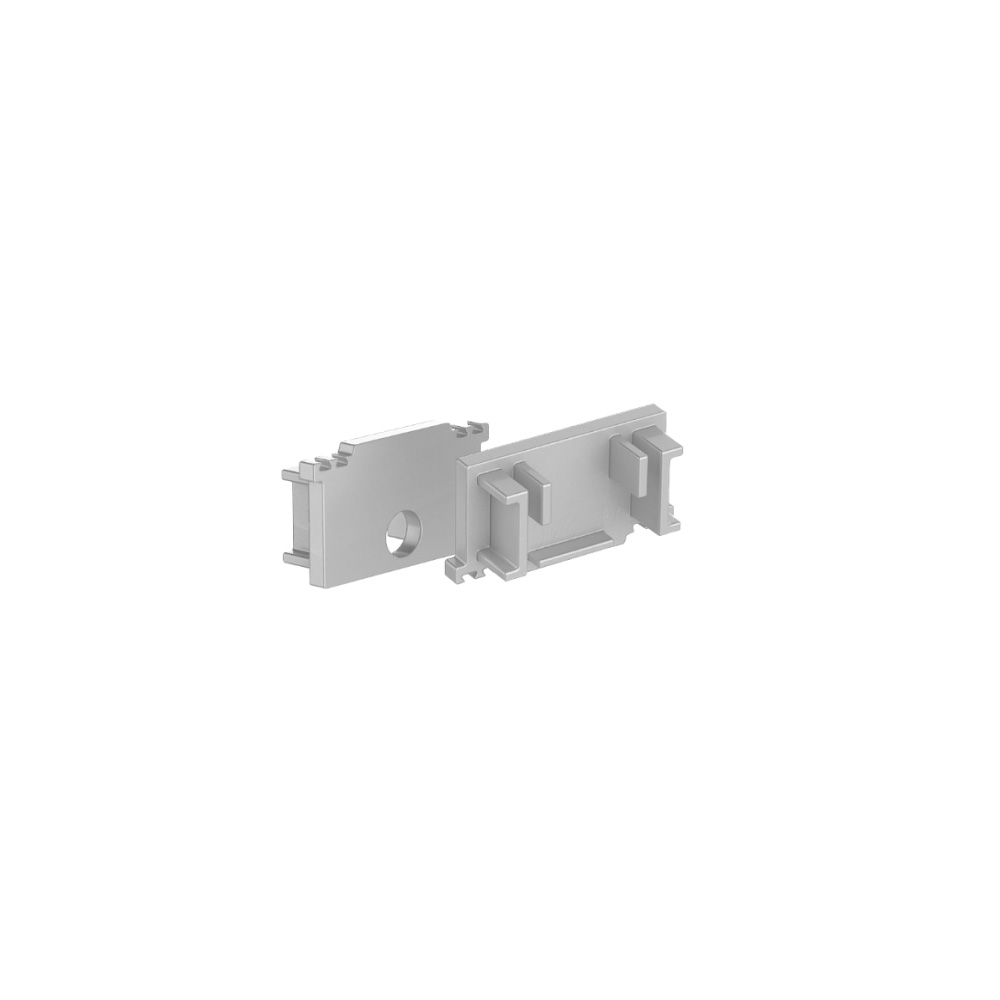

- End caps with and without wire holes are included

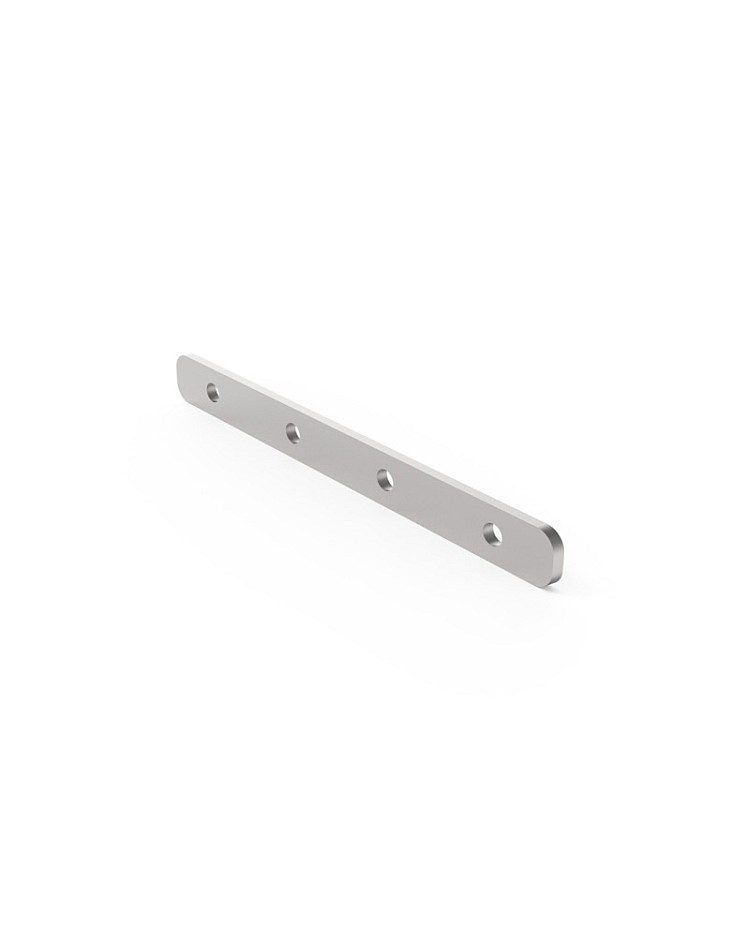

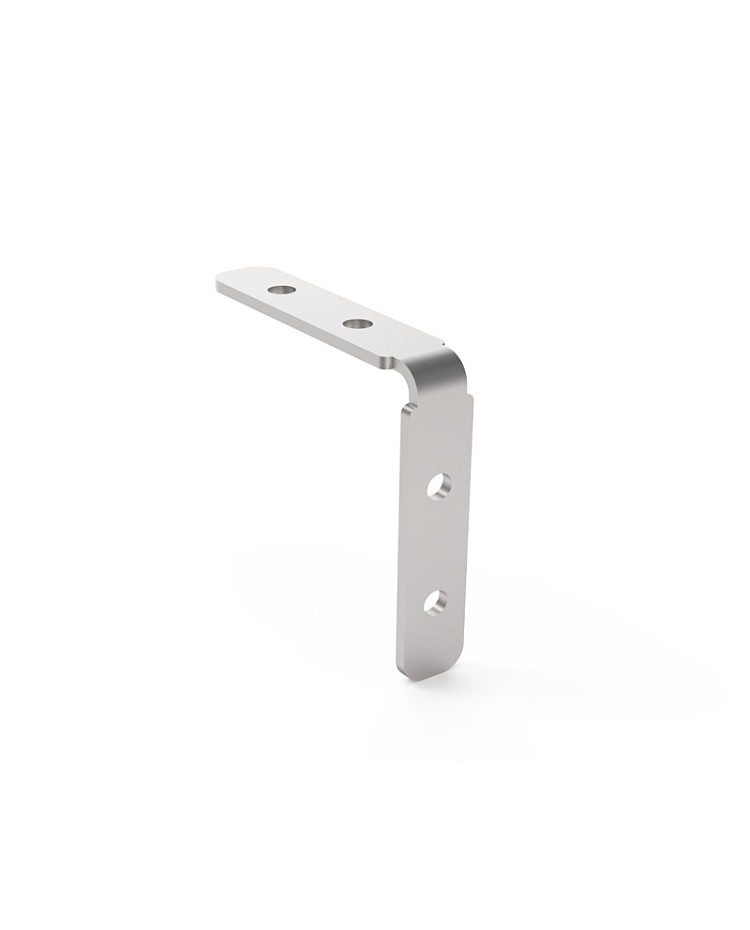

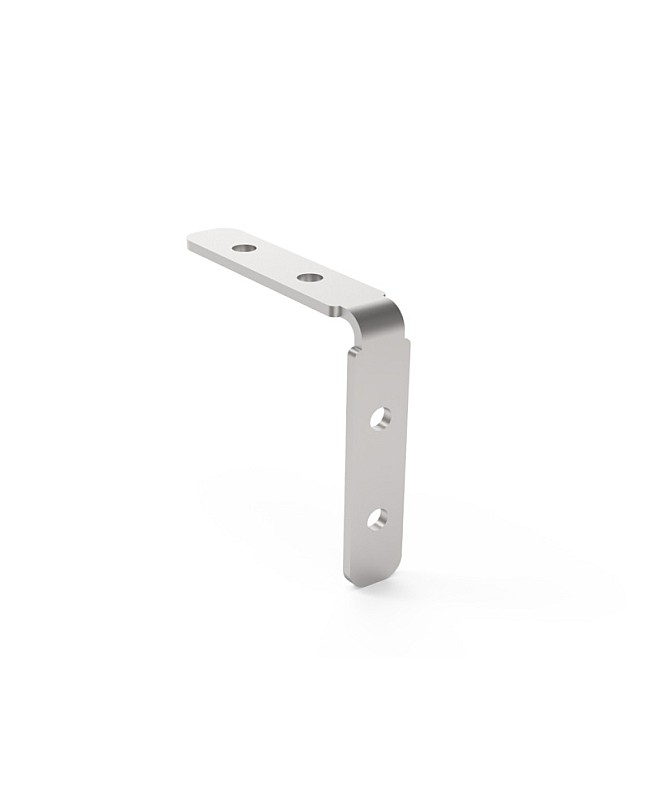

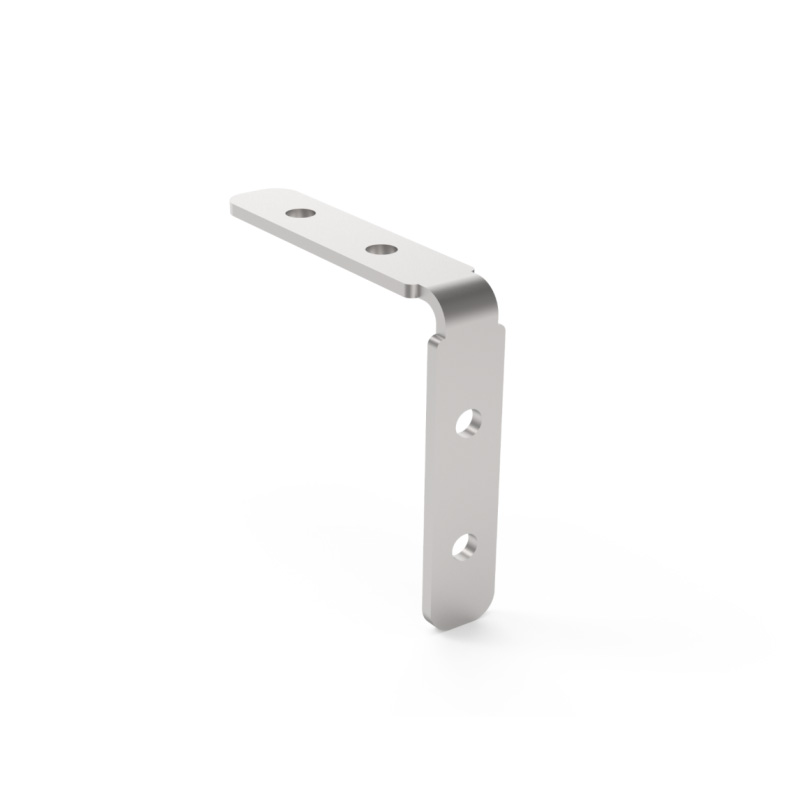

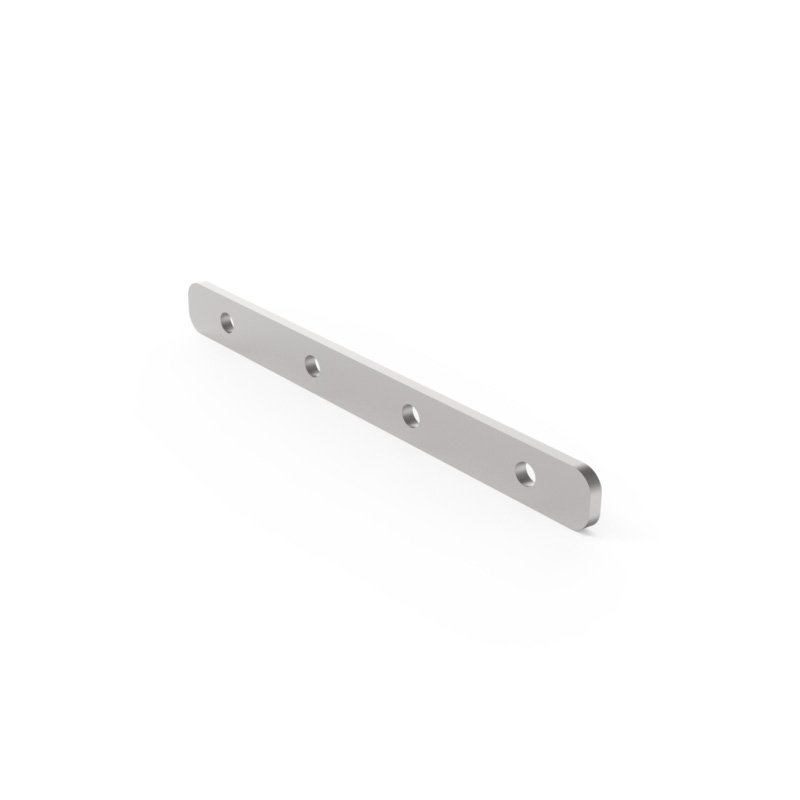

- 90° vertical, 90° horizontal, and 180° connectors are sold separately
- Installation: Recessed
- Warranty: 5 years
Includes:
1 x 1/2" plasterboard LED channel
1 x PC diffused cover
1 x End caps
