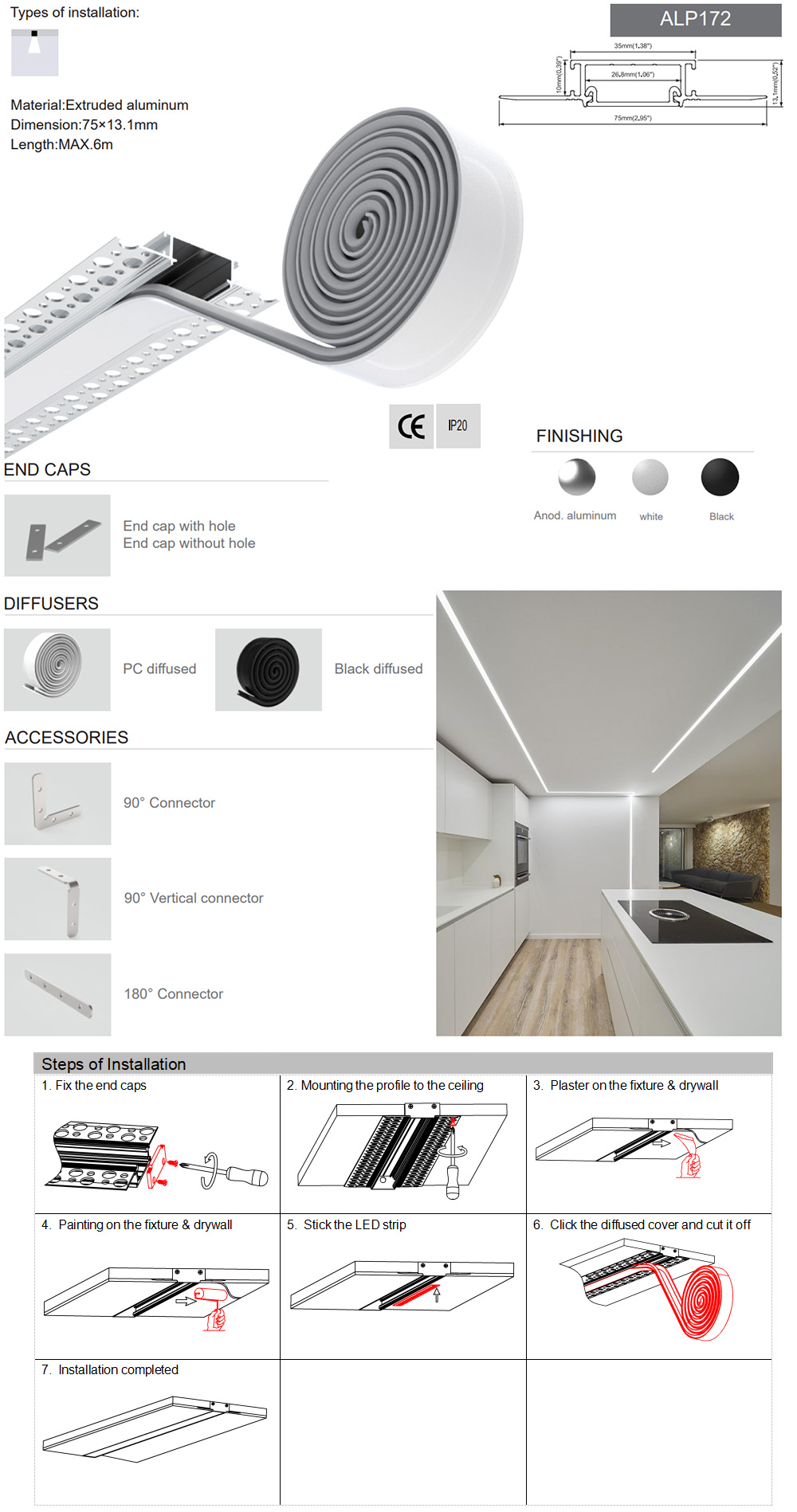

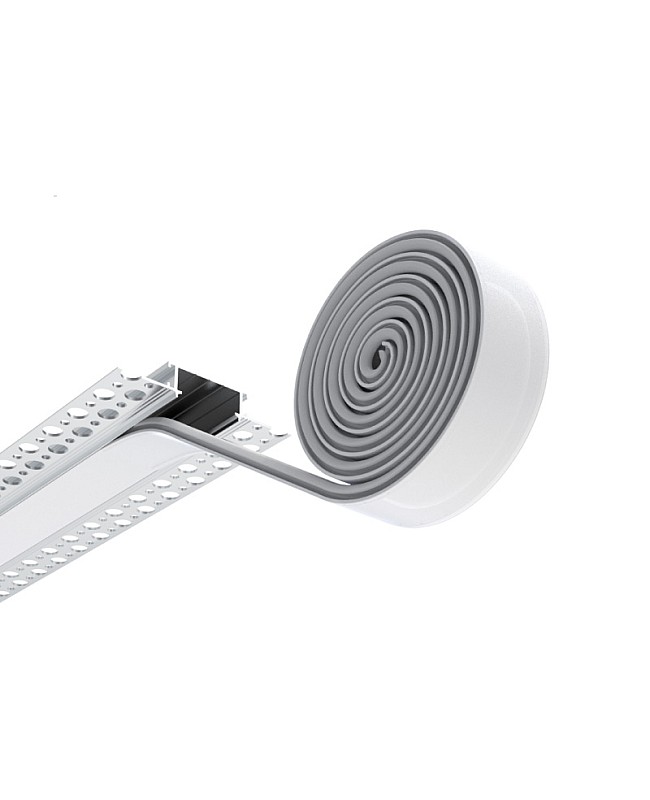

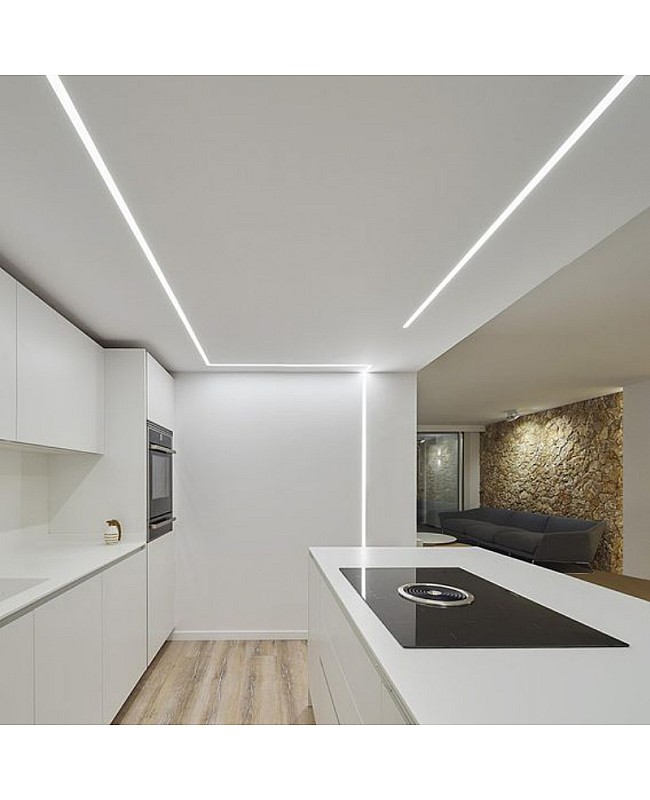

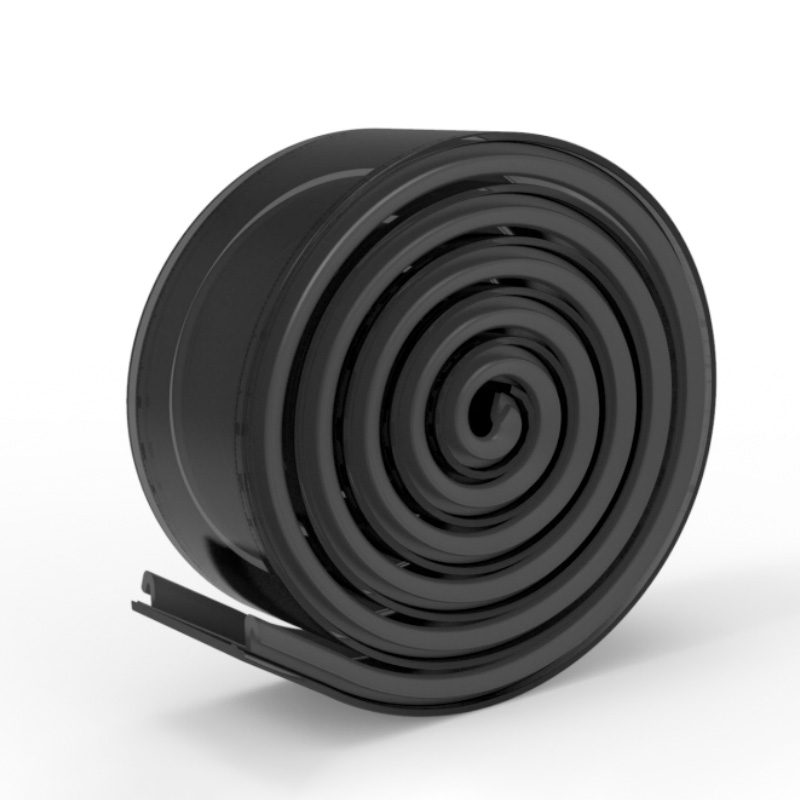

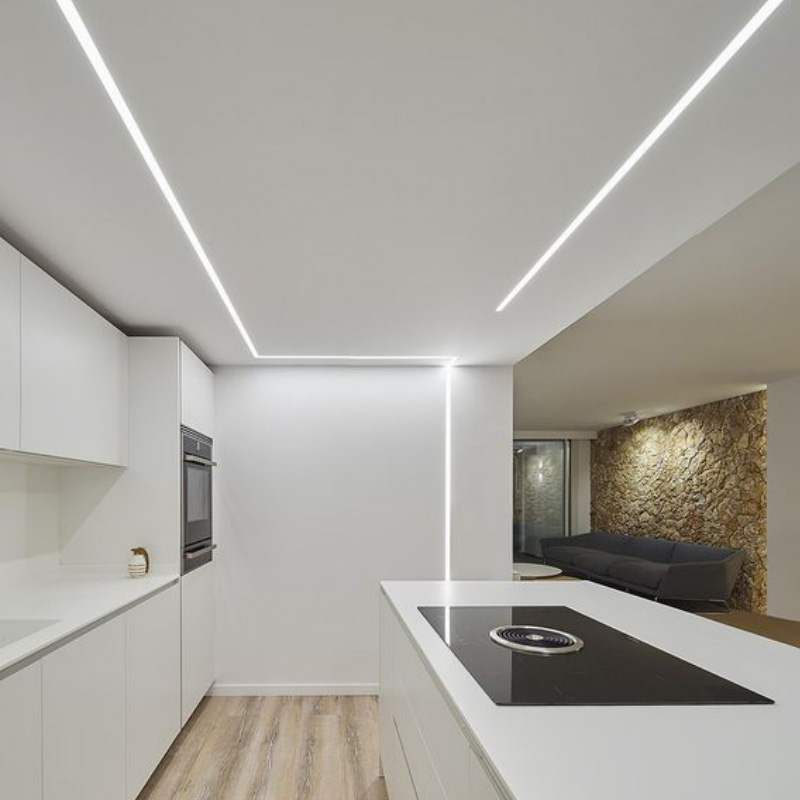

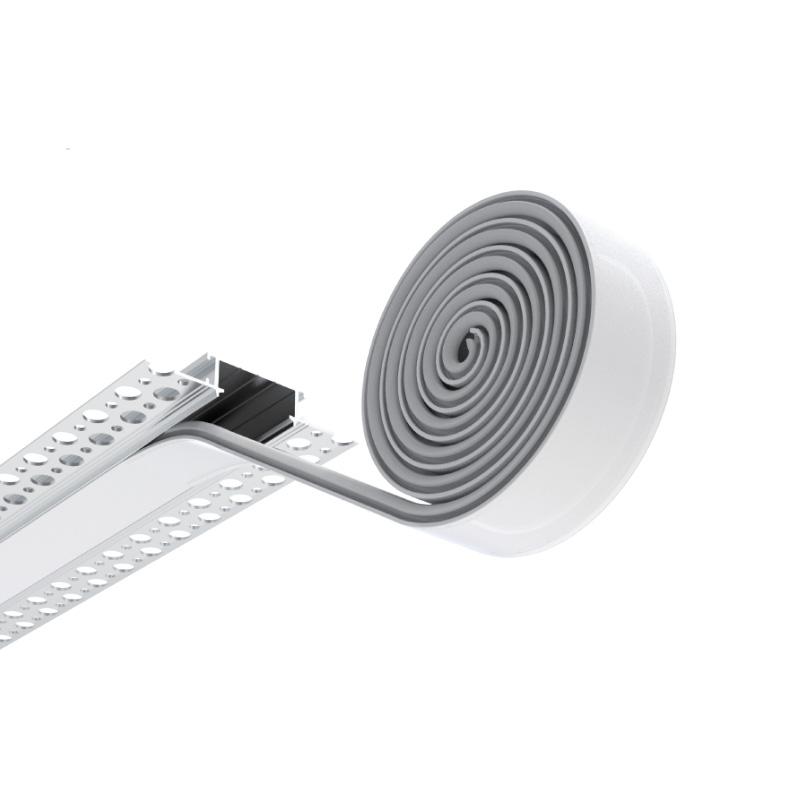

The Linear Light Diffusers with Channel come with diffusers that are 20 meters per roll, designed for drywall to fit into the ceiling or wall to provide a soft, even light spread, a great choice for interior longer linear lighting projects without any gap. There are two types of diffusers available: PC diffused cover and black diffused cover, 20 meters per reel, made of brand-stable material, anti-yellowing, perfect lighting distribution, and soft light output, and can be cut to any length for your needs. The inner width of the Aluminum Channel is 26.8mm and allows the max-width of the LED Strips to be 26mm, easy to install the SMD LED Strips, COB LED Tapes, or Rigid LED Modules into the Light Diffusers as the light source. The Aluminum Channels are Made of 6063-T5 extruded aluminum material, anti-oxidation resistance, has a longer lifespan than other similar products. The aluminum extrusions can be worked as heat sinkers for better heat dissipation. the 90°, 90° vertical, and 180° joiners are sold separately, you can purchase them and use them to reconnect the Recessed Drywall Profiles together. End caps with wire holes included, easy to connect the LED Light to a power supply to light up or to a dimmer to adjust the brightness. the standard length is 1M and 2M and can be cut to any length for your need, custom lengths are available.


  • Model: ALP172
  • Material: 6063-T5 Extruded Aluminum

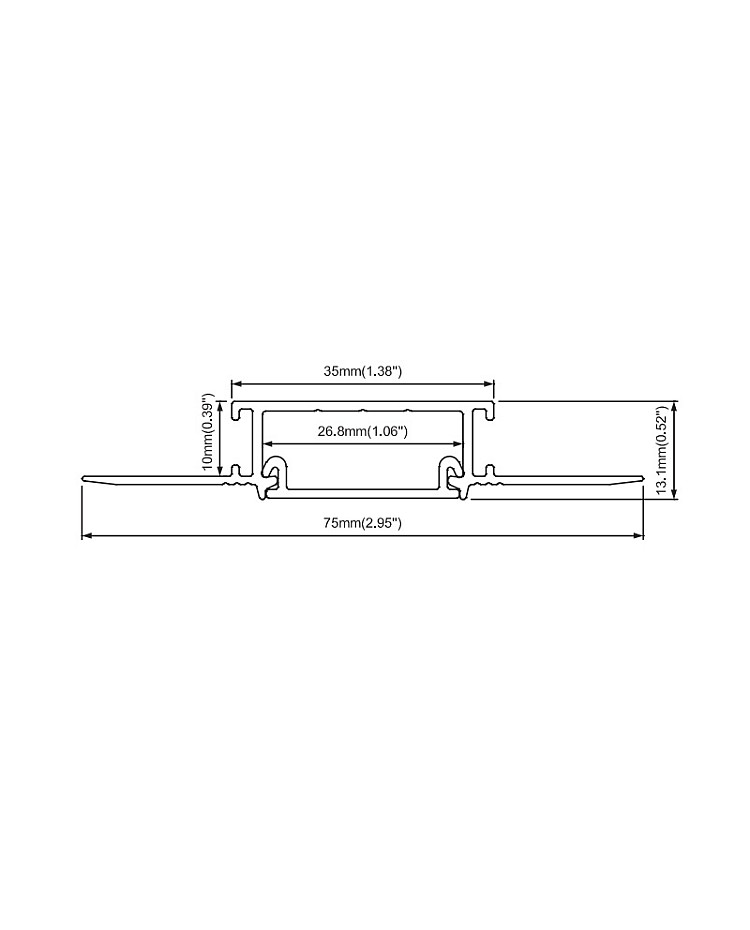

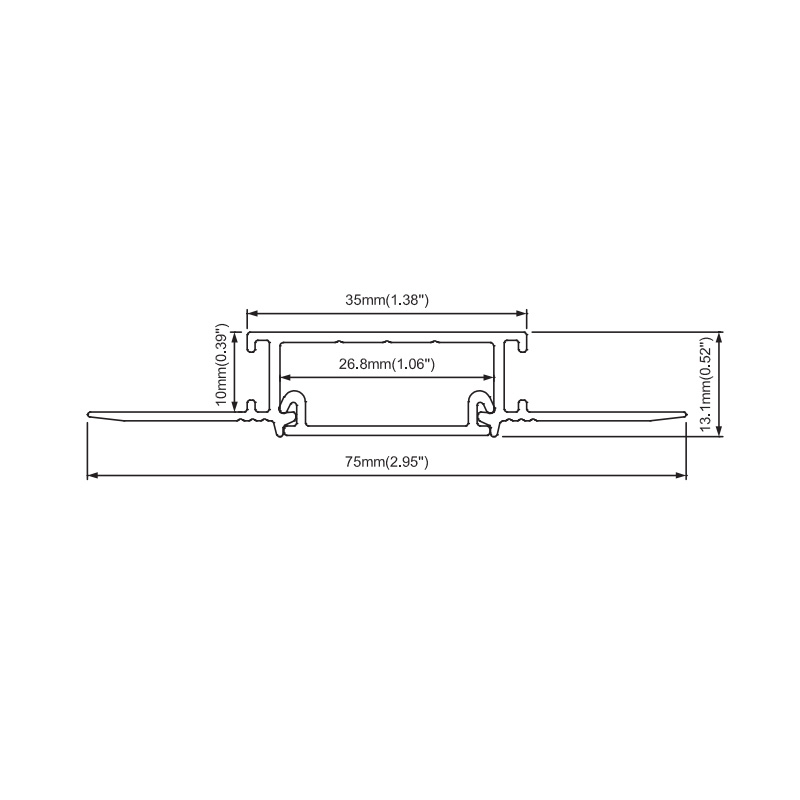

  • Size: 75*13.1mm(W*H)
  • Surface Treatment: Silver, White, Black
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M
  • Custom Length Available: YES

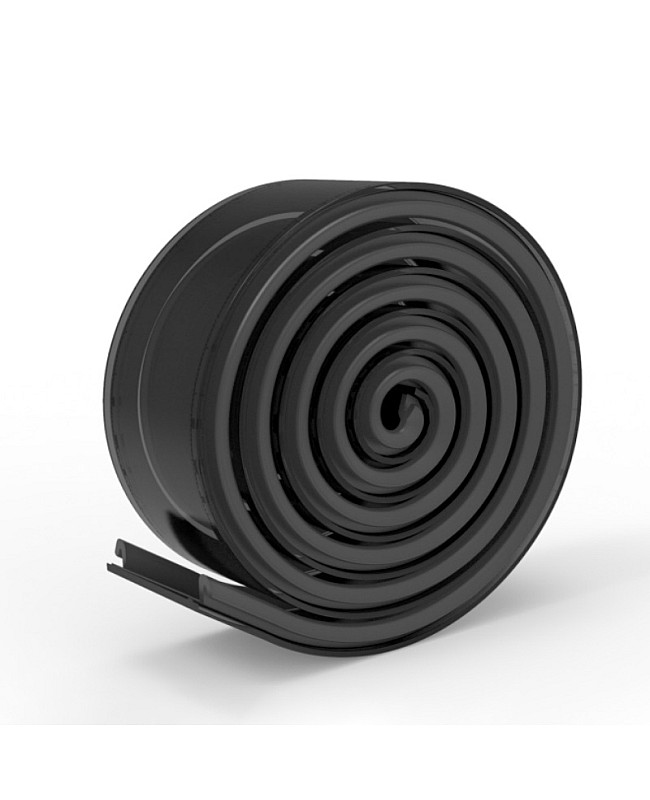

  • Diffusers: PC Diffused Cover, Black Diffused Cover
  • Inner Width: 26.8mm
  • Max Width Of LED Strips: 24mm
  • Max Power: 15W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rating: IP20 Non-waterproof

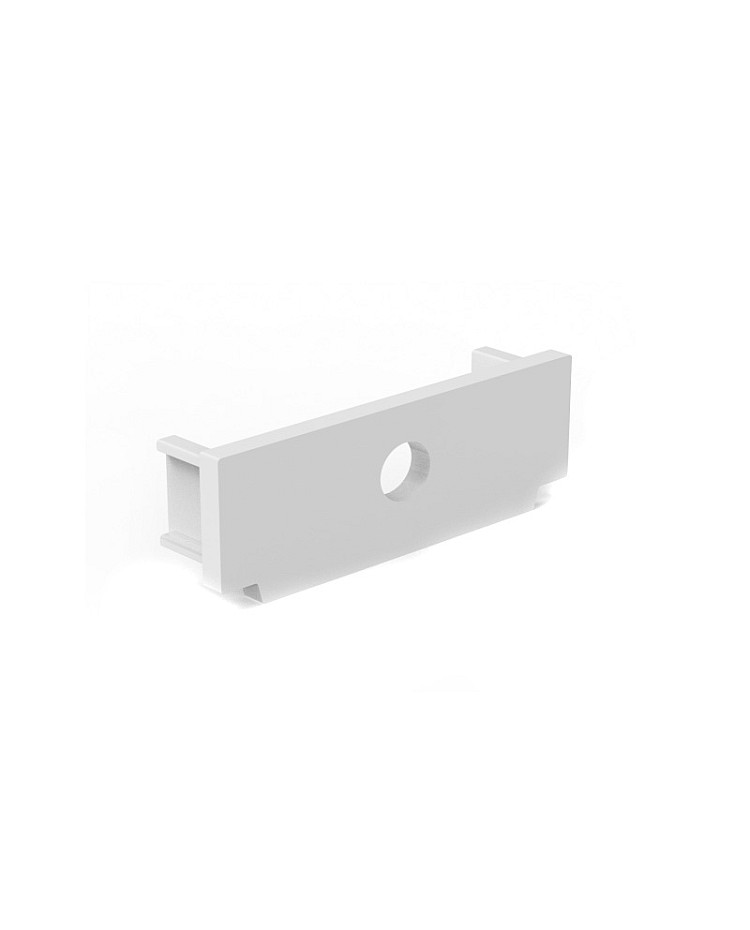

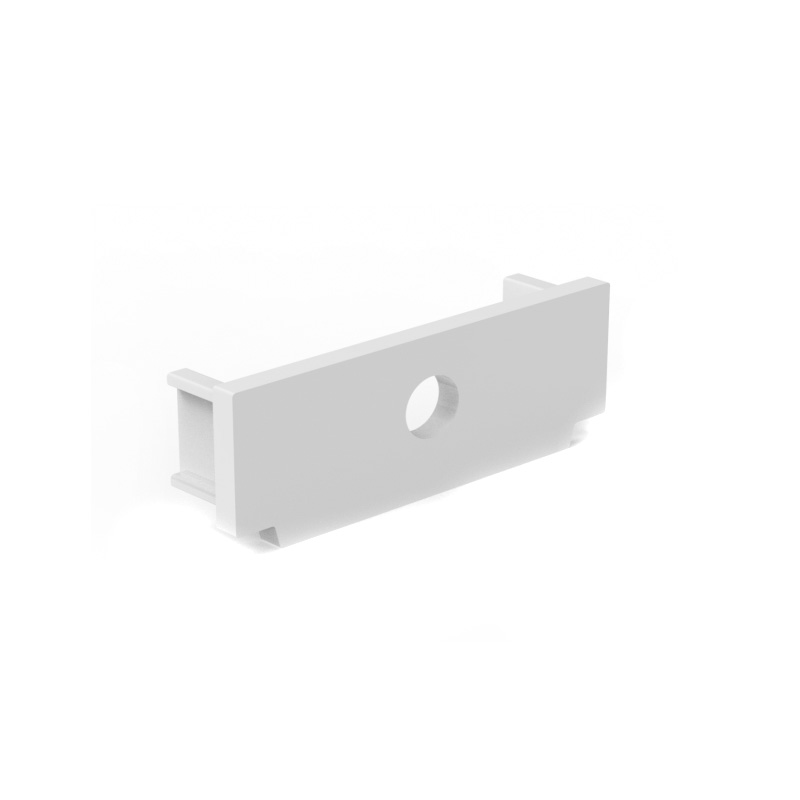

  • ABS End Caps With Wire Holes/Without Wire Holes Included

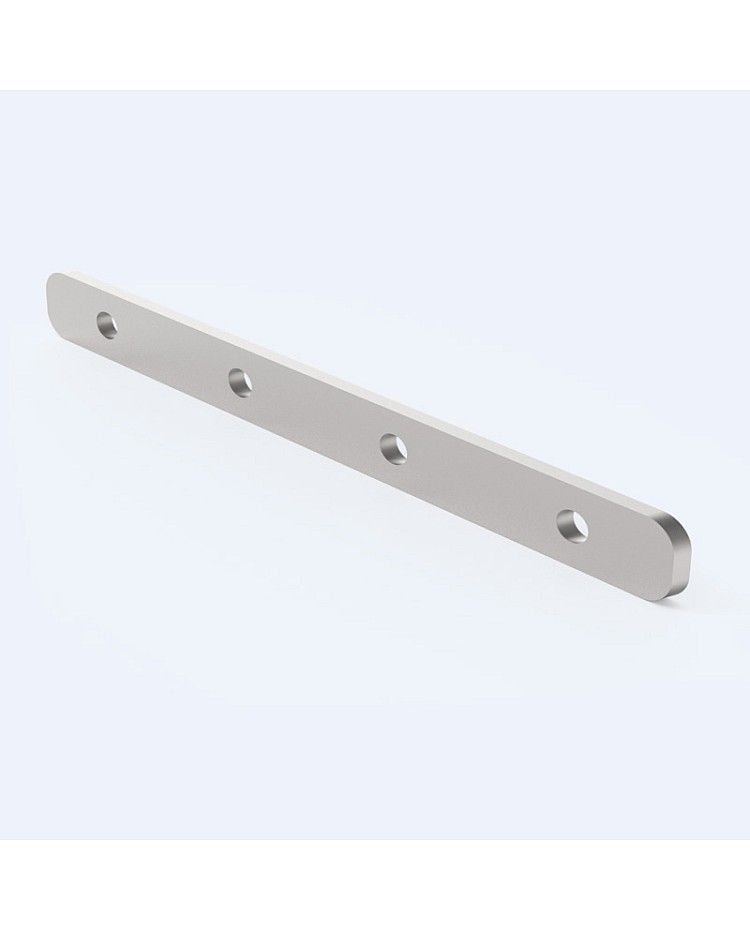

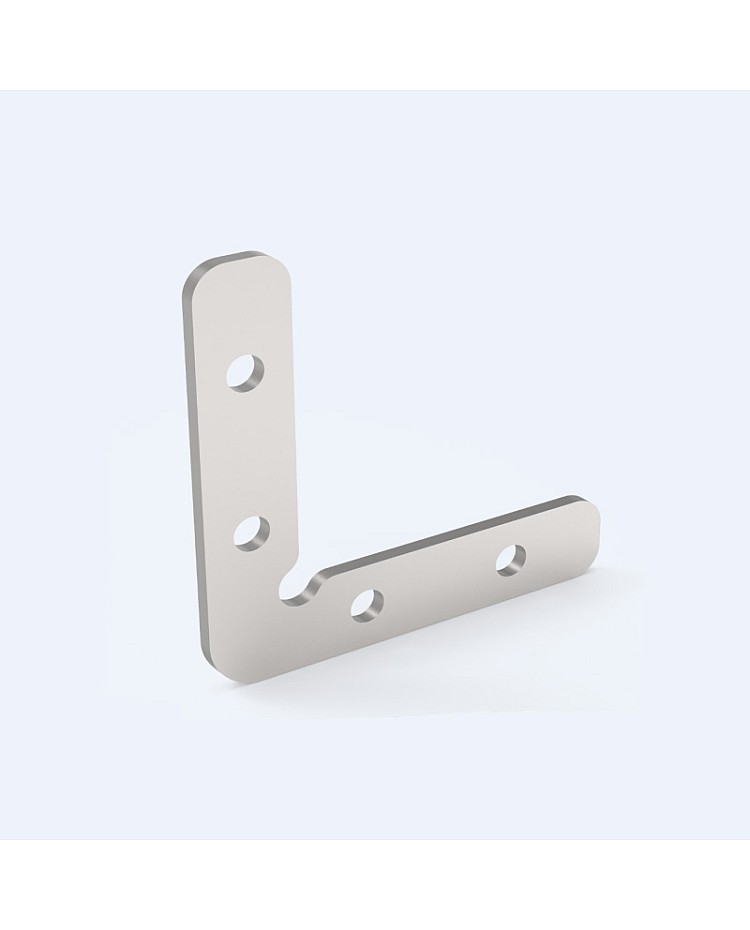

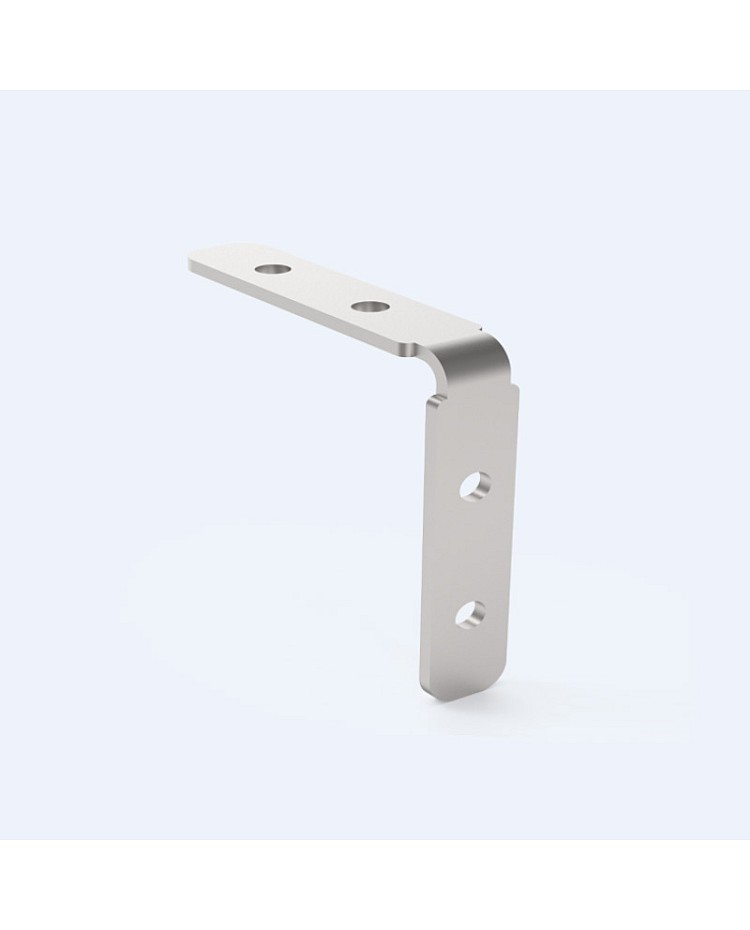

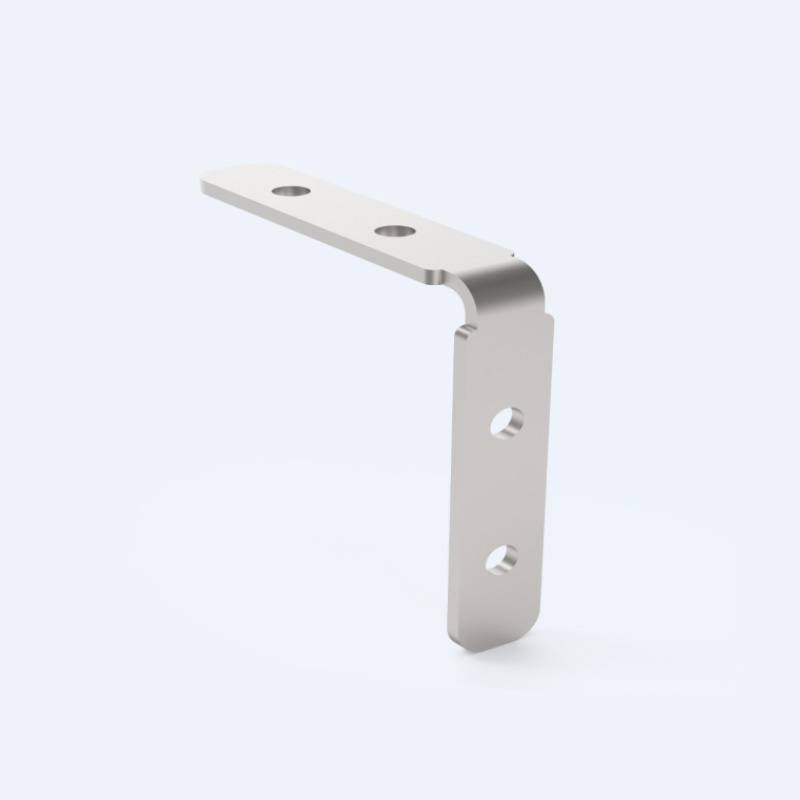

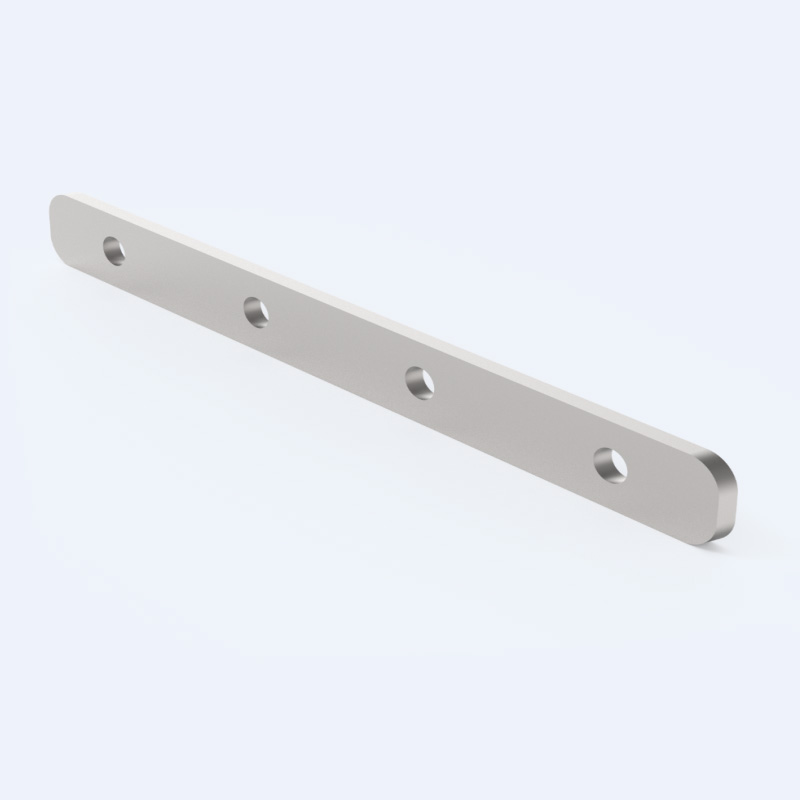

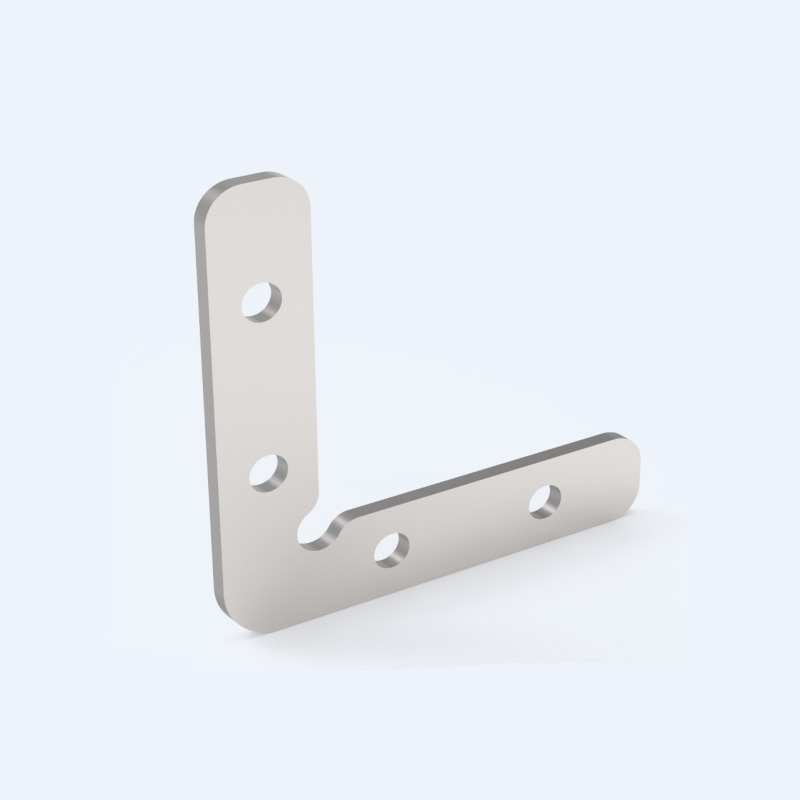

  • 180°, 90° And 90° Vertical Joiners Sold Separately
  • LED Strips, Dimmers, Controllers, And Transformers Sold Separately
  • Installation: Recessed
  • 5 Years Warranty


1*Linear Light Diffuser With Alu Channels

End Caps (With Hole/Without Hole)

Linear Light Recessed
