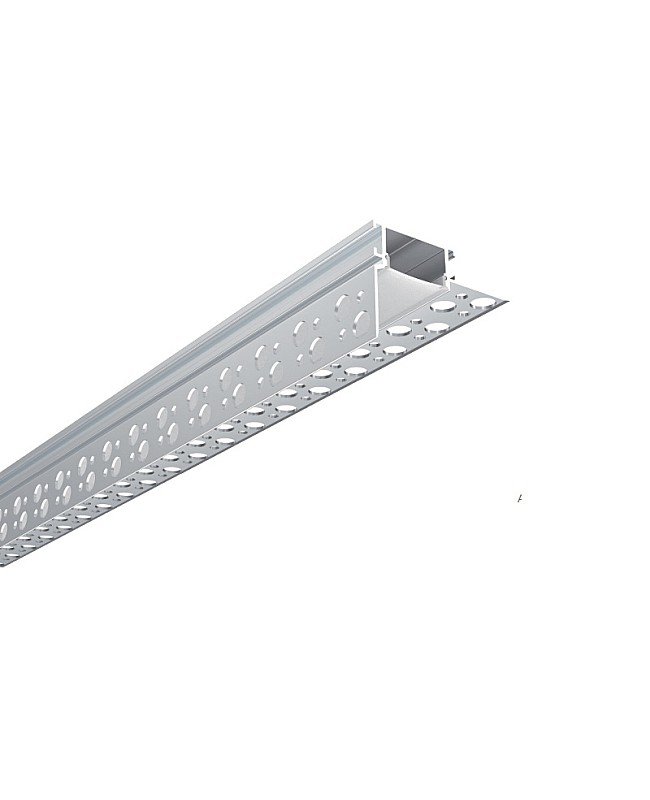

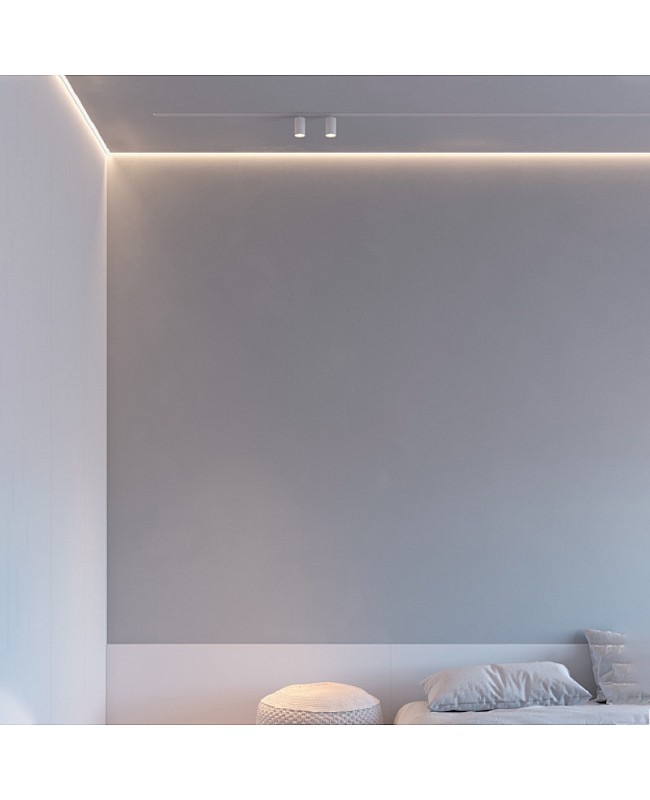

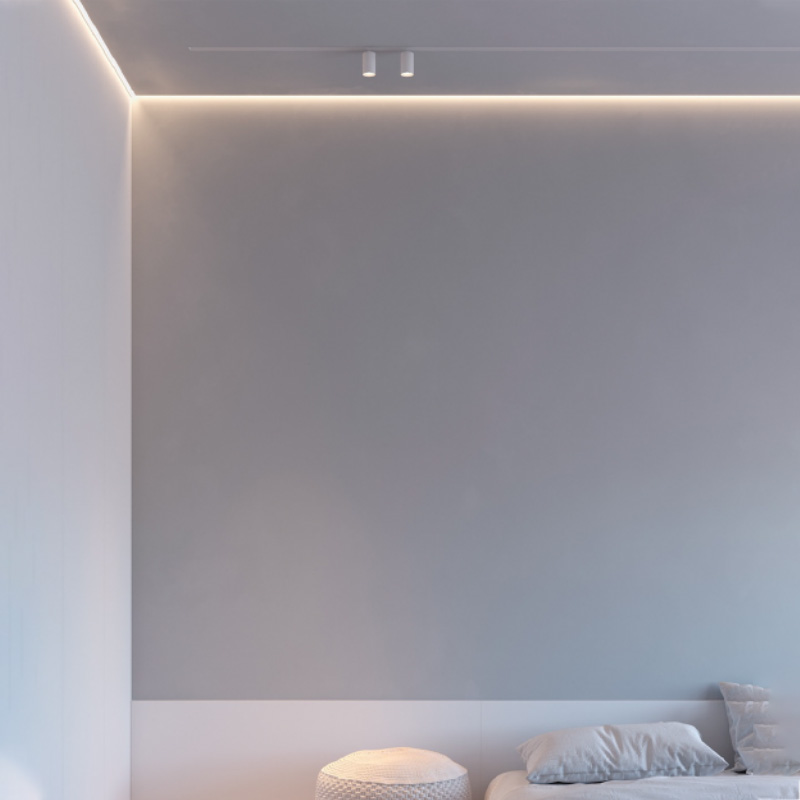

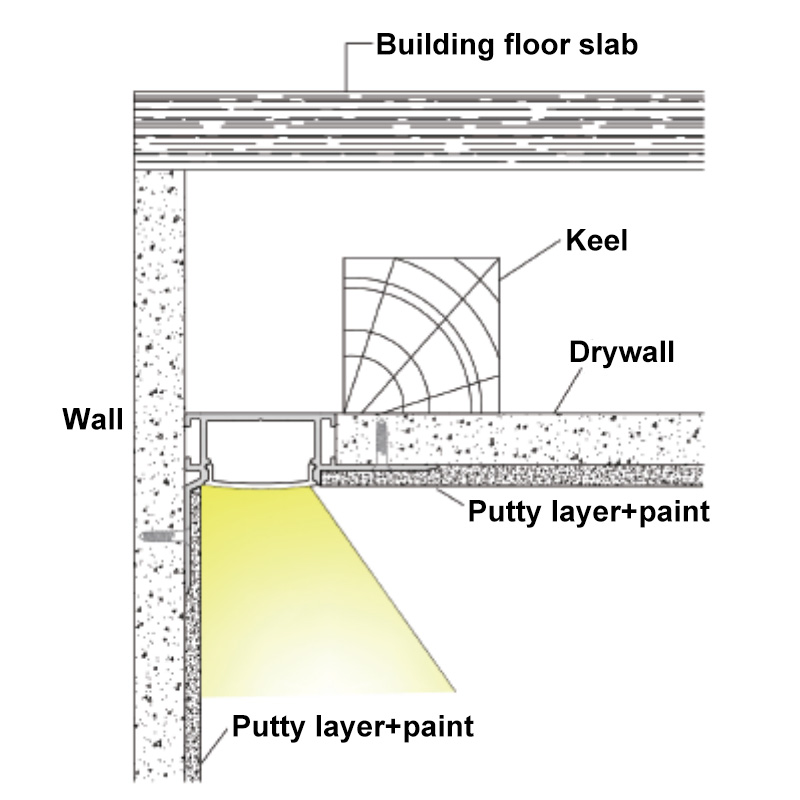

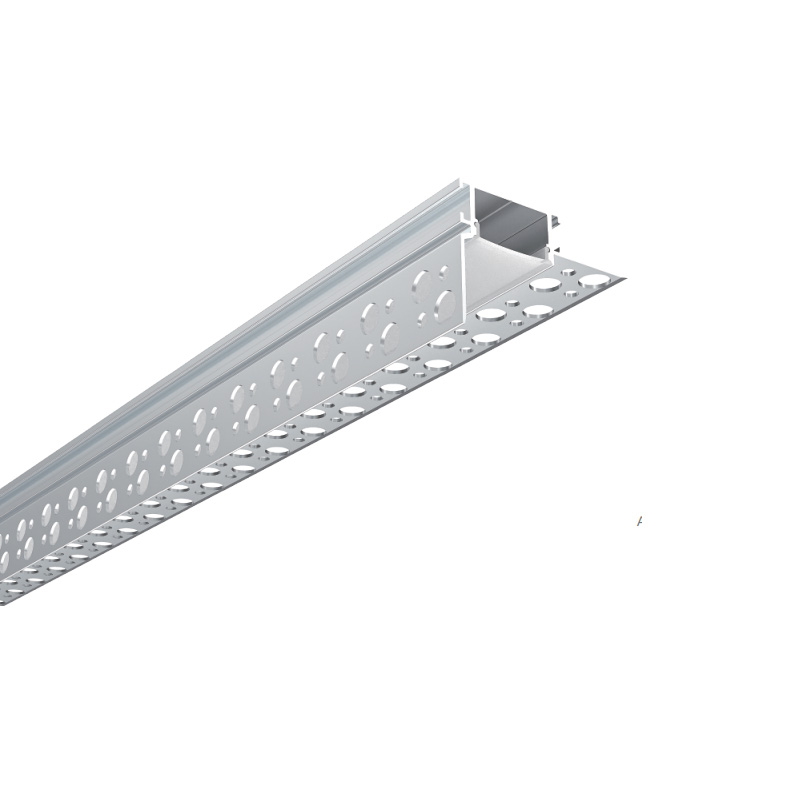

Check the Plasterboard Trimless Recessed Lighting Channel with Diffuser, which can be used for the indoor linear LED Lights that need to be flush mounted into the drywall, only the LED Strips and diffusers are seen after installation, it enables you to create a diffused line of LED Lights and enclosed in a protective channel. the Recessed Light Channels are made of 6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation resistance and a longer lifespan, there are 3 colors available, the default color is white, you also can take the silver and black colors. the standard length is 1M, you can choose other lengths from 1.5M, 2M, 2.5M, 3M and max 6M per piece, custom lengths are available. there are 2 types of diffusers are available, the PC diffused cover and PC semi-clear cover, both of them are made of brand imported material, anti-yellowing, perfect light distribution and smooth light output. the inner width is 20.7mm and allows the max-width of LED Strips is 20mm, you can install single row or double rows SMD LED Strips or COB LED Light Strips inside as the light source, the aluminum channel can be worked as a heat sinker for better heat dissipation. the end caps with wire holes are included, easy to connect the LED Strips to the Light Driver to light up or connect to the Lighting Dimmer to adjust the brightness freely. there are 3 types of connectors are available, 90°, 90° vertical and 180° connectors, you can use them to reconnect the LED Recessed Channels together for your projects.


  • Model: ALP071-S
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized
  • Colors: White(Default), Silver, Black

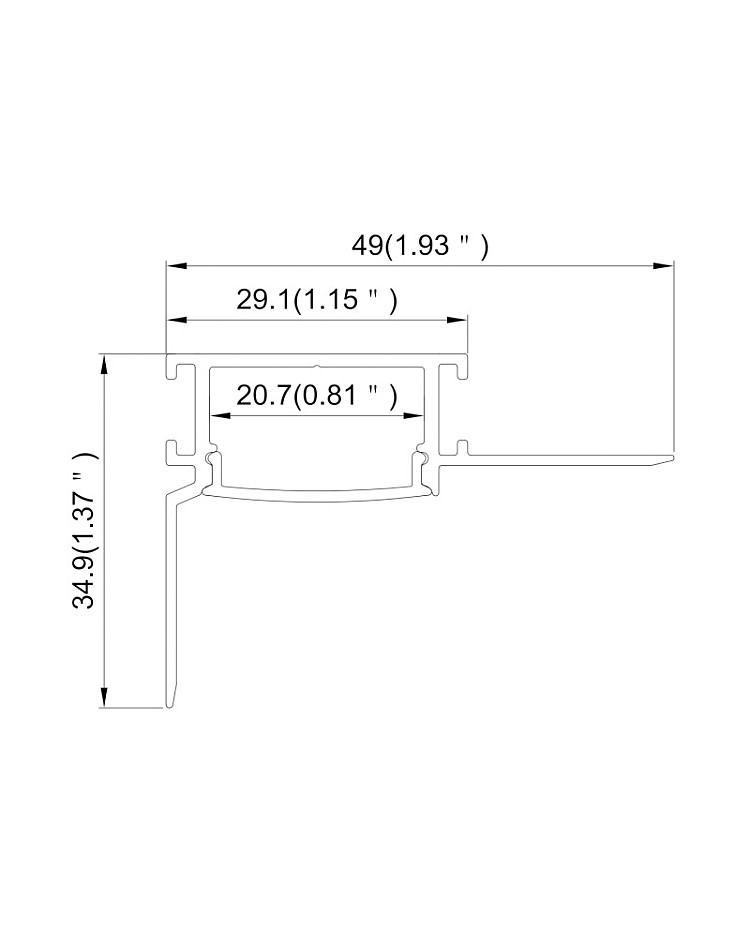

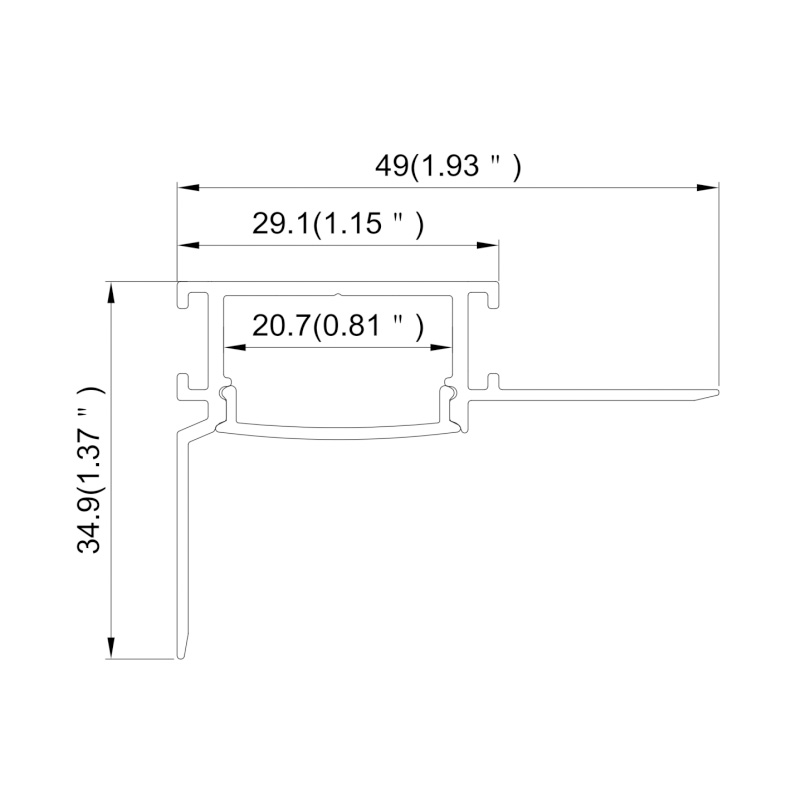

  • Size: 49*34.9mm(W*H)
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
  • Custom Length Available: YES
  • Diffusers: PC Diffused Cover/PC Semi-clear Cover
  • Inner Width: 20.7mm(0.81")
  • Max Width Of LED Strips: 20mm
  • Max Power: 15W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rate: IP20 Non-waterproof
  • End Caps With Wire Holes Included
  • LED Strips Sold Separately

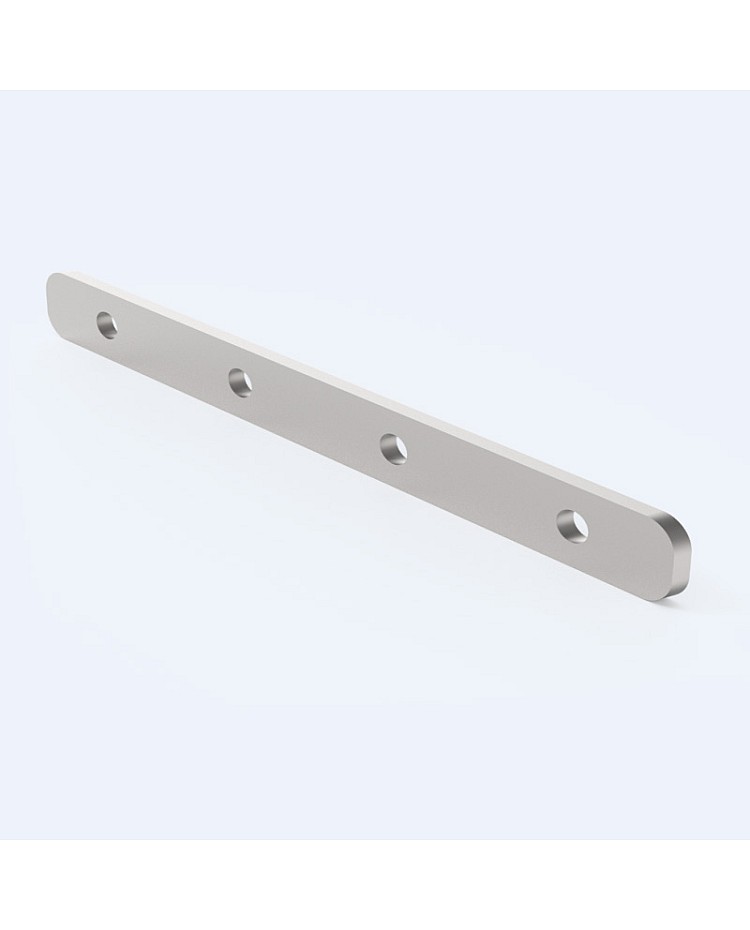

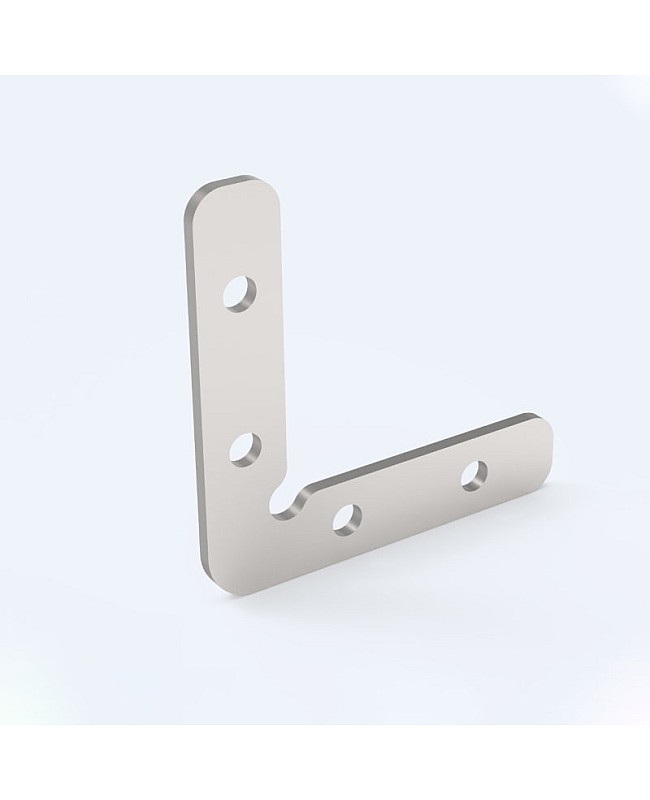

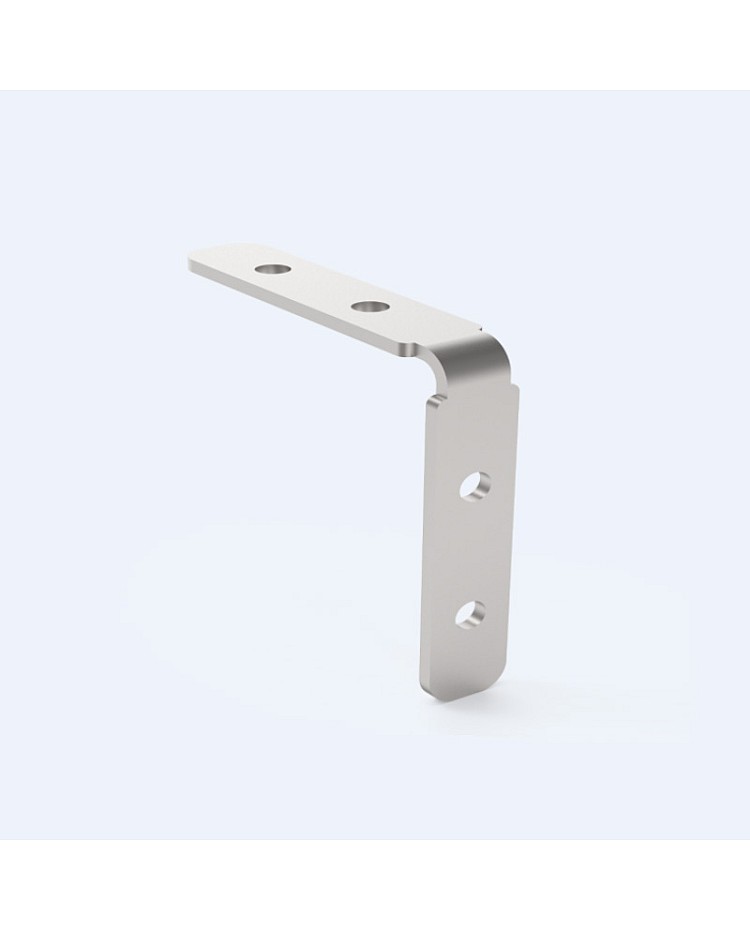

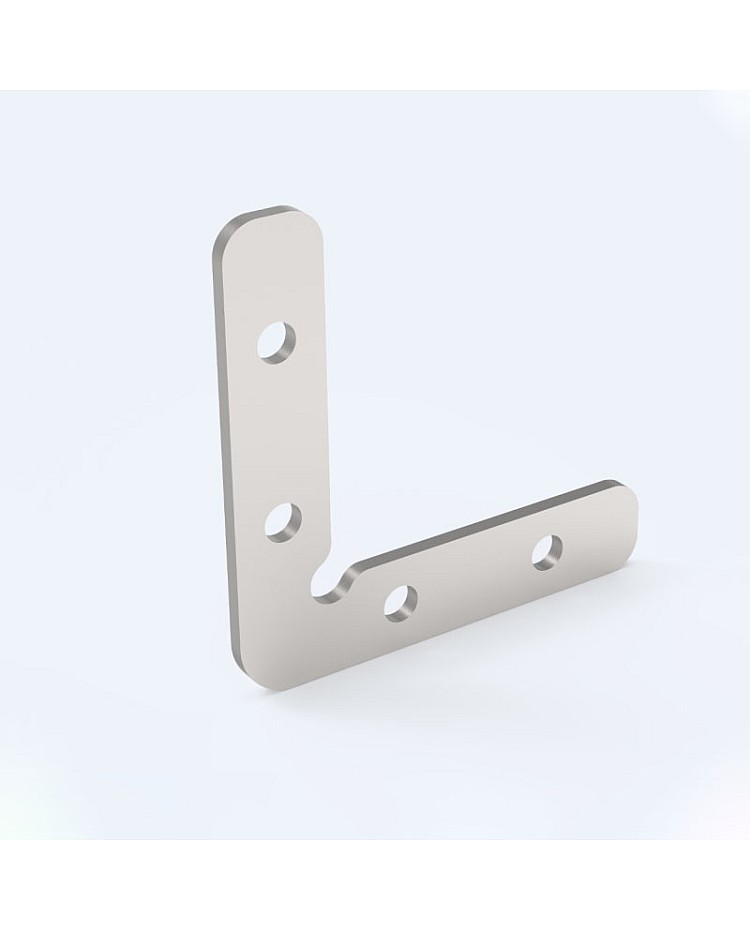

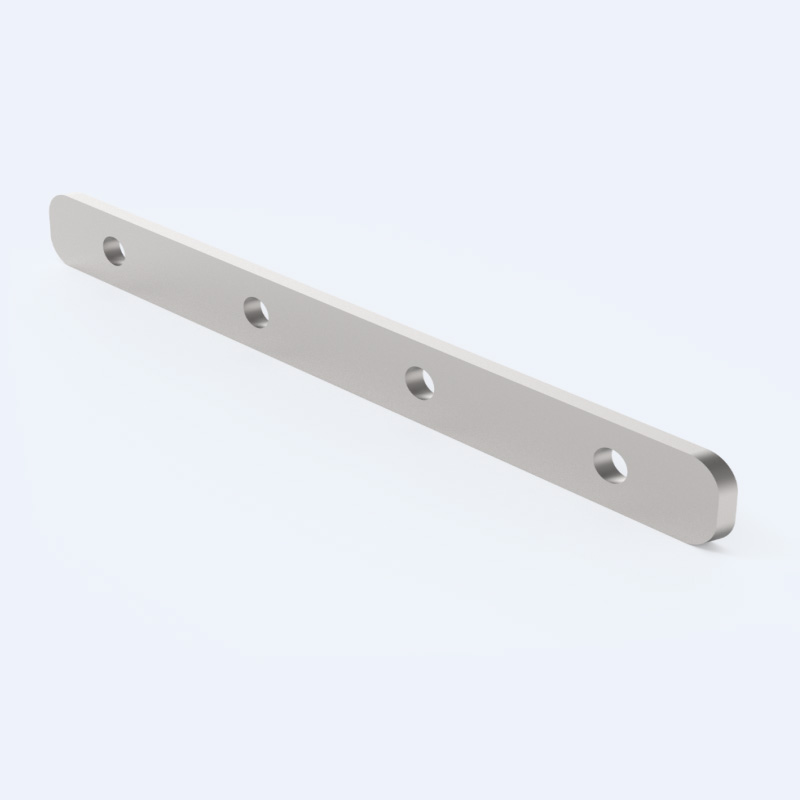

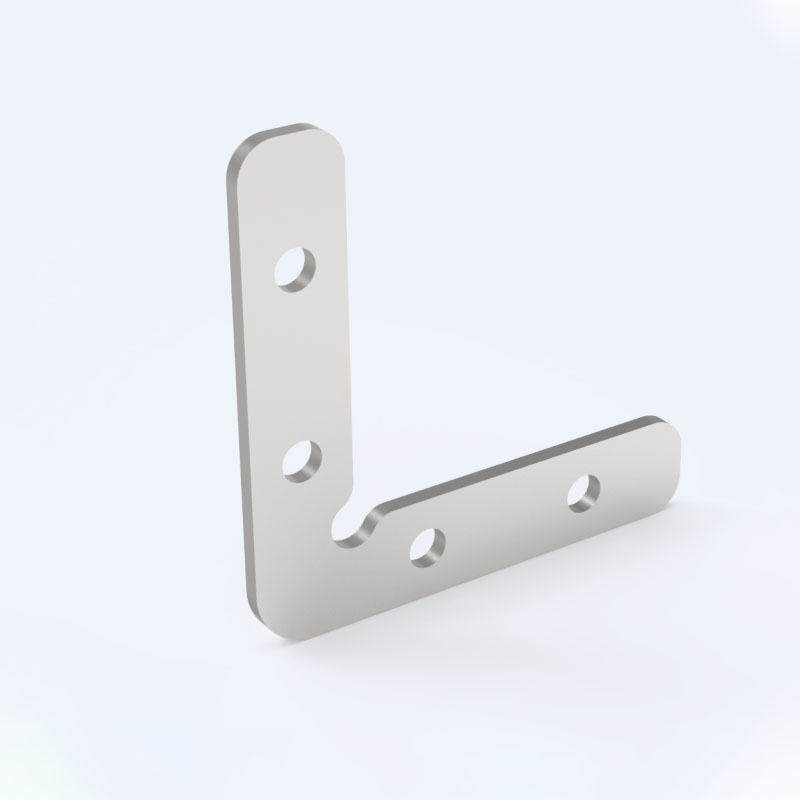

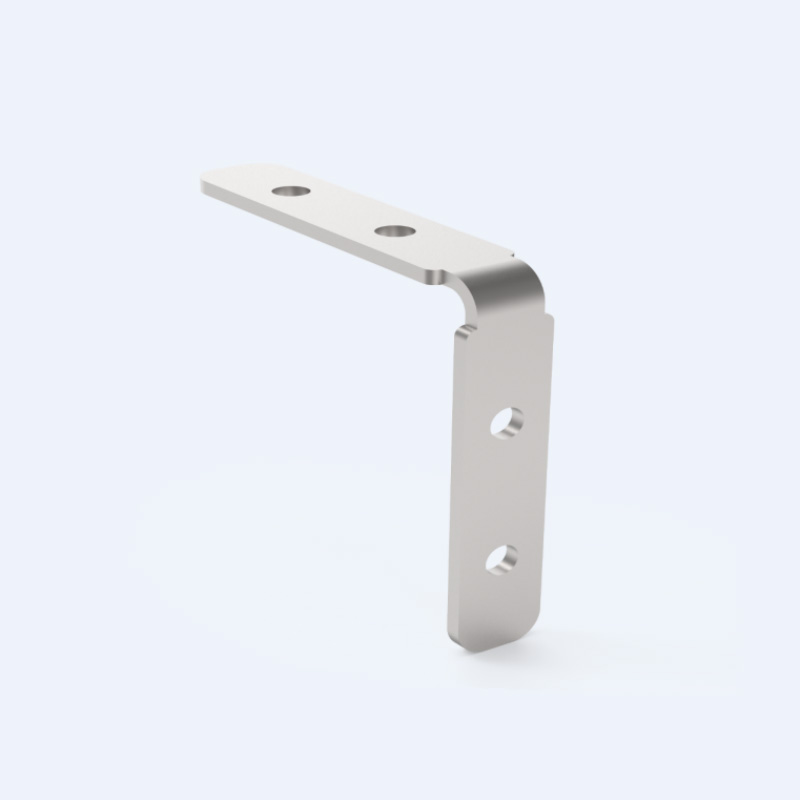

  • 90°, 90° Vertical, 180° Connectors Available

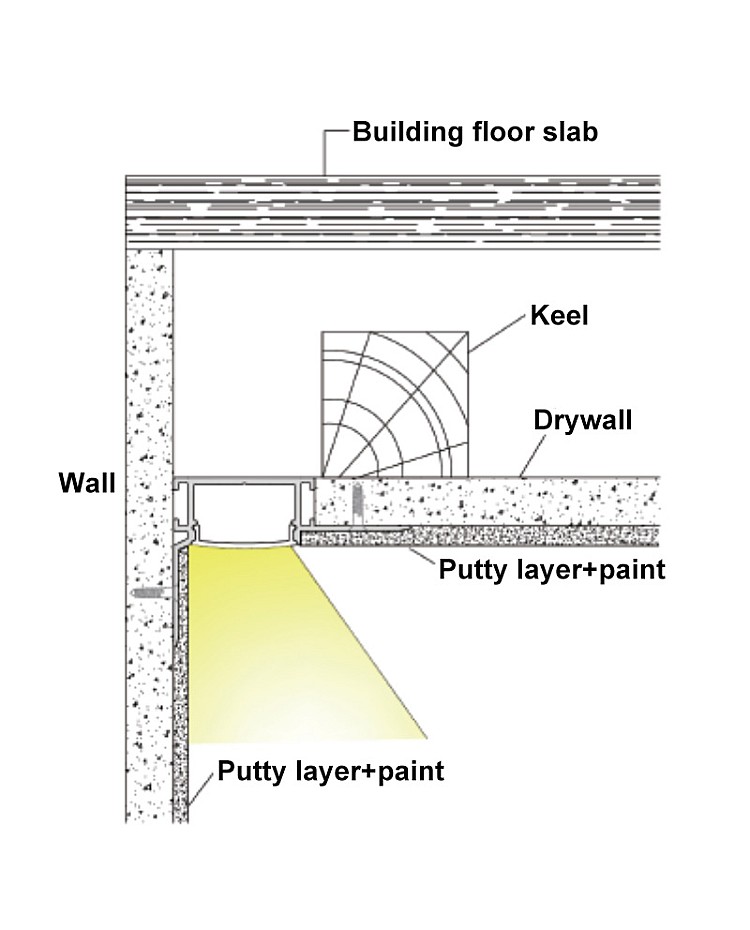

  • Installation: Recessed
  • 5 Years Warranty


1*Trimless Recessed Lighting Channel

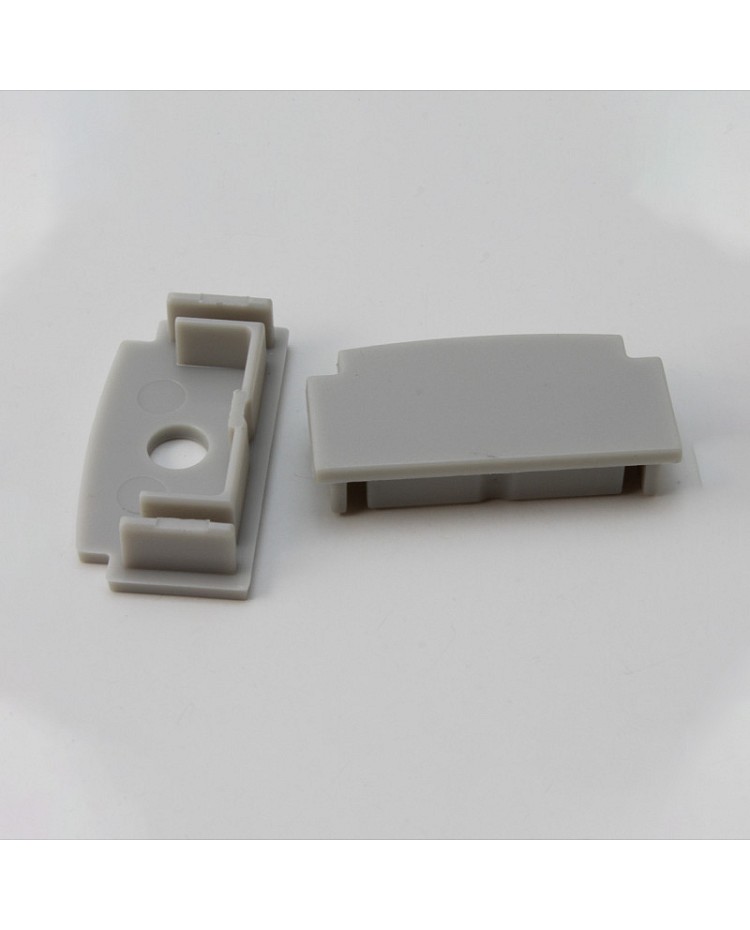

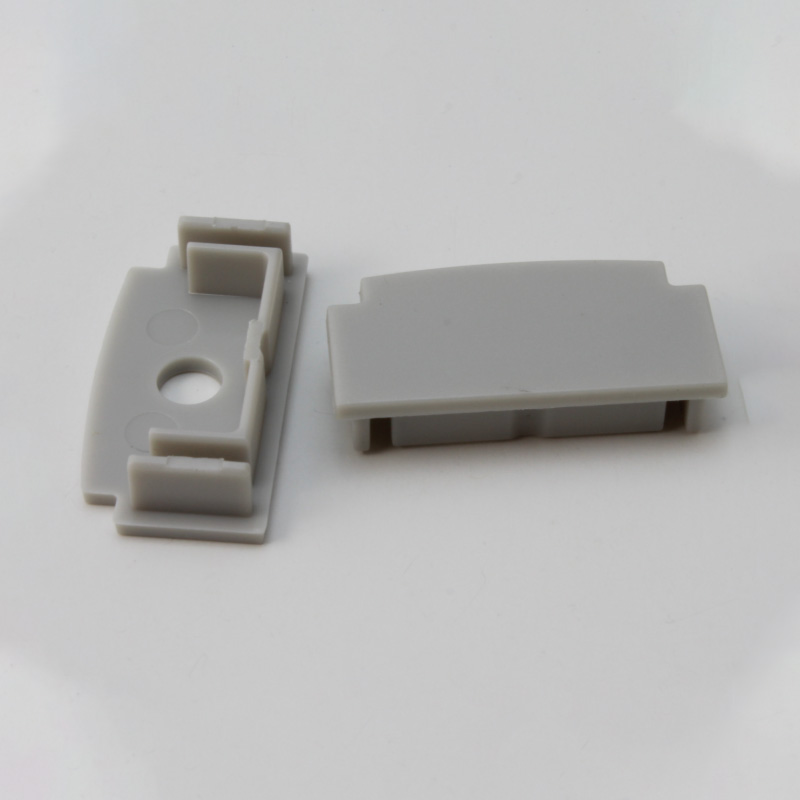

End Caps(With Wire Hole/Without Wire Hole)

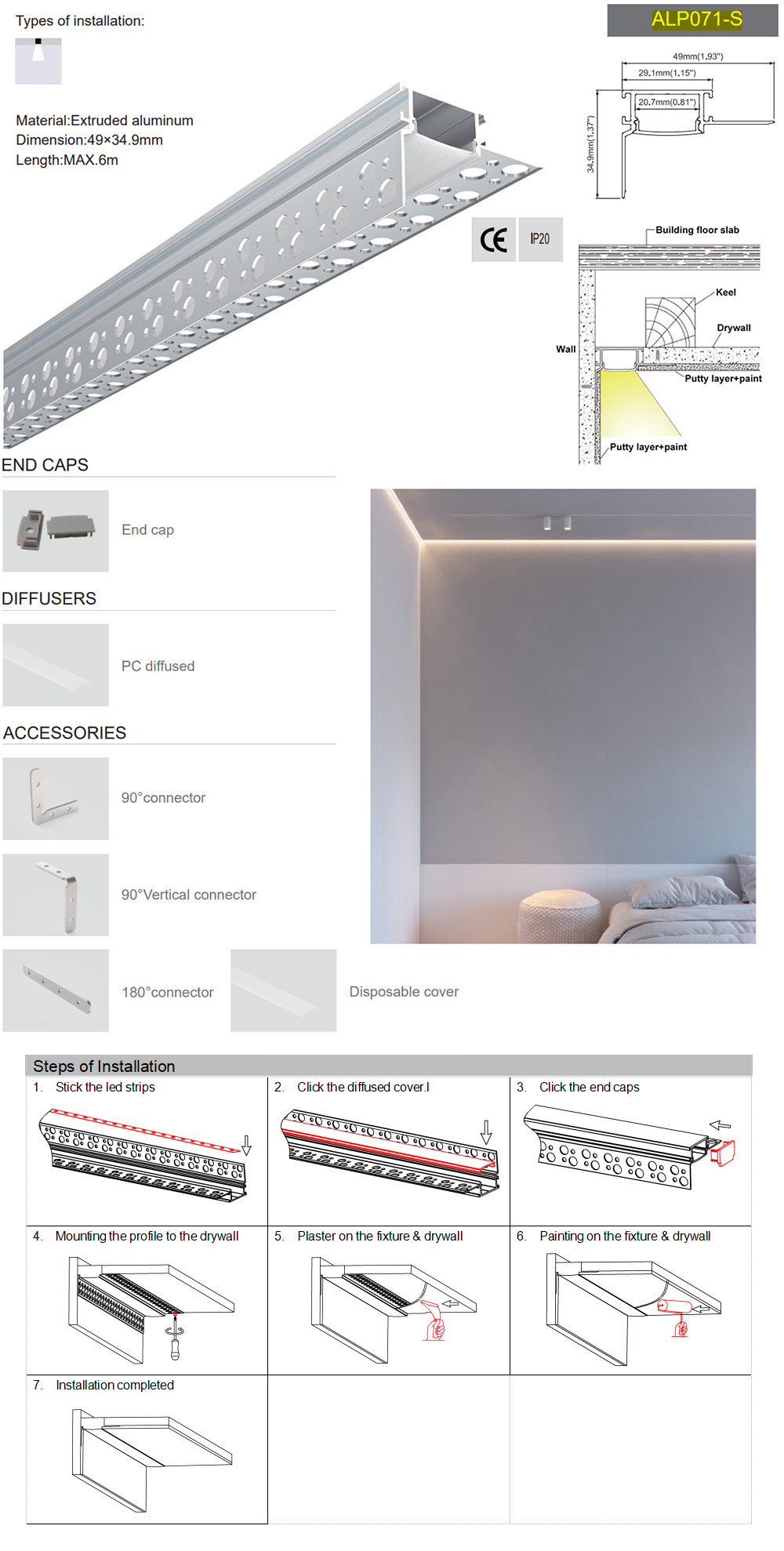

Trimless Wall Recessed Channels
