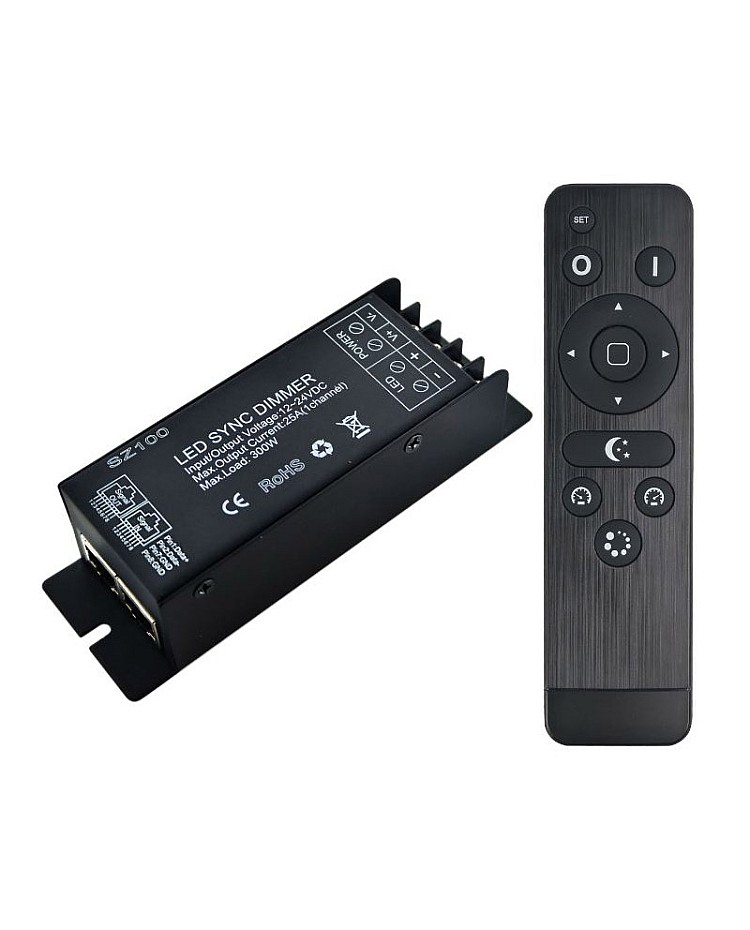

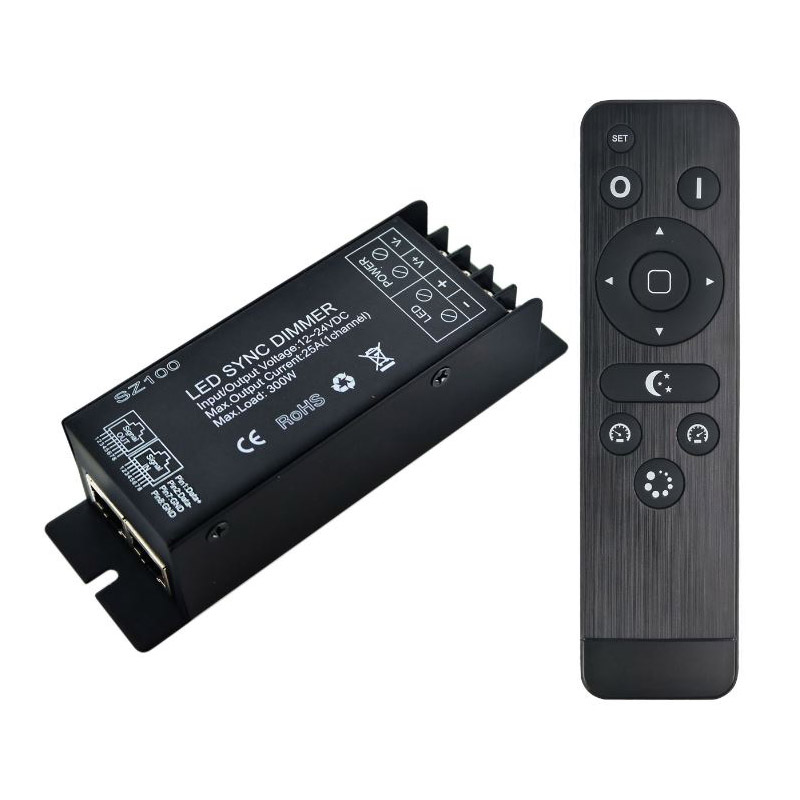

Constant Voltage Single Color Dimmer For LED Lights

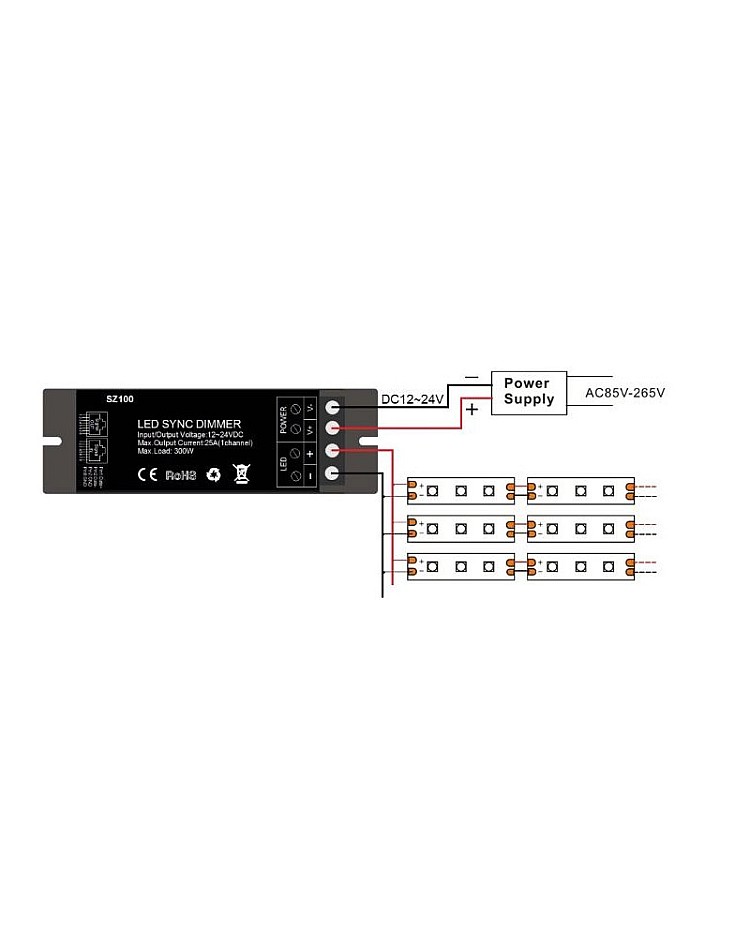

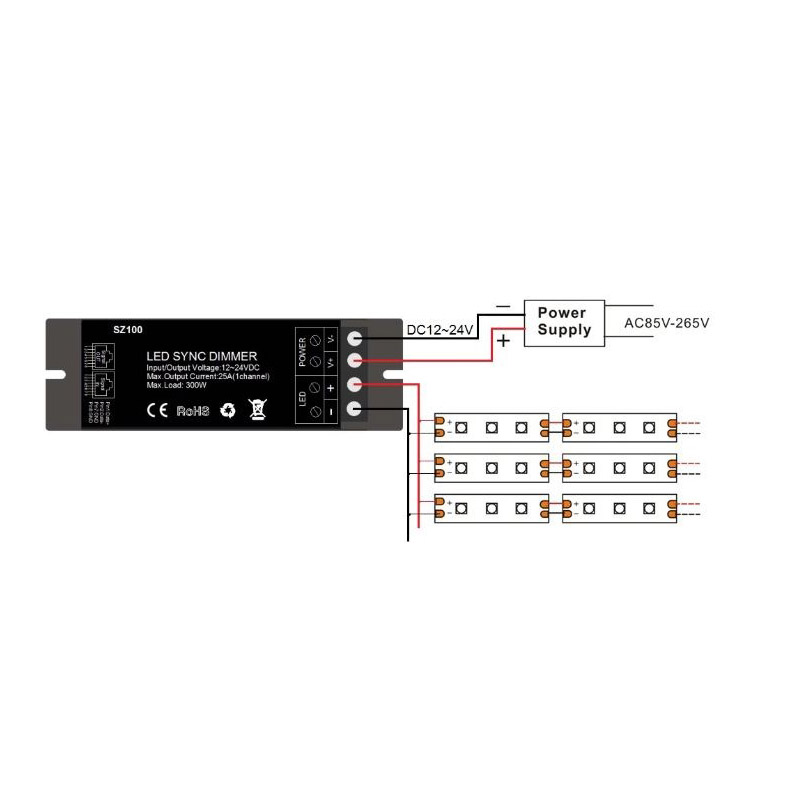

The constant voltage single dimmer for LED lights is designed for single-color constant working voltage LED lights like LED strips, point LED lamps, LED modules, etc.  The LED dimmer works on DC12V or DC24V, with only one output channel; the max output current can reach 25A, and the max output power can reach 600W when working in DC24V. With memory function, it powers on each time. It resumes the mode that was stopped at the last power off. The LED dimmer for LED lights with dual RJ45 Ports, easy connection to achieve multiple dimmers sync work through the RJ45 terminal. The LED light dimmer comes with the RF 14Keys remote, which has a fashionable appearance, a control range of up to 20 meters, and long-pressing the brightness and speed keys can get fast adjustments, making it convenient for operation.

Dimmer For LED Lights Specifications:

• Working Temperature: -20-60℃
• Size: 127*41*32mm（L*W*H)
• Working Voltage: DC12V-24V
• Static Power Consumption: <1W
• Mode: 3
• Grayscale: 256 Levels
• Speed Stage: 100 Grade
• Output: 1 Channel
• Max Output Current: 25A
• Output Power: 300W(12V). 600W(24V)
• RF Distance: <20m
• RF Frequency: 433.92MHz

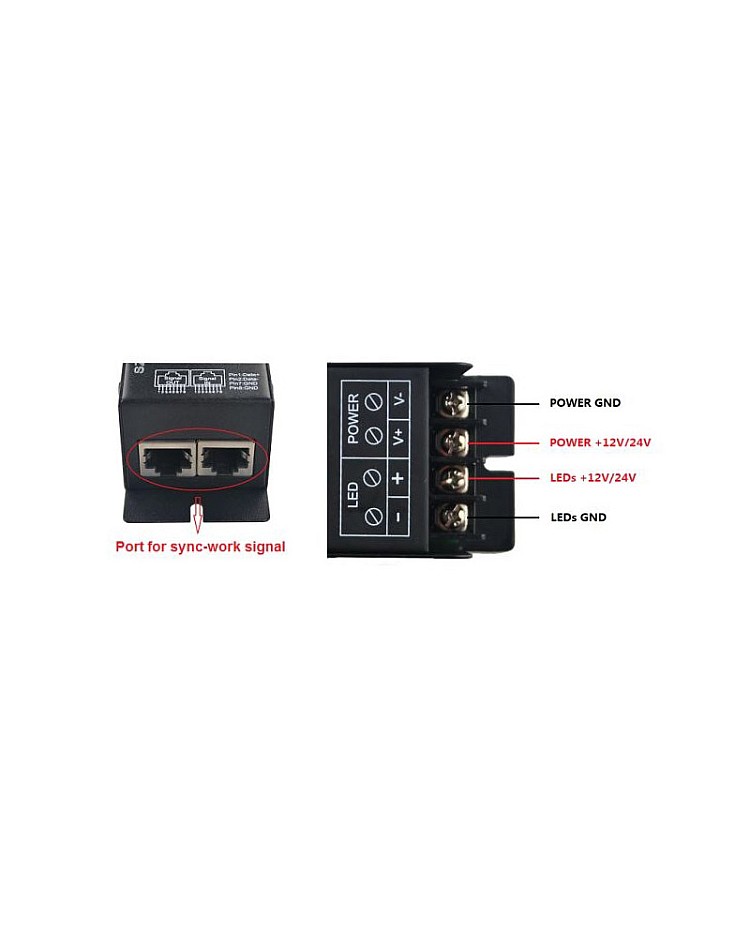

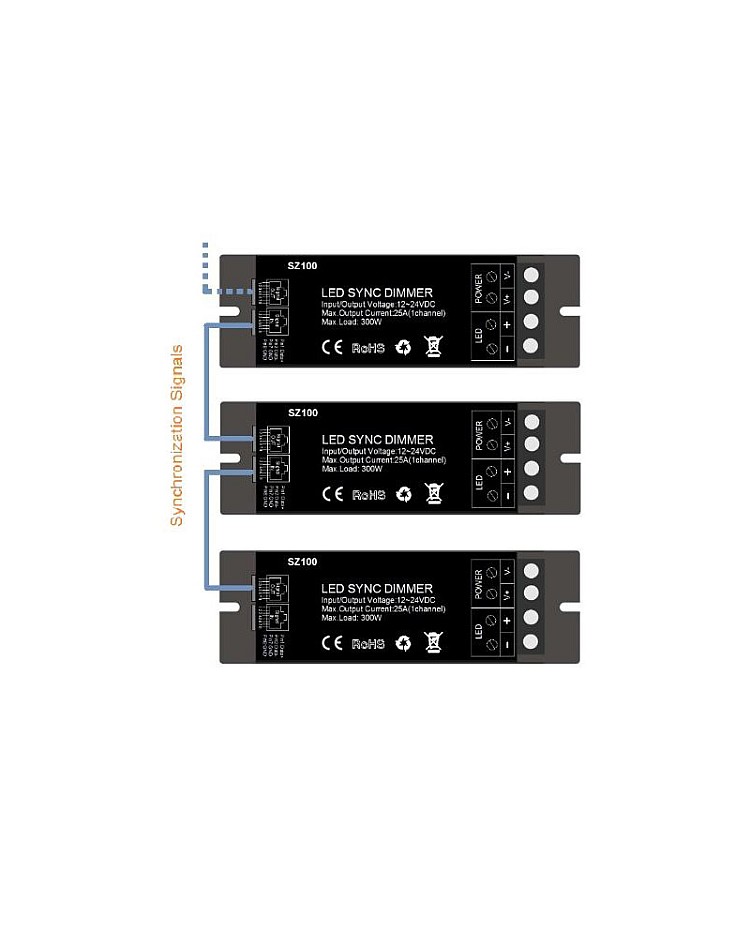

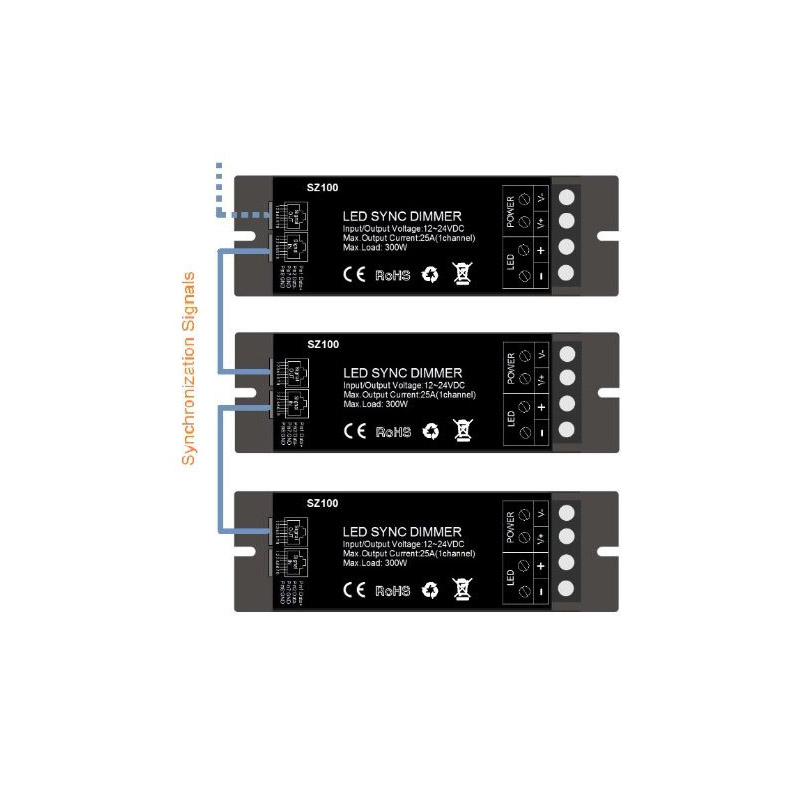

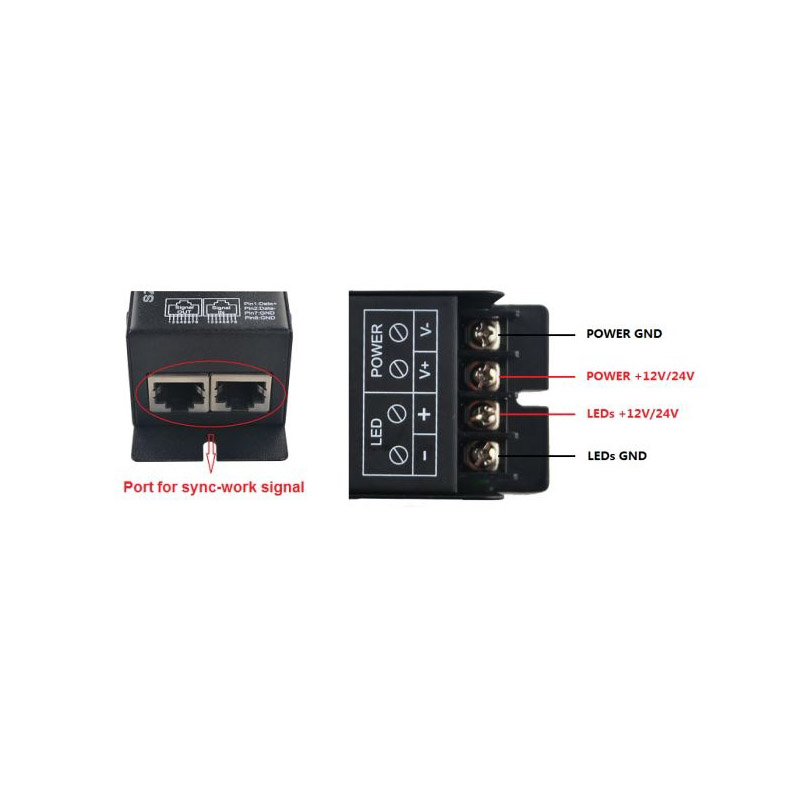

• With Dual RJ45 Ports To Achieve The Synchronization Function
• Memory Function: Support
• Weight: 200g
• 3 Years Warranty

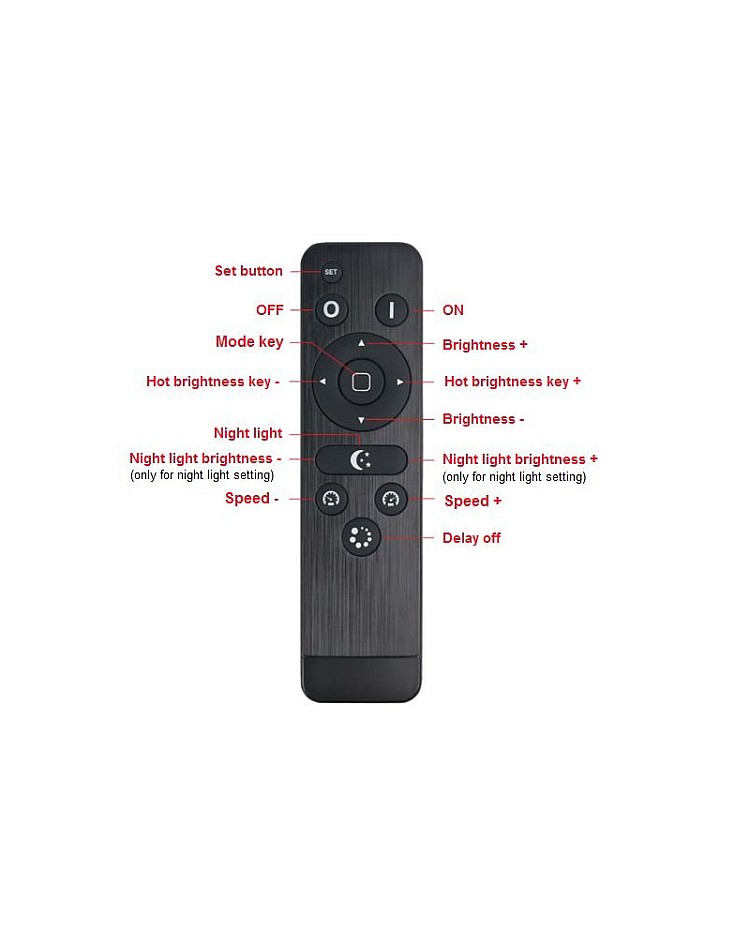

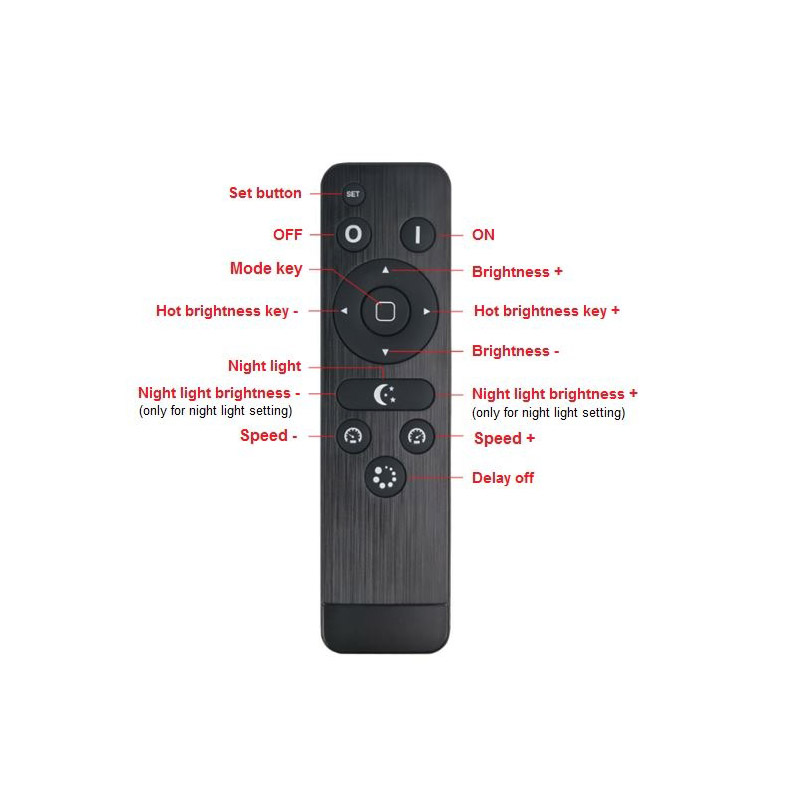

Remote Features:

• Working Temperature: -20-60℃
• Size: 150*40*20mm（L*W*H)
• Working Voltage: DC3V
• Powered By 2PCS AAA Batteries(Included)
• Standby Current: <18uA
• Working Current: <25mA
• Standby Power: 54uW
• Working Power: 75mW
• RF Frequency: 433.92 MHz
• RF Distance: <20m
• Weight: 65g

Includes:

1 * Dimmer For LED Lights

1 * Remote

2 * AAA Batteries
