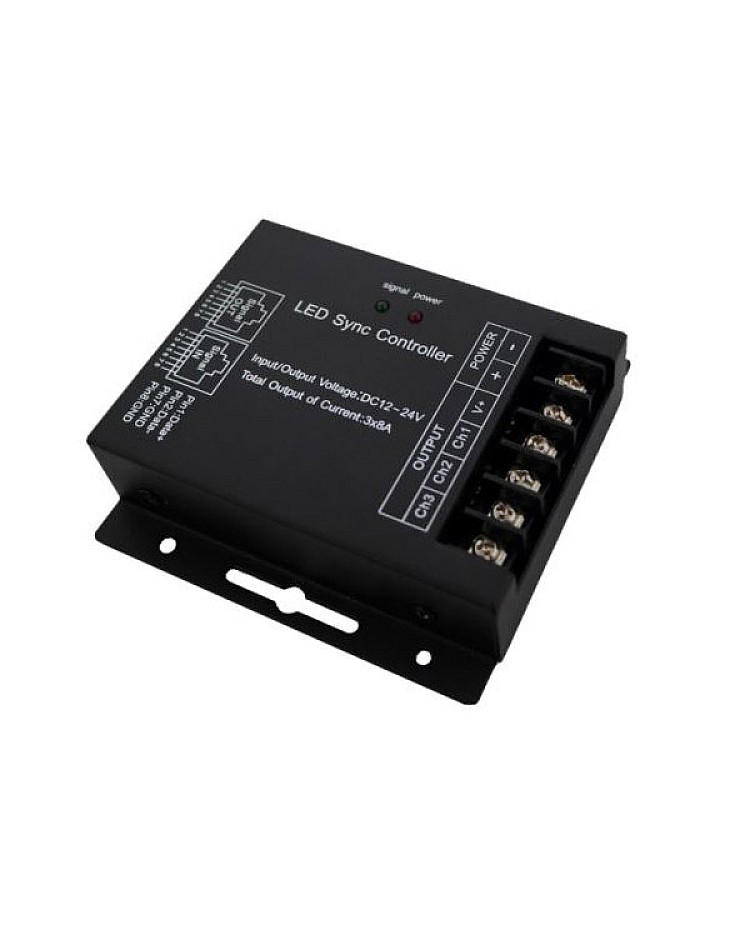

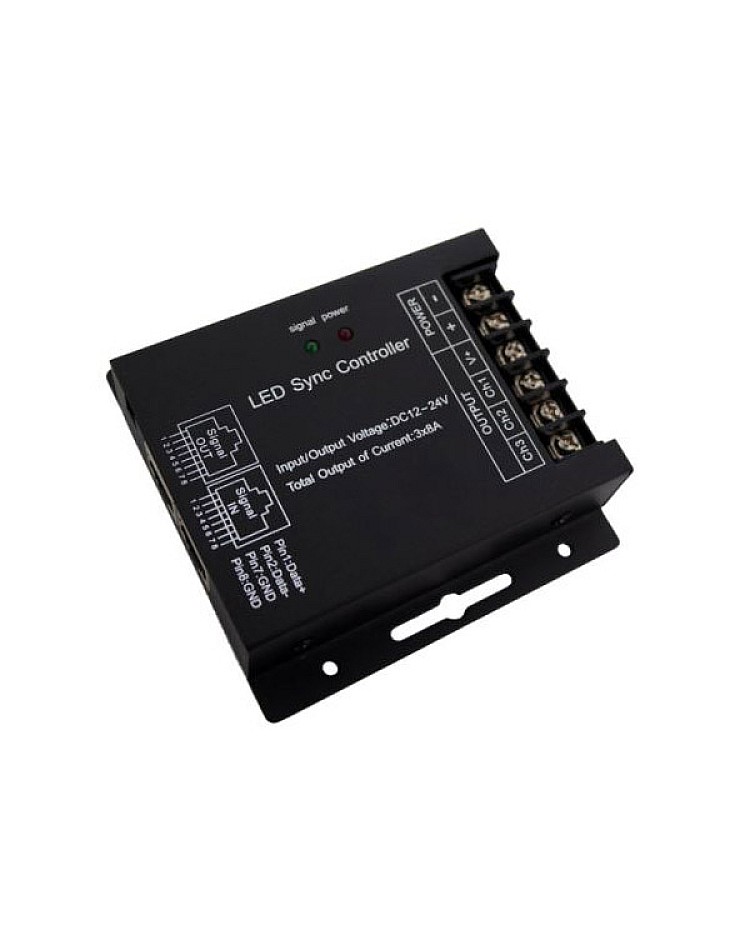

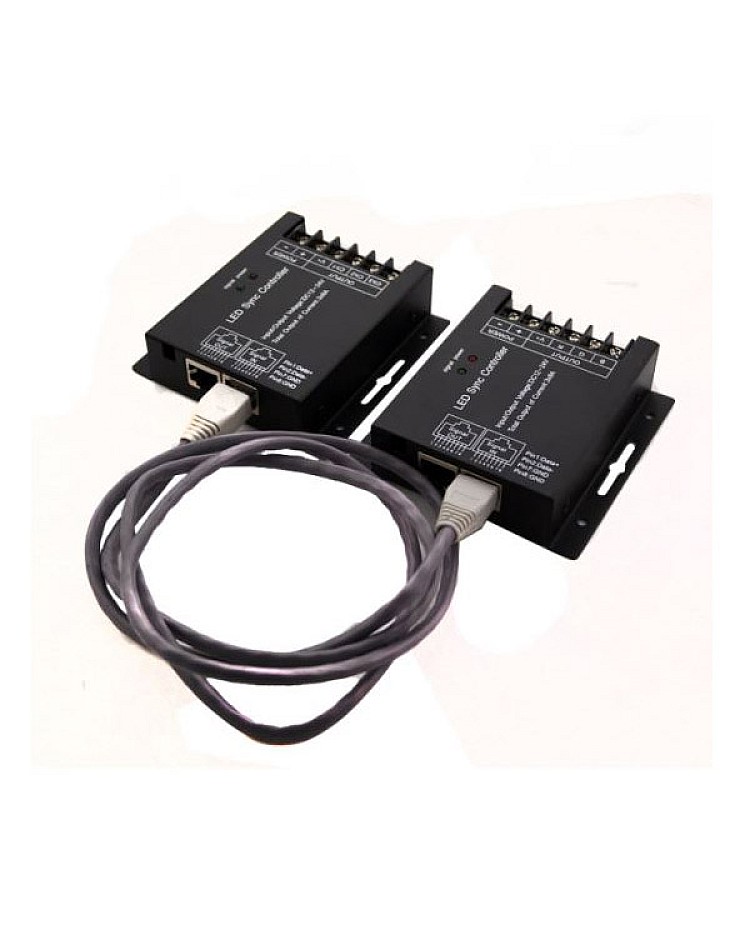

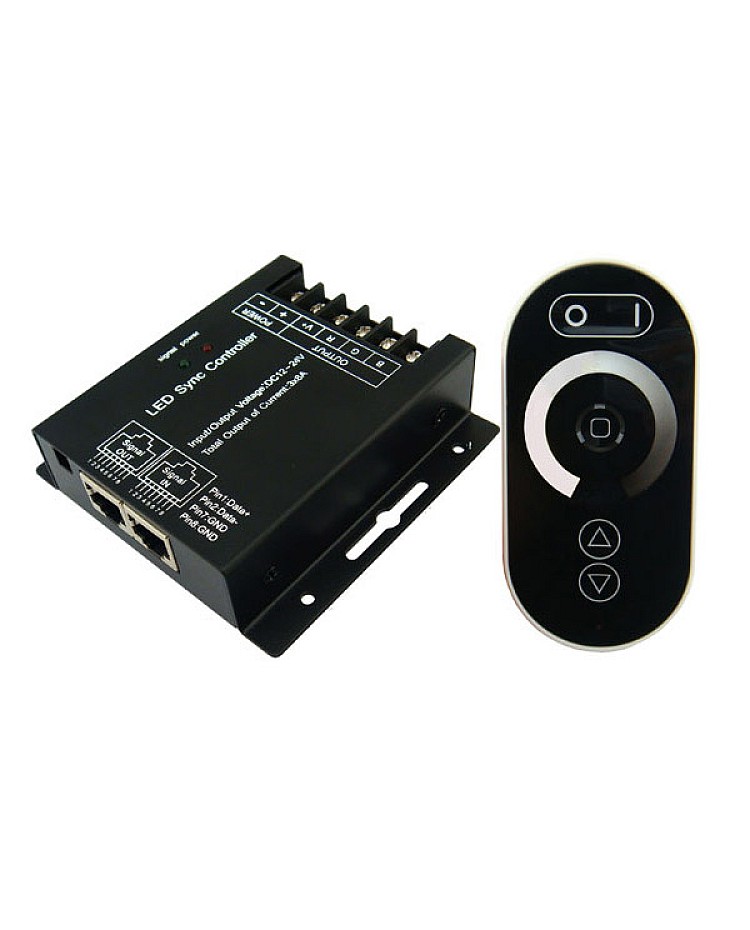

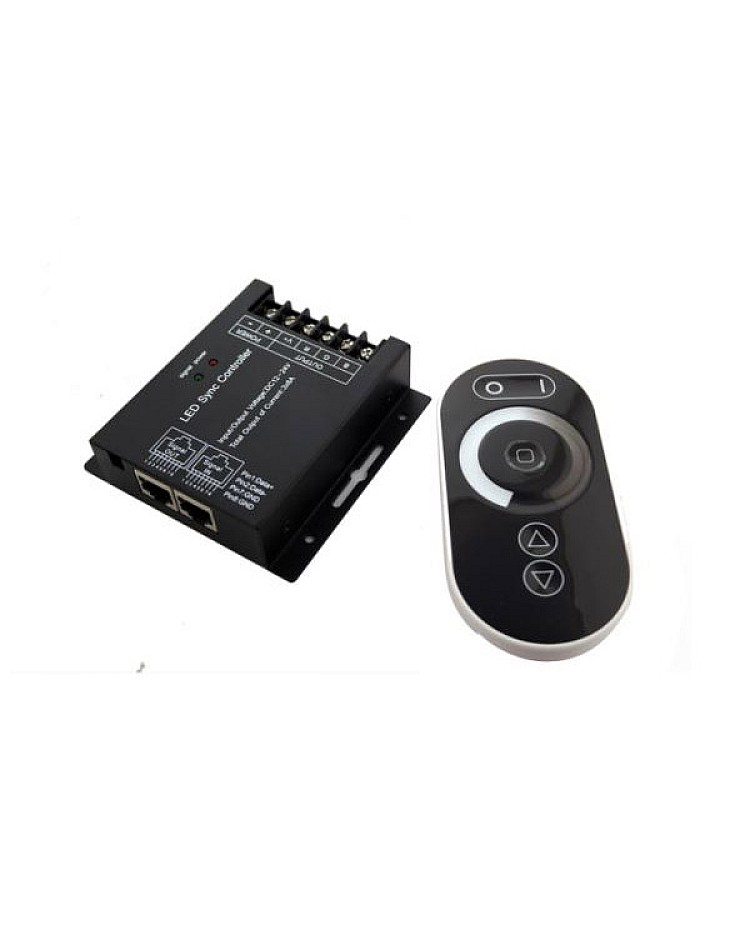

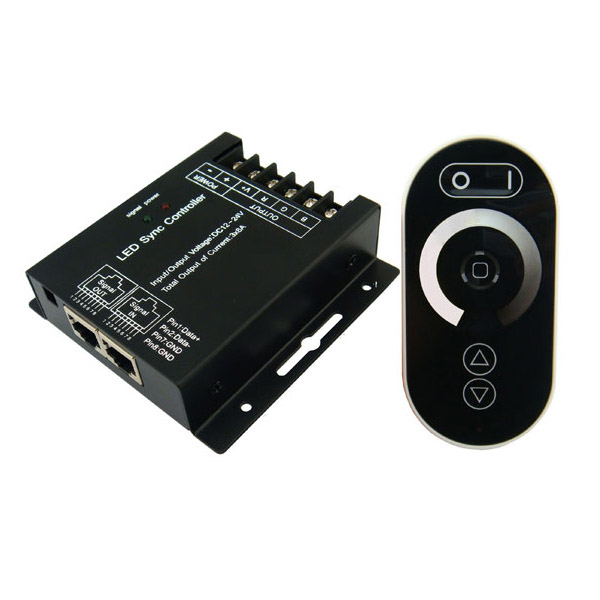

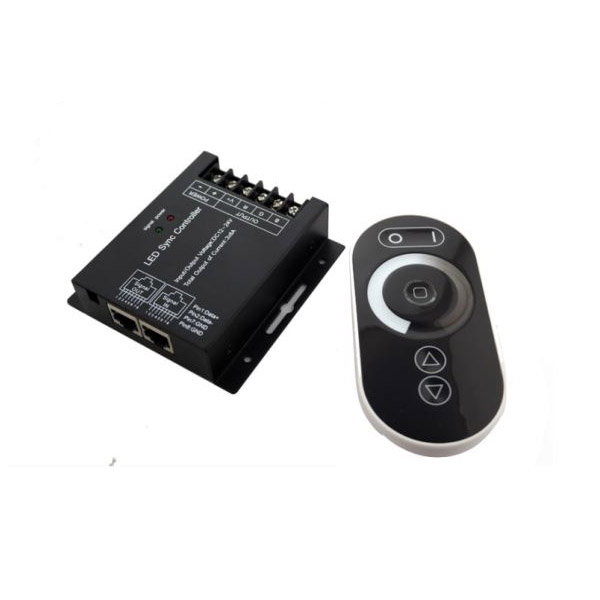

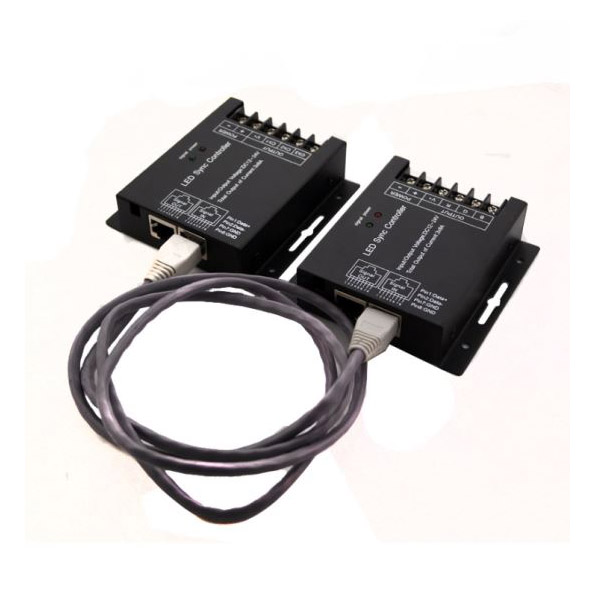

DC12 dimmer switch for LED, adopt the advanced PWM  digital dimming technology, can work in DC12V or DC24V,3channels output, max output 24A, this new LED Dimmer specially designed for single color LED strips, 3528, 5050, 2835, 5730, the LED dimmer comes with RF touch remote control, the remote with 5 functions buttons and 1 dimming ring, the dimming ring has 128 levels in different brightness value. sense light in the remote center shows the exact light which is touched. three dynamic modes in the mode button, speed is adjustable. the LED dimmer switch designed with a synchronization function, convenient to use the RJ45 connector to connect the multiple controllers together, and can control more LED strip synchronization.



Features:

  • Working Voltage: DC12V/DC24V
  • Output: 3 Channels
  • Connect Mode: Common Anode
  • Size: 91*88*24mm
  • Output Gray: 256 Levels
  • Output Current: <8A(Each Channel)
  • Output Power: 12V: <288W; 24V: <576W
  • RF Frequency: 433.92MHZ
  • Weight: 300g

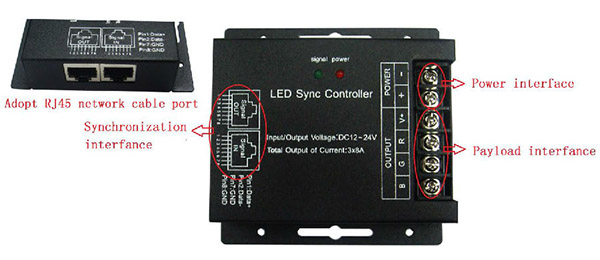

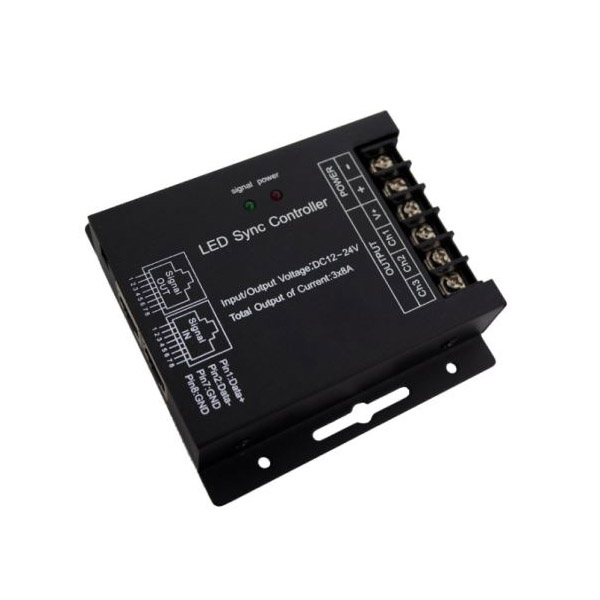

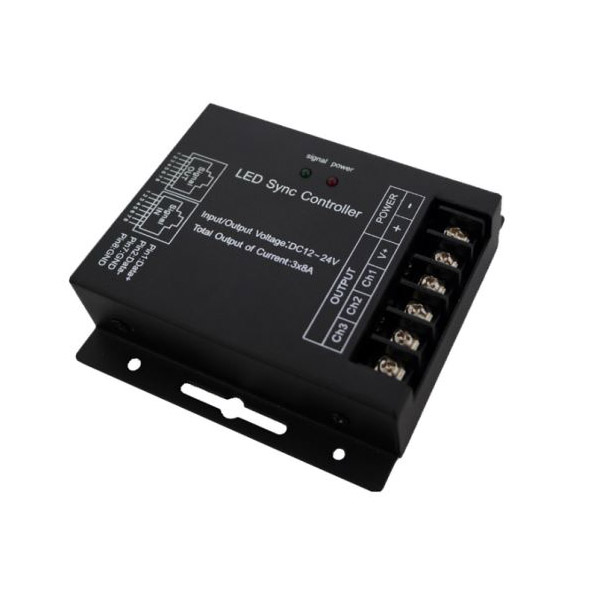

Interface:

DC12V LED dimmer switch

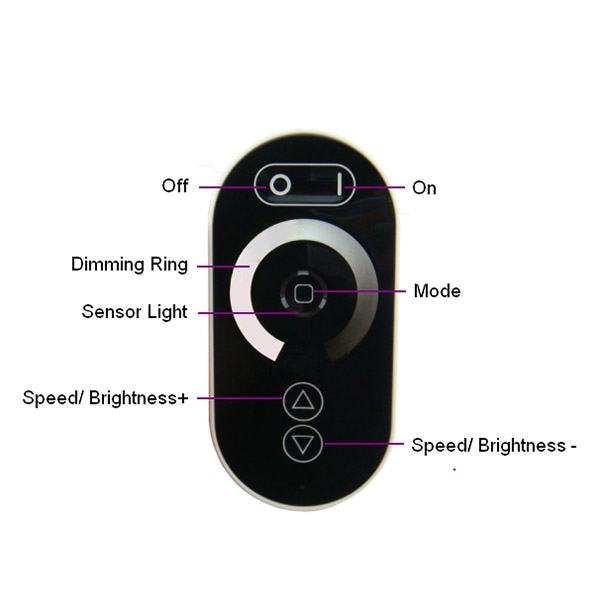

Touch remote:

LED dimmer switch

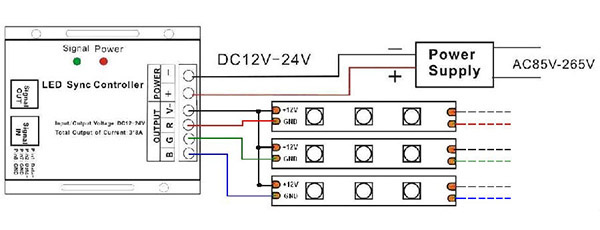

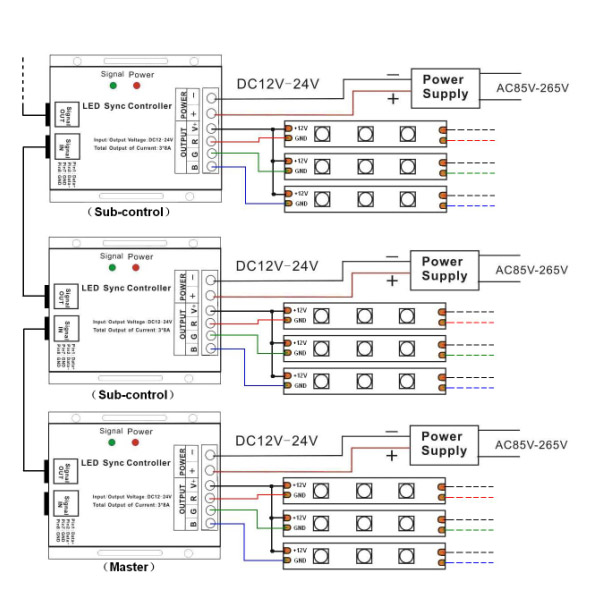

Applications:

DC12V LED dimmer switch

LED dimmer switch

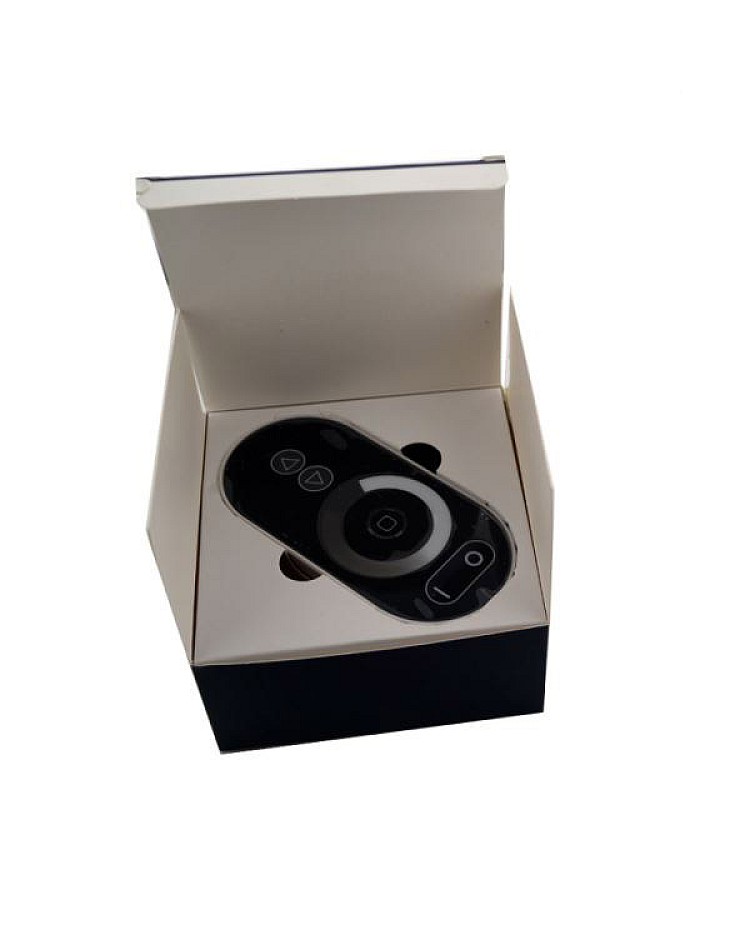

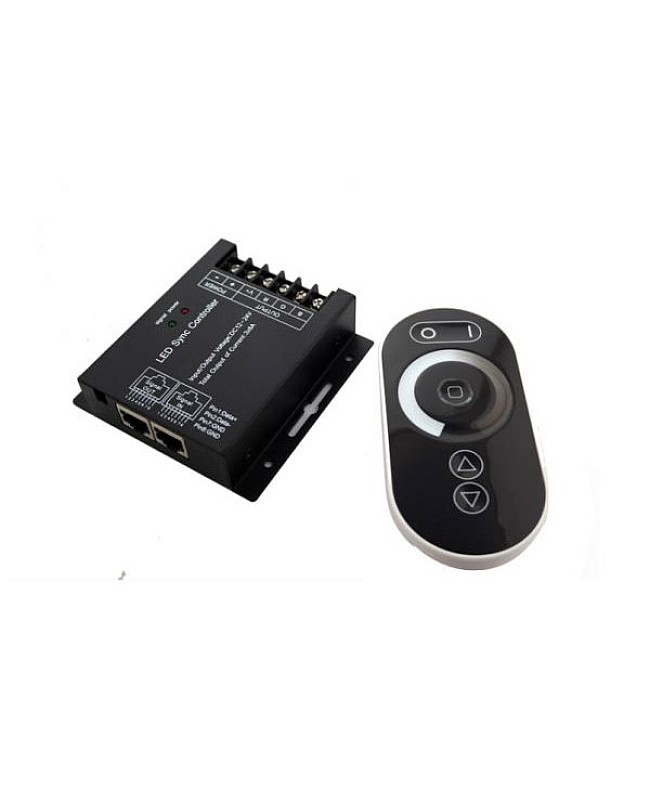

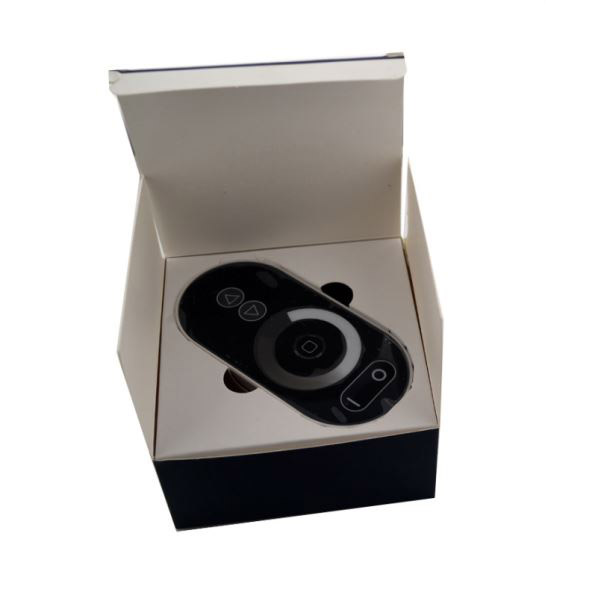

Package:

1*Dimmer Switch For LED

1*Touch Remote
