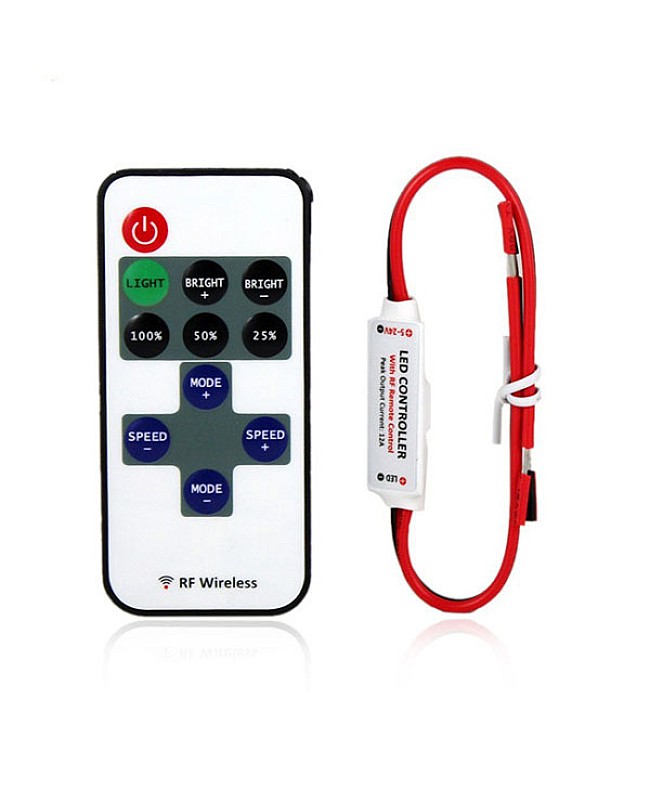

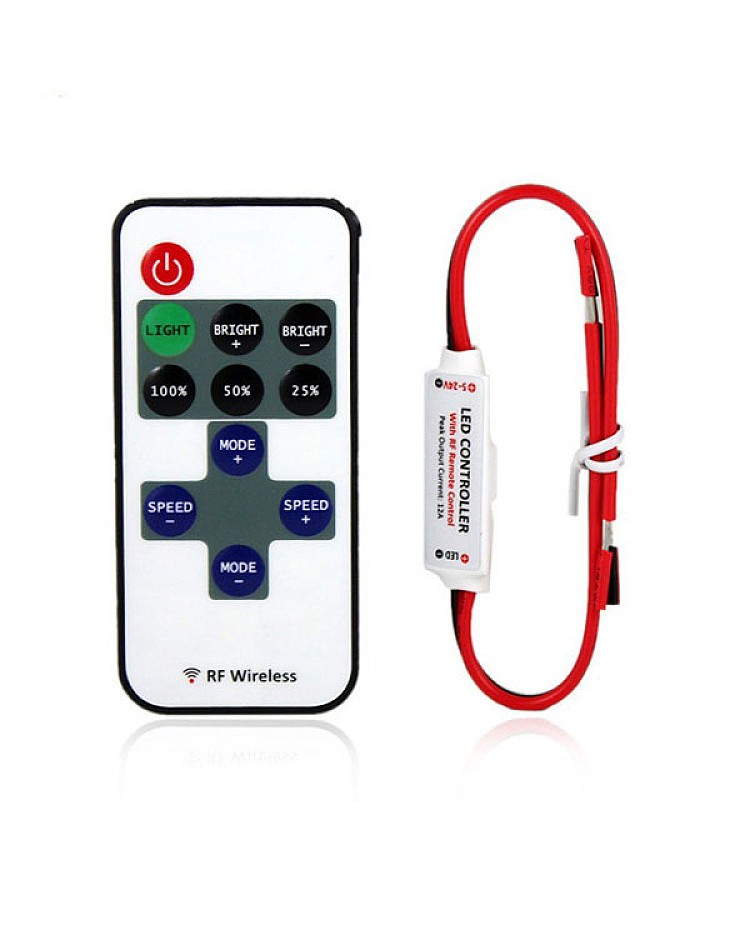

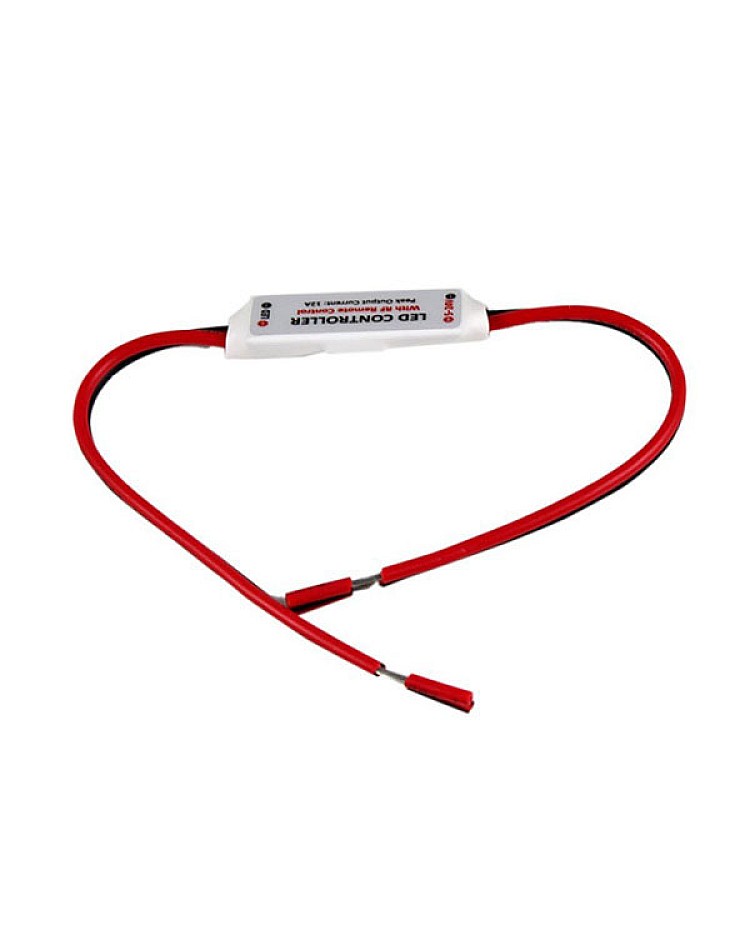

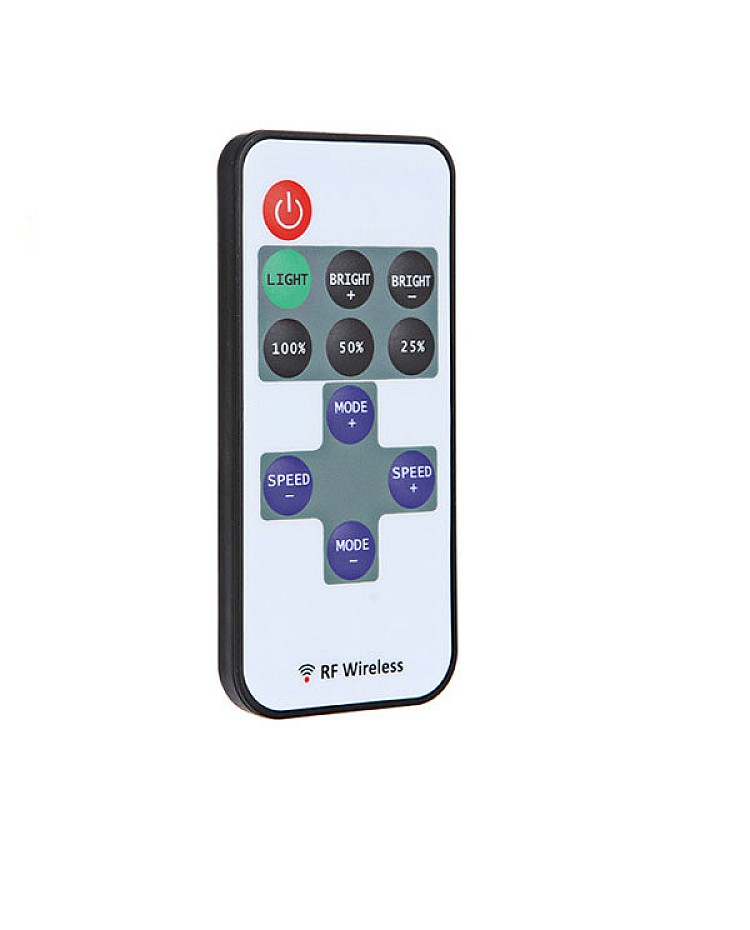

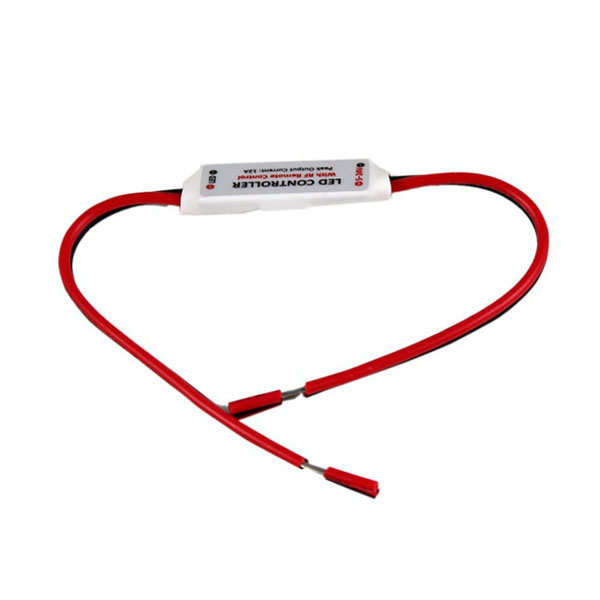

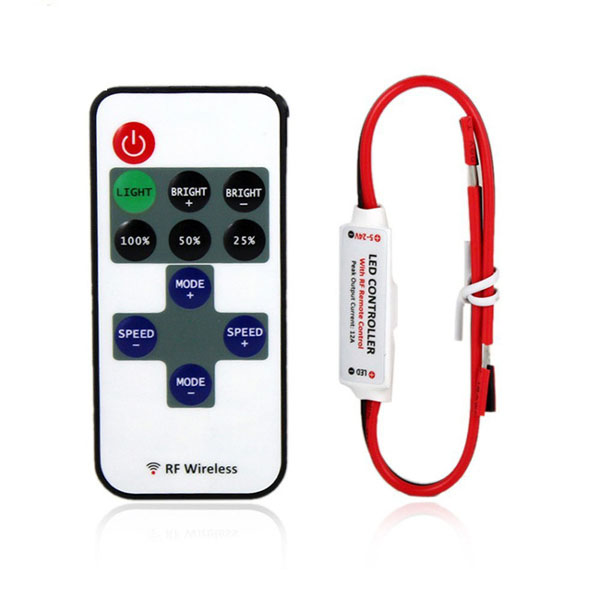

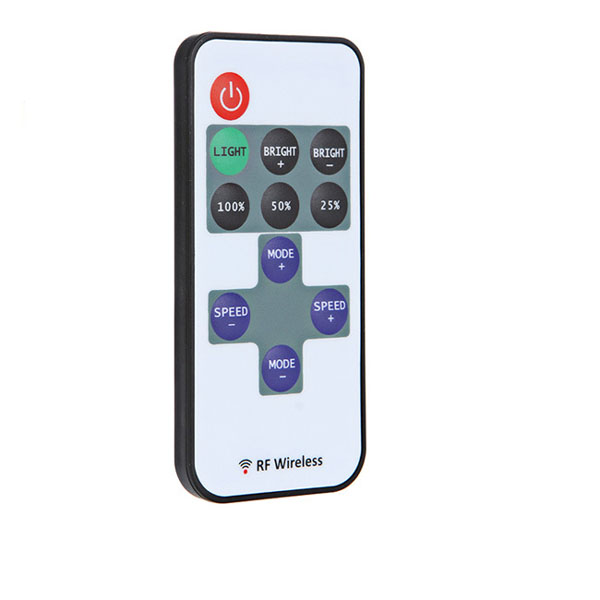

This mini size LED light dimmer can work with single color flexible LED strips and rigid LED strip light, one channel output, max output current 6A, working in DC5V, max output 30W, in DC12V, max output 72W, in 24V, max output 144W. LED mini dimmer built-in microchips, can control it via RF remote,10levels brightness adjustable, eight different dynamic modes available. the side with a 5-24V mark connects with the LED power supply, other with an LED mark connects to your LED strips. easy install and use.



  • Item NO: TY-L-D-07
  • Manufacturer: TYoung
  • Working Temperature: -20-60℃
  • Static Power Consumption: <1W
  • Working Voltage: DC5V, DC12V, DC24V
  • Power: DC12V:72W; DC24V:144W; DC5V:30W
  • Brightness Level: 10
  • Size: 35*15*4.5mm(Dimmer) / 85.9*39.6*6.9mm(Remote)
  • RF Frequency: 433HHZ
  • RF Distance: <20m
  • Weight: 100g


1*Single Color LED Dimmer
