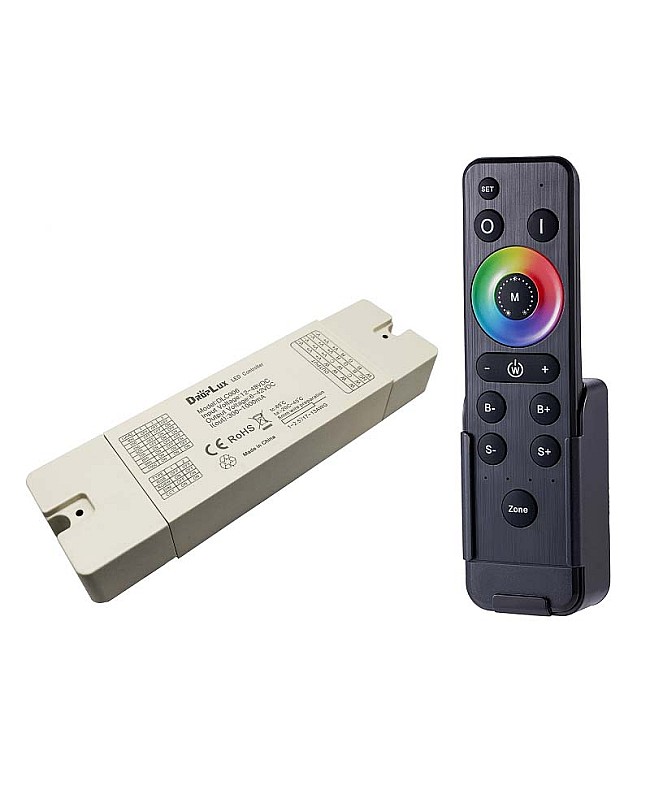

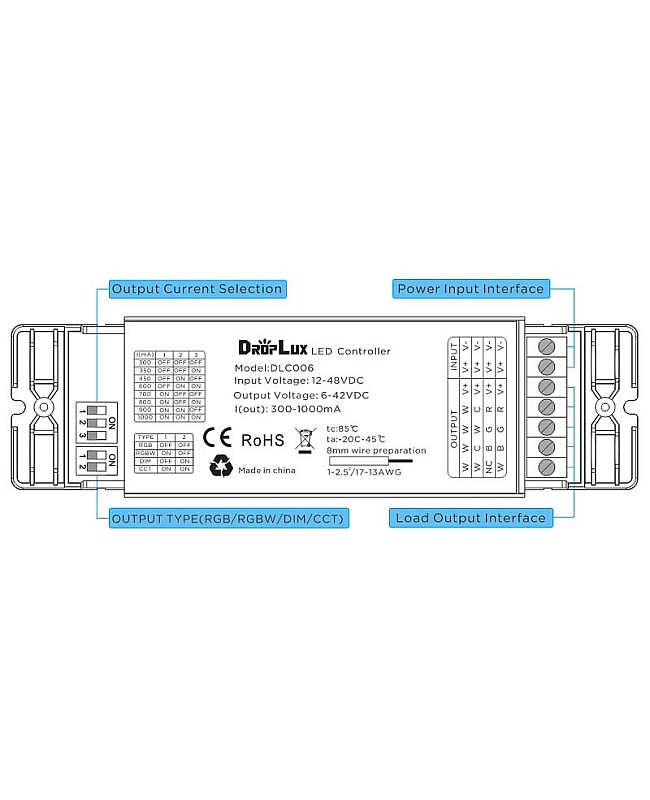

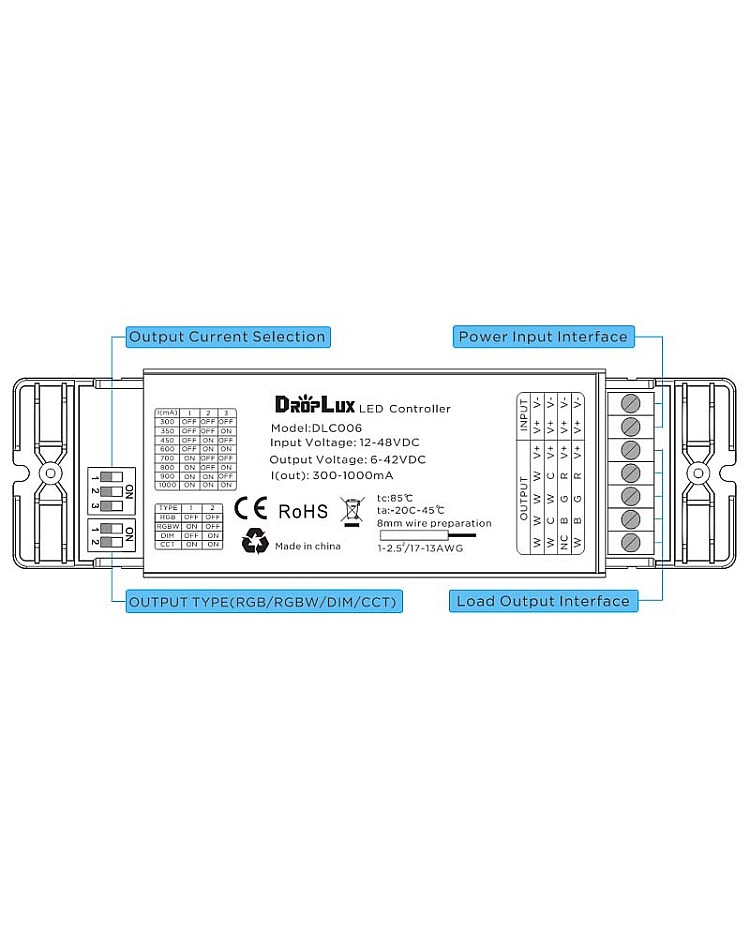

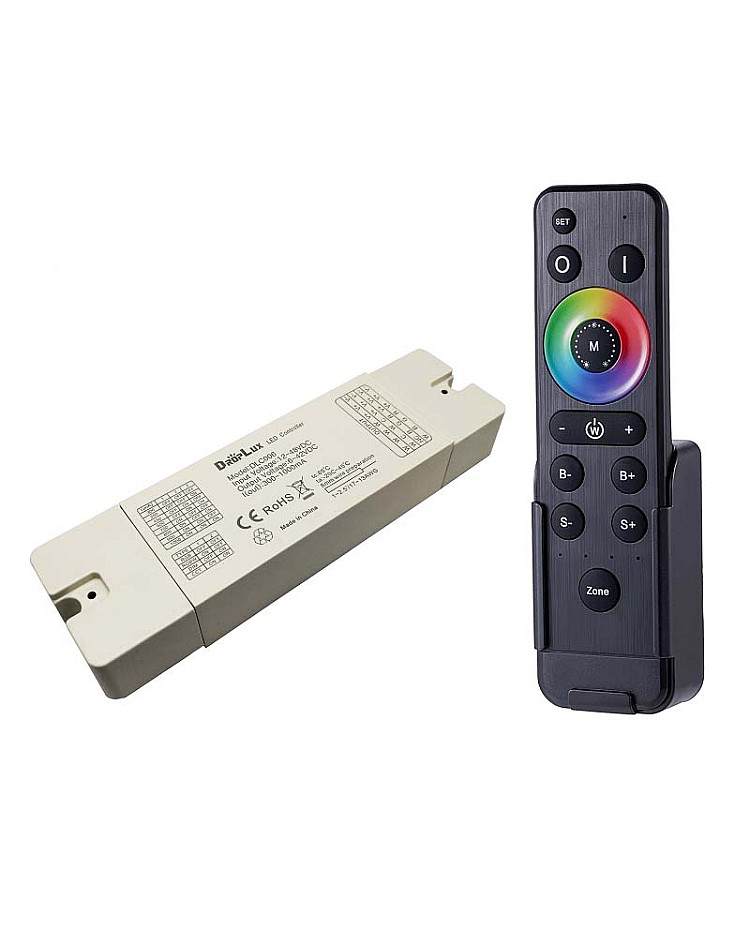

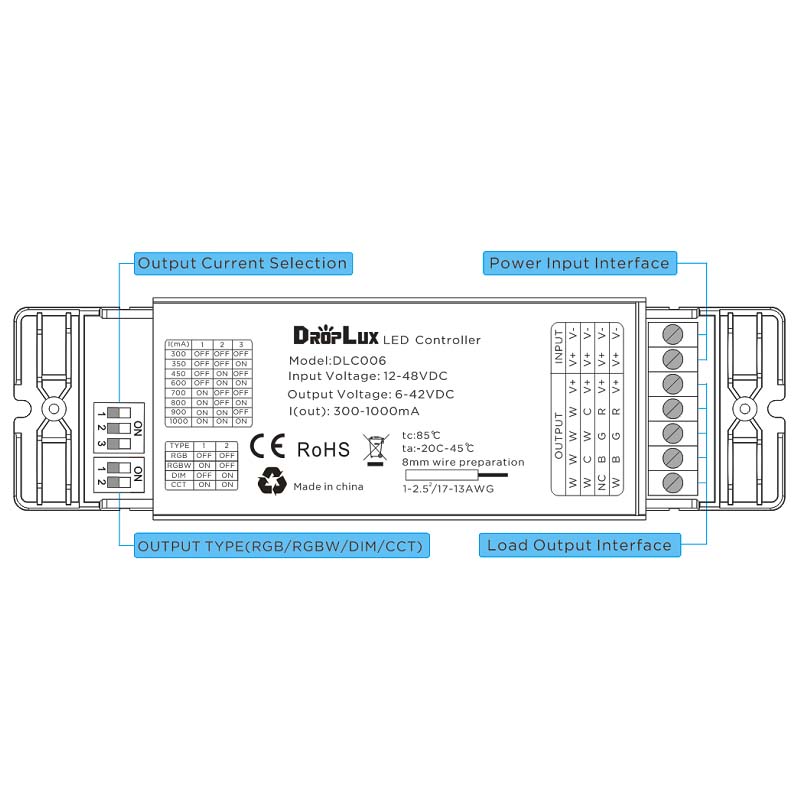

The constant current RF LED controller has a 4 in 1 function design for CCT/RGB/RGBW LED lighting. The RF controller adopts the most advanced PWM digital control technology, which you can use to control most constant current LED lights. The working voltage range is between DC12V and DC48V. The input interface includes the V+ extremely common interface, and the other four are for the 4-channel output control interface. You can connect to the single color, tunable white, RGB, and RGBW LED stipes. There is a DIP switch that allows controlling the output type. You can also control the output current by pressing another DIP switch on the RF LED controller; the output current ranges from 300mA to 1000mA. the 2.4GHz LED light remote included, no need for line-of-sight, the control range up to 20meters. You can use the RF remote control to set the various static colors or dynamic modes for the perfect control effect, and it supports 1024 static colors(RGB/RGBW) and a soft dim function. The brightness of static color is adjustable, 1024 levels in total, and the speed of dynamic changes is adjustable too, 1024 levels in total. Long-press the brightness and speed keys to get the fast adjustment.

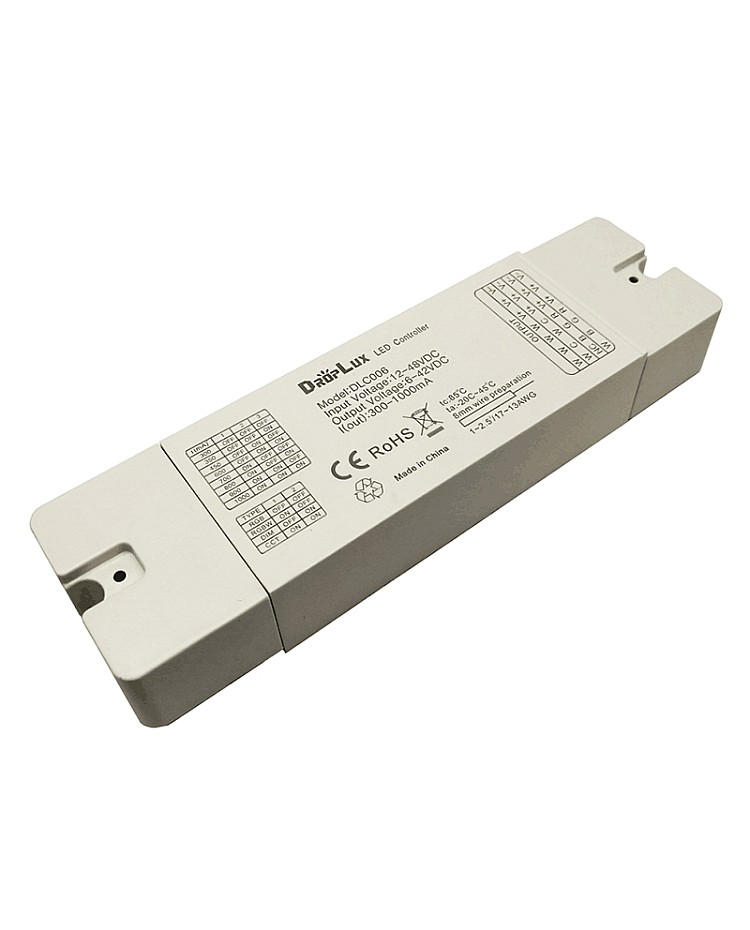

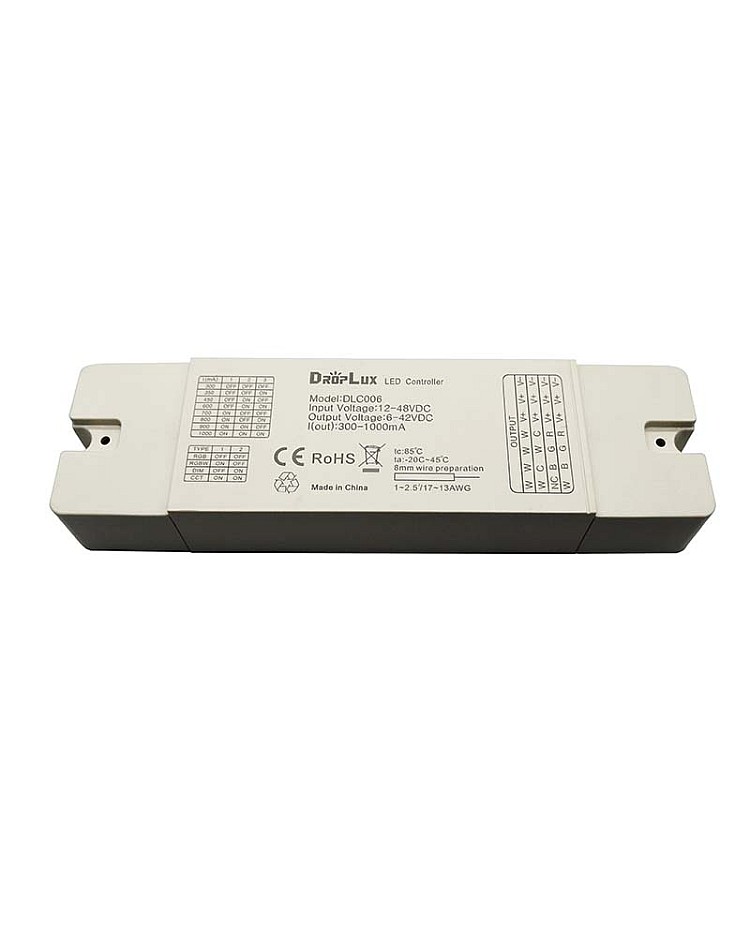

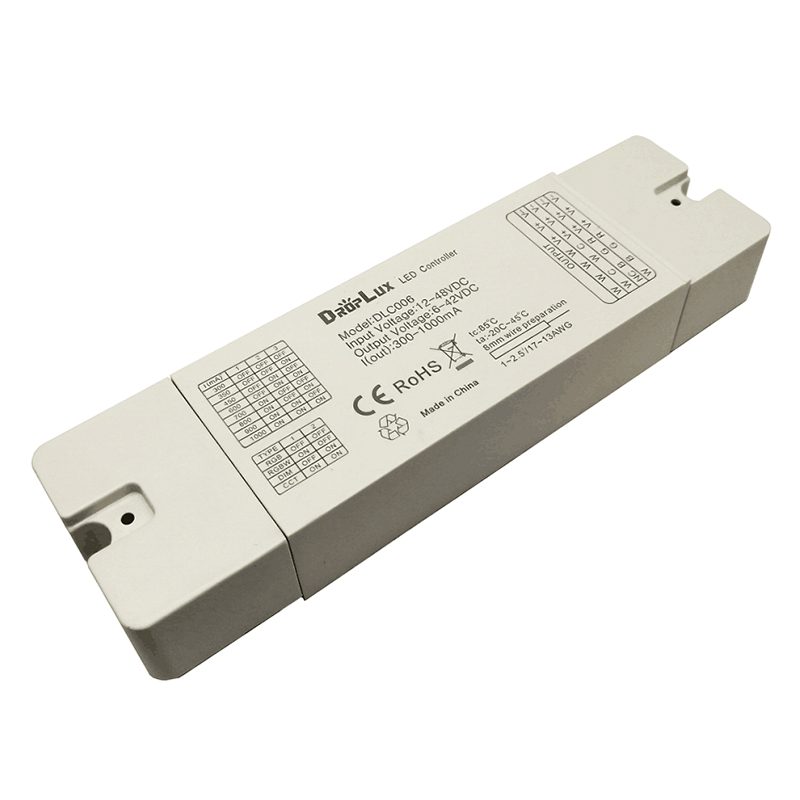

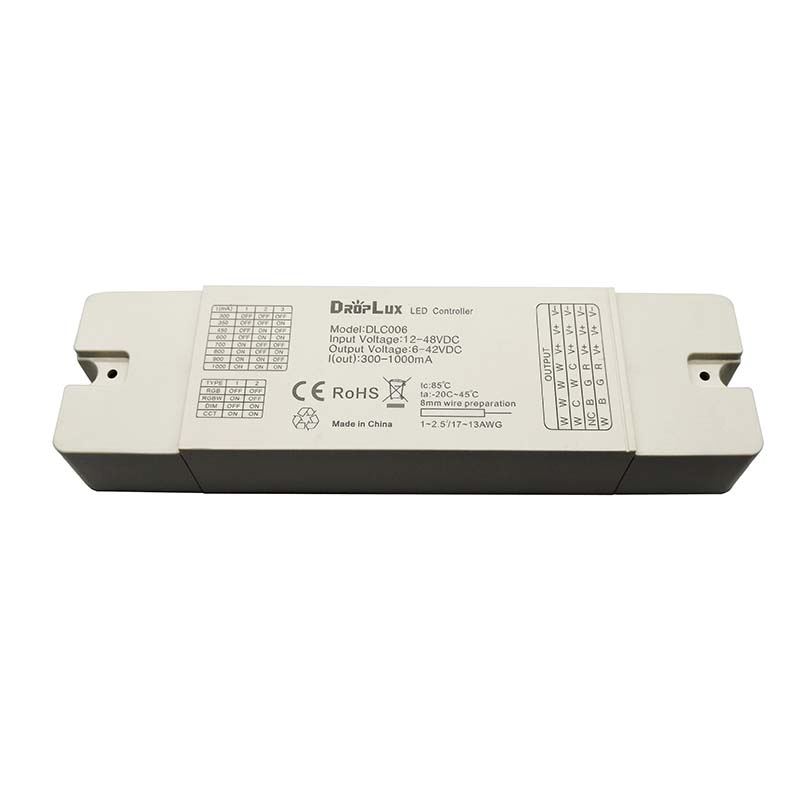

LED RF Controller Specifications:
- Working Temperature: -20℃-45℃
- Size: 160*46*25mm(L*W*H)
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Input Voltage Range: DC12V-48V
- Output Voltage Range: 6-42VDC
- Output Channels: 4
- Output Current Range: 300- 1000mA
- Max Output Power: 36W(12V), 72W(24V), 168W(48V)
- Grayscale: 1024 Levels
- Speed Stage: 100 Grade
- RF Frequency: 2.4GHz
- RF Control Distance: ≤20m
- 4 In 1 Function: DIM, CCT, RGB, RGBW
- Input Voltage Range: DC12-48V, Output Current Range: From 300mA to 1000mA By DIP Switch
- 2.4G Wireless RF Remote Control Included
- Wireless-Sync-Control Function Available In Both Static Colors And Dynamic Modes
- Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
- Short Circuit Protection: YES
- Memory Function: YES
- Weight: 135g
- 3 Years Warranty

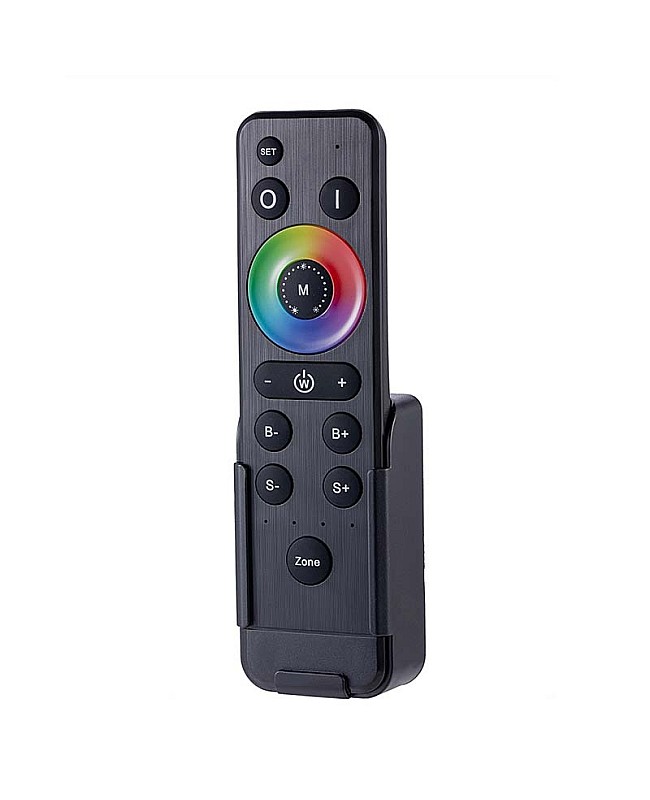

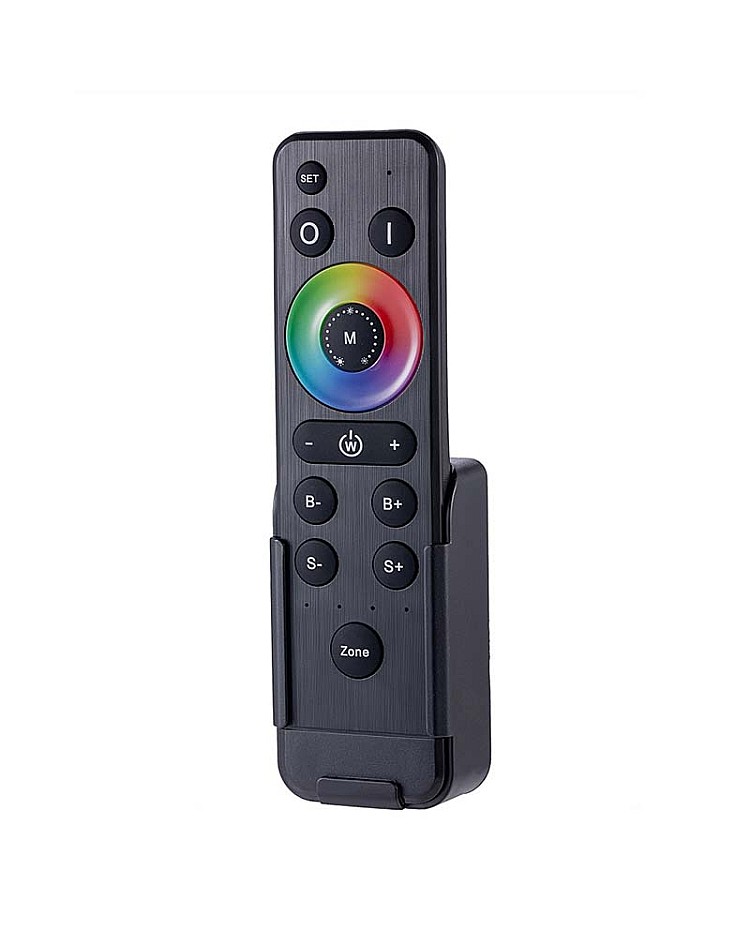

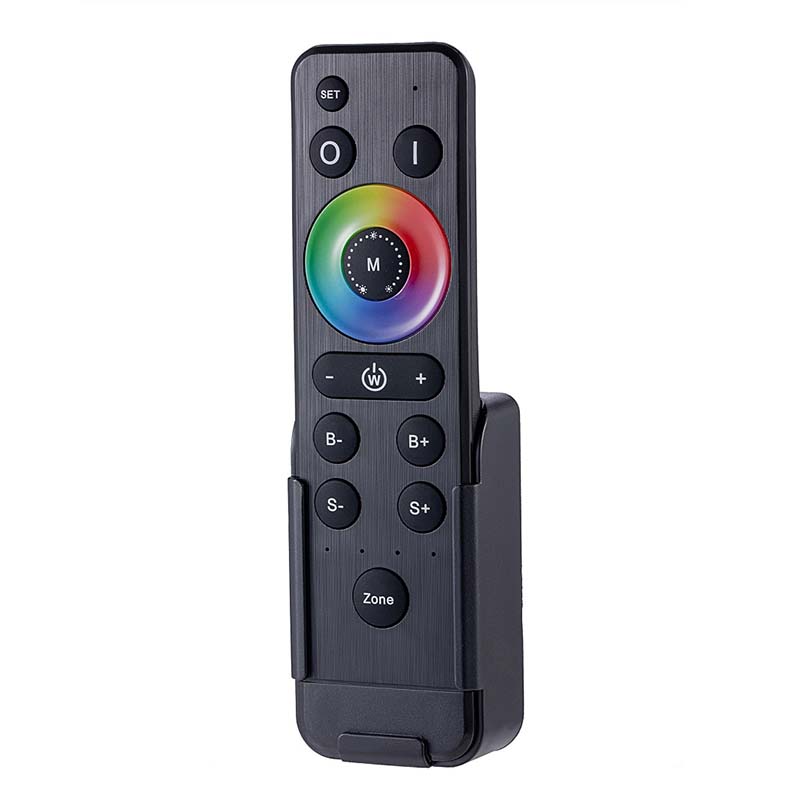

Wireless Remote Control Specifications:
- Working Temperature: -20℃-60℃
- Size: 150*40*20mm(L*W*H)
- Working Voltage: DC3V(AAA*2)
- Standby Current: <18uA
- Working Current: <25mA
- Standby Power: 54uW
- Working Power: 75mW
- RF Frequency: 2.4GHz
- RF Distance: ≤20m
- Weight: 95g

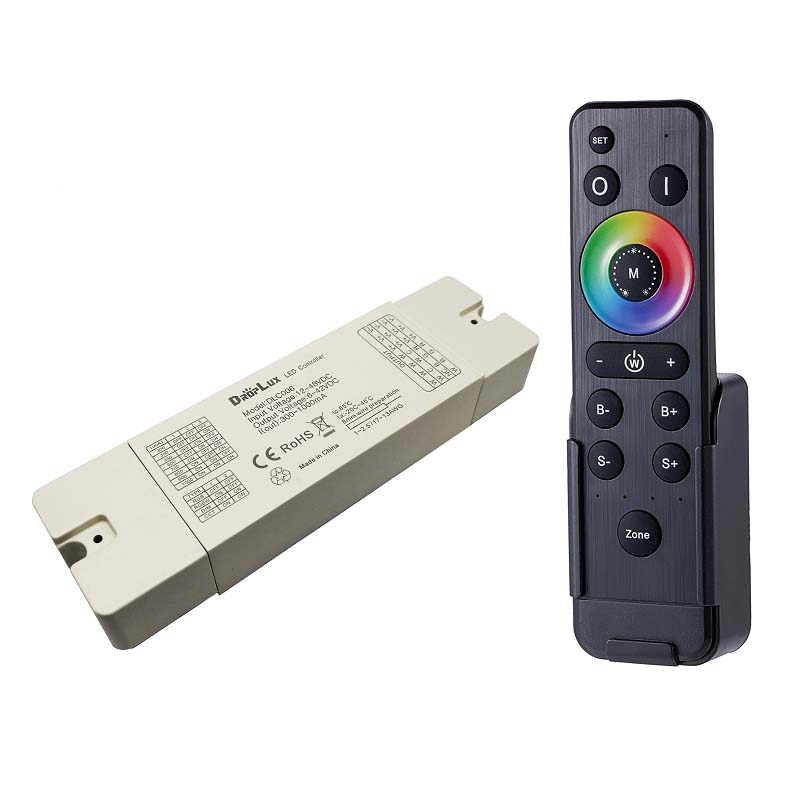

Includes:
1 * 4 In 1RF LED Controller
1 * 2.4G RF Wireless Remote Control
