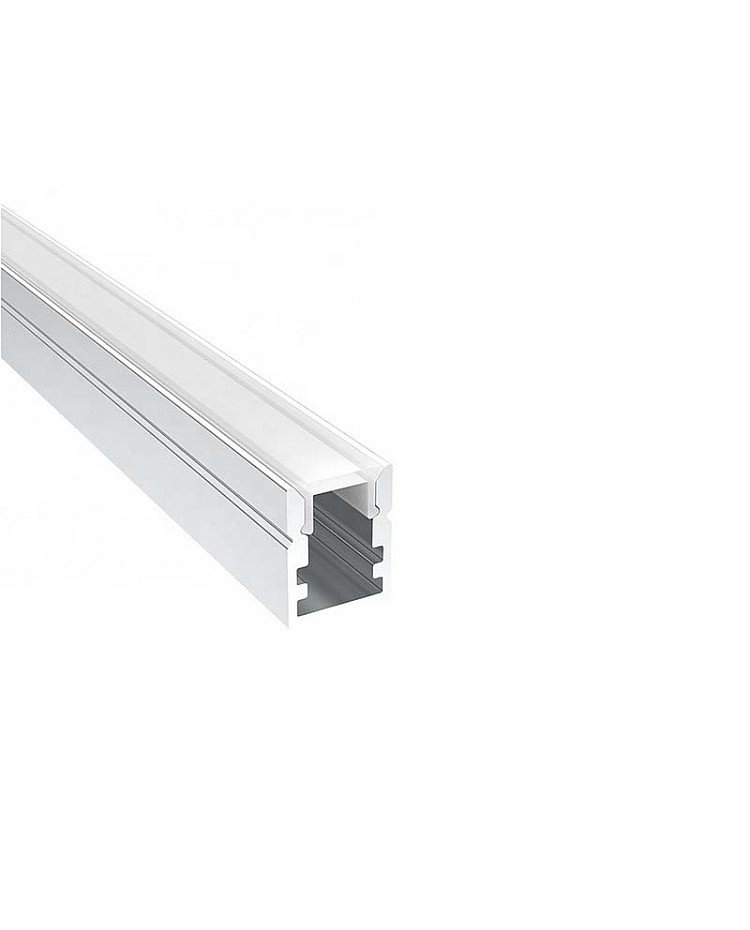

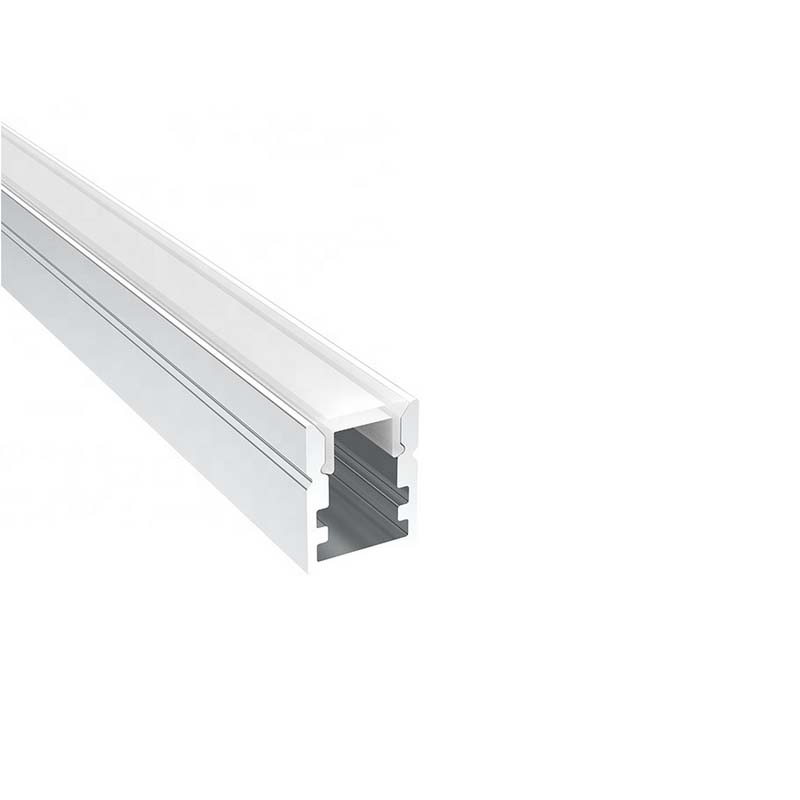

The Super Slim Aluminum LED Extrusion is perfect for adding lighting under grooves or under cabinets. Made of 6063-T5 aluminum alloy material with silver anodized surface treatment, it has a very slim profile and is durable and long-lasting, making it ideal for cabinet lighting applications. The standard length is 1M and 2M and can be cut to any size that fits your project. End caps and metal clips are included to allow for surface-mounted or recessed installation for grooves of cabinets. One type of diffuser is available: the PMMA diffused cover, black and white colors are available, made of brand table material, anti-yellowing, and perfect light distribution. The inner width of LED Light Extrusion is 8.4mm, which allows the max width of LED Strips to be 8mm. Recommend adding dotless COB Strip Lights as the light source, with no visible light spots and no dark areas, to create a seamless line of lighting.


  • Model: ALP035-R
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

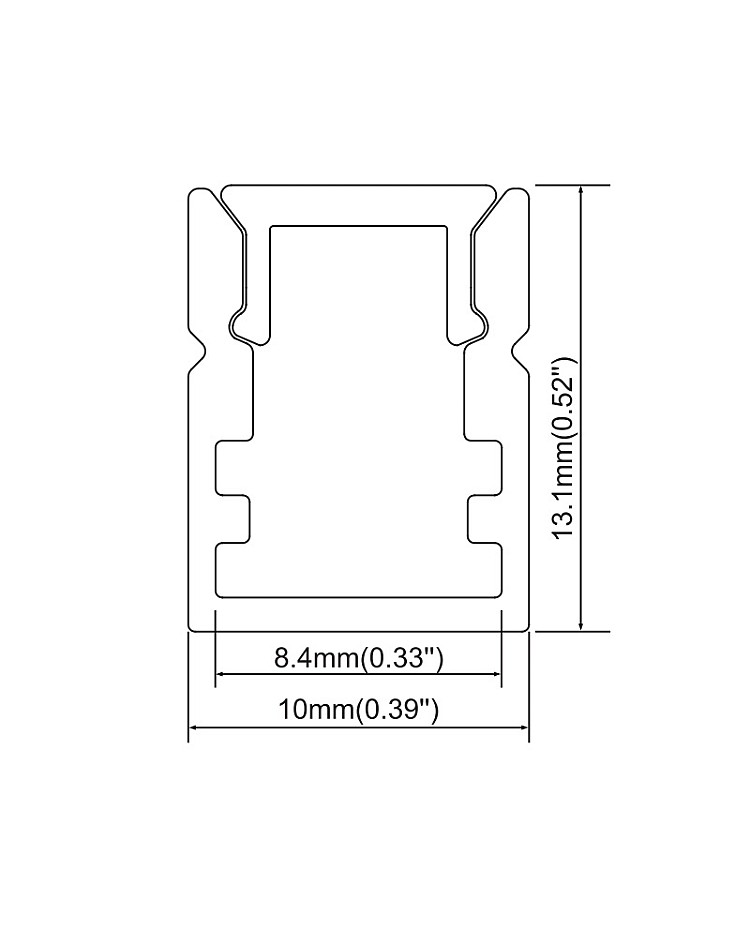

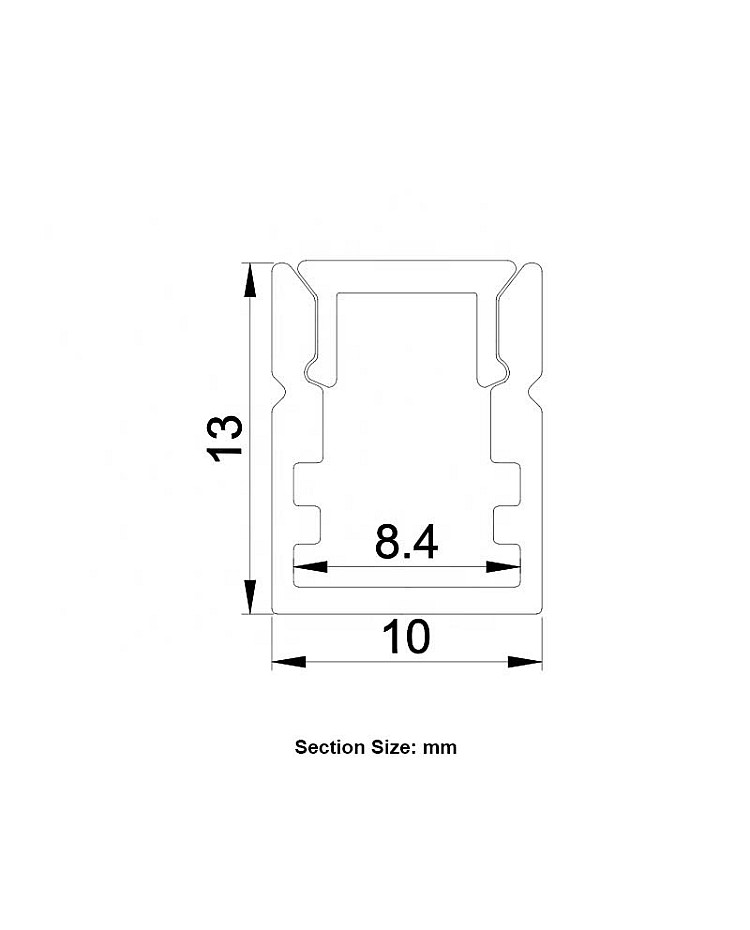

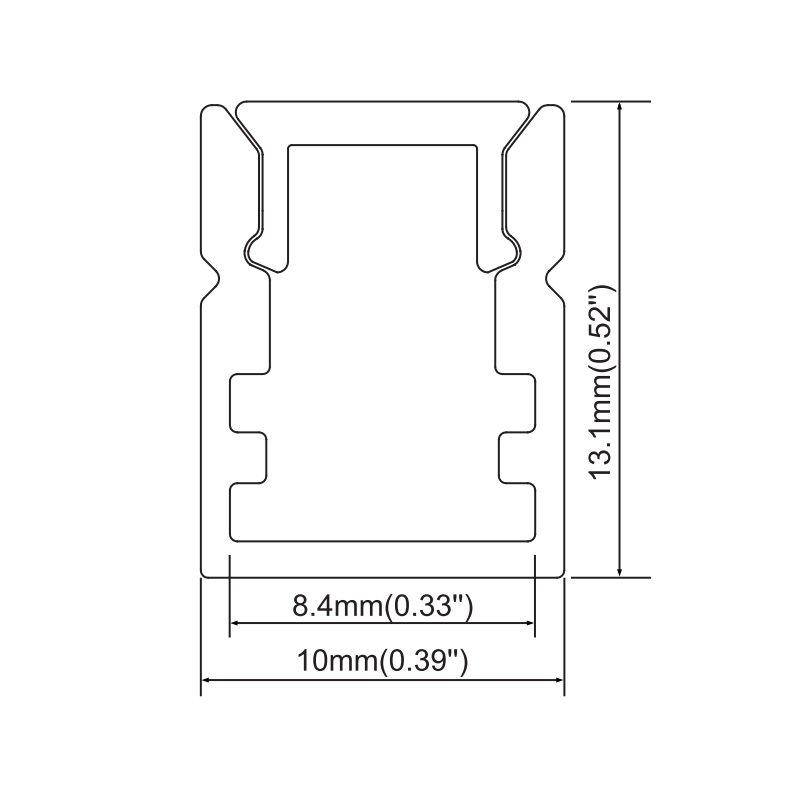

  • Size: 10*13mm(W*H)
  • Inner Width: 8.4mm

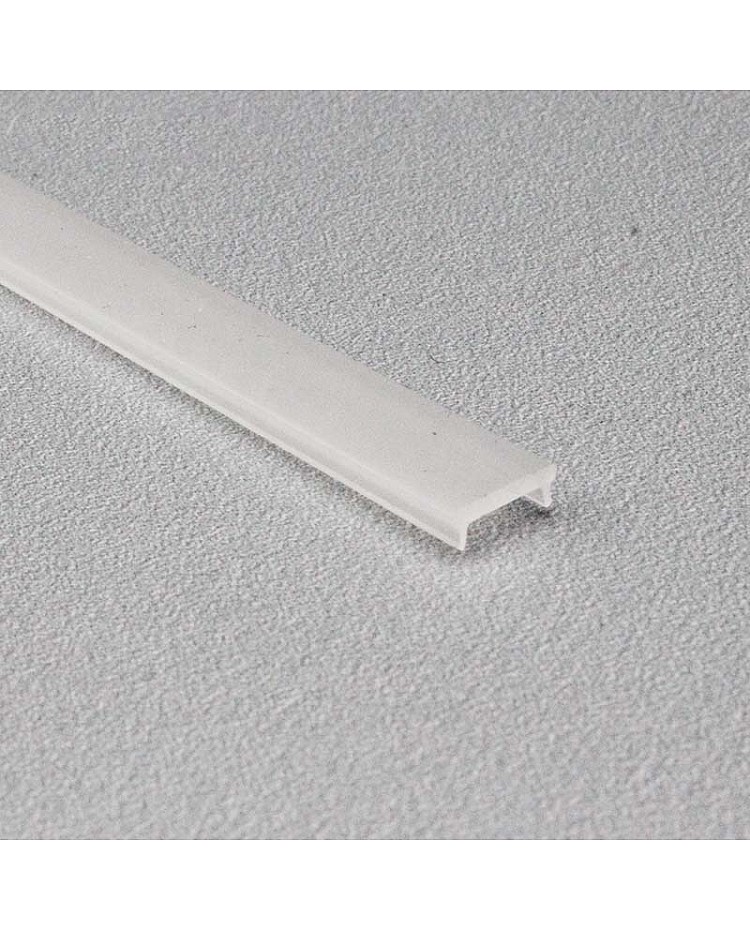

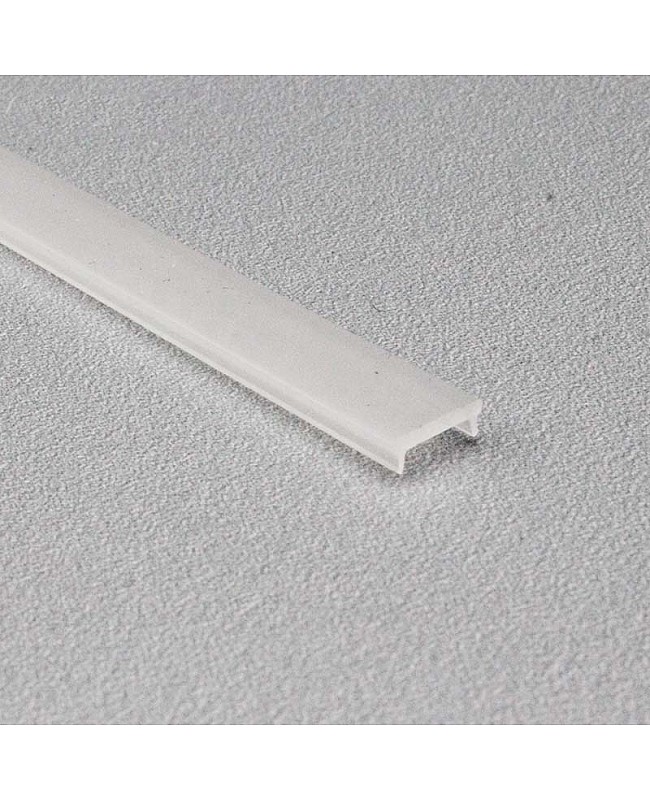

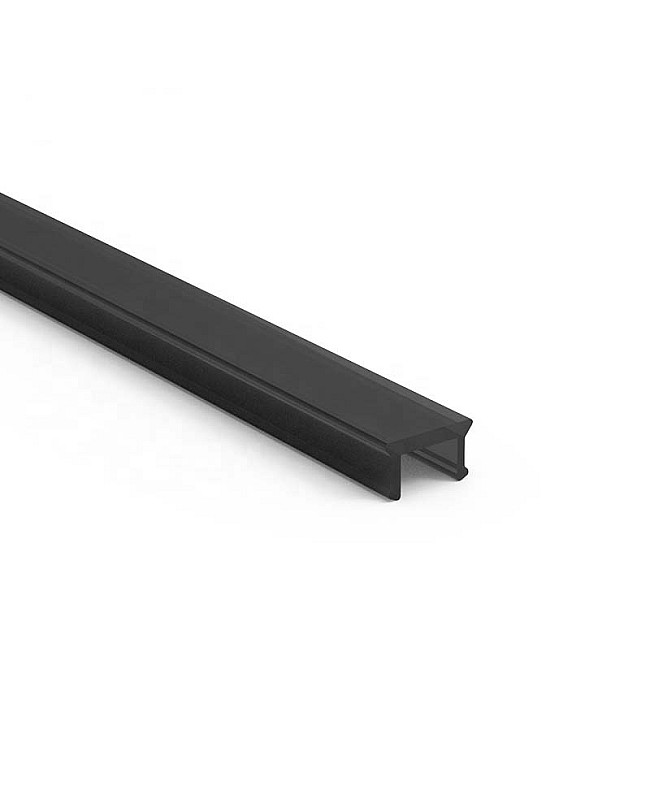

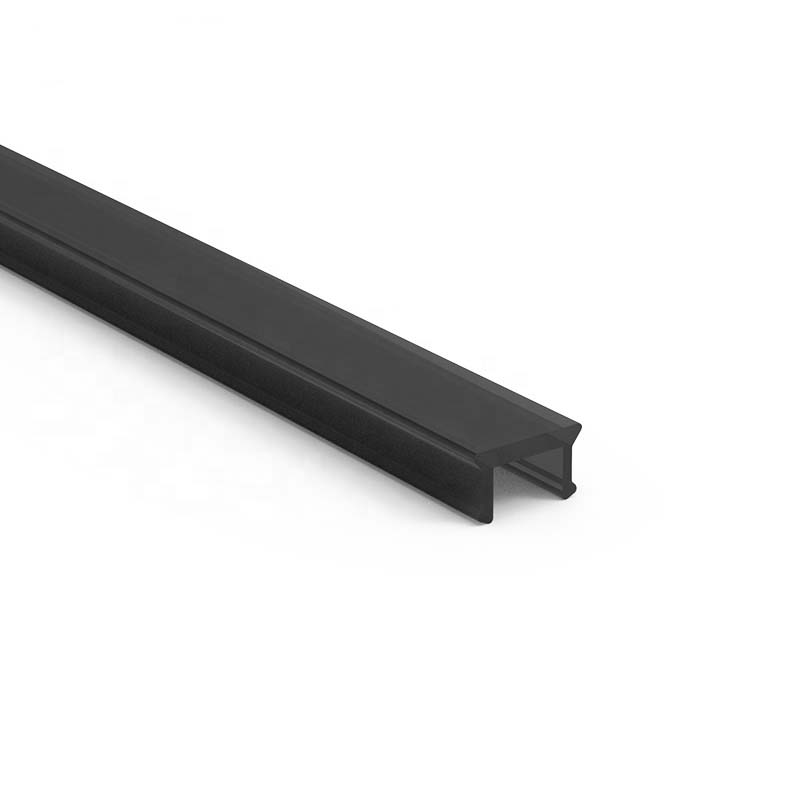

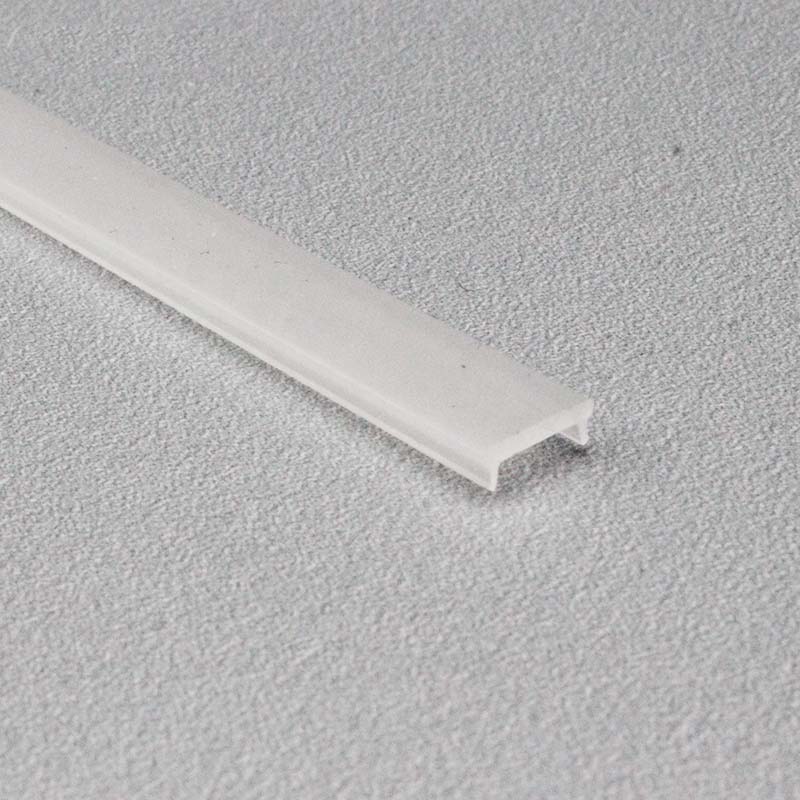

  • Diffuser: White/Black PMMA Diffused Cover
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5M, 1.5M, 2M
  • Custom Length Available: YES
  • Compatible With 3528, 5050 Flexible LED Strips
  • Max Power: <15W/Meter
  • Installation: Surface Mounted/Recessed
  • Applications: Cabinet Lighting
  • End Caps And Metal Clips Included
  • 5 Years Warranty


1*LED Tape Extrusion With Diffuser

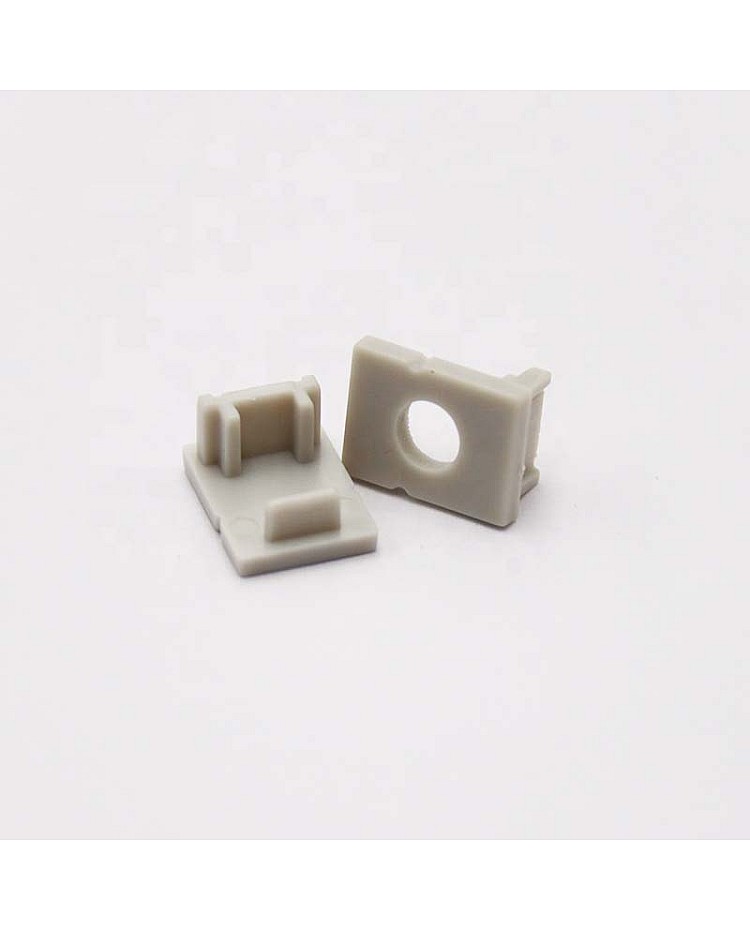

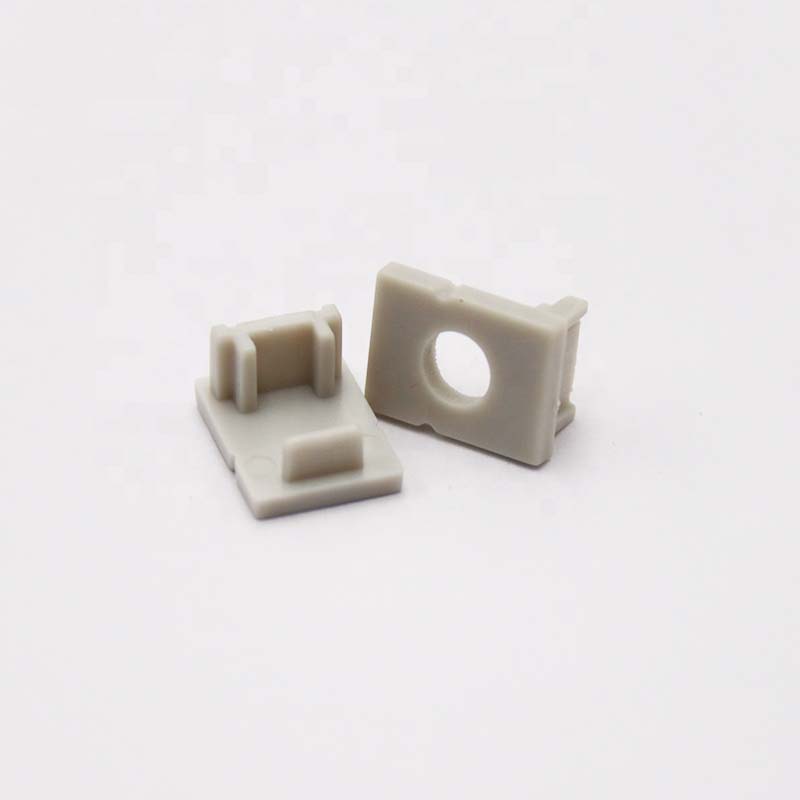

End Caps(With Wire Holes And Without Wire Holes)

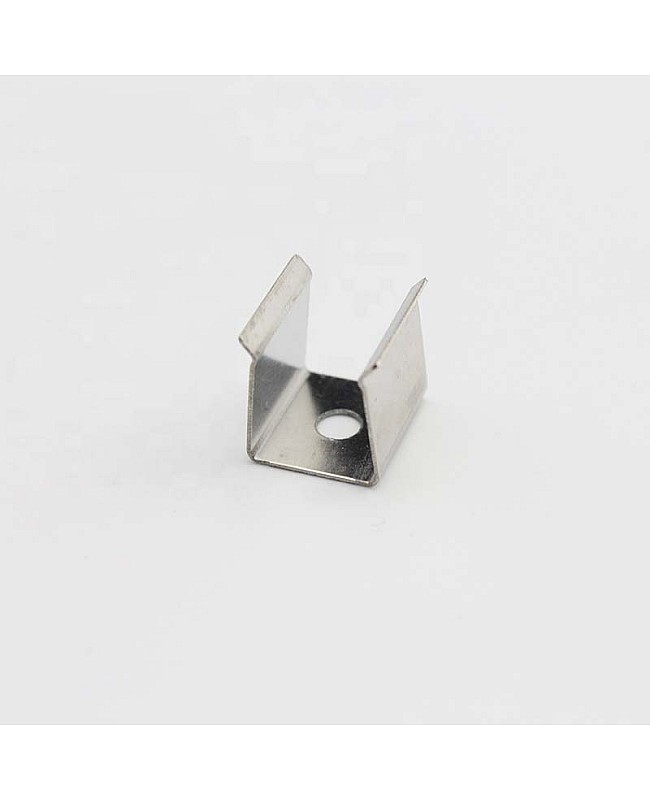

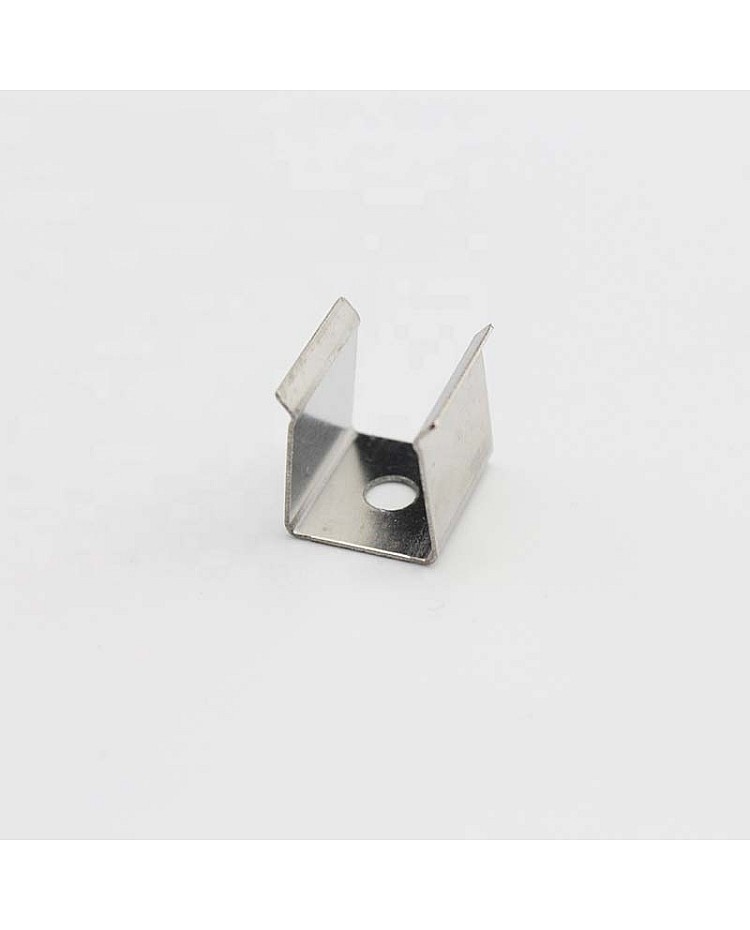

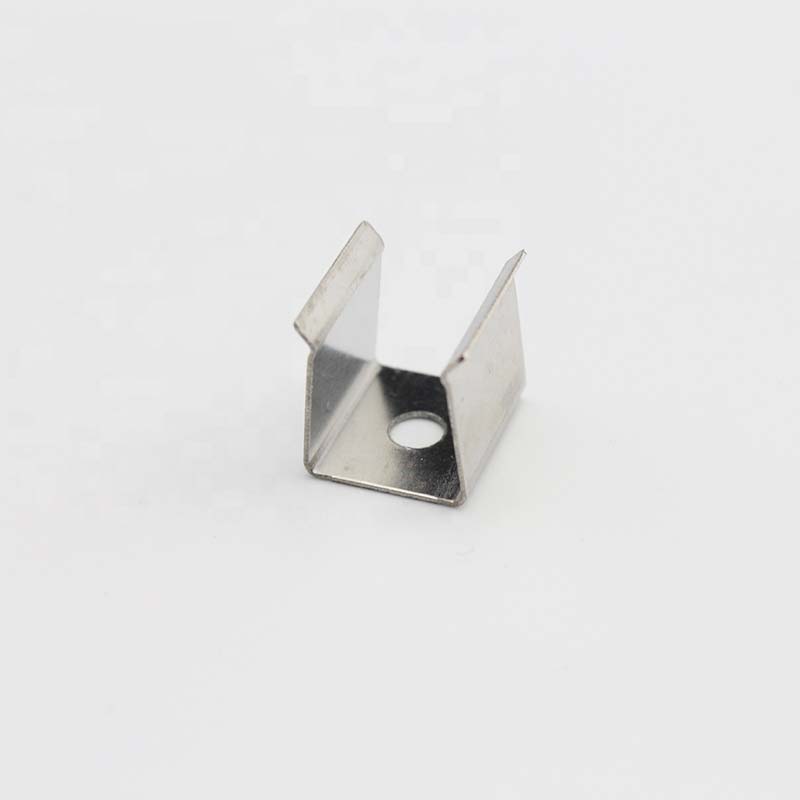

Metal Clips

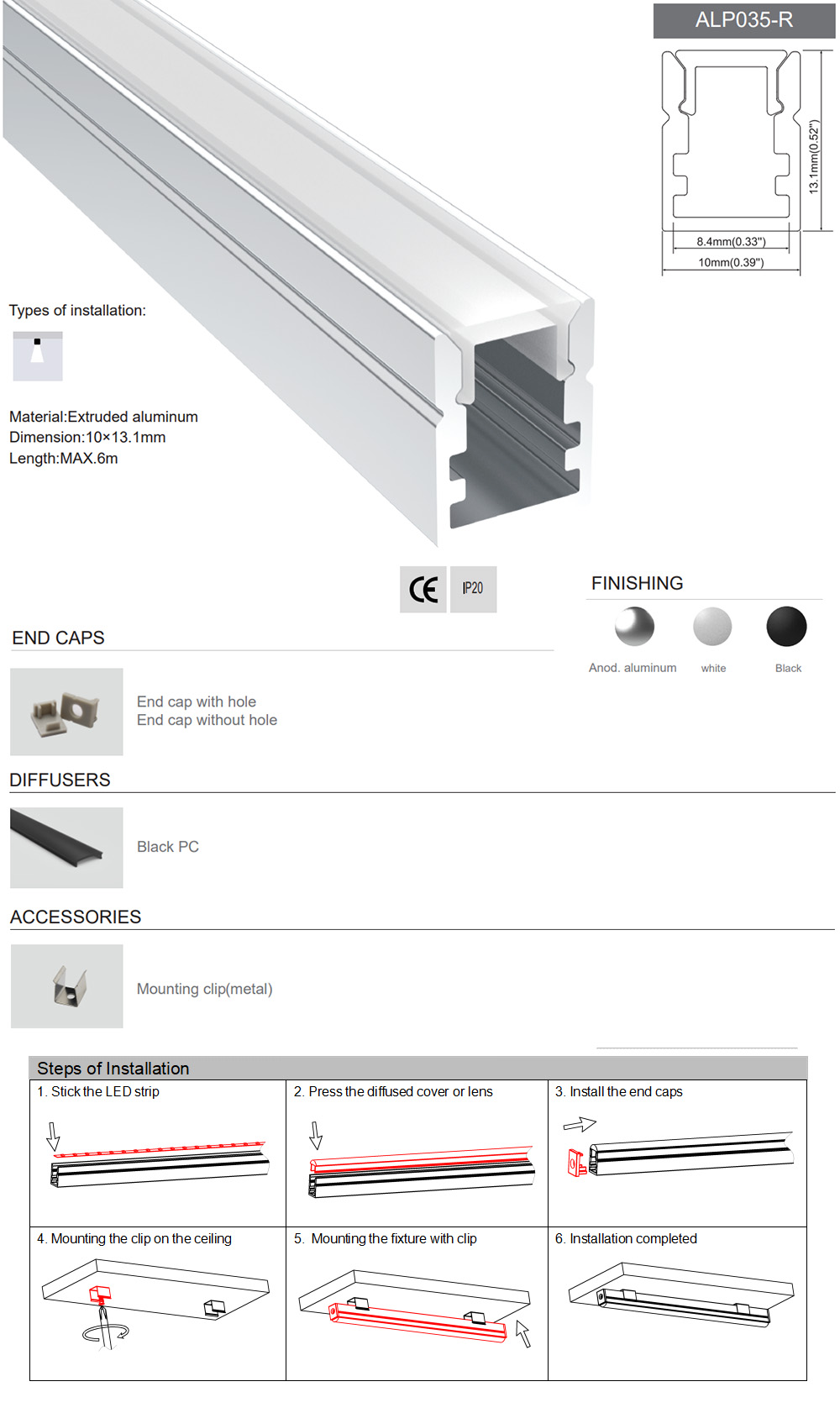

Super Slim Aluminium Channels
