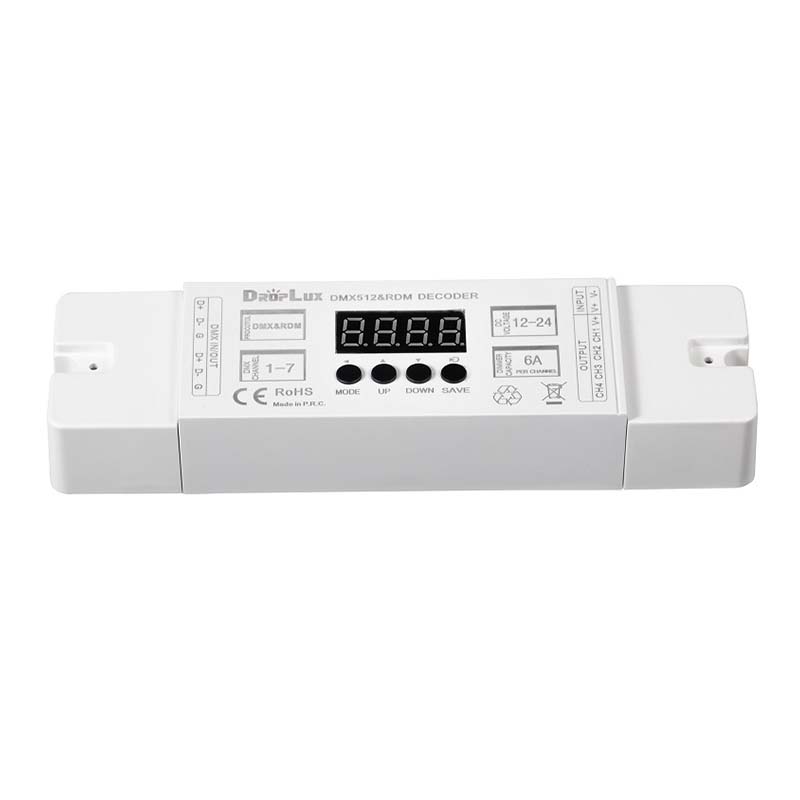

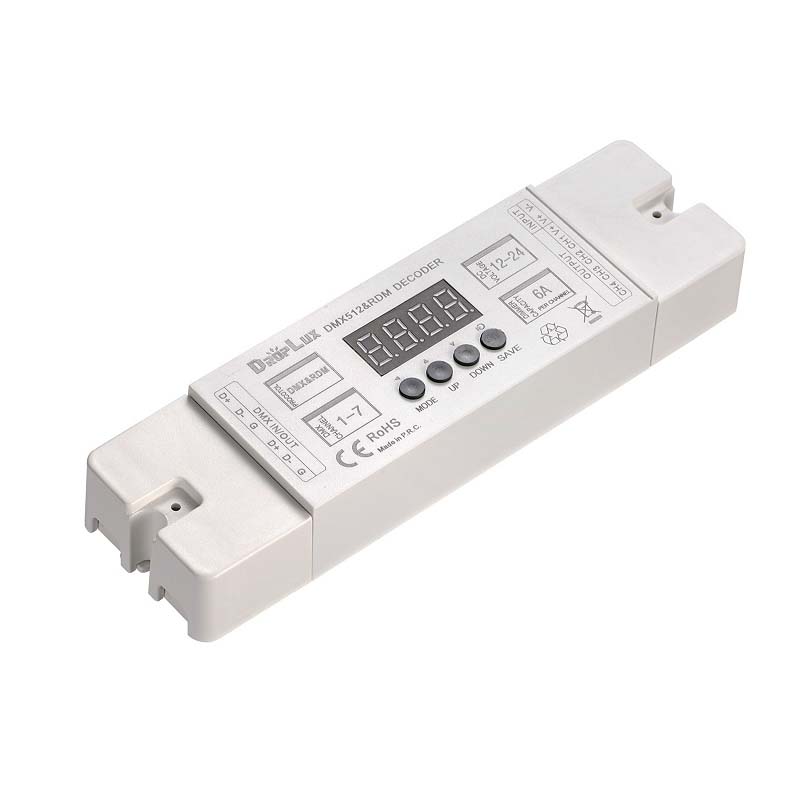

Check out the DMX512 RDM LED Decoder, which is working in constant voltage DC12V or DC24V, will automatic identification the type of input signal, when the input signal is DMX signal, will jump to the DMX setting star address mode(dxxx) to receive data. 9 different DMX512 decoding profiles available, from CH01 to CH09, with 4 in 1 output type design, supports single color, CCT, RGB and RGBW. the PWM frequency is adjustable, you can choose the 500Hz, 1KHz, 2KHz, 4KHz, 7.8KHz, 15.6KHz.


Use Instruction:

DR01 is controlled by the DMX signal system. At the same time, a built-in test function can be used to illuminate the LED load without a DMX signal during the installation process, and press the "MODE" key to switch between different test modes (displayed as "PLxx") and speed (displayed "SPxx"). DR01 has the function of automatically recognizing DMX signals. When there is a DMX signal, it will automatically enter the DMX control state. The digital tube displays the start address of the DMX (displayed as "Dxxx").


Set DMX start address:

By pressing the MODE key, when the digital tube displays dxxx (xxx is 001-512), it enters the address setting mode. Press the UP / DOWN key to set the address (long press for quick adjustment), the digital tube displays the current address in real time (e.x. d032-start address is 32), and then press the "SAVE" key to save. DR01 is also compatible with the RDM protocol, so it can also set its address through the RDM controller. The digital tube will display the address given to it by the RDM controller in real time and save it automatically (no need to press the "SAVE" key).


Features:

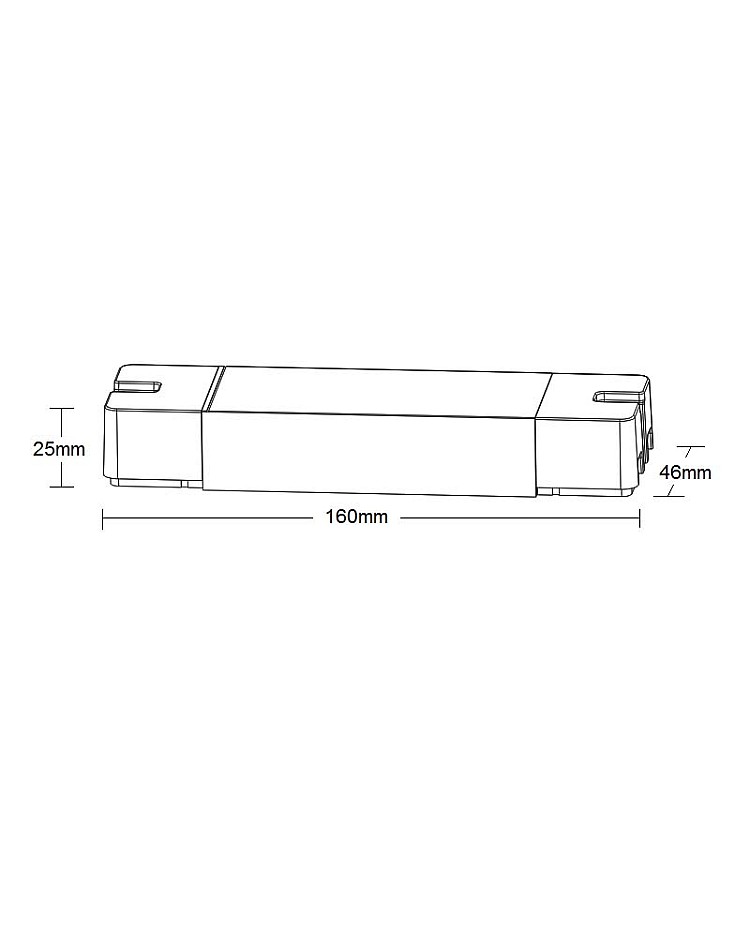

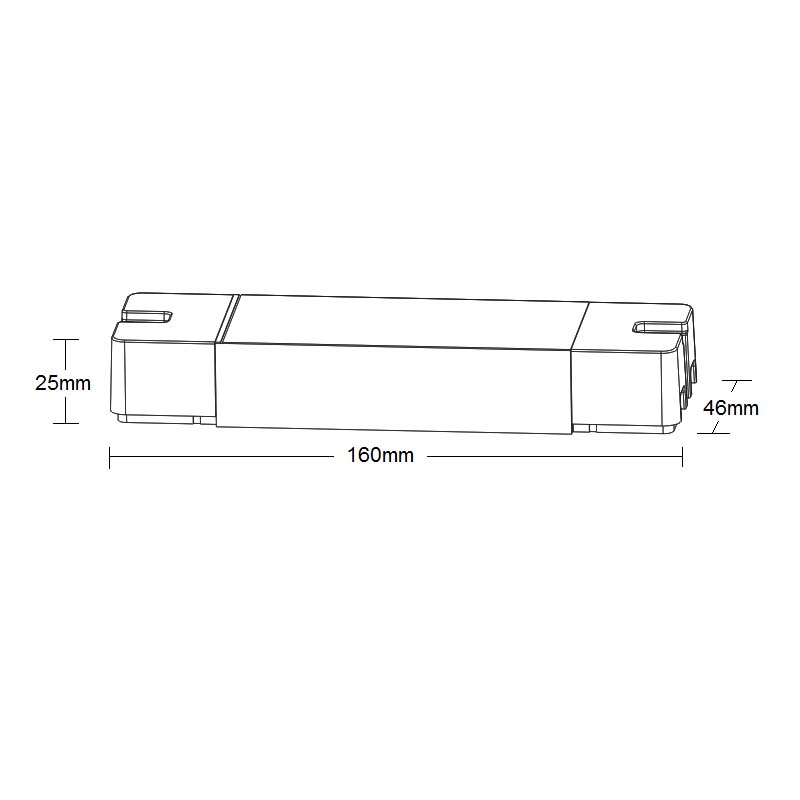

  • Size: L162*W46*H25mm
  • Working Voltage: DC12V/DC24V
  • Static Power Consumption: <1W
  • Connecting Mode: Common Anode

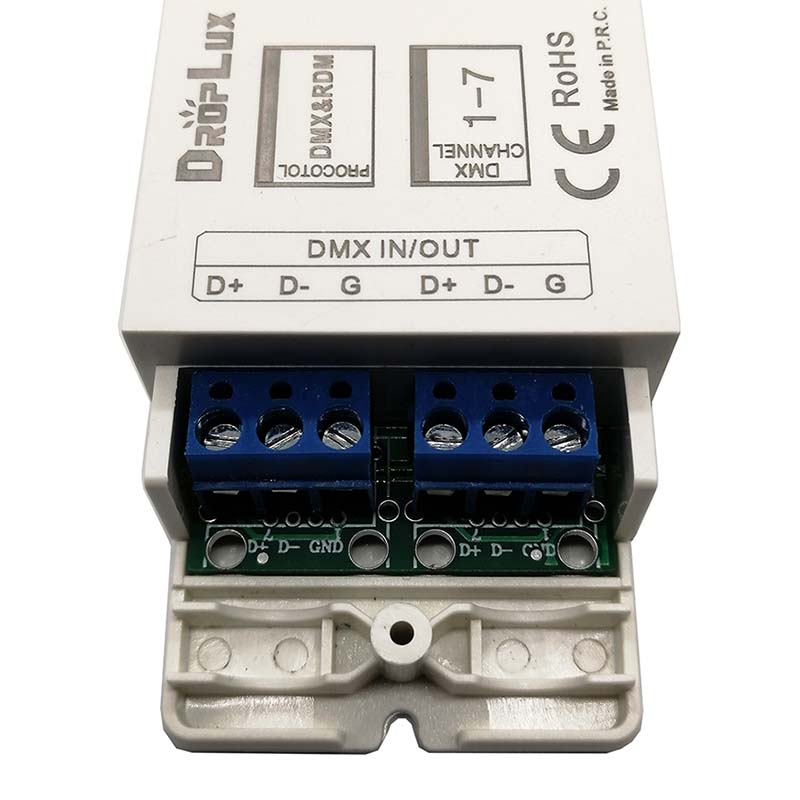

  • Transmit Signal: DMX/RDM
  • Output Gray: 256 Levels
  • DMX Profiles: 9 Modes

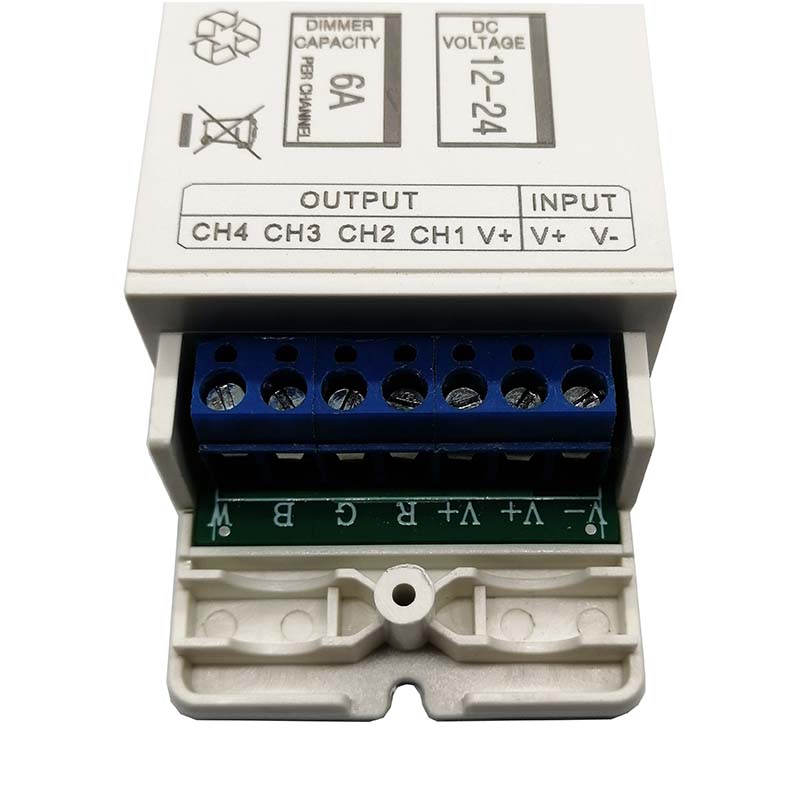

  • 4 Channels Output
  • 4 In 1 Output Types: Single Color, CCT, RGB, RGBW
  • Gamma Curve: 0.1, 0.5, 1, 1.5, 2.2
  • Memory Function: YES
  • PWM Frequency: 500Hz-15.6KHz
  • Max Output
  • PWM<=2KHz: 6A/CH, 188W/12V; 576W/24V
  • PWM=4KHz: 5A/CH, 240W/12V; 480W/24V
  • PWM=7.8KHz: 4A/CH, 192W/12V; 384W/24V
  • PWM=15.6KHz: 3A/CH, 144W/12V; 288W/24V
  • Short Circuit Protection
  • Weight: 200g


Includes:

1*DMX512 LED Decoder

DMX512 Decoders 4 In 1 LED Decoder
